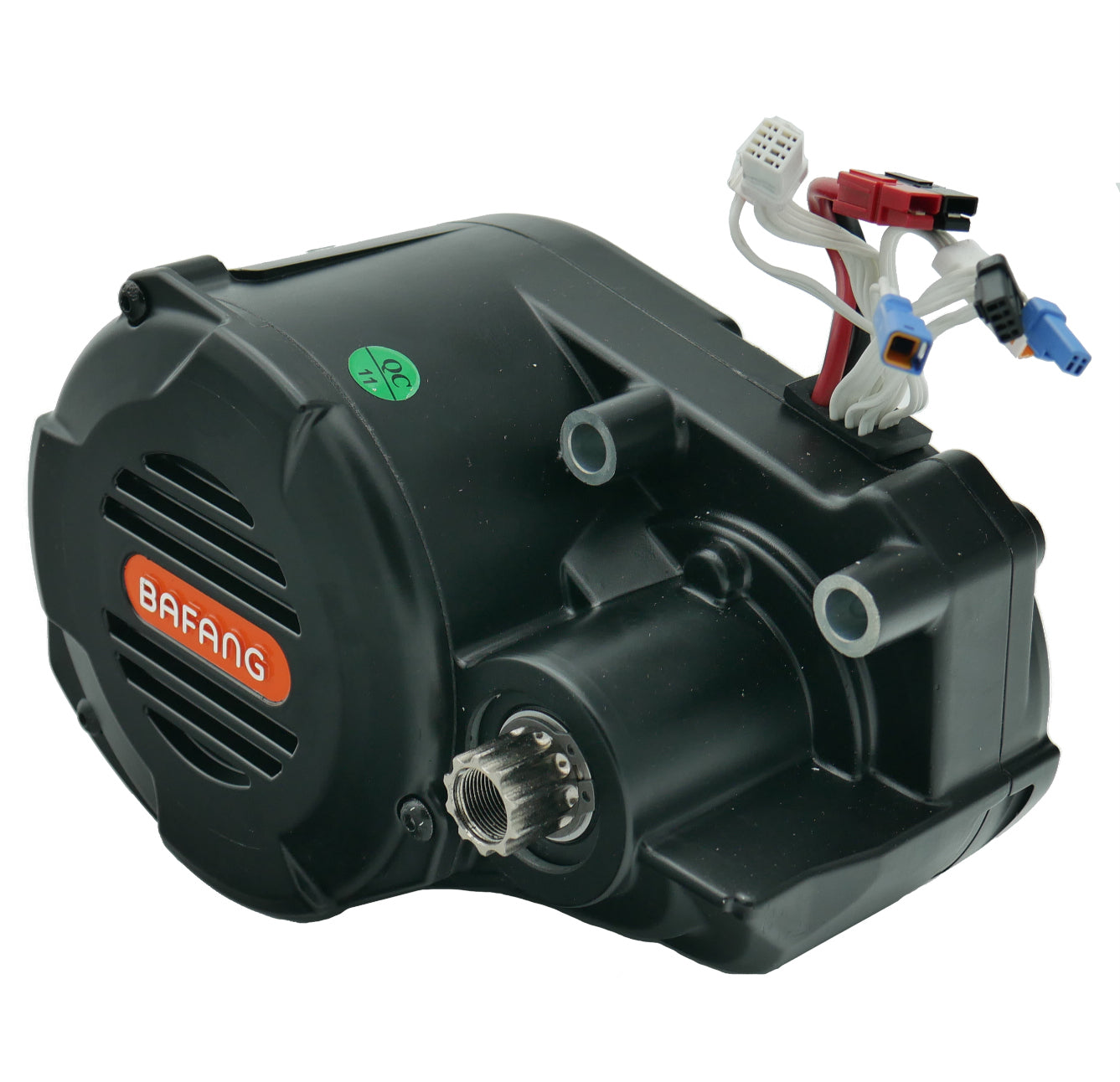

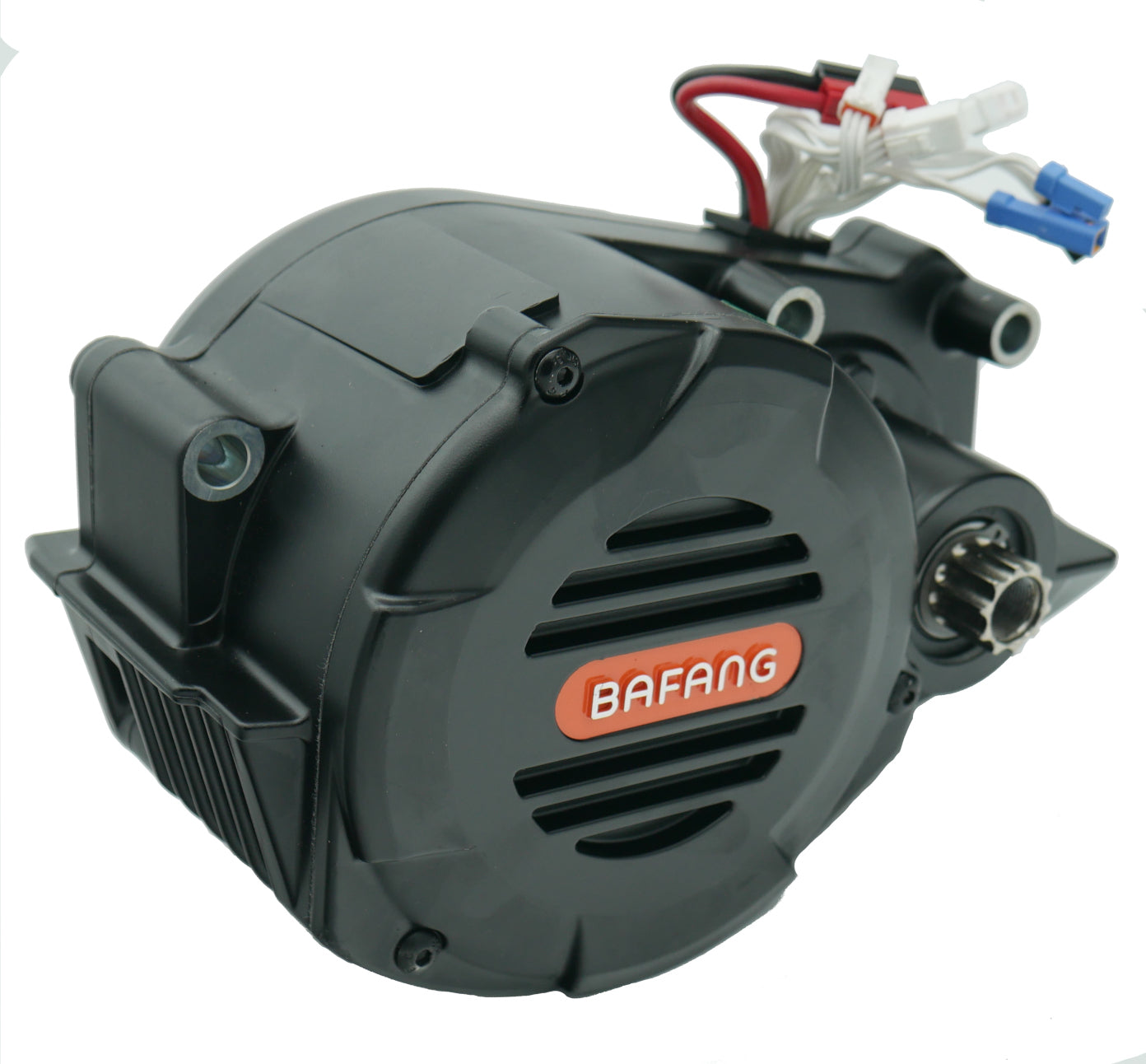

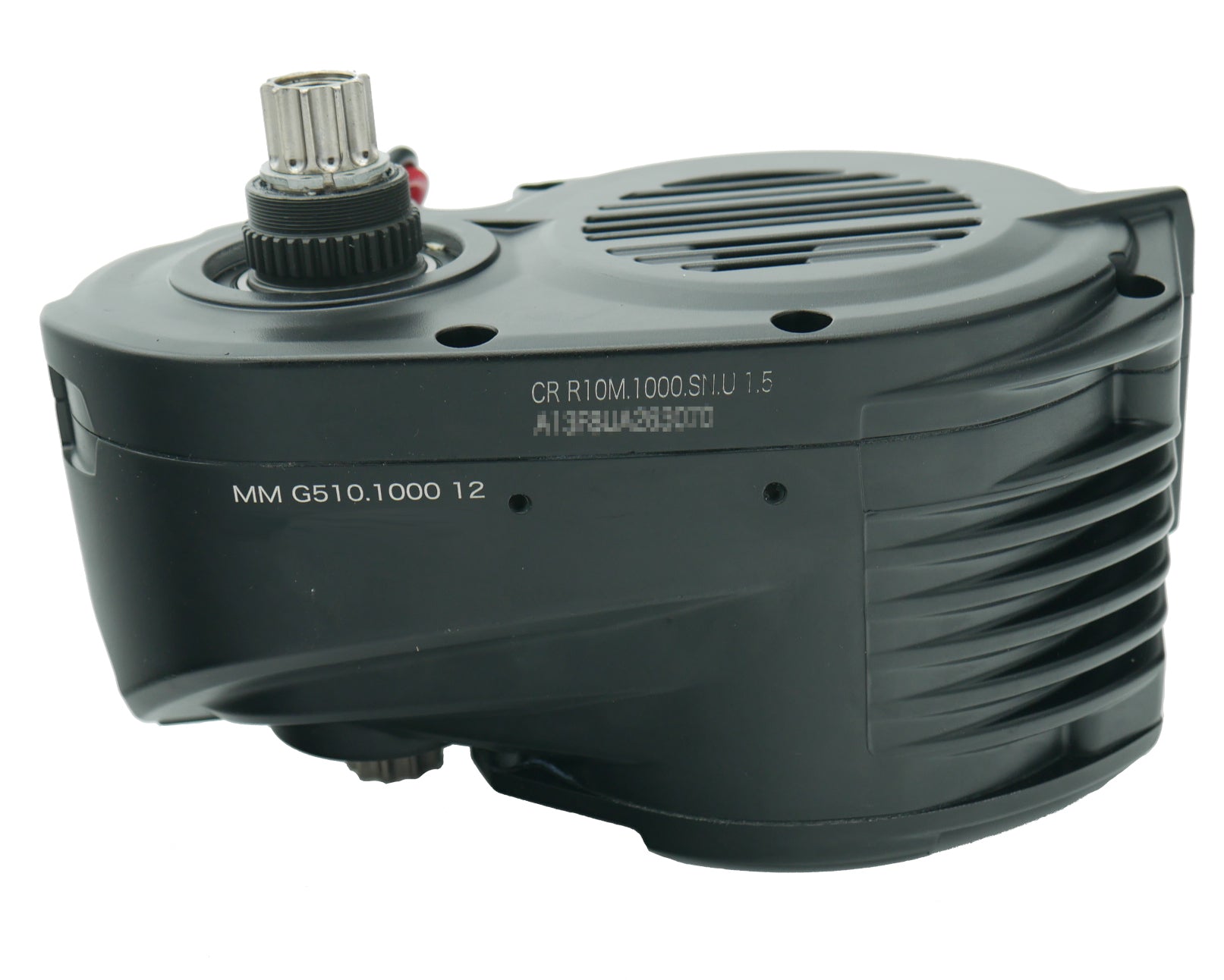

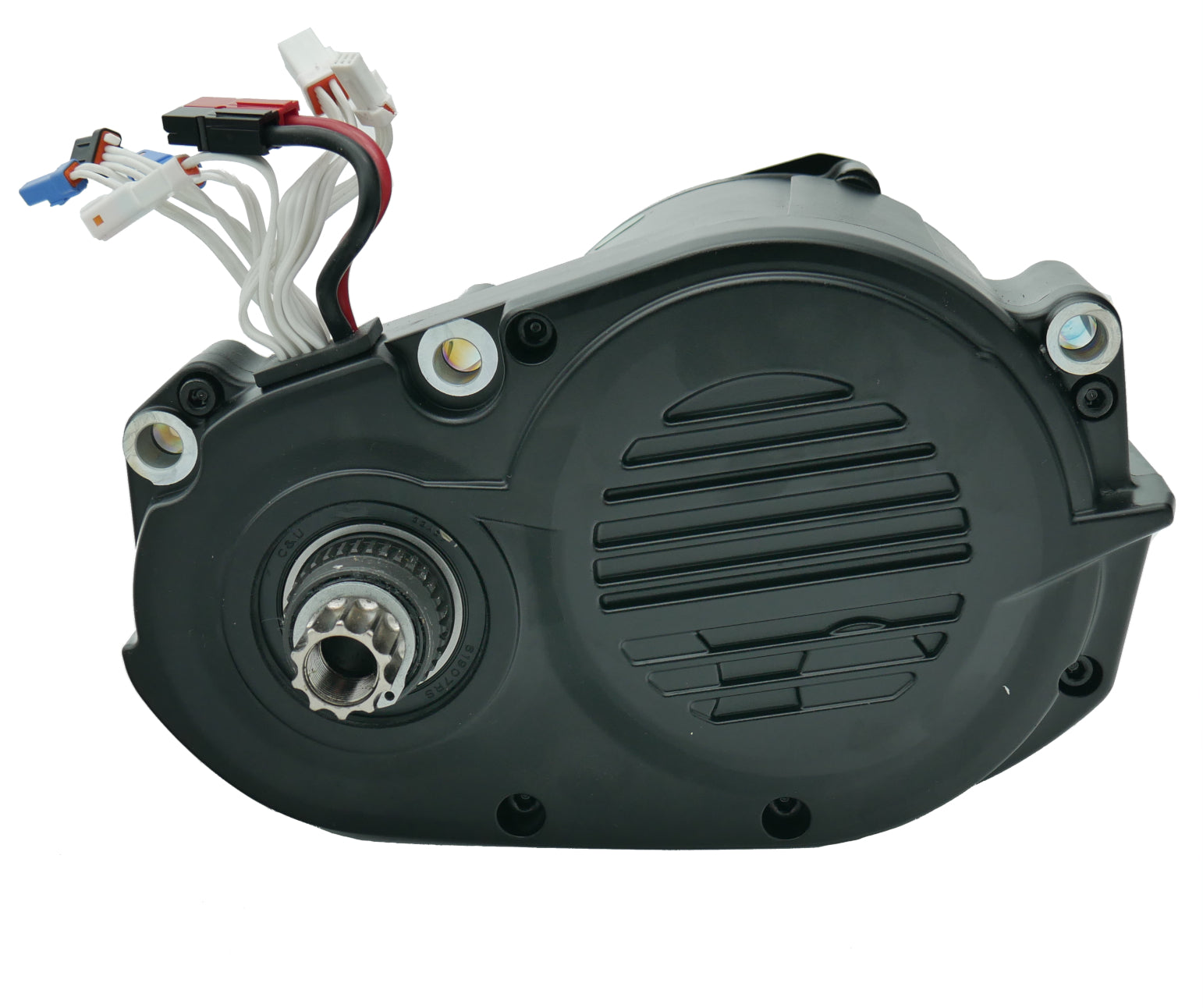

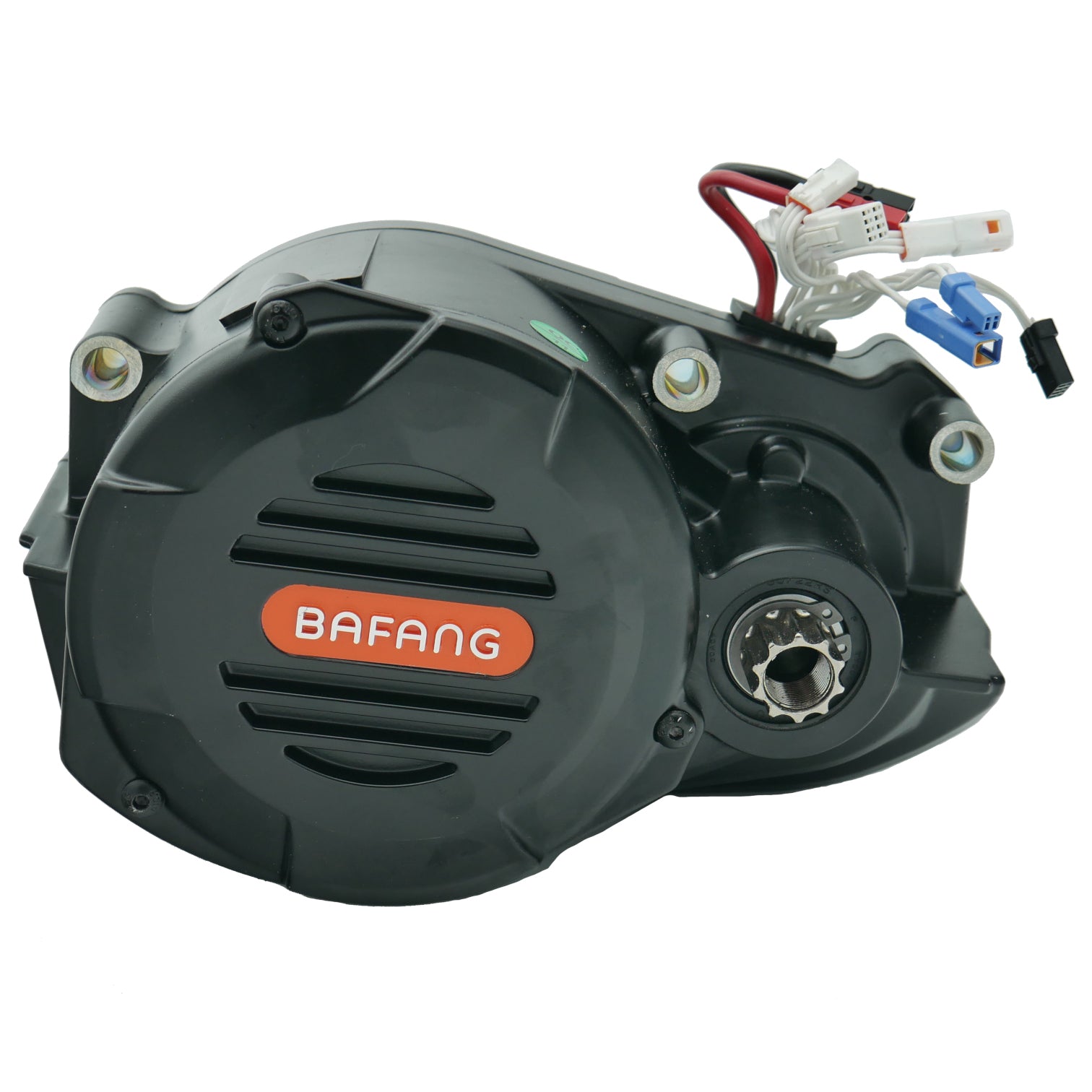

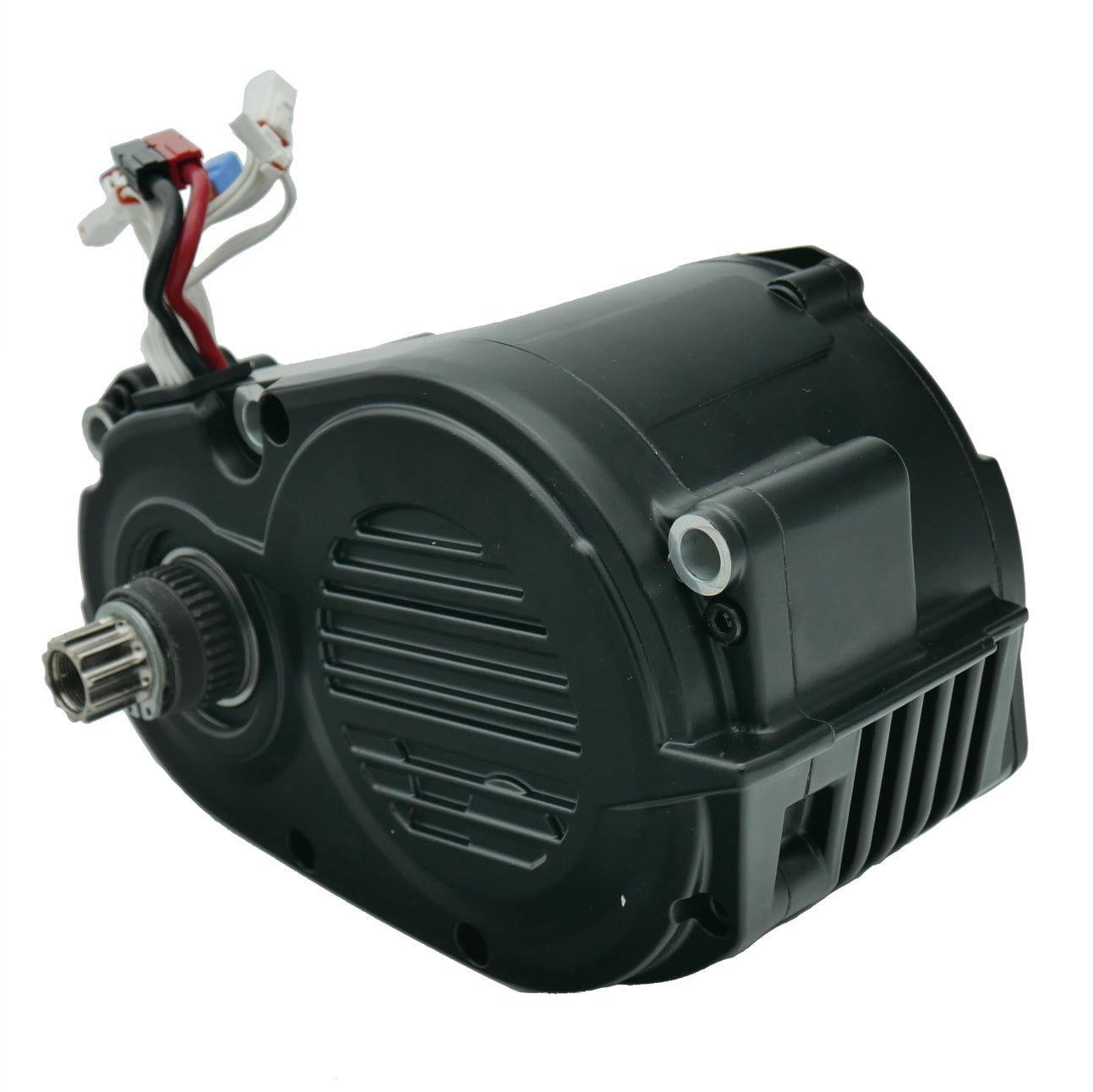

Bafang M620/G510 Bare Ultra Motor

We are sorry, but this product is currently sold out!

However, if you are still interested, please fill the form below and we will notify you when we are back in stock.

Sale price CA$1,199.00

Overview

The Bafang Ultra M620 is the ultimate motor for your heavy-duty eBike with an incredible maximum torque of 160Nm and a power output of 1000W, this motor can handle the heaviest loads on the steepest inclines.

Programmed for 48V and 52V.

Technical Specifications

Motor Protocol

UART

Rated Nominal Power output

1000W

Peak Power Output

1500W

Max Ampreage

30A

Max Torque

160 N.m

Rated Voltage

48V / 52V

Position

Mid-Drive

Internal Gears

Steel Gears

Spindle Shaft Standard

ISIS

Water-proof grade

IP66

Pedal Assist Sensors

Integrated Torque + Cadence

Shift Sensor Function

Yes

Brake Sensor Function

Yes - Closer Type

Integrated Headlight / Taillight Capacity

Yes - Headlight + Taillight at 6 DCV / 3W MAX

Compatibility

Bike Name Compatible
Bikes with Bafang Ultra M620/G510 Motor
eBike Frames Designed for Bafang Ultra M620/G510 motors
Standard Bike Frames
Bike Frame Designed for BBS02 / BBSHD Mid-Drive Motors
Bike Frame Designed for Rear Hub Motor
