Juggernaut Classic Duo SO | 52V

4.5

Sale price CA$4,099

Unleash your inner explorer and embrace the thrill of off-road adventures with the Comfortable Off-Road Capable Mid-Drive eBike. Engineered for performance, comfort, and reliability, this eBike is your key to conquering any terrain with confidence.

Features:

• 750W Bafang BBS02 Mid-drive Motor: Experience effortless riding, even on challenging trails and hills.

• 120 Nm of Torque: Conquer steep inclines with ease, enjoying unparalleled power and performance.

• 330lb Load Capacity: Carry gear or essentials with ease, making this eBike perfect for weekend getaways or daily commutes.

• On-Demand Throttle: Enjoy the freedom to choose between pedaling or using the throttle for a relaxed ride.

• Smooth and Powerful Pedal Assist: Enhance your riding experience with seamless pedal assistance, thanks to the cadence sensor.

• Long-lasting Battery: The included 52V 17.5Ah 910Wh internal battery ensures extended rides without interruption, with a convenient charger included for easy recharging.

Benefits:

• Effortless Off-Road Exploration: Conquer rugged terrain and challenging trails with confidence, knowing your eBike is designed to handle it all.

• Customizable Riding Experience: Choose between pedaling or using the throttle for a personalized ride that suits your preferences.

• Reliable Performance: Enjoy smooth, powerful rides with the high-performance Bafang mid-drive motor and ample torque.

• Convenient and Long-lasting: With a generous load capacity and long-lasting battery, this eBike is perfect for all-day adventures or daily commutes.

Experience the Thrill of Off-Road Riding Like Never Before. Order Your Comfortable Off-Road Capable Mid-Drive eBike Today!

Read More

Frame Size Guide

M | 17” Frame Fits Riders 5’6”+ / 29”+ inseam

L | 19” Frame Fits Riders 5’10”+ / 31”+ inseam

What frame will fit me?

×

The best way to ensure a fit is to check this measurement on your existing bike’s normal riding seat position;

If this measurement is equal to or MORE than the minimum seat height of the selected model then the selected frame size will work, however, if it is LESS you need to select a smaller frame.

If you do not have a bike then measure your inseam like this; For most riders, the frame will work if their inseam is at least 2 inches less than the minimum seat height in inches. For example, a rider with an inseam of 28 inches can fit on a bike with a minimum seat height of 30 inches (30 - 2 = 28). If you want to have a flat foot on the ground while on a full stop then your inseam must be equal to or greater than the minimum seat height listed for that frame size. If you are selecting a step-over frame, ensure that the standover height listed is less than your inseam size.



---

When in doubt, pick the smaller frame. You can always raise the seat up higher.

If you need help with this, feel free to send us a note at: www.biktrix.com/cx

Color Reptilian

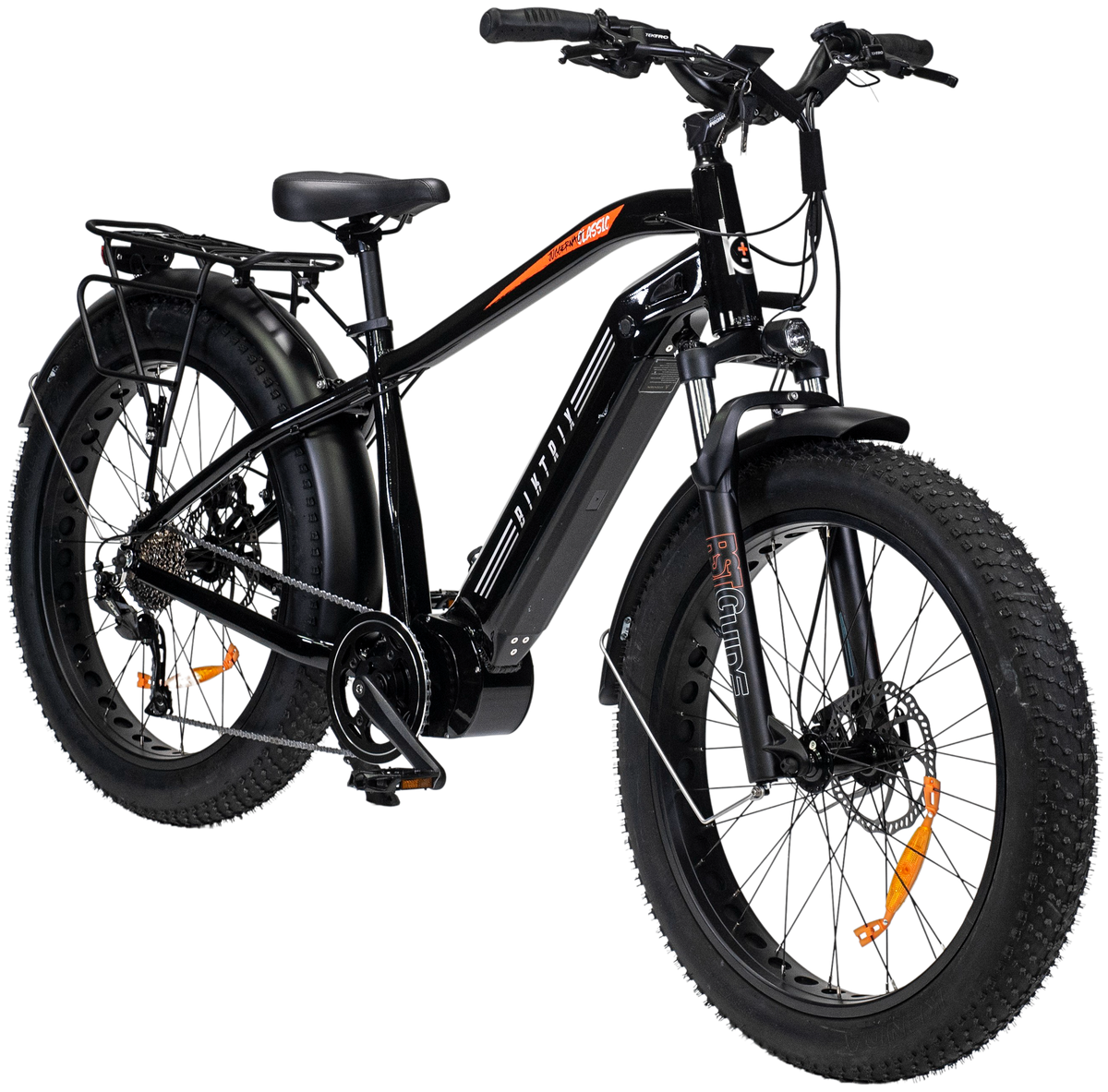

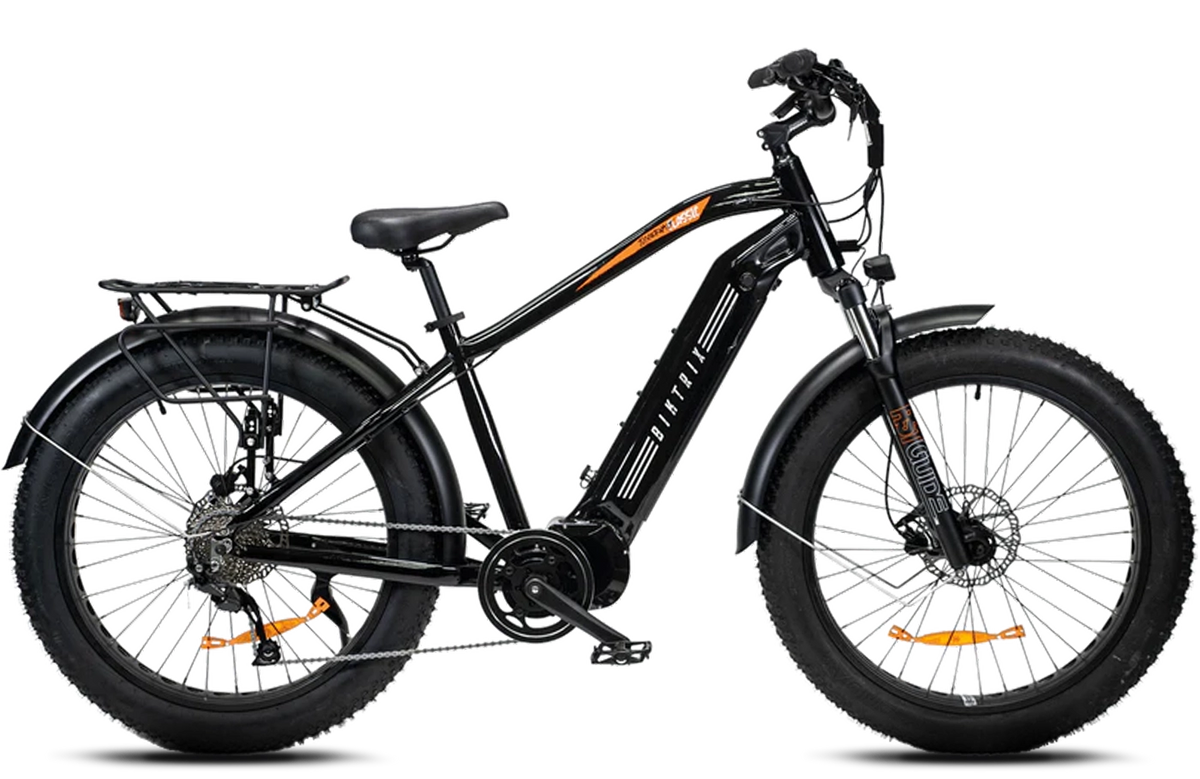

Black

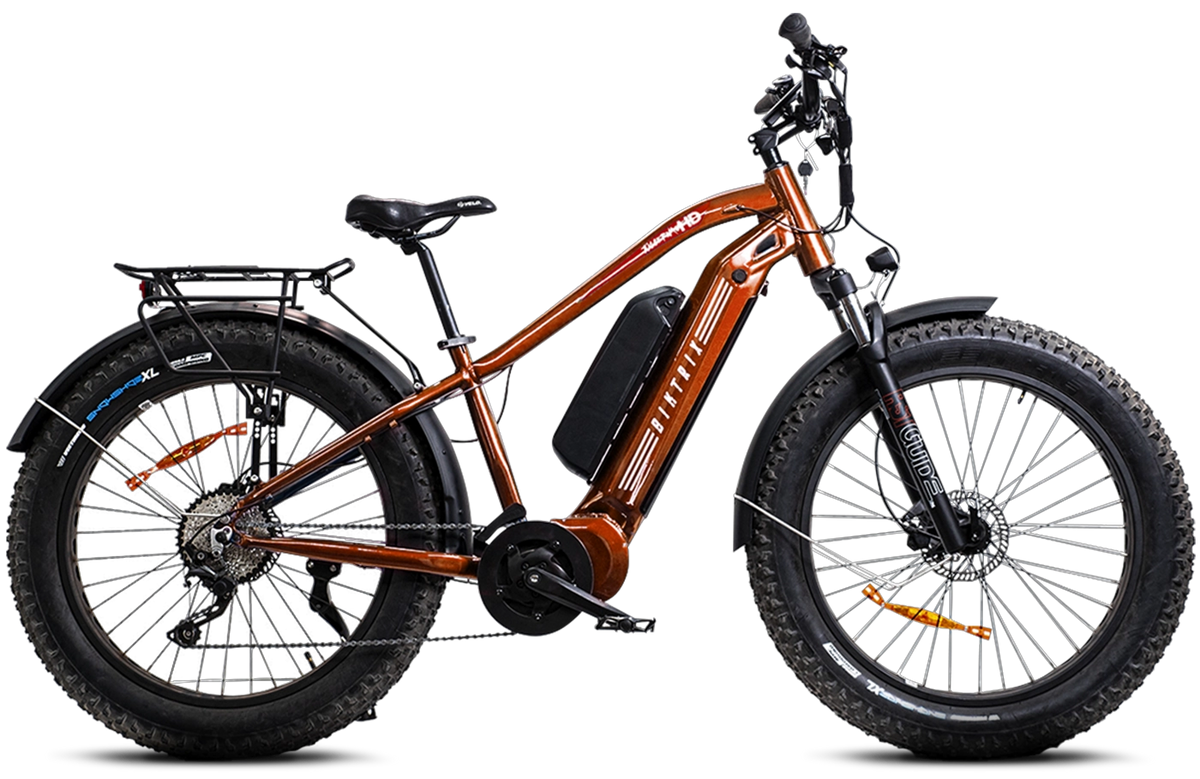

Copper

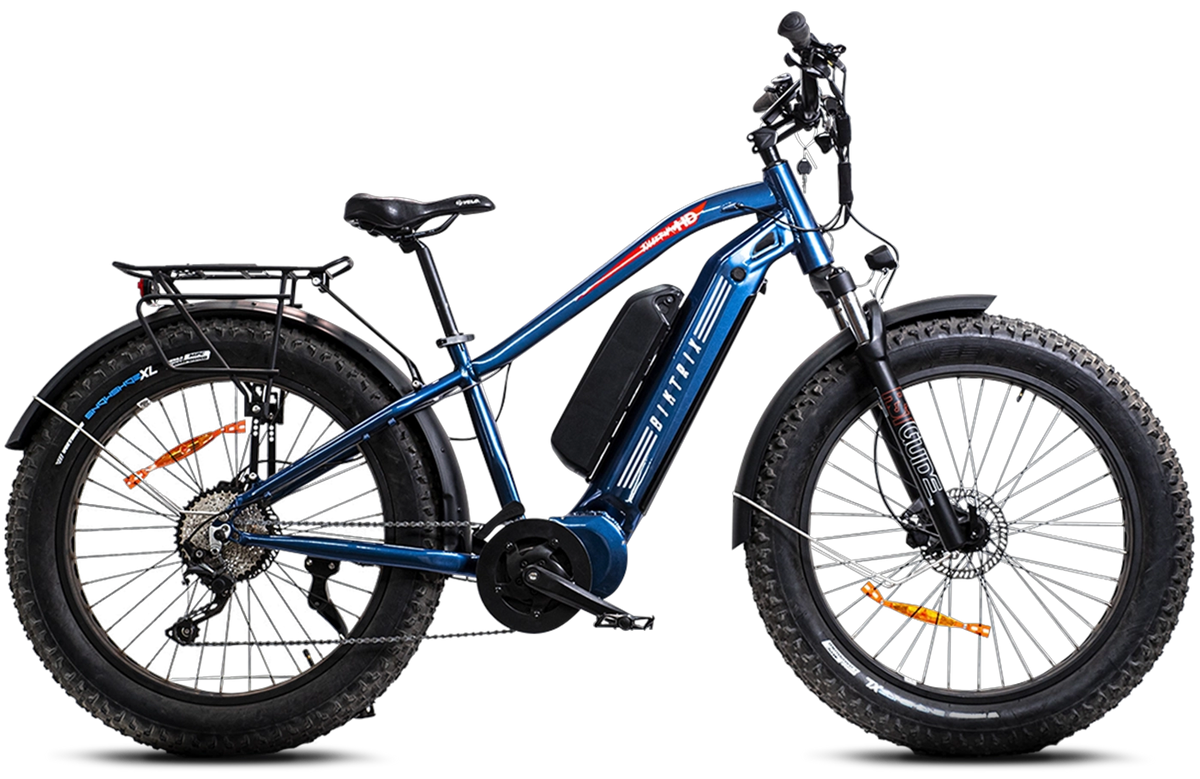

Electric Blue

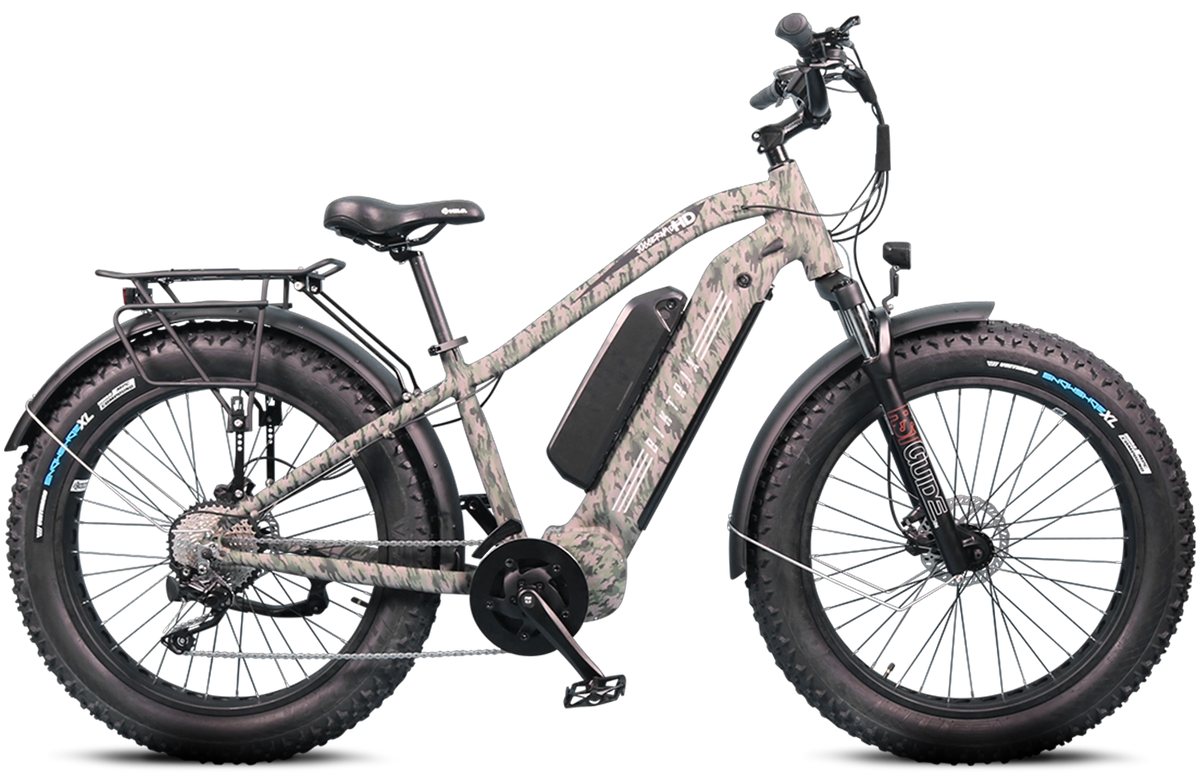

Camo

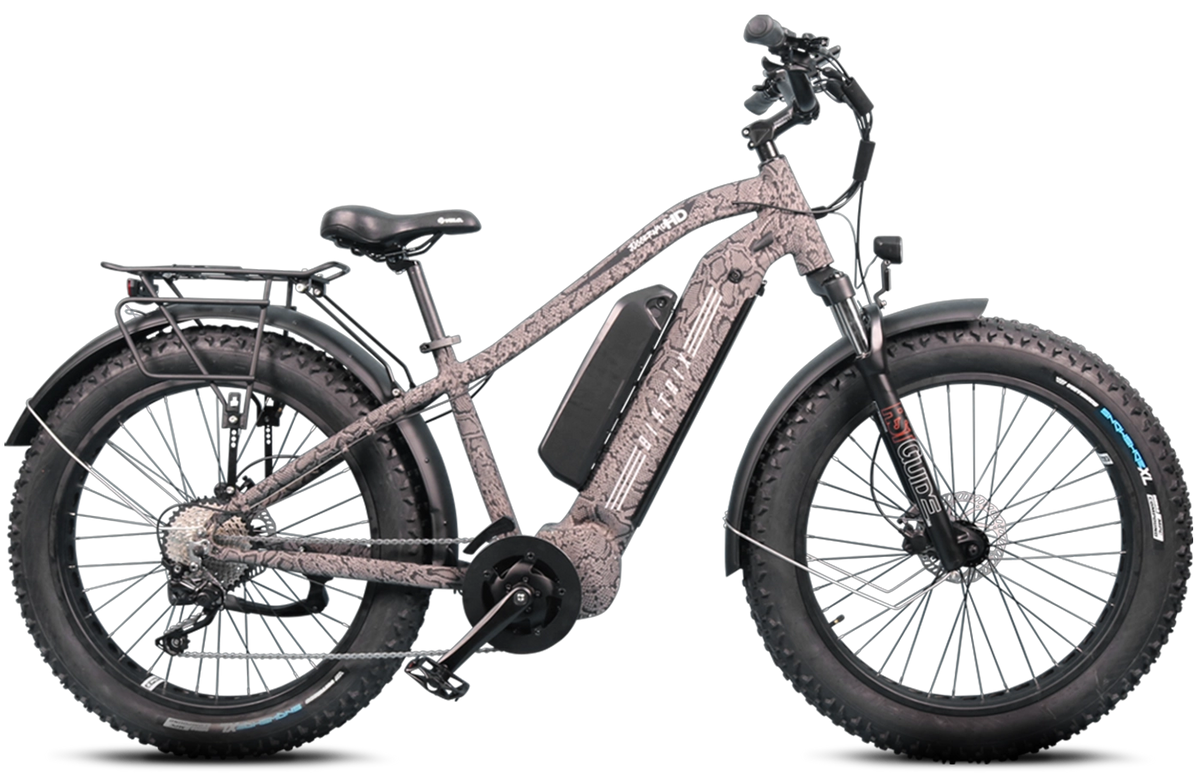

Reptilian

Powder Coated

Wheelset Size Guide

26x4 Fat Wheels Great on snow | sand | gravel

27.5x3 MTB Wheels Great on pavement | groomed trails

Advanced Options

No

Yes

Packages

Battery

Range Extender Battery



Add an additional battery to extend your bikes range and give you that boost!

No Thanks 52V 14Ah 728Wh (Up to 50mi / 80km) - CA$599.00 52V 16Ah 832Wh (Up to 60mi / 95km) - CA$649.00

**52V 16Ah 832Wh Range Extender Battery incompatible with M | 17" Frame

What Battery Should I Choose?

×

Batteries are one of those things that you usually do not want to skimp on. We never hear anyone complaining that they get too much range from a charge. This is why we recommend getting the biggest battery you can afford.

Biktrix is proud to offer some of the largest ebike batteries on the market. Even when you pick our smallest battery option, it is often much larger than the largest offered by our competitors.

---

A good way to estimate approximate ride time is as follows:

1. Calculate/check the Wh (Watt-hour) rating of the battery. This is V x Ah. Eg. 52V x 10Ah = 520Wh
2. Check the wattage of the motor on the bike you’re considering. Eg. 500W
3. This means that if you had to use this 500W bike at full power with a 520Wh battery, you would get roughly 520Wh/500W = ~1hour of riding.

---

[Batteries are like energy tanks on an eBike. Using our high capacity automotive-grade cell Battery Packs ensures that you can travel longer distances without the need for frequent recharges. Since batteries take time to recharge, buying the largest capacity that you can afford would be the best idea.

An eBike battery is usually specced using Voltage & Amp-hours (V&Ah), therefore while comparing specs between the two batteries with the same voltage rating compare the Ah (Amp-hour) rating between them, since more Ah = more capacity.

While buying a DUO bike we highly recommend not missing the opportunity of buying a Range Extender which also functions as a Standby Spare in case the primary battery is not charged or fails.]

---

Note that you likely won’t be using 100% power (500W) all the time, this means you would get more range if you use lesser power.

Upgrades

Motor Power



Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Speed and Power limited to 32kph/500W No limit (off-road use)

What Motor Speed Is For Me?

×

In most places, 500w (32kmph/20mph) is the street-legal setting and for many casual riders is lots of power to get you where you are going.

If you are riding off-road, on private land, you may want to consider the unlock option to get the most power out of your motor.



**Note that the onus is on you, the rider, to determine whether it is legal to ride an ebike where you intend to ride it. Biktrix will not be held liable if the rider decides to break local laws by riding an ebike illegally.

Fork



Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

RST Guide Fork 110mm Travel Wren Suspension Fork - No Front Fender Available - CA$999.00 150mm Travel Wren Suspension Fork - No Front Fender Available - CA$1,049.00

**The Upgraded Fork options are incompatible with the front fender included with the bike.

Seatpost



Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

No Thanks Canecreek Thudbuster ST (Short Travel) - CA$249.00 Canecreek Thudbuster LT (Long Travel) - CA$249.00 TranzX Antishock QL Suspension Seatpost - CA$149.00

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"

Add a Suspension Seatpost

×

Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail. However, using a suspension seatpost will raise the minimum seat height and may not work for riders that require the seat to be in its lowest position.

---

SR Suntour NCX/Thudbuster ST raises the minimum seat height approximately 3 inches.

Thudbuster LT raises the minimum seat height approximately 6 inches.



Biktrix A-Bars



The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

No Thanks Yes, please - CA$149.99

Accessories

Coloured Pedals



Add some extra flair to your eBike with a set of coloured pedals!

Black

Purple

Light Purple

Green

Blue

Bianchigreen

Titanium

Yellow

Red

Orange

Warranty

Protect Your Bike

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Learn More

Standard 2 Year Coverage

Popular BiktrixCare+ 4 Year Coverage

+CA$349

Why BiktrixCare+?

×

Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

2-Year

Standard

Starting at CA$0.00

Standard Warranty that is included for all our eBikes for basic coverage

• Battery & Charger
• Cables, Wiring, Electronic Sensors
• Front and Rear Suspensions
• Motor* & Controller
• Brakes

4-Years

BiktrixCare+

Starting at CA$349.00

The Ultimate coverage for your eBike, for complete peace of mind.

• Everything in Standard
• Refundable**
• eBike Frame
• Transferable

Inclusions

This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

*Motors

BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

**Cancellation & Refund

BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

Learn More About BiktrixCare+

Variant

M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Black / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Black / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Copper / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Electric Blue / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Electric Blue / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Camo / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Reptilian / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$4,099.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Reptilian / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$4,099.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Powder Coated / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$4,299.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Powder Coated / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$4,399.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Black / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Black / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Copper / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Copper / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Electric Blue / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Electric Blue / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Camo / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Reptilian / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Reptilian / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Powder Coated / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$4,299.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Powder Coated / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$4,299.00 L | 19” Frame (Fits Riders 5’10”+ / 31”+ inseam) / Camo / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Copper / 27.5x3 MTB Wheels (Great on pavement | groomed trails) - CA$3,999.00 M | 17” Frame (Fits Riders 5’6”+ / 29”+ inseam) / Camo / 26x4 Fat Wheels (Great on snow | sand | gravel) - CA$3,999.00

Sale price CA$4,099.00

Add to cart

Speak To An Expert

Shipping: Leaves within 6-7 Business Days

Technical Specifications

Technical Specifications

×

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 27.2mm	Fork Rst guide w/75mm travel, lockout and preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 170mm 36h
Motor 750w bbs02 mid-drive	Shifter rear Shimano alivo 9 speed trigger shifter
Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivo 9 speed	Rims Black 36h
Display Dpc-18	Cassette 9-speed 12-36t cassette
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, taillight
Chain Kmc x9	Handlebar 31.8mm clamp, 700mm wide, 80mm rise
Assist type Cadence	Crank set 170mm arms 44t chainring
Stem Promax 90mm	Assist levels 0-5
Bottom bracket Bafang square taper	Grips Slide on
Throttle Thumb throttle	Brakes Tektro e350 dual piston w/180mm rotors
Saddle Wide saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Tektro adjustable

Frame 6061 aluminum

Front hub 135mm 36h

Seat post 27.2mm

Fork Rst guide w/75mm travel, lockout and preload

Front axle 5mm qr

Seat post clamp Qr

Headset Threadless 1-1/8 1-1/2 tapered

Rear hub 170mm 36h

Motor 750w bbs02 mid-drive

Shifter rear Shimano alivo 9 speed trigger shifter

Rear axle 5mm qr

Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)

Rear derailleur Shimano alivo 9 speed

Rims Black 36h

Display Dpc-18

Cassette 9-speed 12-36t cassette

Tire sizes 26x4", 27.5x3"

Lights Integrated headlight, taillight

Chain Kmc x9

Handlebar 31.8mm clamp, 700mm wide, 80mm rise

Assist type Cadence

Crank set 170mm arms 44t chainring

Stem Promax 90mm

Assist levels 0-5

Bottom bracket Bafang square taper

Grips Slide on

Throttle Thumb throttle

Brakes Tektro e350 dual piston w/180mm rotors

Saddle Wide saddle

Other Front and rear fenders, rear rack, kickstand

Brake levers Tektro adjustable

Sizing / Fittings

Sizing / Fittings

×

M | 17"

L | 19"

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	700mm	27.6in
5	Chainstay Length	530mm	20.9in
6	Standover Height	660mm	26in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	750mm	29.5in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1250mm	49.2in
15	Total Length	1990mm	78.3in
16	Max Seat Height	930mm	36.6in
17	Min Seat Height	770mm	30.3in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	32.5kg	71.7lb

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	450mm	17.7in
4	Stack	670mm	26.4in
5	Chainstay Length	530mm	20.9in
6	Standover Height	710mm	28in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	760mm	29.9in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1250mm	49.2in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1170mm	46.1in
19	Weight (Without Battery)	32.5kg	71.7lb

750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 100km Range

+5'6ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

Riders Reviews

Biktrix Juggernaut Classic Duo ST Review | Burly & Bespoke

Electric Bike Report

Biktrix Juggernaut Classic Duo Review: So You're Looking for a Mid-Drive...

Ebike Escape

I Bought an INSANE E–BIKE MID DRIVE Juggernaut Classic Duo Review!

Electric Vehicles Space

60+

Miles Range

120Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

Beating The Competition.

The Juggernaut Classic Duo surpasses the competition with its unparalleled durability, superior performance, and timeless design, making it the ultimate choice for enthusiasts seeking an unbeatable riding experience.

Biktrix

Juggernaut Classic

Starting at CA$2,999.00

• Bafang BBS02 750W motor, 52V 17.5Ah 910 Wh
• 28 mph top speed
• Dual Battery Support (more range)
• Tektro Hydraulic Disc Brakes (Optional Magura)
• Shimano Alivio 9 speed
• Step Thru and Step Over
• 2 Year Warranty Stock (Up to 4 years warranty)

DJ

DJ Mid-Drive

Starting at CA$2,499.00

• Bafang BBSHD 750W motor, 48V 13Ah 624 Wh
• 20 mph top speed
• No Dual Battery Support (less range)
• Nutt Hydraulic Disc Brakes
• Shimano Tourney 7 speed
• Step Over Only
• 1 year warranty

Rambo

Rambo The Rebel

Starting at CA$7,799.95

• Bafang BBSHD 1000W motor, 48V 21Ah 1008 Wh
• 28 mph top speed
• No dual Battery Support (less range)
• Tektro Hydraulic Disc Brakes
• SRAM High-End NX 11 Speed
• Step Over Only
• 1 Year Warranty

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

The Next Step In Performance.

Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.

All The Good Stuff, And More.

Mid Drive Motor

The Bafang BBS02 mid-drive motor features 750 watts of power and 120Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.

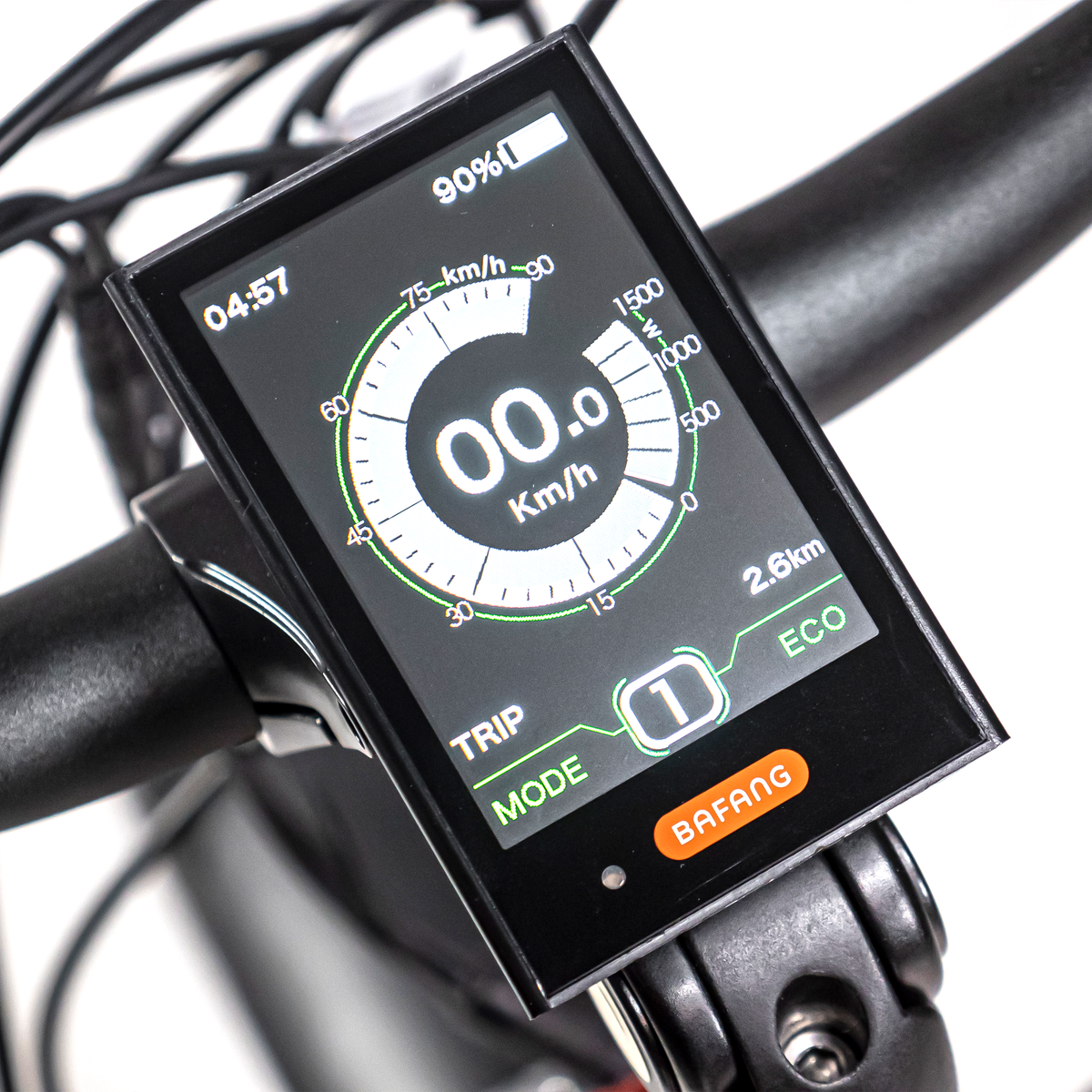

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

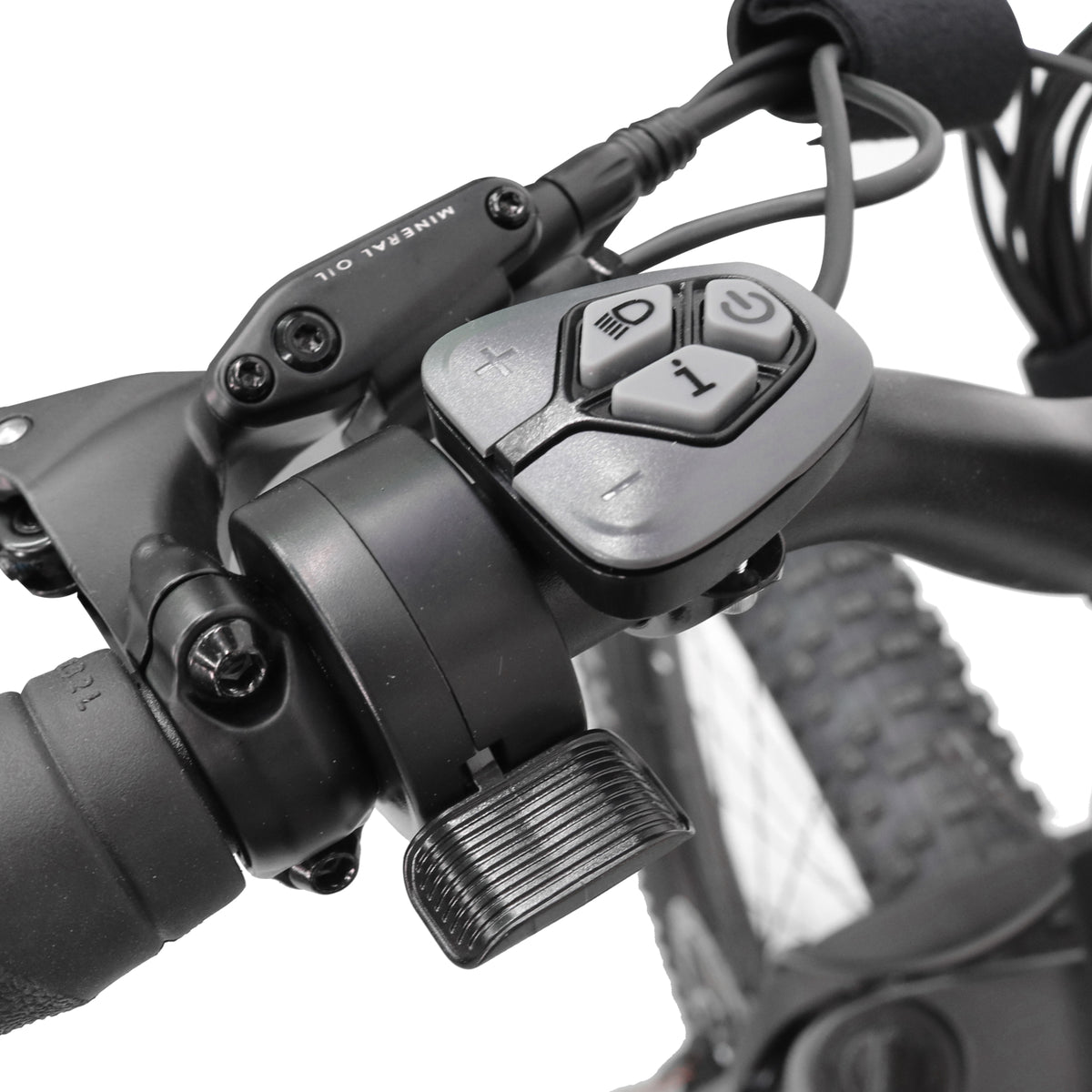

Thumb Throttle & Control Pad

With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

Suspension Fork

The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability

Drivetrain

From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

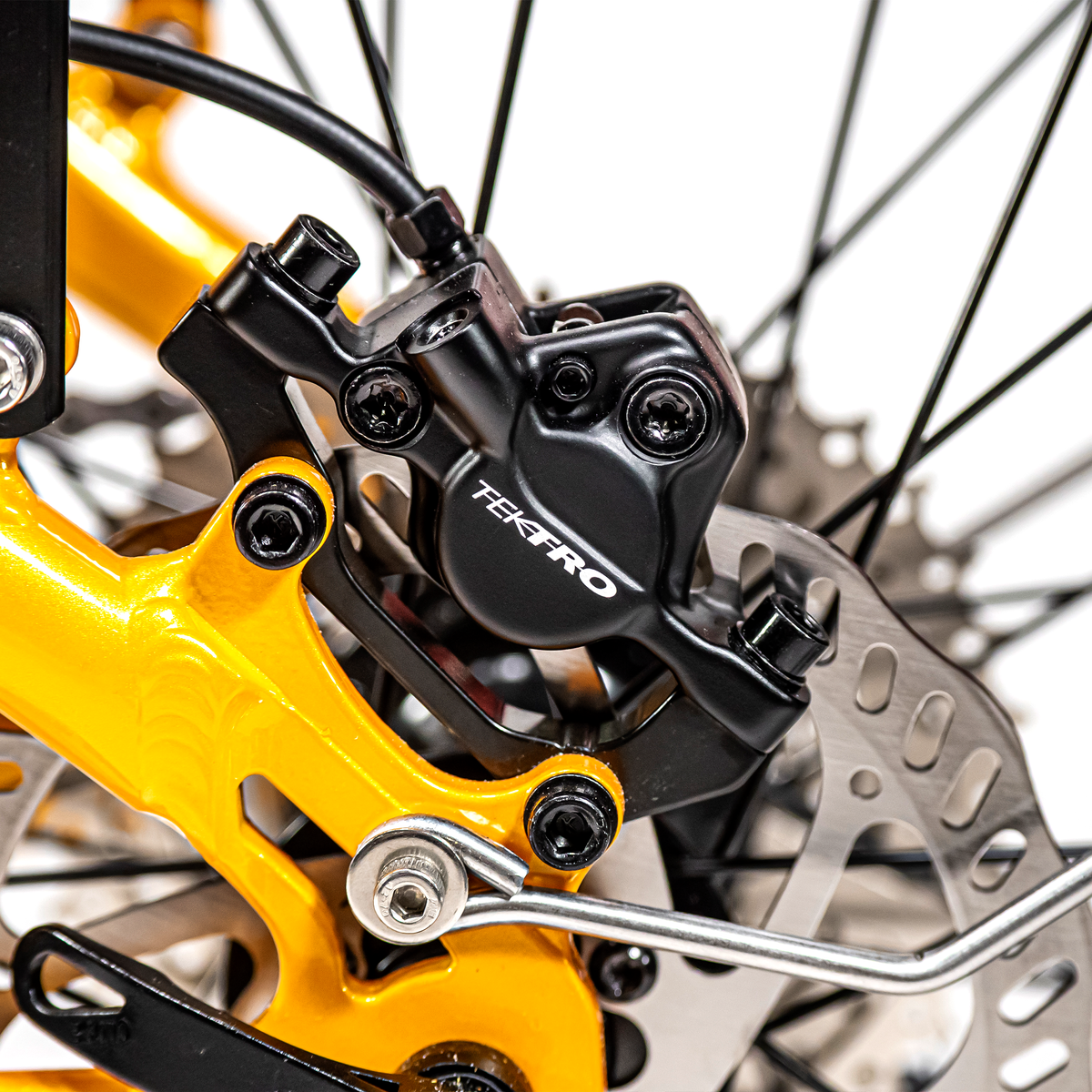

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Optional Range Extender

Multiple range-extender battery options can expand your eBike's range all the way to 160 km.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

SIZE GUIDE

Let's Get You Fitted.

M | 17" L | 19"

6'0" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get L | 19" for the best fit.
Not sure how to measure properly for your bike?

6'0"

What Frame Will Fit Me?

The best way to ensure a fit is to check this measurement on your existing bike’s normal riding seat position;

If this measurement is equal to or MORE than the minimum seat height of the selected model then the selected frame size will work, however, if it is LESS you need to select a smaller frame.

If you do not have a bike then measure your inseam like this; For most riders, the frame will work if their inseam is at least 2 inches less than the minimum seat height in inches. For example, a rider with an inseam of 28 inches can fit on a bike with a minimum seat height of 30 inches (30 - 2 = 28). If you want to have a flat foot on the ground while on a full stop then your inseam must be equal to or greater than the minimum seat height listed for that frame size. If you are selecting a step-over frame, ensure that the standover height listed is less than your inseam size.



---

When in doubt, pick the smaller frame. You can always raise the seat up higher.

If you need help with this, feel free to send us a note at: www.biktrix.com/cx

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		130km Up To
PAS 2 Pedal-Assist Lv.2		103km Up To
PAS 3 Pedal-Assist Lv.3		69km Up To
PAS 4 Pedal-Assist Lv.4		63km Up To
PAS 5 Pedal-Assist Lv.5		58km Up To
THRL Throttle Only		50km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 27.2mm
Fork Rst guide w/75mm travel, lockout and preload	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 170mm 36h	Motor 750w bbs02 mid-drive
Shifter rear Shimano alivo 9 speed trigger shifter	Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivo 9 speed	Rims Black 36h	Display Dpc-18
Cassette 9-speed 12-36t cassette	Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, taillight
Chain Kmc x9	Handlebar 31.8mm clamp, 700mm wide, 80mm rise	Assist type Cadence
Crank set 170mm arms 44t chainring	Stem Promax 90mm	Assist levels 0-5
Bottom bracket Bafang square taper	Grips Slide on	Throttle Thumb throttle
Brakes Tektro e350 dual piston w/180mm rotors	Saddle Wide saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Tektro adjustable

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 27.2mm	Fork Rst guide w/75mm travel, lockout and preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 170mm 36h
Motor 750w bbs02 mid-drive	Shifter rear Shimano alivo 9 speed trigger shifter
Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivo 9 speed	Rims Black 36h
Display Dpc-18	Cassette 9-speed 12-36t cassette
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, taillight
Chain Kmc x9	Handlebar 31.8mm clamp, 700mm wide, 80mm rise
Assist type Cadence	Crank set 170mm arms 44t chainring
Stem Promax 90mm	Assist levels 0-5
Bottom bracket Bafang square taper	Grips Slide on
Throttle Thumb throttle	Brakes Tektro e350 dual piston w/180mm rotors
Saddle Wide saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Tektro adjustable

Frame 6061 aluminum

Front hub 135mm 36h

Seat post 27.2mm

Fork Rst guide w/75mm travel, lockout and preload

Front axle 5mm qr

Seat post clamp Qr

Headset Threadless 1-1/8 1-1/2 tapered

Rear hub 170mm 36h

Motor 750w bbs02 mid-drive

Shifter rear Shimano alivo 9 speed trigger shifter

Rear axle 5mm qr

Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)

Rear derailleur Shimano alivo 9 speed

Rims Black 36h

Display Dpc-18

Cassette 9-speed 12-36t cassette

Tire sizes 26x4", 27.5x3"

Lights Integrated headlight, taillight

Chain Kmc x9

Handlebar 31.8mm clamp, 700mm wide, 80mm rise

Assist type Cadence

Crank set 170mm arms 44t chainring

Stem Promax 90mm

Assist levels 0-5

Bottom bracket Bafang square taper

Grips Slide on

Throttle Thumb throttle

Brakes Tektro e350 dual piston w/180mm rotors

Saddle Wide saddle

Other Front and rear fenders, rear rack, kickstand

Brake levers Tektro adjustable

Size & Fittings

M | 17"

L | 19"

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	700mm	27.6in
5	Chainstay Length	530mm	20.9in
6	Standover Height	660mm	26in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	750mm	29.5in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1250mm	49.2in
15	Total Length	1990mm	78.3in
16	Max Seat Height	930mm	36.6in
17	Min Seat Height	770mm	30.3in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	32.5kg	71.7lb

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	450mm	17.7in
4	Stack	670mm	26.4in
5	Chainstay Length	530mm	20.9in
6	Standover Height	710mm	28in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	760mm	29.9in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1250mm	49.2in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1170mm	46.1in
19	Weight (Without Battery)	32.5kg	71.7lb

FAQ & Guides

• Manual eBike Display Manuals
• Guide Spare Parts Finder
• FAQ I just received my eBike, what next?
• FAQ I just assembled my eBike, what next?
• FAQ Recommended Tire Pressure and Inflation Level
• FAQ eBike Battery Care Guide

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX
