750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 100km Range

+5'4ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

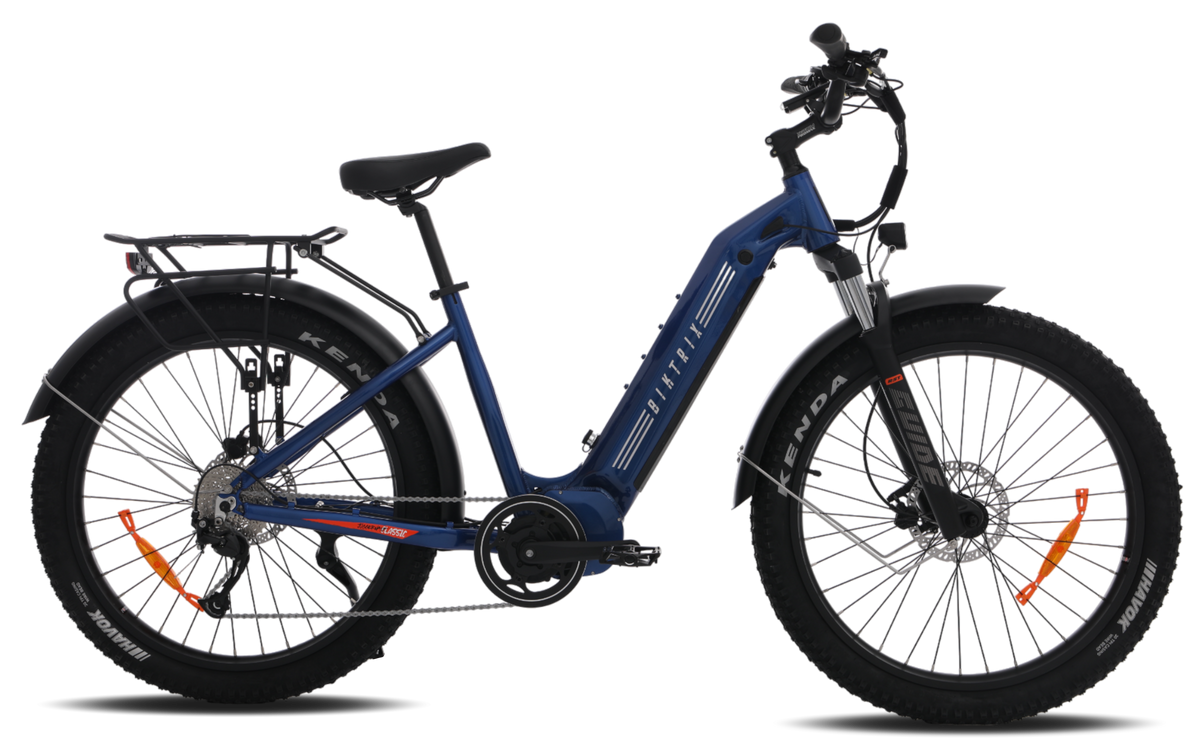

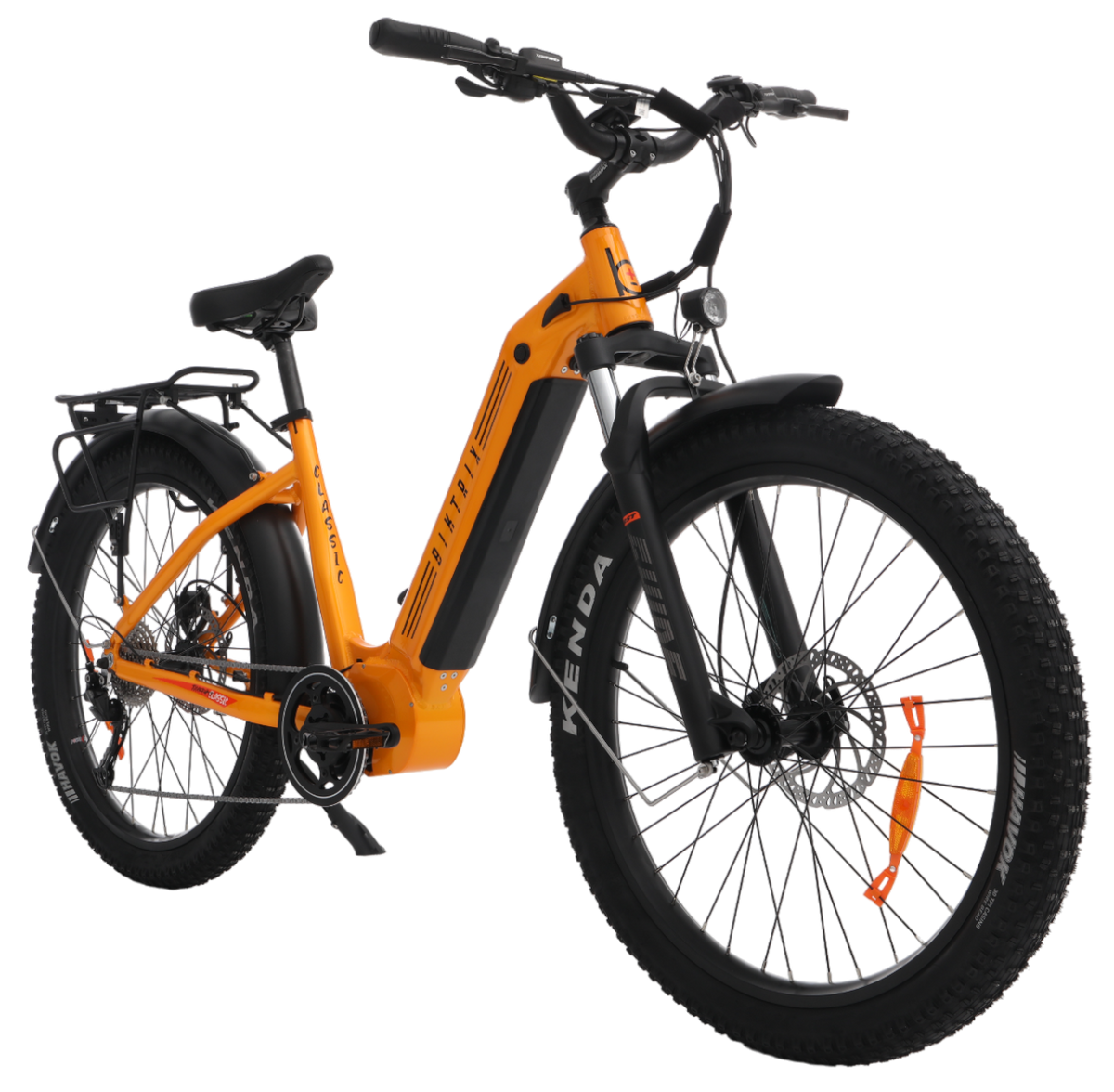

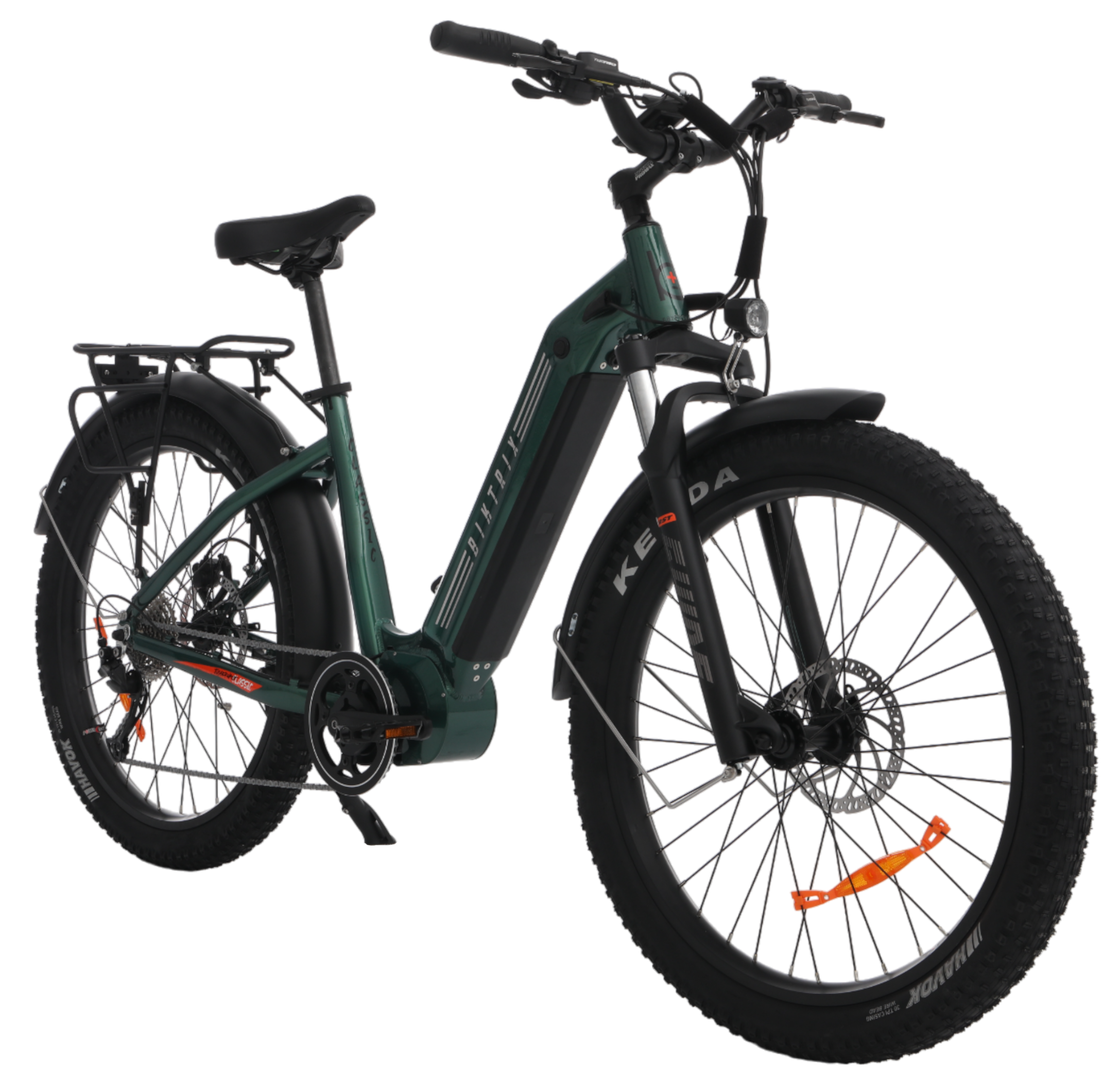

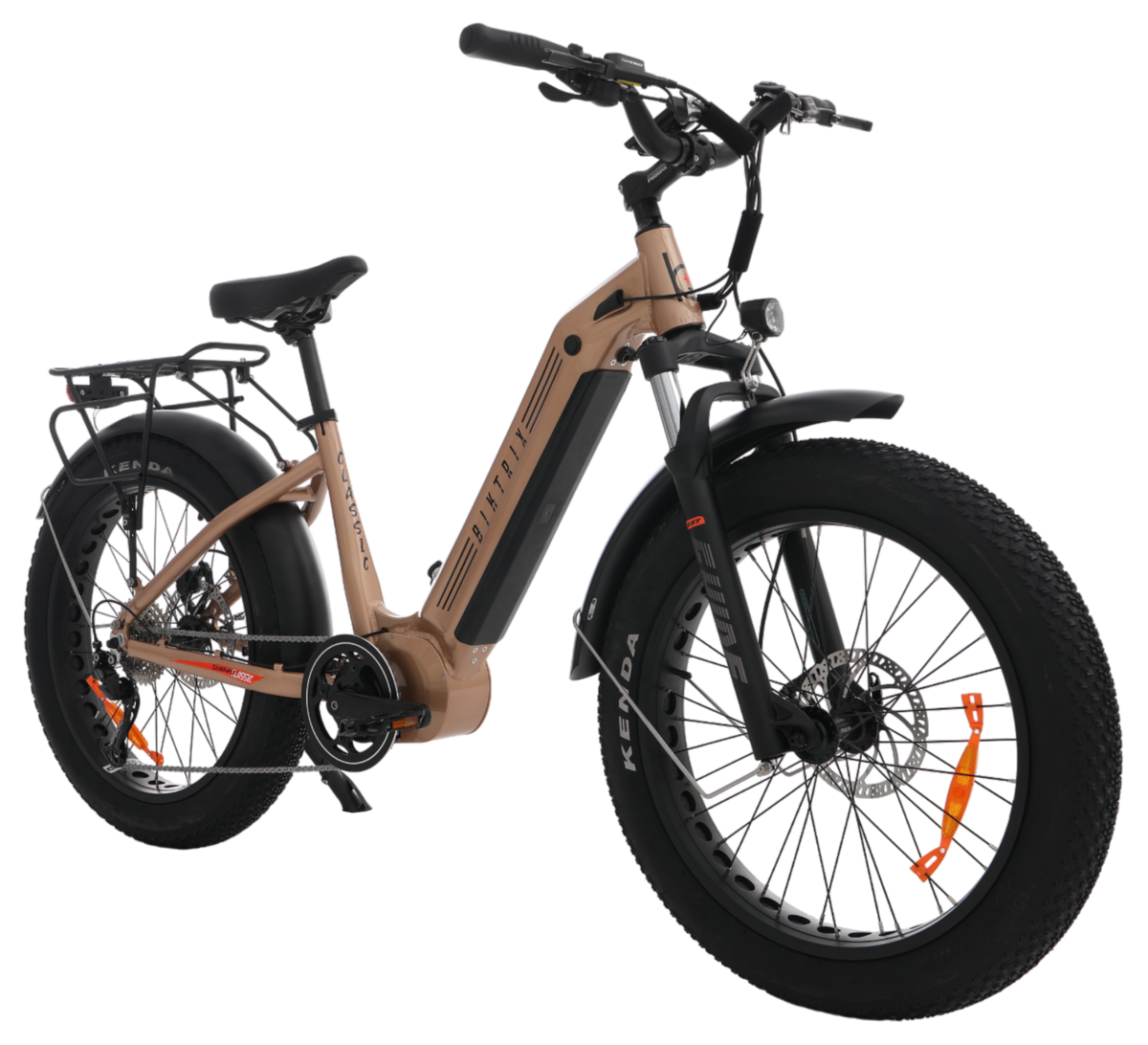

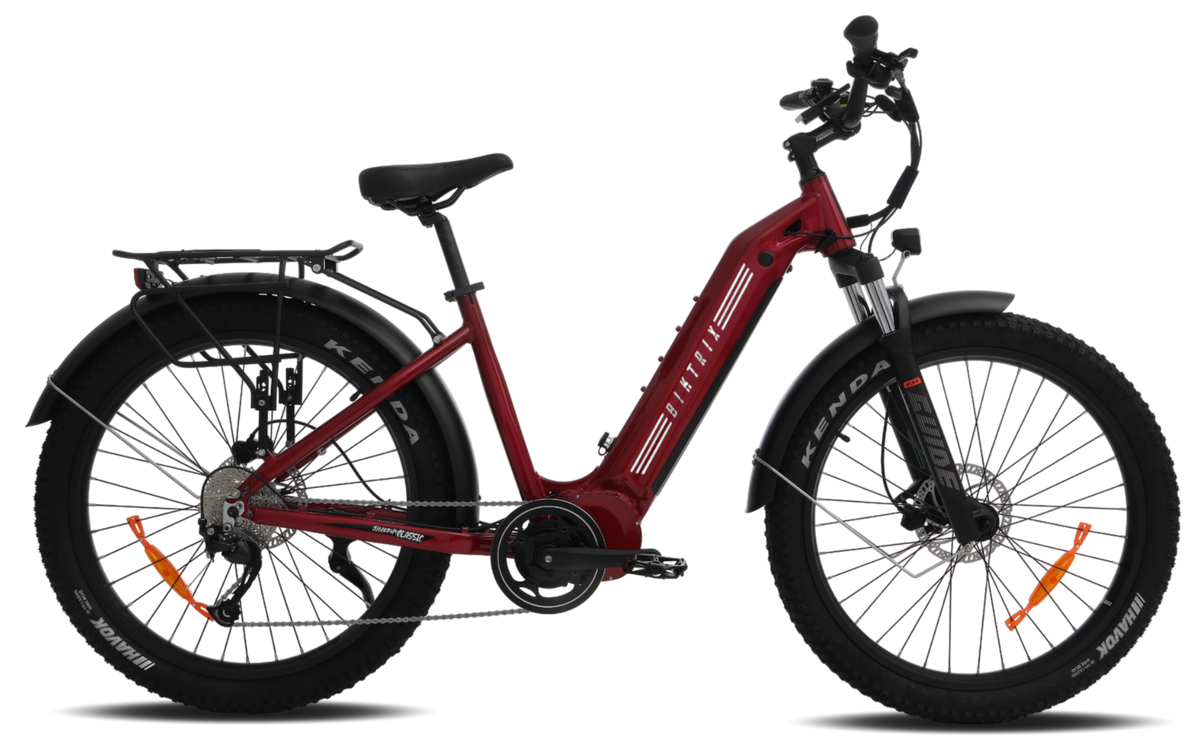

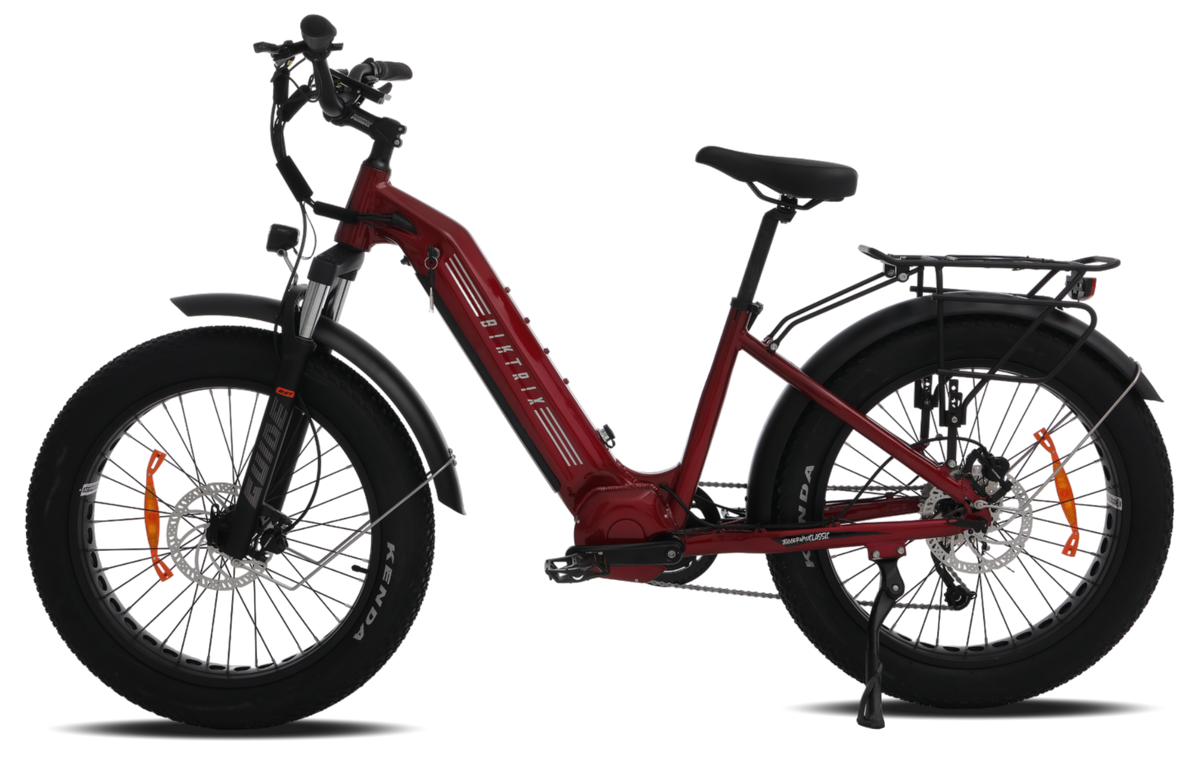

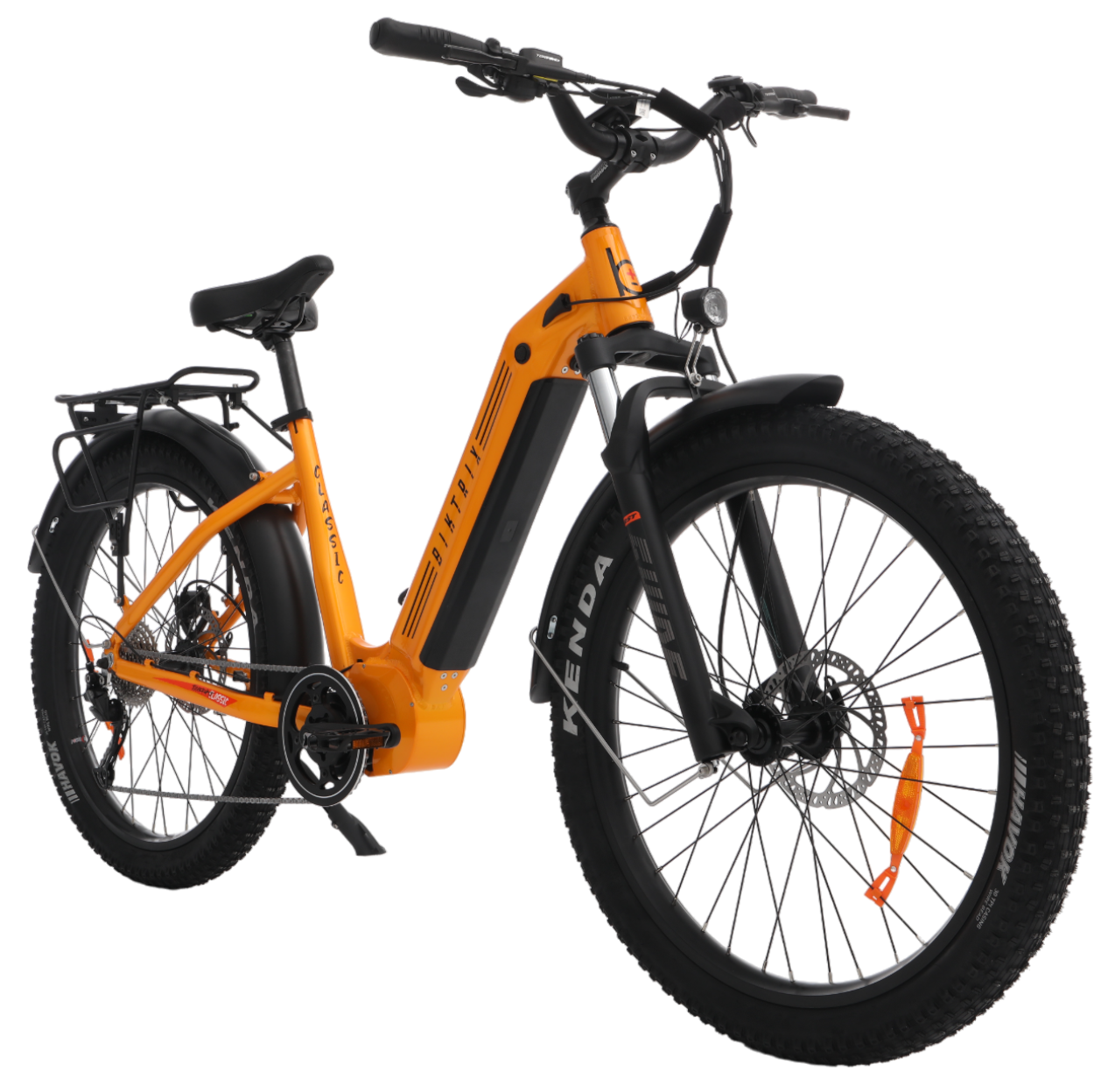

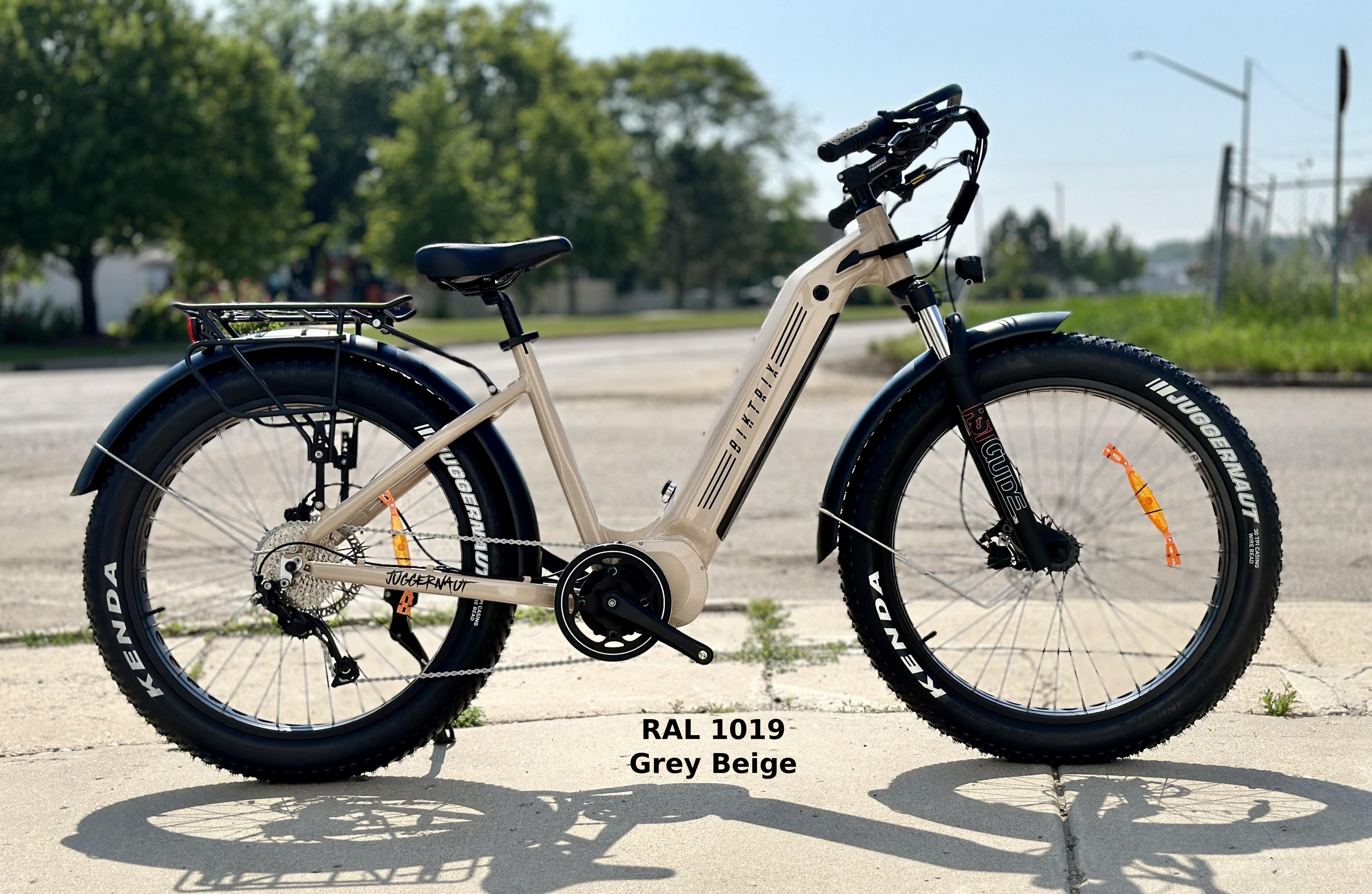

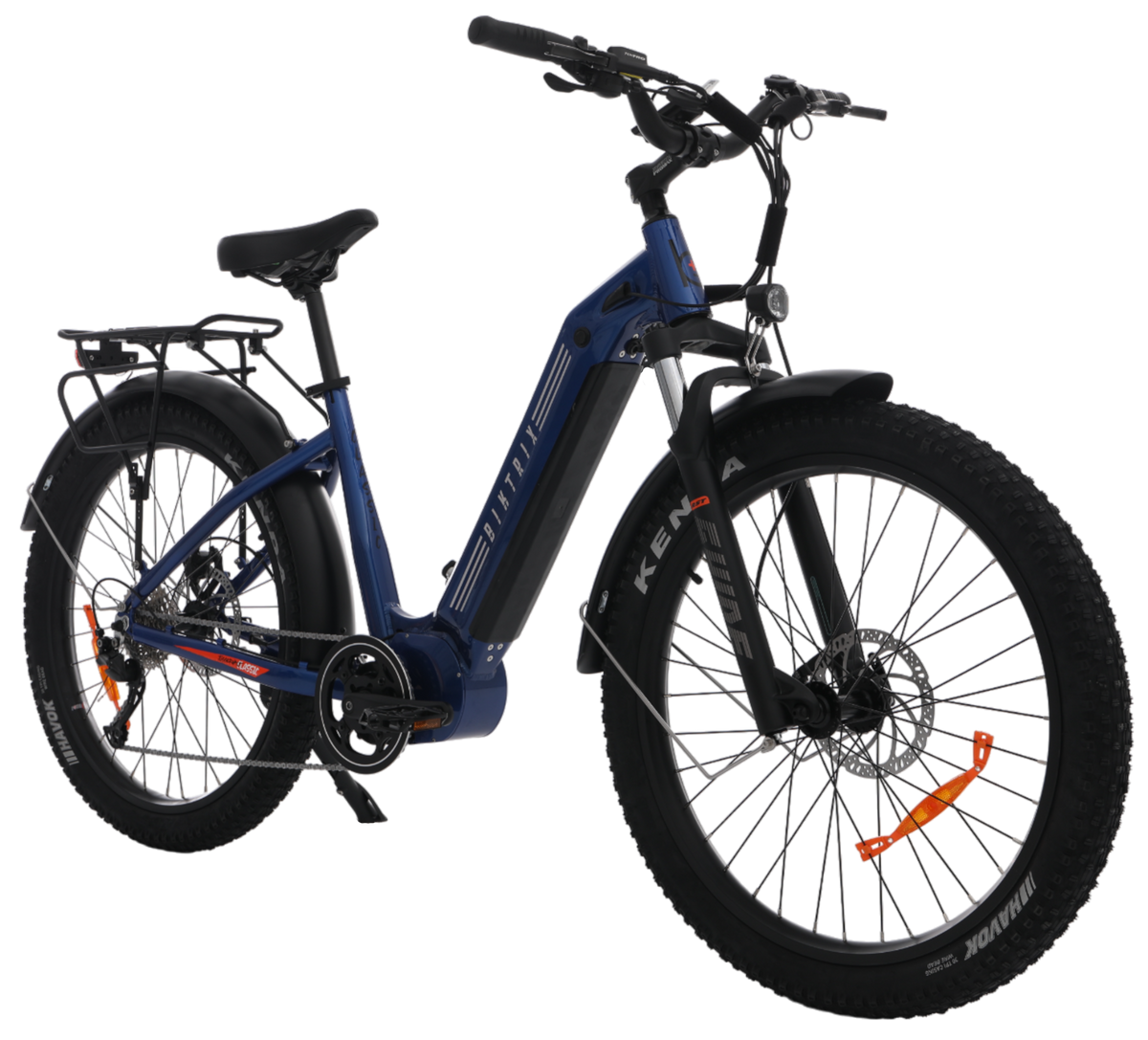

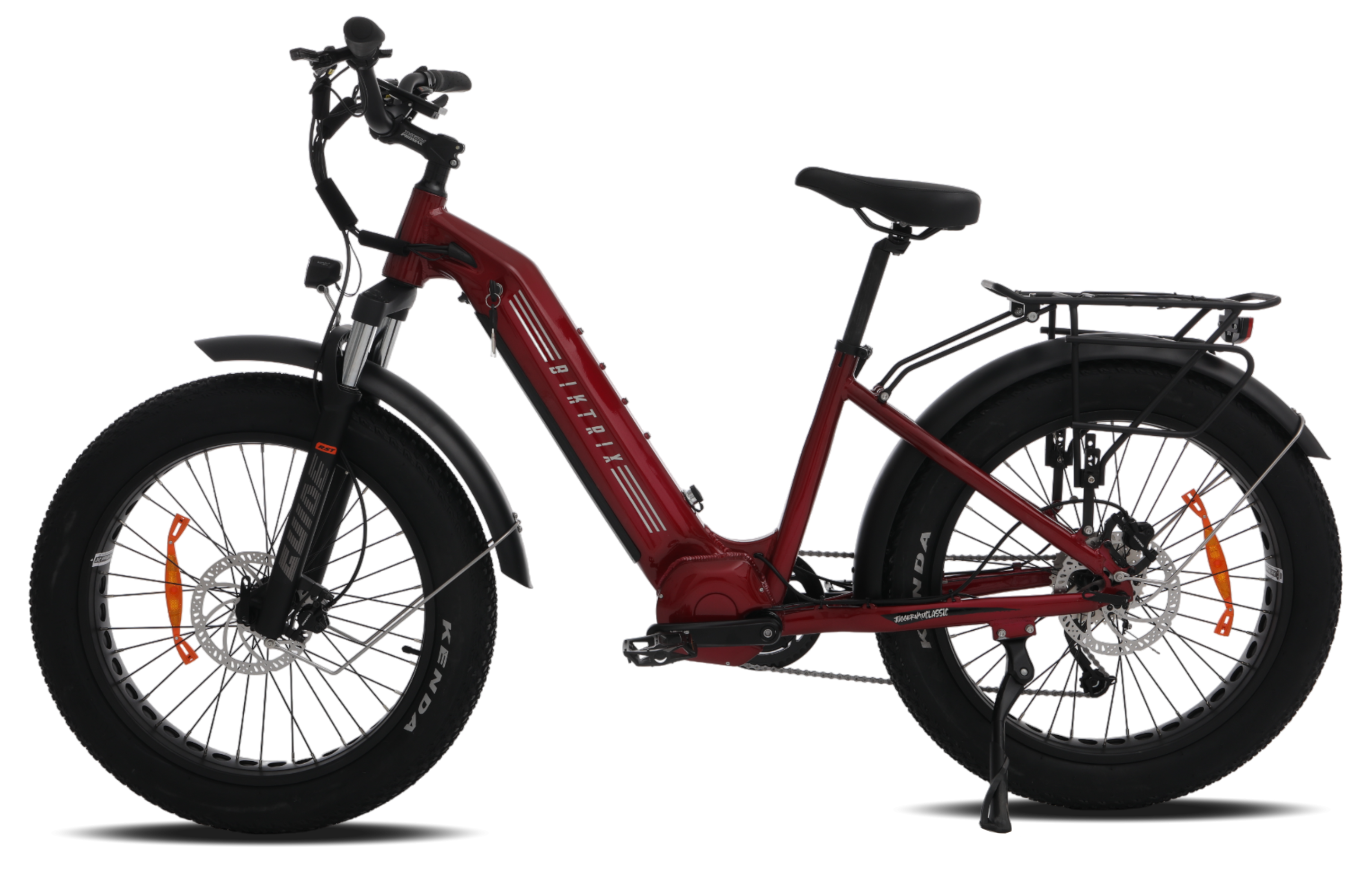

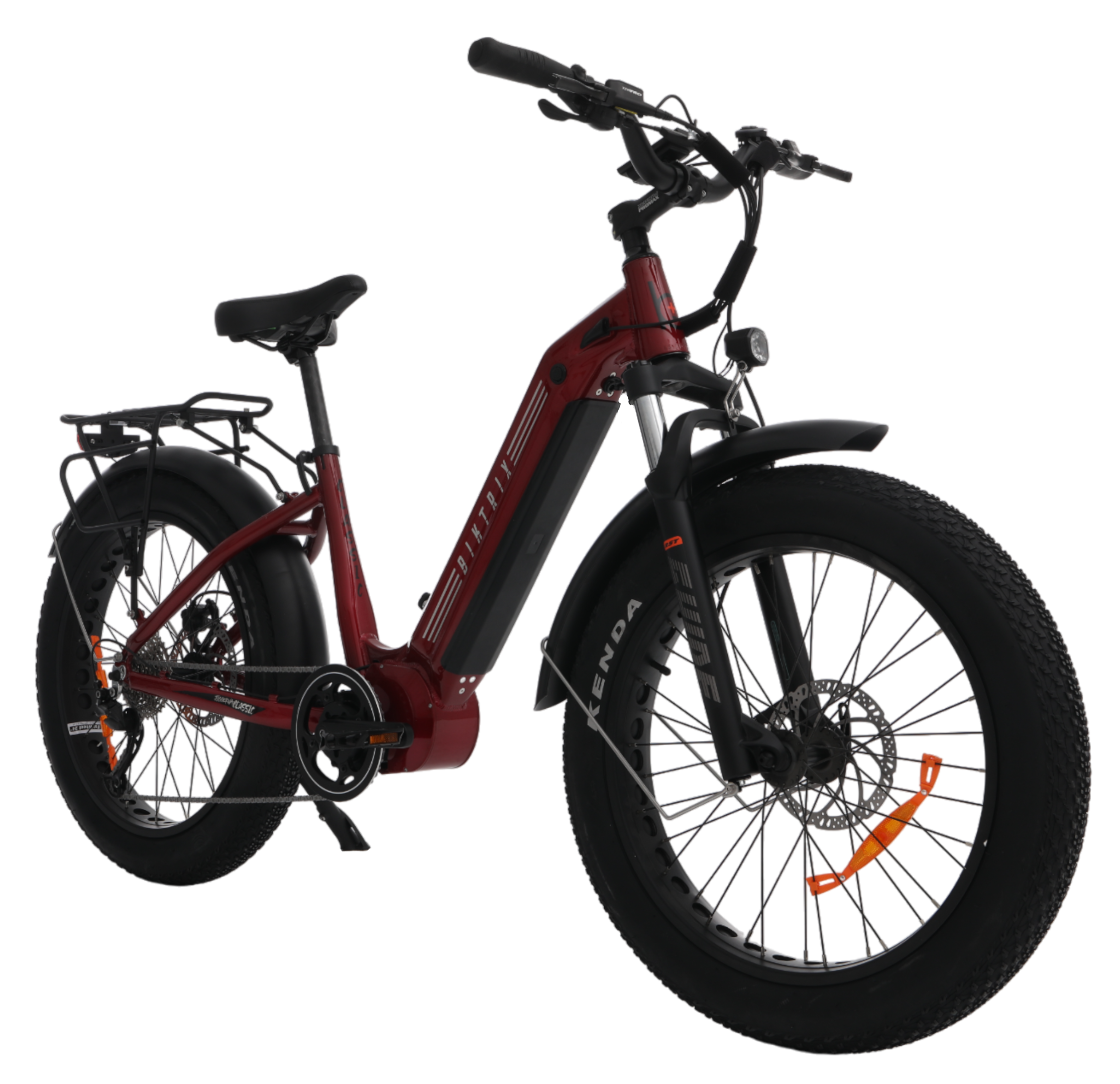

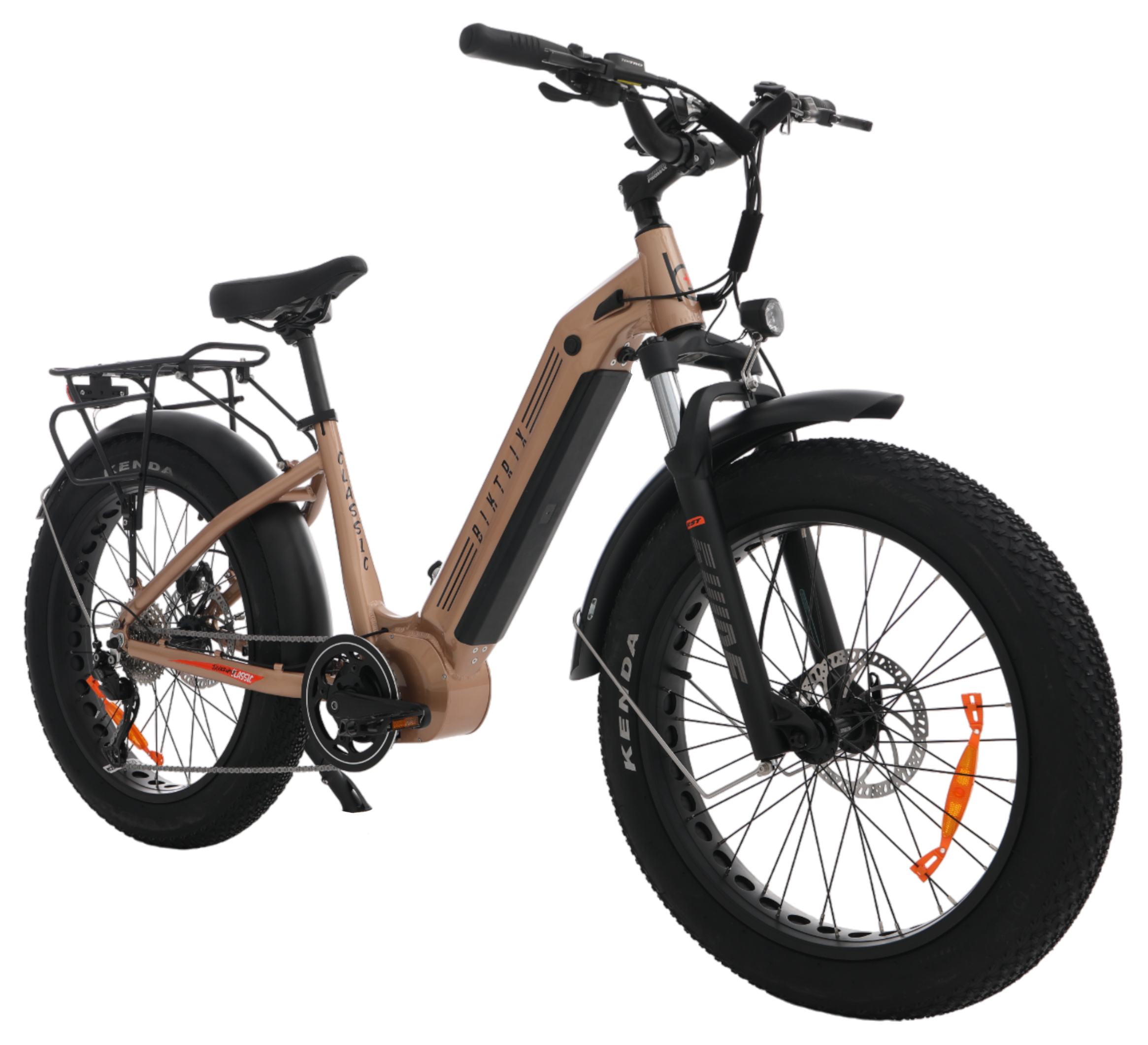

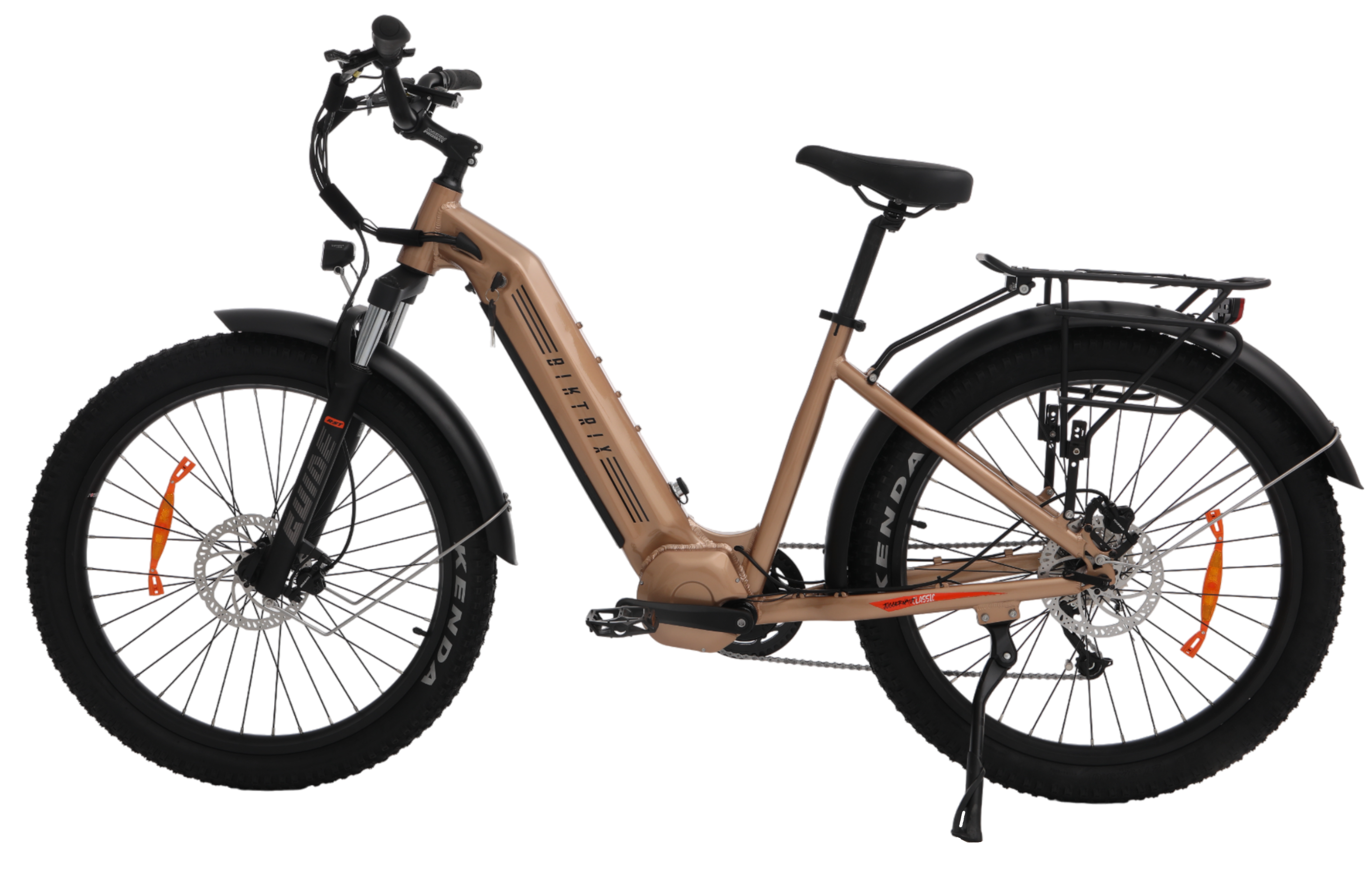

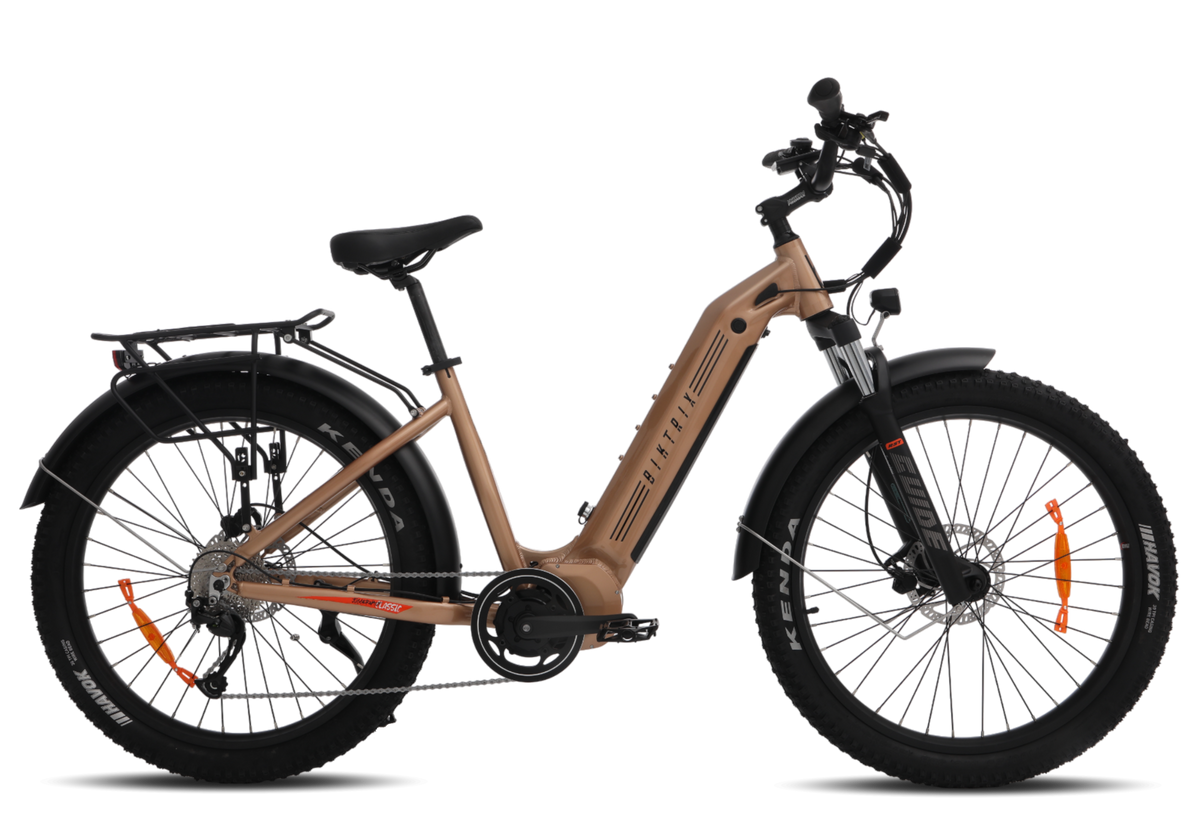

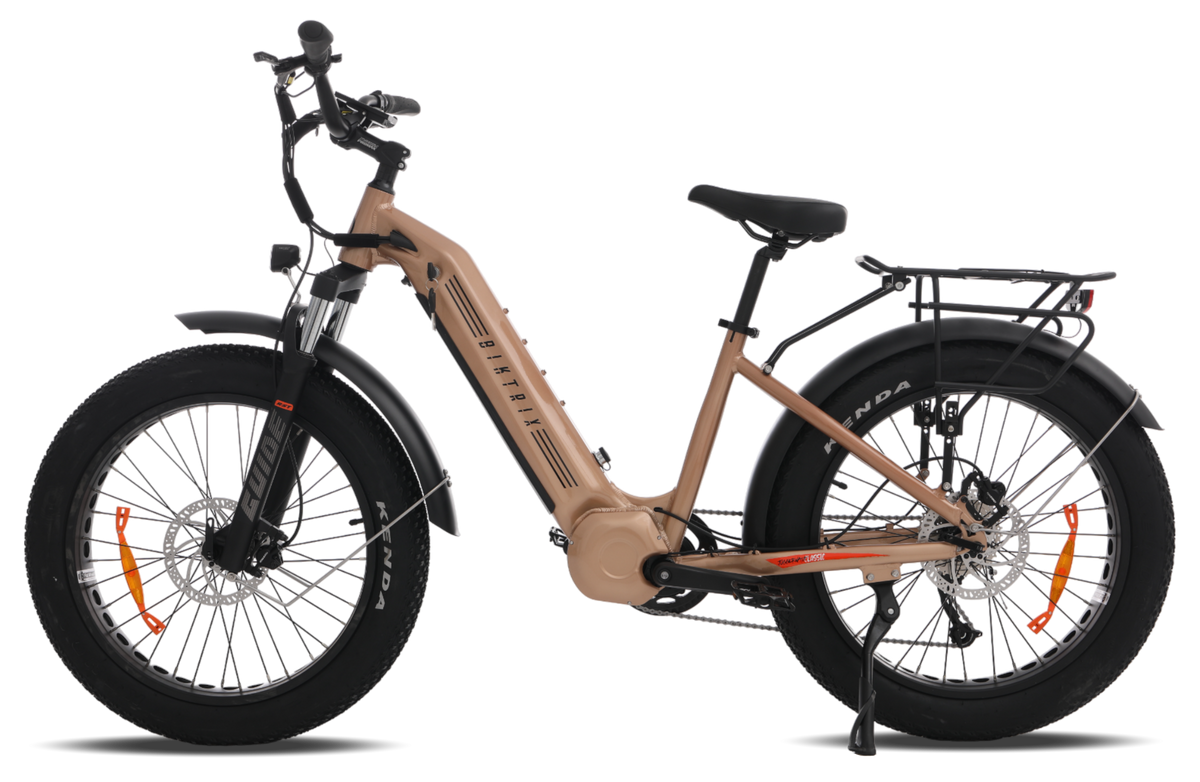

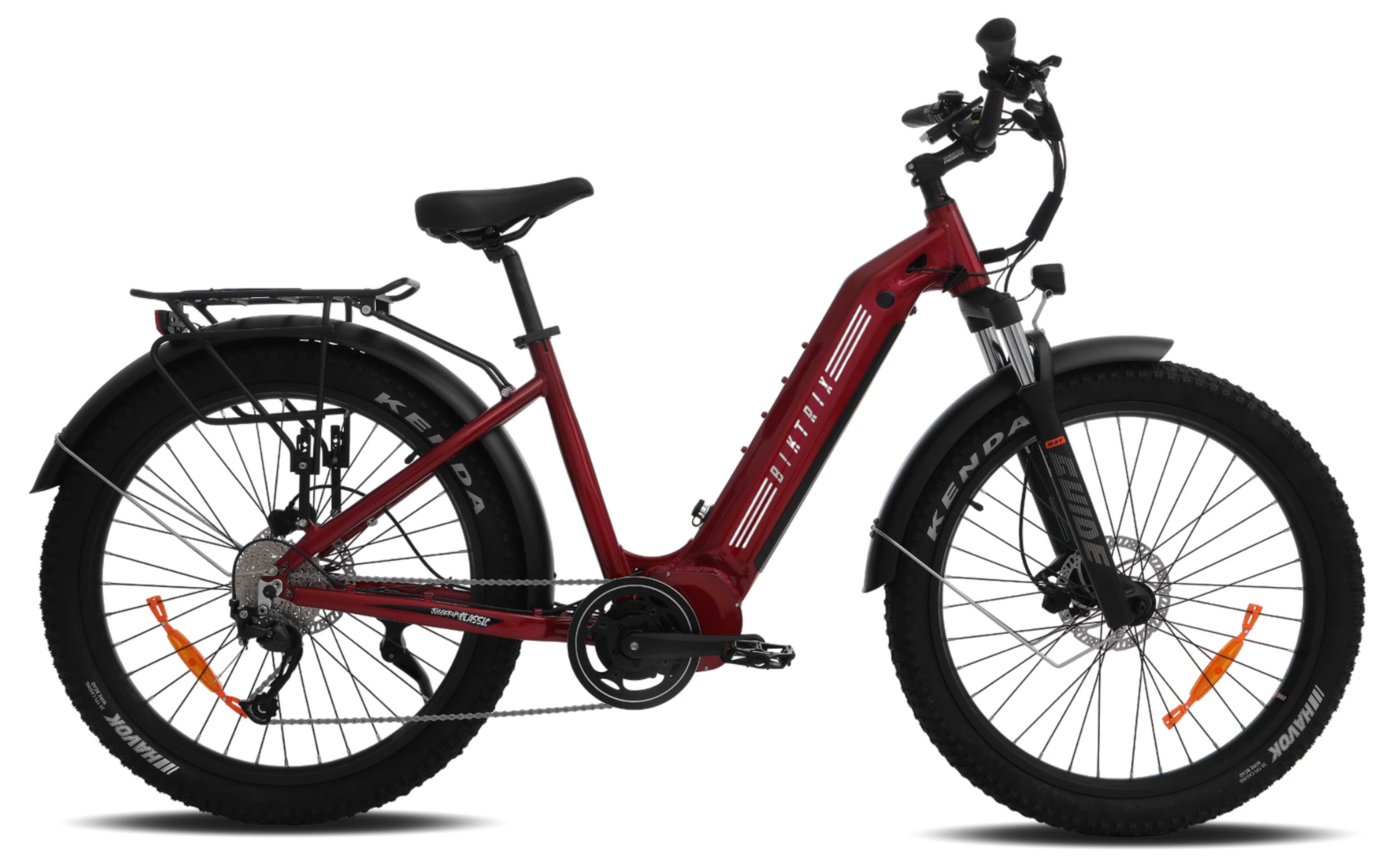

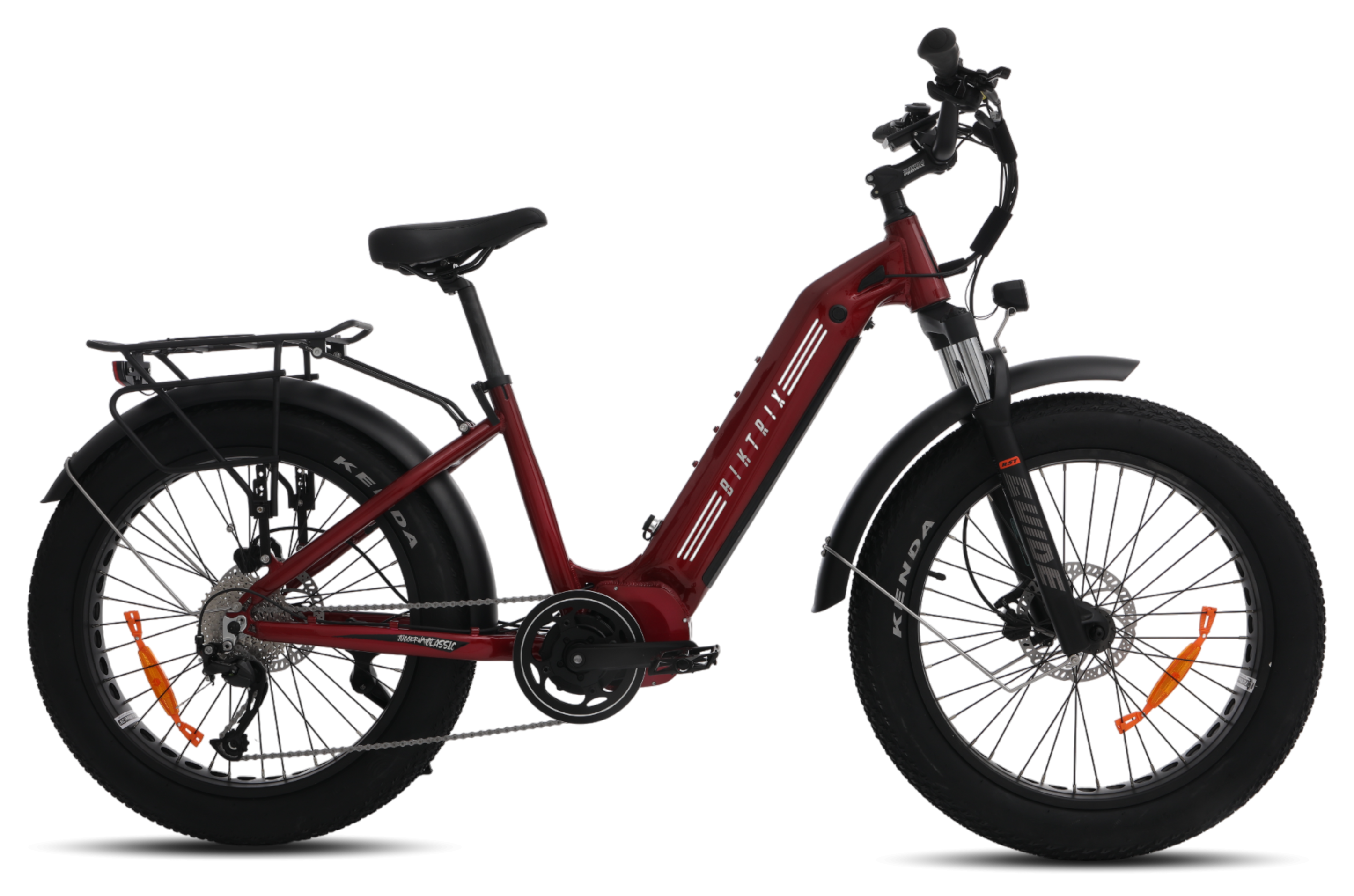

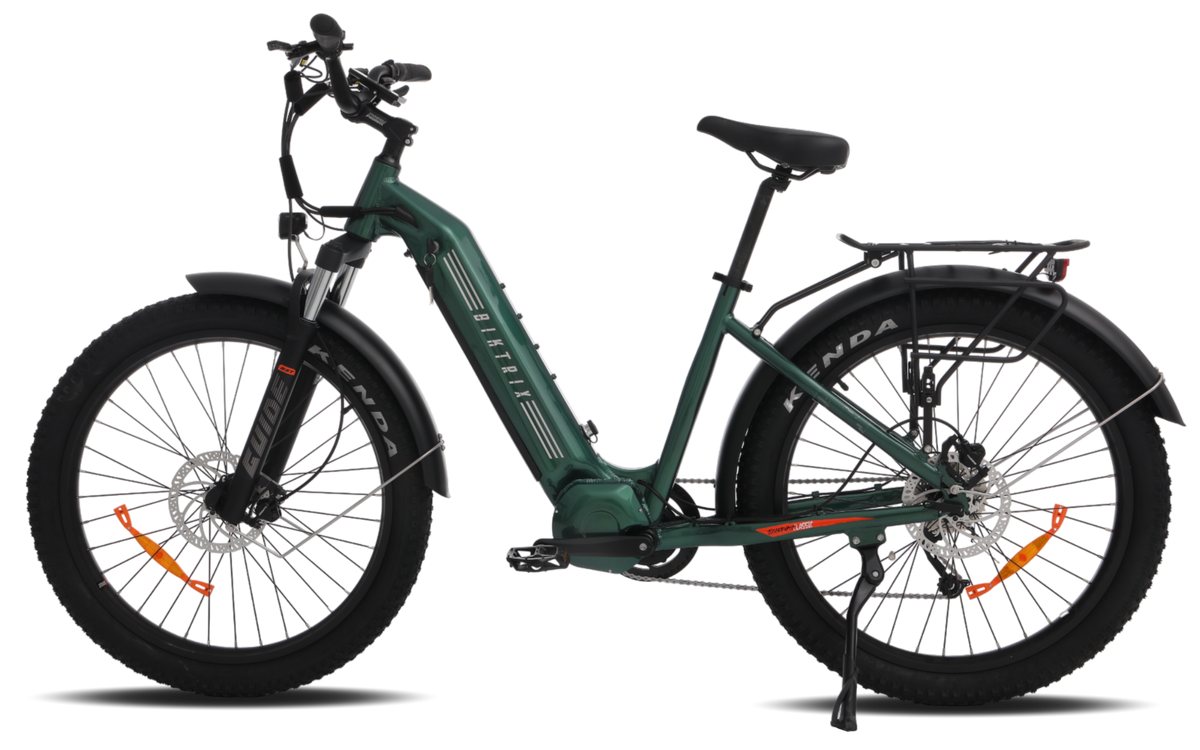

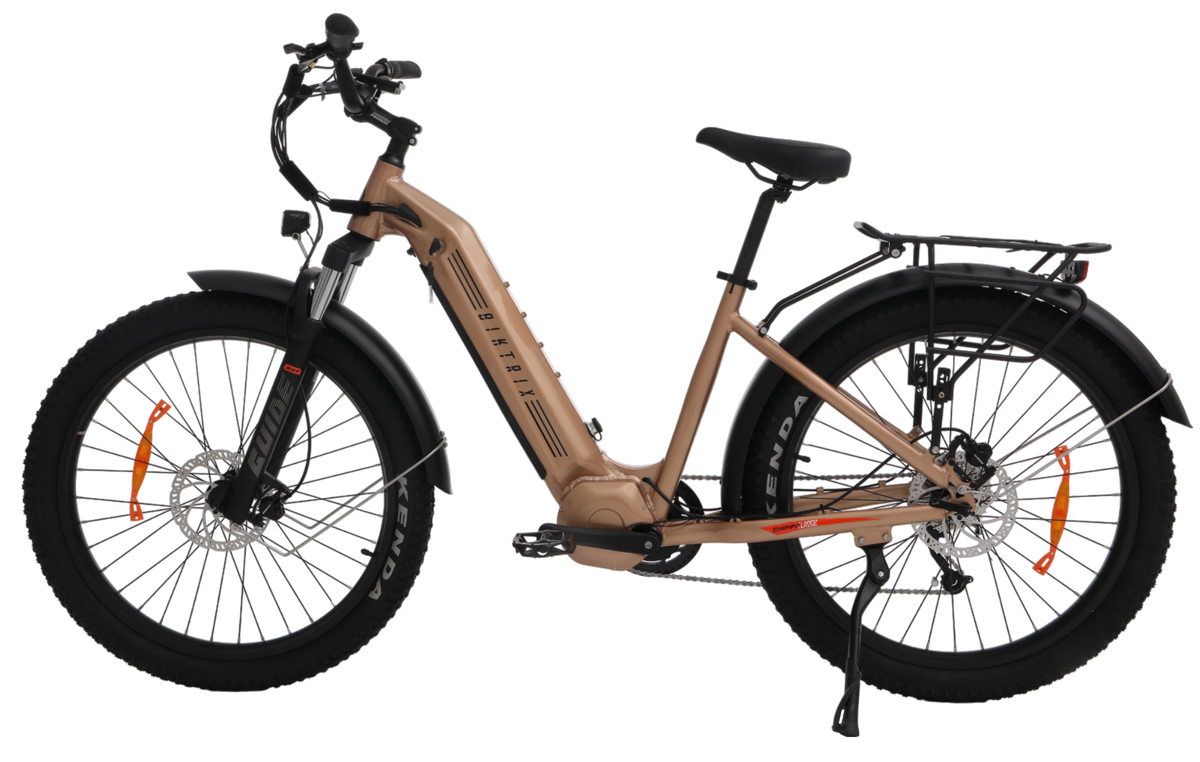

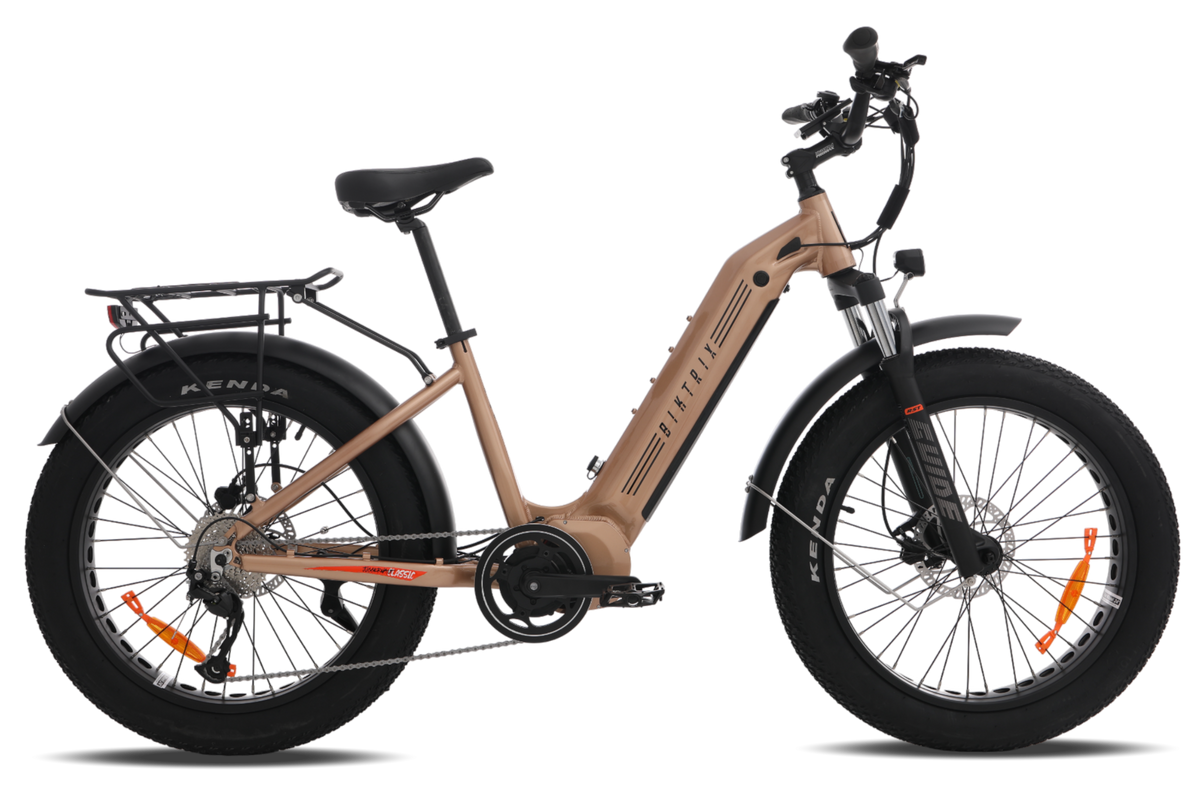

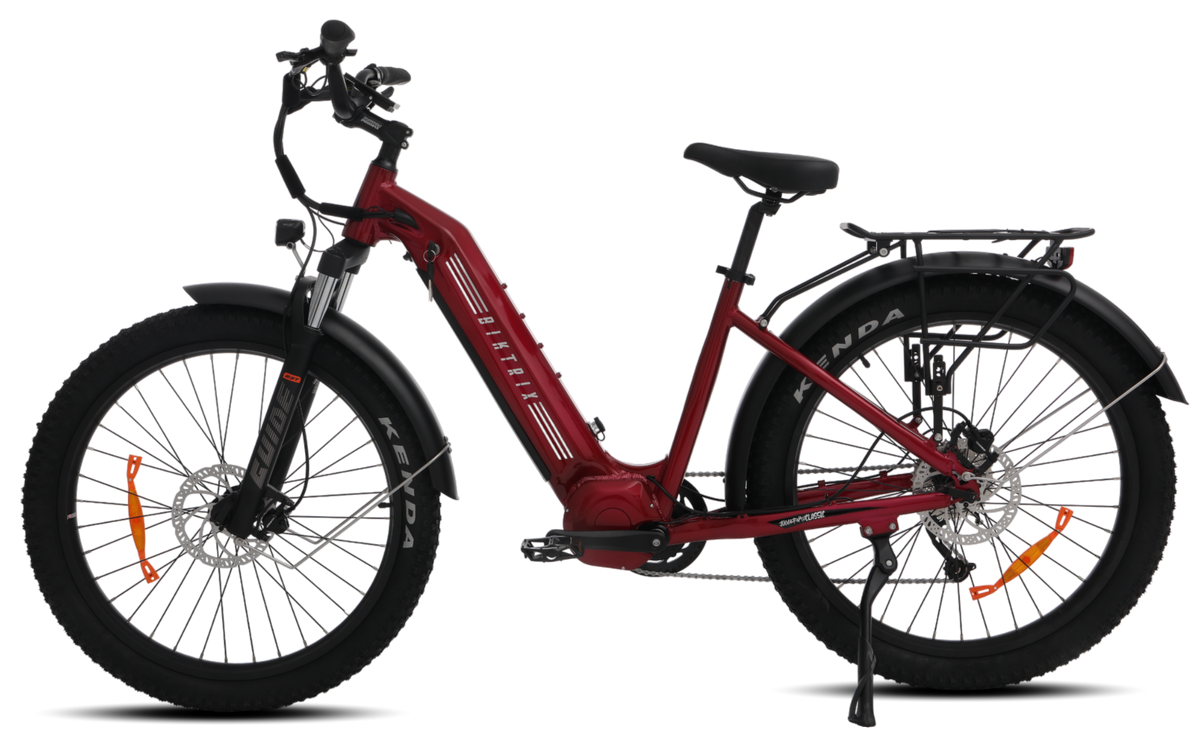

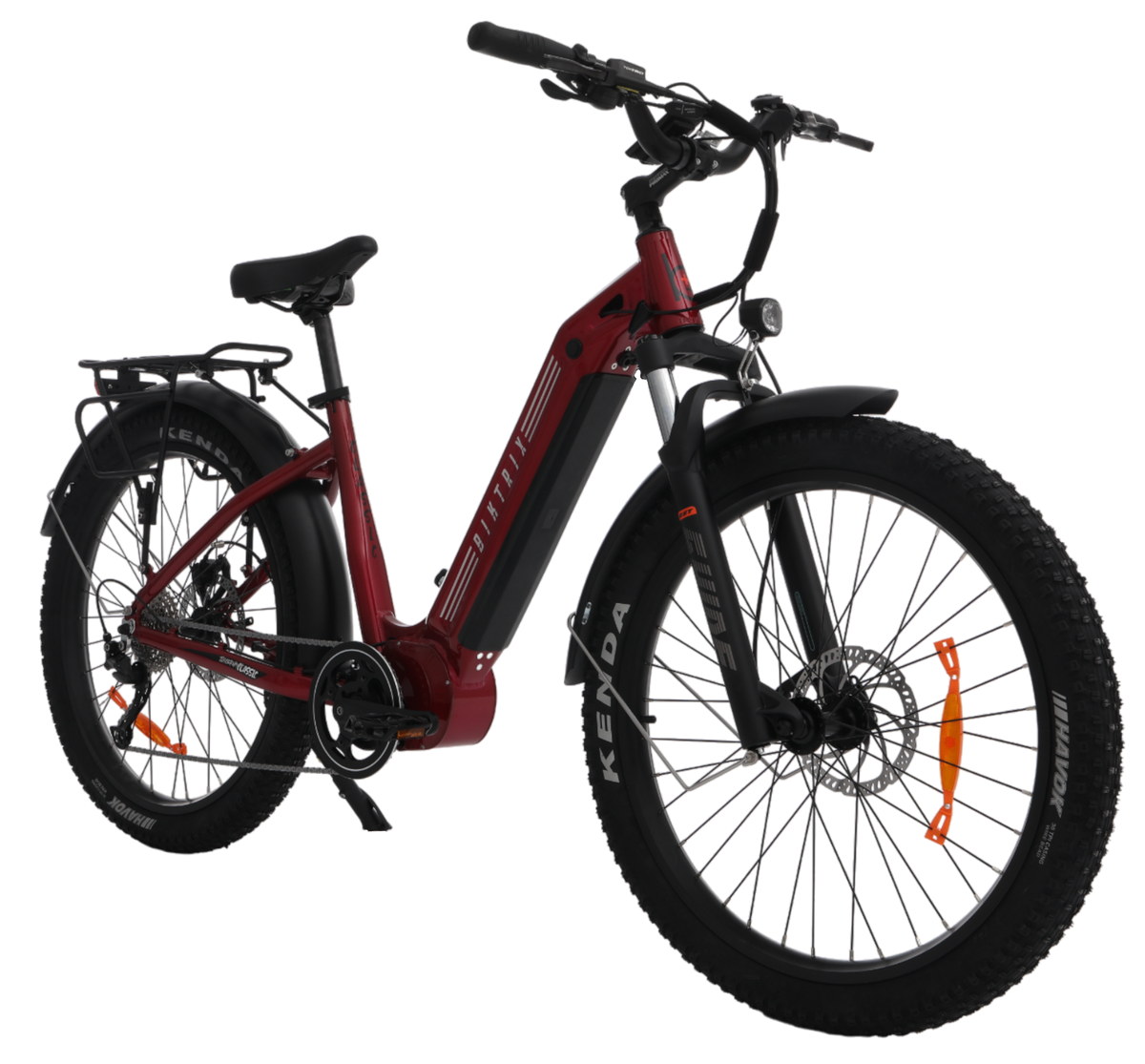

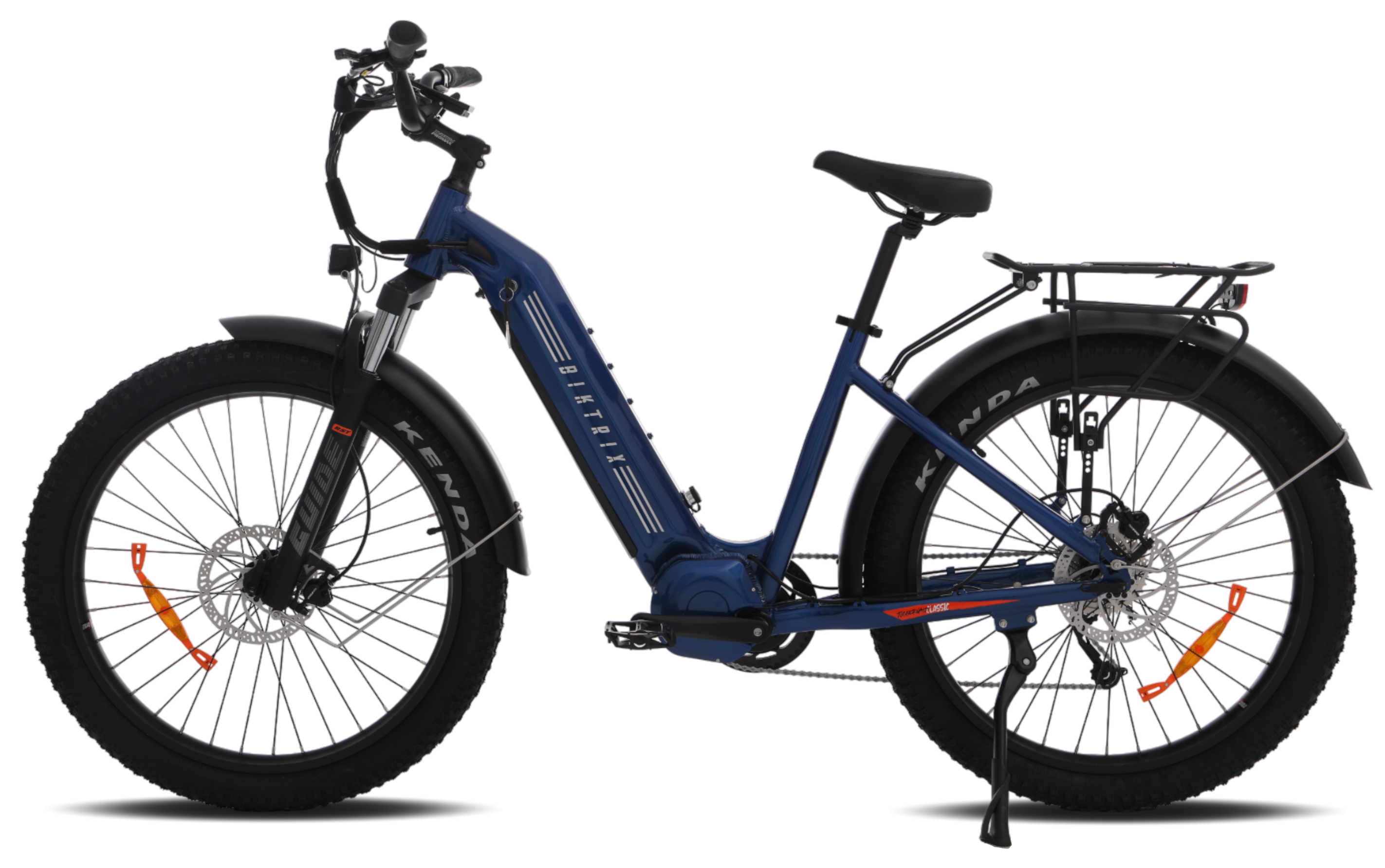

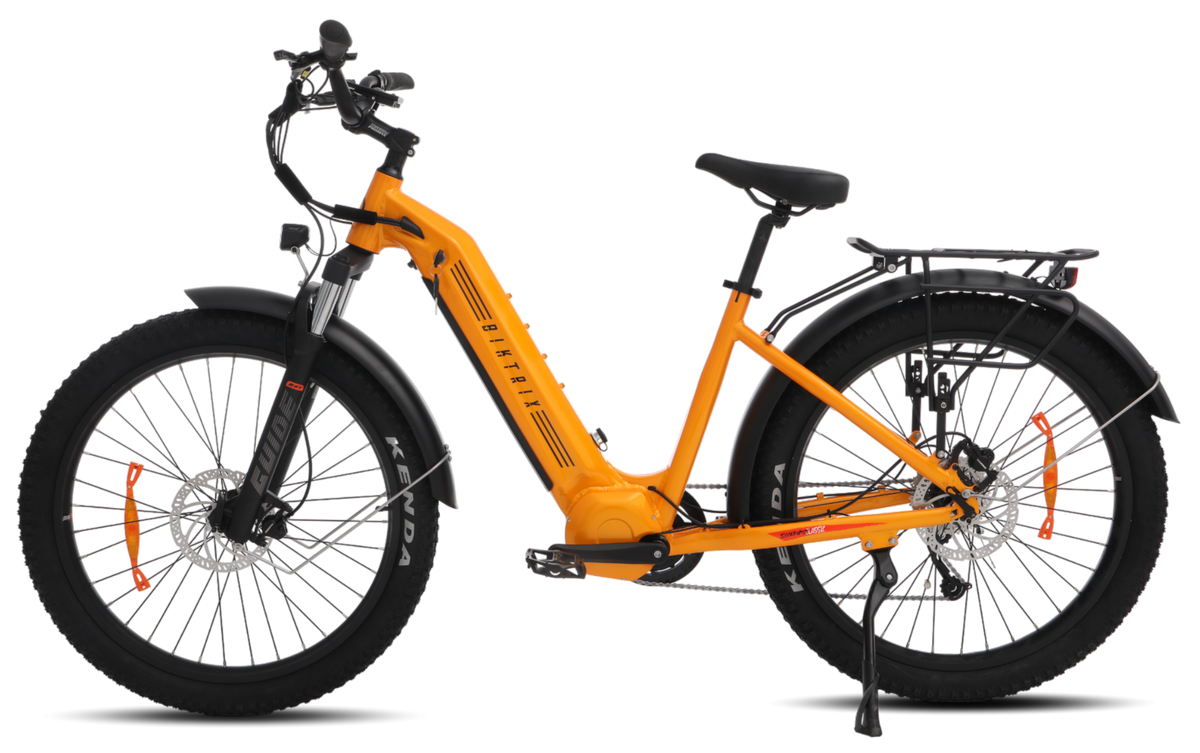

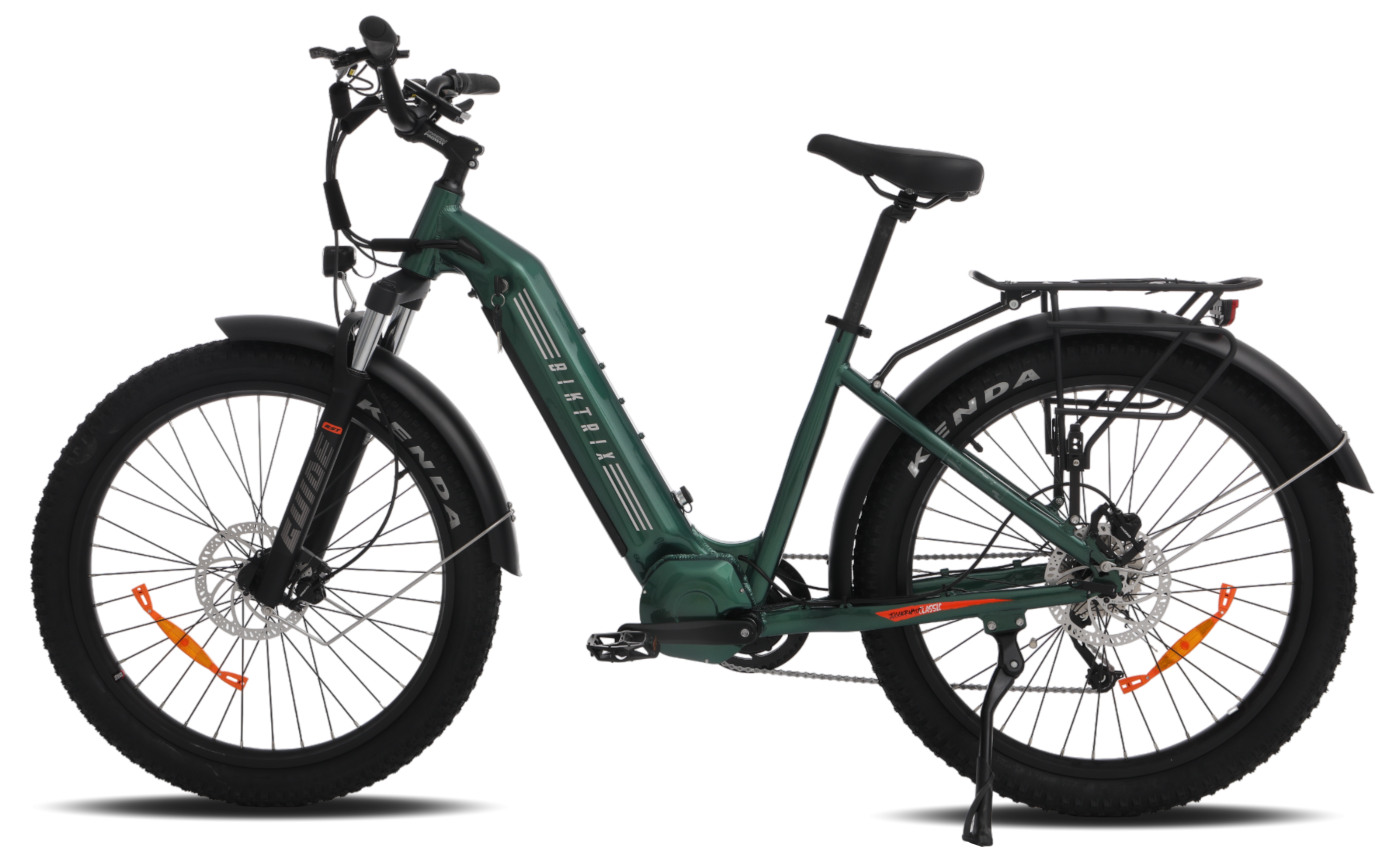

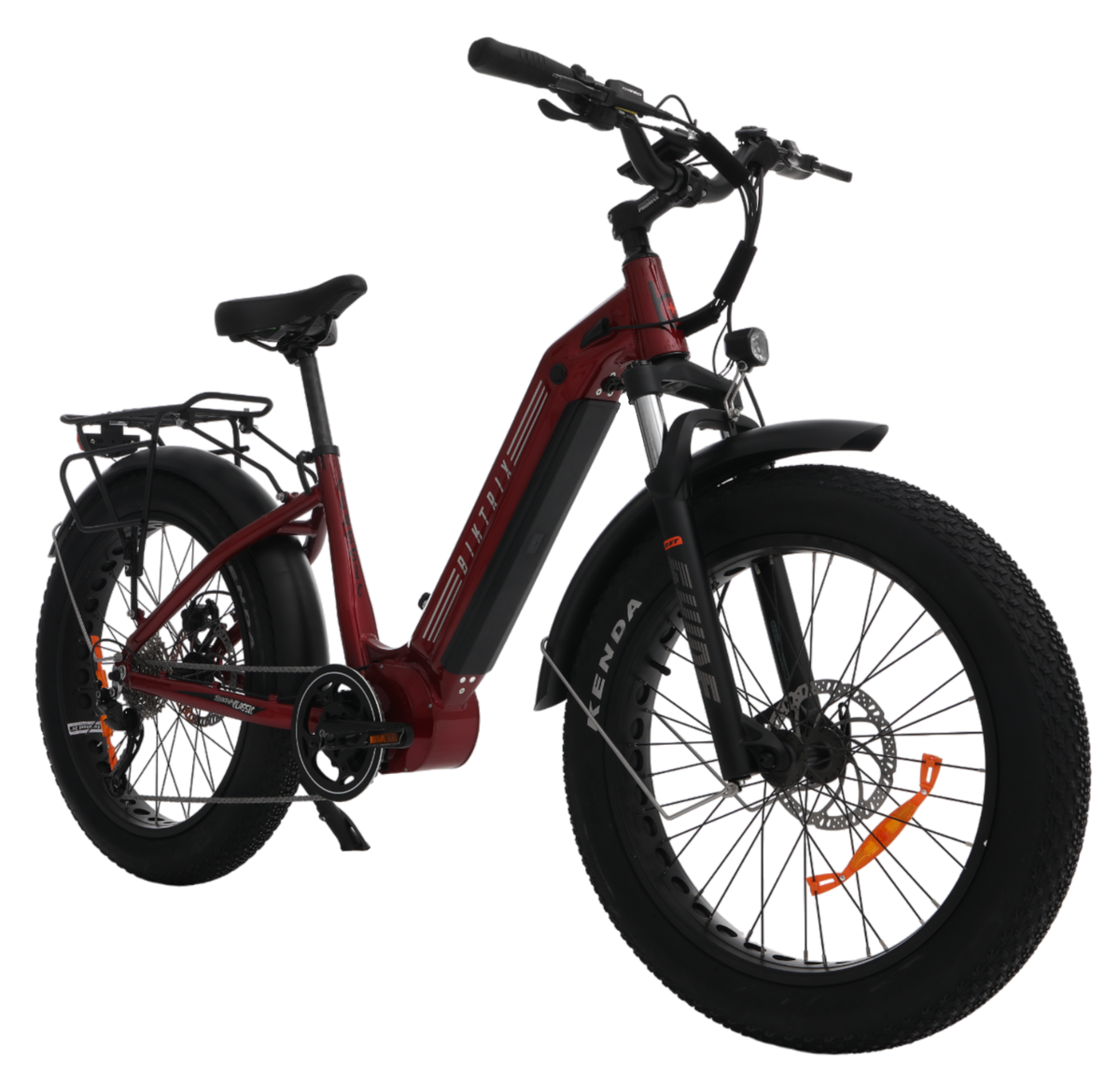

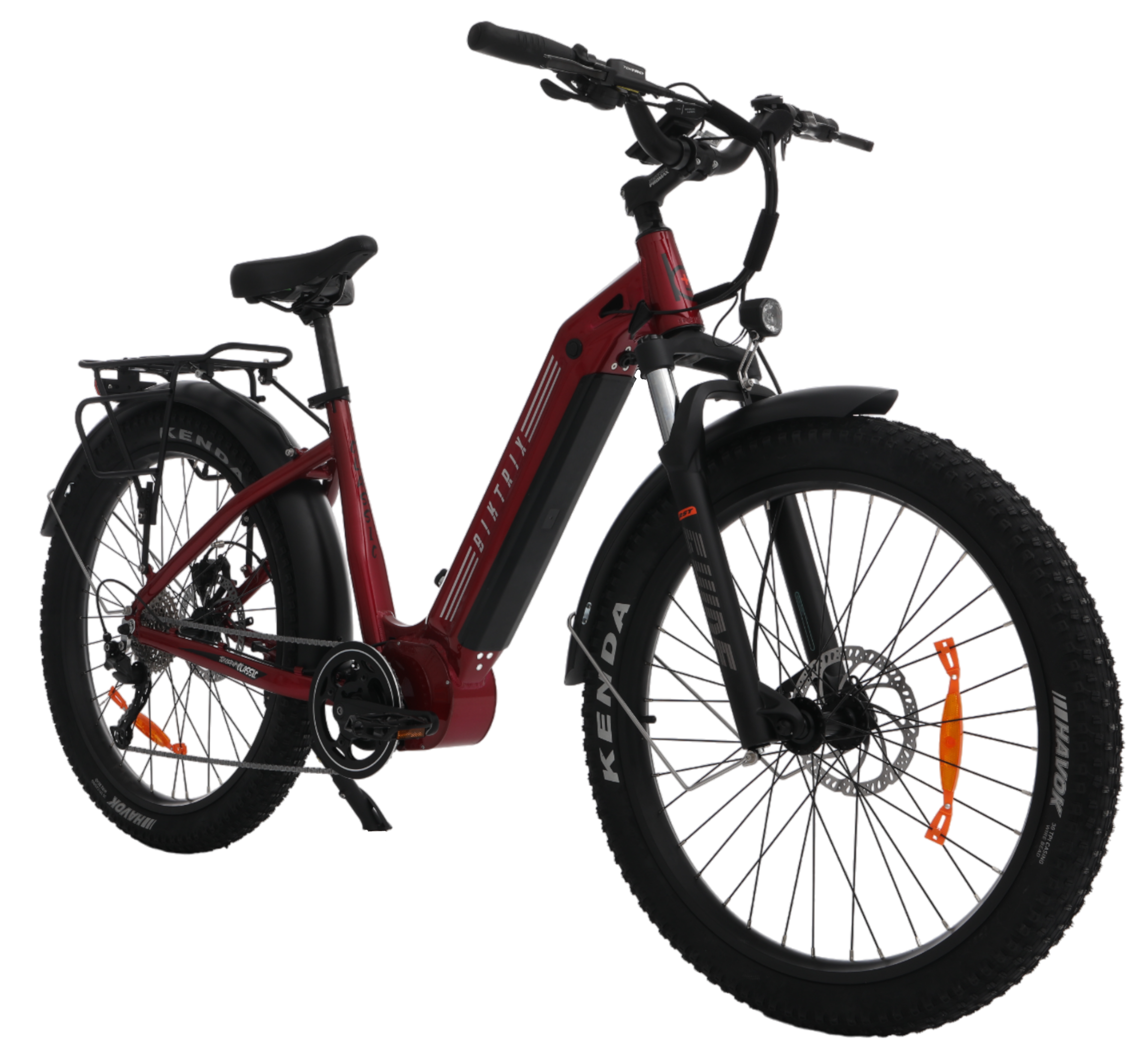

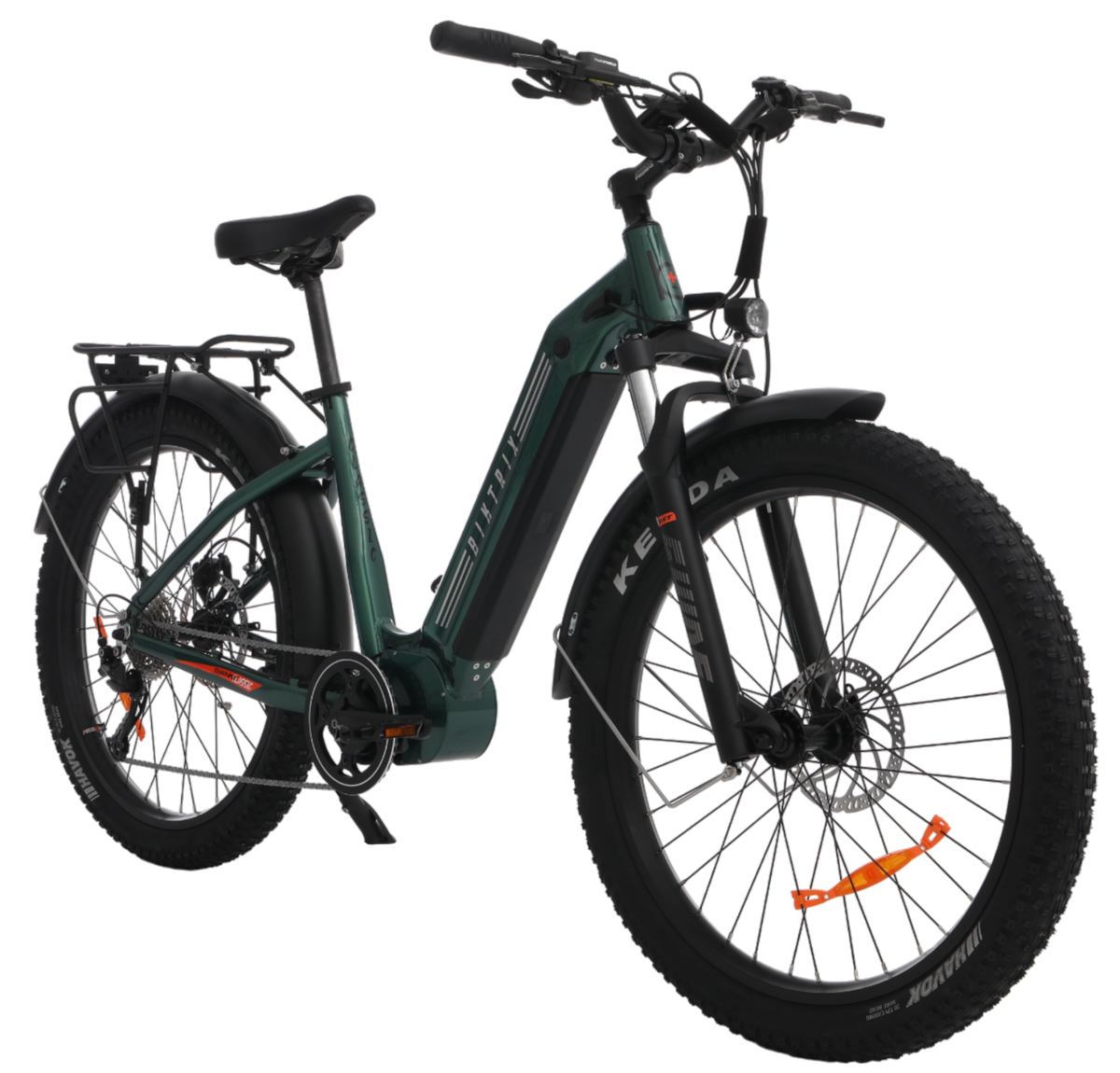

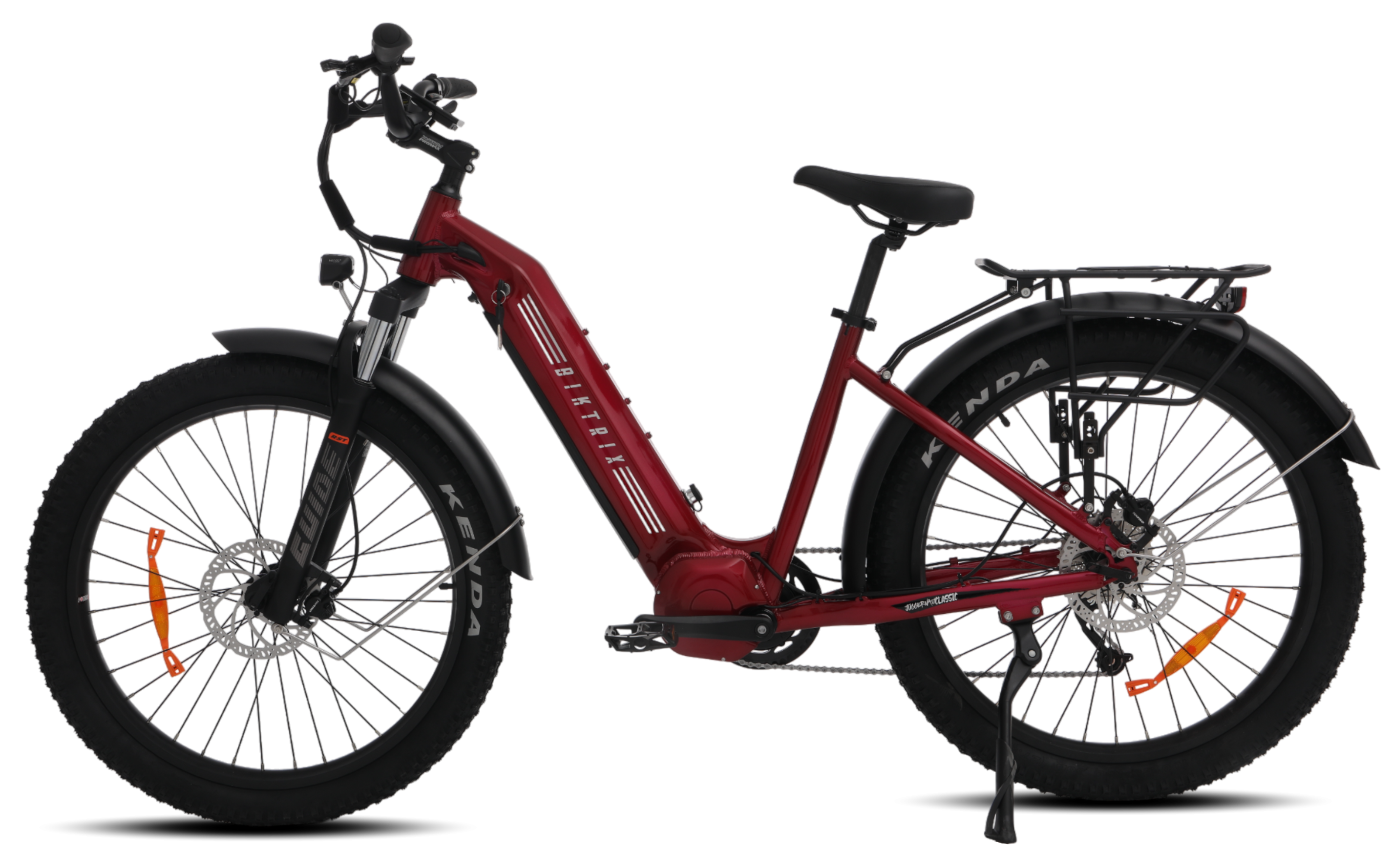

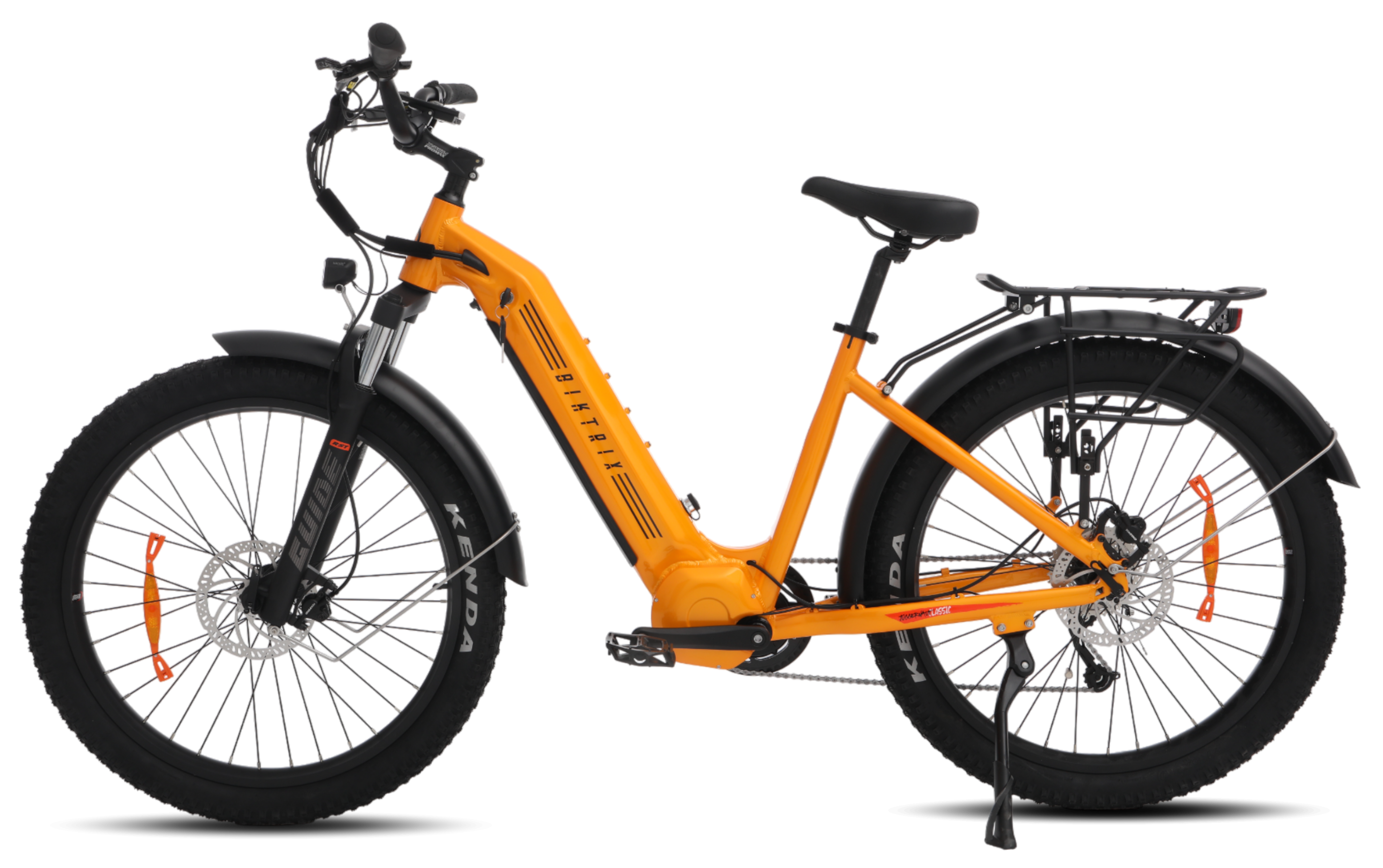

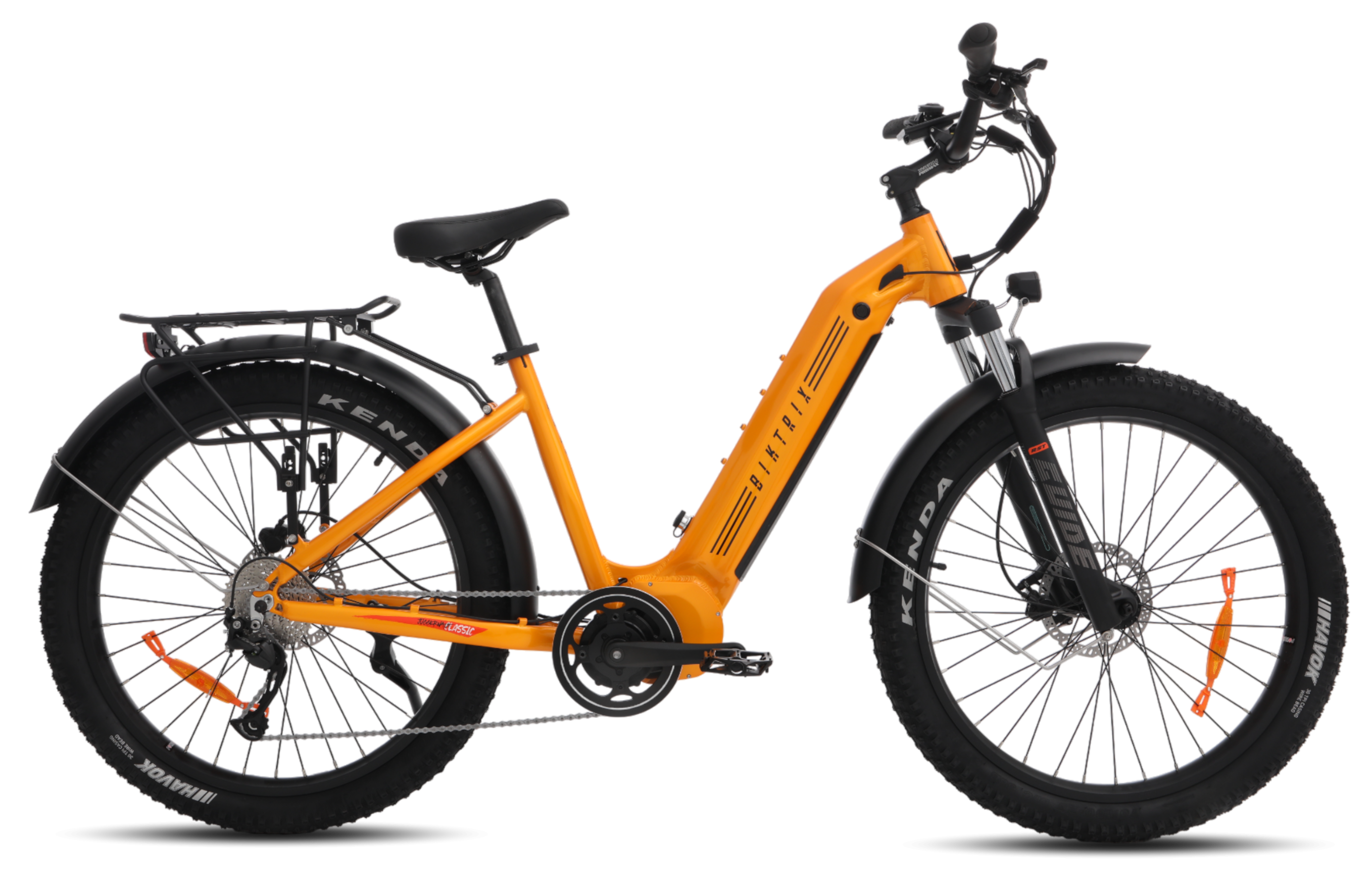

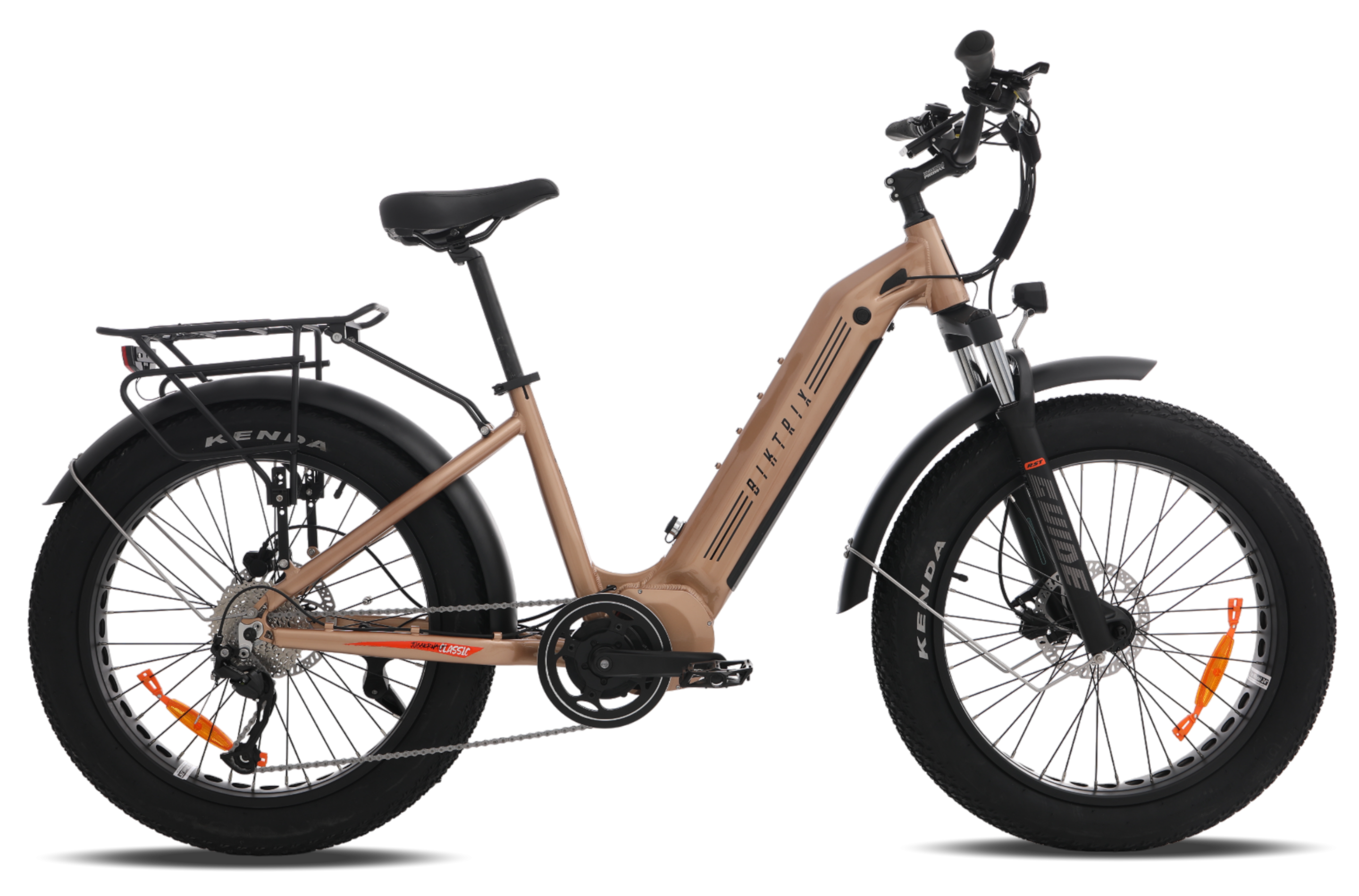

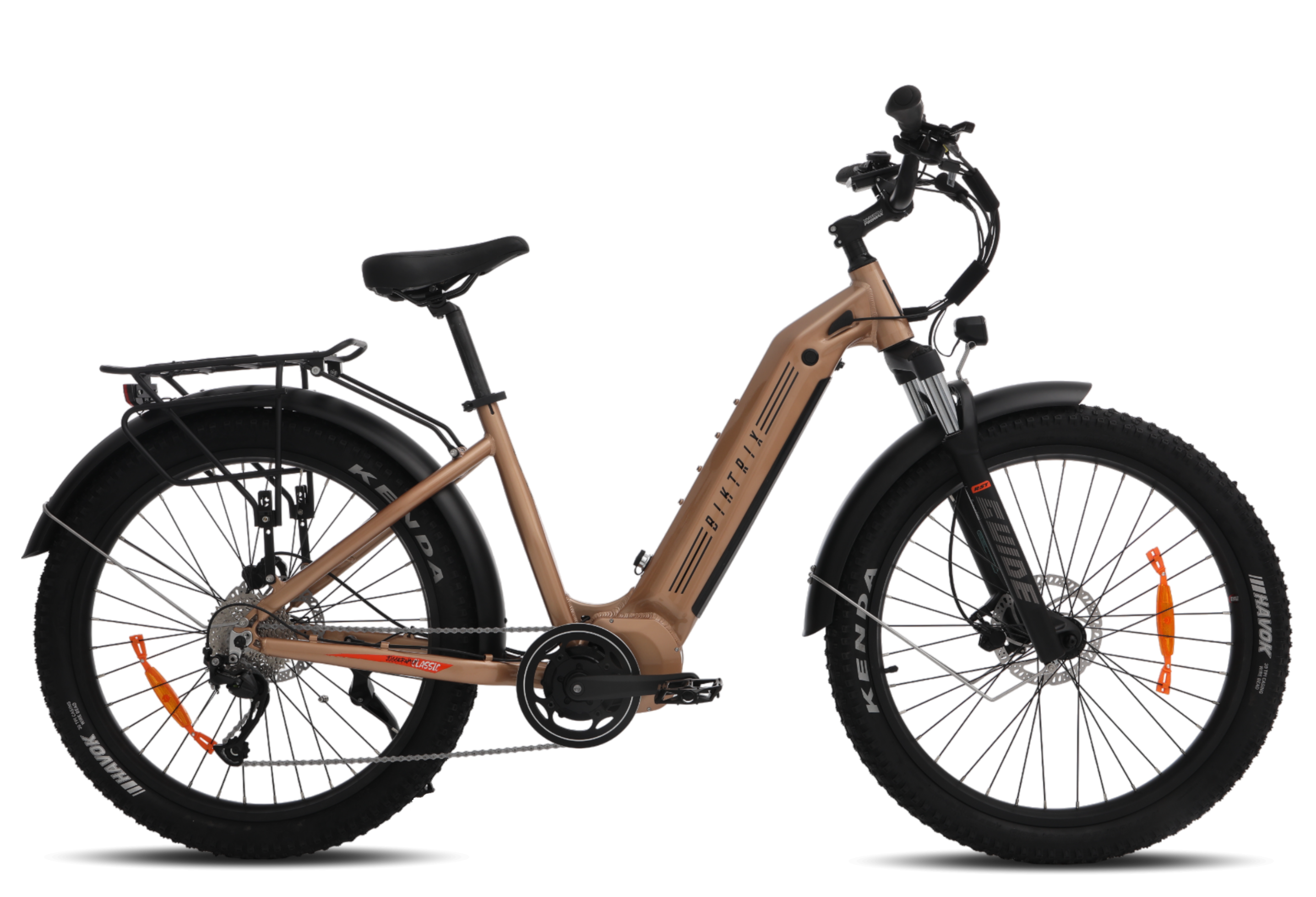

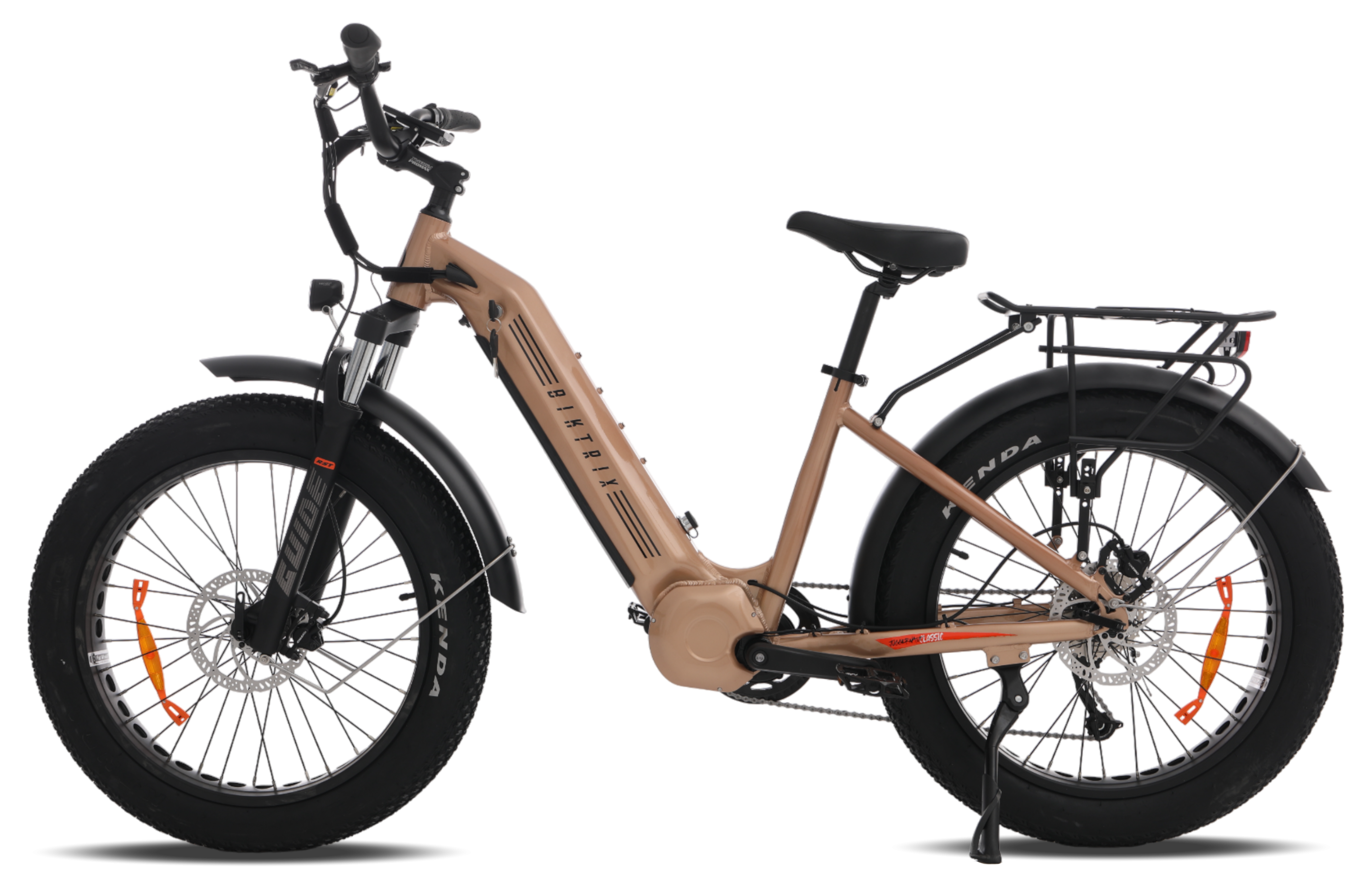

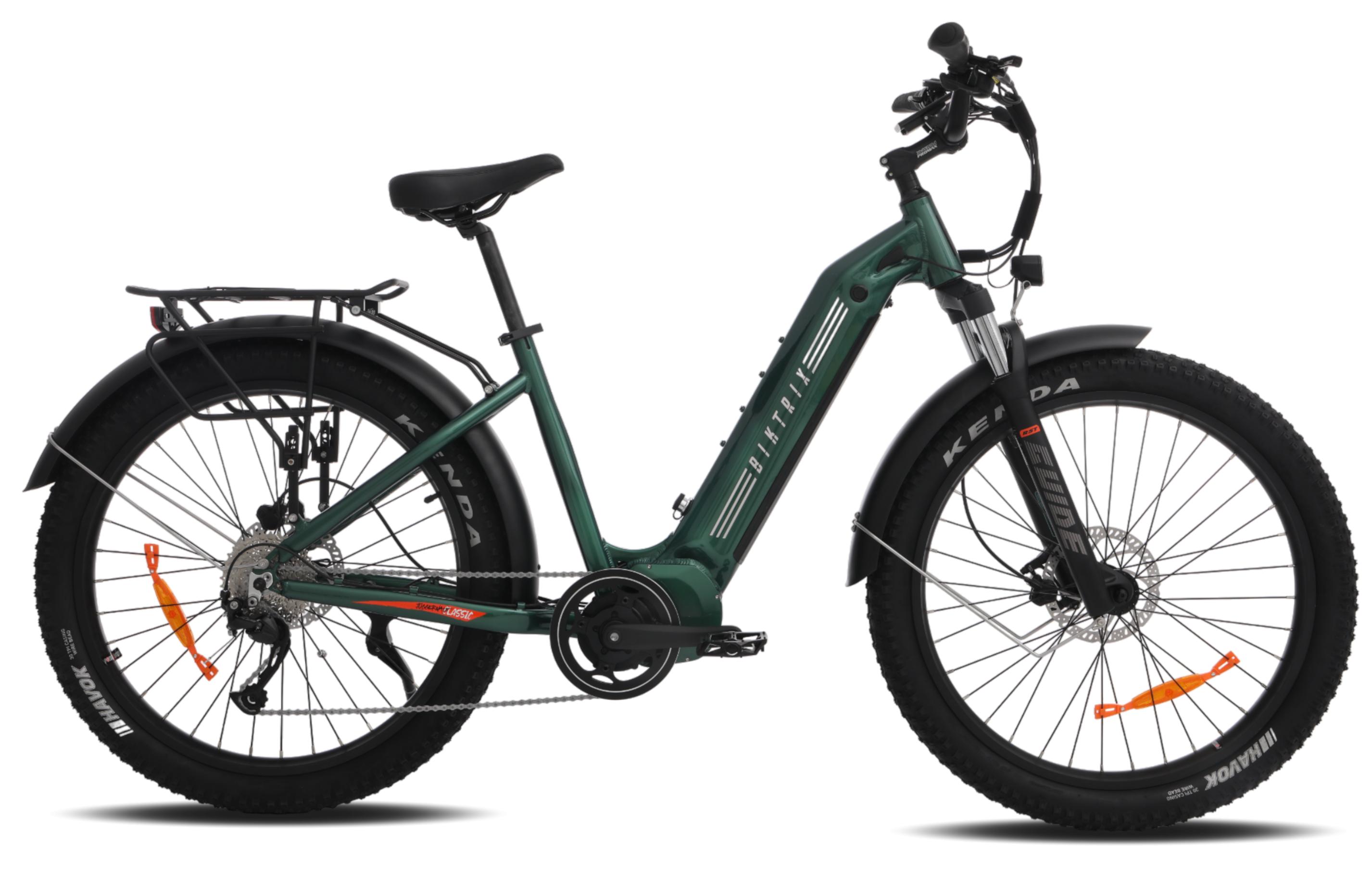

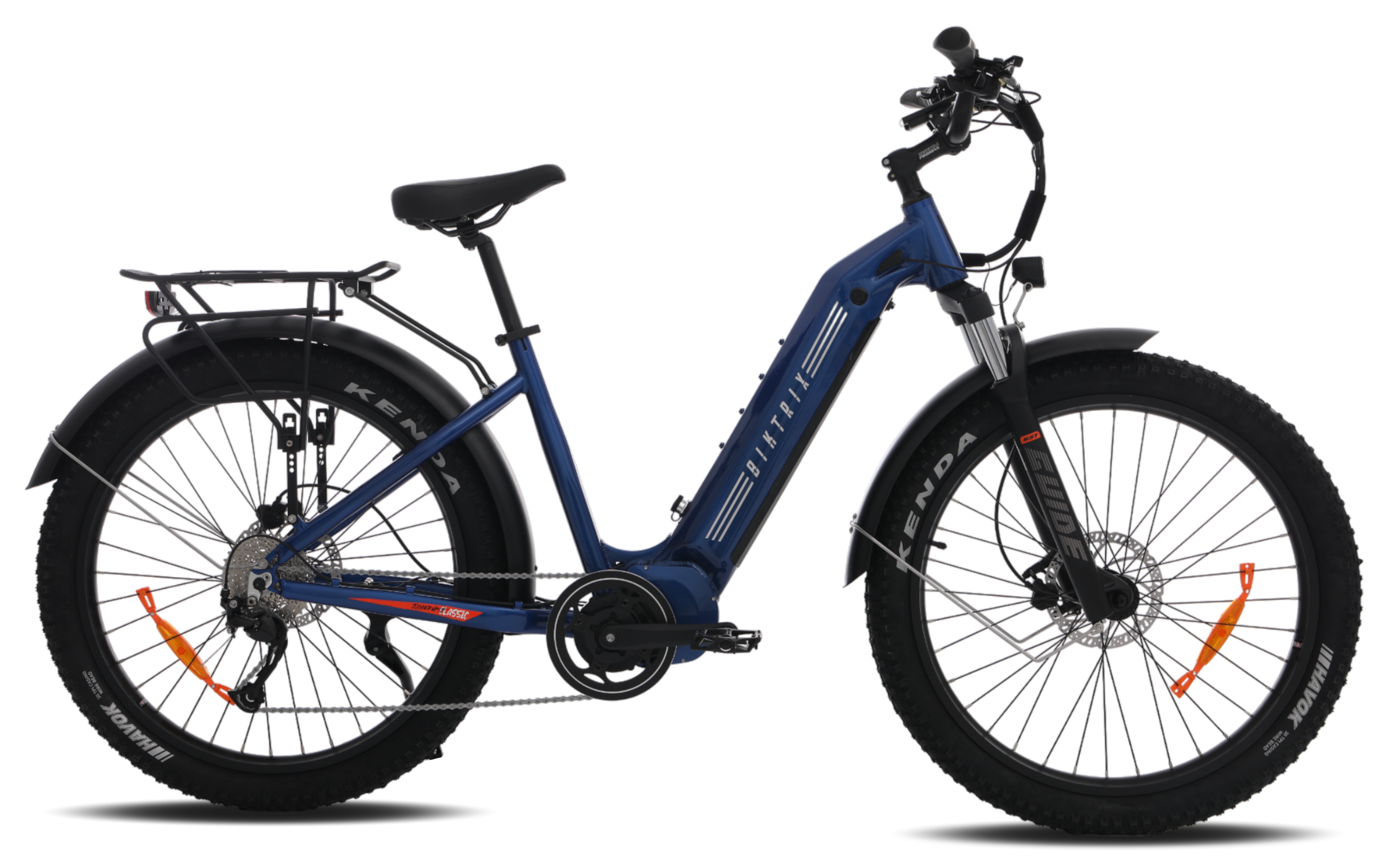

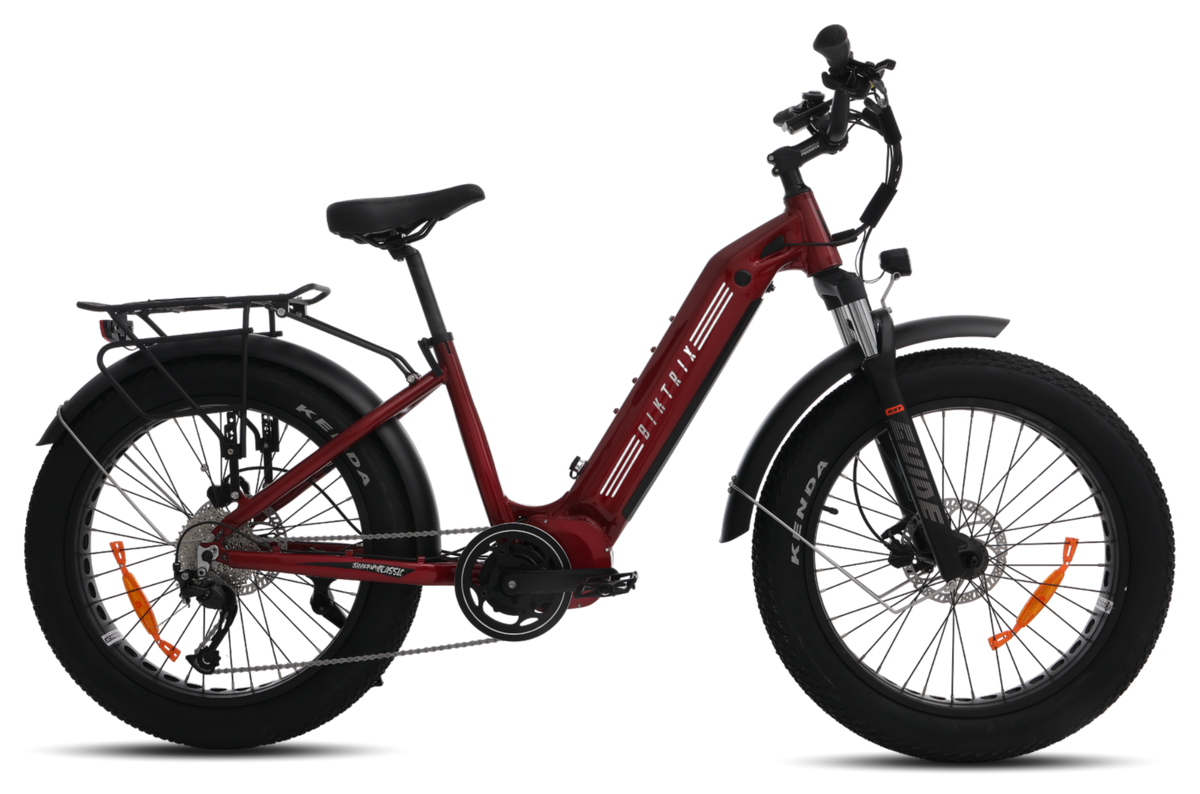

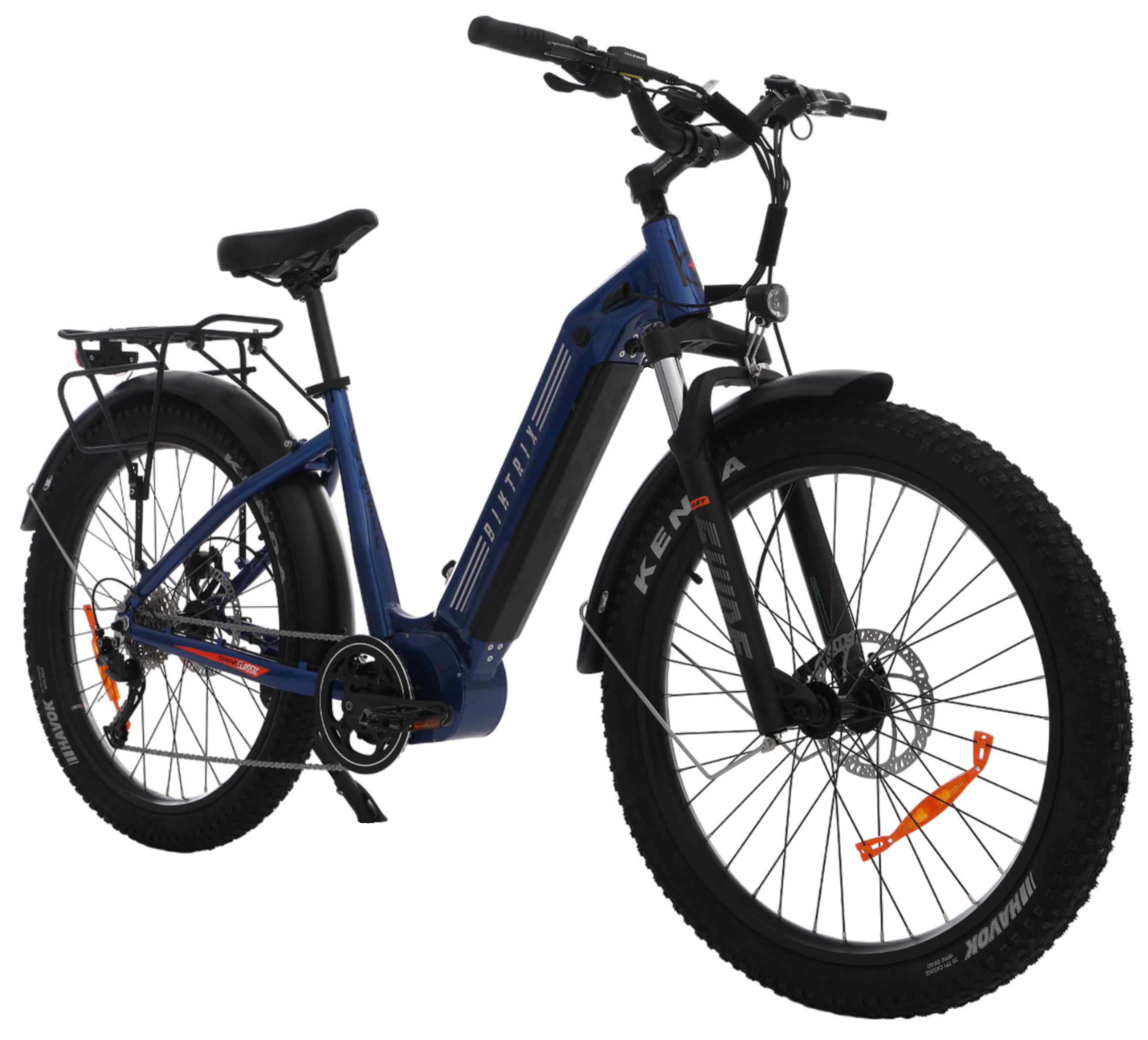

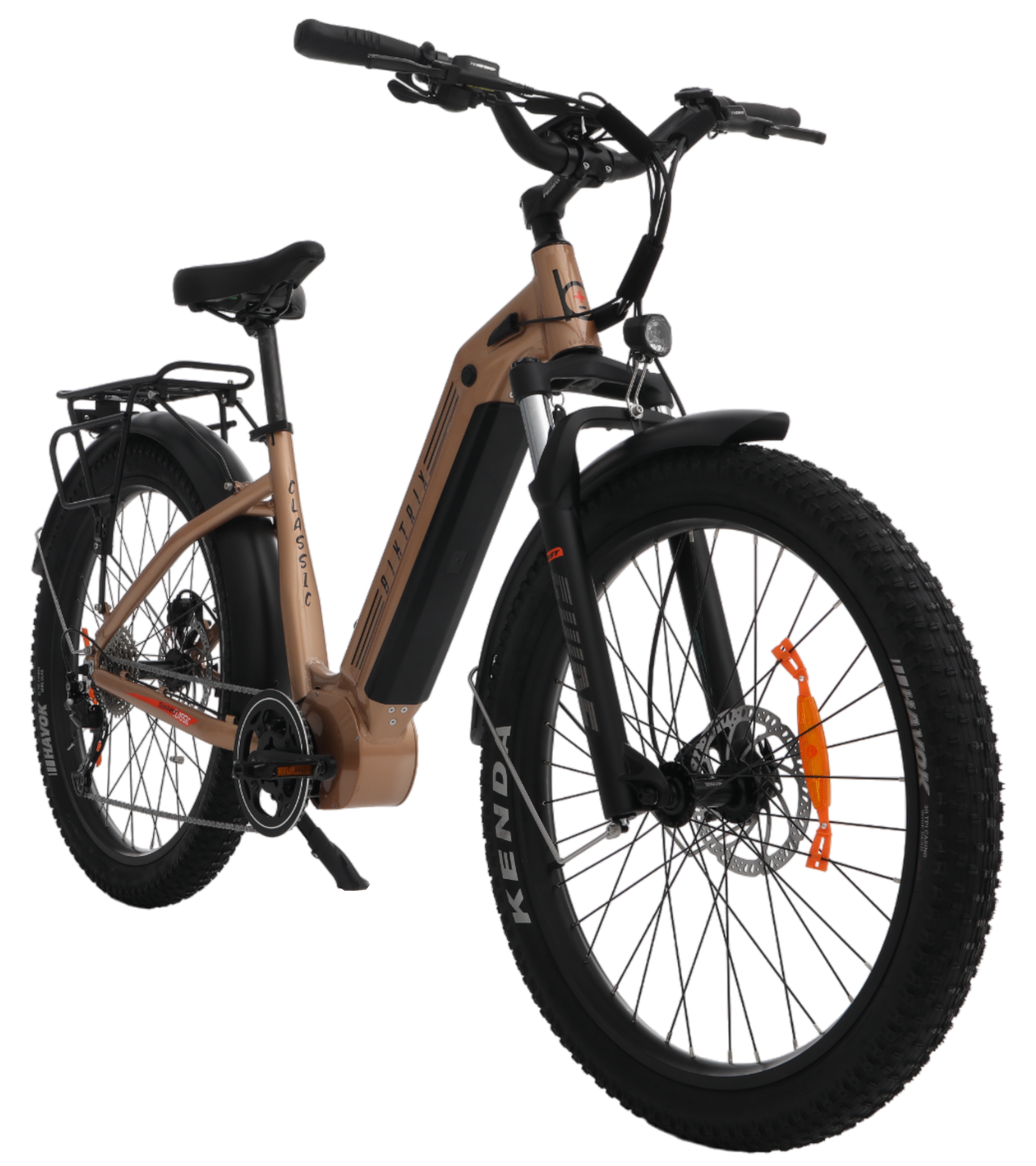

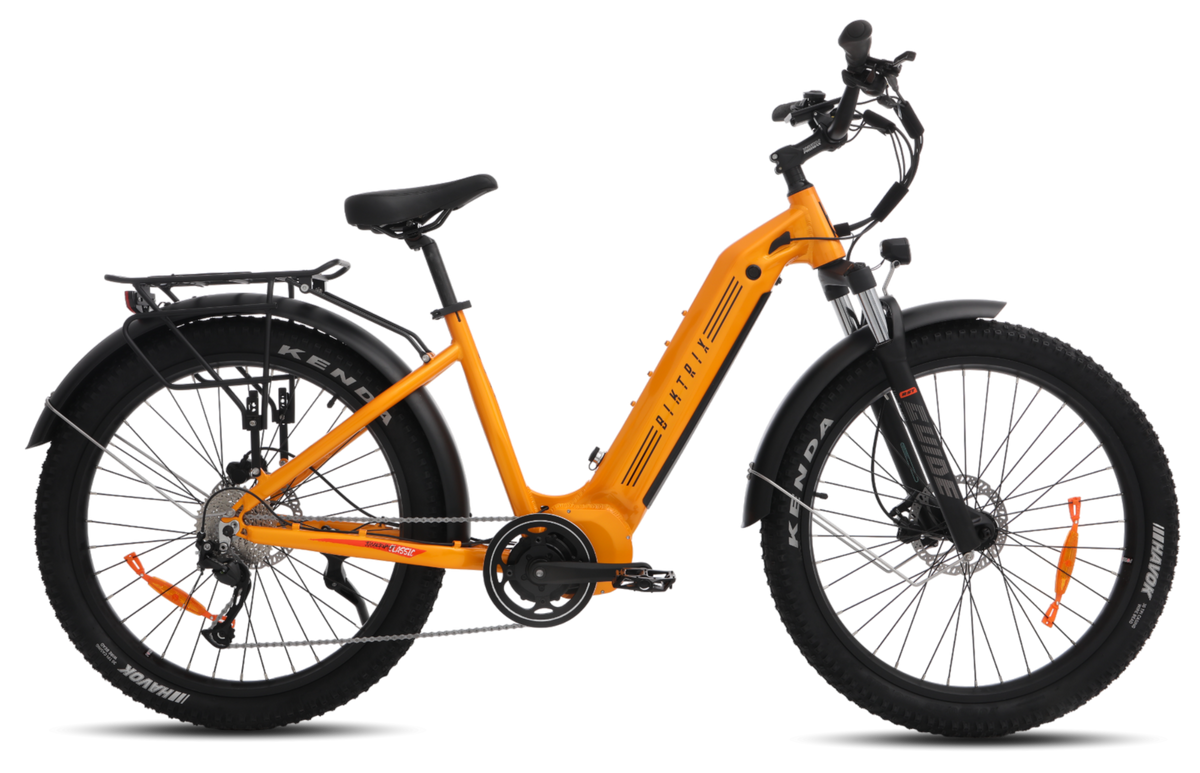

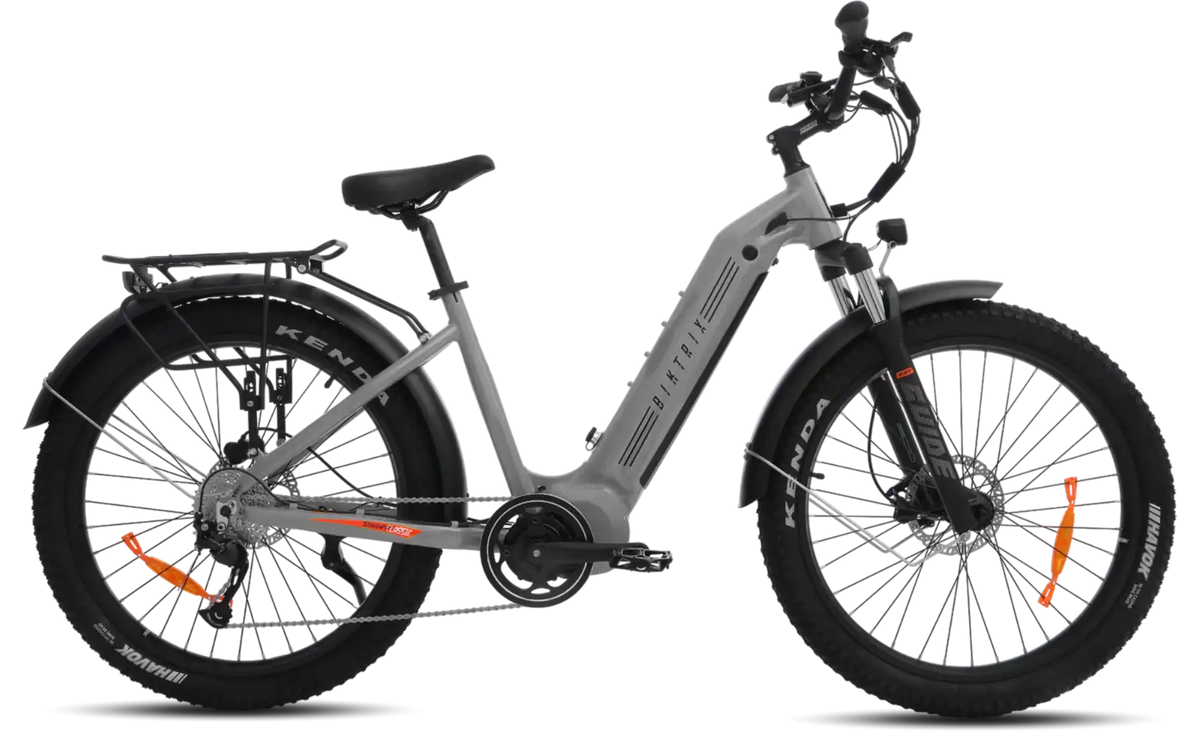

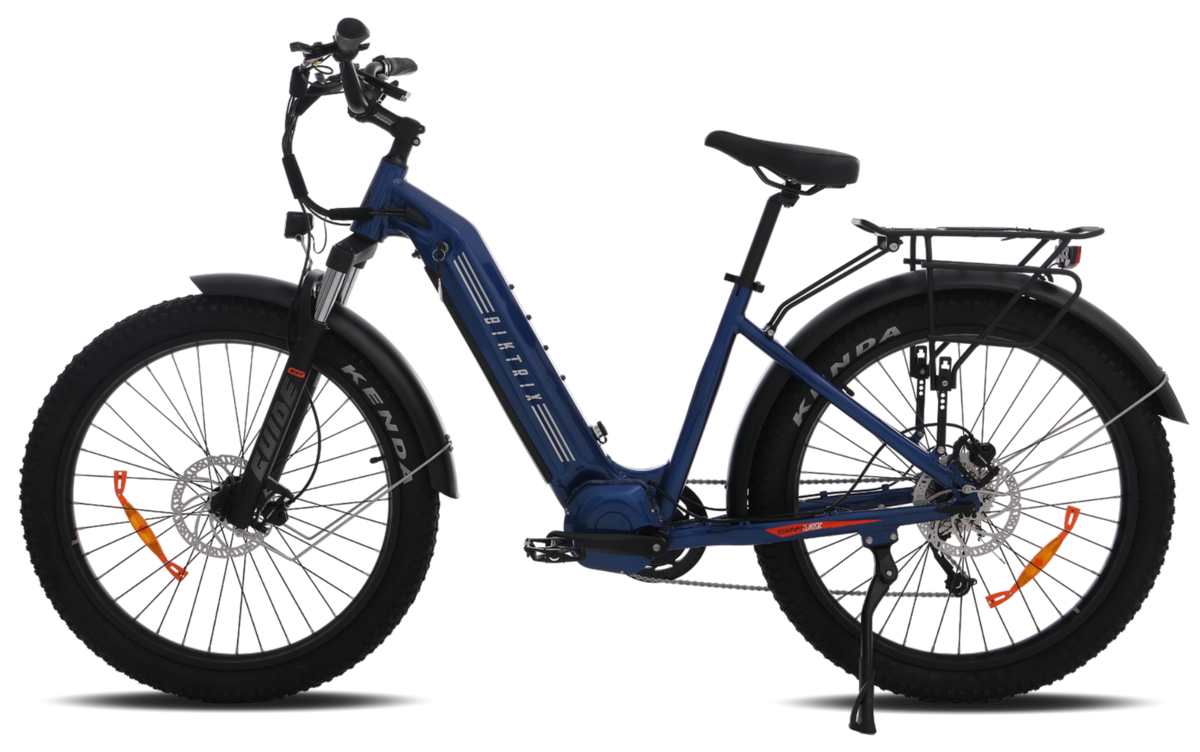

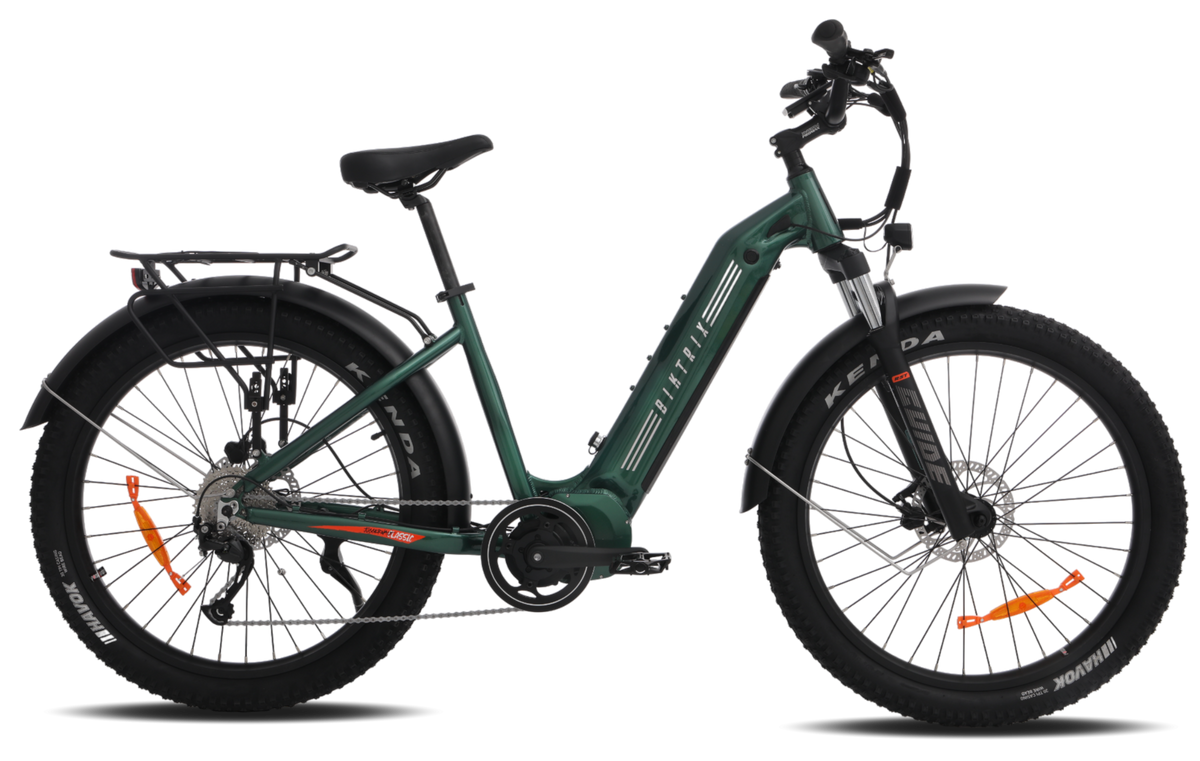

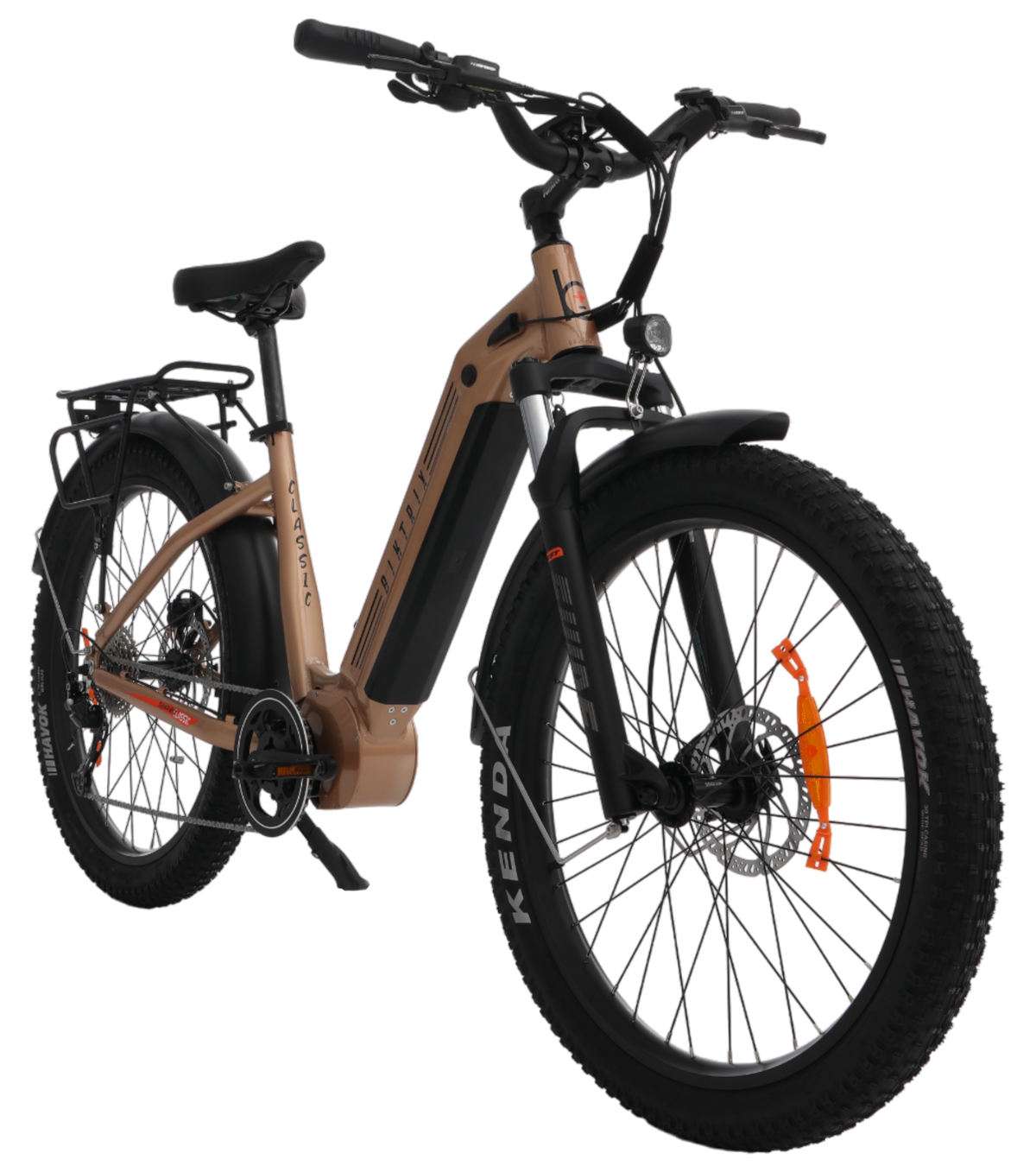

Juggernaut Classic Duo ST | 52V

Name: Juggernaut Classic Duo Step-Thru | 52V
Brand: Sale Item
SKU: JCLDSTM244PC1
Price: 4099.0 CAD
Availability: OutOfStock
Rating: 4.54 (181 reviews)

4.5

CA$4,399

Juggernaut Classic Duo Step-Thru | 52V Has Been Replaced.

Interested in the newest evolution of this classic model? Check out the Juggernaut Ultra Duo 4!

Juggernaut Ultra Duo 4

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	460mm	18.1in
4	Stack	660mm	26in
5	Chainstay Length	520mm	20.5in
6	Standover Height	400mm	15.7in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	530mm	20.9in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1230mm	48.4in
15	Total Length	1980mm	78in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	770mm	30.3in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	31.3kg	69lb

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	510mm	20.1in
4	Stack	600mm	23.6in
5	Chainstay Length	520mm	20.5in
6	Standover Height	420mm	16.5in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	530mm	20.9in
11	Front Center	760mm	29.9in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1280mm	50.4in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	32.5kg	71.7lb

750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 100km Range

+5'4ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

Riders Reviews

Biktrix Juggernaut Classic Duo ST Review | Burly & Bespoke

Electric Bike Report

Biktrix Juggernaut Classic Duo Review: So You're Looking for a Mid-Drive...

Ebike Escape

I Bought an INSANE E–BIKE MID DRIVE Juggernaut Classic Duo Review!

Electric Vehicles Space

60+

Miles Range

120Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

Beating The Competition.

The Juggernaut Classic Duo surpasses the competition with its unparalleled durability, superior performance, and timeless design, making it the ultimate choice for enthusiasts seeking an unbeatable riding experience.

Bafang BBS02 750W motor, 52V 17.5Ah 910 Wh
28 mph top speed
Dual Battery Support (more range)
Tektro Hydraulic Disc Brakes (Optional Magura)
Shimano Alivio 9 speed
Step Thru and Step Over
2 Year Warranty Stock (Up to 4 years warranty)

Bafang BBSHD 750W motor, 48V 13Ah 624 Wh
20 mph top speed
No Dual Battery Support (less range)
Nutt Hydraulic Disc Brakes
Shimano Tourney 7 speed
Step Over Only
1 year warranty

Bafang BBSHD 1000W motor, 48V 21Ah 1008 Wh
28 mph top speed
No dual Battery Support (less range)
Tektro Hydraulic Disc Brakes
SRAM High-End NX 11 Speed
Step Over Only
1 Year Warranty

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

The Next Step In Performance.

Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.

All The Good Stuff, And More.

Mid Drive Motor

The Bafang BBS02 mid-drive motor features 750 watts of power and 120Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Thumb Throttle & Control Pad

With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

Suspension Fork

The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability

Drivetrain

From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Optional Range Extender

Multiple range-extender battery options can expand your eBike's range all the way to 160 km.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

SIZE GUIDE

Let's Get You Fitted.

5'10" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get L | 19" for the best fit.

Not sure how to measure properly for your bike?

5'10"

PAS 1 Pedal-Assist Lv.1		130km Up To
PAS 2 Pedal-Assist Lv.2		103km Up To
PAS 3 Pedal-Assist Lv.3		69km Up To
PAS 4 Pedal-Assist Lv.4		63km Up To
PAS 5 Pedal-Assist Lv.5		58km Up To
THRL Throttle Only		50km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 27.2mm
Fork Rst guide w/75mm travel, lockout and preload	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-18/ 1-1/2 tapered	Rear hub 170mm 36h	Motor 750w bafang bbs02 mid-drive
Shifter rear Shimano alivio 9 speed trigger	Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano 9 speed	Rims 26x4, 27.5x3, 24x4	Display Dpc-18
Cassette 9 speed 12-36t cassette	Tire sizes 26x4, 27.5x3, 24x4	Lights Headlight, taillight
Chain Kmc 9 speed	Handlebar 31.8mm clamp, 700mm wide, 80mm rise	Assist type Cadence
Crank set 170mm arms 44t chainring	Stem Promax 90mm	Assist levels 1-5
Bottom bracket Bafang square taper	Grips Comfort grips	Throttle Thumb throttle
Brakes Tektro e350 dual piston w/ 180mm rotors	Saddle Wide saddle	Other Front and rear fender, rear rack, kickstand
Brake levers Tektro adjustable w/ integrated brake cutoffs

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 27.2mm	Fork Rst guide w/75mm travel, lockout and preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-18/ 1-1/2 tapered	Rear hub 170mm 36h
Motor 750w bafang bbs02 mid-drive	Shifter rear Shimano alivio 9 speed trigger
Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano 9 speed	Rims 26x4, 27.5x3, 24x4
Display Dpc-18	Cassette 9 speed 12-36t cassette
Tire sizes 26x4, 27.5x3, 24x4	Lights Headlight, taillight
Chain Kmc 9 speed	Handlebar 31.8mm clamp, 700mm wide, 80mm rise
Assist type Cadence	Crank set 170mm arms 44t chainring
Stem Promax 90mm	Assist levels 1-5
Bottom bracket Bafang square taper	Grips Comfort grips
Throttle Thumb throttle	Brakes Tektro e350 dual piston w/ 180mm rotors
Saddle Wide saddle	Other Front and rear fender, rear rack, kickstand
Brake levers Tektro adjustable w/ integrated brake cutoffs

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

27.2mm

Fork

Rst guide w/75mm travel, lockout and preload

Front axle

5mm qr

Seat post clamp

Headset

Threadless 1-18/ 1-1/2 tapered

Rear hub

170mm 36h

Motor

750w bafang bbs02 mid-drive

Shifter rear

Shimano alivio 9 speed trigger

Rear axle

5mm qr

Battery sizes

Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)

Rear derailleur

Shimano 9 speed

Rims

26x4, 27.5x3, 24x4

Display

Dpc-18

Cassette

9 speed 12-36t cassette

Tire sizes

26x4, 27.5x3, 24x4

Lights

Headlight, taillight

Chain

Kmc 9 speed

Handlebar

31.8mm clamp, 700mm wide, 80mm rise

Assist type

Cadence

Crank set

170mm arms 44t chainring

Stem

Promax 90mm

Assist levels

1-5

Bottom bracket

Bafang square taper

Grips

Comfort grips

Throttle

Thumb throttle

Brakes

Tektro e350 dual piston w/ 180mm rotors

Saddle

Wide saddle

Other

Front and rear fender, rear rack, kickstand

Brake levers

Tektro adjustable w/ integrated brake cutoffs

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	460mm	18.1in
4	Stack	660mm	26in
5	Chainstay Length	520mm	20.5in
6	Standover Height	400mm	15.7in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	530mm	20.9in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1230mm	48.4in
15	Total Length	1980mm	78in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	770mm	30.3in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	31.3kg	69lb

1	Effective Top Tube Length	640mm	25.2in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	510mm	20.1in
4	Stack	600mm	23.6in
5	Chainstay Length	520mm	20.5in
6	Standover Height	420mm	16.5in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	530mm	20.9in
11	Front Center	760mm	29.9in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1280mm	50.4in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	32.5kg	71.7lb
