Overview

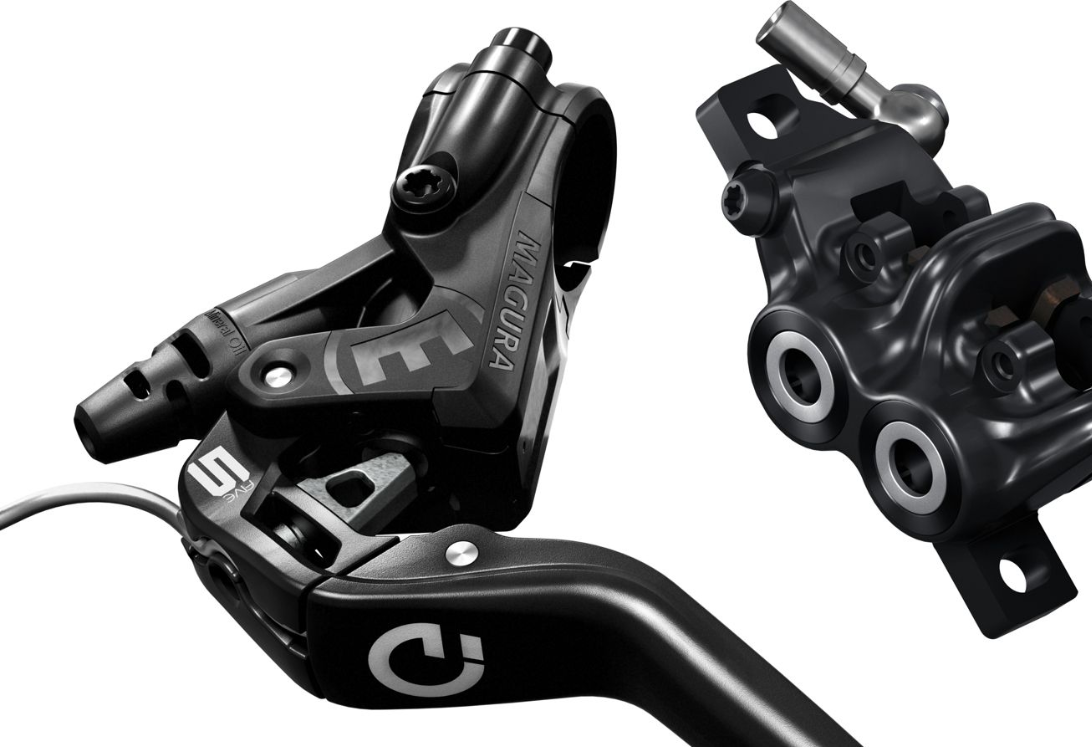

The Magura MT5e quad-piston disc brakes are the ultimate upgrade for your eBike. With German engineering and premium manufacturing, you won't find a higher quality brake system.
It is much more than a basic brake; it features a mechanical switch in the brake lever with a Bafang HIGO connector (closer type) which activates the brake light before deceleration begins and controls the motor cut-out for maximum safety.
What's Included:
- Pre-bled MT5e
- Closer type (Normally open, closed when engaged)
- OEM packaging (no retail packaging)
- 2200mm Hose
- Pre-Bled and ready to install
The price is for 2 x (brake lever + caliper) attached to a 2200mm hose. The brake lever is reversible to use either on the left or right for front or back.
Features:

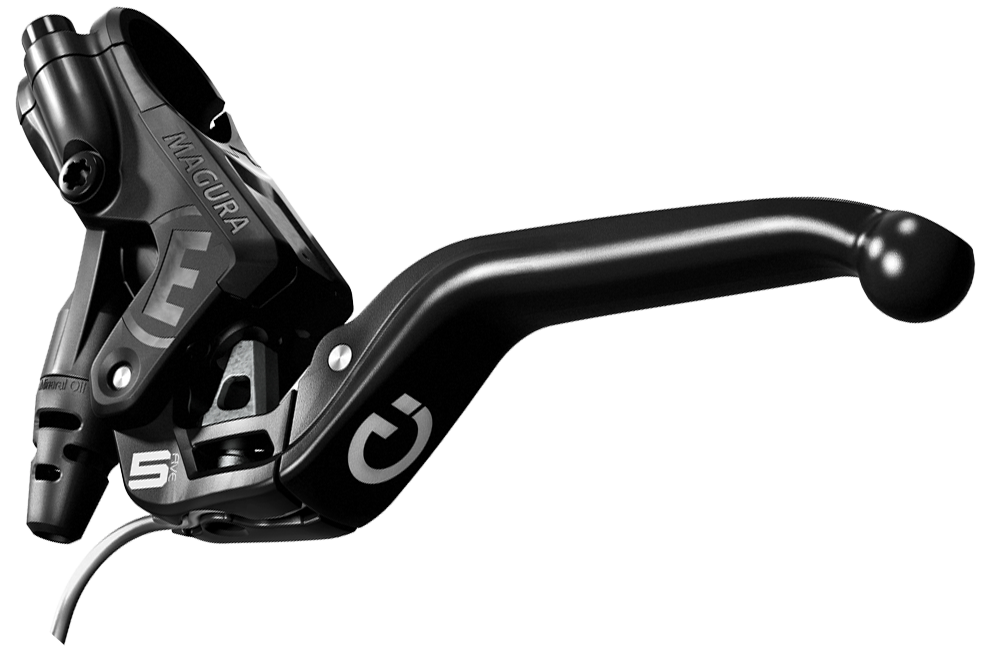

- Ergonomic, 2-finger, aluminium brake lever
- Carbotecture® housing & handlebar clamp
- Adjustable lever reach

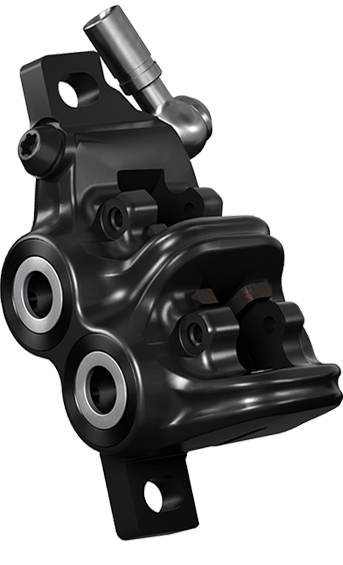

- Forged, 4-piston brake caliper
- MagnetiXchange brake pistons for easy brake pad replacement
- Compatible with all MAGURA Storm and Storm SL discs

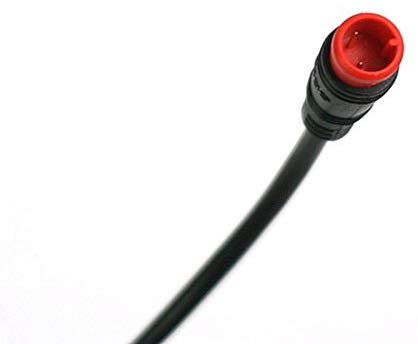

Note: If you do not opt for the 2-Pin:3-Pin Adaptors you will need to modify the connectors as shown here.
Technical Specifications
Master Material
Carbotecture®
Lever Blade Material
Aluminum with Switch
Caliper Material
Aluminum
Brake Type
Hydraulic
Brake Fluid
Magura Royal Blood
Reach Adjustment
Yes, with 3mm Allen Key
Brake Cutoff Switch
Yes, 2-Pin HIGO
Lever Blade Style
3-Finger Ball End
Mounting
Post Mount / IS Mount with adaptors
Weight
345g per brake assembly
Brake Sensor Type
Closer Type
Colour
Black
Hose Length
2200mm
