Overview

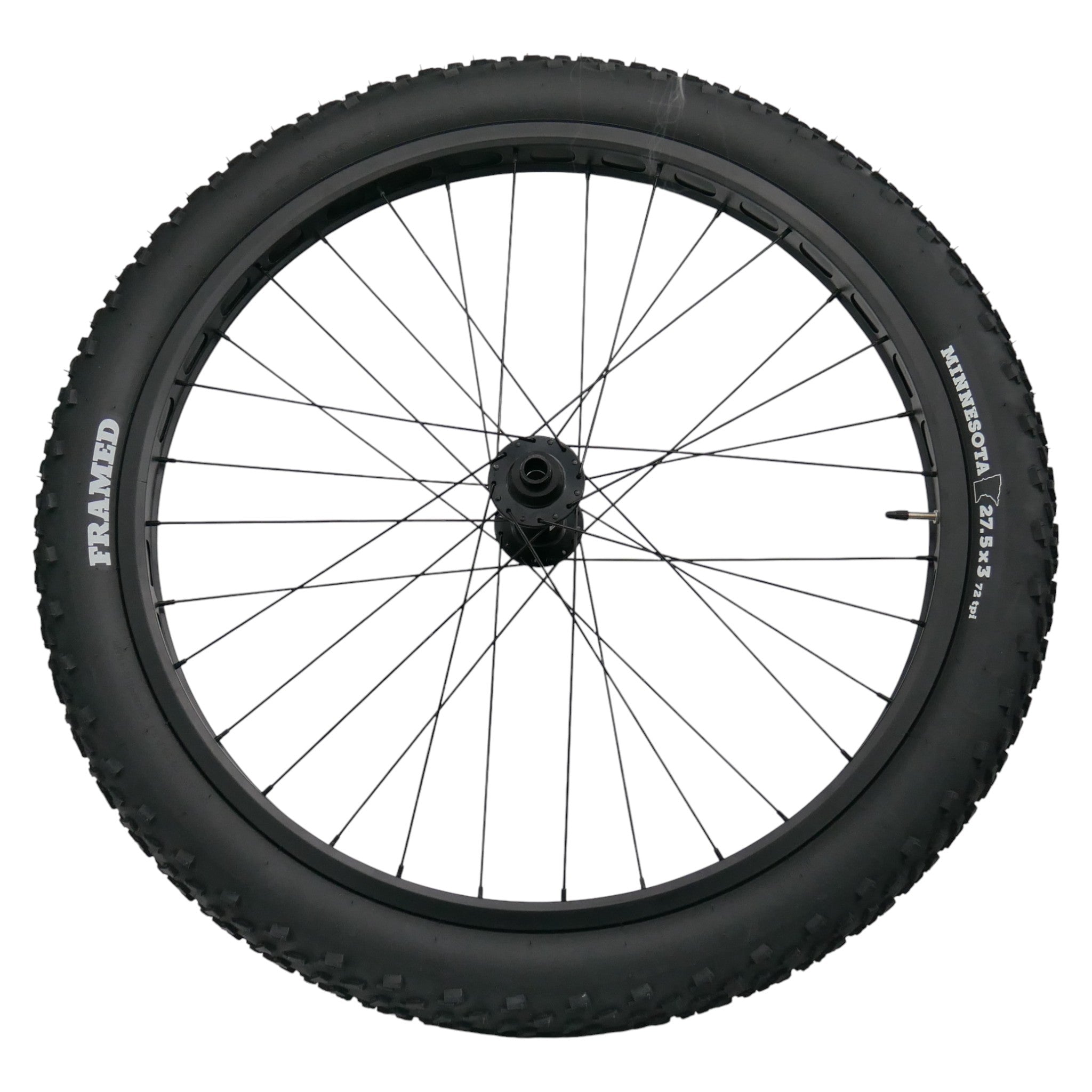

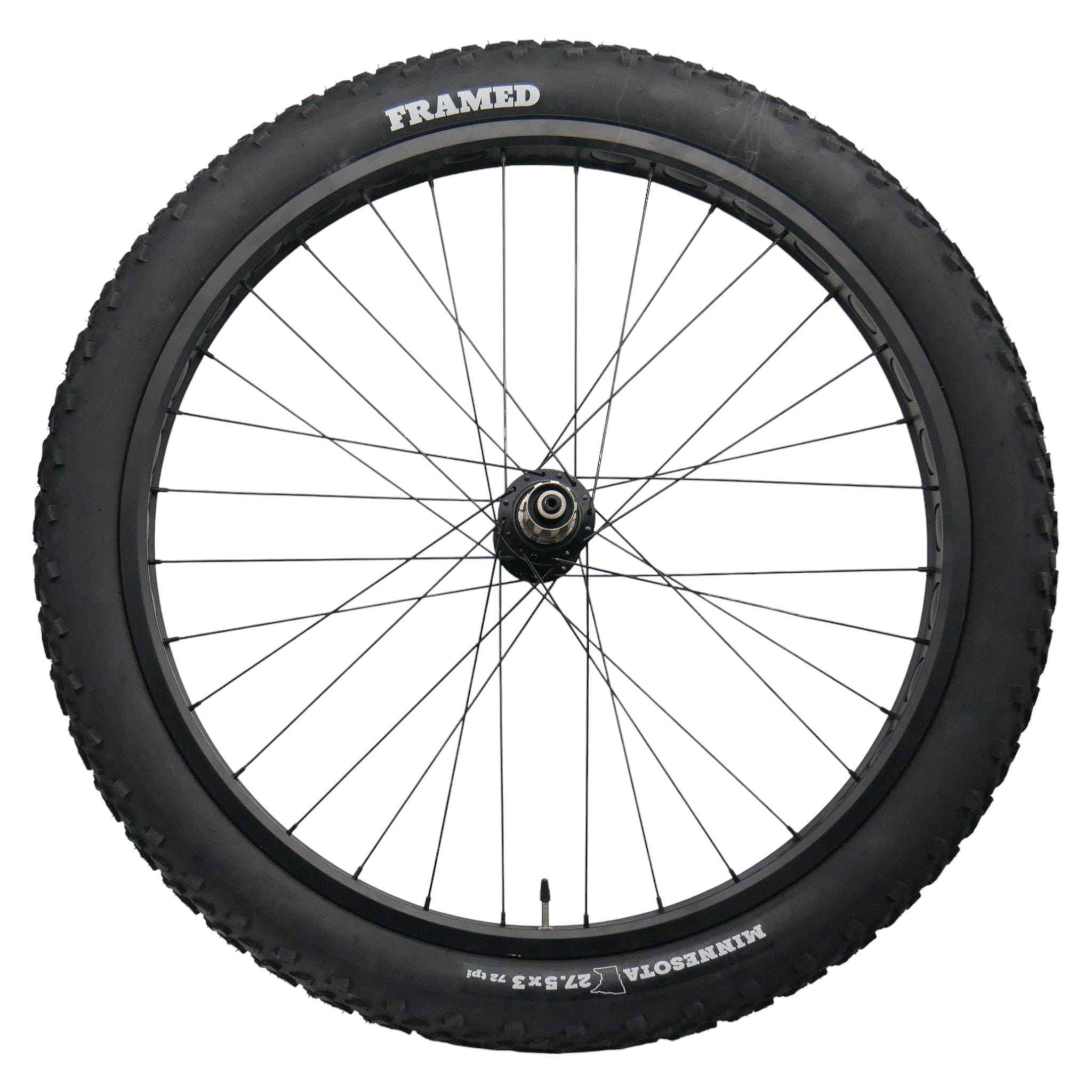

Add extra versatility to your eBike with this do-it-yourself conversion kit! Easily swap out your existing wheels for these 27.5” tall and 3” wide mountain bike tires to change how your eBike performs on various terrain. The Quick-Release design of the rear wheel allows for simple installation, while the Thru-Axle design of the front wheel provides a secure and sturdy fit.
Technical Specifications
Front Hub Spacing
150mm
Front Hub Axle Type
15mm Thru Axle * Axle Not Included
Rear Hub Spacing
190mm
Rear Hub Axle Type
Quick-Release, 5mm * Axle not included

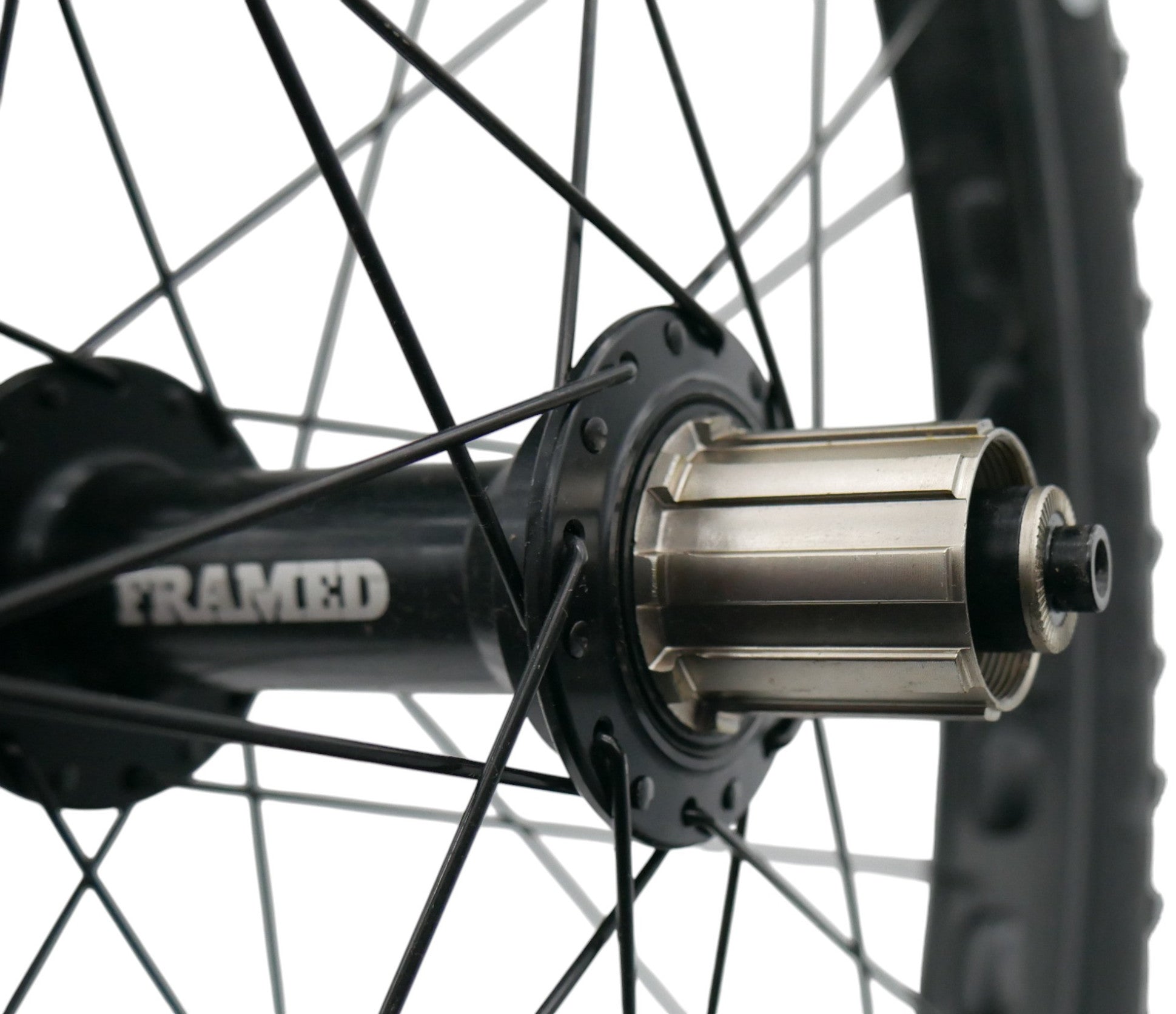

Rear Hub Driver Style
HG - Hyperglide
Rims

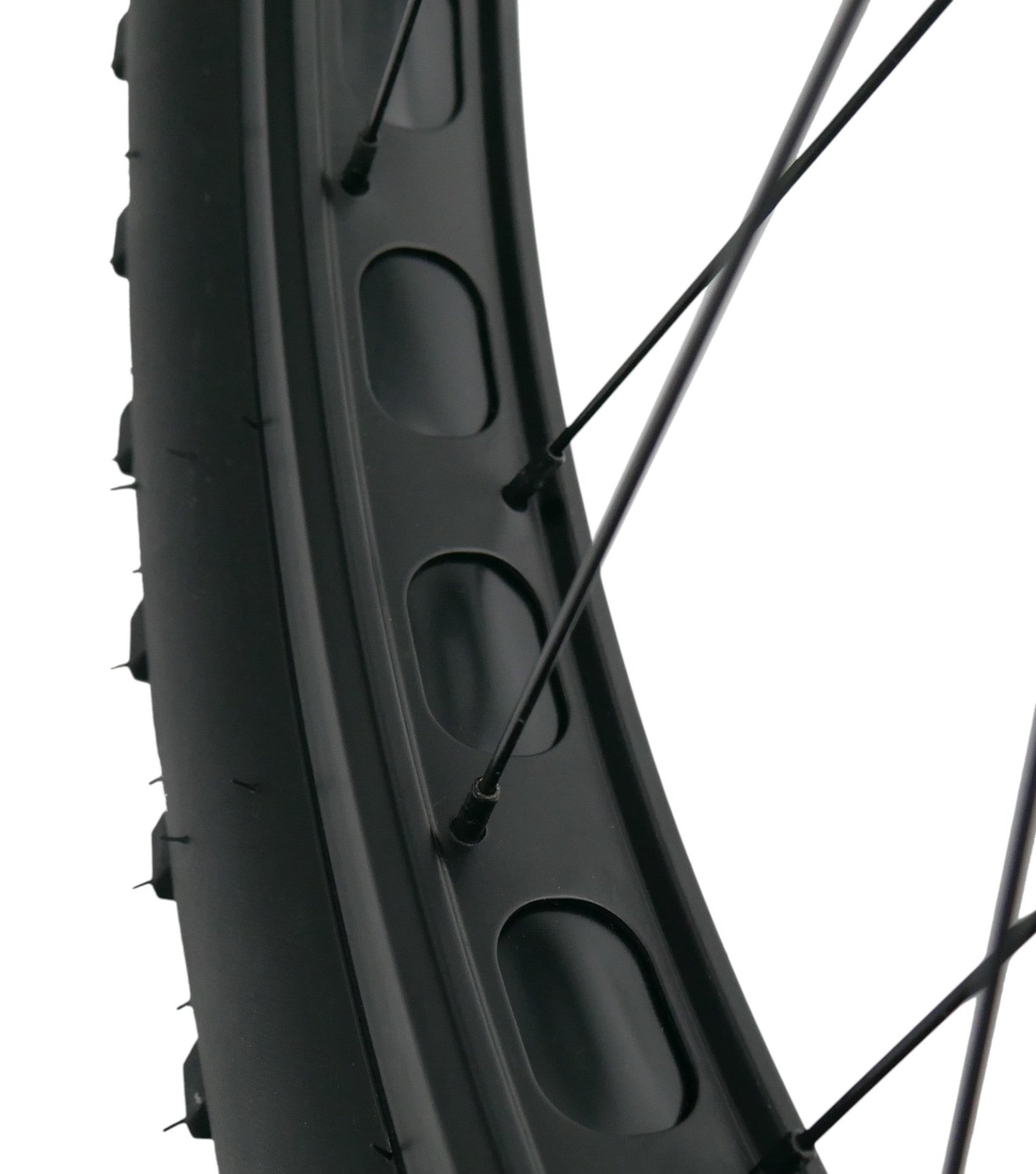

Black, 45mm Wide w/ Oval Cutouts, 32H
Tire

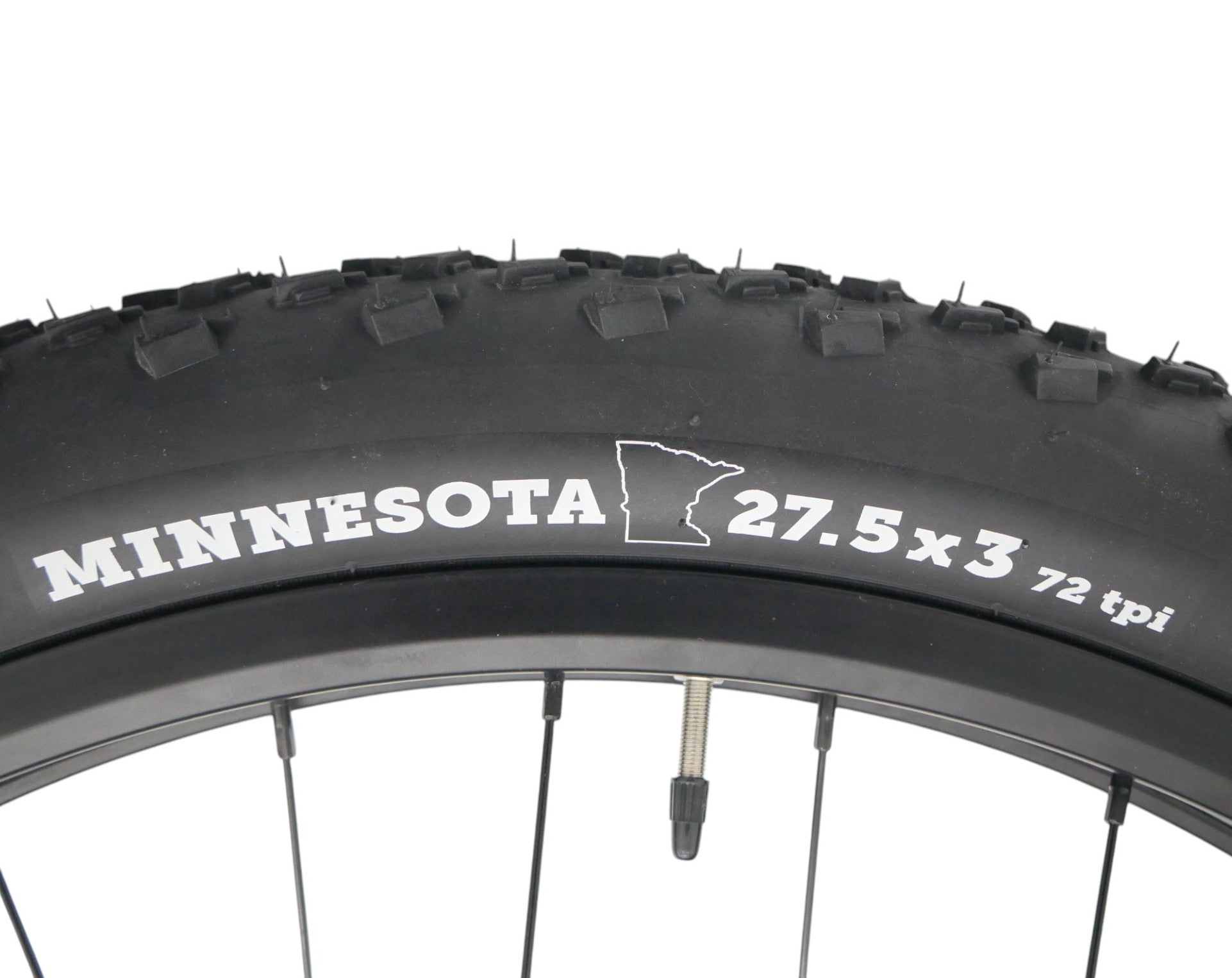

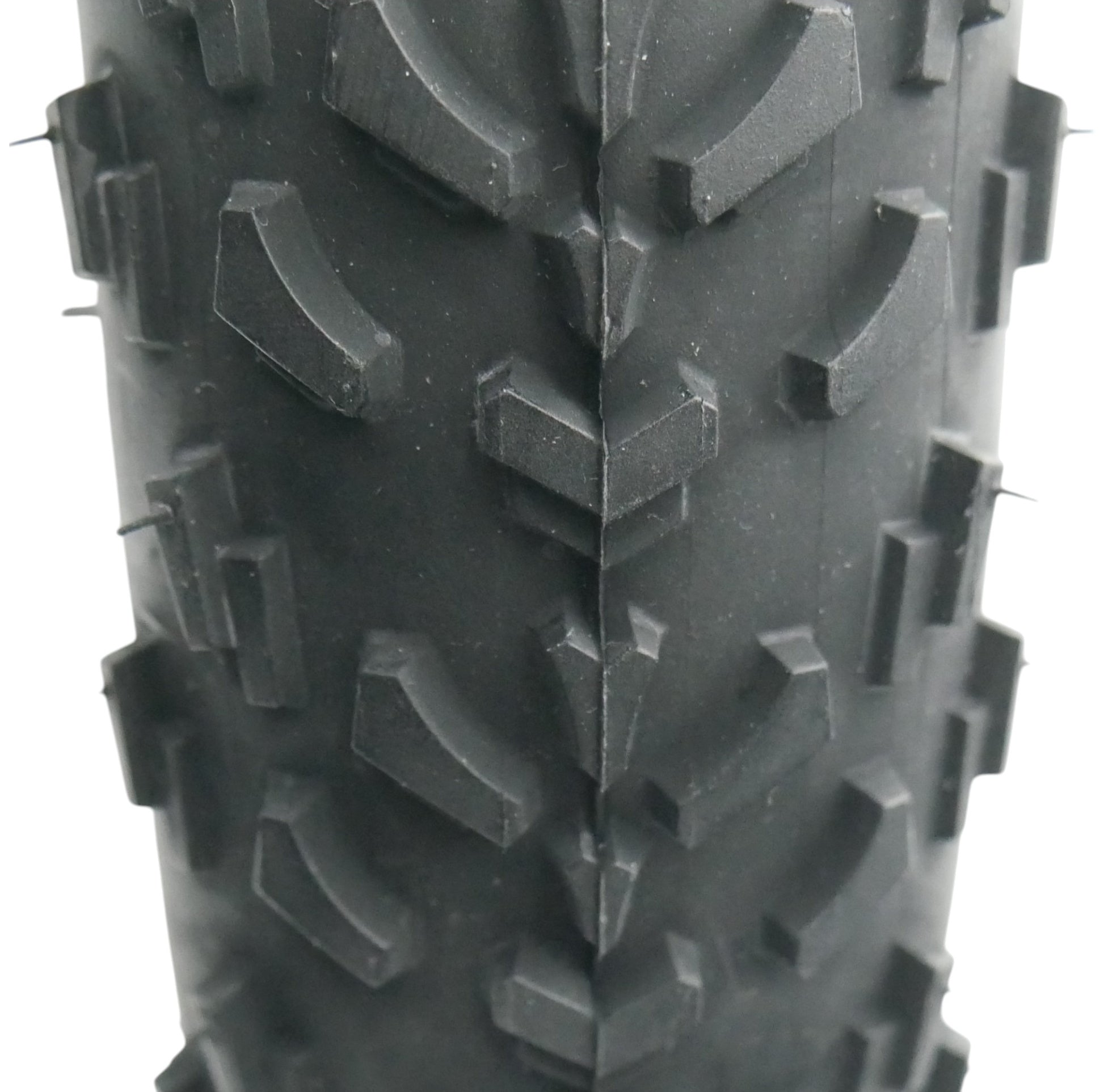

27.5x3 FRAMED Minnesota Tire by Innova
Tubes
27.5x3 Presta Valve
Weight (Front)
6.1 lbs / 2.8 kg
Weight (Rear)
7.4 lbs / 3.35 kg
Compatibility
| Bike Name | Compatible |
|---|---|
| Juggernaut Ultra Duo 3/Pro | |
| Other Current Biktrix Bikes |
Need A Hand?
Customer Reviews
Based on 10 reviews
50%
(5)
30%
(3)
10%
(1)
10%
(1)
0%
(0)
C
Still, 26x4.00 are not for me or my riding style. These wheels, although still "fat", can accomodate 2.8 DH tires with good knobs for cornering, tracking, and more surgical handling. I have Maxxis DHR and DHF and they rock on these wheels. The 26 will be saved for a snowy day, the 27.5 are my go to wheels.
M
After about 6 rides in a 150 miles on the bike. Bike came with front flat tire and basically no air in the shocks. Easy fix but still. The Forks are not up to the specs of the rest of bike. I thought I was getting the 140 travel forks. So I will be getting a new fork. Sad after all the research I did for this bike. 😪 Also the seat has clips in the back for support one is laying in the trail somewhere. It would be nice if there was a bash guard or chain ring for the bike. I can't
find a after market one for the bike. The rest of the bike I love. Great battery and motor combo. I changed the bike when I ordered from 4 inch tires to 3 maybe thats why it same with 100ml forks. Read the find print twice before ordering.
K
Asked for the 27.5x3 tire that was on the Monte and ended up with a different tire brand.
K
Bought 2nd wheelset because I was curious on how it would change my ride. 27.5 rear install went well, will be able to switch back to 26x4 no problem. Also trying 27.5 on front 26 on rear setup.
J
I had a freehub failure after a few hundred kilometers of use. Unfortunately the bicycle was out of warranty and I had to purchase a replacement hub. The failure was that internal ratchet ring had lost it's bond with the hub and was slipping. Peddling barely moved the bicycle forward. Bitrix support was fabulous. Not only did they help diagnose and offer replacement parts but they overcame a big shipping problem delivering to a Greek island. My bike would be sitting DOA without their help and support.
