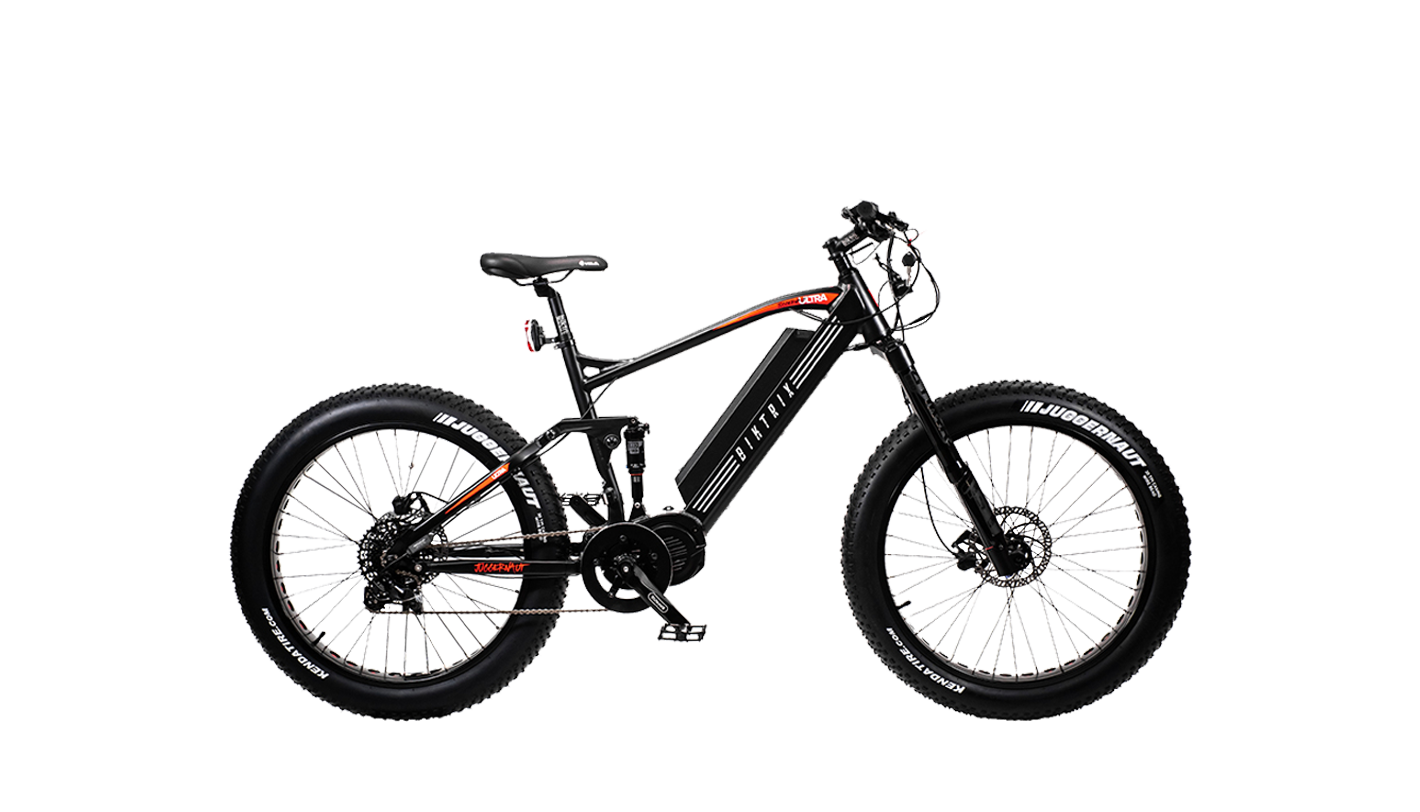

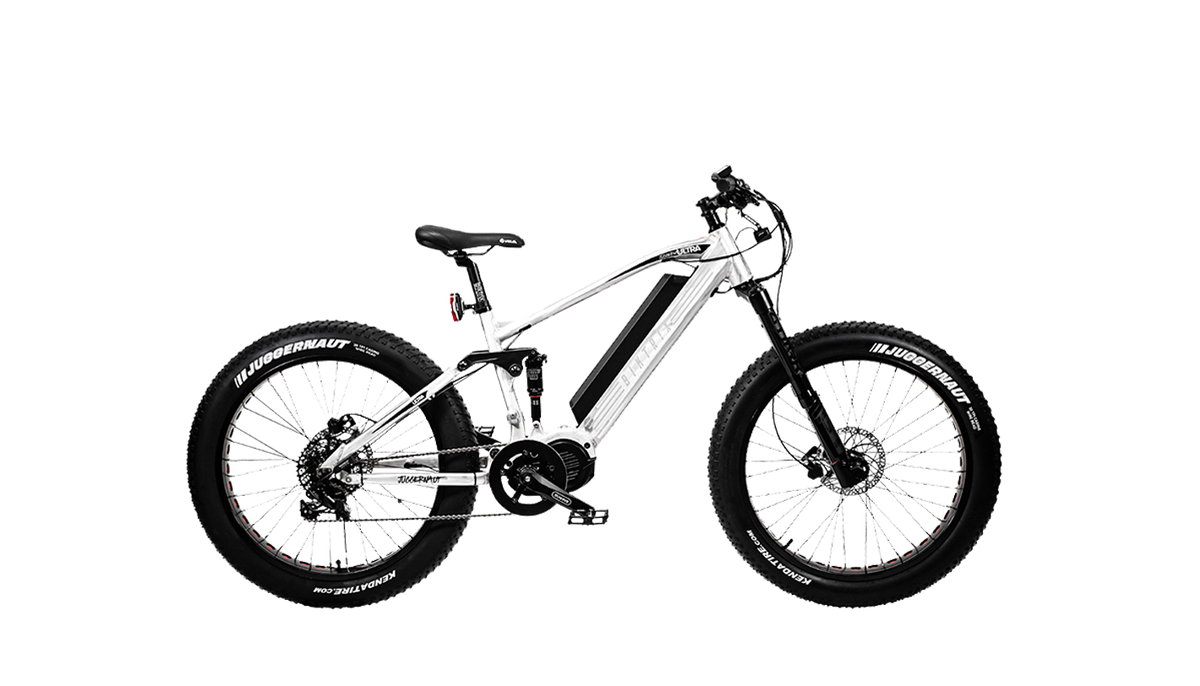

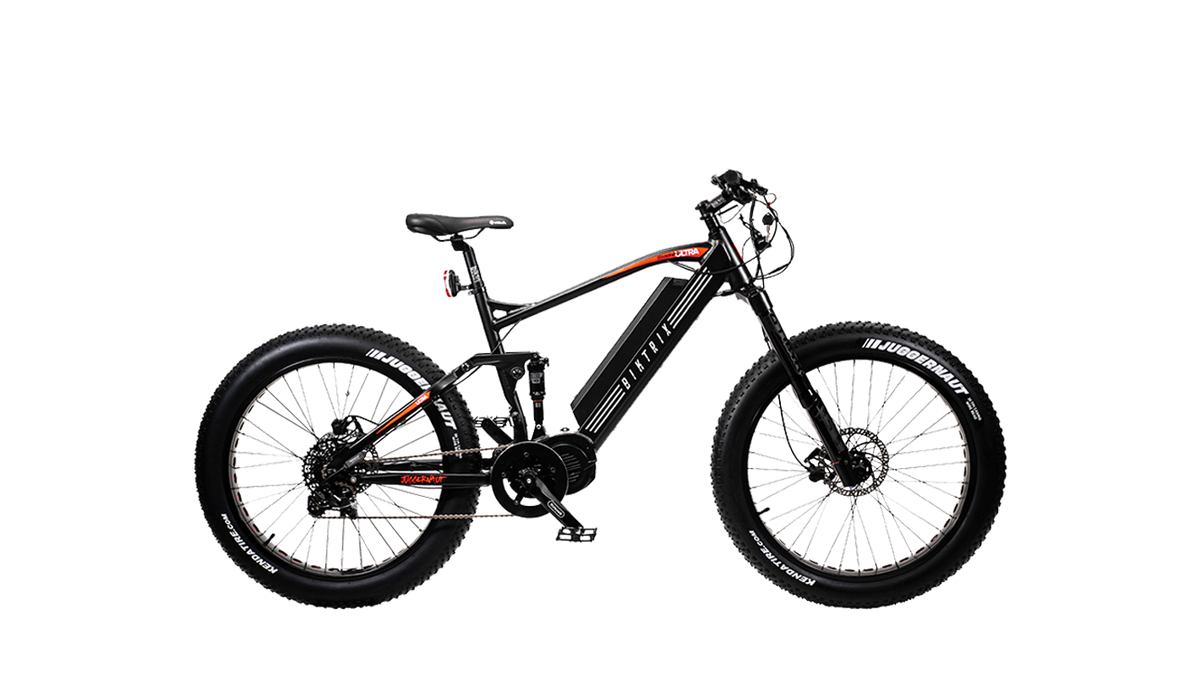

Juggernaut Ultra FS

Name: Juggernaut Ultra FS
Brand: juggernaut-ultra-fs
SKU: JUG-ULTFS-M-264-SL
Availability: OutOfStock

CA$0 CA$6,109

IN STOCK & SHIPPING
The best built full suspension eBike available
⭐⭐⭐⭐⭐“I wanted an ebike with enough power to pull a loaded game cart through mud in Texas hill country. Meets expectations and they were high.”
- Cliff

Juggernaut Ultra FS Has Been Replaced.

Looking for the latest Full Suspension eBike from Biktrix? Check out the Juggernaut Ultra FS Pro 3!

Juggernaut Ultra FS Pro 3

Technical Specifications

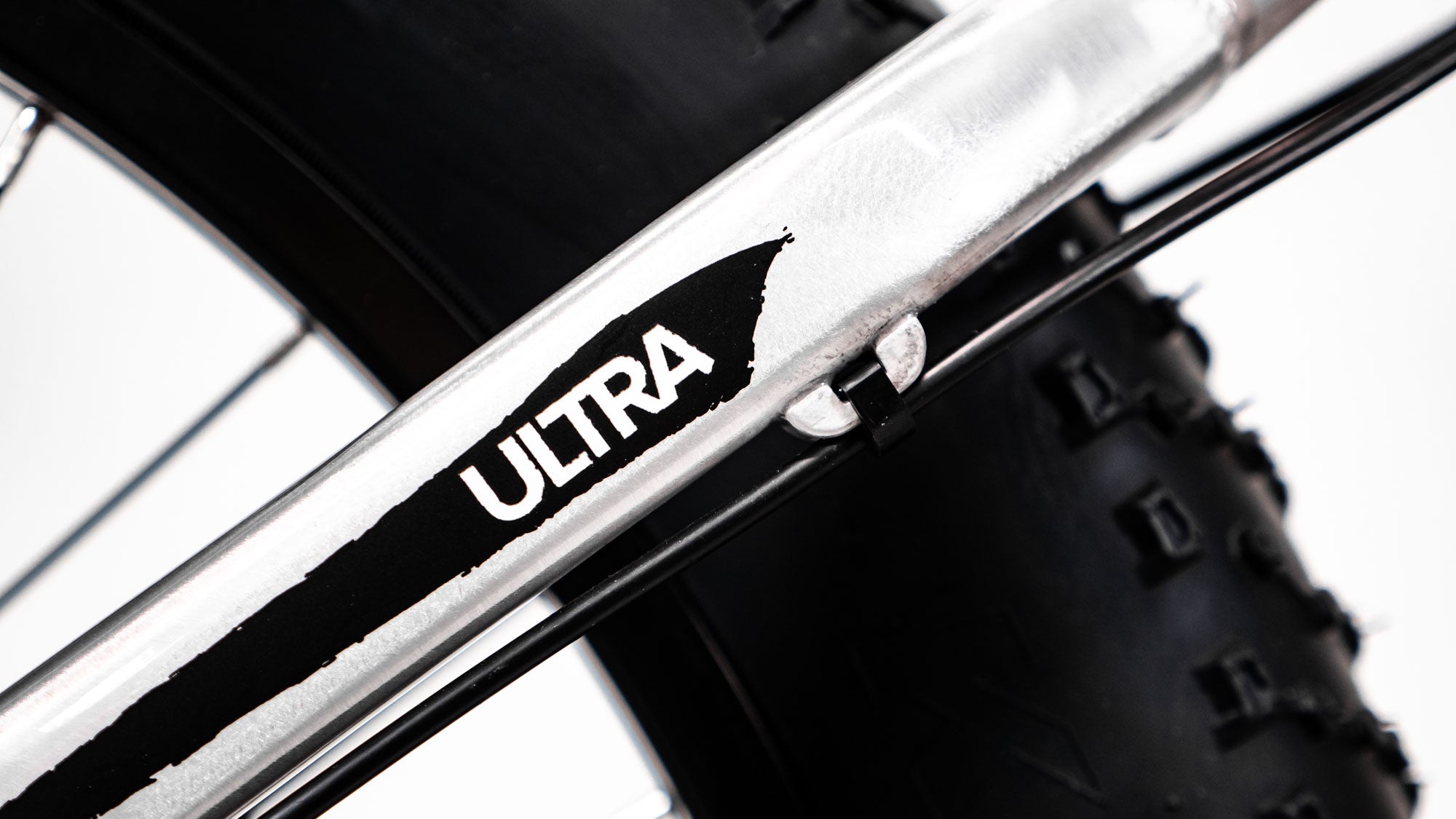

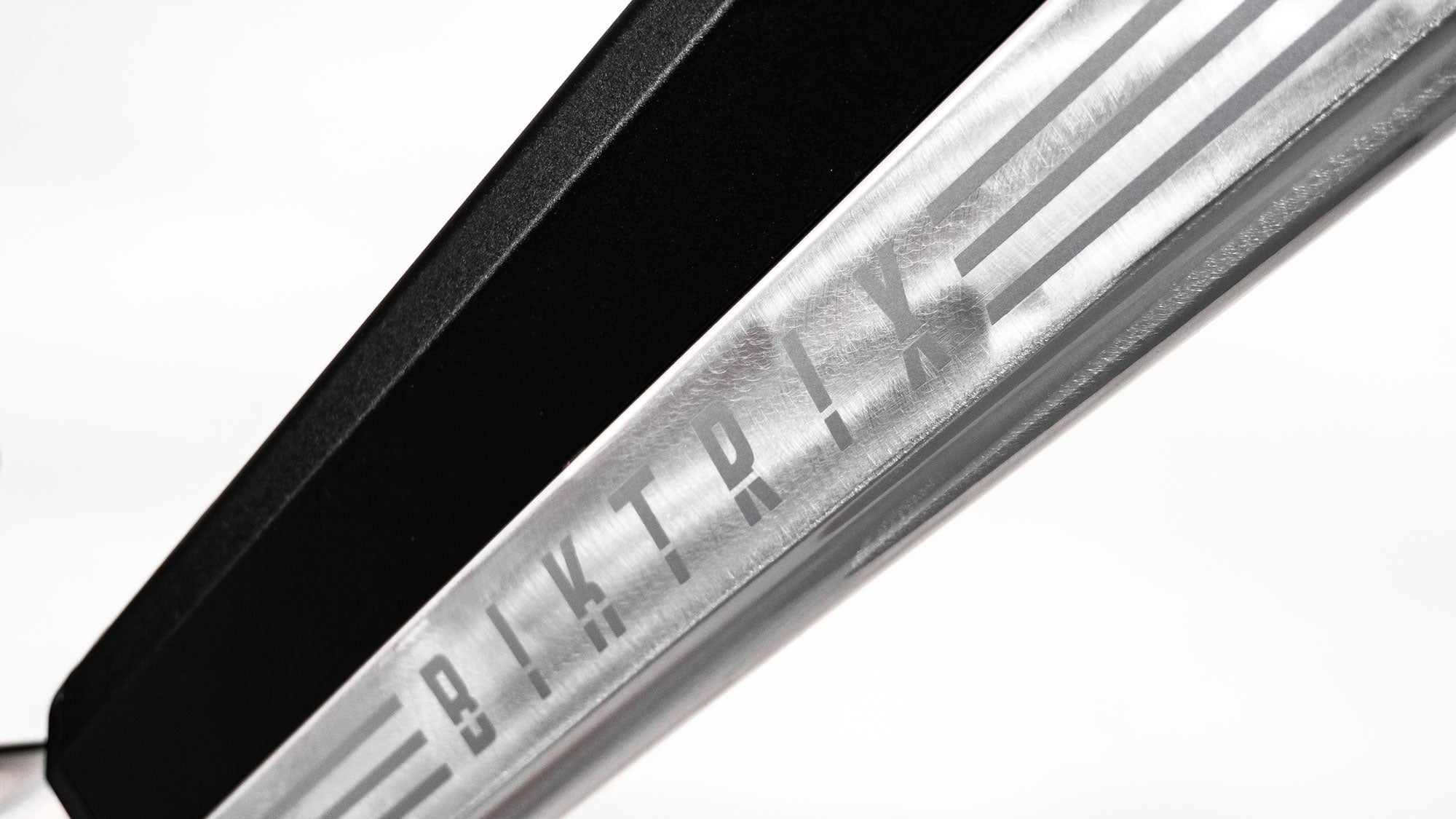

Frame 6061 aluminum w/ 100mm rear travel	Front hub Quanta 150mm 36h	Seat post Aluminum 31.6mm

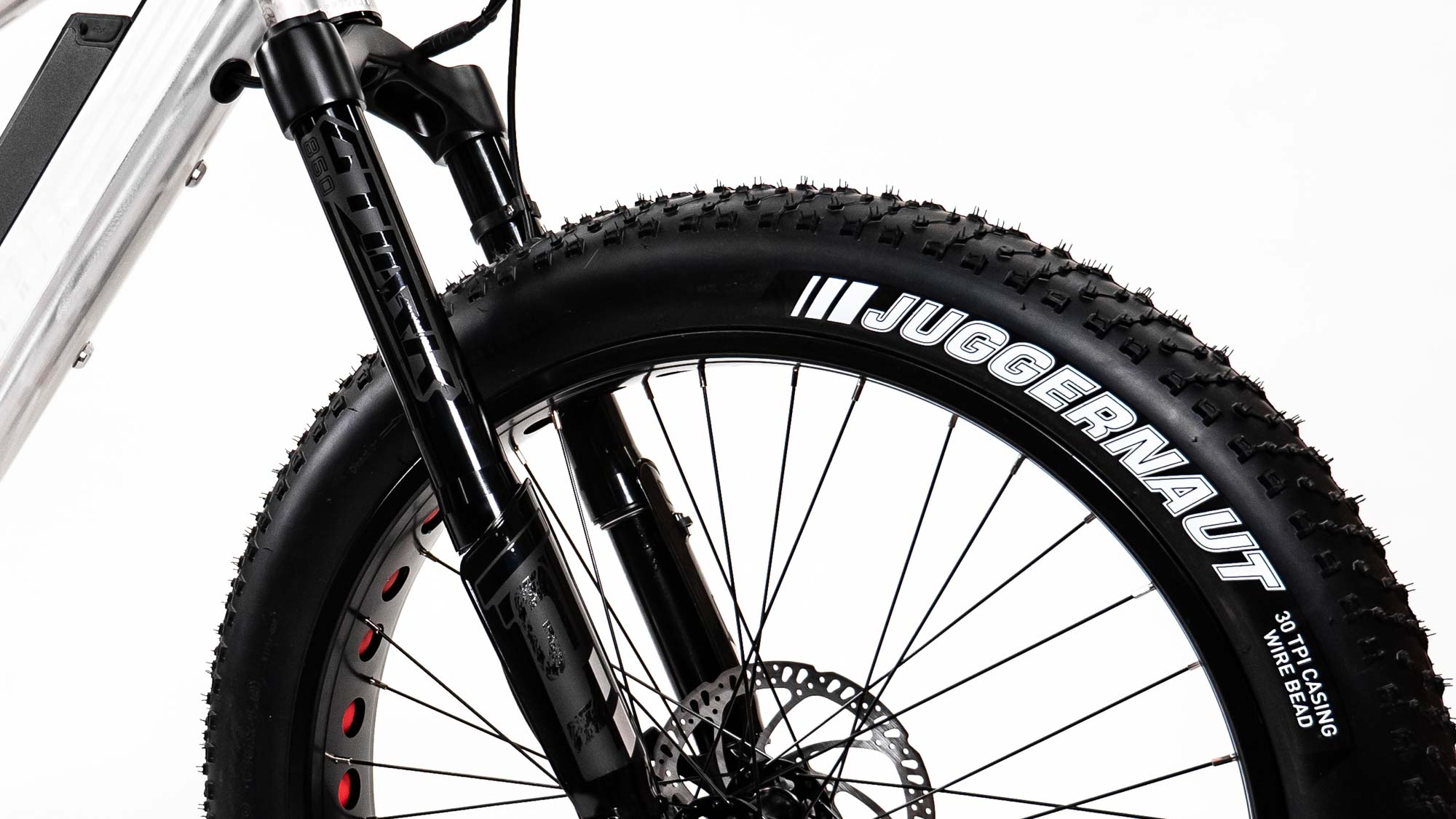

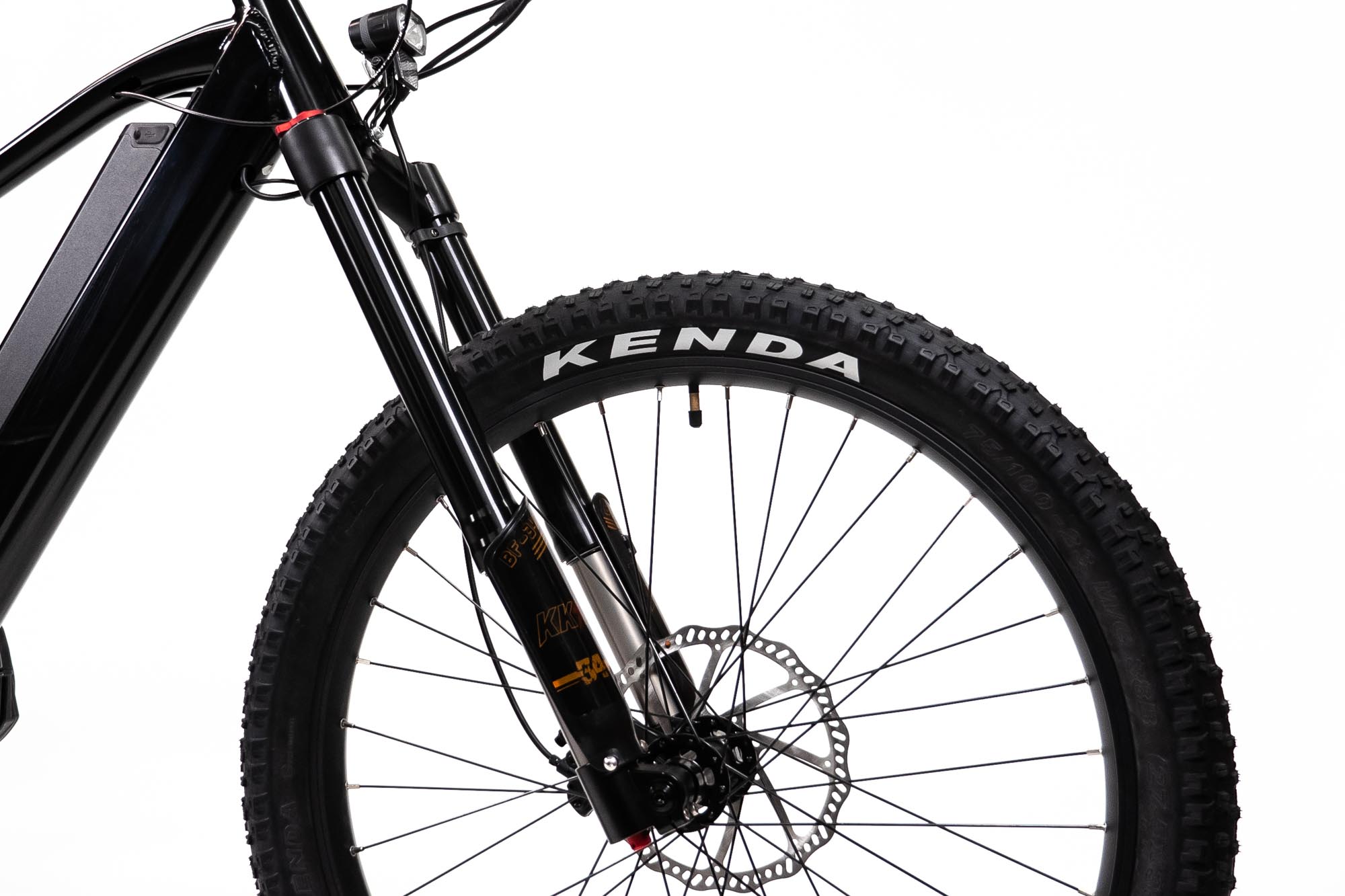

Fork Biktrix inverted tapered w/100mm travel	Front axle 15mm thru	Seat post clamp Quick release

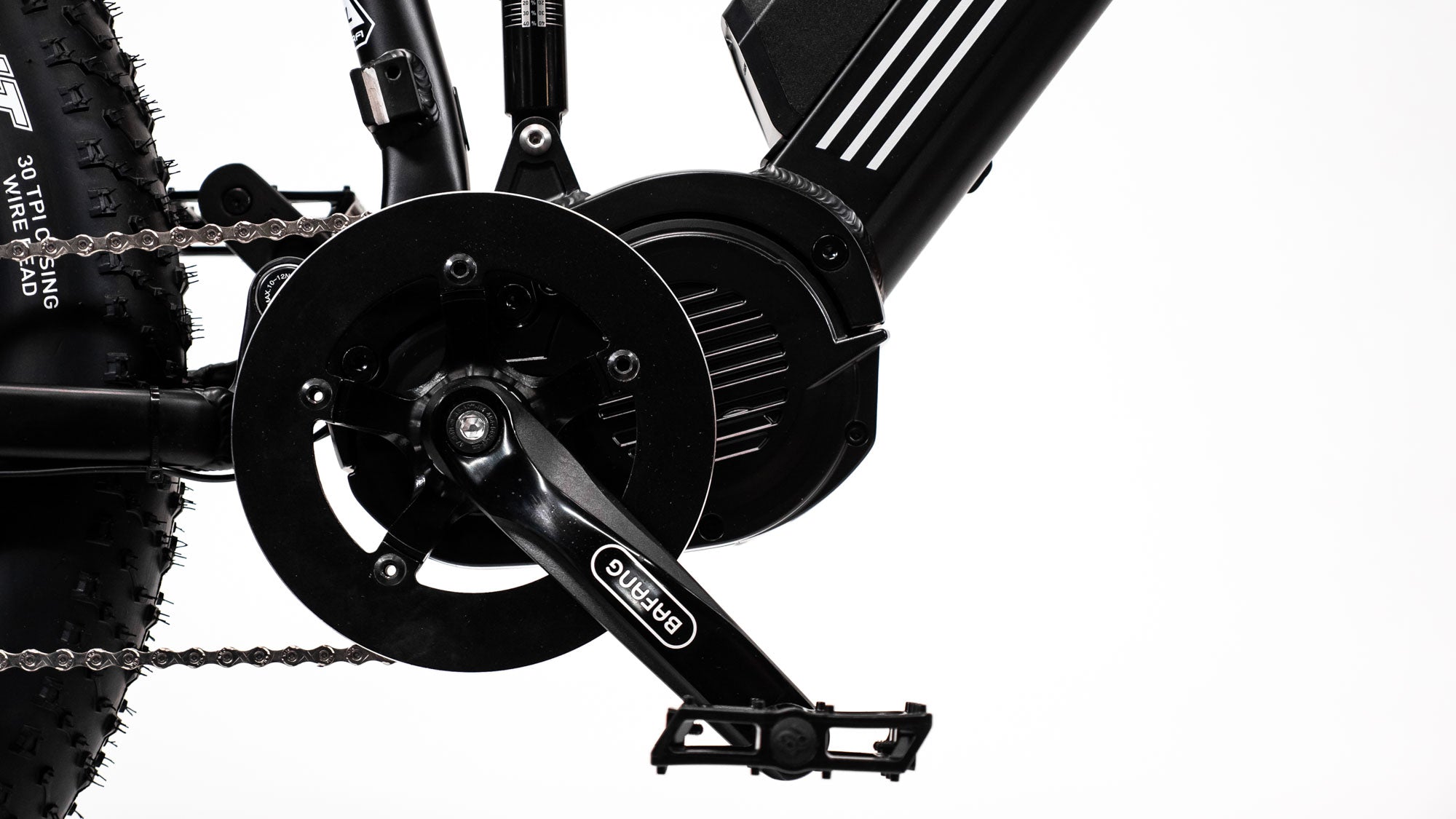

Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 197mm 36h	Motor 1000w (1500w peak) bafang ultra mid-drive
Shifter rear Sram nx 11 speed	Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah

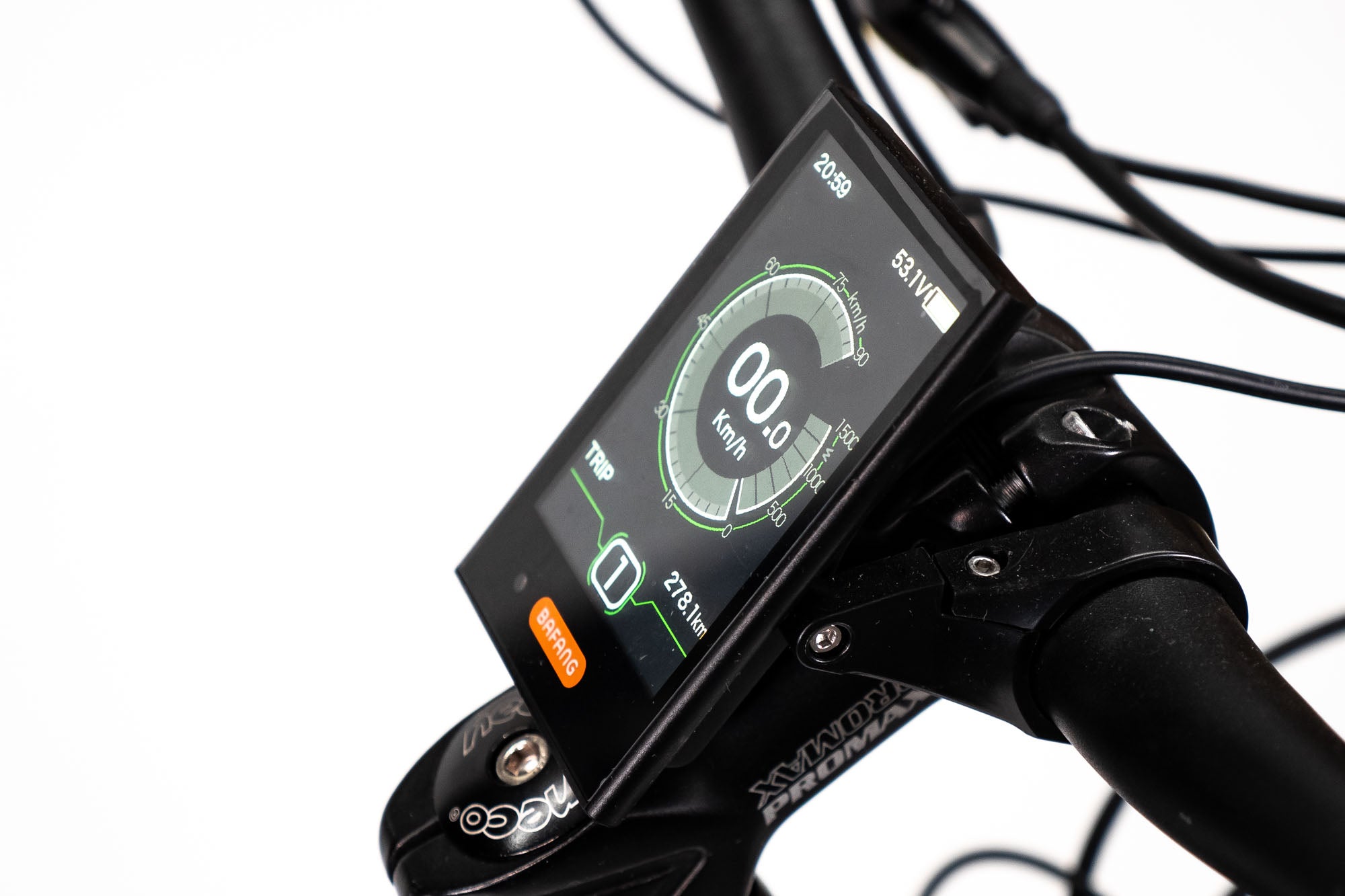

Rear derailleur Sram nx 11 speed	Rims 26"- black w/ red cutouts 36h, 27.5"- black 36h	Display Dpc-18 color display

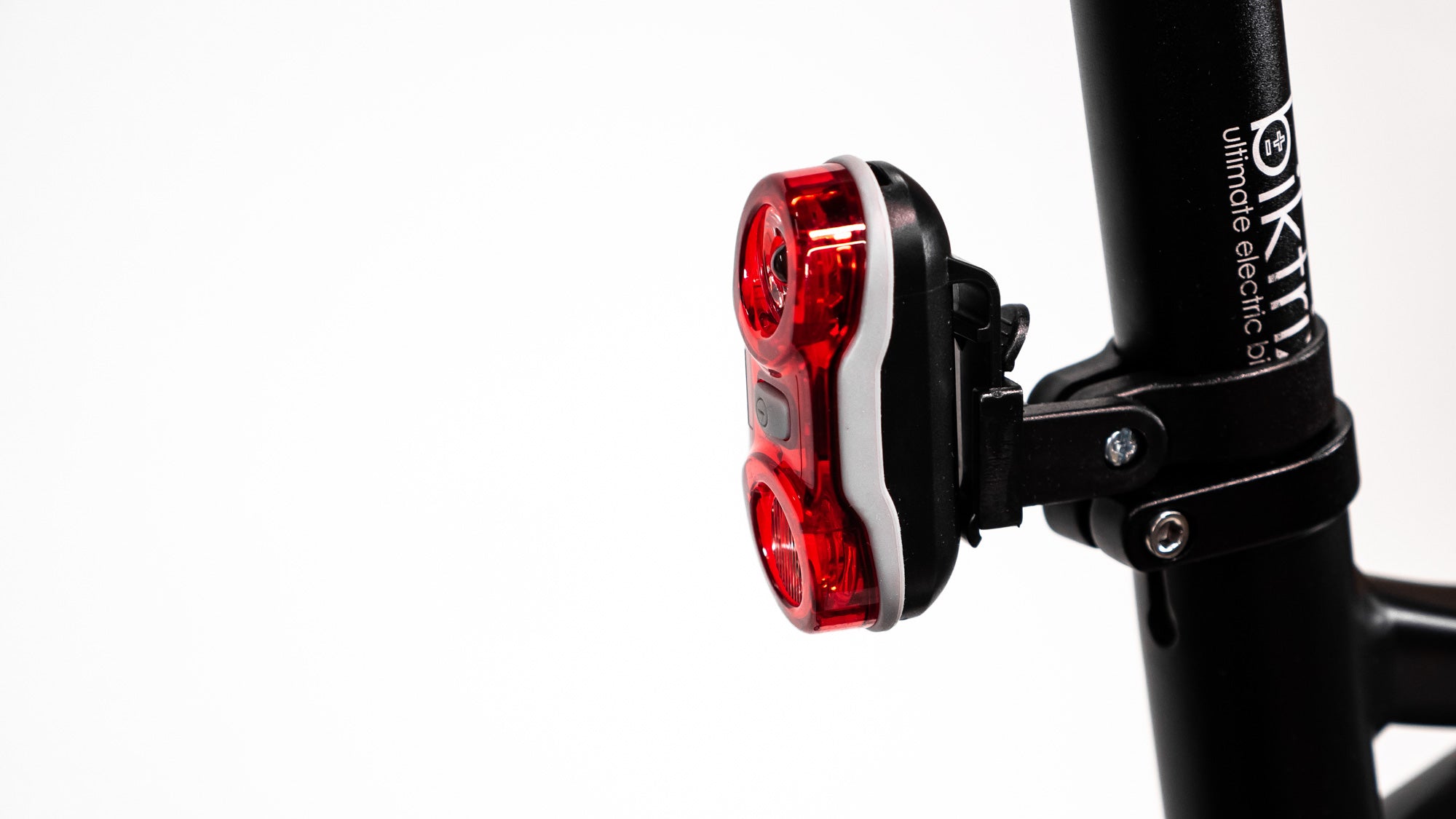

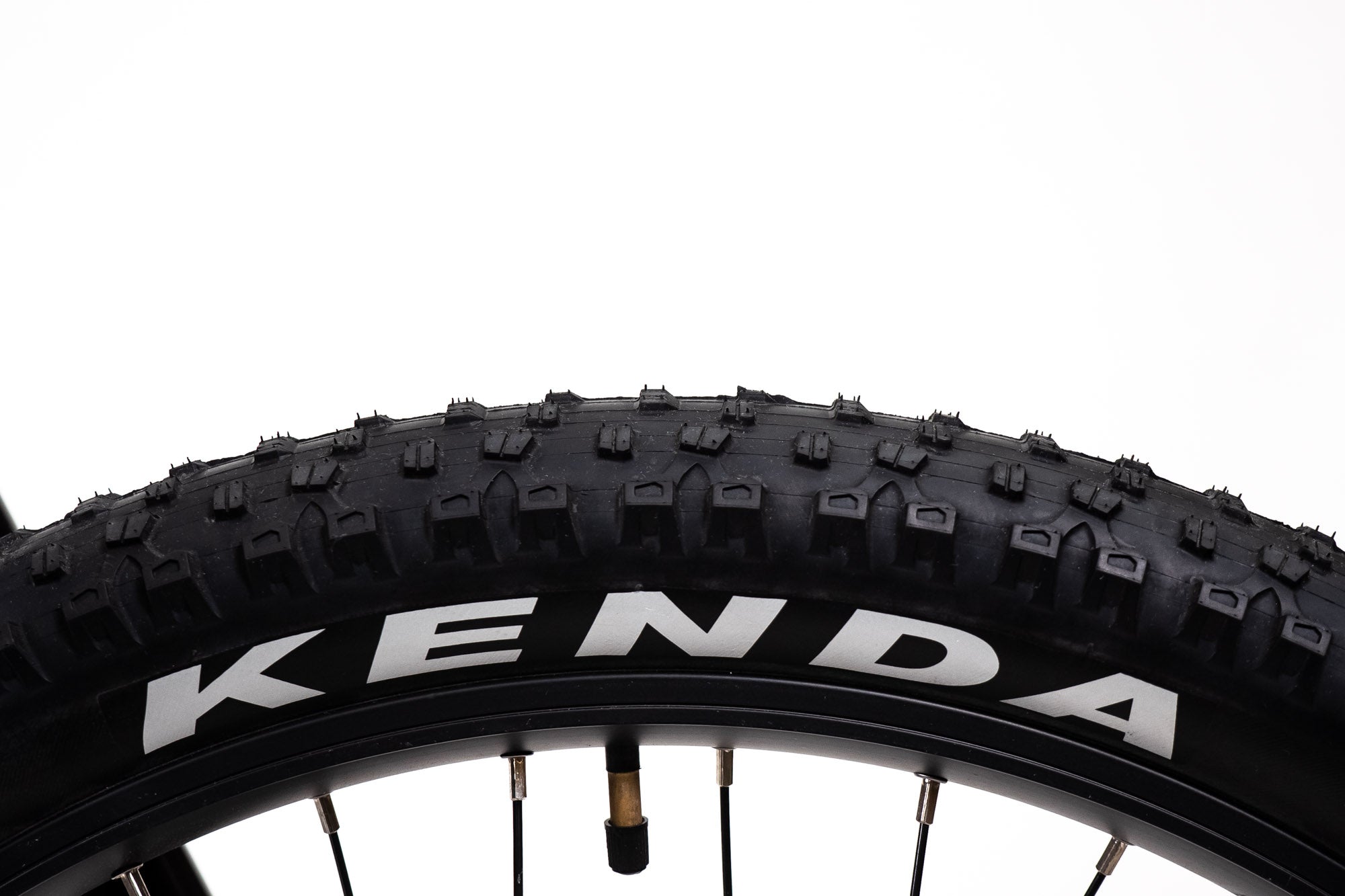

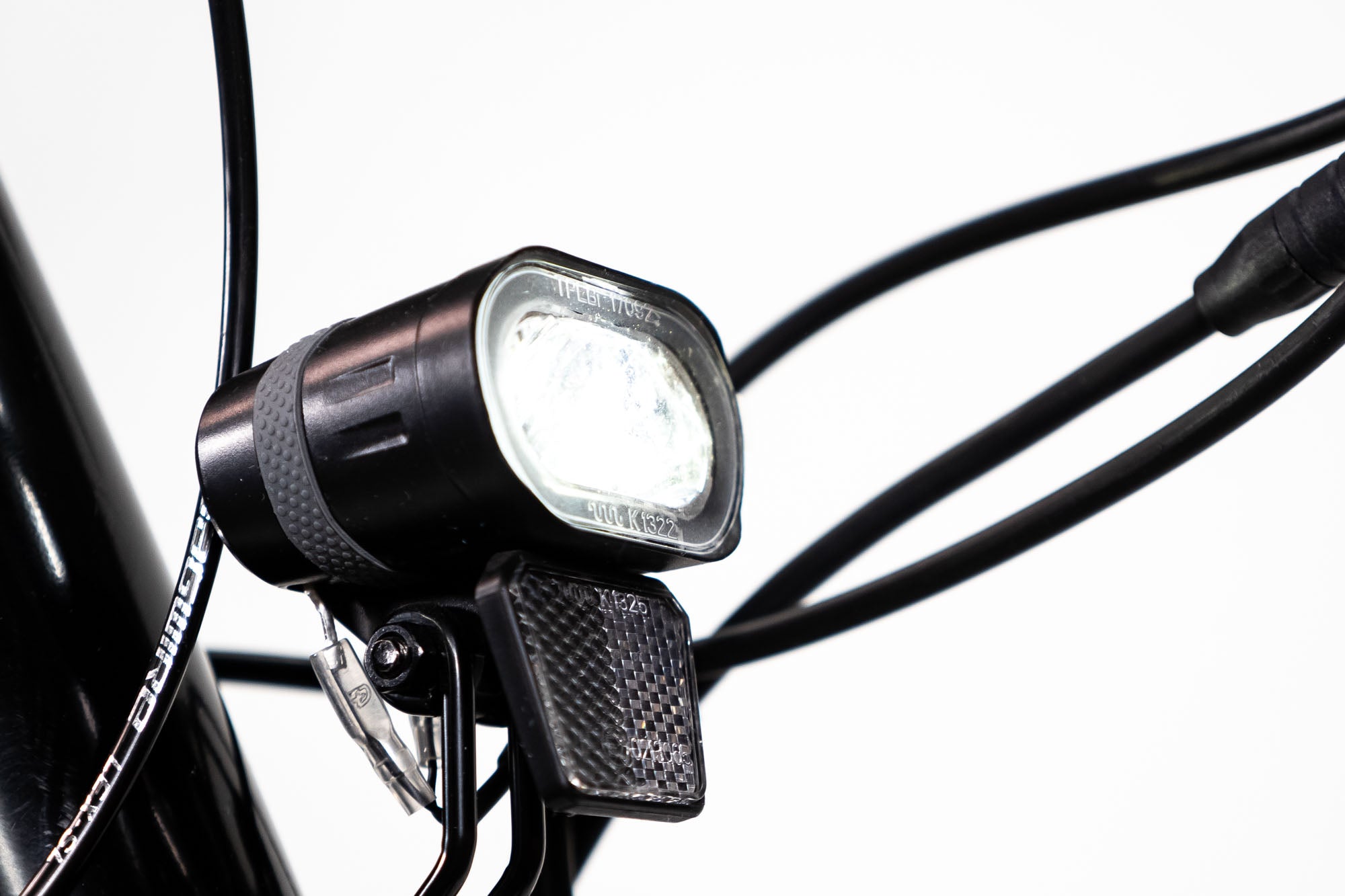

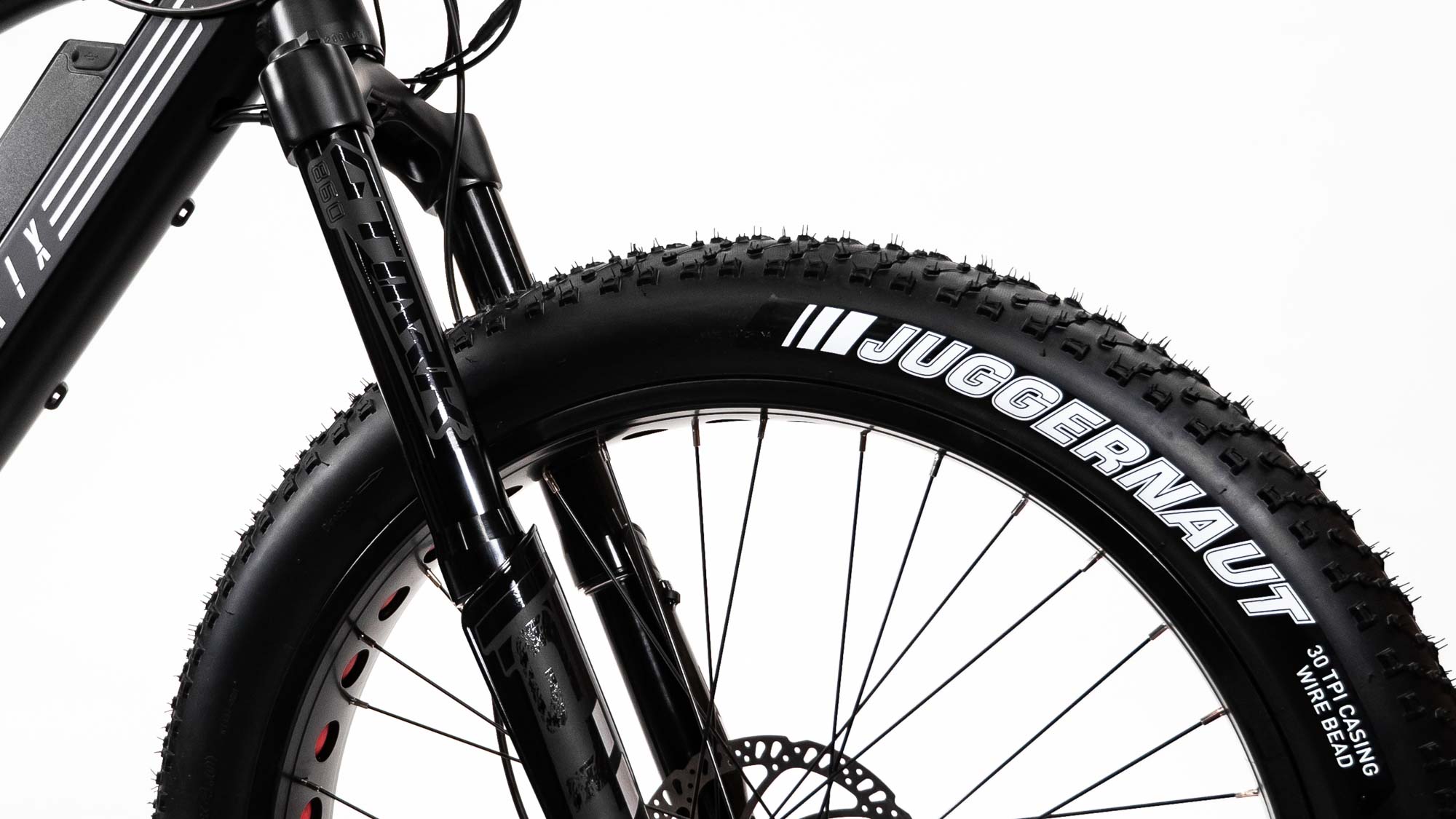

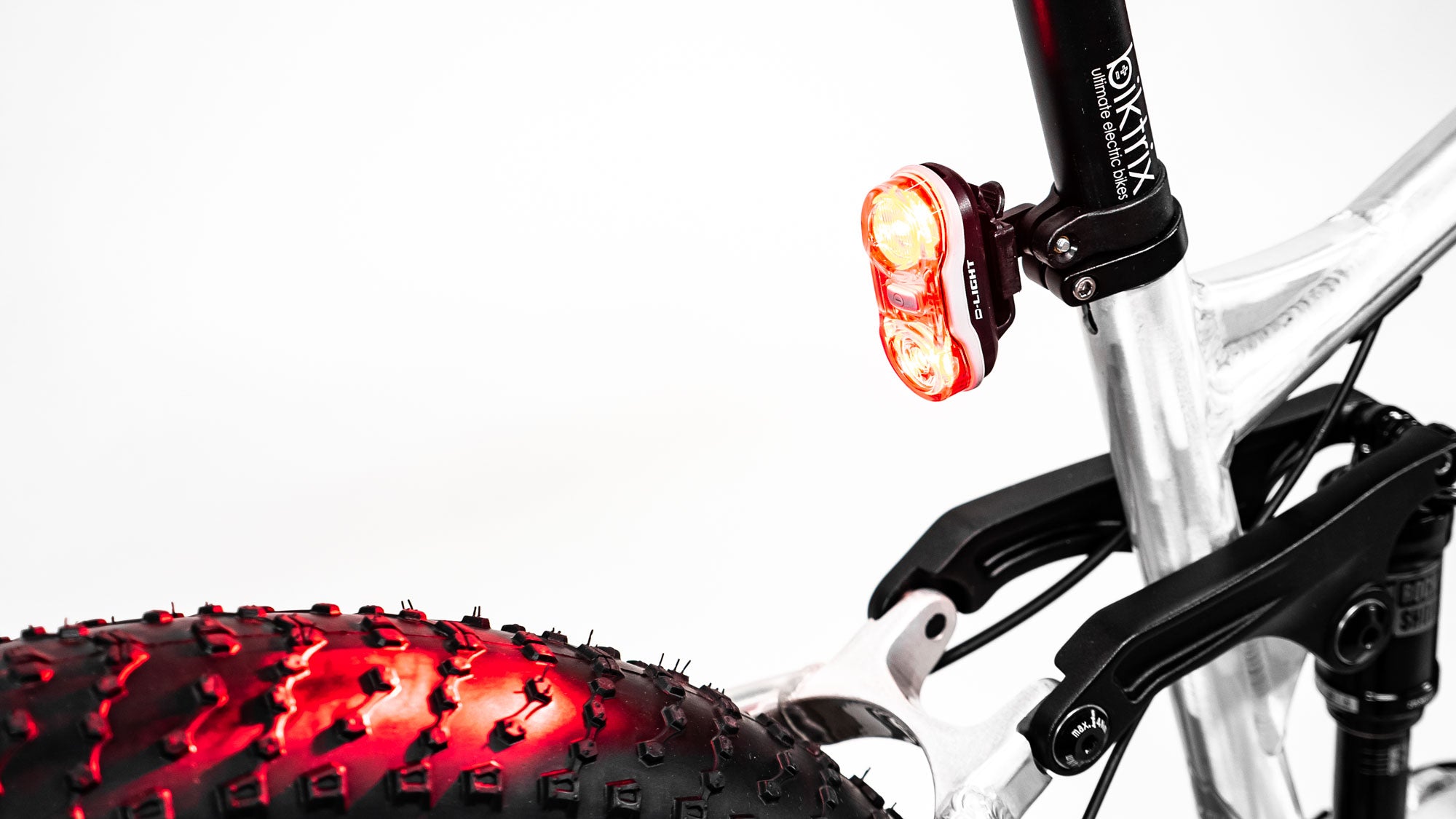

Cassette Sram pg-1130 11-42t	Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x11	Handlebar Aluminum 34.9 clamp, 700mm wide, 20mm rise 8° backsweep 5° upsweep	Assist type Torque, cadence

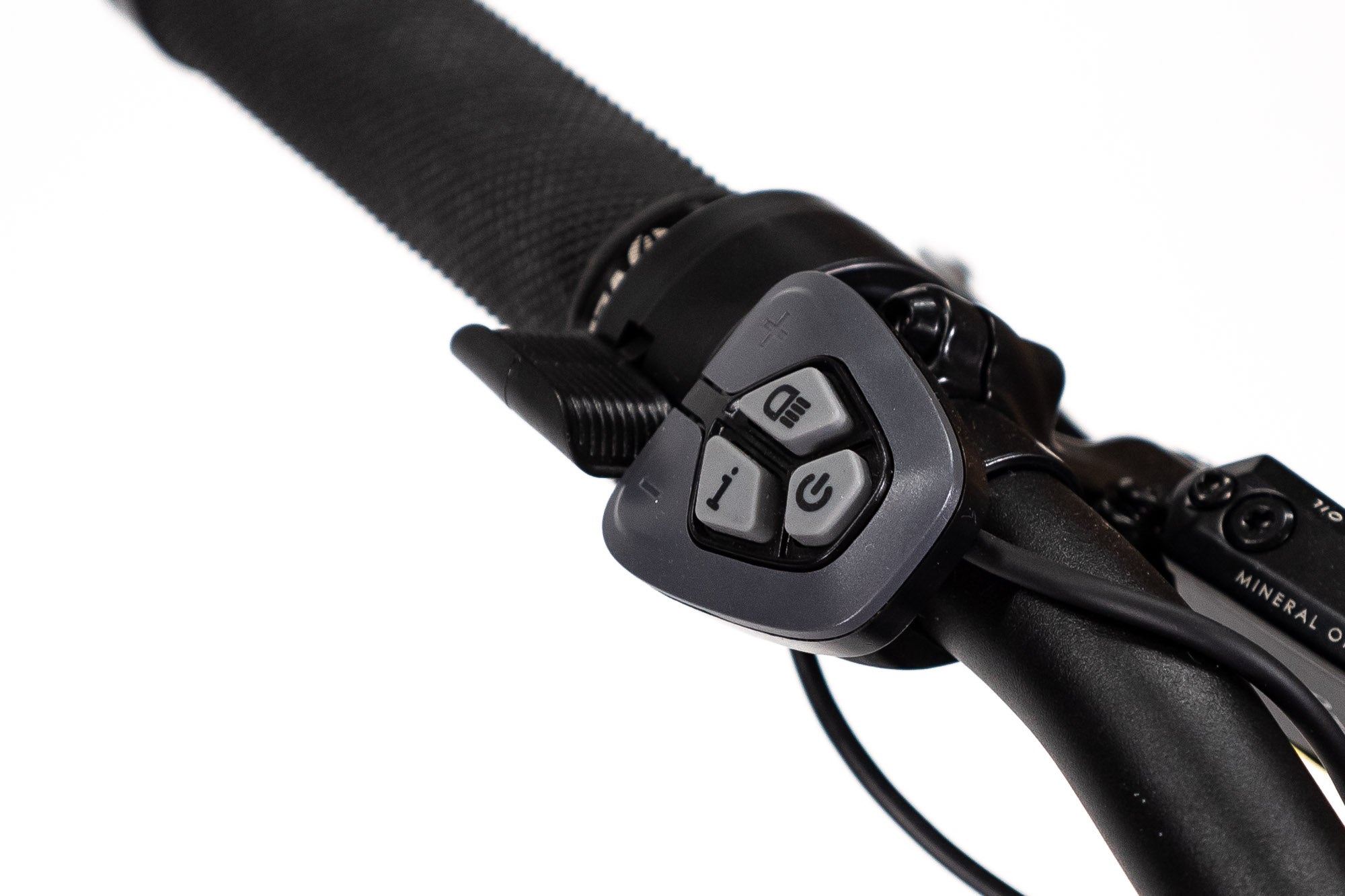

Crank set 170mm aluminum arms with 44t steel chainring	Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on	Throttle Thumb throttle
Brakes Tektro hd-e500 w/ 180mm rotors	Saddle Velo plush narrow	Brake levers Tektro hydraulic w/ adjustable reach & motor cutoff

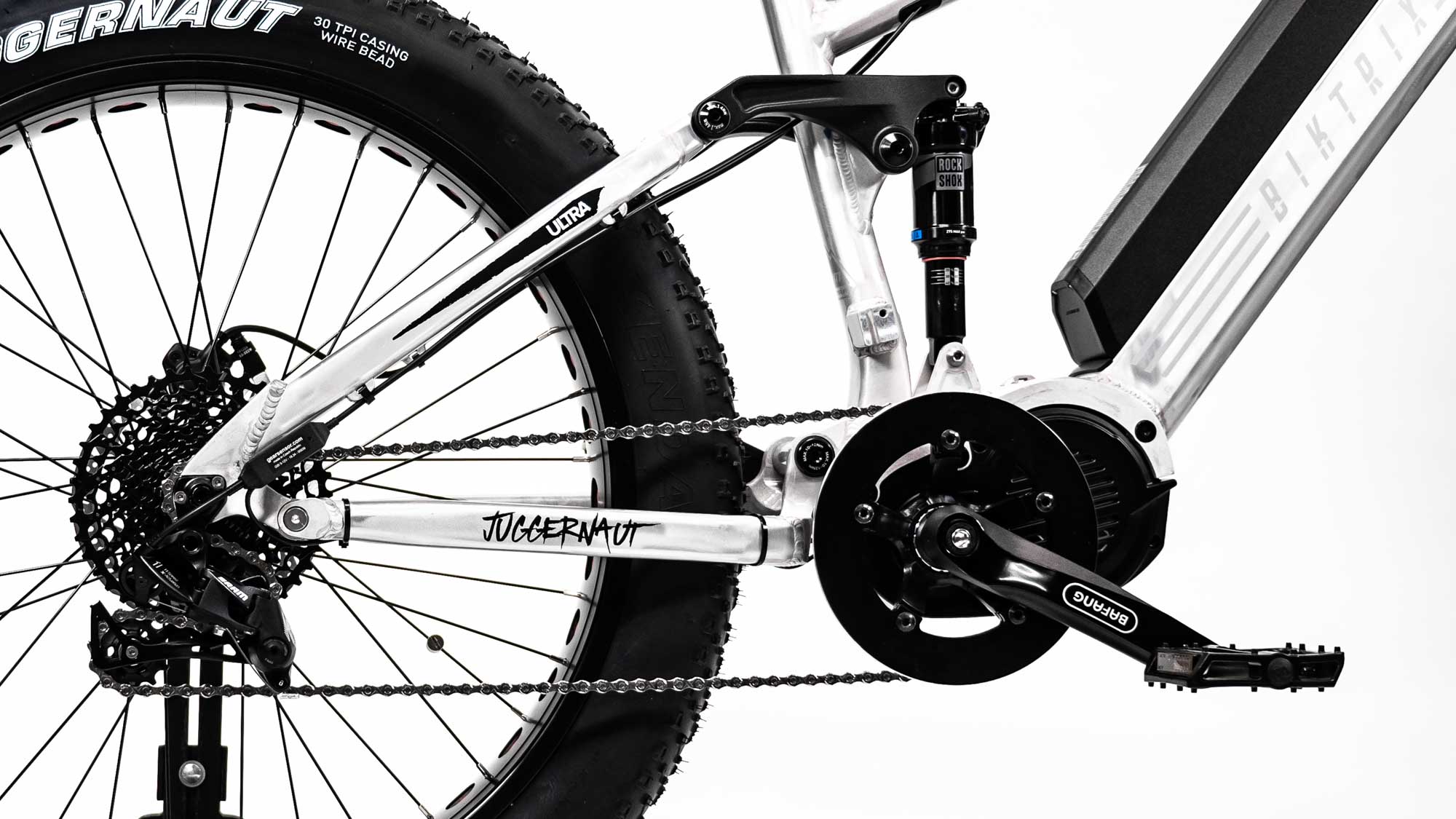

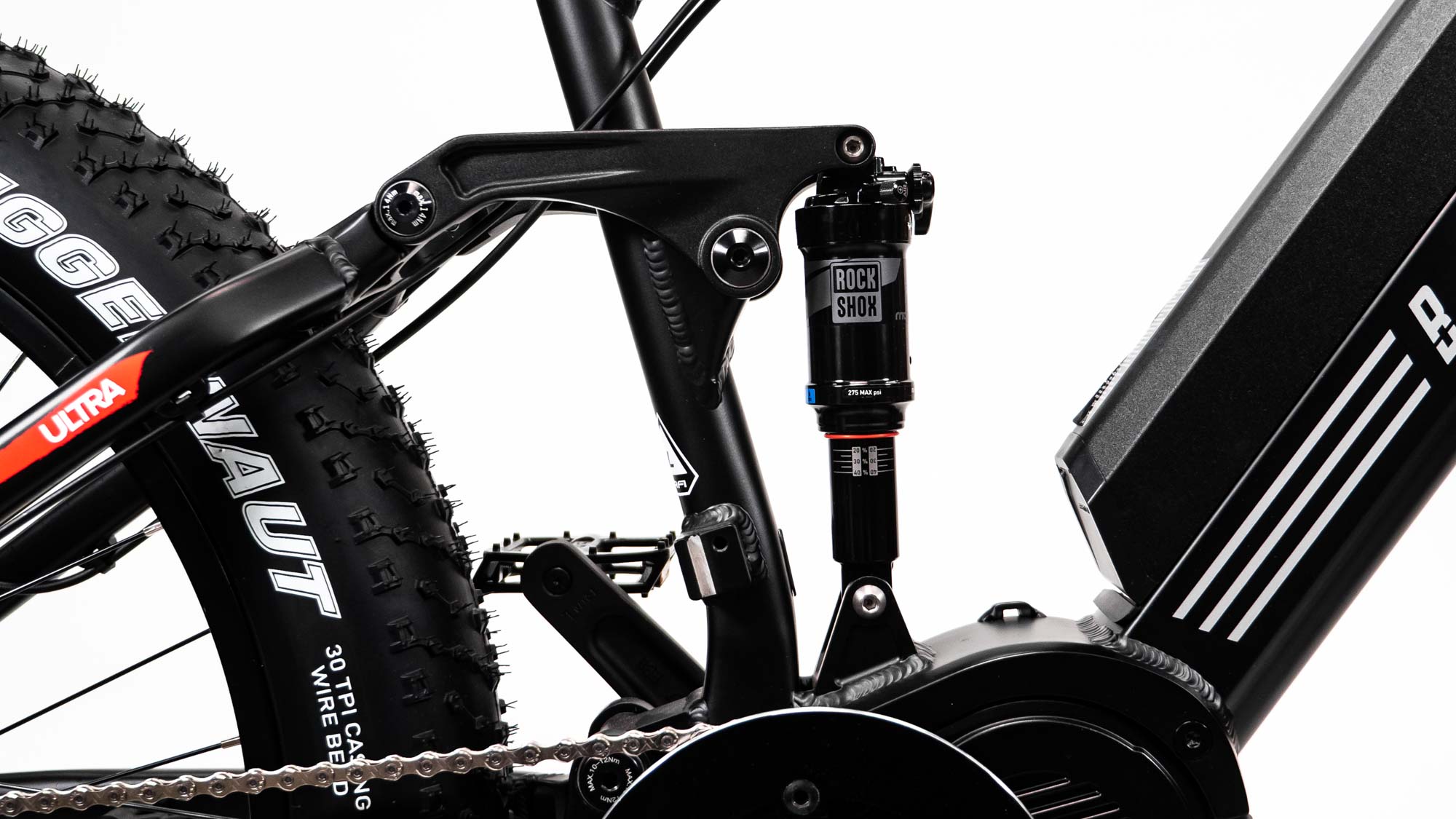

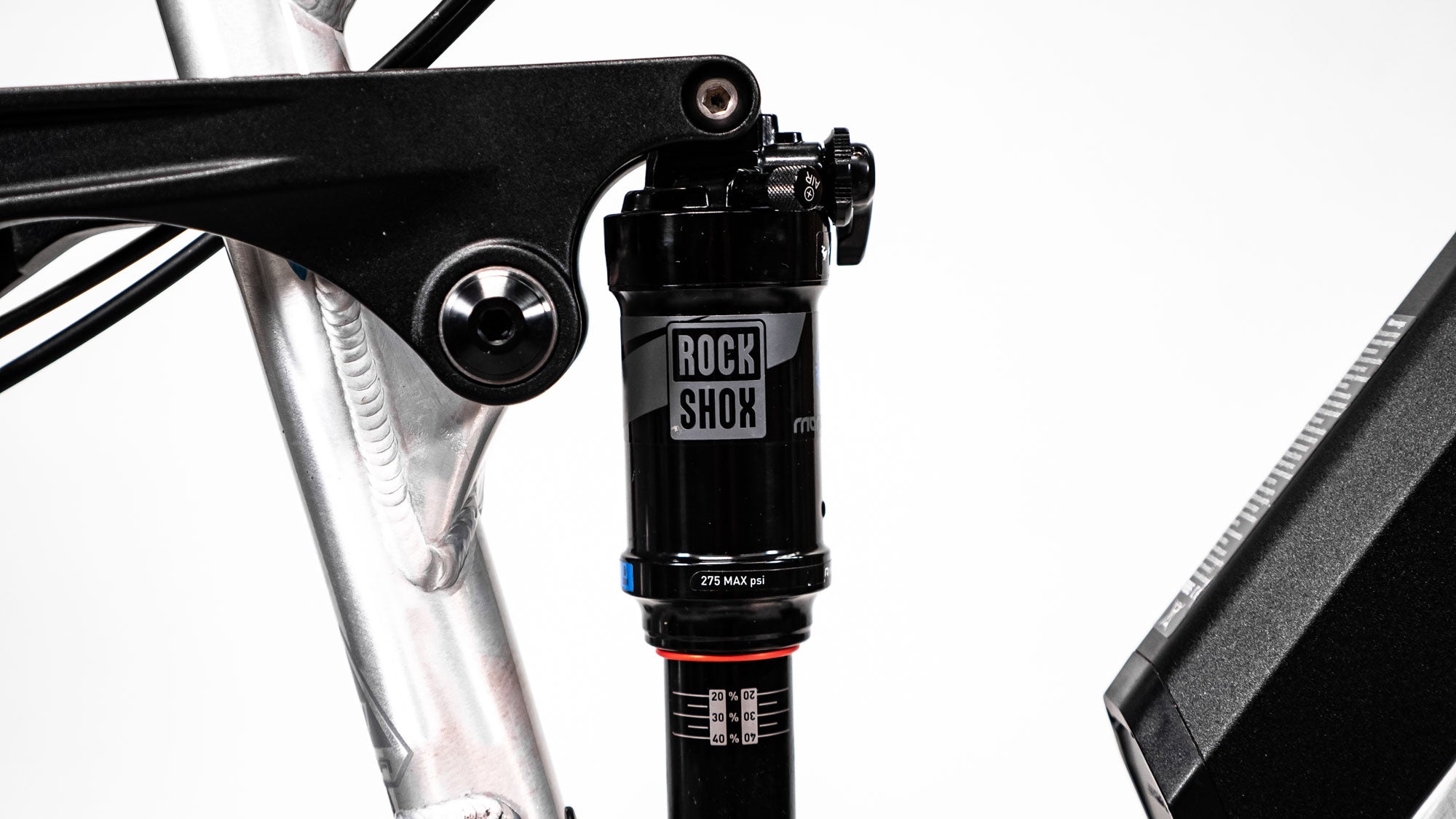

Rear suspension Rockshox monarch rt3 184x44

Frame 6061 aluminum w/ 100mm rear travel	Front hub Quanta 150mm 36h
Seat post Aluminum 31.6mm	Fork Biktrix inverted tapered w/100mm travel
Front axle 15mm thru	Seat post clamp Quick release
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 197mm 36h
Motor 1000w (1500w peak) bafang ultra mid-drive	Shifter rear Sram nx 11 speed
Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur Sram nx 11 speed	Rims 26"- black w/ red cutouts 36h, 27.5"- black 36h
Display Dpc-18 color display	Cassette Sram pg-1130 11-42t
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x11	Handlebar Aluminum 34.9 clamp, 700mm wide, 20mm rise 8° backsweep 5° upsweep
Assist type Torque, cadence	Crank set 170mm aluminum arms with 44t steel chainring
Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on
Throttle Thumb throttle	Brakes Tektro hd-e500 w/ 180mm rotors
Saddle Velo plush narrow	Brake levers Tektro hydraulic w/ adjustable reach & motor cutoff
Rear suspension Rockshox monarch rt3 184x44

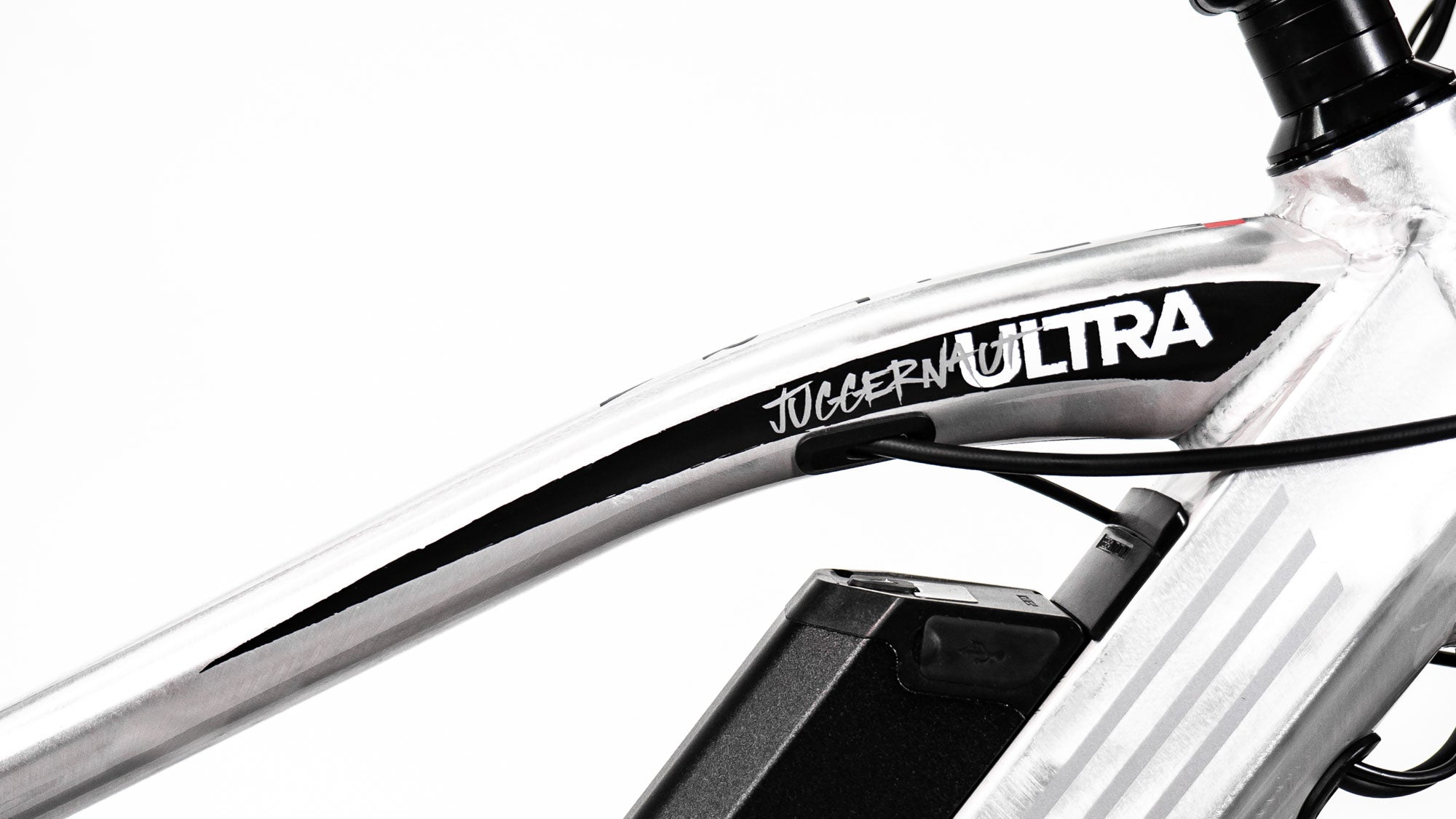

Frame

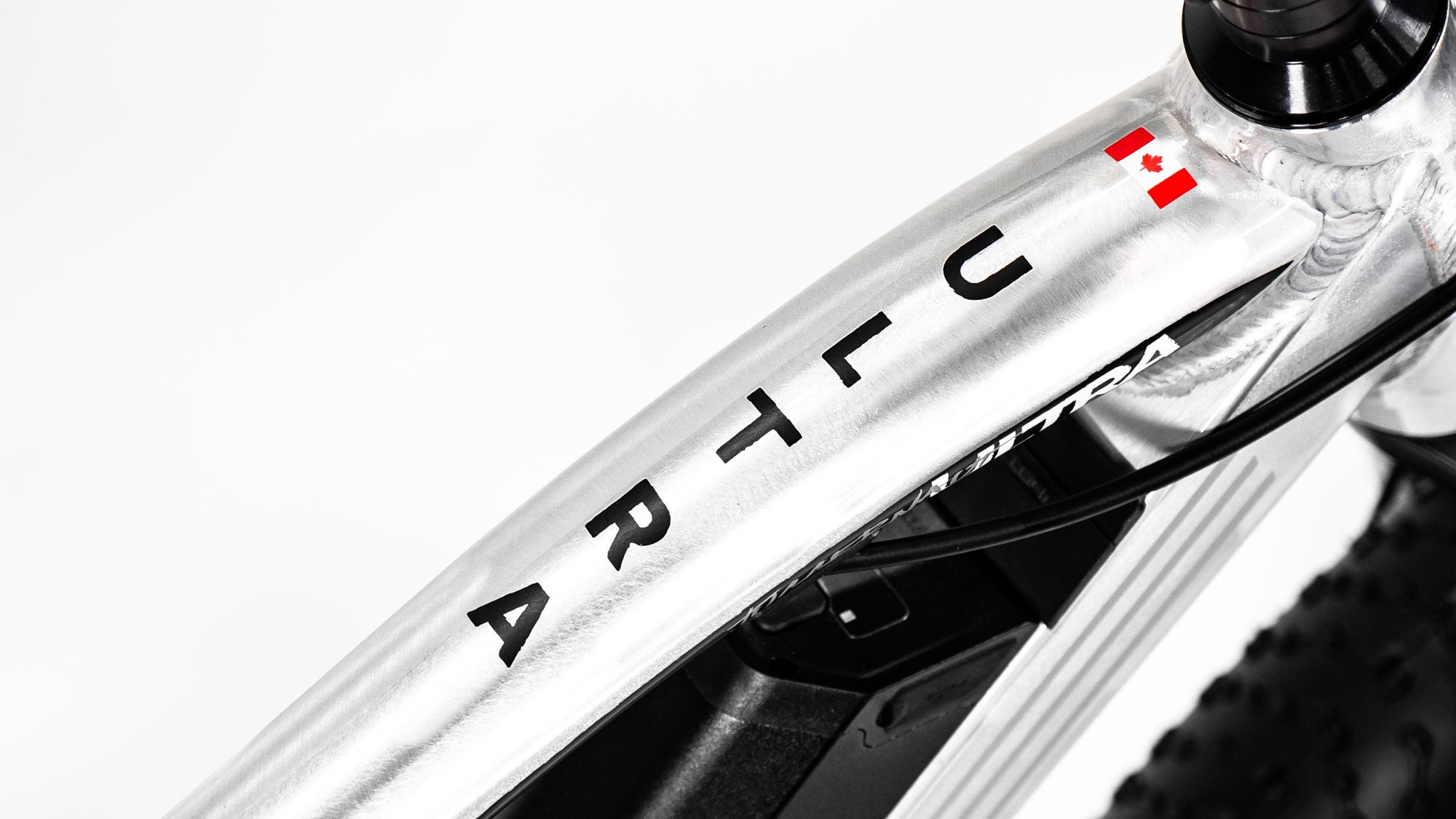

6061 aluminum w/ 100mm rear travel

Front hub

Quanta 150mm 36h

Seat post

Aluminum 31.6mm

Fork

Biktrix inverted tapered w/100mm travel

Front axle

15mm thru

Seat post clamp

Quick release

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

Quanta 197mm 36h

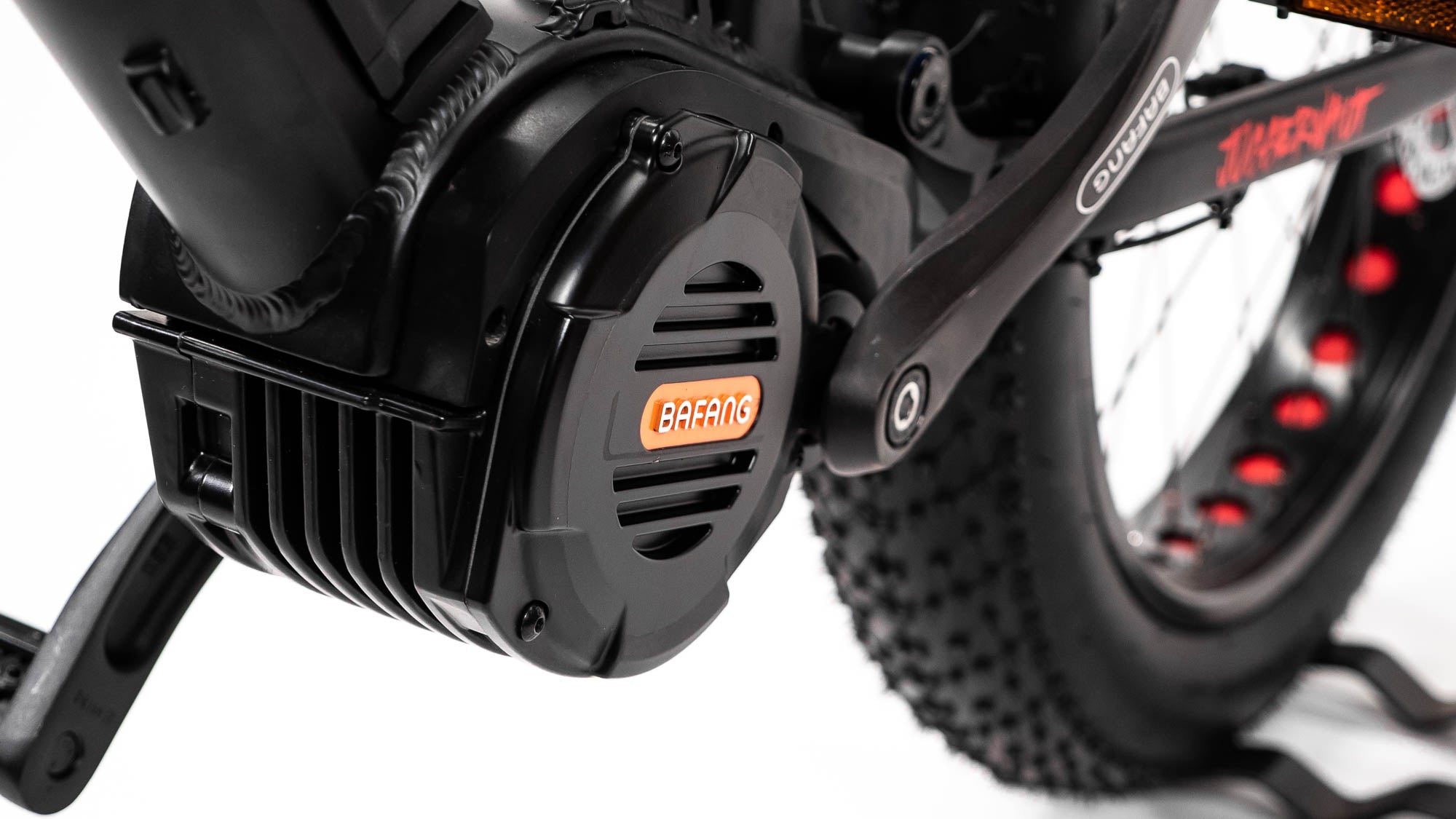

Motor

1000w (1500w peak) bafang ultra mid-drive

Shifter rear

Sram nx 11 speed

Rear axle

12mm thru

Battery sizes

48v17.5ah, 48v21ah, 52v17.5ah

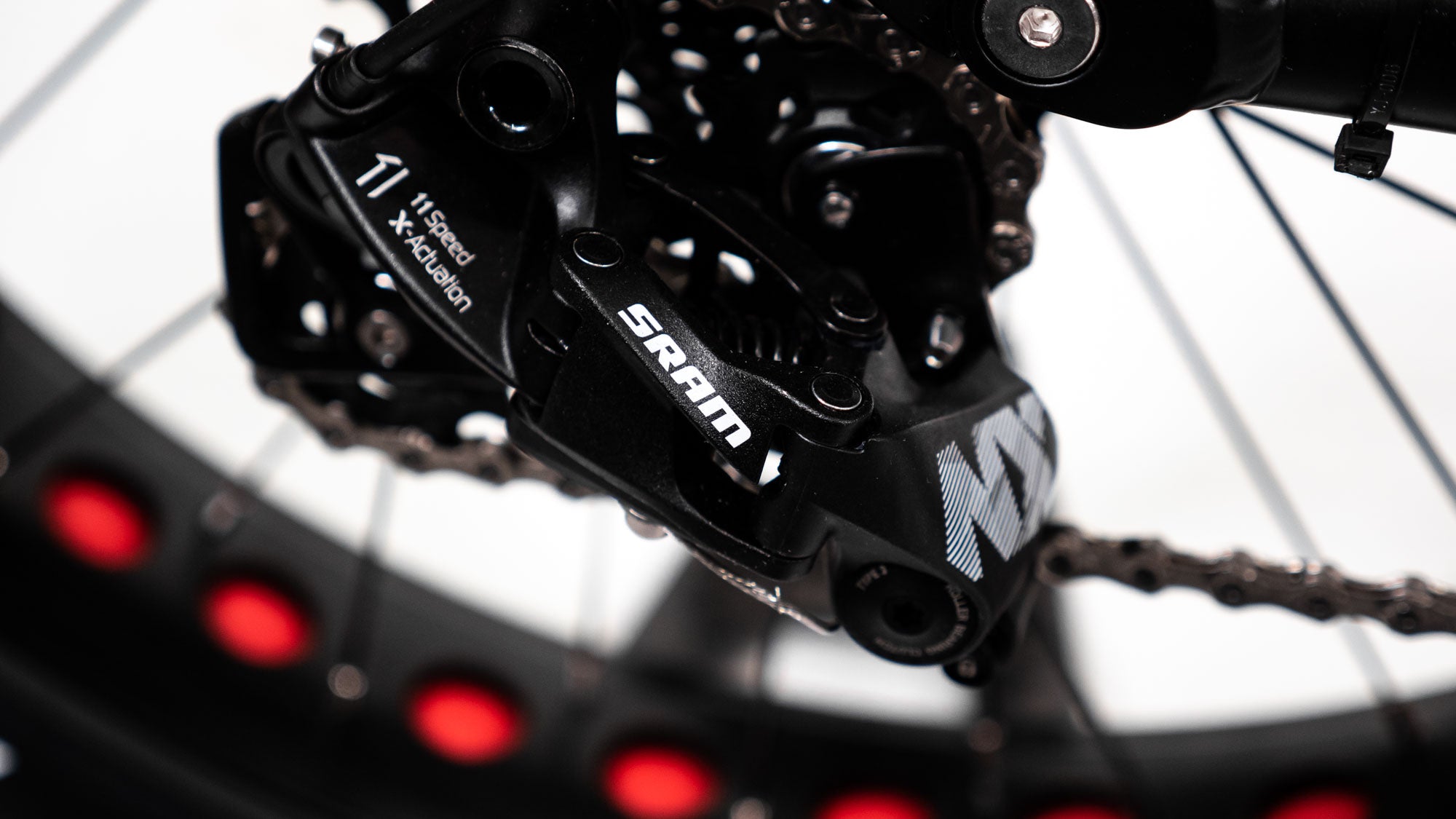

Rear derailleur

Sram nx 11 speed

Rims

26"- black w/ red cutouts 36h, 27.5"- black 36h

Display

Dpc-18 color display

Cassette

Sram pg-1130 11-42t

Tire sizes

26x4", 27.5x3"

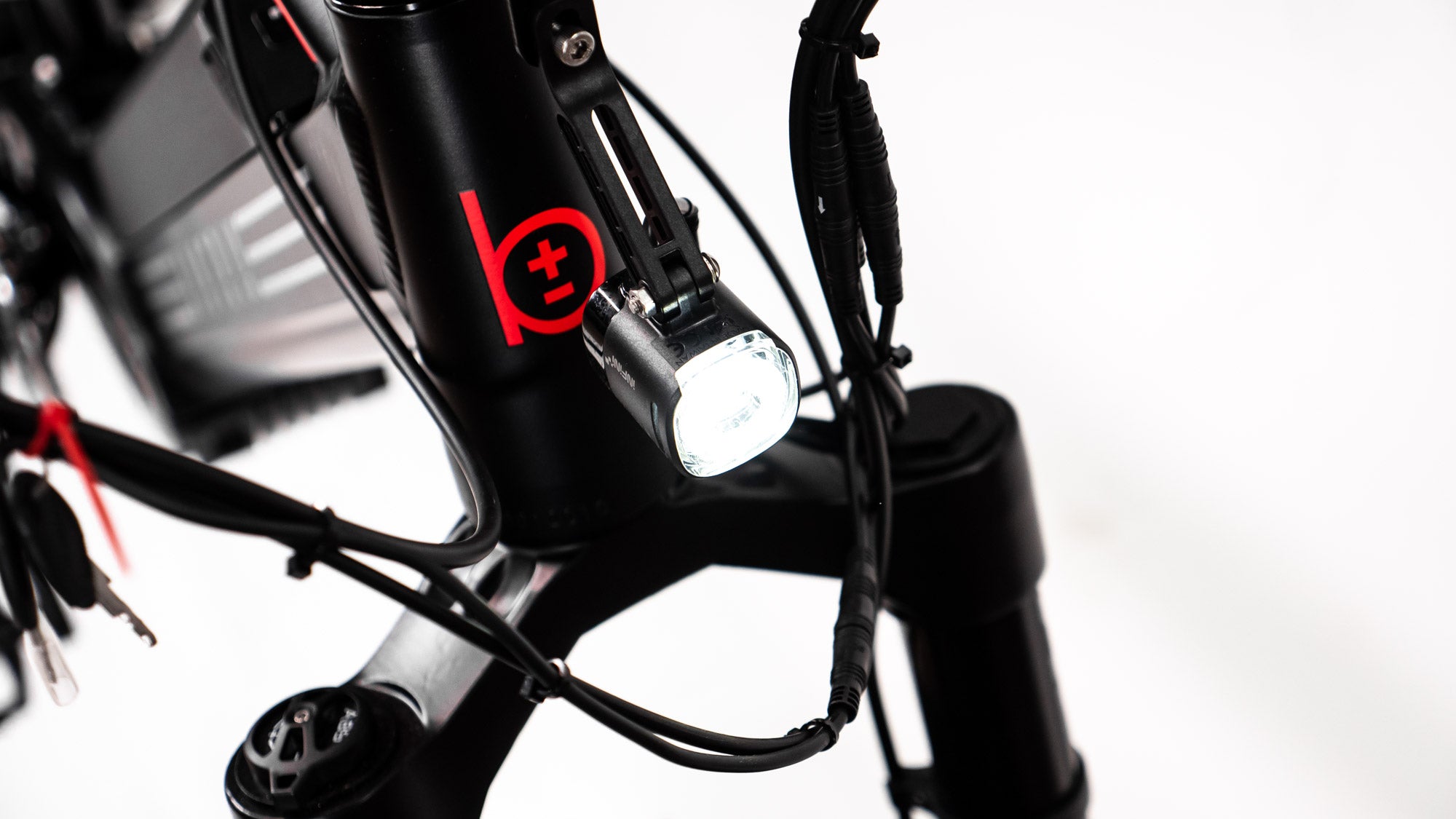

Lights

Integrated headlight, battery taillight

Chain

Kmc x11

Handlebar

Aluminum 34.9 clamp, 700mm wide, 20mm rise 8° backsweep 5° upsweep

Assist type

Torque, cadence

Crank set

170mm aluminum arms with 44t steel chainring

Stem

90mm aluminum

Assist levels

0-5

Bottom bracket

Bafang ultra isis

Grips

Slide on

Throttle

Thumb throttle

Brakes

Tektro hd-e500 w/ 180mm rotors

Saddle

Velo plush narrow

Brake levers

Tektro hydraulic w/ adjustable reach & motor cutoff

Rear suspension

Rockshox monarch rt3 184x44

Size & Fittings

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	460mm	18.1in
4	Stack	580mm	22.8in
5	Chainstay Length	480mm	18.9in
6	Standover Height	730mm	28.7in
7	Head Angle	64°	-
8	Seat Angle	73°	-
9	Head Tube Length	150 mm	5.9 in
10	Fork Length	570mm	22.4in
11	Front Center	790mm	31.1in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1240mm	48.8in
15	Total Length	1940mm	76.4in
16	Max Seat Height	1060mm	41.7in
17	Min Seat Height	910mm	35.8in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	29kg	63.9lb

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	410mm	16.1in
3	Reach	460mm	18.1in
4	Stack	580mm	22.8in
5	Chainstay Length	490mm	19.3in
6	Standover Height	790mm	31.1in
7	Head Angle	71°	-
8	Seat Angle	75°	-
9	Head Tube Length	150 mm	5.9 in
10	Fork Length	580mm	22.8in
11	Front Center	815mm	32.1in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1300mm	51.2in
15	Total Length	2020mm	79.5in
16	Max Seat Height	1120mm	44.1in
17	Min Seat Height	960mm	37.8in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	30.6kg	67.5lb
