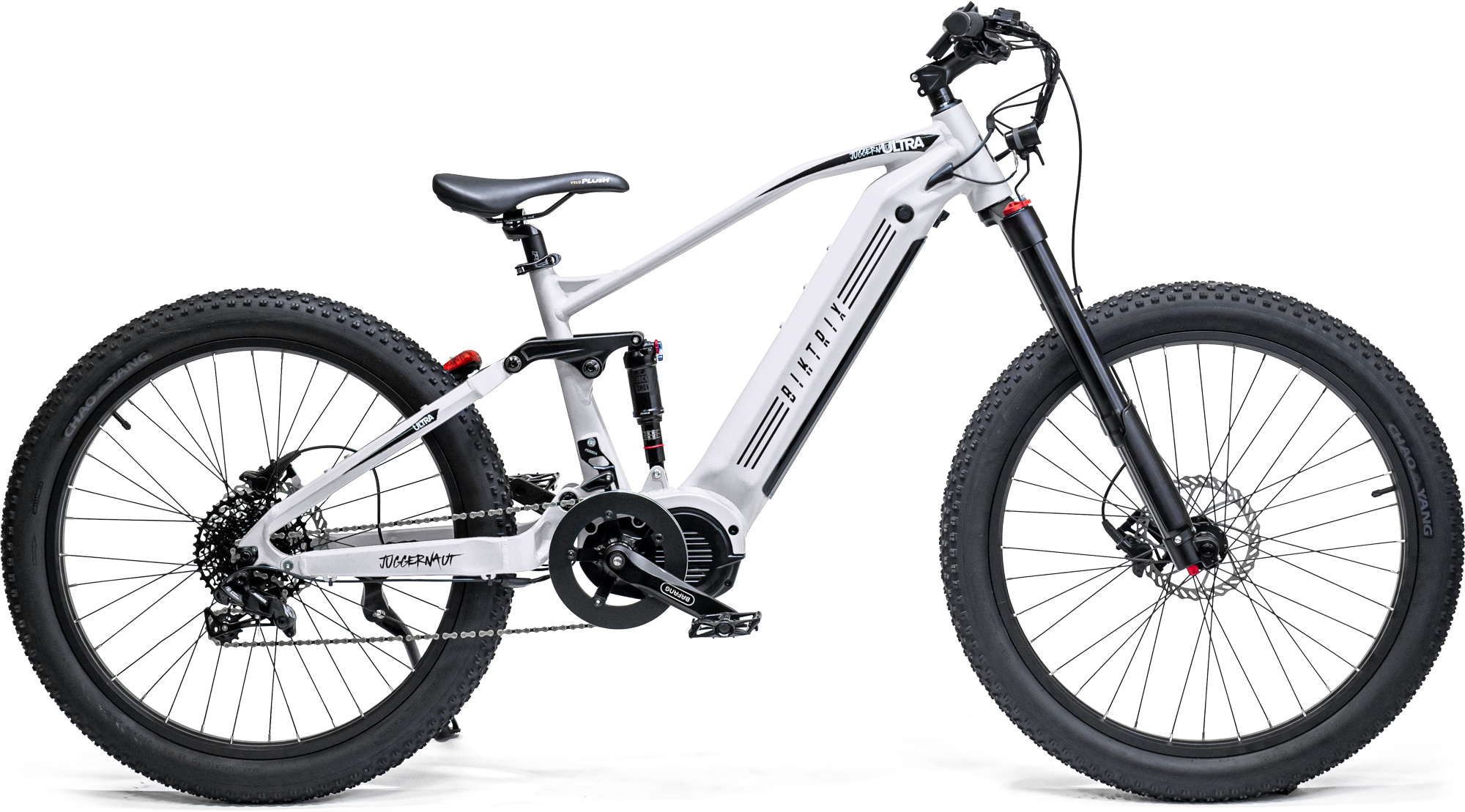

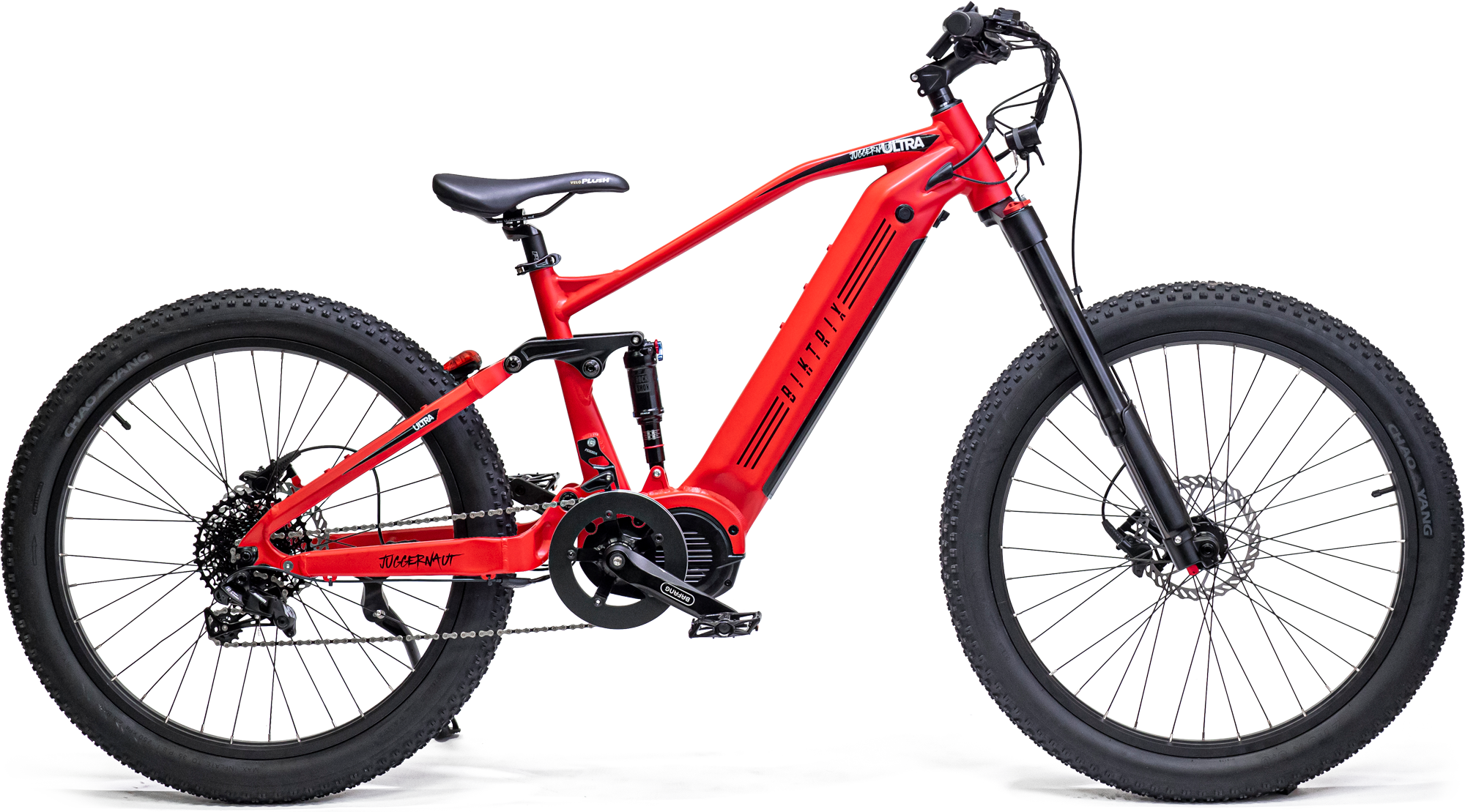

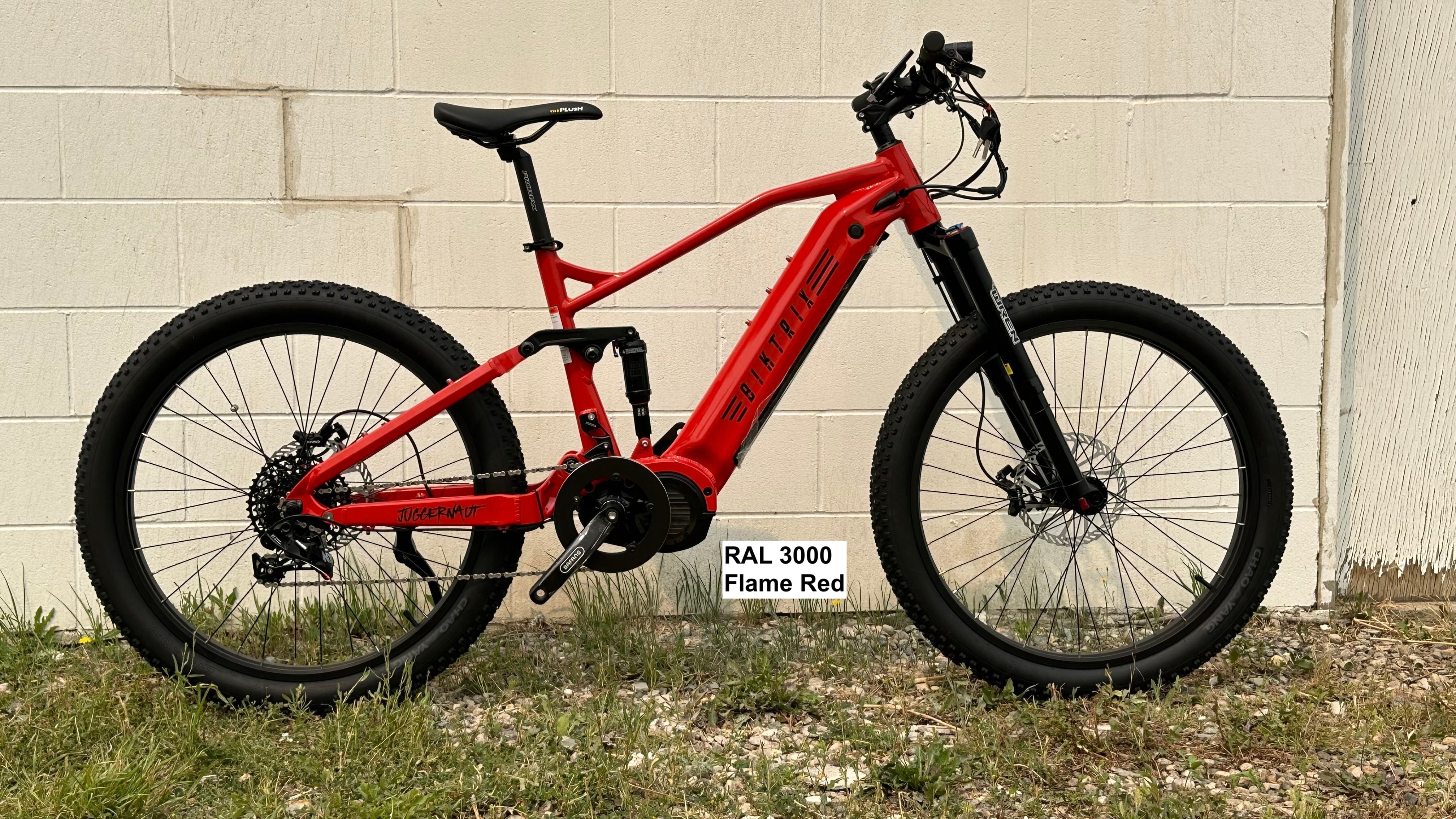

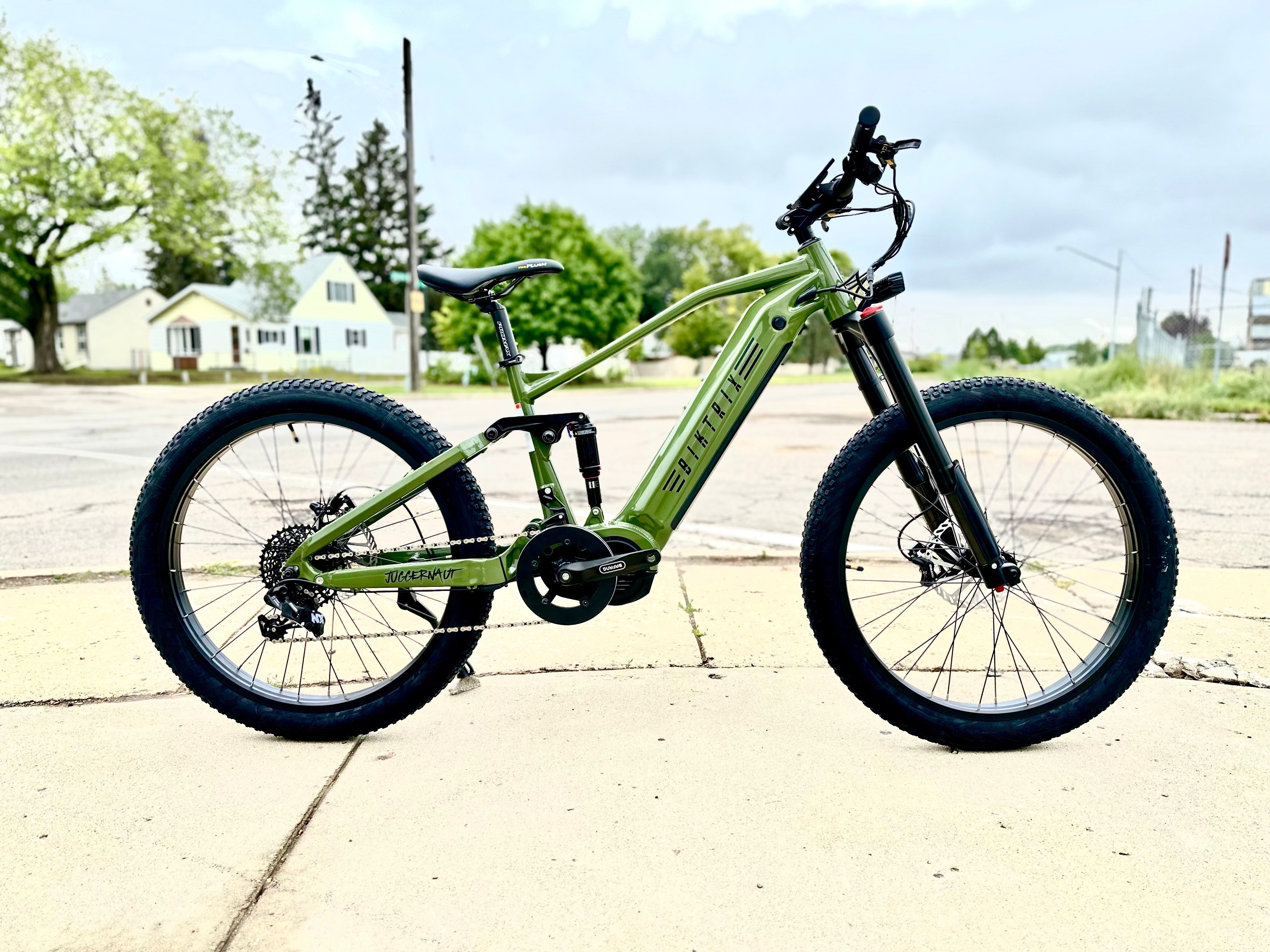

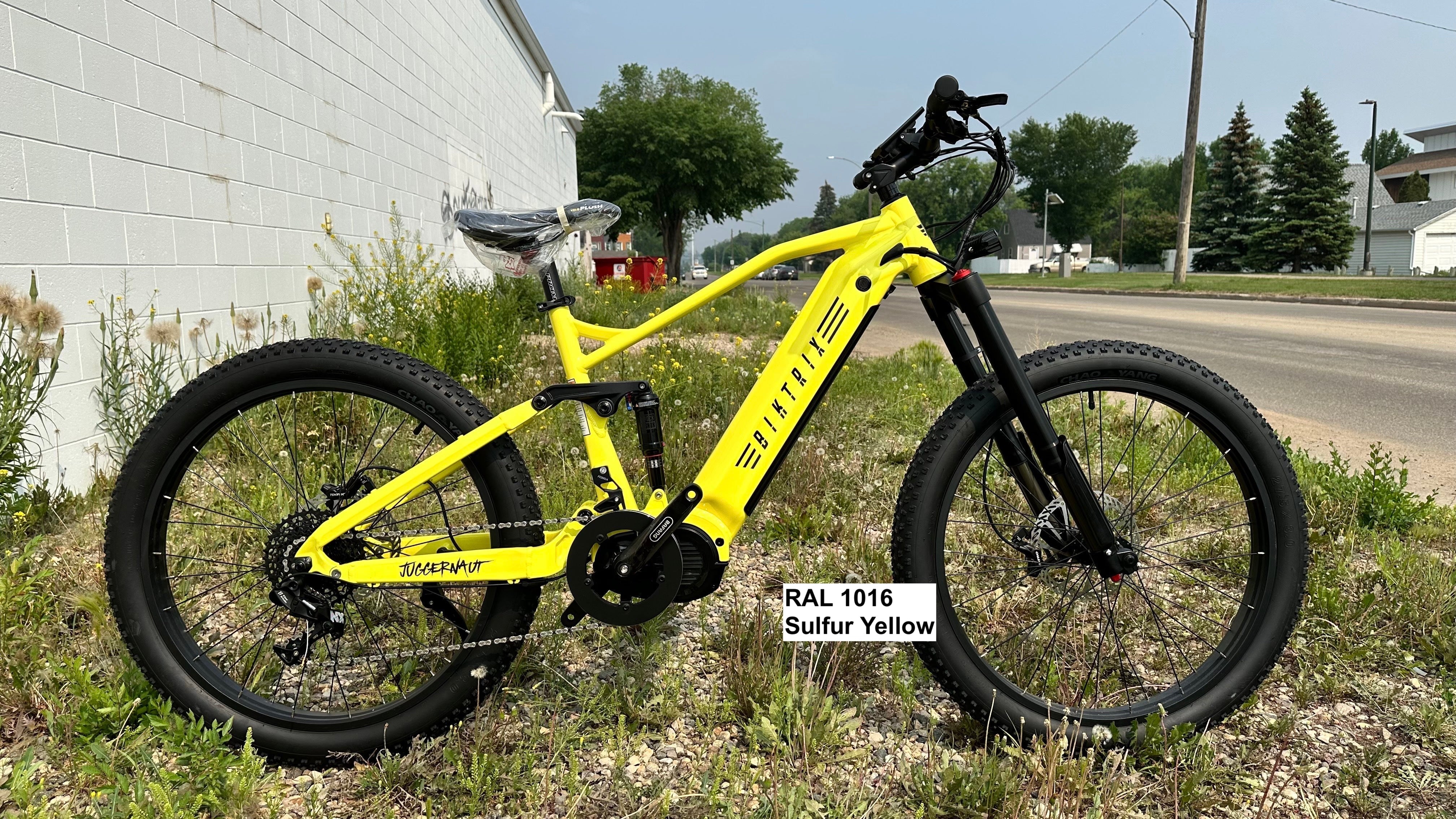

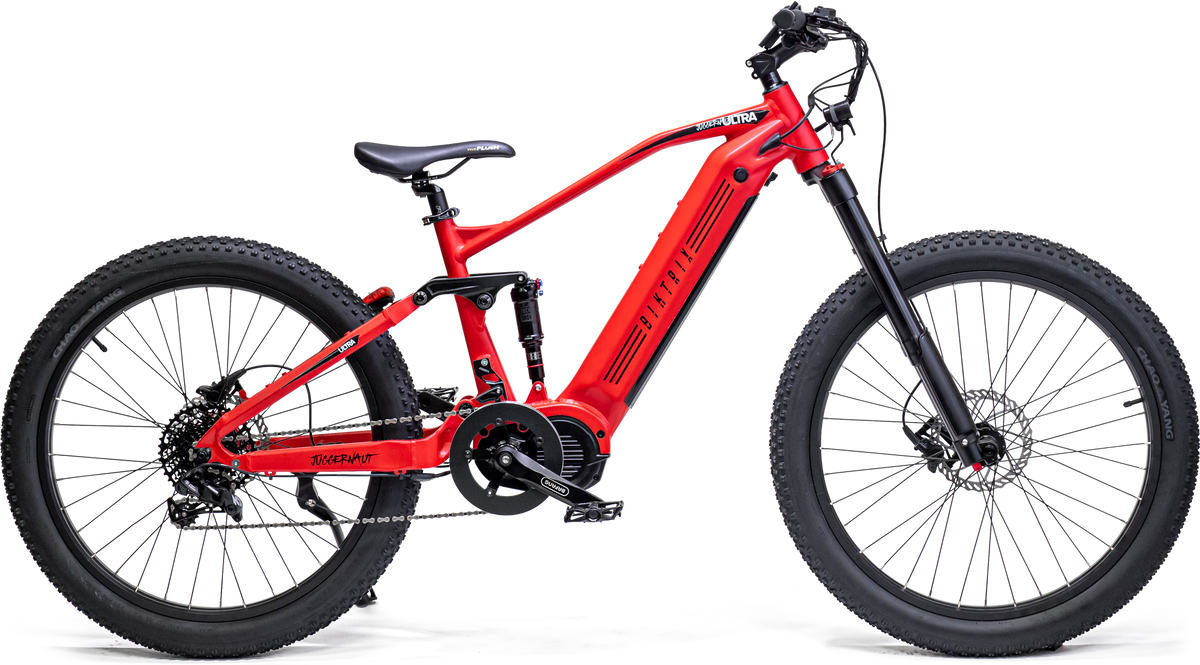

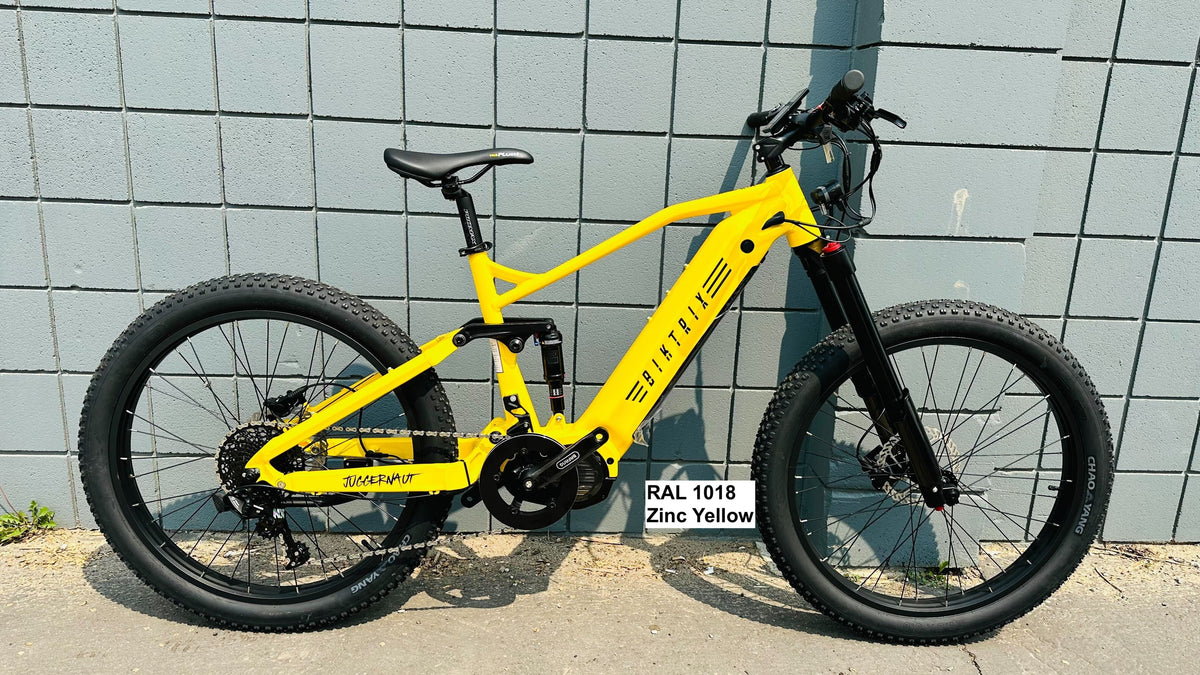

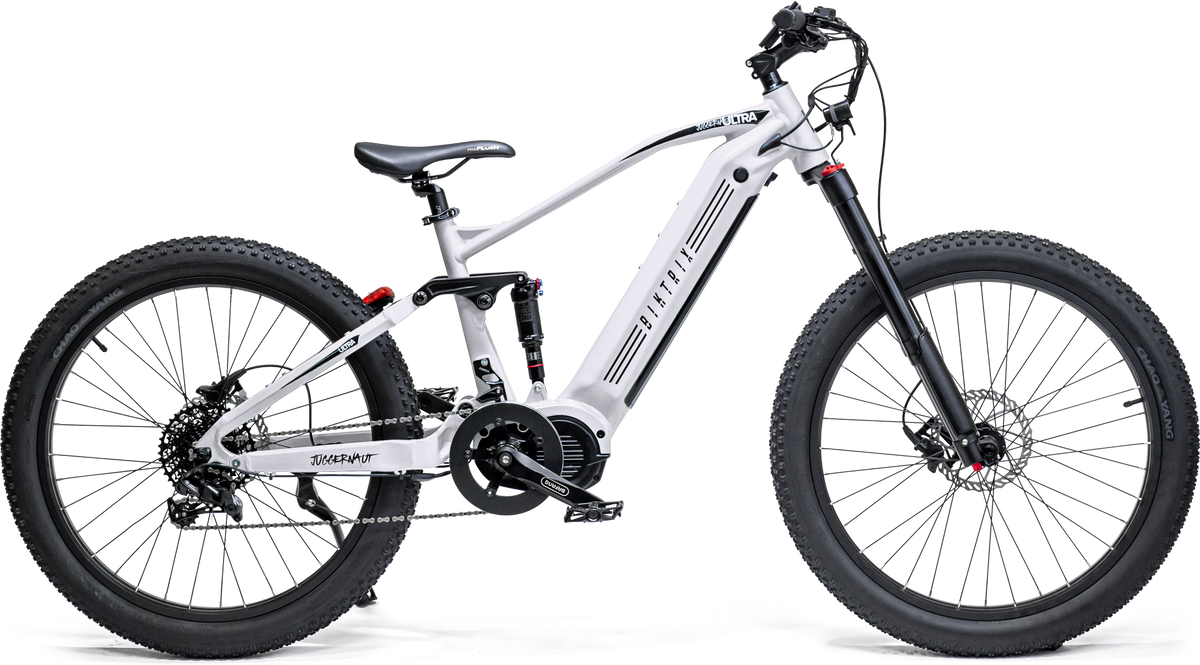

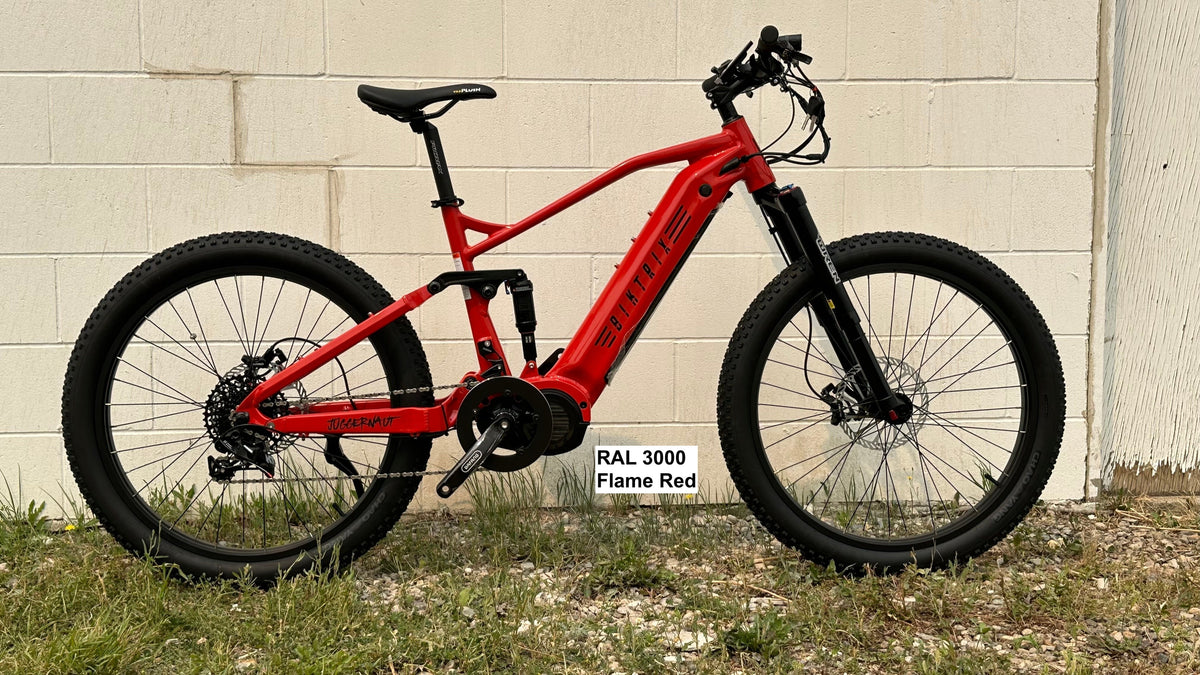

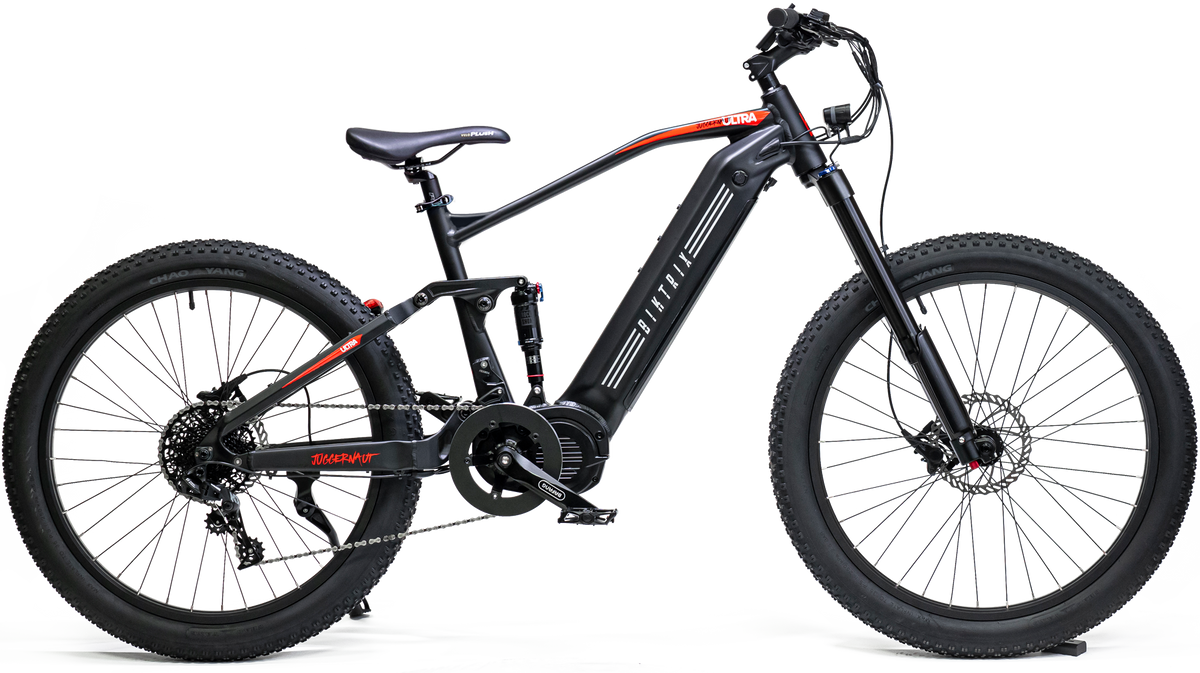

Juggernaut Ultra FS Pro 3 MTB

Sale price CA$4,999 Regular priceCA$5,999
Save CA$1,000
Sale ends in
d h m s

🚀 Limited time only: Get a FREE Range Extender Battery.

Act Now! Sale ends Sept 02.

**Larger frames will have a higher bar connecting the top-tube and seat tube
Matte Black
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

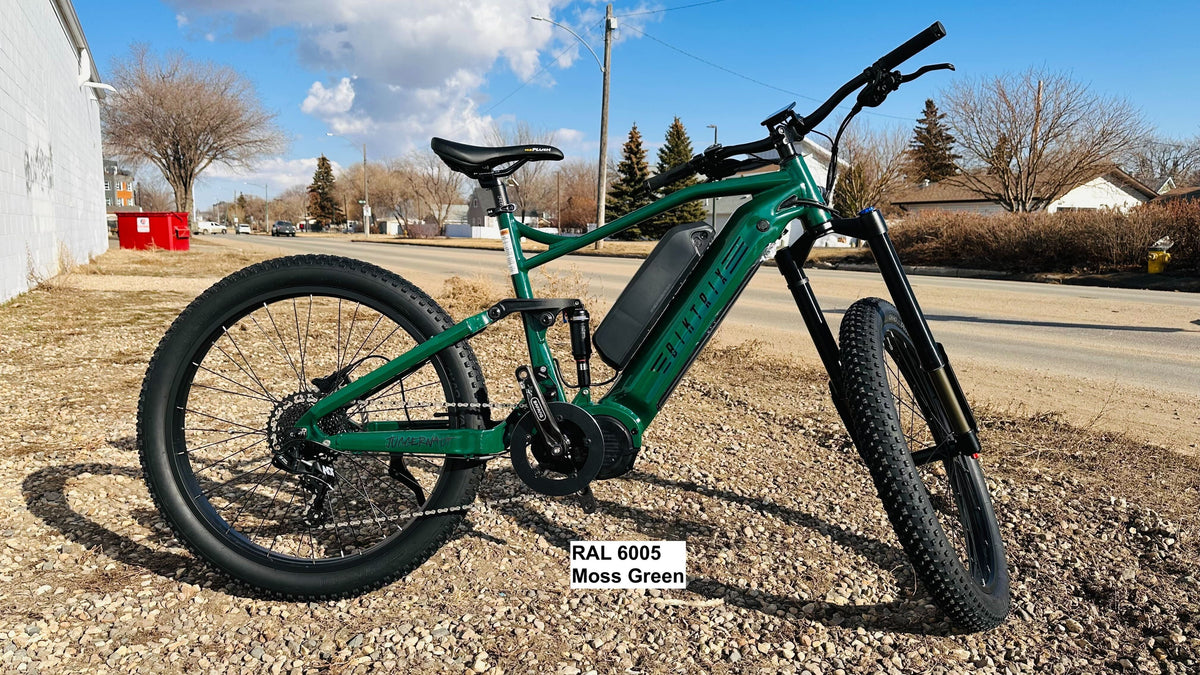

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery.
Upgrades
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

*** Magura MT5e upgrade come with a brake rotor upgrade from 180mm to 203mm
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**Upgraded front forks are incompatible with front fender included in Rack and Fender Set
Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Dropper Seatpost


Elevate your ride with a dropper seatpost for seamless adjustments and ultimate control on any terrain.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

**The price is discounted from the regular price of $300.
Rear Rack And Fender


This rear cargo rack with a solid, integrated fender will keep you nice and dry while riding, allowing you to carry all the cargo you may want on the rear end of your bike!

Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Accessories
Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price CA$4,999.00 Regular priceCA$5,999.00
Shipping: Leaves within 6-7 business days
1000W Mid-Drive

Motor Power

160Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 70km Range

+5'8"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

UL Certified

Safety

Full Suspension. Full Performance.

Top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry makes the Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market. Now available with an optional range extender battery to add on additional range! New to this version is a rear triangle wide enough to support 4.8" tires!

Maximum Traction

With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This bike is built for the trail.

Ride Anywhere. Any time.

The 27.5x3 MTB+ Tires provide the best of both worlds with a large diameter and narrow contact patch allowing you to overcome obstacles with speed and agility.

Ultra Power. Greater Features.

Distance Range (Single Battery)

PAS 1
Pedal-Assist Lv.1
84km
PAS 2
Pedal-Assist Lv.2
70km
PAS 3
Pedal-Assist Lv.3
61km
PAS 4
Pedal-Assist Lv.4
56km
PAS 5
Pedal-Assist Lv.5
50km
THRL
Throttle Only
35km
**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
Black 26" with round cutouts, solid black 27.5"
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x3" chaoyang mtb
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
700mm wide w/25mm rise, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm solid
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Velo bolt on mtb grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Velo plush
Other
2-bolt kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye

Size & Fittings

1
Effective Top Tube Length
580mm 22.8in
2
Seat Tube Length (Classic Bike Size)
430mm 16.9in
3
Reach
440mm 17.3in
4
Stack
540mm 21.3in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1320mm 52in
15
Total Length
2030mm 79.9in
16
Max Seat Height
1040mm 40.9in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1020mm 40.2in
19
Weight (Without Battery)
32.6kg 71.9lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
510mm 20.1in
6
Standover Height
740mm 29.1in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
32.6kg 71.9lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
520mm 20.5in
6
Standover Height
770mm 30.3in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1340mm 52.8in
15
Total Length
2060mm 81.1in
16
Max Seat Height
1120mm 44.1in
17
Min Seat Height
940mm 37in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
33.6kg 74.1lb
