Overview

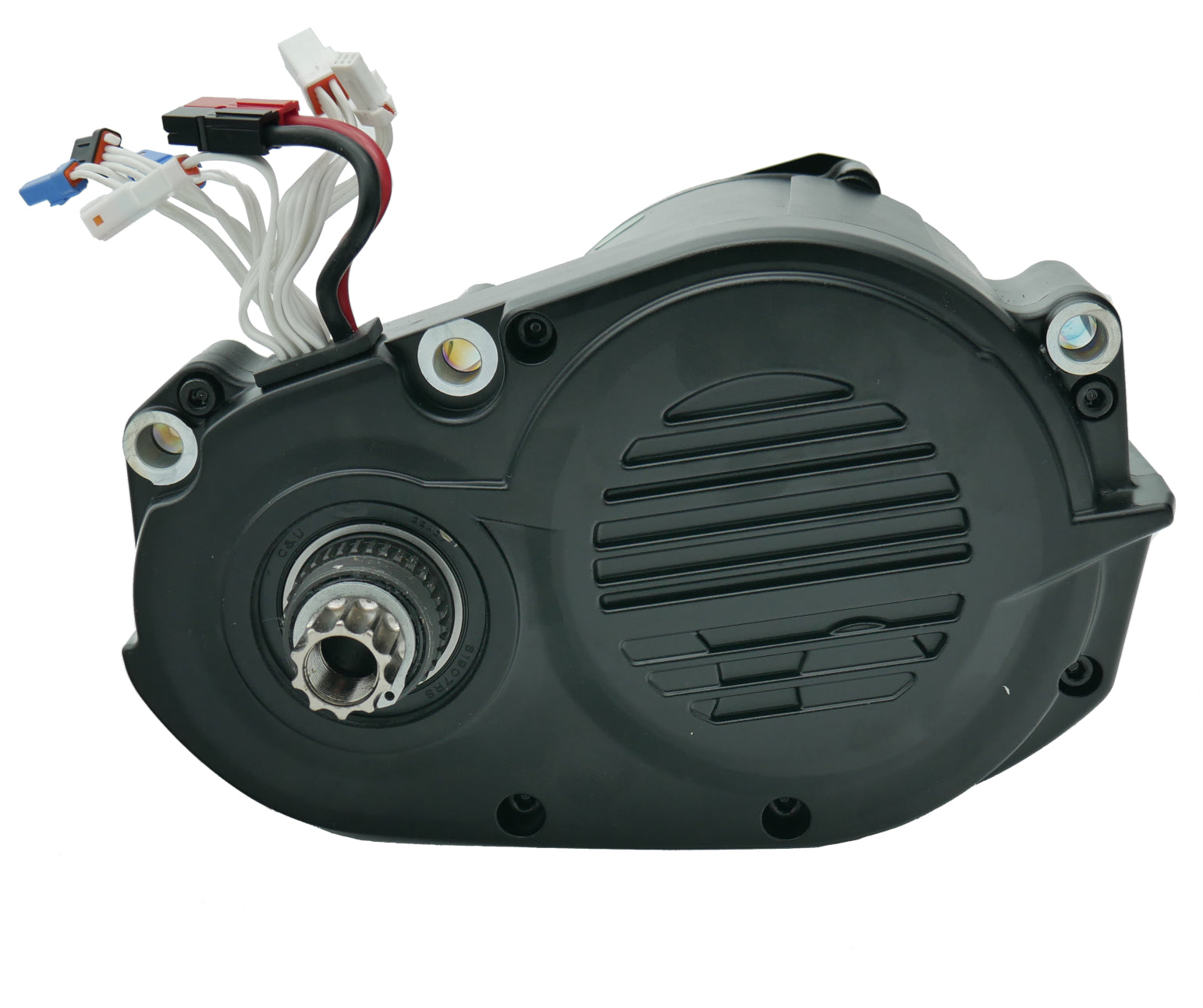

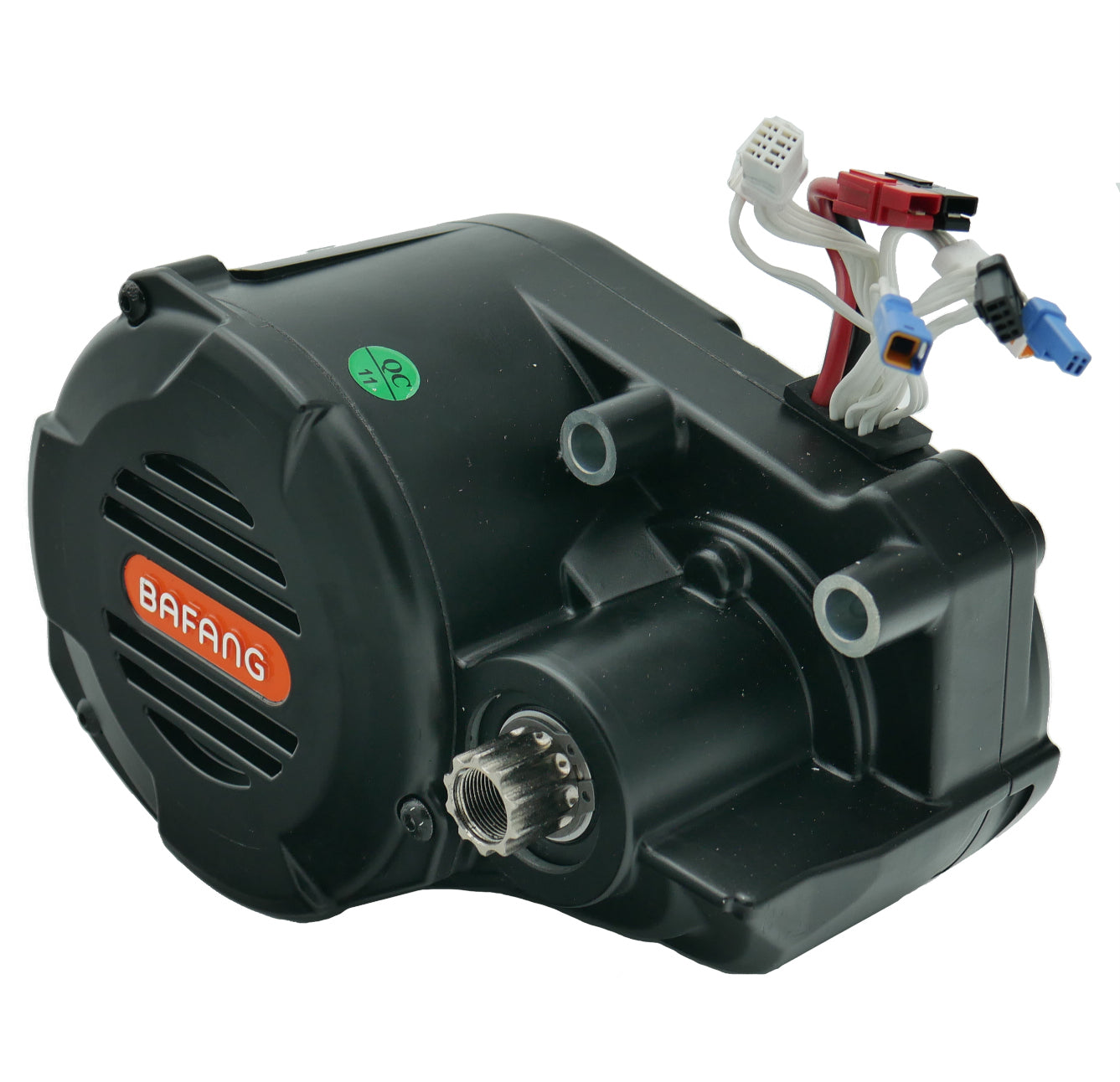

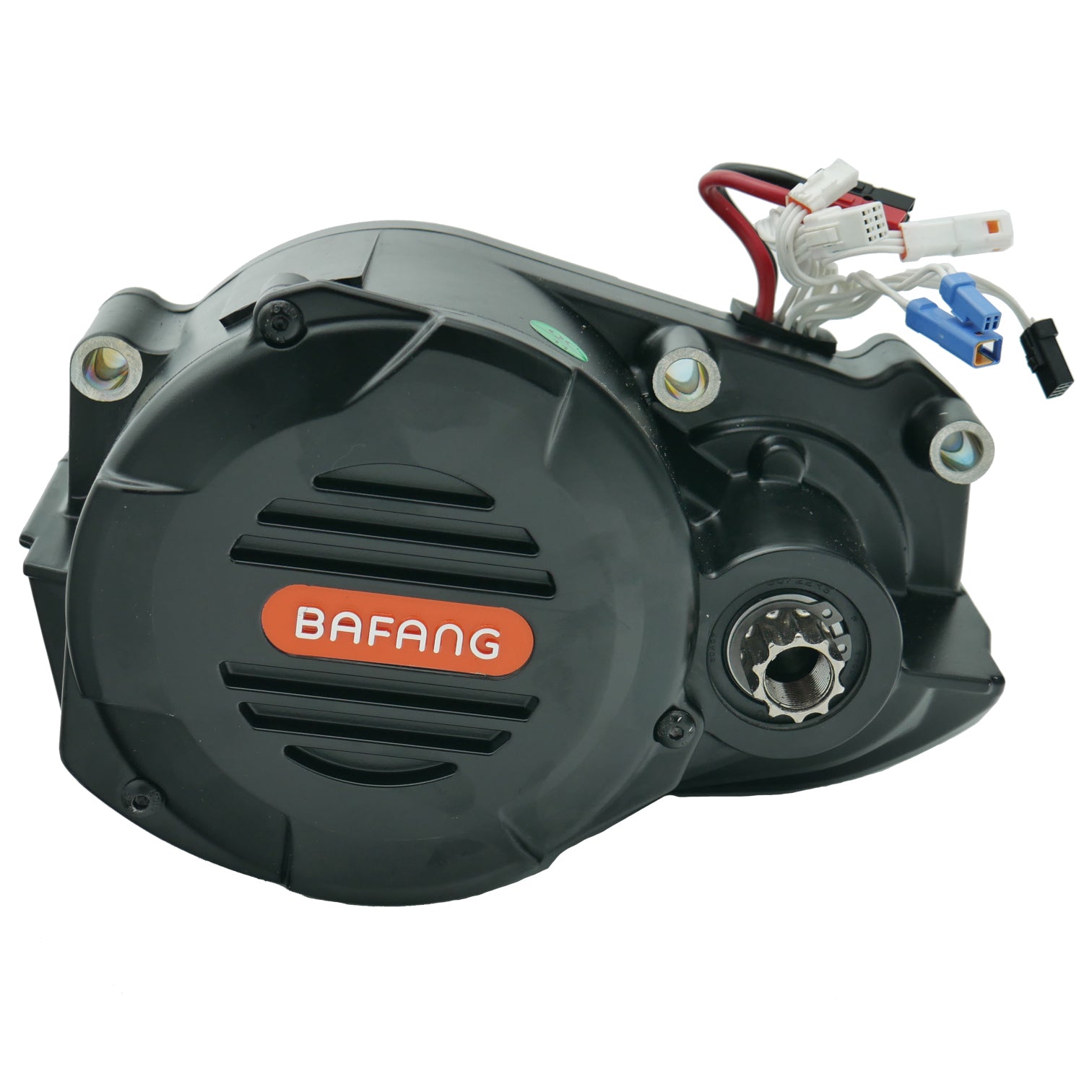

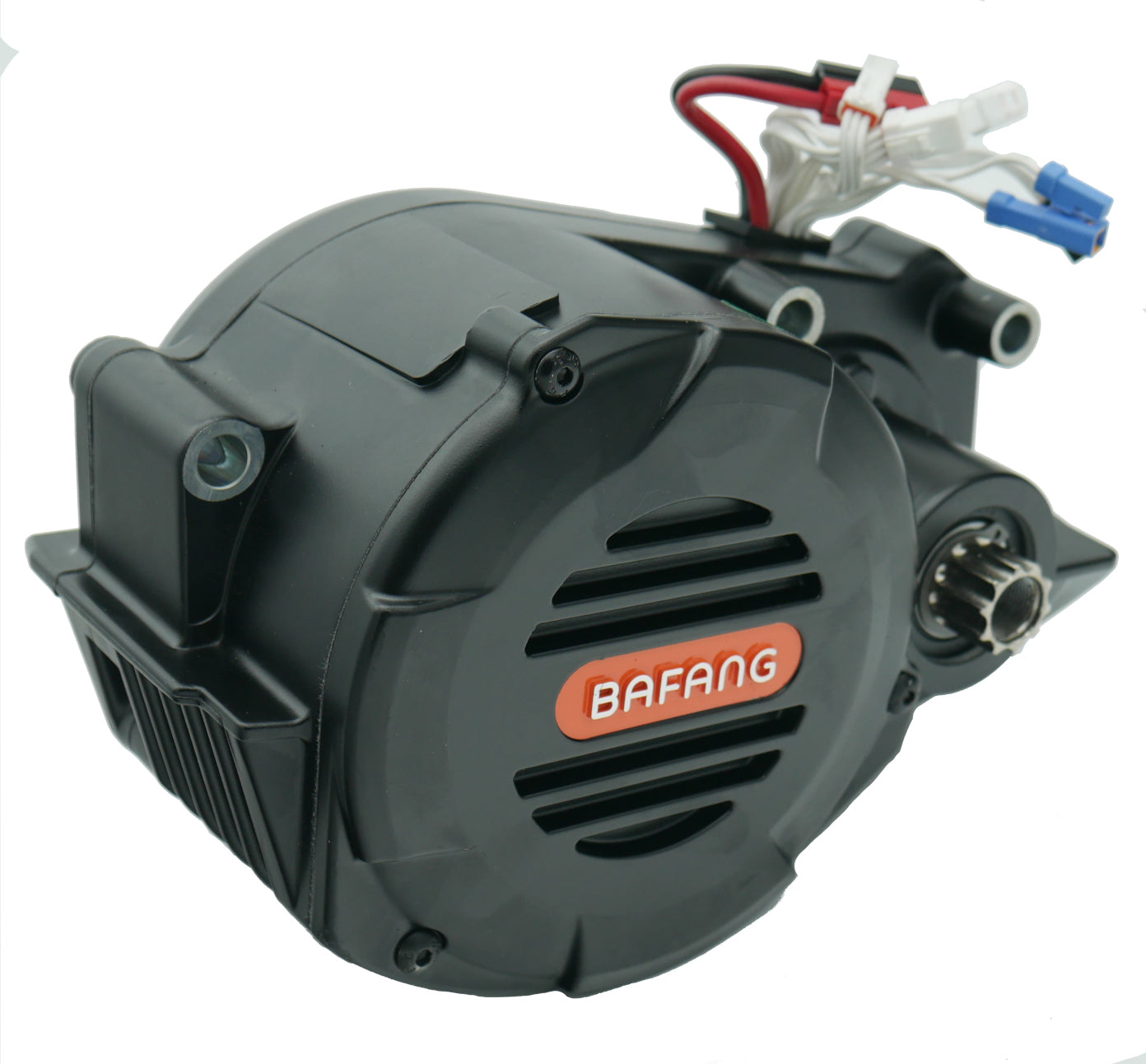

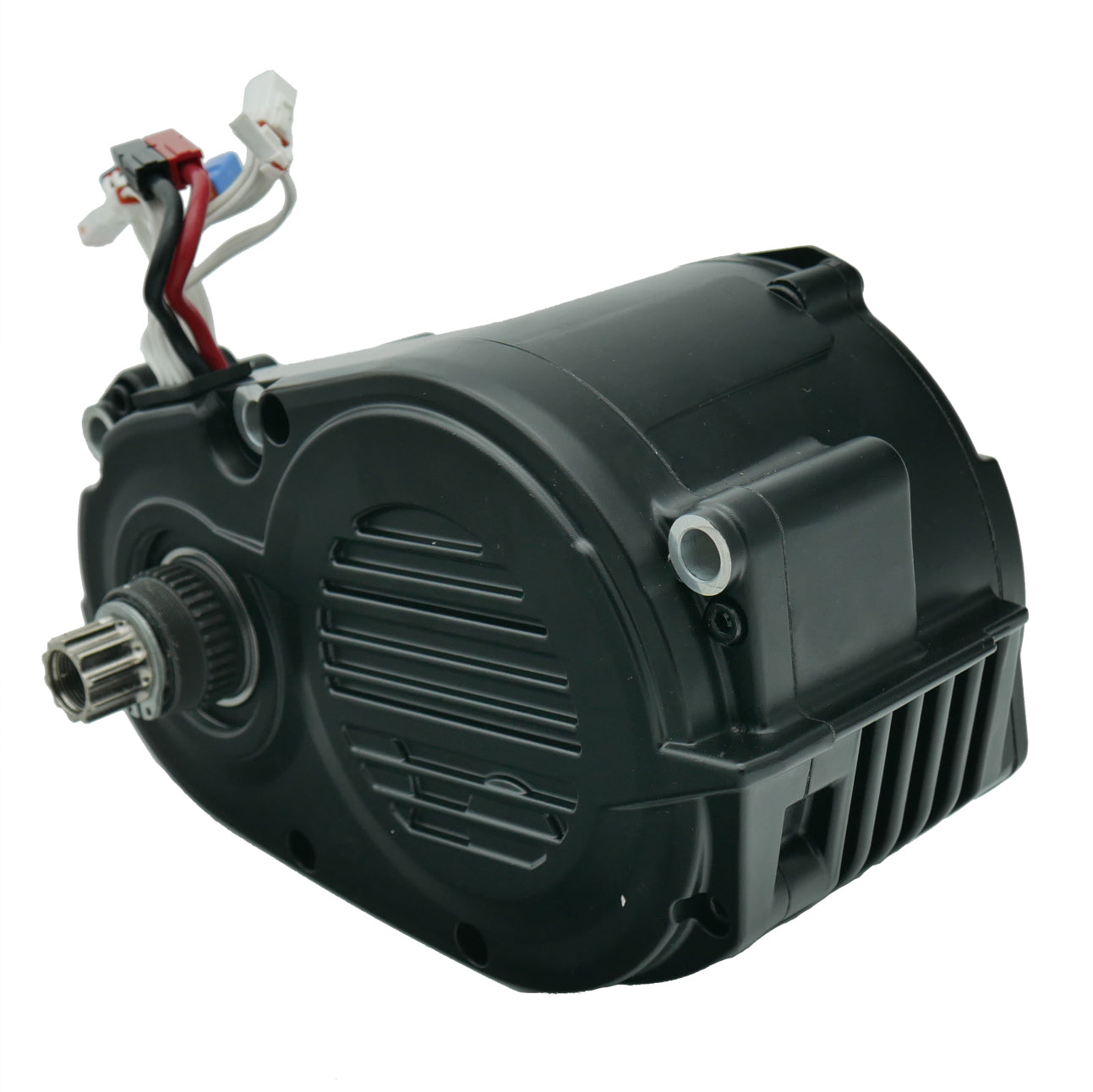

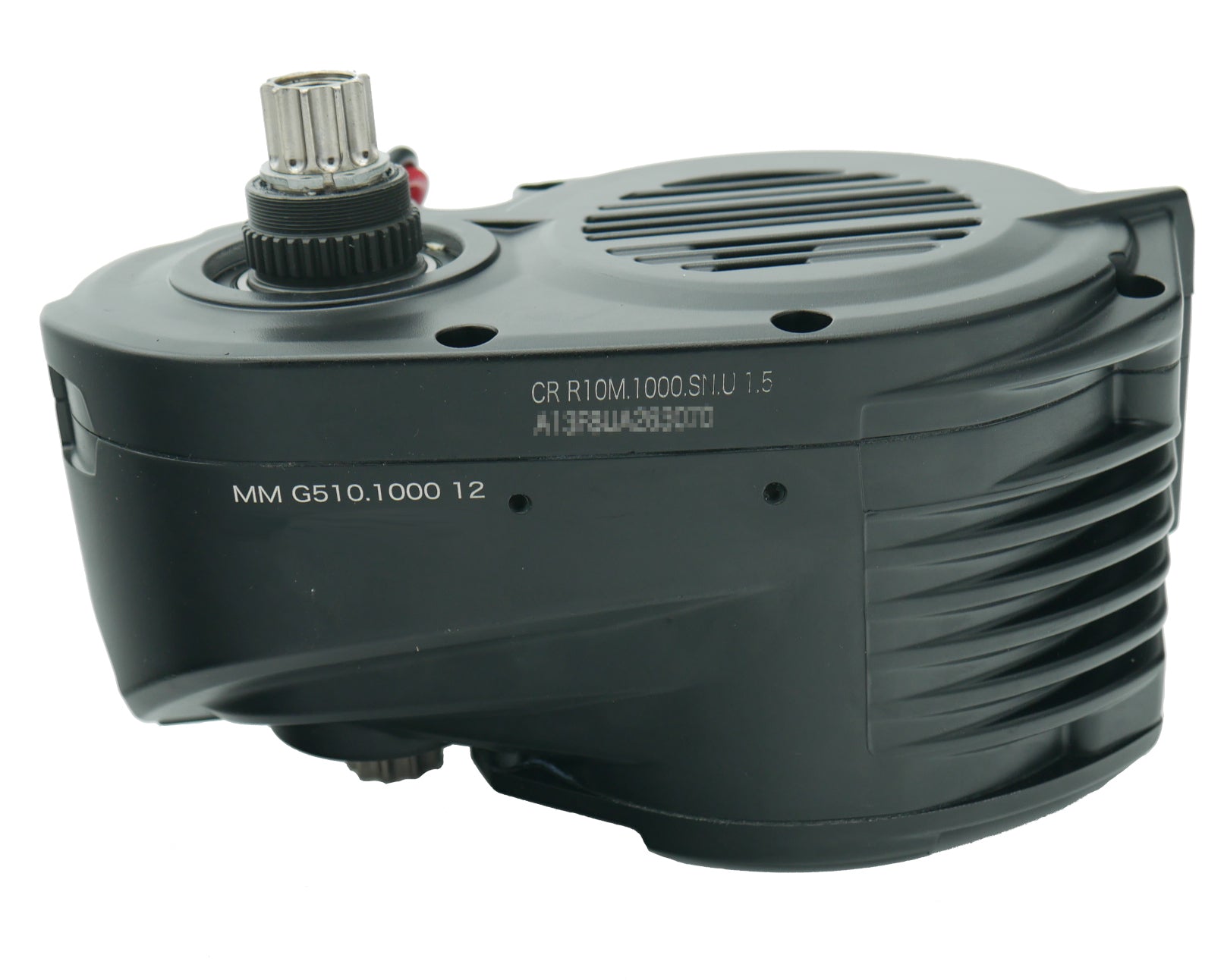

Experience exceptional value with the Bafang M620 Ultra Motor, meticulously factory-refurbished to ensure top-notch performance. Equipped with durable all-metal gears, this motor promises longevity and reliability. Each unit undergoes rigorous bench testing by Bafang USA and at BIKTRIX before dispatch, offering you added assurance and peace of mind with your purchase.
This is the CANBUS PROTOCOL version of the motor. Not sure of your version? See how to determine which motor type you have here.
These are refurbished motors - as such there may be cosmetic damage on the outer casing.
This is a bare motor. Accessories like wiring harness, speed sensor, display, crank arms etc. are NOT included. You need to purchase them separately.
Motor Protocol
CANBUS
Rated Nominal Power output
1000W
Peak Power Output
1500W
Max Ampreage
30A
Max Torque
160 N.m
Rated Voltage
48V
Position
Mid-Drive
Internal Gears
Steel Gears
Spindle Shaft Standard
ISIS
Water-proof grade
IP66
Pedal Assist Sensors
Integrated Torque + Cadence
Shift Sensor Function
Yes
Brake Sensor Function
Yes - Closer Type
Integrated Headlight / Taillight Capacity
Yes - Headlight + Taillight at 6 DCV / 3W MAX
| Bike Name | Compatible |
|---|---|
| Monte Capro Ultra 1 | |
| Juggernaut Ultra Beast 2 CANBUS | |
| Monte Capro Ultra 2 | |
| Juggernaut Ultra 1000 / Ultra Duo | |
| Juggernaut Ultra FS / Ultra FS Pro |
