Overview

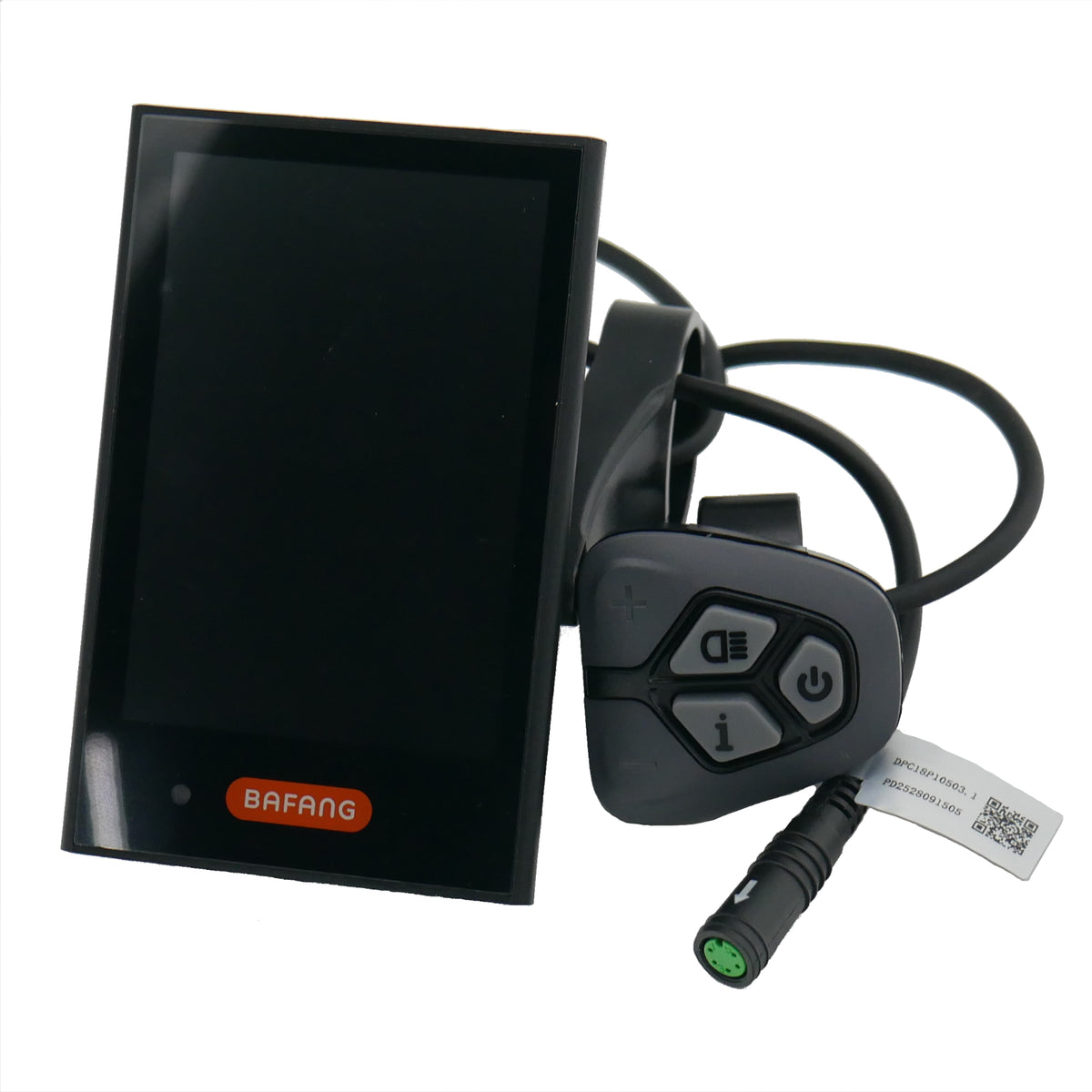

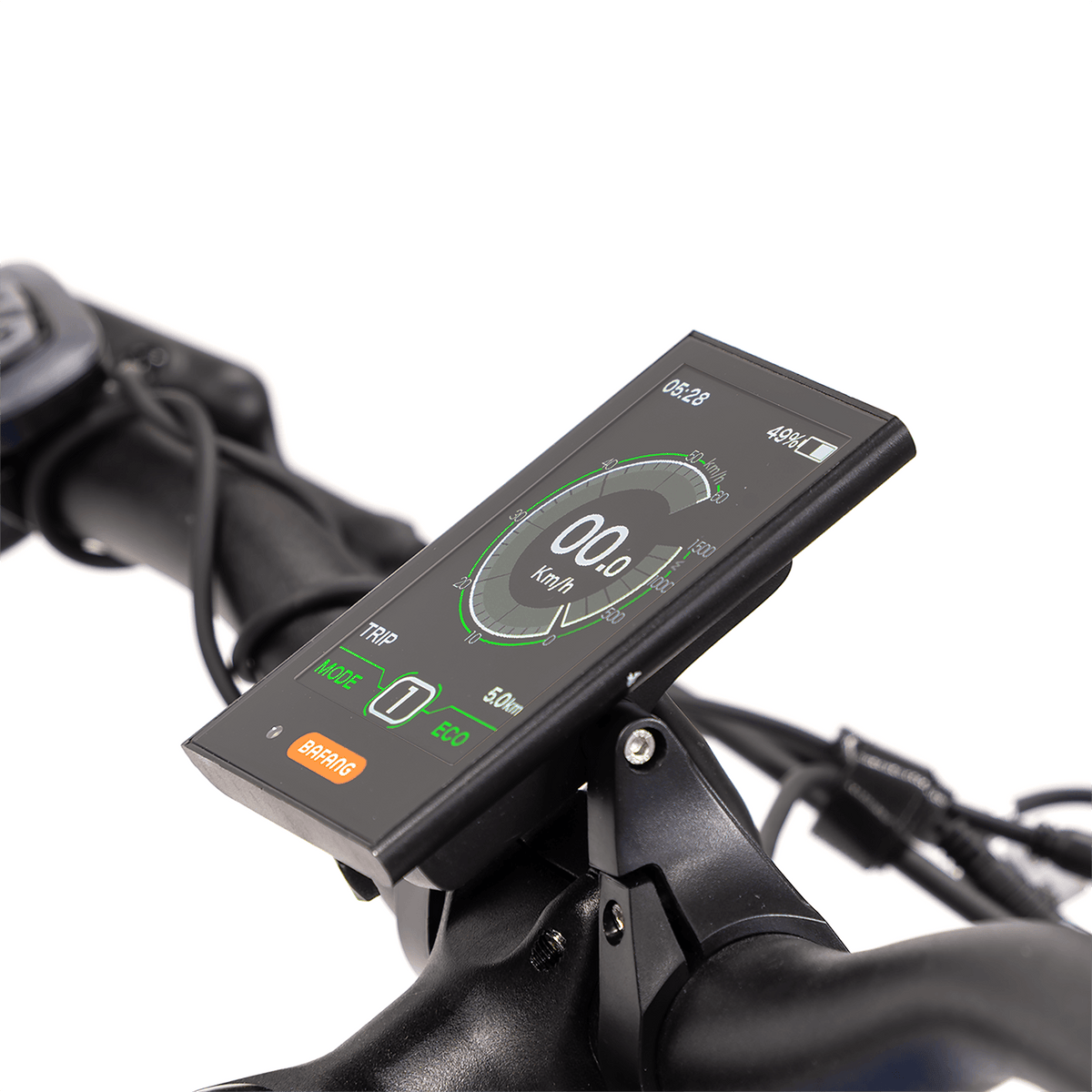

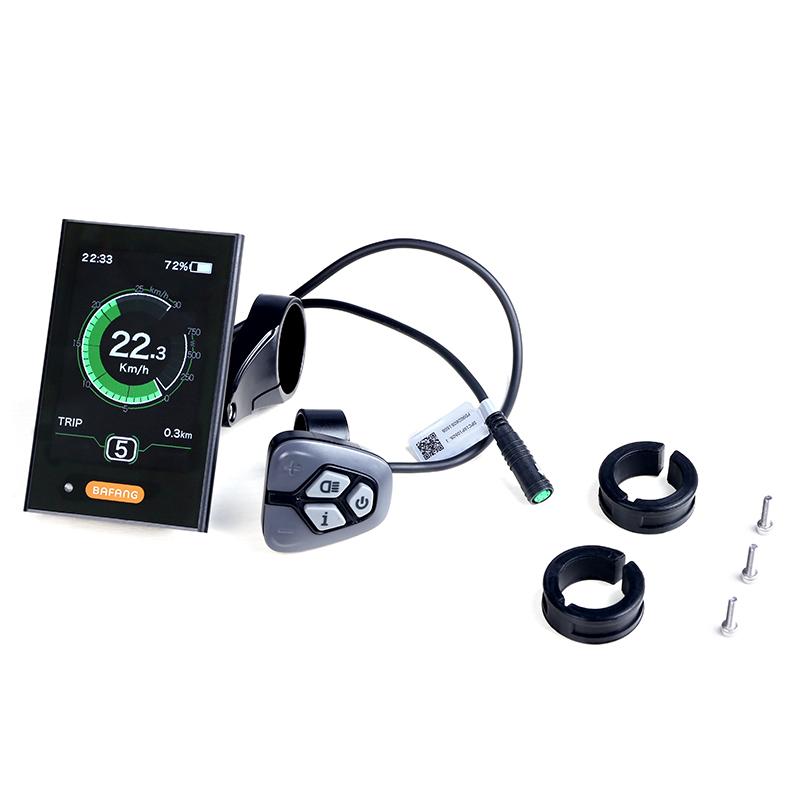

The Bafang DPC-18 is a full-colour LCD display for eBikes equipped with BBS02, BBSHD, and M620 Ultra motors. Considered to be one of the best displays in the eBike industry, the DPC-18’s visually bright and crystal-clear screen is easy to read and understand and allows users to fine-tune a multitude of settings.
The DPC-18 shows information such as speed, battery life, pedal-assist level, trip distance, average speed, trip time, total mileage, and more.
Customize the DPC-18 to your preferences by choosing to display distance in miles or kilometres. Go even further and decide to display your battery power in either voltage or percentage remaining.
The control panel utilizes a simple and effective button system to turn the eBike on/off, change pedal-assist levels, activate the bike’s front and rear lights, cycle through information on the display, and engage walk mode.
An additional feature is the USB power plug found on the bottom of the display! Extend your phone’s charge or power simple USB devices through your eBike’s battery.
Note: The Eco/Sport Mode Displays are Takeoff Parts which have been removed from brand-new, never ridden bikes. These displays may have some minor scuffs or fitment marks and 1-2 km due to factory testing but are identical in performance and specifications to the brand-new version.
Note: This display IS NOT compatible with the Juggernaut XD / Juggernaut XD Duo.
Number of PAS Levels
1-5 (Can Switch to 1-3, 1-9) OR 1-5 with ECO / SPORT Mode
Battery Guage Display
Percent Remaining or Battery Voltage
Control Pad
5 Button Controls
Display Screen Details
3.2 Inch Full Colour LCD Display
USB Port
5V 0.5A Power Output
Connector
Green 5-Pin Female Connector
USB Output
5V 0.5A
Communications Protocol
UART Protocol
| Bike Name | Compatible |
|---|---|
| Biktrix eBikes with BBS02 Motor | |
| Biktrix eBikes with BBSHD Motor | |
| Biktrix eBikes with UART Ultra M620 Motor | |
| Biktrix eBikes with CANBUS Ultra M620 Motor | |
| Biktrix eBikes with Rear Hub Motor using UART Protocol | |
| Select Biktrix eBikes w/ Female 5-Pin Display Connector | |
| Select Biktrix eBikes w/ Male 5-Pin Display Connector | |
| Biktrix XD Series eBikes | |
| Other eBikes with BBS02 Motor | |
| Other eBikes with BBSHD Motor | |
| Other eBikes with UART Ultra M620 Motor | |
| Other eBikes with CANBUS Ultra M620 Motor |
Need A Hand?
Customer Reviews
My replacement display was quickly delivered under warranty. Easy to install, paid a reasonable shipping fee. It is working perfectly. My only question is “why did the original fail (switching back and forth to walk mode without touching anything, can be quite shocking/dangerous)?
Works and looks great
Let’s hope this new one lasts longer than three years. Pretty sad when you have to change electronic display after three years of use and the bike spent most of its time in the garage, avg 3000 km a year. 100 km a week to and from work May to September. Let’s revisit this in three years. Thank you.
I installed display and it did not work, it did not light up. What to do. The tech said to replace display, if that does not work, replace something else. Is the used dilsy defective or am I out of luck

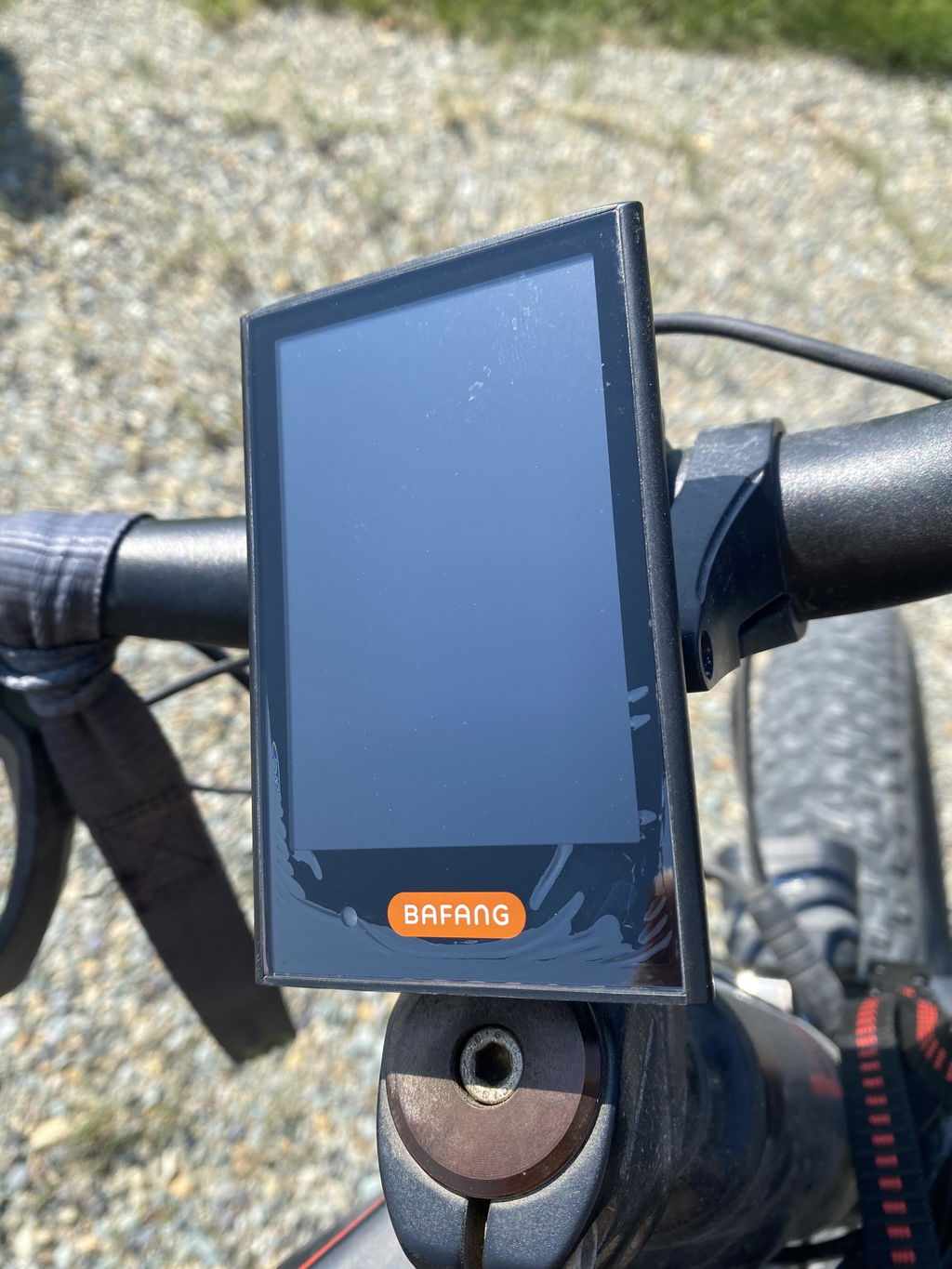

The display is so nice that someone tried to rip it off my bike while I was in the store, however the only thing they done was break the mounting brackets.
