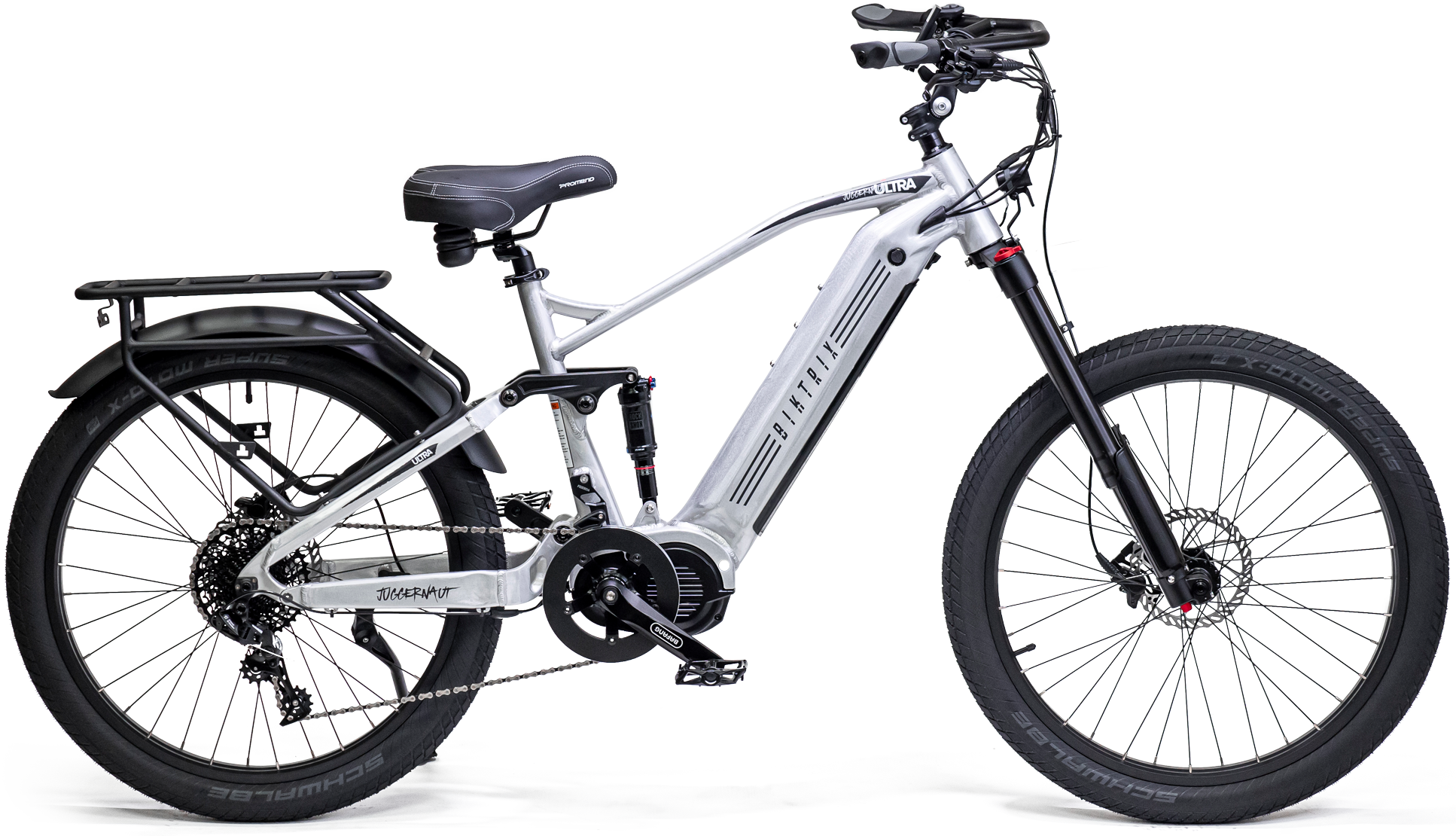

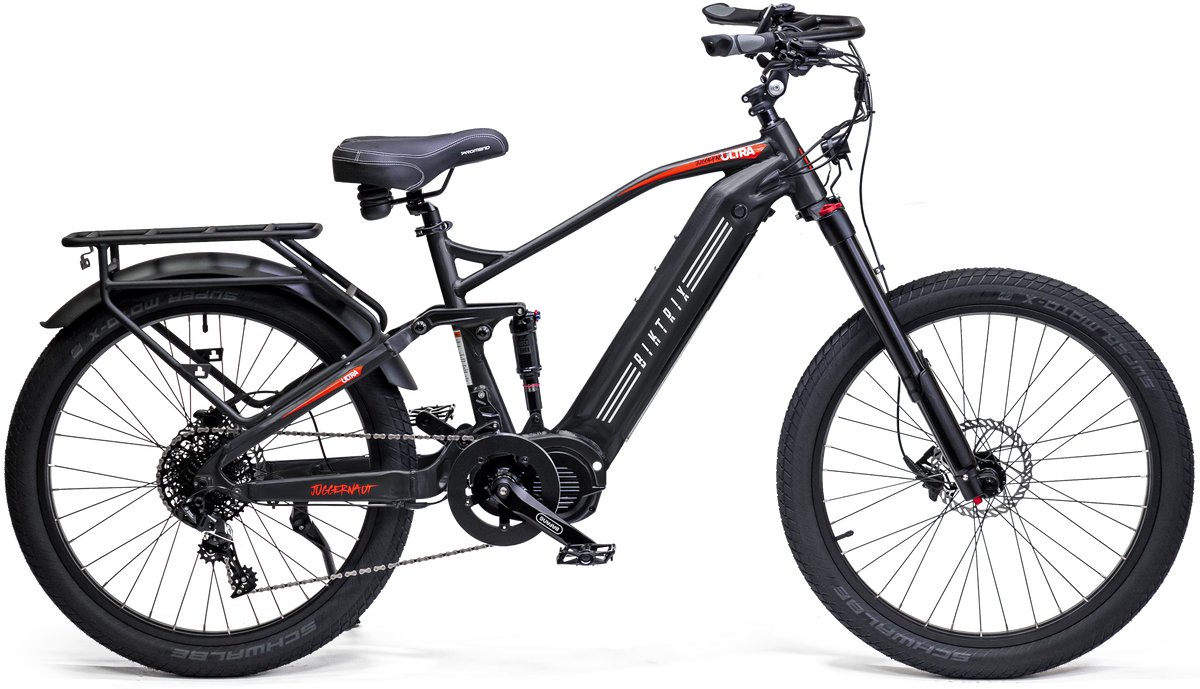

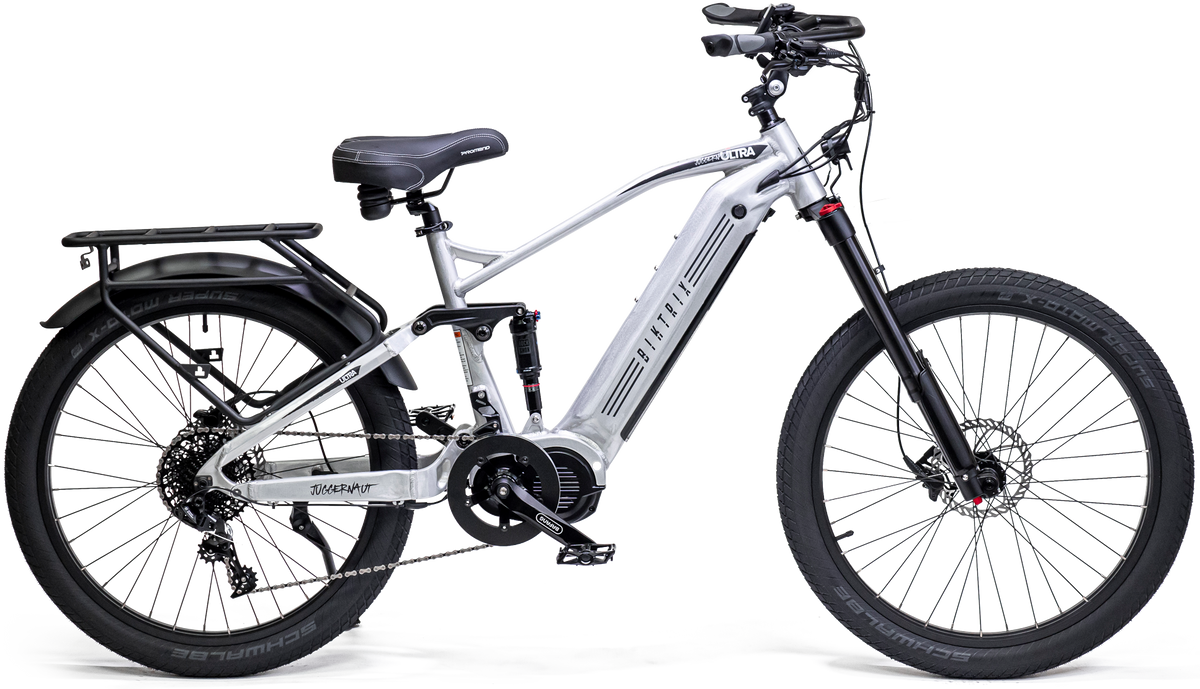

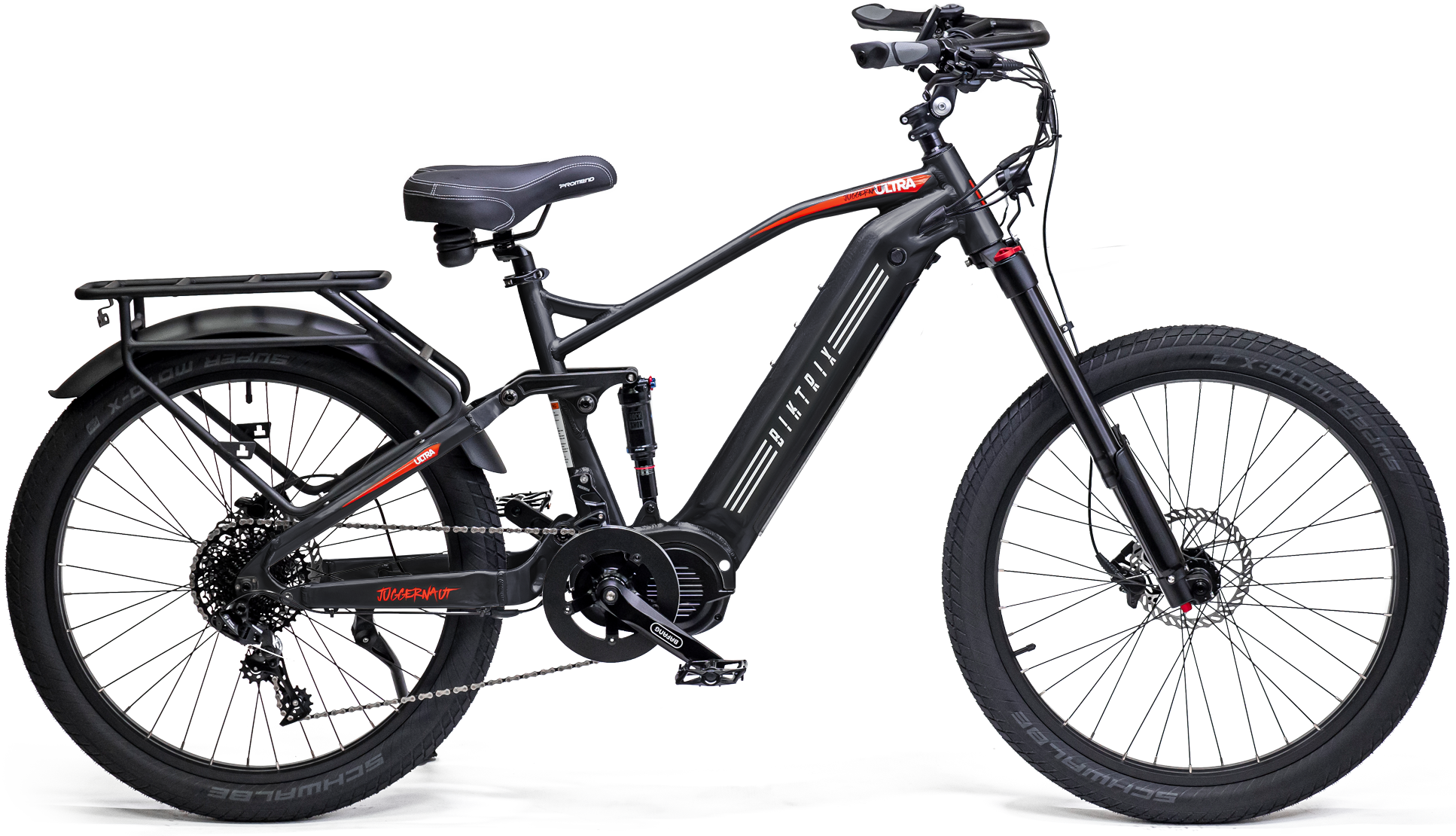

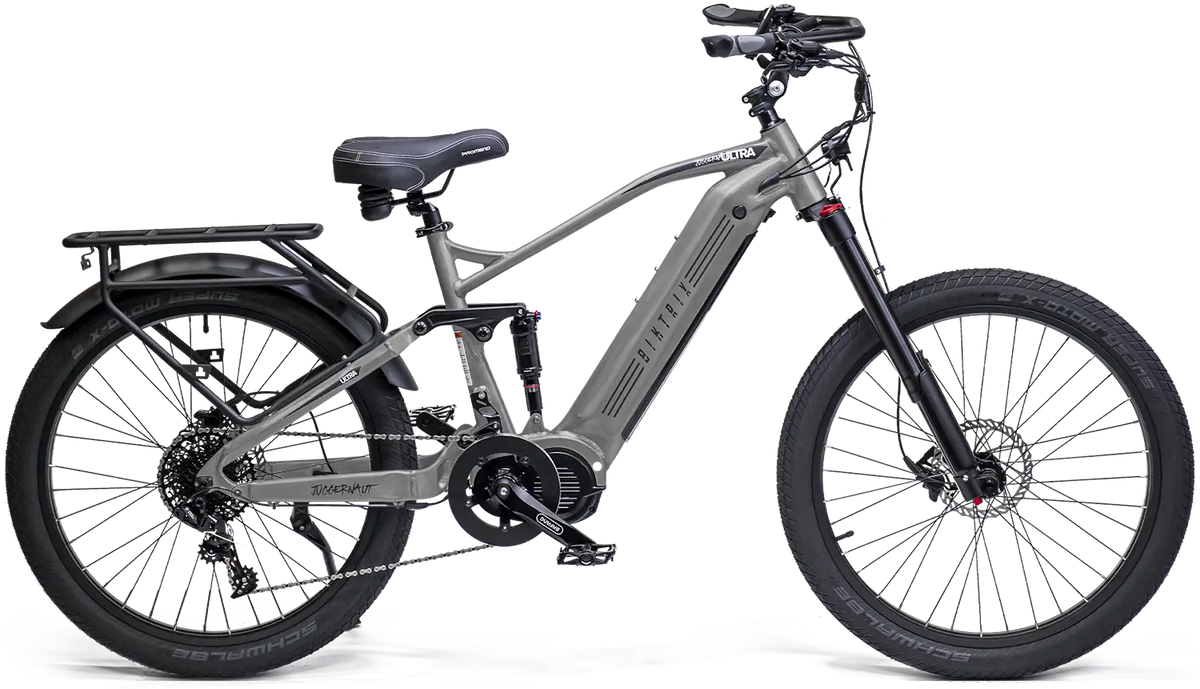

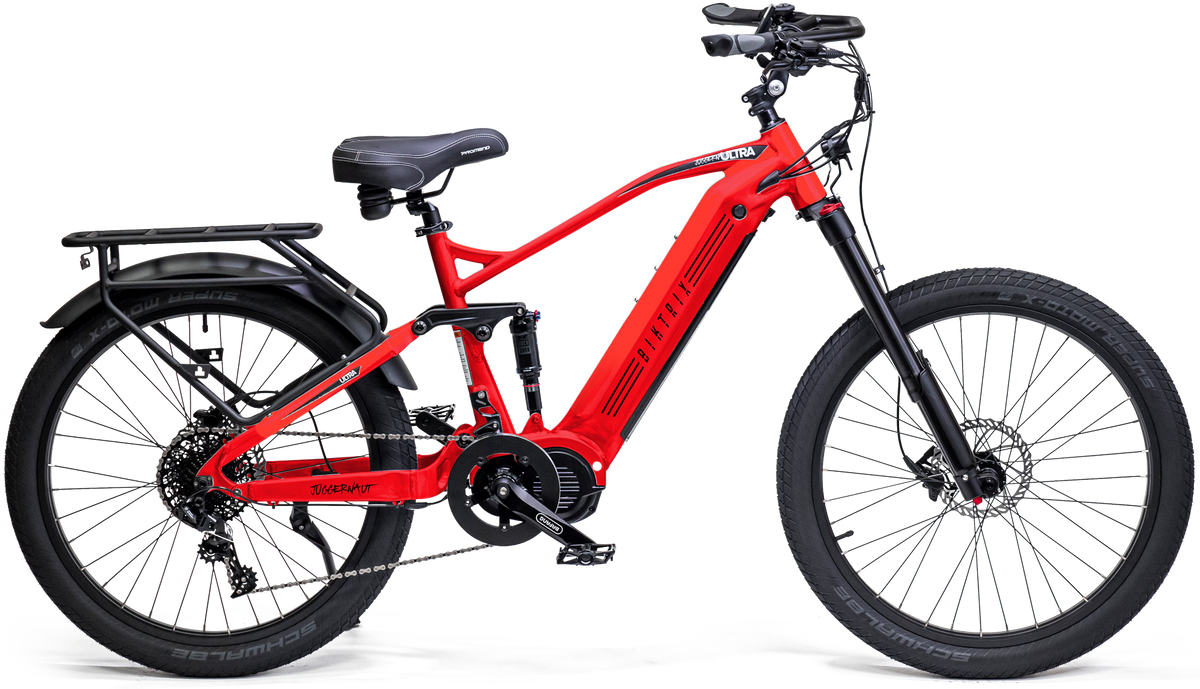

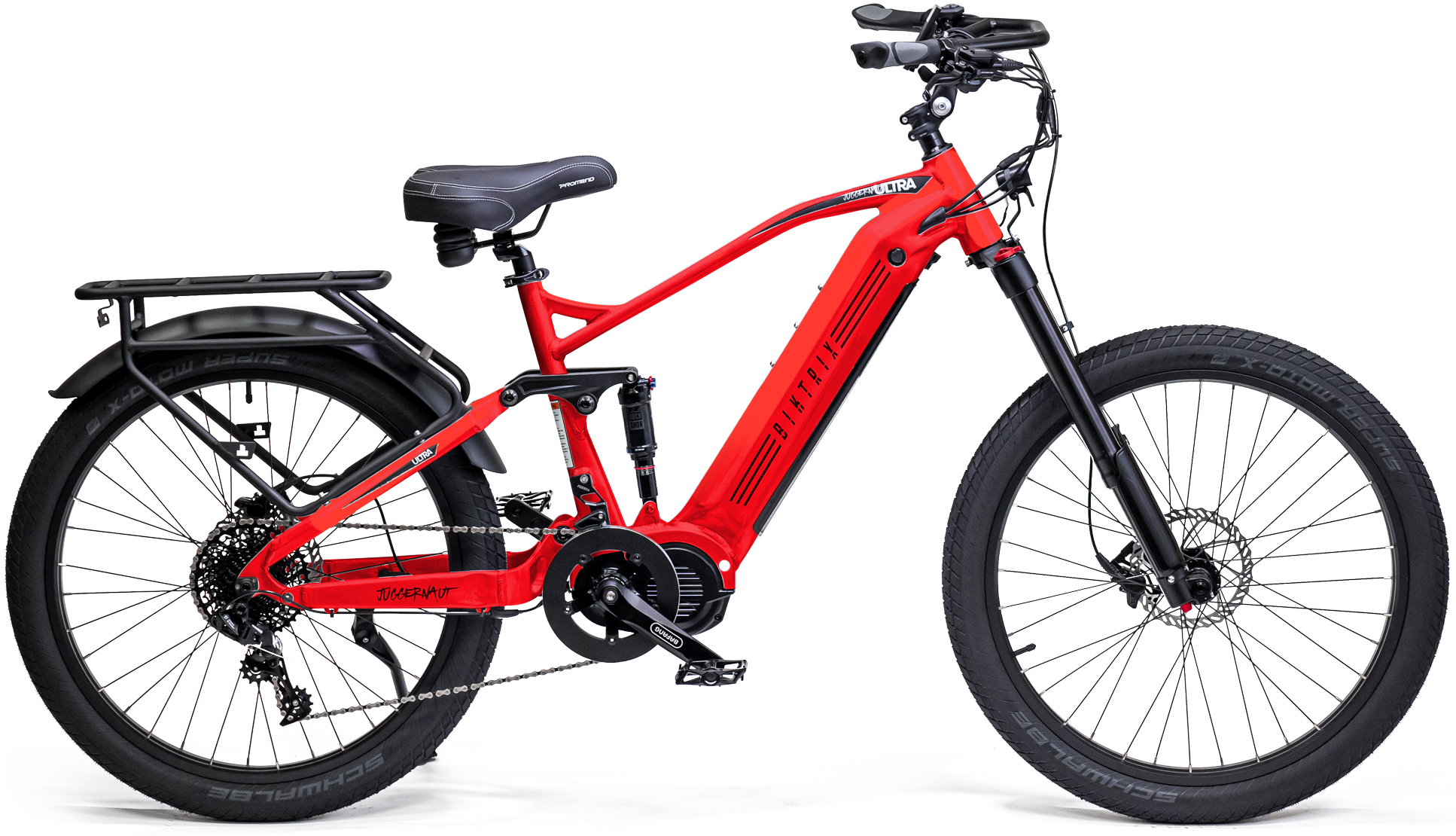

Juggernaut Ultra FS Pro 3 Cruise

Sale price CA$4,384 Regular priceCA$6,499
Sale price CA$4,384.00 Regular priceCA$6,499.00
1000W Mid-Drive

Motor Power

160Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 70km Range

+5'8"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

UL Certified

Safety

Full Suspension. Full Performance.

Top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry makes the Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market. Now available with an optional range extender battery to add on additional range! New to this version is a rear triangle wide enough to support 4.8" tires!

Maximum Traction

With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This bike is built for the trail.

Just Cruise Along.

The cruiser package will transform your Juggernaut Ultra FS Pro 3 eBike into a fully loaded, Full-Suspension urban cruiser! This adds cruiser handlebars, comfort grips, a padded saddle, an adjustable stem along with a rack, rear fender and smooth-moving MOTO X tires!

Ultra Power. Greater Features.

Distance Range (Single Battery)

PAS 1
Pedal-Assist Lv.1
84km Up To
PAS 2
Pedal-Assist Lv.2
70km Up To
PAS 3
Pedal-Assist Lv.3
61km Up To
PAS 4
Pedal-Assist Lv.4
56km Up To
PAS 5
Pedal-Assist Lv.5
50km Up To
THRL
Throttle Only
35km Up To
**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x2.8" schwalbe moto x
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
Biktrix a-bars, 730mm wide, 45° backsweep, 265mm depth, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm adjustable stem
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Gp2 comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Promend sd-560 extra wide comfort saddle
Other
2-bolt kickstand, full suspension rack and rear fender
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x2.8" schwalbe moto x
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
Biktrix a-bars, 730mm wide, 45° backsweep, 265mm depth, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm adjustable stem
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Gp2 comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Promend sd-560 extra wide comfort saddle
Other
2-bolt kickstand, full suspension rack and rear fender
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye
Frame
6061 aluminum
Front hub
150mm thru 36h
Seat post
31.6mm aluminum
Fork
Biktrix inverted air fork w/100mm travel, lockout and preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/8 1-1/2 tapered
Rear hub
197mm thru 36h
Motor
Bafang ultra m620
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
Total capacity of 52v 34.5ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black
Display
Dpc-18
Cassette
Sram 11-42t
Tire sizes
27.5x2.8" schwalbe moto x
Lights
Integrated headlight
Chain
Kmc e11s - 130 links
Handlebar
Biktrix a-bars, 730mm wide, 45° backsweep, 265mm depth, 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/ 170mm arms
Stem
90mm adjustable stem
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Gp2 comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/180mm rotors
Saddle
Promend sd-560 extra wide comfort saddle
Other
2-bolt kickstand, full suspension rack and rear fender
Brake levers
Biktrix adjustable w/ integrated brake cutoff
Rear suspension
Rockshox monarch rl w/ 51mm travel, 190mm eye-to-eye

Size & Fittings

1
Effective Top Tube Length
580mm 22.8in
2
Seat Tube Length (Classic Bike Size)
430mm 16.9in
3
Reach
440mm 17.3in
4
Stack
540mm 21.3in
5
Chainstay Length
510mm 20.1in
6
Standover Height
730mm 28.7in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1320mm 52in
15
Total Length
2030mm 79.9in
16
Max Seat Height
1040mm 40.9in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1020mm 40.2in
19
Weight (Without Battery)
32.6kg 71.9lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
510mm 20.1in
6
Standover Height
740mm 29.1in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1330mm 52.4in
15
Total Length
2040mm 80.3in
16
Max Seat Height
1080mm 42.5in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
32.6kg 71.9lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
520mm 20.5in
3
Reach
460mm 18.1in
4
Stack
590mm 23.2in
5
Chainstay Length
520mm 20.5in
6
Standover Height
770mm 30.3in
7
Head Angle
63° -
8
Seat Angle
72° -
9
Head Tube Length
160 mm 6.3 in
10
Fork Length
540mm 21.3in
11
Front Center
810mm 31.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1340mm 52.8in
15
Total Length
2060mm 81.1in
16
Max Seat Height
1120mm 44.1in
17
Min Seat Height
940mm 37in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
33.6kg 74.1lb
