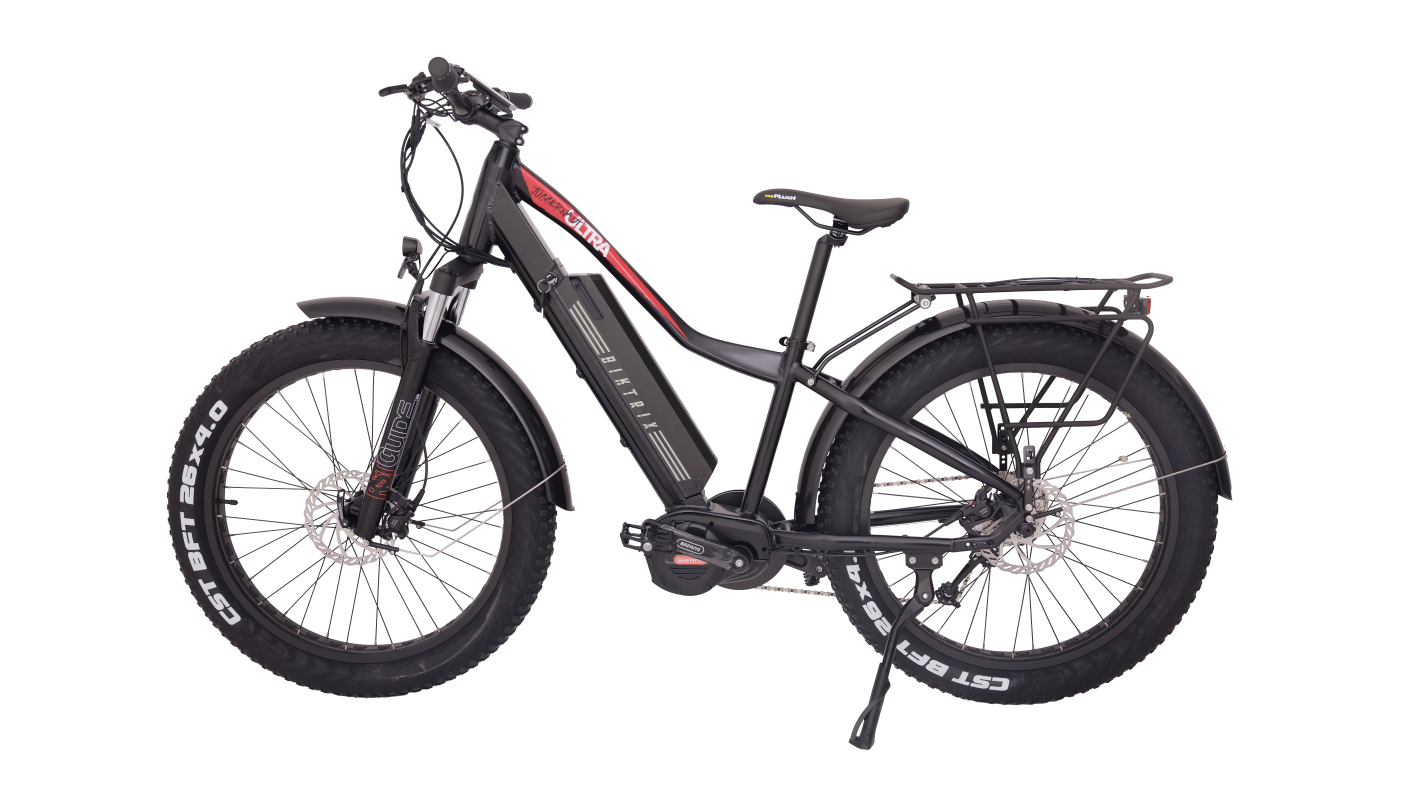

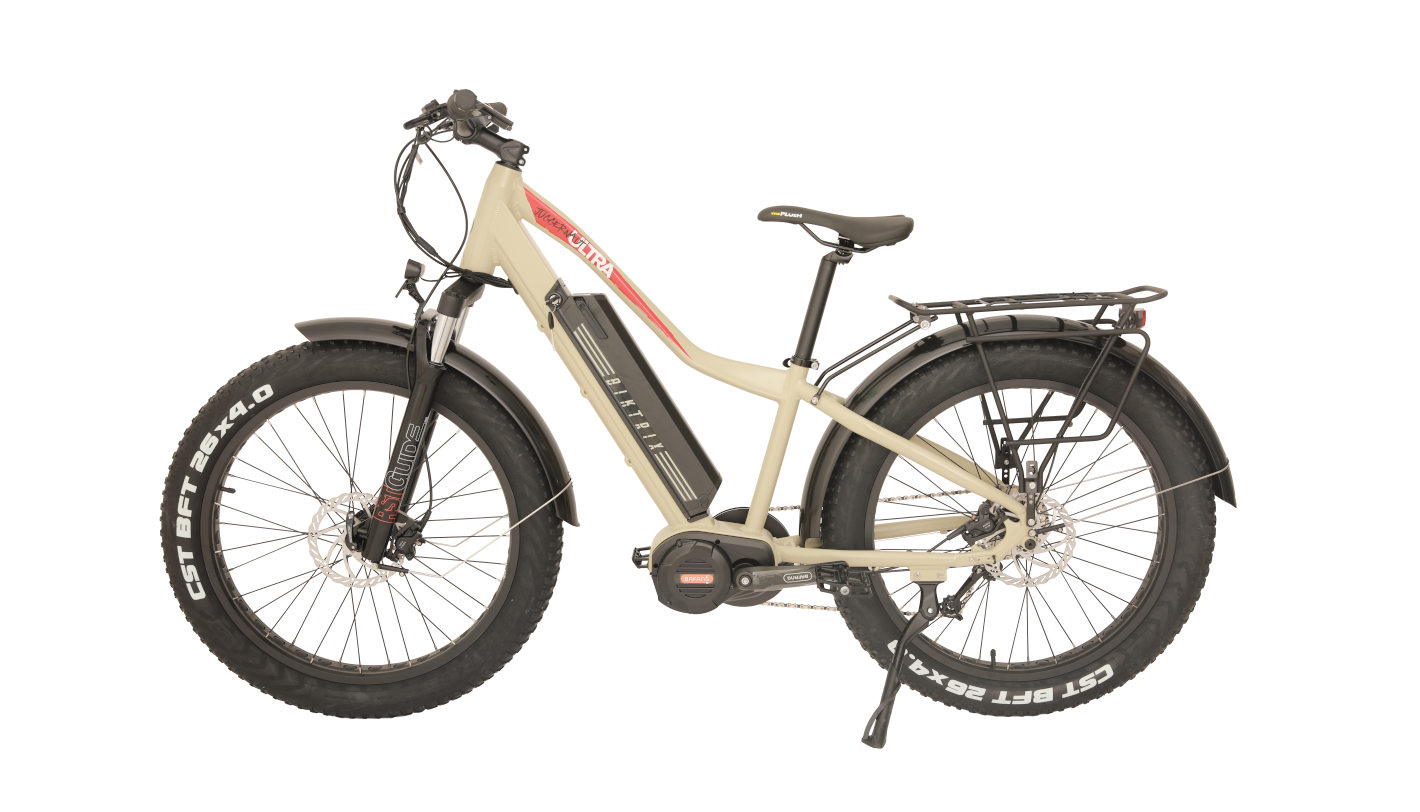

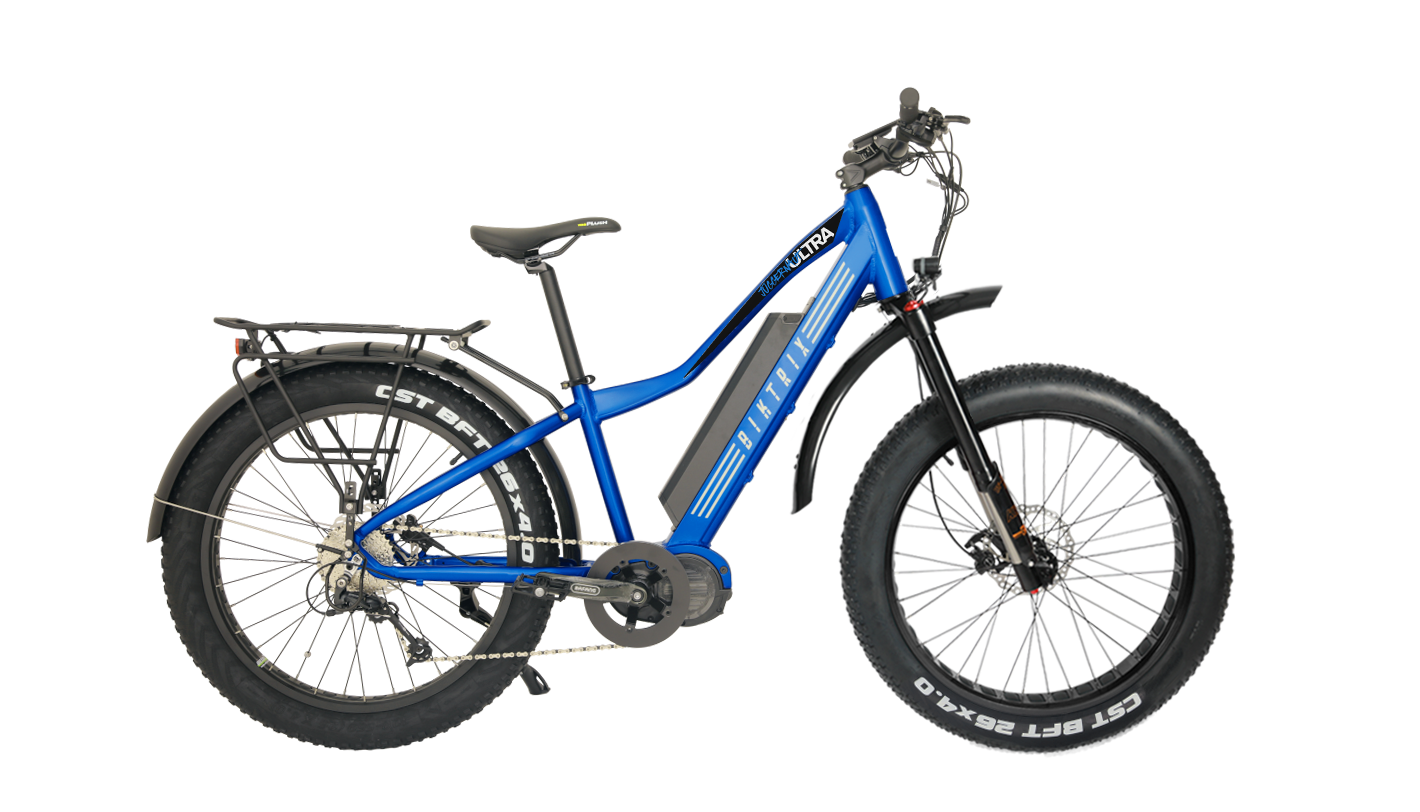

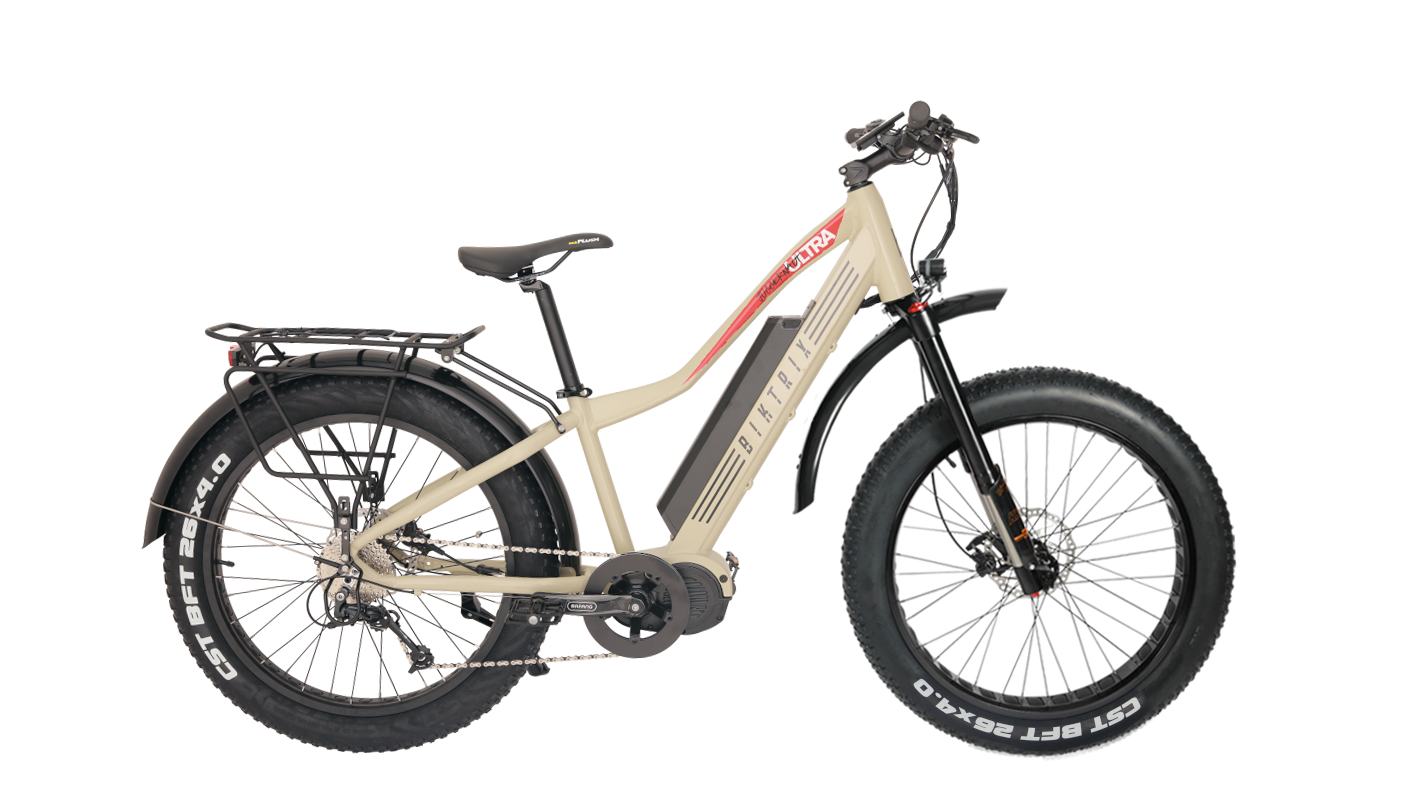

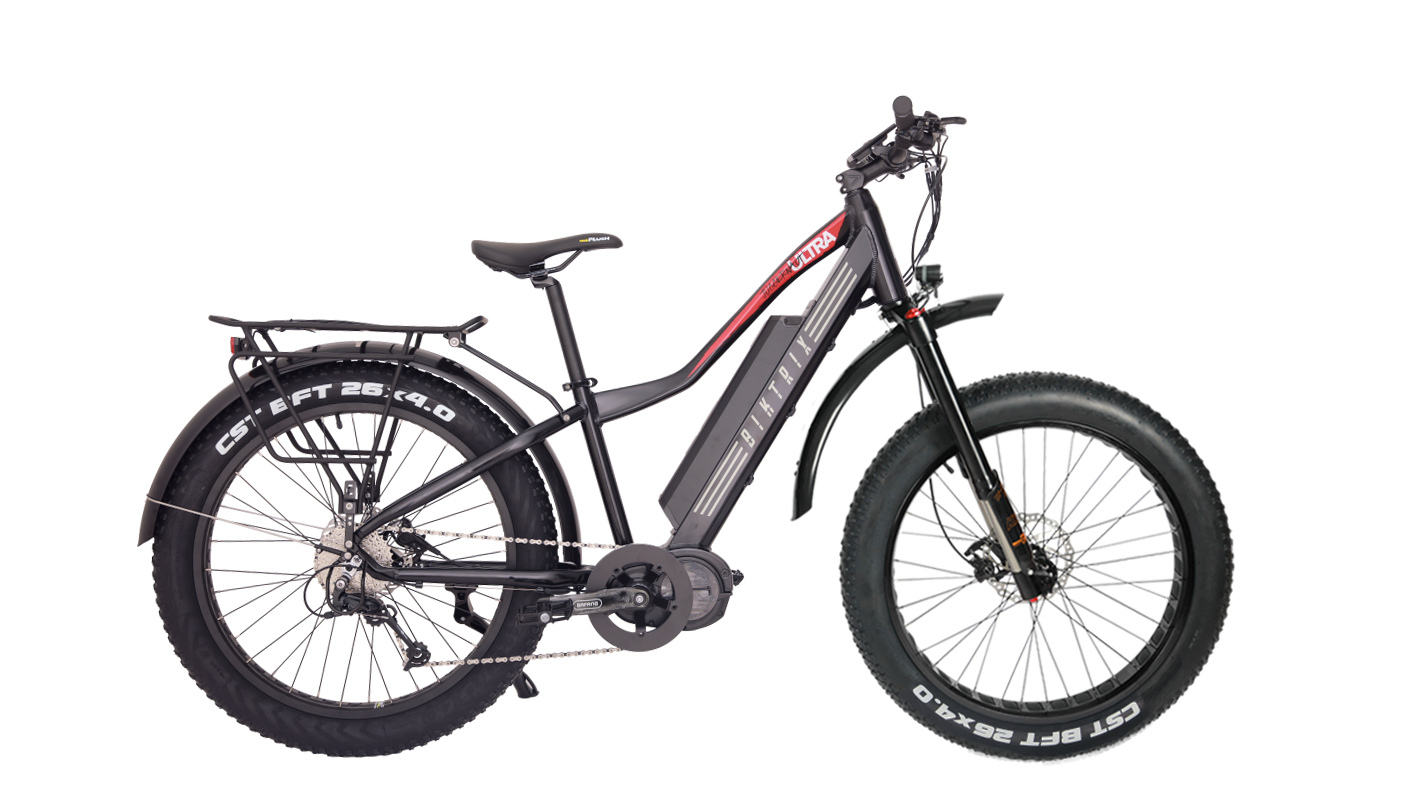

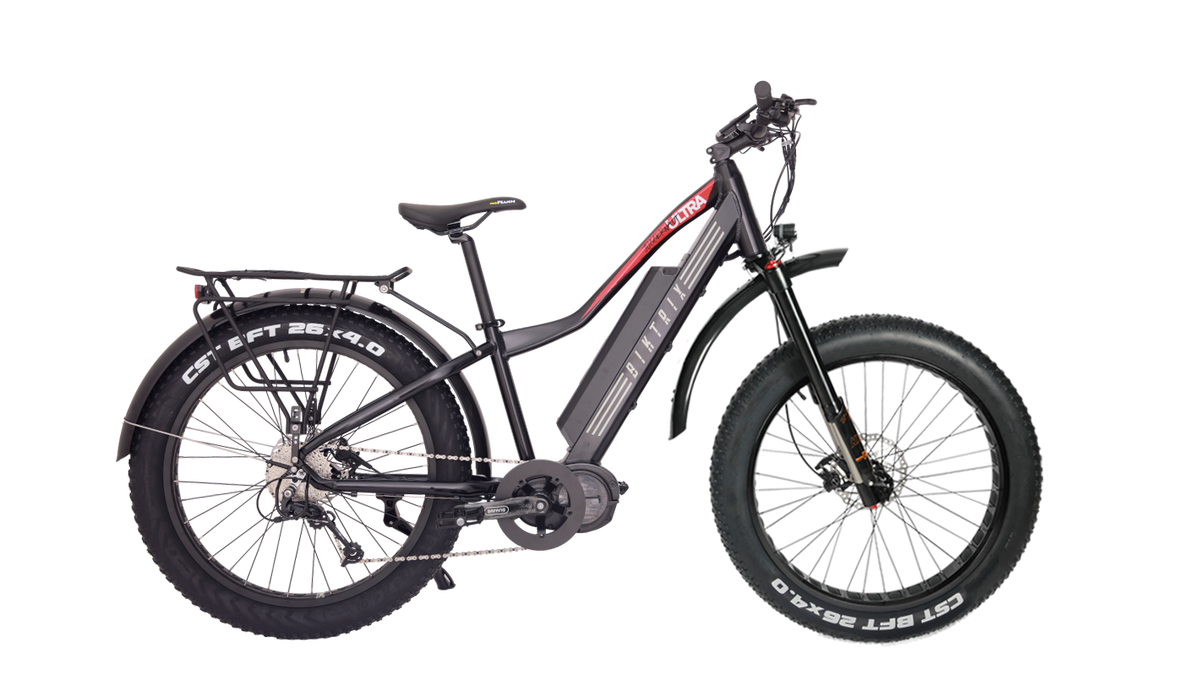

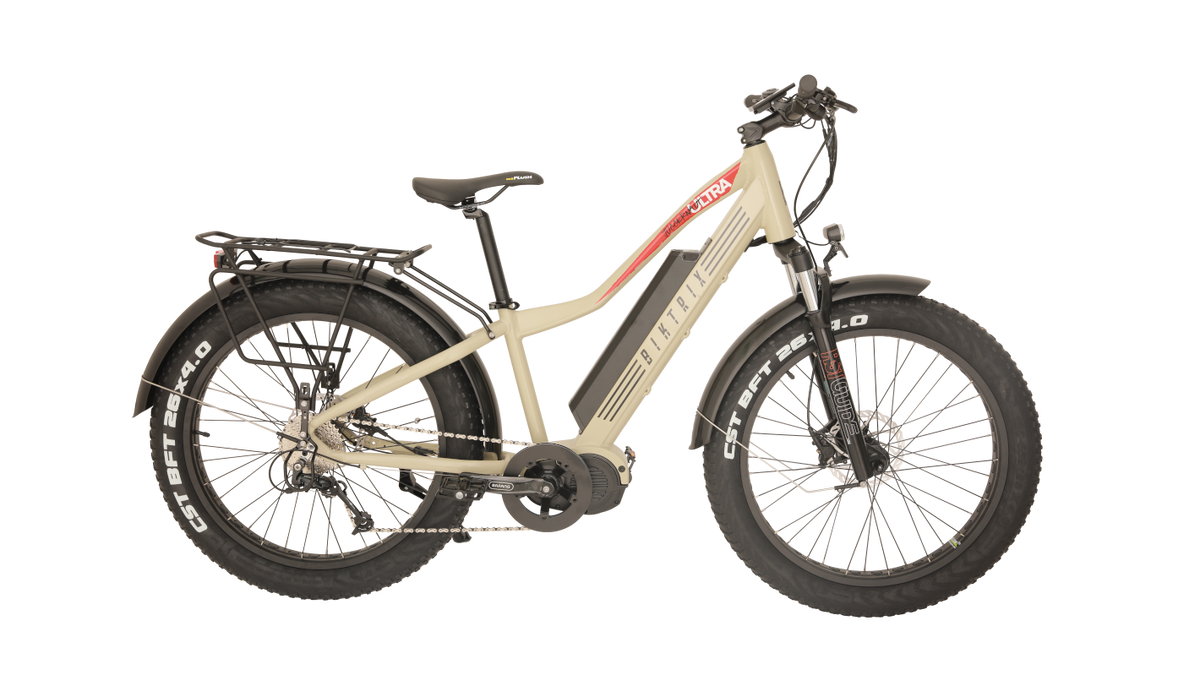

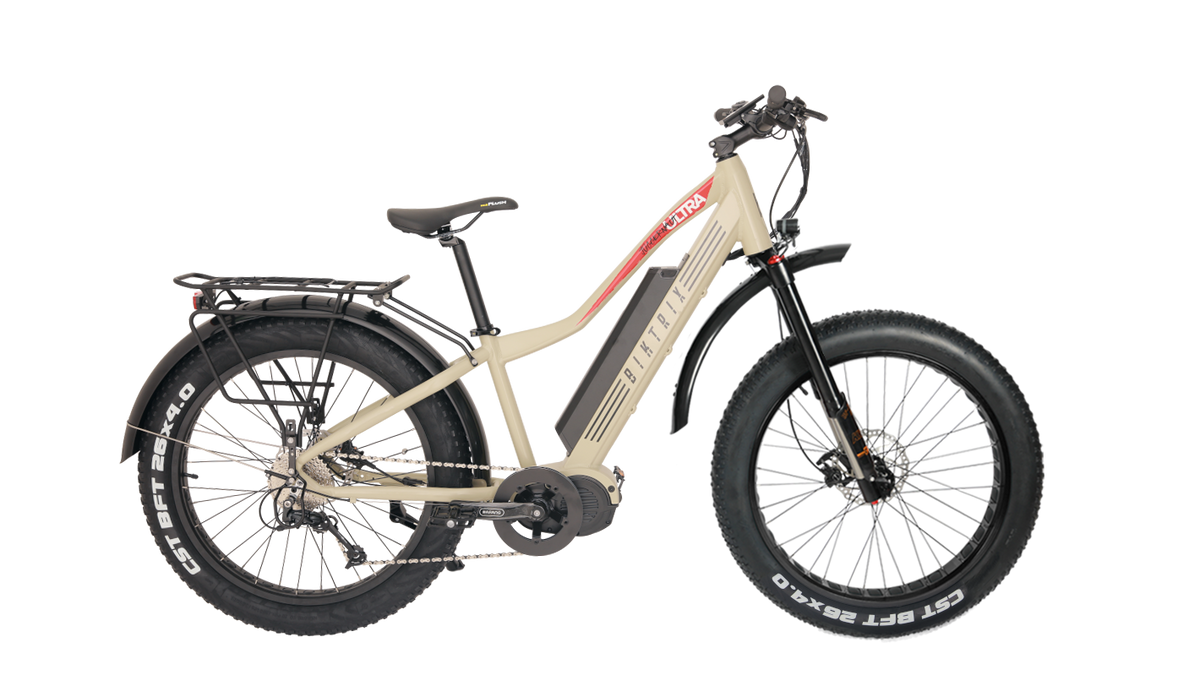

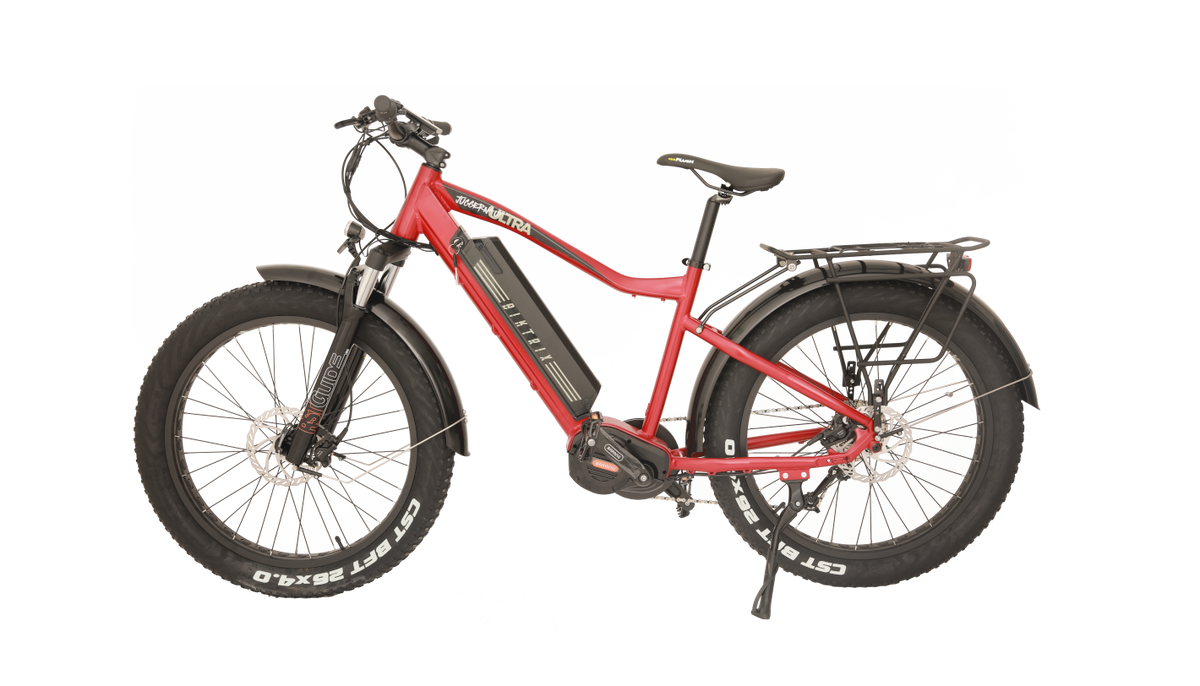

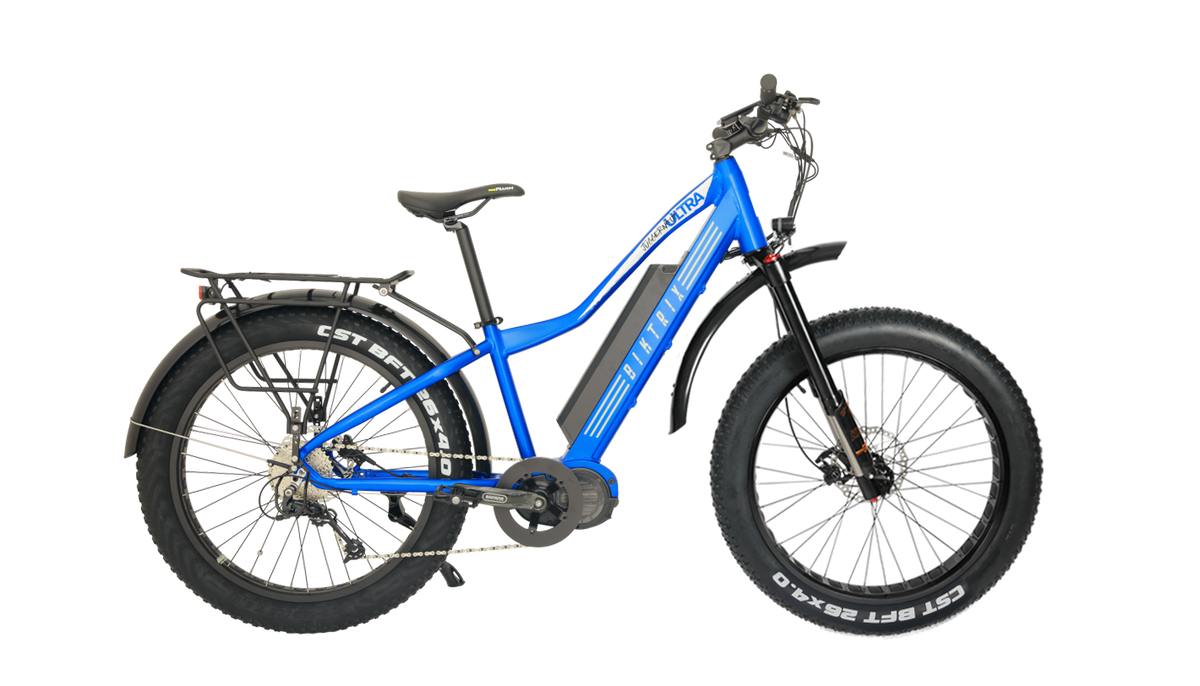

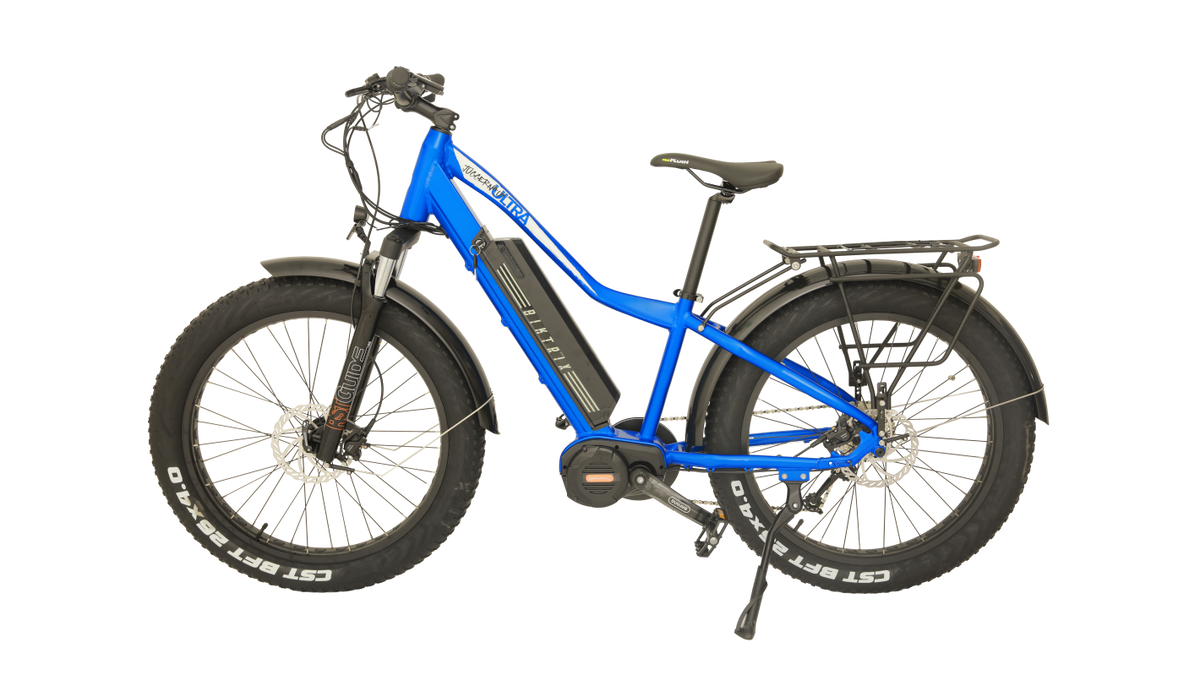

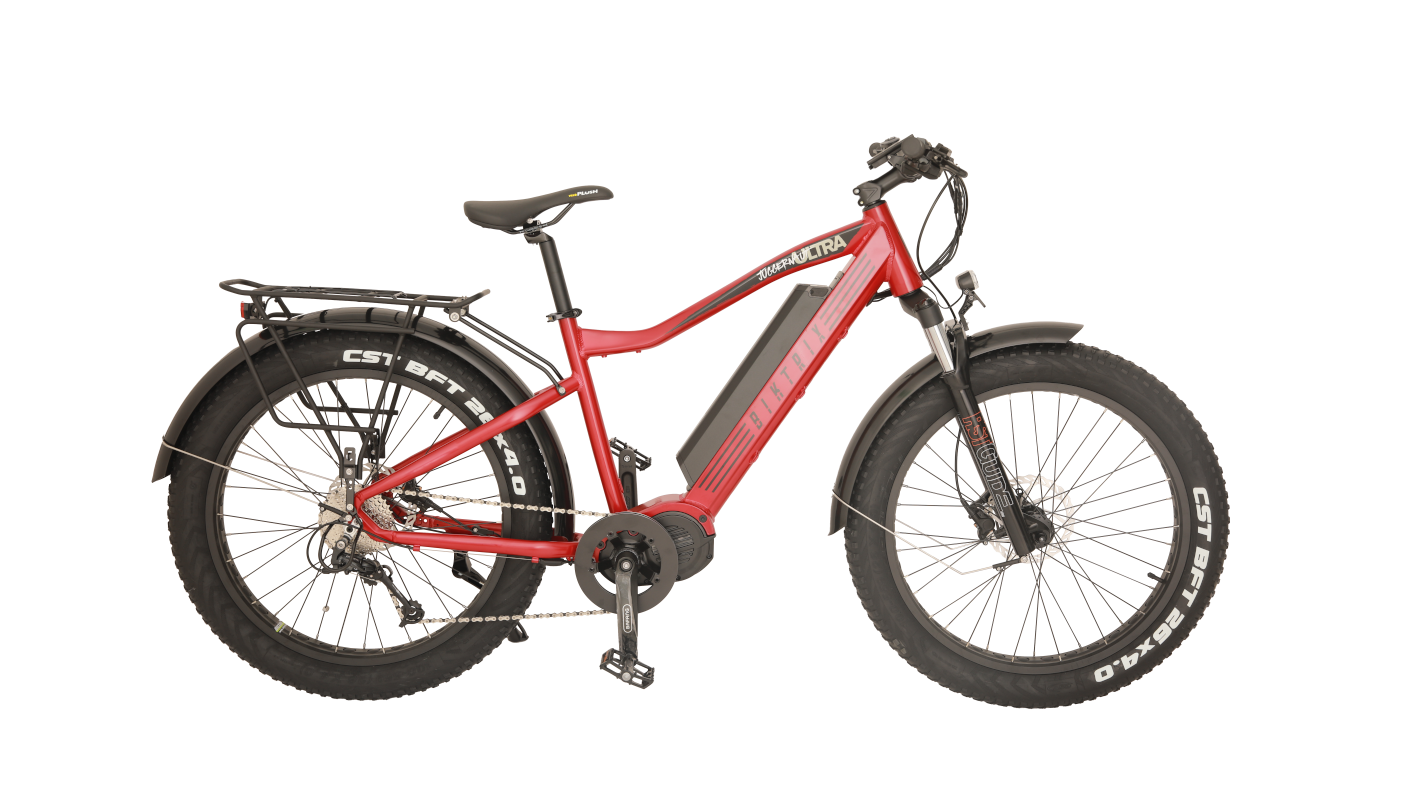

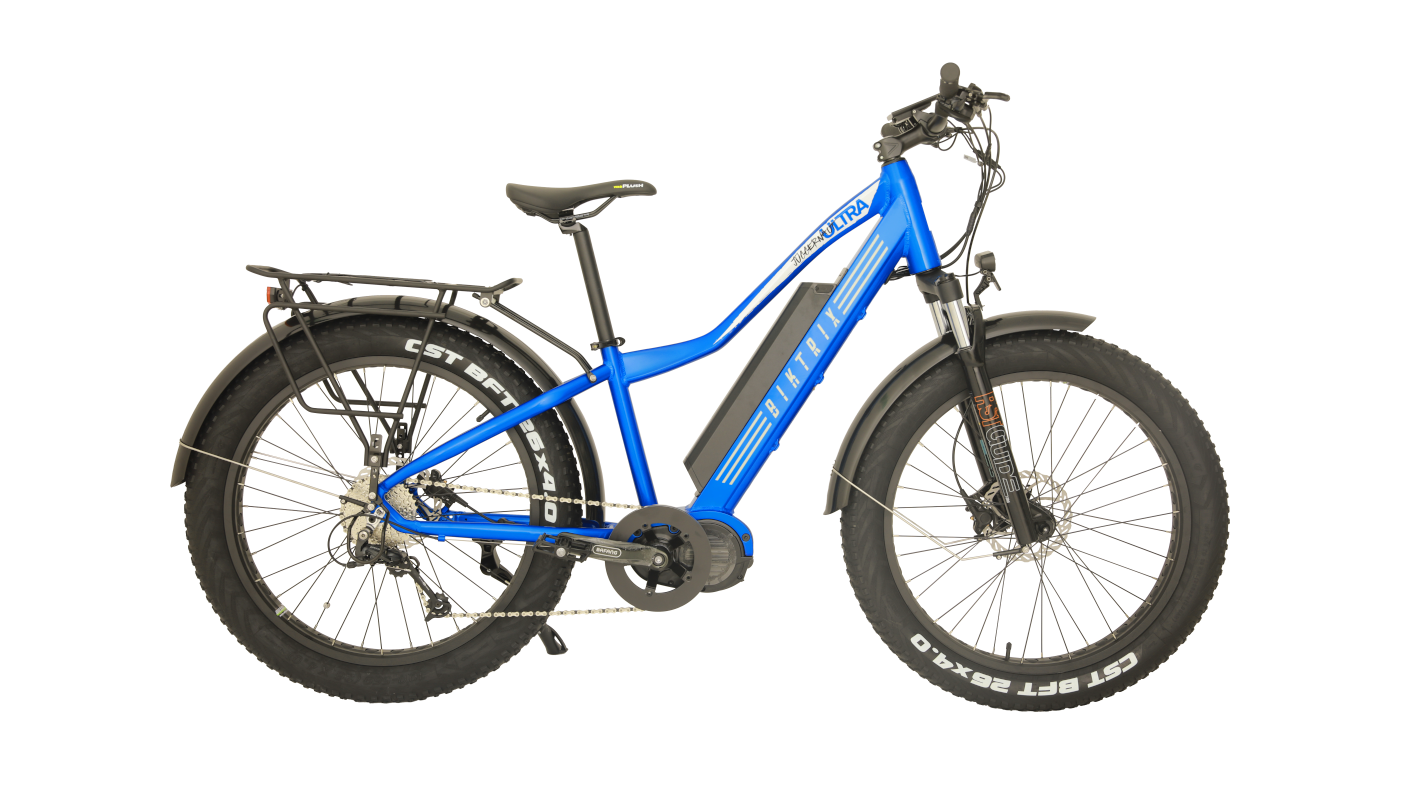

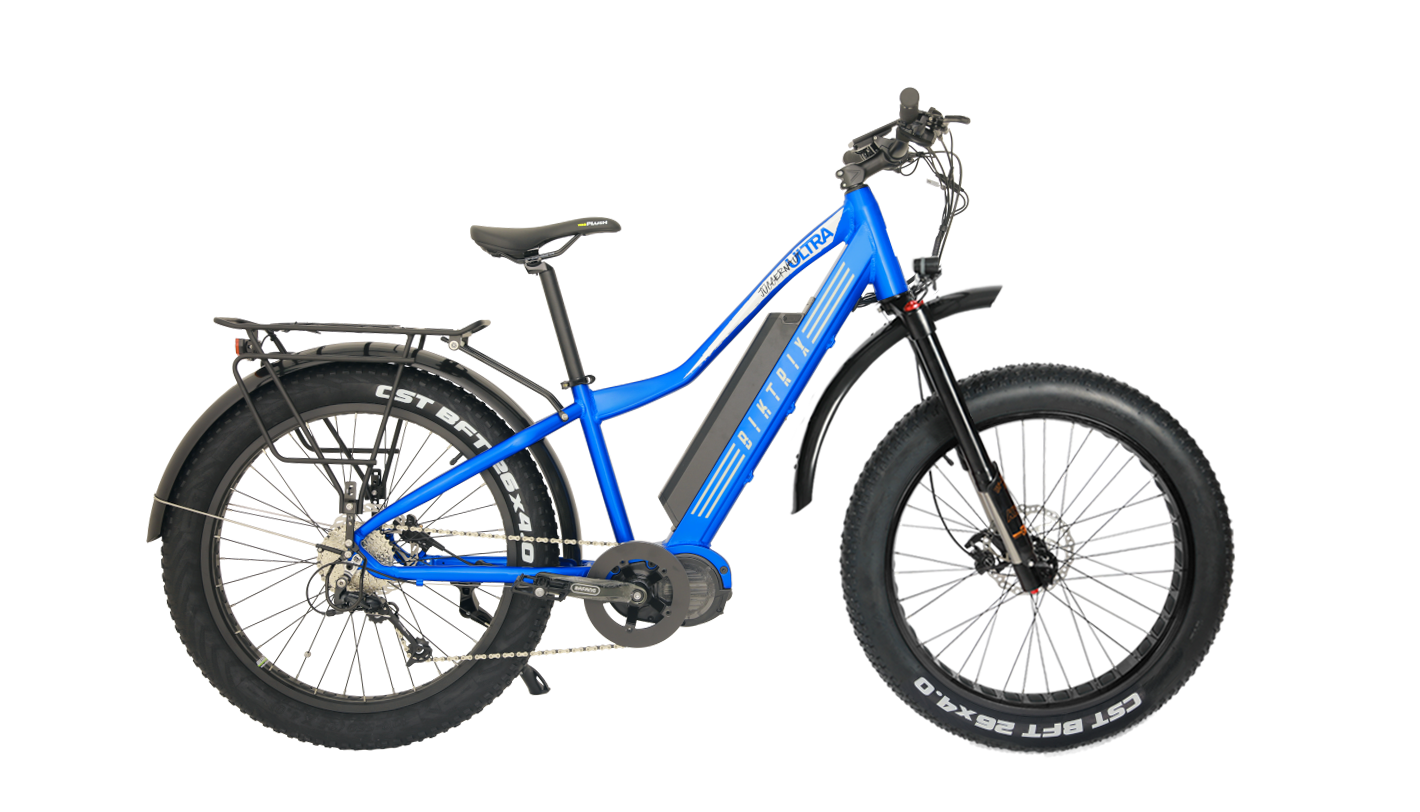

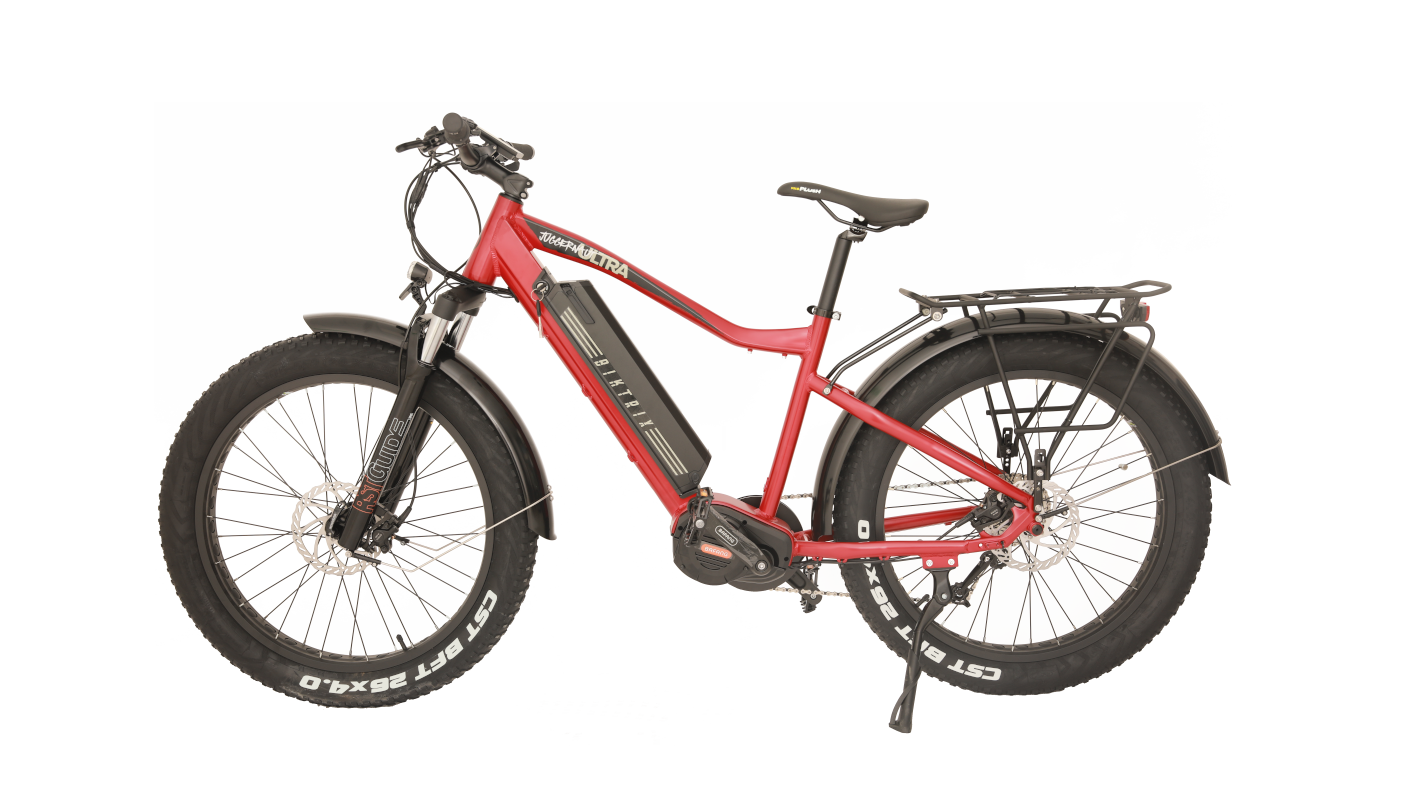

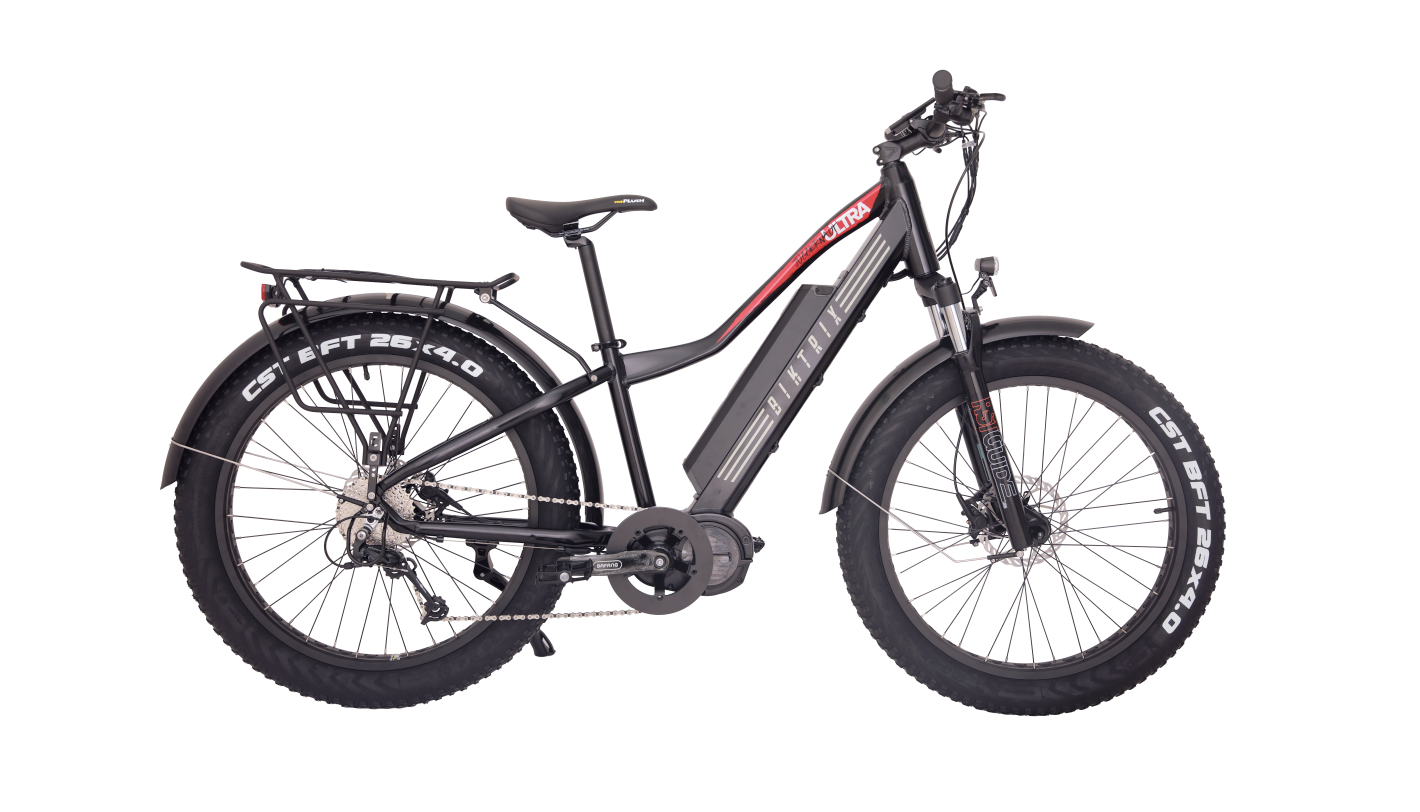

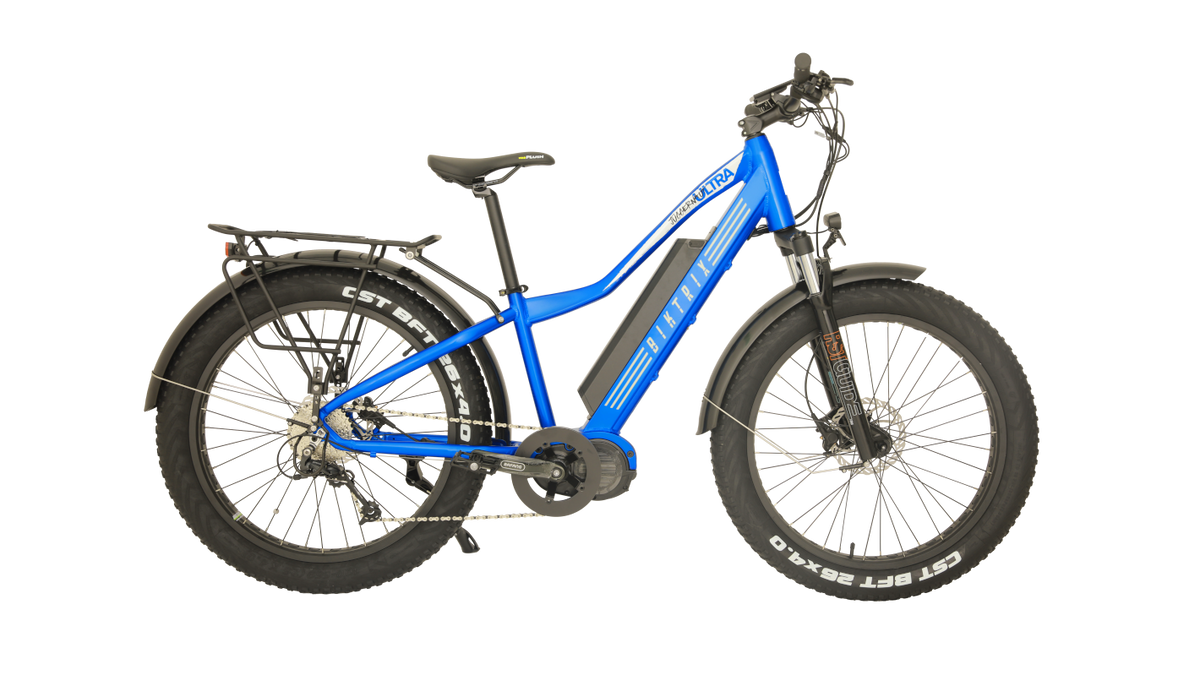

Biktrix Juggernaut Ultra 1000 All Terrain Electric Bike - Charged Cobalt

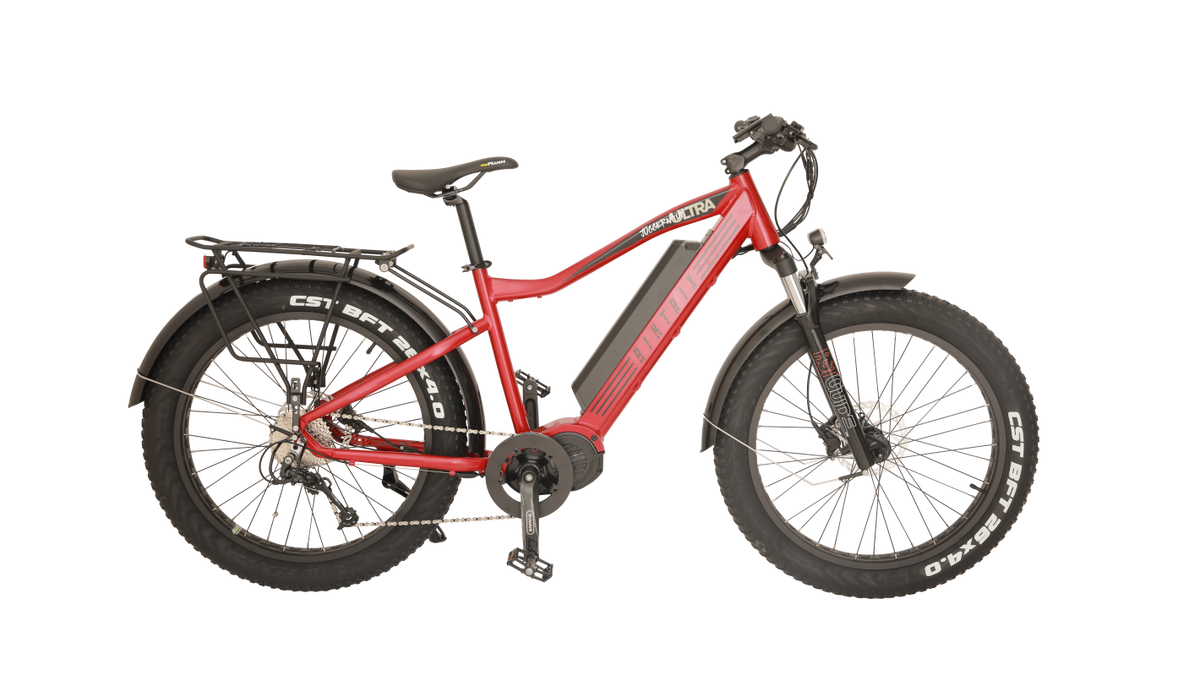

Biktrix Juggernaut Ultra 1000 All Terrain Electric Bike

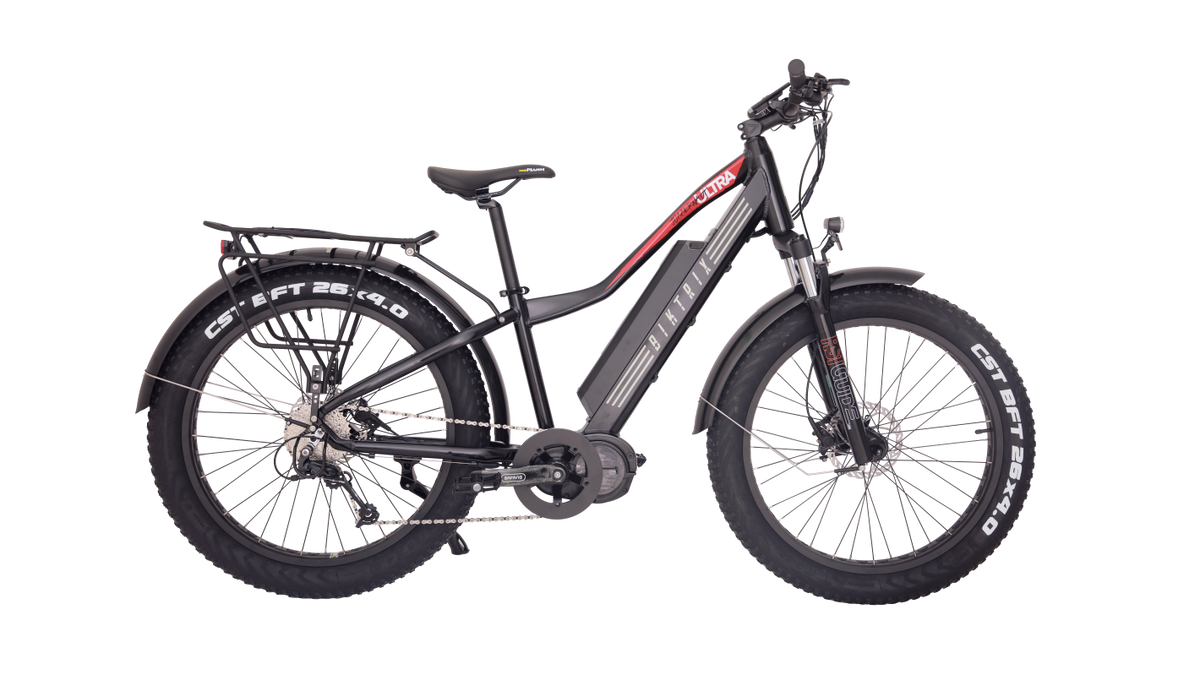

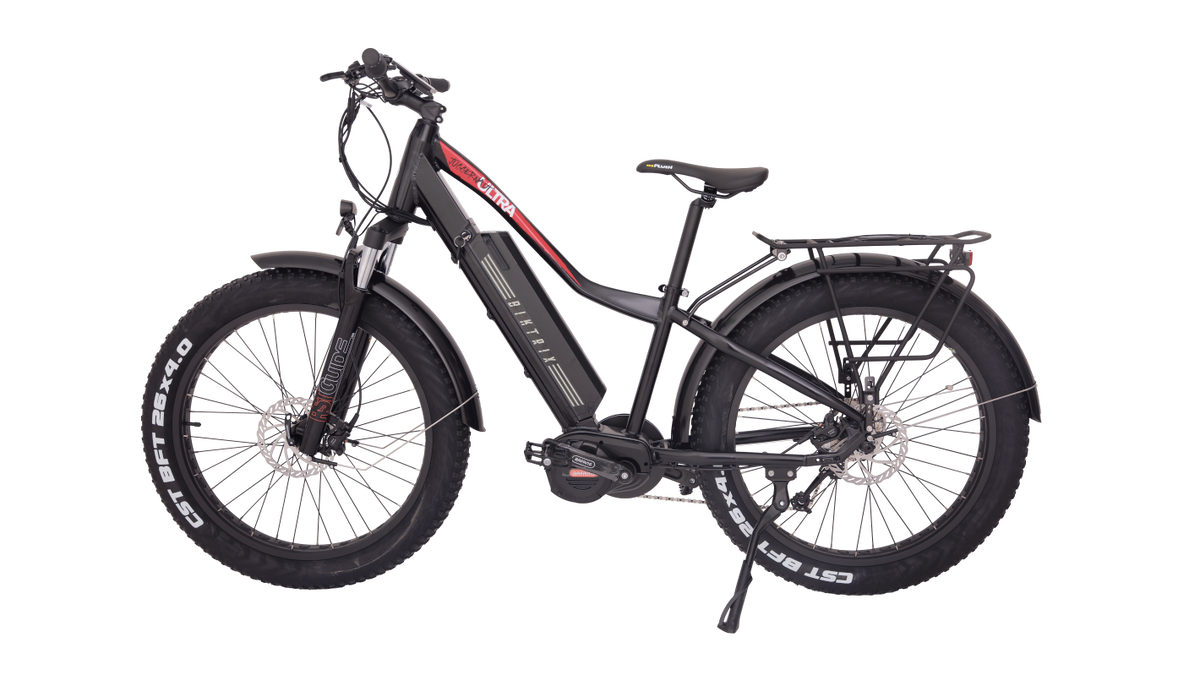

Juggernaut Ultra 1000

Name: Juggernaut Ultra 1000
Brand: juggernaut-ultra-1000-new-details
SKU: JUG-ULT-M-RST-264-BL
Availability: OutOfStock
Rating: 4.76 (76 reviews)

4.7

CA$0 CA$4,159

This item has been replaced!

Looking for a spiritual successor with the same motor and dual battery capability? Check out the Juggernaut Ultra Duo Step-Over!

Juggernaut Ultra Duo Step-Over

Technical Specifications

Frame 6061 aluminum	Front hub Quanta 150mm 36h	Seat post Aluminum 30.9mm
Fork Rst coil spring, 75mm travel	Front axle 5mm qr	Seat post clamp 30.9mm qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 190mm 36h	Motor 1000w bafang ultra mid-drive
Shifter rear 9 speed shimano	Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur 9 speed shimano	Rims 26"- 36h, black 27.5"- 36h	Display Dpc-18 color display
Cassette Shimano 11-34t	Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x9	Handlebar Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep	Assist type Torque, cadence
Crank set 170mm aluminum arms with 44t steel chainring	Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on	Throttle Thumb throttle
Brakes Biktrix hydraulic	Saddle Velo plush	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Biktrix hydraulic w/ motor cutoff

Frame 6061 aluminum	Front hub Quanta 150mm 36h
Seat post Aluminum 30.9mm	Fork Rst coil spring, 75mm travel
Front axle 5mm qr	Seat post clamp 30.9mm qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 190mm 36h
Motor 1000w bafang ultra mid-drive	Shifter rear 9 speed shimano
Rear axle 12mm thru	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur 9 speed shimano	Rims 26"- 36h, black 27.5"- 36h
Display Dpc-18 color display	Cassette Shimano 11-34t
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc x9	Handlebar Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep
Assist type Torque, cadence	Crank set 170mm aluminum arms with 44t steel chainring
Stem 90mm aluminum	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on
Throttle Thumb throttle	Brakes Biktrix hydraulic
Saddle Velo plush	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Biktrix hydraulic w/ motor cutoff

Frame

6061 aluminum

Front hub

Quanta 150mm 36h

Seat post

Aluminum 30.9mm

Fork

Rst coil spring, 75mm travel

Front axle

5mm qr

Seat post clamp

30.9mm qr

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

Quanta 190mm 36h

Motor

1000w bafang ultra mid-drive

Shifter rear

9 speed shimano

Rear axle

12mm thru

Battery sizes

48v17.5ah, 48v21ah, 52v17.5ah

Rear derailleur

9 speed shimano

Rims

26"- 36h, black 27.5"- 36h

Display

Dpc-18 color display

Cassette

Shimano 11-34t

Tire sizes

26x4", 27.5x3"

Lights

Integrated headlight, battery taillight

Chain

Kmc x9

Handlebar

Aluminum 31.8 clamp, 700mm wide, 10mm rise 7° sweep

Assist type

Torque, cadence

Crank set

170mm aluminum arms with 44t steel chainring

Stem

90mm aluminum

Assist levels

0-5

Bottom bracket

Bafang ultra isis

Grips

Slide on

Throttle

Thumb throttle

Brakes

Biktrix hydraulic

Saddle

Velo plush

Other

Aluminum fenders, rear rack, adjustable kickstand

Brake levers

Biktrix hydraulic w/ motor cutoff

Size & Fittings

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	470mm	18.5in
4	Stack	670mm	26.4in
5	Chainstay Length	510mm	20.1in
6	Standover Height	740mm	29.1in
7	Head Angle	69°	-
8	Seat Angle	72°	-
9	Head Tube Length	170 mm	6.7 in
10	Fork Length	580mm	22.8in
11	Front Center	800mm	31.5in
12	BB (Bottom Bracket) Drop	75mm	3in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1310mm	51.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	1060mm	41.7in
17	Min Seat Height	860mm	33.9in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	34kg	75lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	408mm	16.1in
3	Reach	410mm	16.1in
4	Stack	620mm	24.4in
5	Chainstay Length	509mm	20in
6	Standover Height	675mm	26.6in
7	Head Angle	70°	-
8	Seat Angle	73°	-
9	Head Tube Length	205 mm	8.1 in
10	Fork Length	530mm	20.9in
11	Front Center	698mm	27.5in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	50mm	2in
14	Wheelbase	1200mm	47.2in
15	Total Length	1890mm	74.4in
16	Max Seat Height	990mm	39in
17	Min Seat Height	780mm	30.7in
18	Handlebar Height	1180mm	46.5in
19	Weight (Without Battery)	30.4kg	67lb
