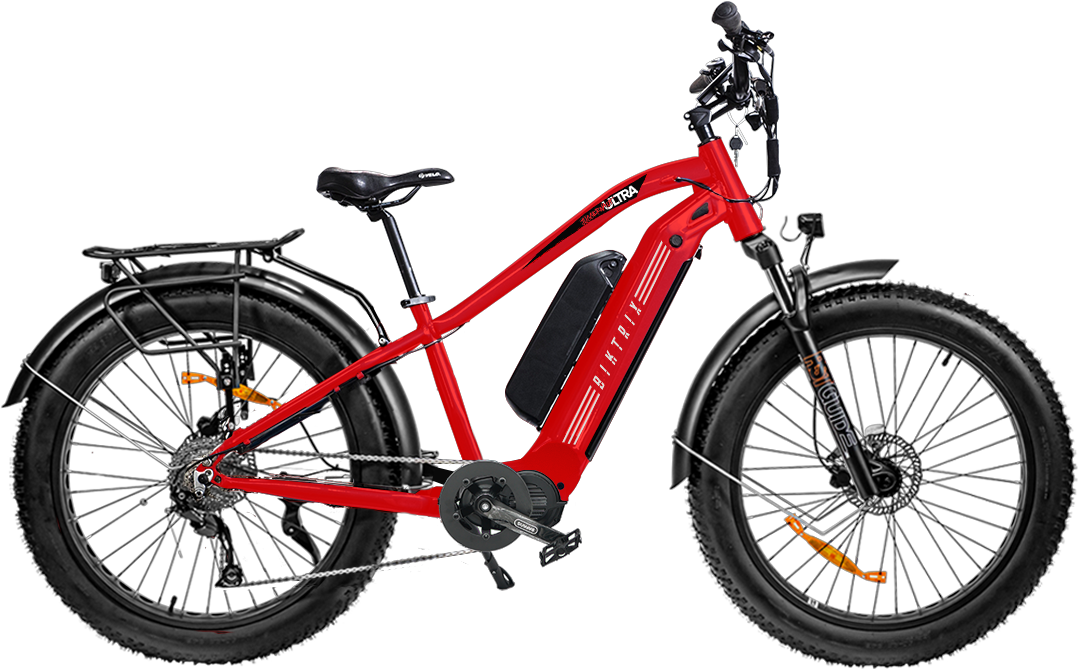

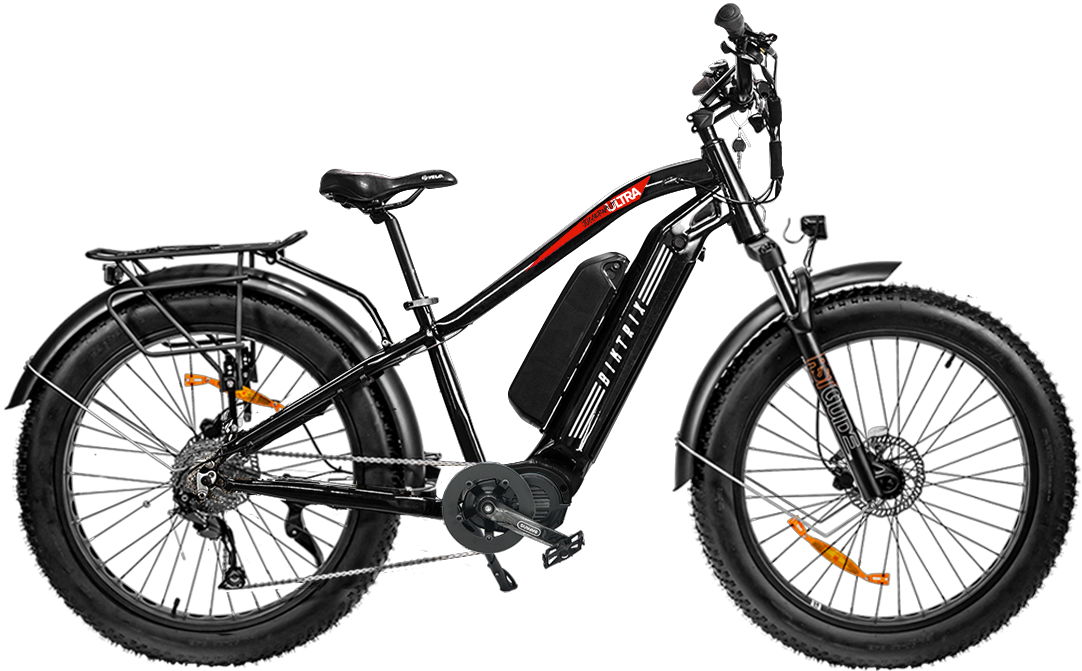

Please select your color
![]()
1000W Mid-Drive
Motor Power
160Nm of Torque
Extreme Hills
52V 17Ah 910Wh
est. 70km Range
+5'8ft / 380lb
Max Load
Torque Sensor
Powerful Pedal Assist
25+ Point Quality
Control Checklist
Technical Specifications

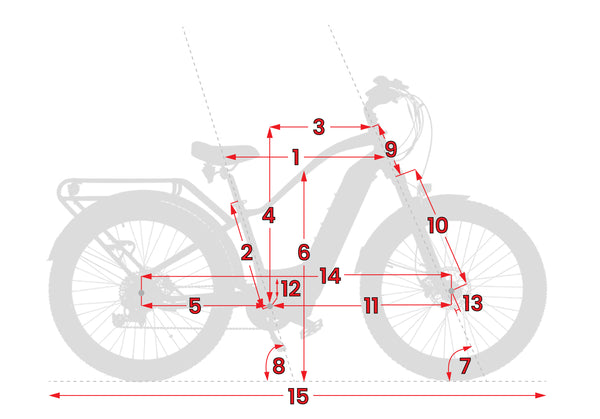

×Sizing / Fittings
×
| 1 | Effective Top Tube Length |
570mm | 22.4in |
| 2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
560mm | 22in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
690mm | 27.2in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
700mm | 27.6in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1220mm | 48in |
| 15 |
Total Length |
2000mm | 78.7in |
| 16 |
Max Seat Height |
990mm | 39in |
| 17 |
Min Seat Height |
830mm | 32.7in |
| 18 |
Handlebar Height |
1120mm | 44.1in |
| 19 |
Weight (Without Battery) |
33.1kg | 73lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
480mm | 18.9in |
| 4 |
Stack |
570mm | 22.4in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
730mm | 28.7in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
710mm | 28in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1240mm | 48.8in |
| 15 |
Total Length |
2020mm | 79.5in |
| 16 |
Max Seat Height |
1040mm | 40.9in |
| 17 |
Min Seat Height |
880mm | 34.6in |
| 18 |
Handlebar Height |
1140mm | 44.9in |
| 19 |
Weight (Without Battery) |
34kg | 75lb |
| 1 | Effective Top Tube Length |
630mm | 24.8in |
| 2 | Seat Tube Length (Classic Bike Size) |
520mm | 20.5in |
| 3 |
Reach |
500mm | 19.7in |
| 4 |
Stack |
580mm | 22.8in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
760mm | 29.9in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
720mm | 28.3in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1260mm | 49.6in |
| 15 |
Total Length |
2040mm | 80.3in |
| 16 |
Max Seat Height |
1080mm | 42.5in |
| 17 |
Min Seat Height |
920mm | 36.2in |
| 18 |
Handlebar Height |
1150mm | 45.3in |
| 19 |
Weight (Without Battery) |
34.4kg | 75.8lb |
1000W Mid-Drive
Motor Power
160Nm of Torque
Extreme Hills
52V 17Ah 910Wh
est. 70km Range
+5'8ft / 380lb
Max Load
Torque Sensor
Powerful Pedal Assist
25+ Point Quality
Control Checklist
PAS 1Pedal-Assist Lv.1 |
84km
Up To
|
|
PAS 2Pedal-Assist Lv.2 |
70km
Up To
|
|
PAS 3Pedal-Assist Lv.3 |
61km
Up To
|
|
PAS 4Pedal-Assist Lv.4 |
56km
Up To
|
|
PAS 5Pedal-Assist Lv.5 |
50km
Up To
|
|
THRLThrottle Only |
35km
Up To
|
Frame6061 aluminum |
Front hub135mm 36h |
Seat post28.6mm |
ForkRst guide w/75mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hub197mm 36h |

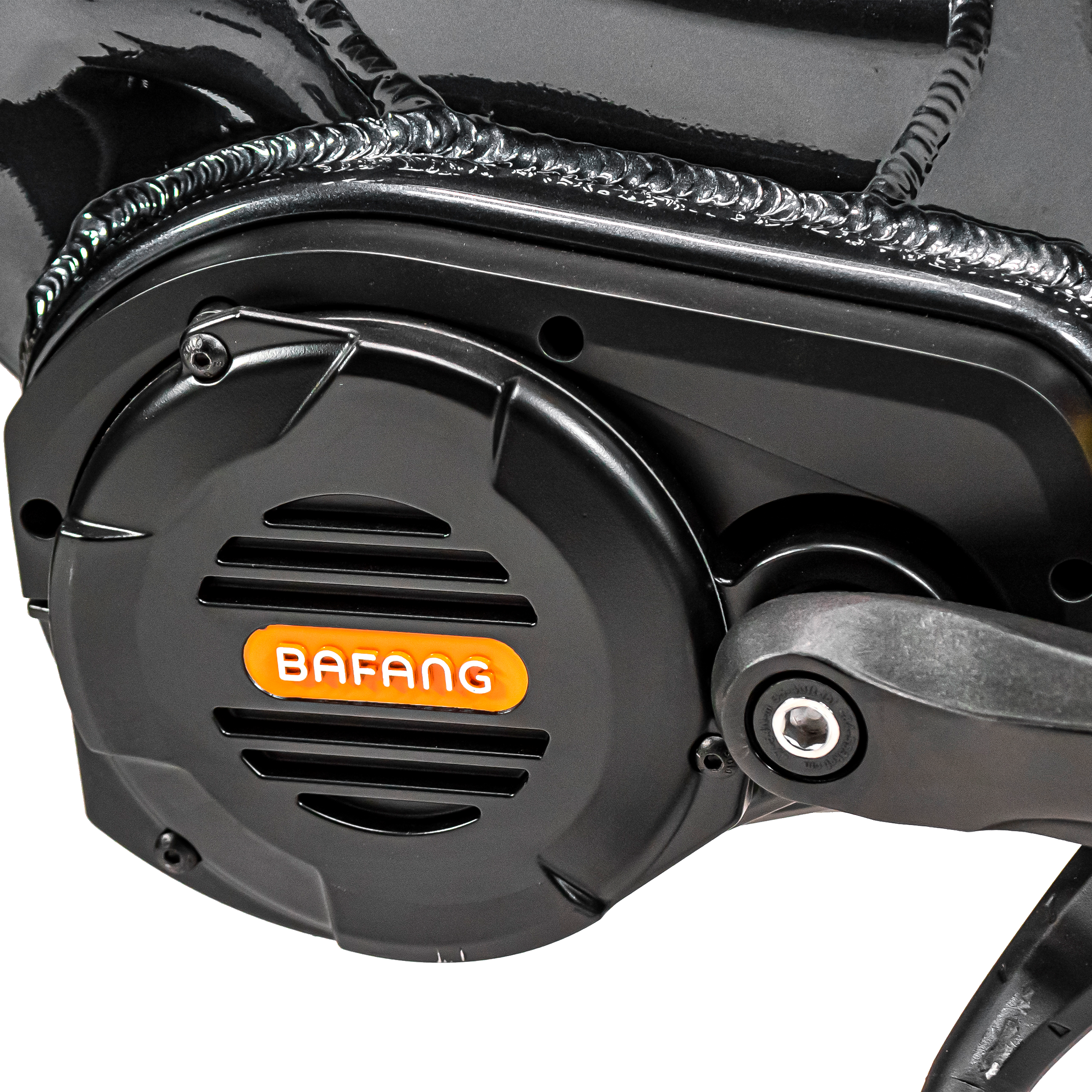

MotorBafang ultra m620 |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle12mm thru |
Battery sizesTotal capacity of 52v 36.5ah 1898wh:52v 17.5ah 910wh (internal battery) + up to 52v 19ah 988wh (external range extender battery) |
Rear derailleurShimano alivio 9 speed |
RimsBlack 36h 26" w/ round cutouts |

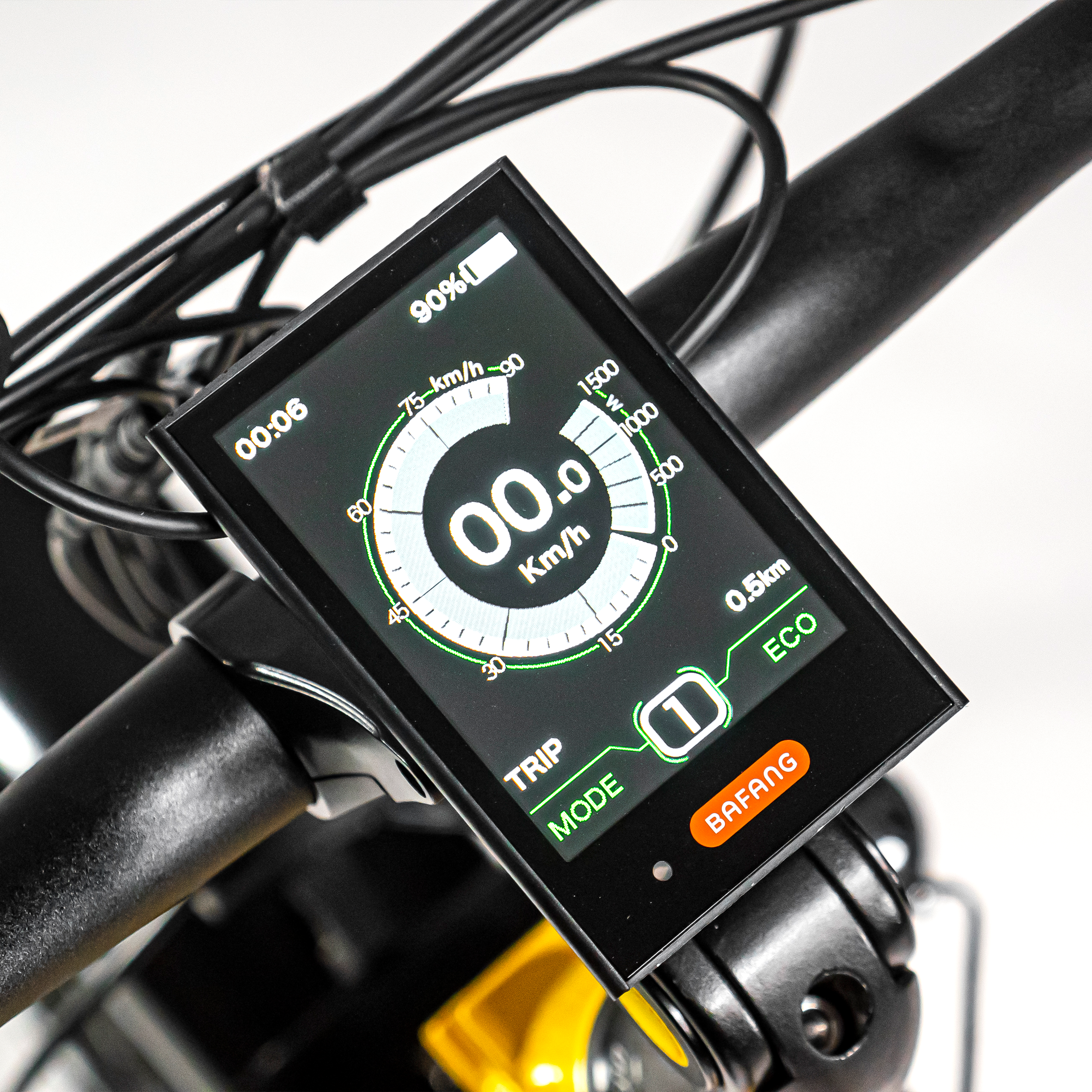

DisplayDpc-18 |

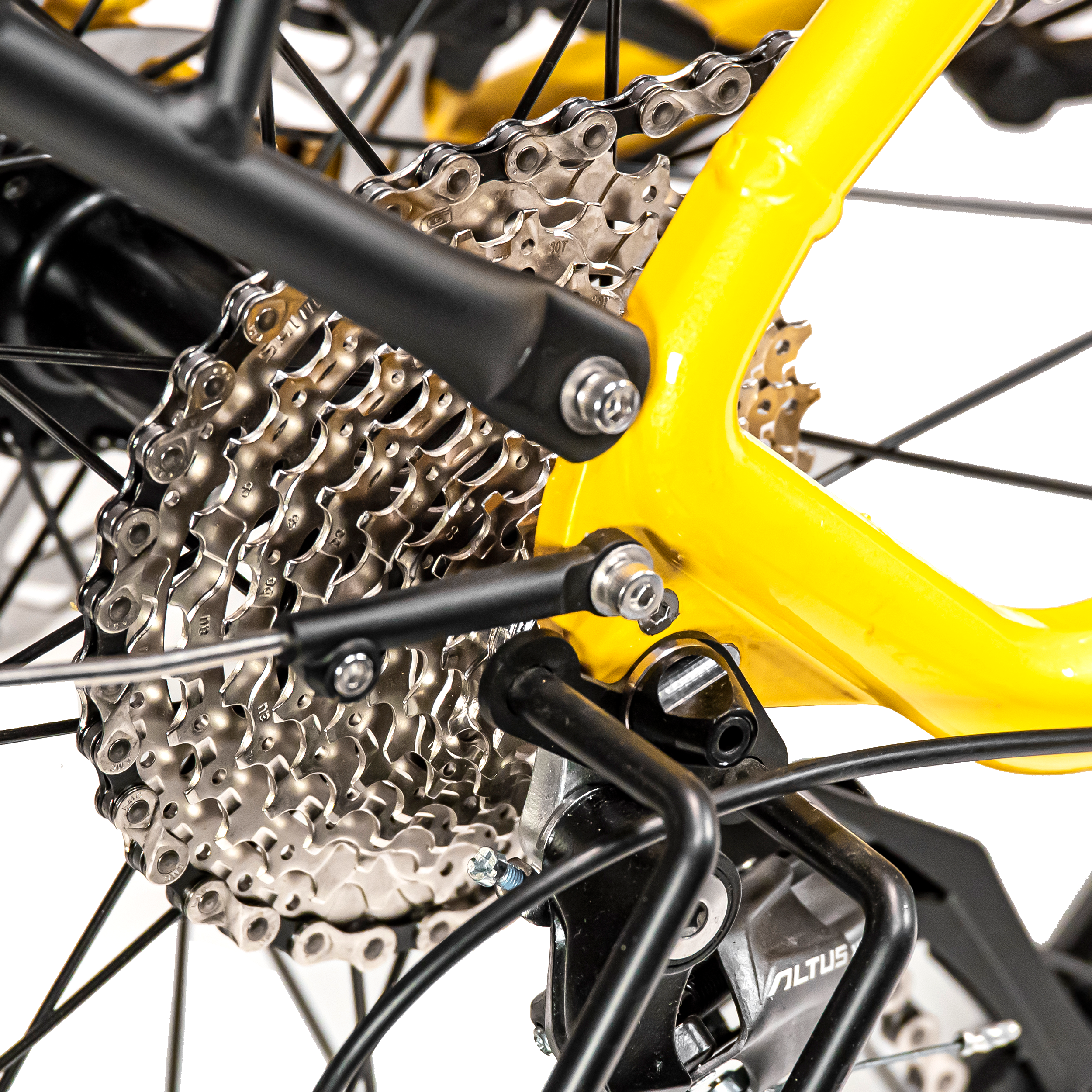

Cassette9 speed 12-36t cassette |
Tire sizes26x4", 27.5x3" |

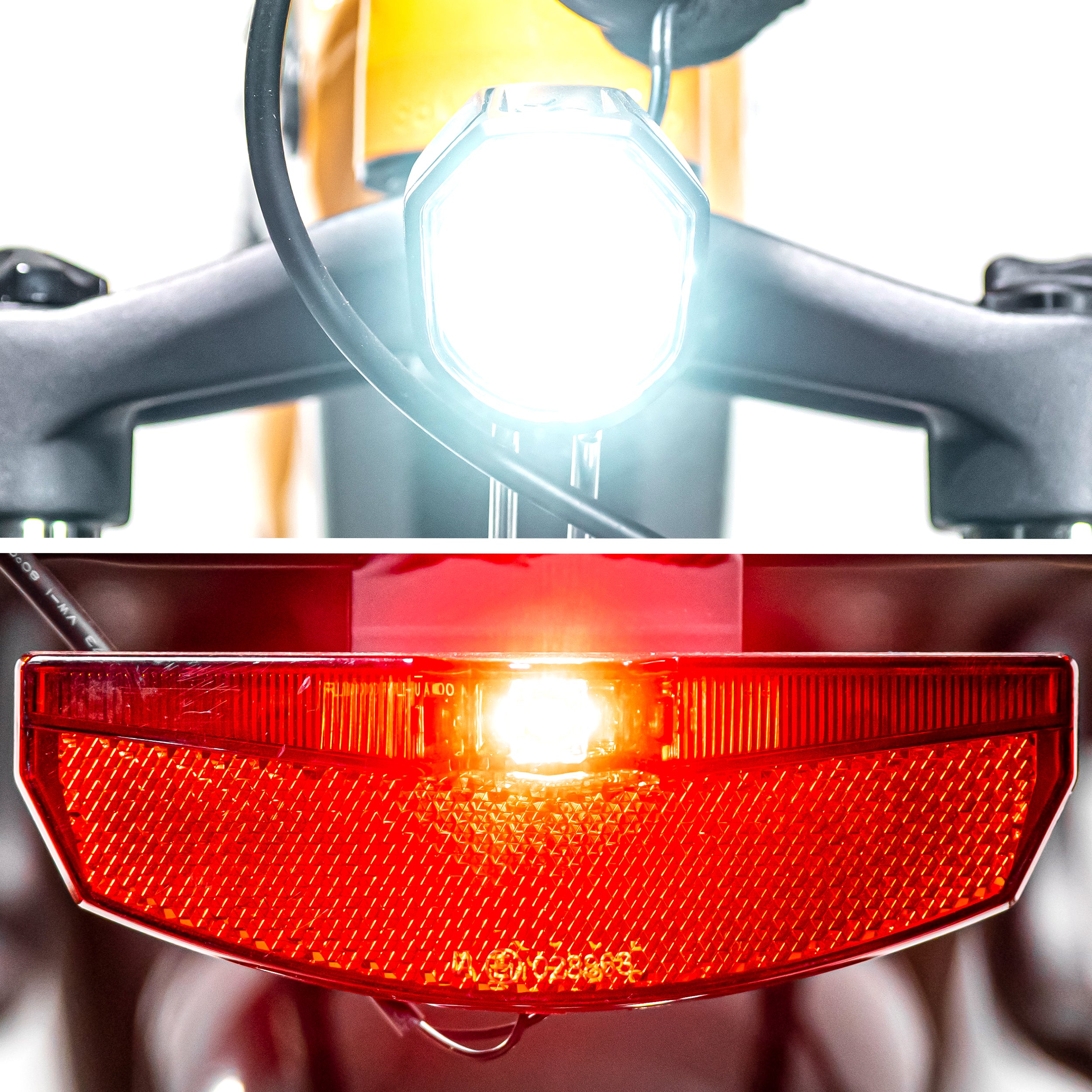

LightsIntegrated headlight, integrated taillight |
ChainKmc e9s |
Handlebar700mm wide, 50mm rise w/ 31.8mm clamp |
Assist typeTorque + cadence |
Crank set170mm arms 44t chainring |
Stem90mm solid |
Assist levels1-5 |
Bottom bracketBafang ultra isis |
GripsSlide-on comfort grips |

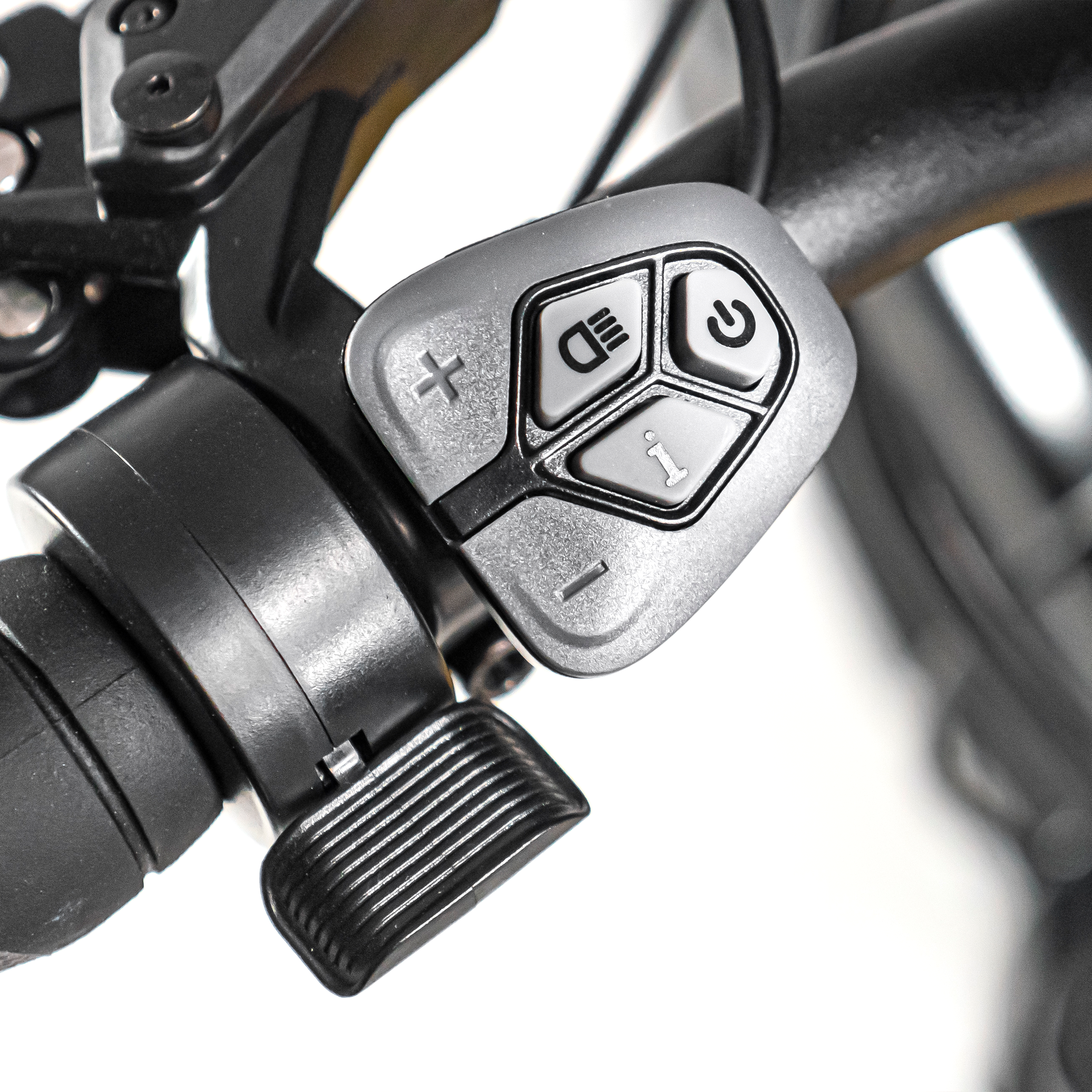

ThrottleThumb throttle |
BrakesTektro e350 dual-piston brakes w/ 160mm rotors |
SaddleWide saddle |

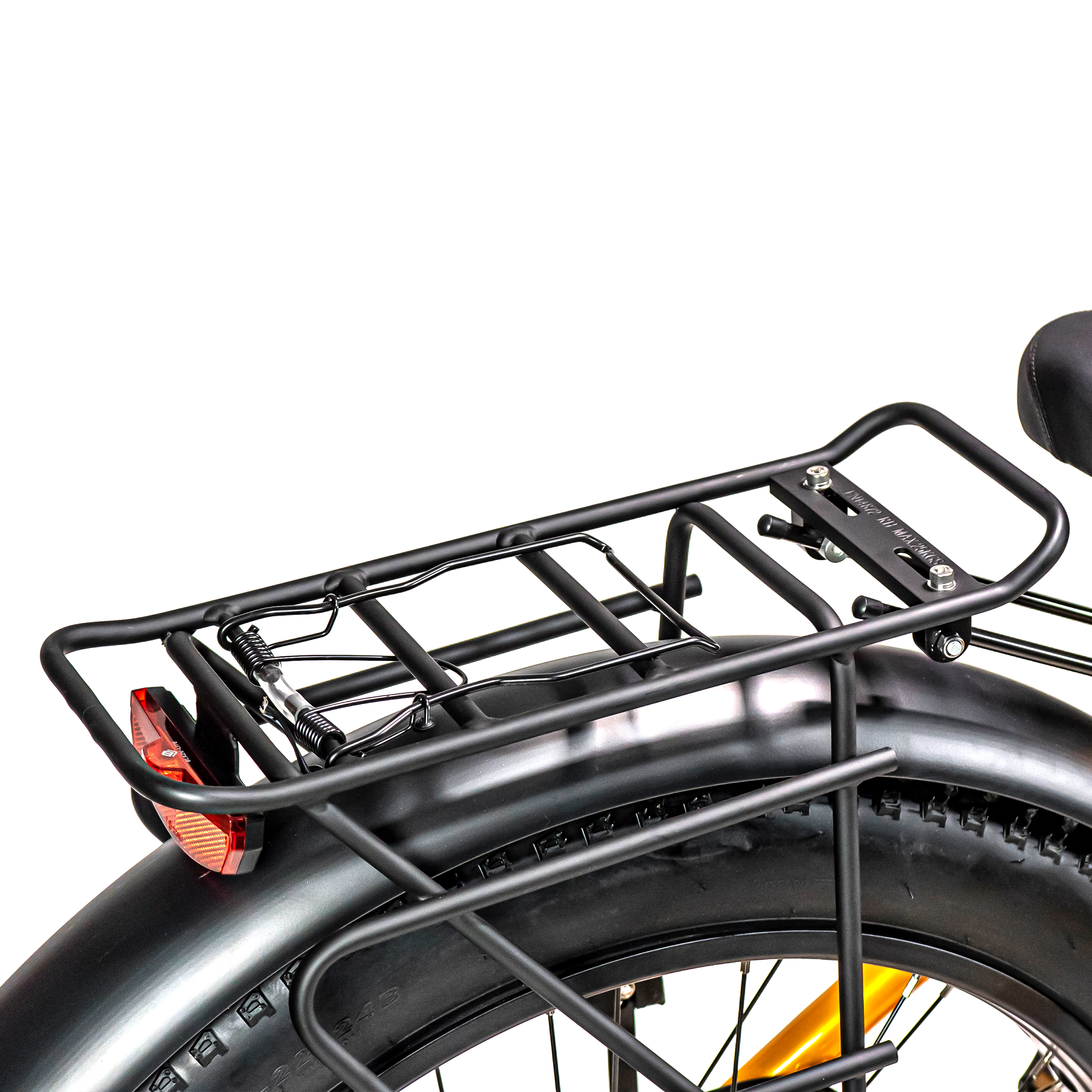

OtherFront and rear fenders, rear rack, kickstand |
Brake leversTektro adjustable w/brake cutoffs |
Frame6061 aluminum |
Front hub135mm 36h |
Seat post28.6mm |
ForkRst guide w/75mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hub197mm 36h |
MotorBafang ultra m620 |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle12mm thru |
Battery sizesTotal capacity of 52v 36.5ah 1898wh:52v 17.5ah 910wh (internal battery) + up to 52v 19ah 988wh (external range extender battery) |
Rear derailleurShimano alivio 9 speed |
RimsBlack 36h 26" w/ round cutouts |
DisplayDpc-18 |
Cassette9 speed 12-36t cassette |
Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, integrated taillight |
ChainKmc e9s |
Handlebar700mm wide, 50mm rise w/ 31.8mm clamp |
Assist typeTorque + cadence |
Crank set170mm arms 44t chainring |
Stem90mm solid |
Assist levels1-5 |
Bottom bracketBafang ultra isis |
GripsSlide-on comfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual-piston brakes w/ 160mm rotors |
SaddleWide saddle |
OtherFront and rear fenders, rear rack, kickstand |
Brake leversTektro adjustable w/brake cutoffs |
| 1 | Effective Top Tube Length |
570mm | 22.4in |
| 2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
560mm | 22in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
690mm | 27.2in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
700mm | 27.6in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1220mm | 48in |
| 15 |
Total Length |
2000mm | 78.7in |
| 16 |
Max Seat Height |
990mm | 39in |
| 17 |
Min Seat Height |
830mm | 32.7in |
| 18 |
Handlebar Height |
1120mm | 44.1in |
| 19 |
Weight (Without Battery) |
33.1kg | 73lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
480mm | 18.9in |
| 4 |
Stack |
570mm | 22.4in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
730mm | 28.7in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
710mm | 28in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1240mm | 48.8in |
| 15 |
Total Length |
2020mm | 79.5in |
| 16 |
Max Seat Height |
1040mm | 40.9in |
| 17 |
Min Seat Height |
880mm | 34.6in |
| 18 |
Handlebar Height |
1140mm | 44.9in |
| 19 |
Weight (Without Battery) |
34kg | 75lb |
| 1 | Effective Top Tube Length |
630mm | 24.8in |
| 2 | Seat Tube Length (Classic Bike Size) |
520mm | 20.5in |
| 3 |
Reach |
500mm | 19.7in |
| 4 |
Stack |
580mm | 22.8in |
| 5 |
Chainstay Length |
510mm | 20.1in |
| 6 |
Standover Height |
760mm | 29.9in |
| 7 |
Head Angle |
71° | - |
| 8 |
Seat Angle |
73.5° | - |
| 9 |
Head Tube Length |
190 mm | 7.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
720mm | 28.3in |
| 12 |
BB (Bottom Bracket) Drop |
70mm | 2.8in |
| 13 |
Fork Offset |
35mm | 1.4in |
| 14 |
Wheelbase |
1260mm | 49.6in |
| 15 |
Total Length |
2040mm | 80.3in |
| 16 |
Max Seat Height |
1080mm | 42.5in |
| 17 |
Min Seat Height |
920mm | 36.2in |
| 18 |
Handlebar Height |
1150mm | 45.3in |
| 19 |
Weight (Without Battery) |
34.4kg | 75.8lb |
Need A Hand?
Customer Reviews
Based on 96 reviews
73%
(70)
10%
(10)
10%
(10)
0%
(0)
6%
(6)
H

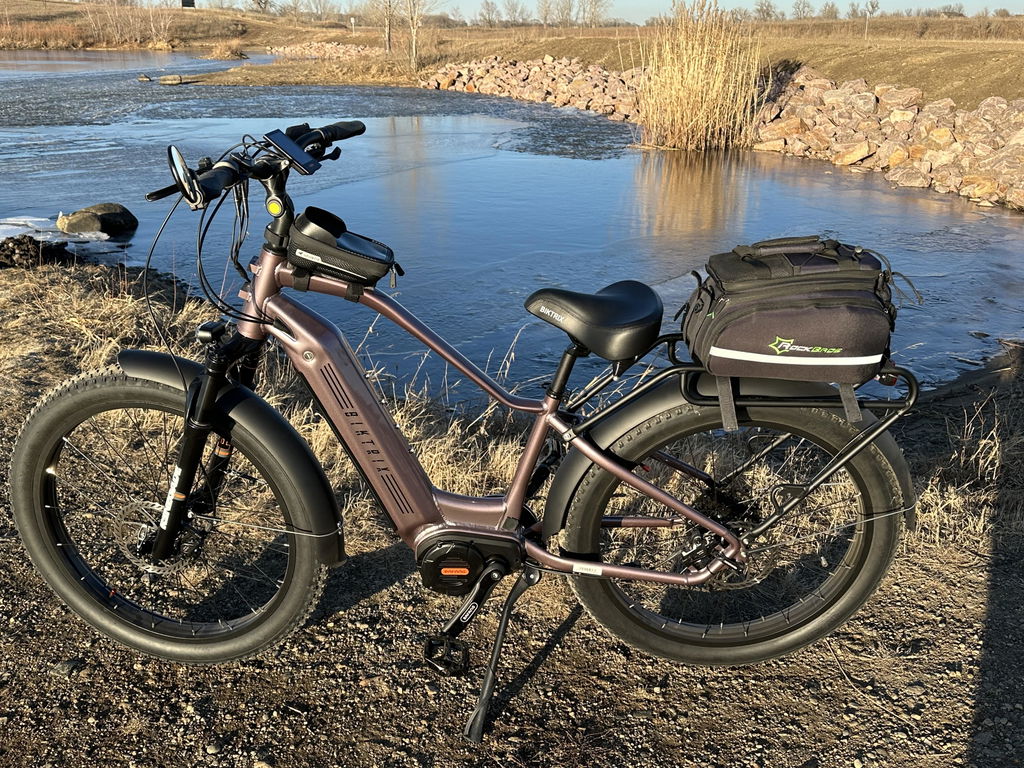

Bike had no damage and was packed nice. The chocolate pearl is different but for the price i can live with it. Both tires were almost flat and rear fender bolt on frame was not tightened but easy fixes. Assembly was simple and bike feels lighter than my Juggernaut classic duo step-over, may be the 27.5x 3 tires versus 26x4 on the classic duo. Rear derailer will need to be indexed but shifts smooth and brakes although they are Biktrix brand work well and no noise. Motor is much noisier on this bike than i expected, may just need greased more. Torque sensor is taking some time to get used to versus cadence on my other Biktrix bike. In sport mode or using throttle this bike will move. Very comfortable riding bike with plenty of adjustability. The brake light is a nice touch versus just a tail light. Only 58 miles in 2 rides so far but for the price was a great deal.
C

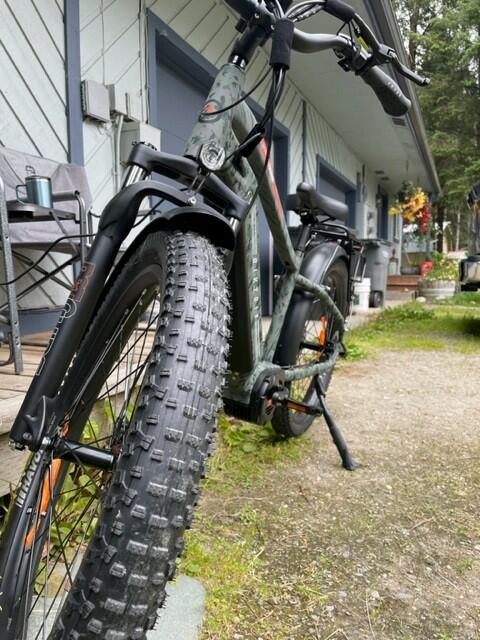

I went on vacation and got home to my new BikTrix Jaggernaut Ultra Duo 2 Step-Over Camo Bike. Was easy to get together and get started. I charged up the battery and put 20 miles on it my first day. This bike is really fun! I am 40 years old but honestly feel like a kid again riding this bike. The customer service was great! They helped me find what would work for me and answered all my question promptly throughout the process. This Bike is awesome!!
D

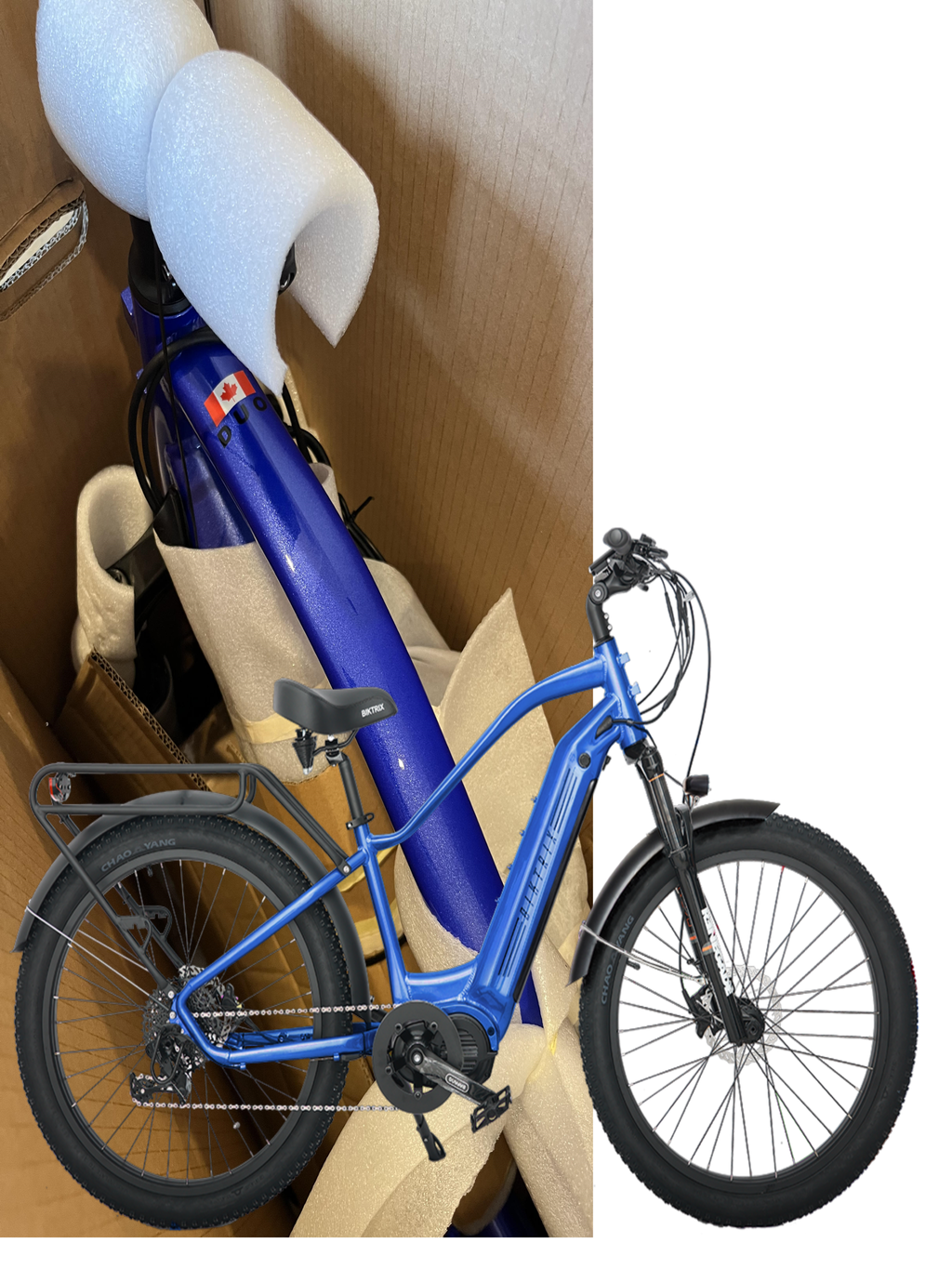

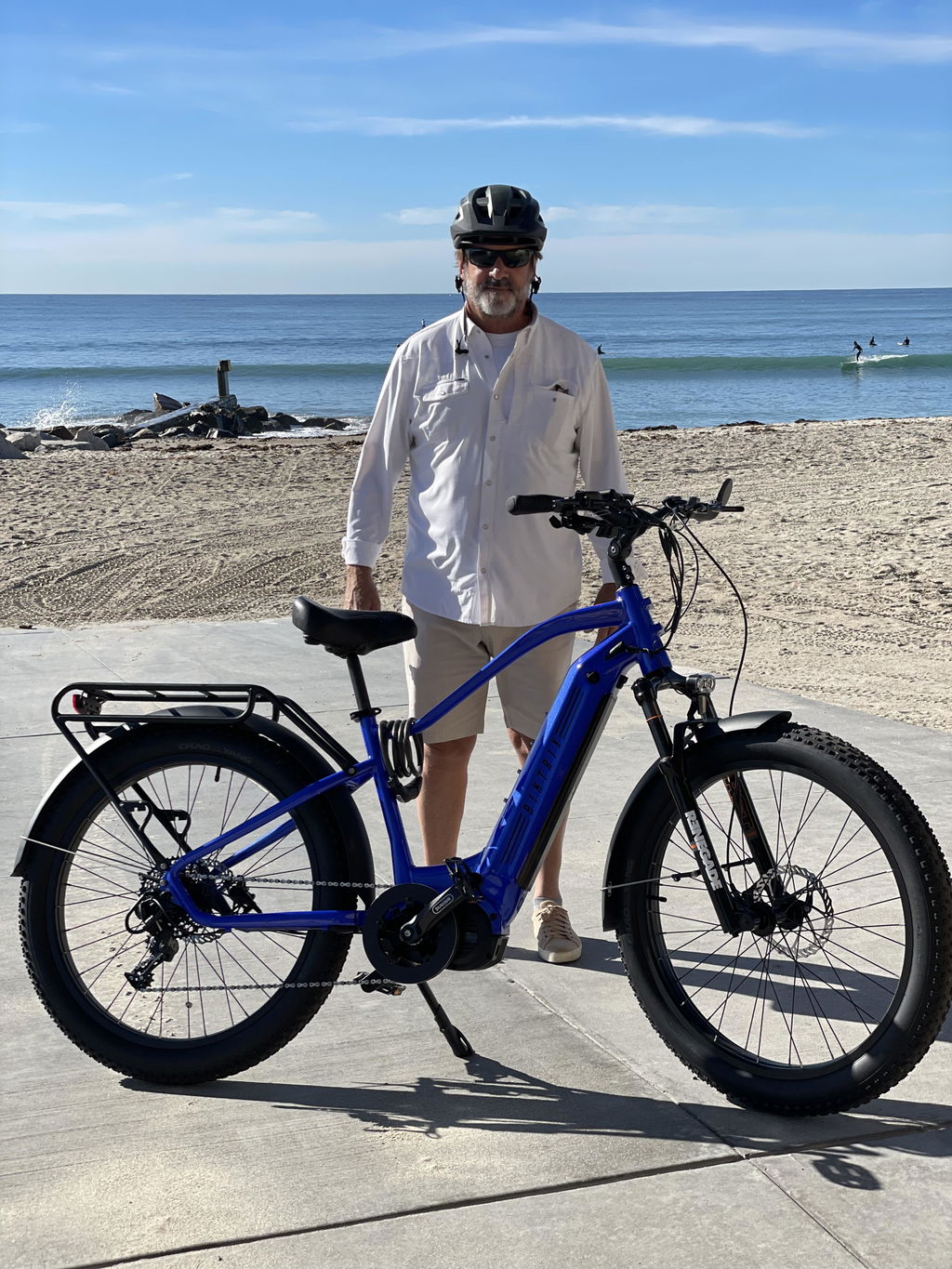

After about 150 miles on my new UD3 I will say, overall, it is a solid, well-built bike. So far the 52V 17.5Ah internal battery averages about 20 miles total range on relatively flat, smooth terrain without much wind, tires at 25psi, at level 3 ECO mode assist mostly, no cargo and a 225 lb. rider. This is well below the hi-lo range Biktrix advertises. The Electric Blue color I ordered as depicted on the website was nothing like the purplish color that was delivered (see overlay photo); but they did issue a $450 refund so I can re-paint the bike to match. The sprung cruiser style seat squeaks loudly and may have been originally designed as a torture device; after the first couple rides, I had to replace it while my blisters healed. This despite my being use to bike seats. Also, there was a shipping delay clearing customs due to an "insufficient commodity description" that took Biktrix a week to rectify.
C
I don’t need that battery??? (Aphasia)
C
Bike assembly was straight forward. Good customer support on a few newby questions. Exceeded expectations. Would definitely recommend
