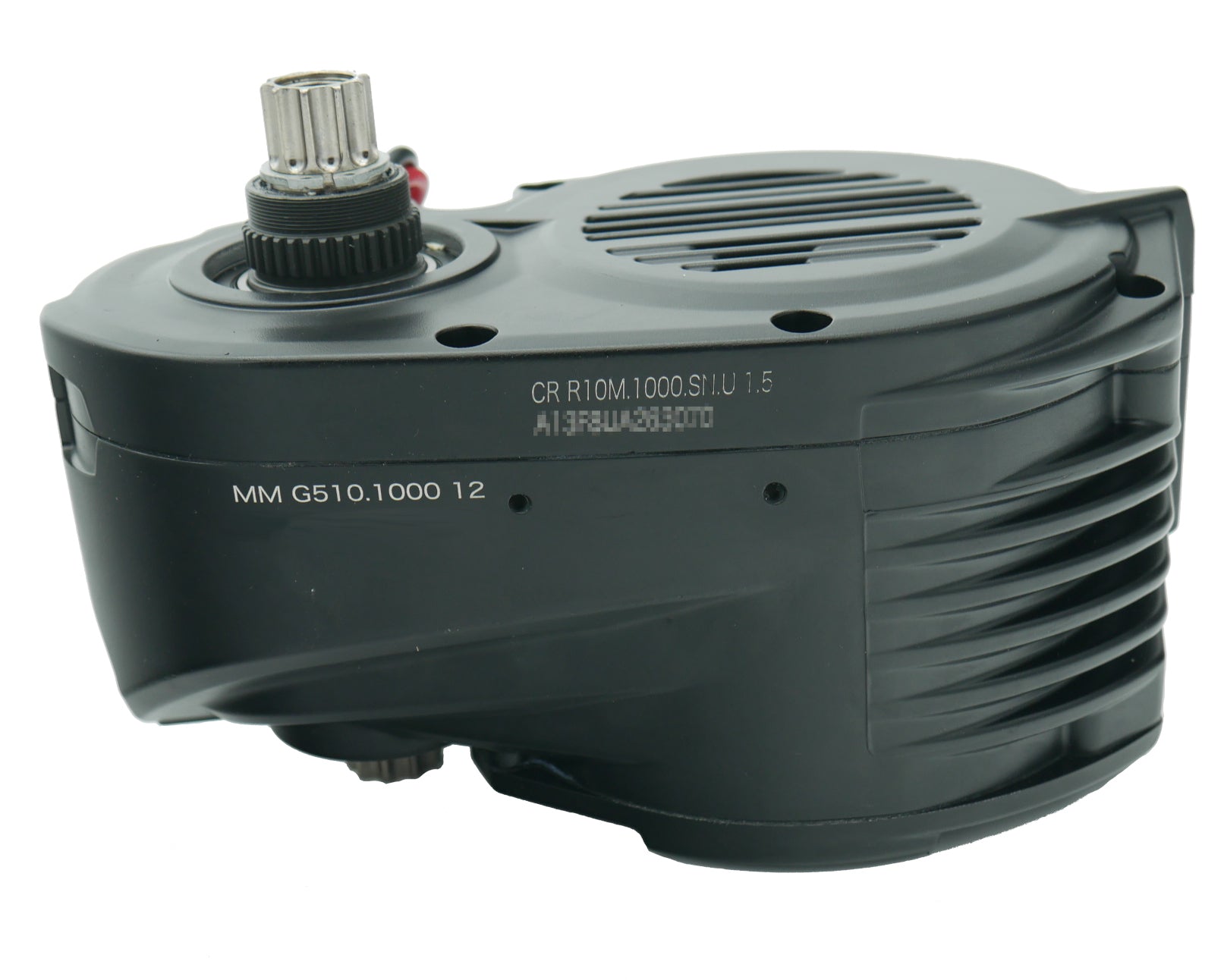

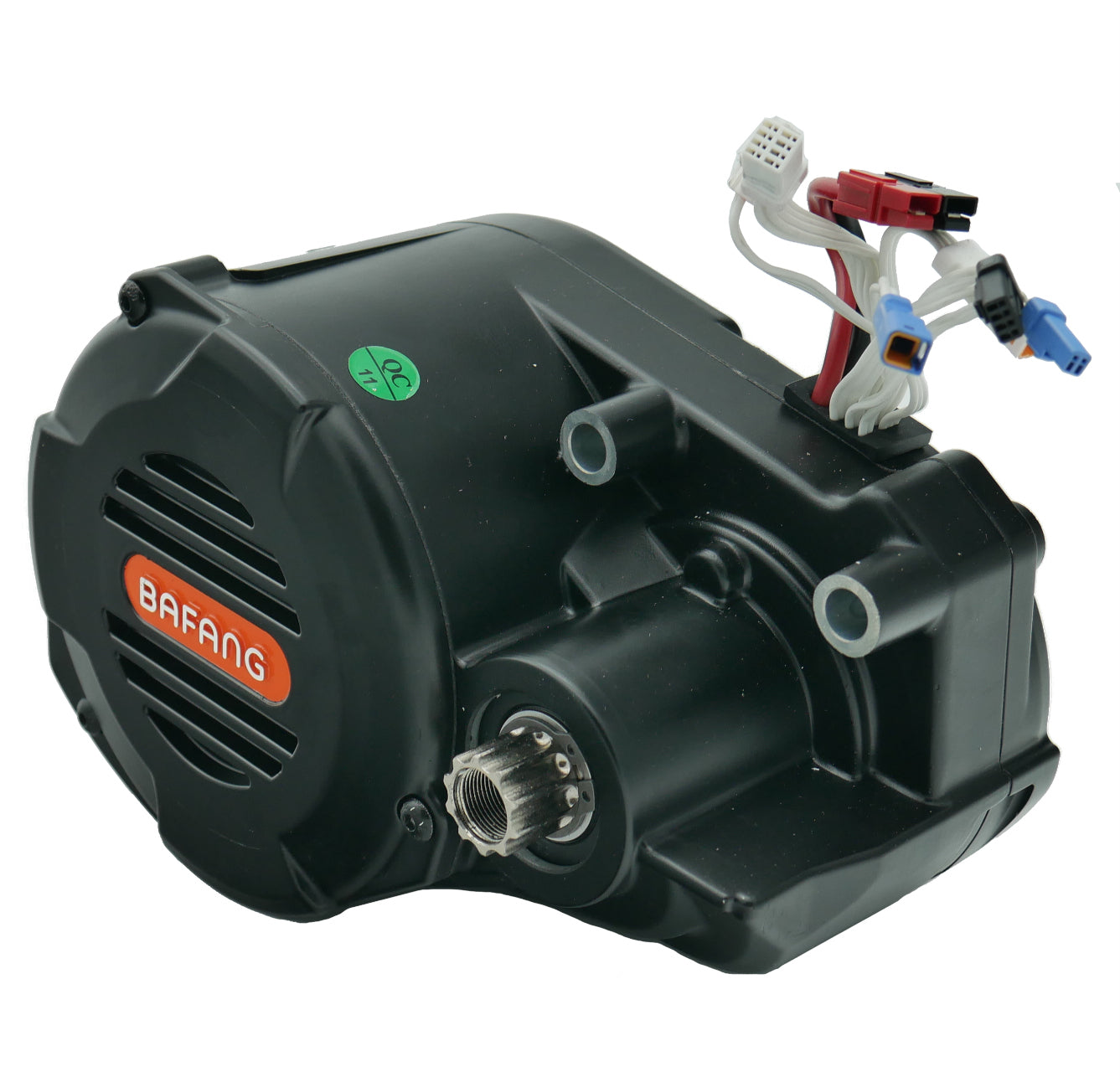

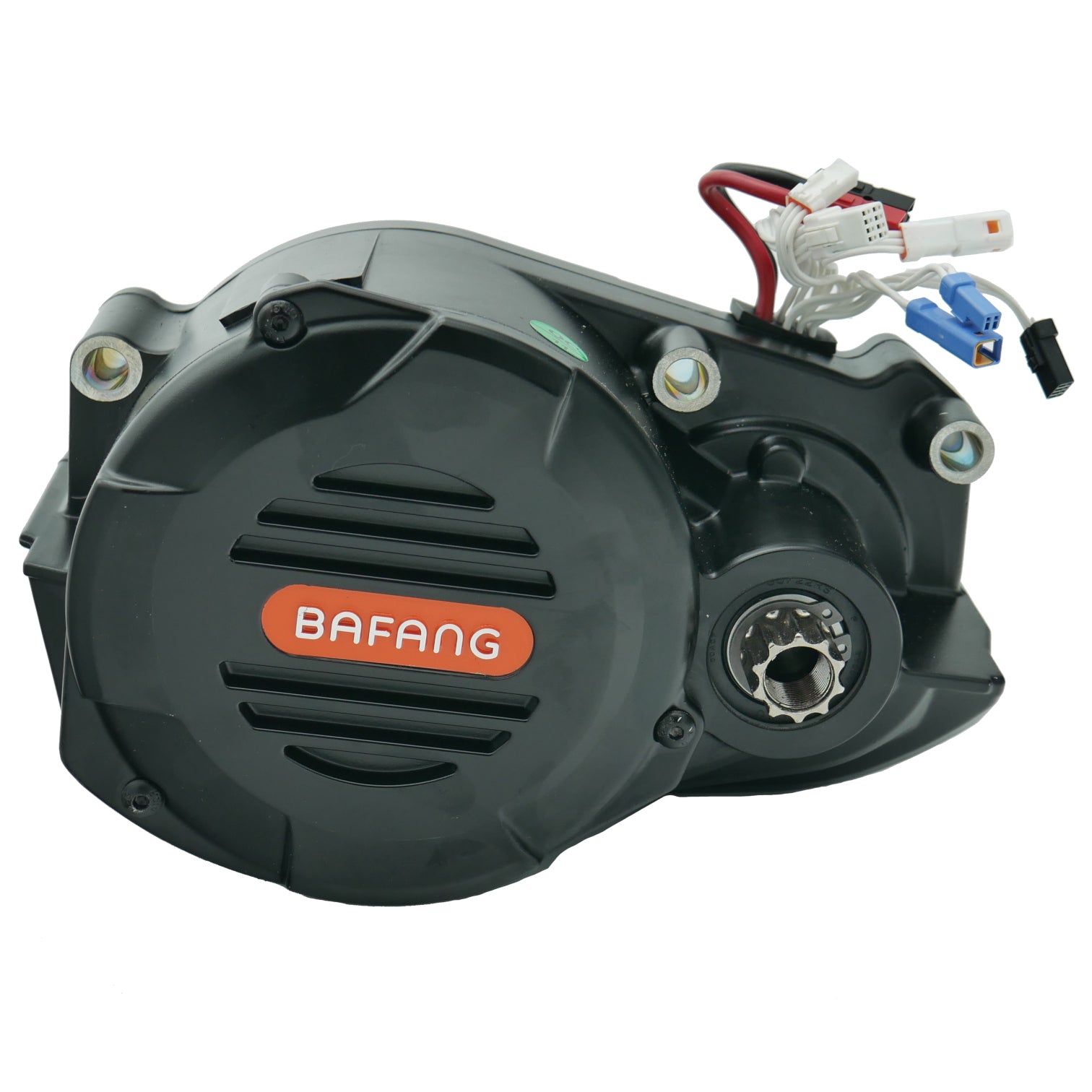

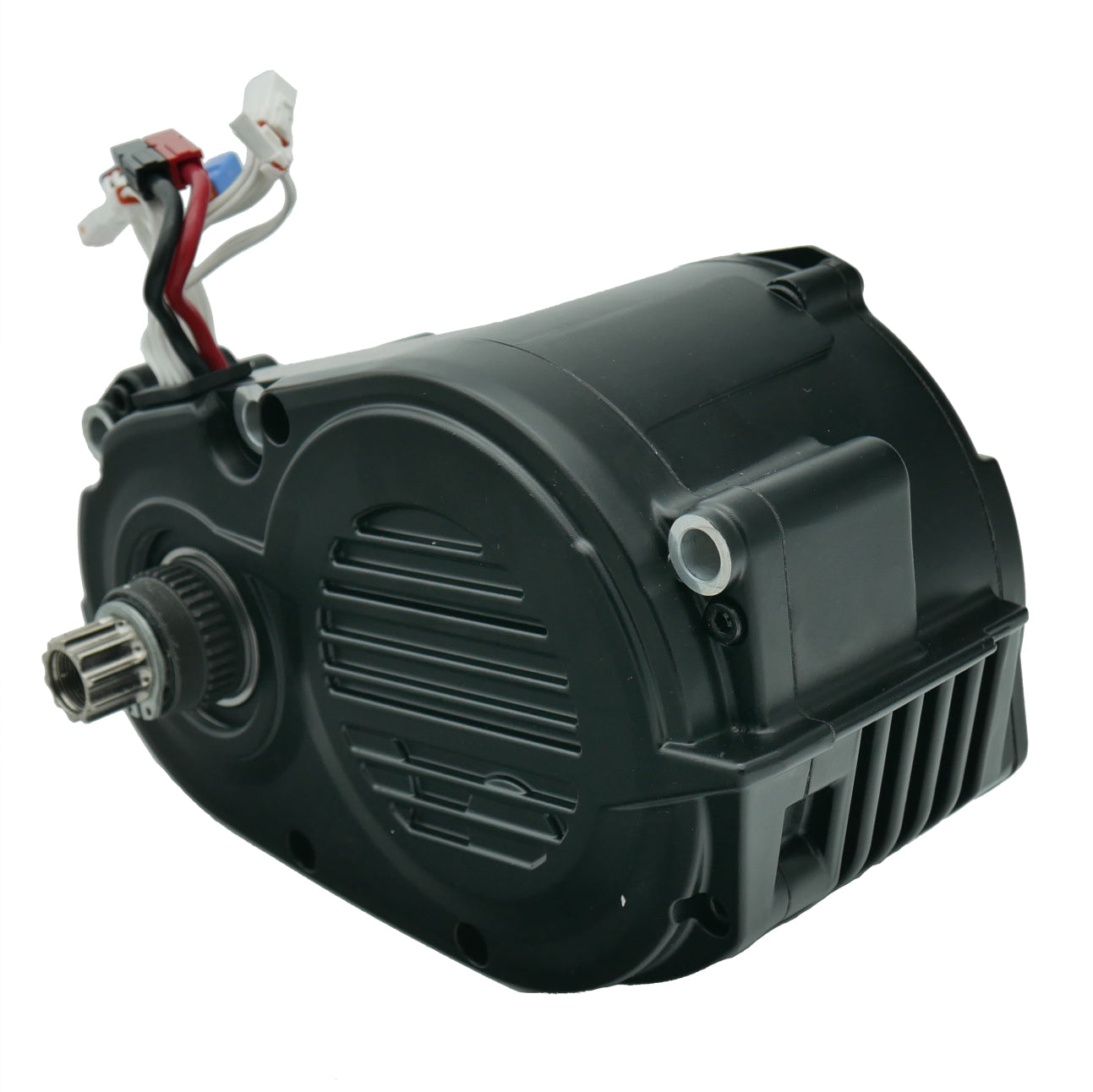

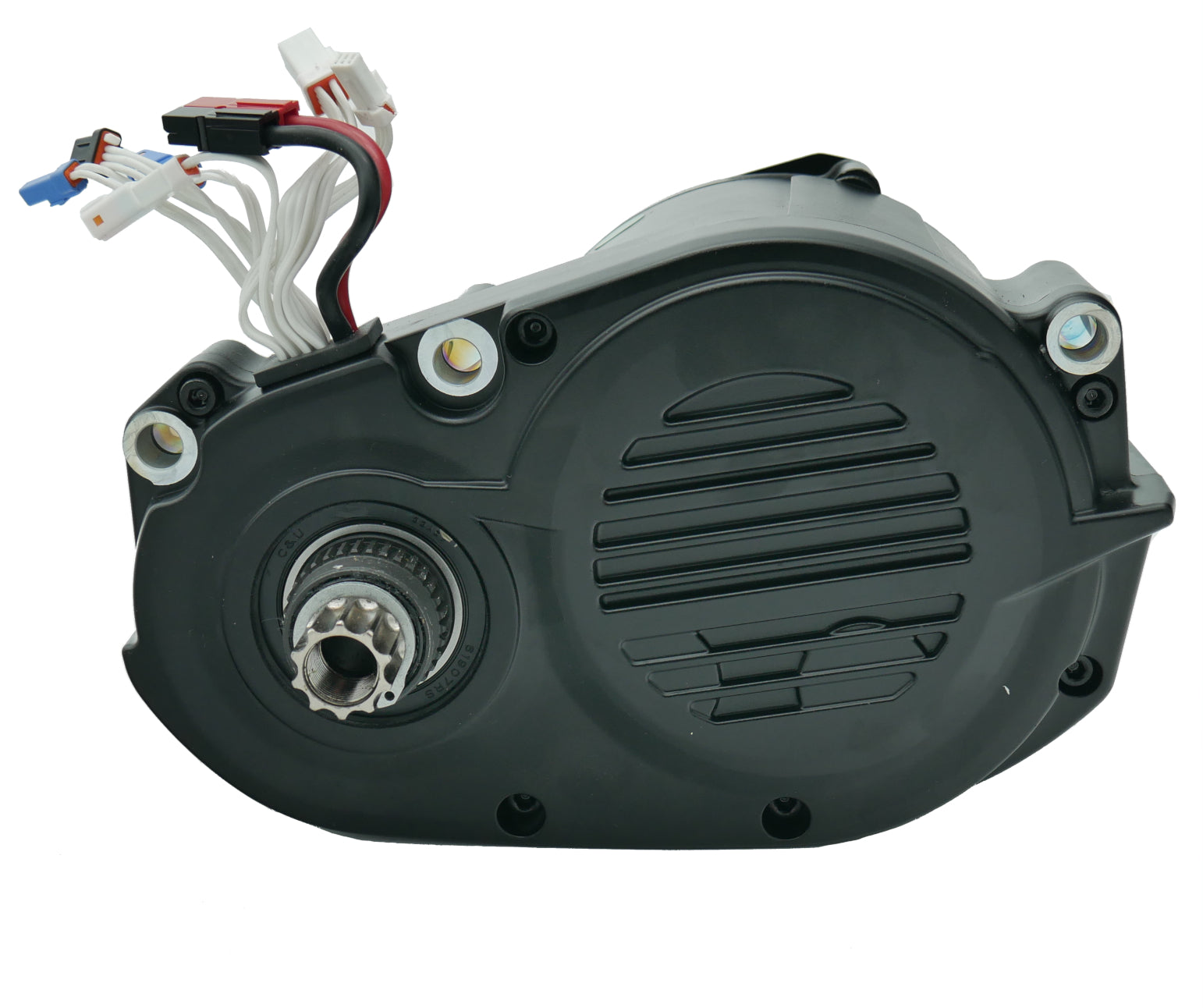

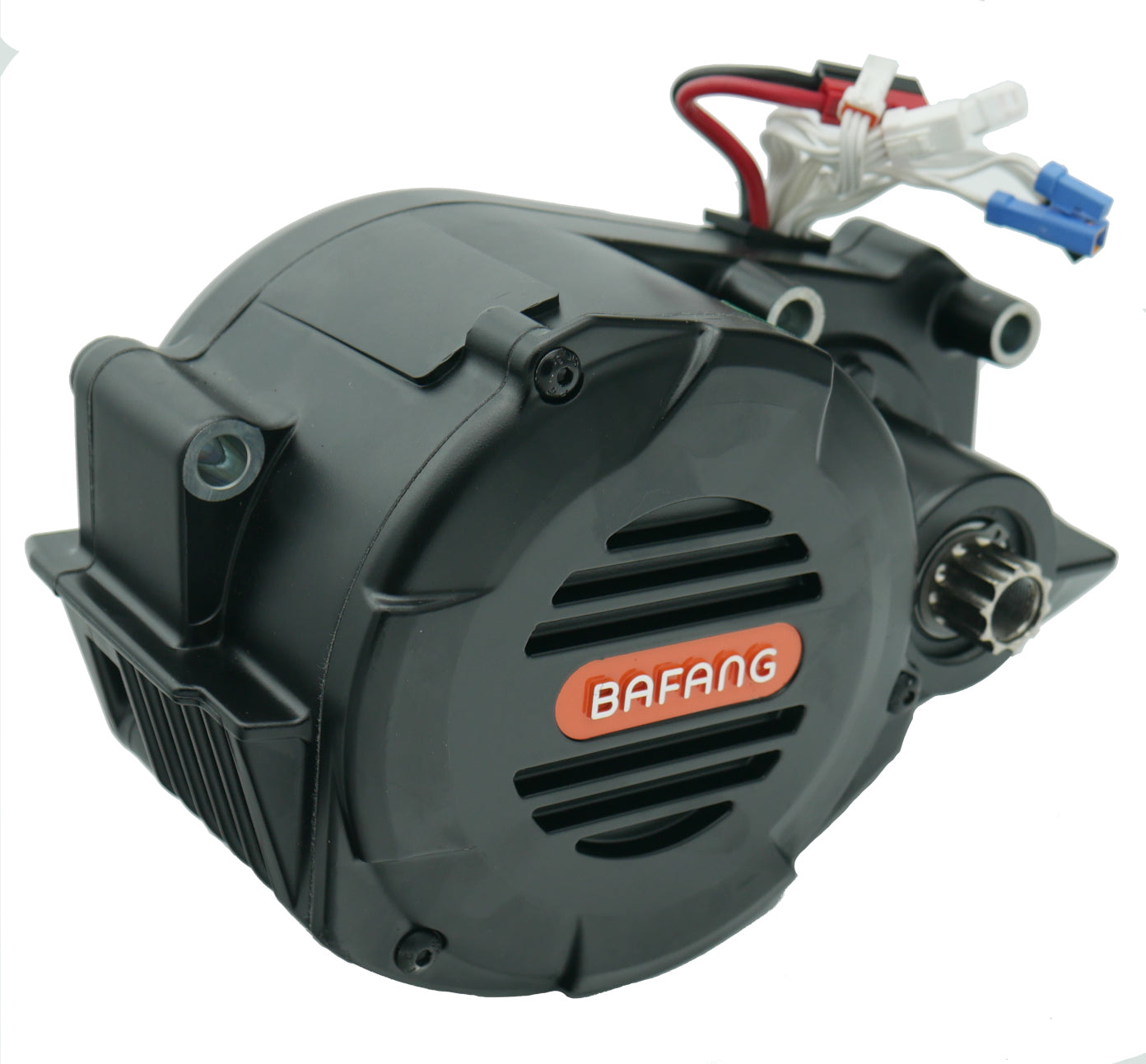

Bafang M620/G510 Bare Ultra Motor Takeoff

Sale price CA$1,049
Sale price CA$1,049.00
Shipping: Leaves within 6-7 business days

Overview

The Bafang Ultra M620 is the ultimate motor for your heavy-duty eBike with an incredible maximum torque of 160Nm and a power output of 1000W, this motor can handle the heaviest loads on the steepest inclines.

Available in 48V or 52V versions - please select your desired motor and battery voltage at the time of purchase!

*Takeoff parts are parts which have been removed from brand-new, never ridden bikes. These parts may have some minor scuffs or fitment marks but are identical in performance and specifications to the brand-new version.

Technical Specifications

Motor Protocol

UART

Rated Nominal Power output

1000W

Peak Power Output

1500W

Max Ampreage

30A

Max Torque

160 N.m

Rated Voltage

48V / 52V

Position

Mid-Drive

Internal Gears

Steel Gears

Spindle Shaft Standard

ISIS

Water-proof grade

IP66

Pedal Assist Sensors

Integrated Torque + Cadence

Shift Sensor Function

Yes

Brake Sensor Function

Yes - Closer Type

Integrated Headlight / Taillight Capacity

Yes - Headlight + Taillight at 6 DCV / 3W MAX

Compatibility

Bike Name Compatible
Bikes with Bafang Ultra M620/G510 Motor
eBike Frames Designed for Bafang Ultra M620/G510 motors
Standard Bike Frames
Bike Frame Designed for BBS02 / BBSHD Mid-Drive Motors
Bike Frame Designed for Rear Hub Motor
