1000W Mid-Drive

Motor Power

160Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 70km Range

+5'6ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

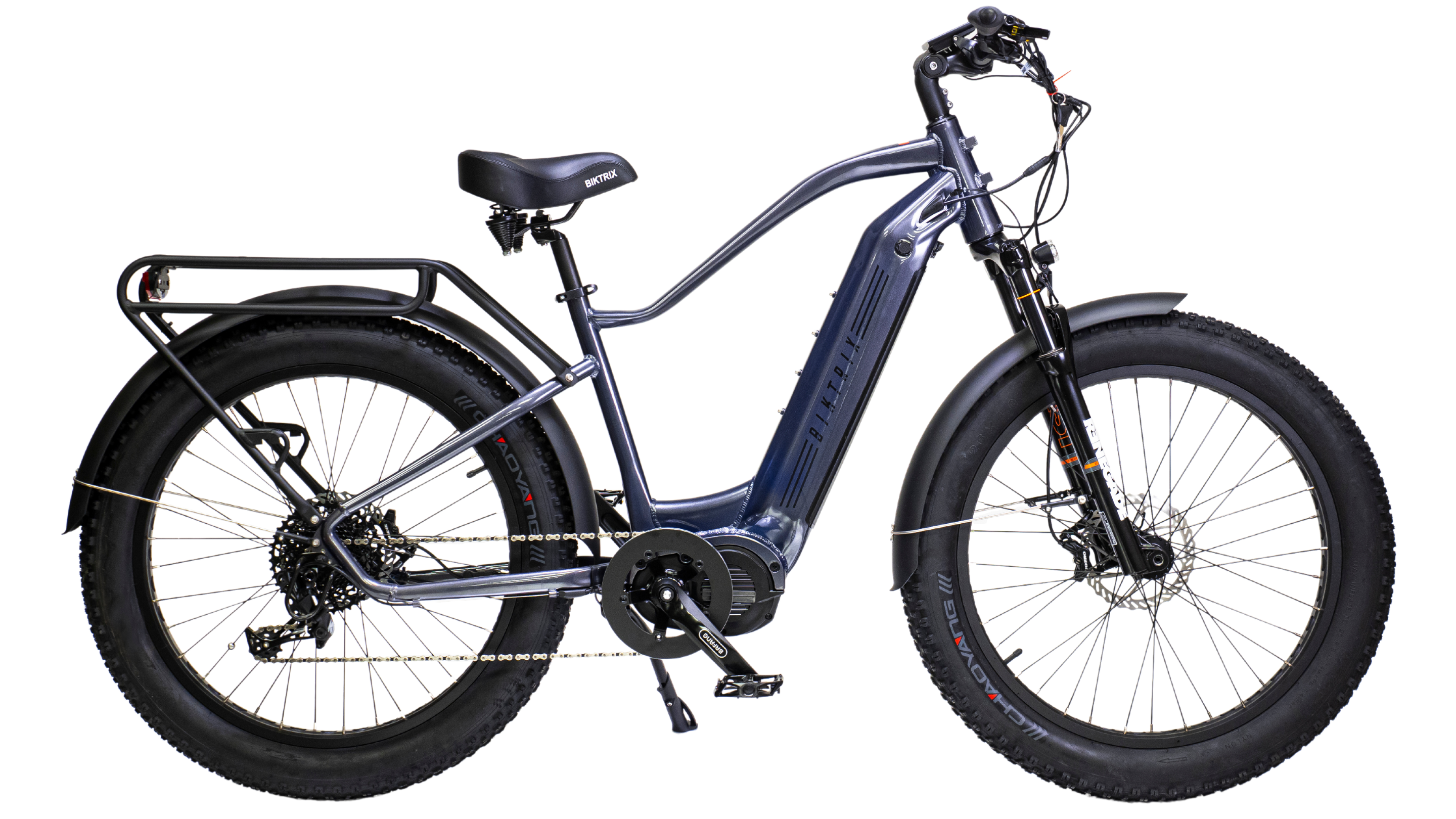

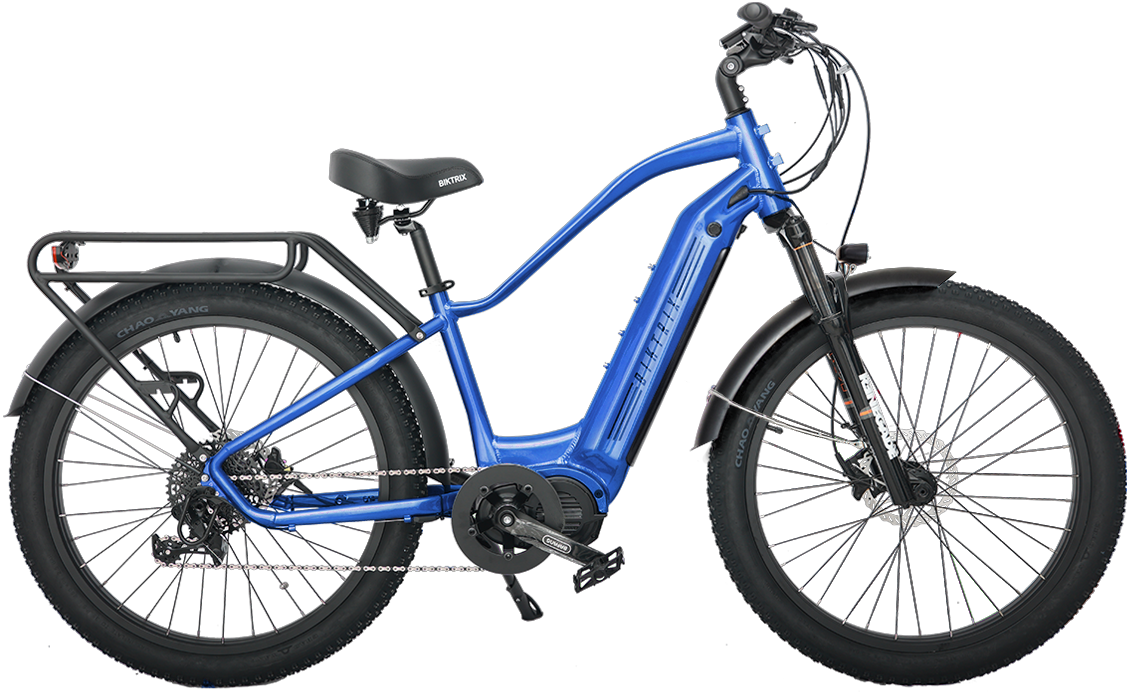

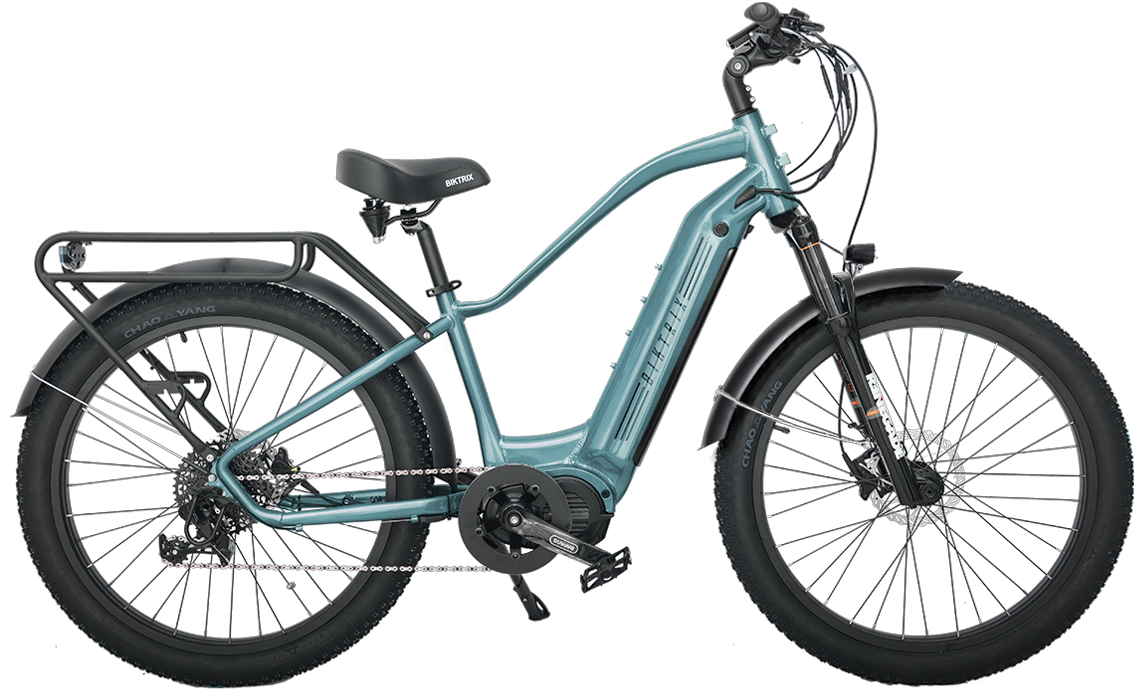

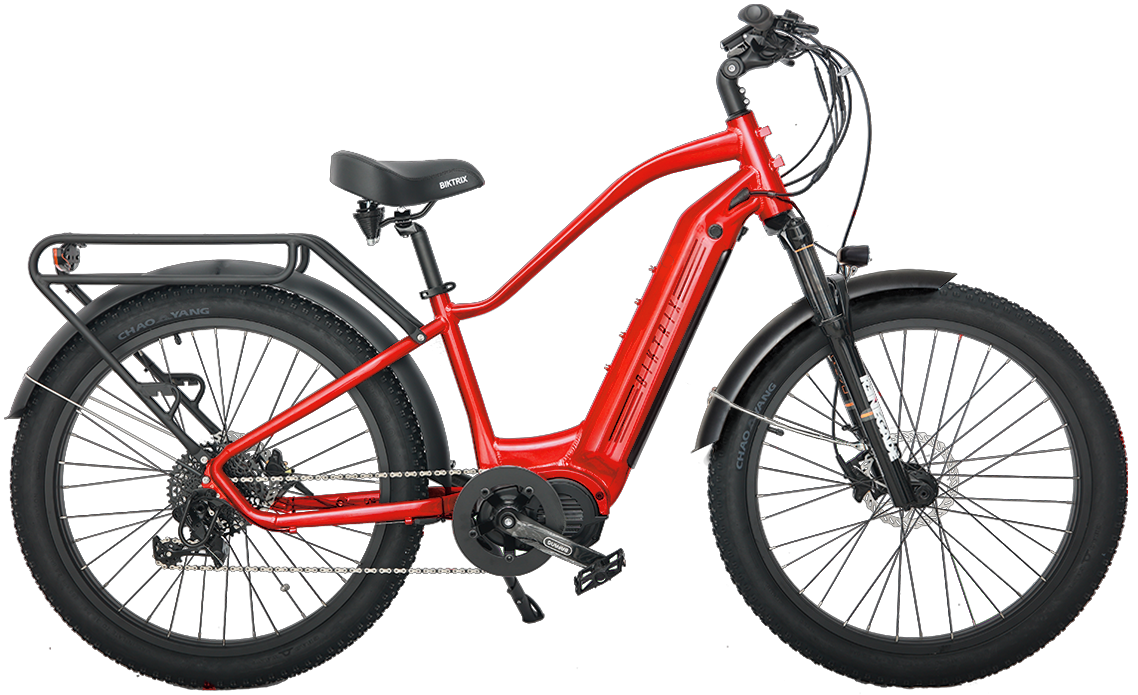

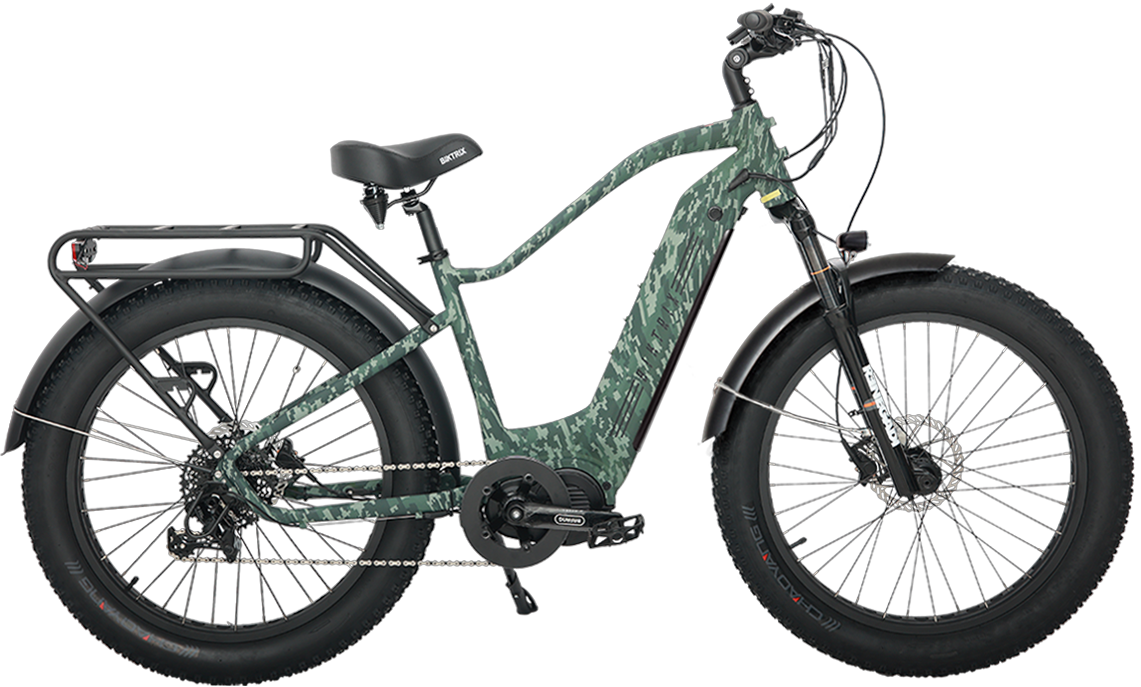

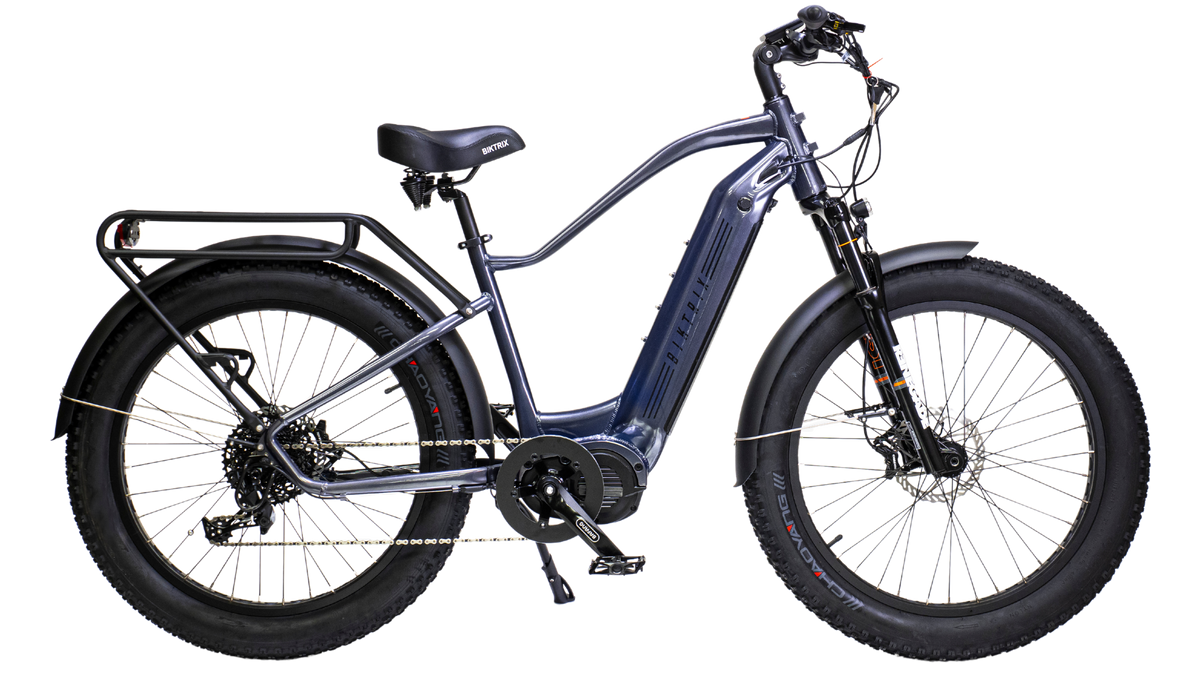

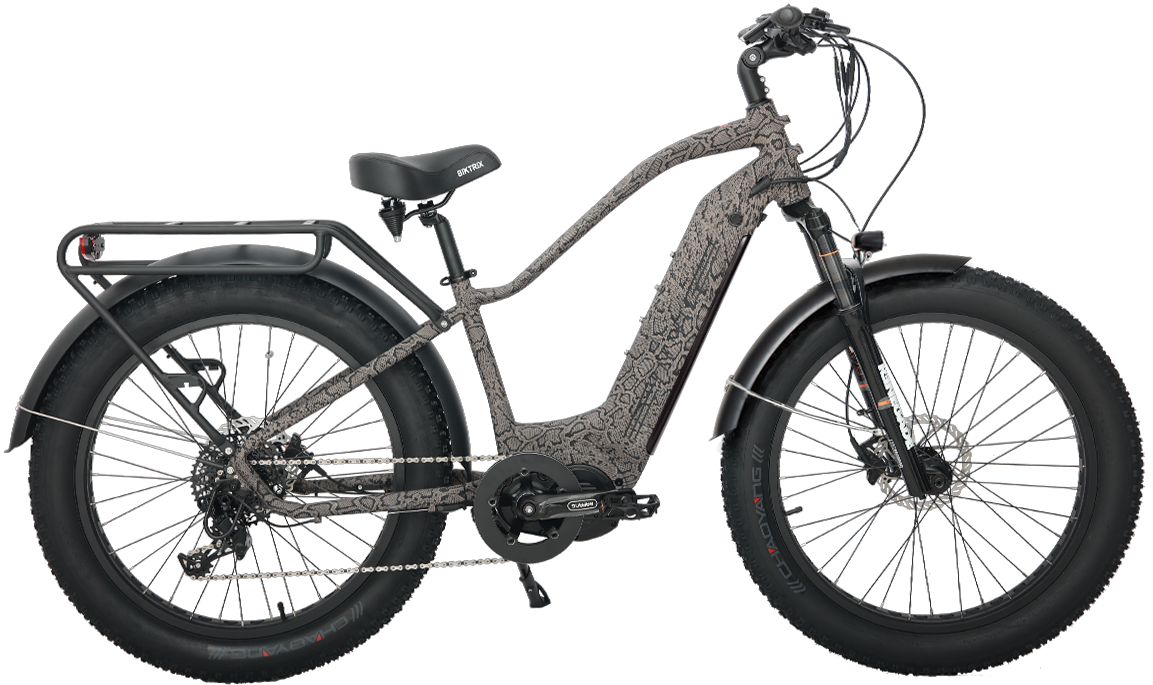

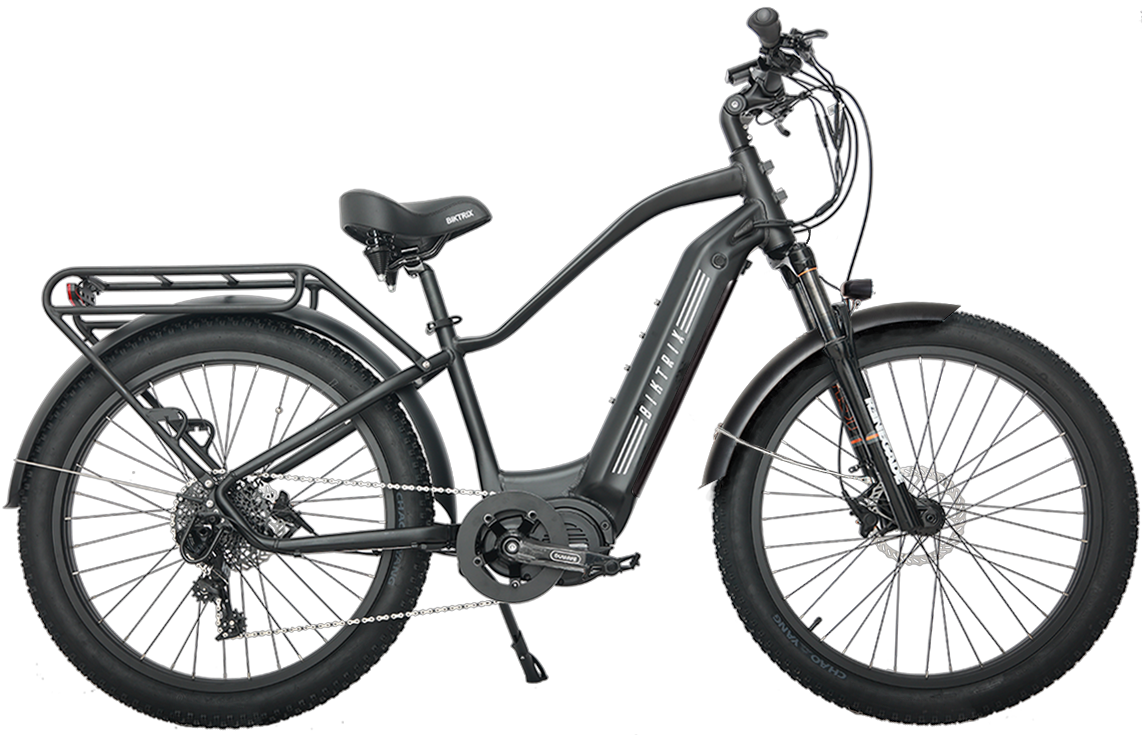

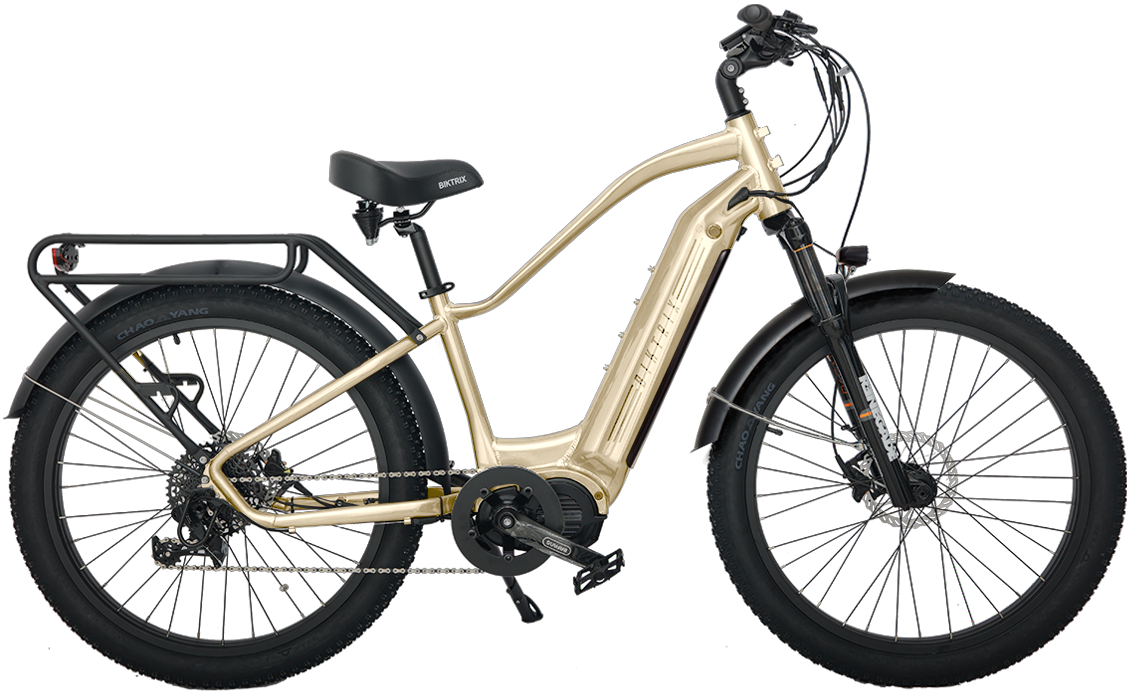

Juggernaut Ultra Duo 3 SO

Name: Juggernaut Ultra Duo 3 Step-Over
Brand: biktrix-juggernaut-ultra-duo-3-electric-bike
SKU: JUG-HDDULT-SO-M-264-CP
Price: 3599.0 CAD
Availability: OutOfStock
Rating: 4.42 (102 reviews)

4.4

CA$3,599 CA$6,499

This item has been replaced!

Still Interested in the Juggernaut Ultra Duo Step-Over? Check out the Juggernaut Ultra Duo Step-Over 4 below!

Juggernaut Ultra Duo 4 Step-Over

1	Effective Top Tube Length	540mm	21.3in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	500mm	19.7in
4	Stack	540mm	21.3in
5	Chainstay Length	520mm	20.5in
6	Standover Height	430mm	16.9in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	540mm	21.3in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	50mm	2in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1240mm	48.8in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1000mm	39.4in
17	Min Seat Height	880mm	34.6in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	35kg	77.2lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	580mm	22.8in
4	Stack	490mm	19.3in
5	Chainstay Length	480mm	18.9in
6	Standover Height	450mm	17.7in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	540mm	21.3in
11	Front Center	710mm	28in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1240mm	48.8in
15	Total Length	1960mm	77.2in
16	Max Seat Height	1000mm	39.4in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1160mm	45.7in
19	Weight (Without Battery)	34kg	75lb

1000W Mid-Drive

Motor Power

160Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 70km Range

+5'6ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		84km Up To
PAS 2 Pedal-Assist Lv.2		70km Up To
PAS 3 Pedal-Assist Lv.3		61km Up To
PAS 4 Pedal-Assist Lv.4		56km Up To
PAS 5 Pedal-Assist Lv.5		50km Up To
THRL Throttle Only		35km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 150mm 36h	Seat post Aluminum 28.6mm
Fork Rst renegade coil spring w/100mm travel, lockout & preload	Front axle 15mm qr-thru axle	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 190mm 36h	Motor Bafang m620 ultra
Shifter rear Sram 11 speed trigger shifter	Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Sram nx 11 speed	Rims Black 24", 26", 27.5" 36h	Display Dpc-18
Cassette 11 speed sram 11-42t cassette	Tire sizes 24x4", 26x4", 27.5x3"	Lights Integrated headlight, taillight
Chain Kmc e11s	Handlebar 650mm wide mtb w/30mm rise, 31.8mm clamp	Assist type Torque + cadence
Crank set 44t 170mm arms	Stem 90mm adjustable	Assist levels 0-5
Bottom bracket Bafang isis	Grips Slide-on comfort grips	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic w/ 180mm rotors	Saddle Biktrix spring supported comfy cruiser	Other Front and rear metal fenders, rear rack, kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame 6061 aluminum	Front hub 150mm 36h
Seat post Aluminum 28.6mm	Fork Rst renegade coil spring w/100mm travel, lockout & preload
Front axle 15mm qr-thru axle	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 190mm 36h
Motor Bafang m620 ultra	Shifter rear Sram 11 speed trigger shifter
Rear axle 5mm qr	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Sram nx 11 speed	Rims Black 24", 26", 27.5" 36h
Display Dpc-18	Cassette 11 speed sram 11-42t cassette
Tire sizes 24x4", 26x4", 27.5x3"	Lights Integrated headlight, taillight
Chain Kmc e11s	Handlebar 650mm wide mtb w/30mm rise, 31.8mm clamp
Assist type Torque + cadence	Crank set 44t 170mm arms
Stem 90mm adjustable	Assist levels 0-5
Bottom bracket Bafang isis	Grips Slide-on comfort grips
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic w/ 180mm rotors
Saddle Biktrix spring supported comfy cruiser	Other Front and rear metal fenders, rear rack, kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame

6061 aluminum

Front hub

150mm 36h

Seat post

Aluminum 28.6mm

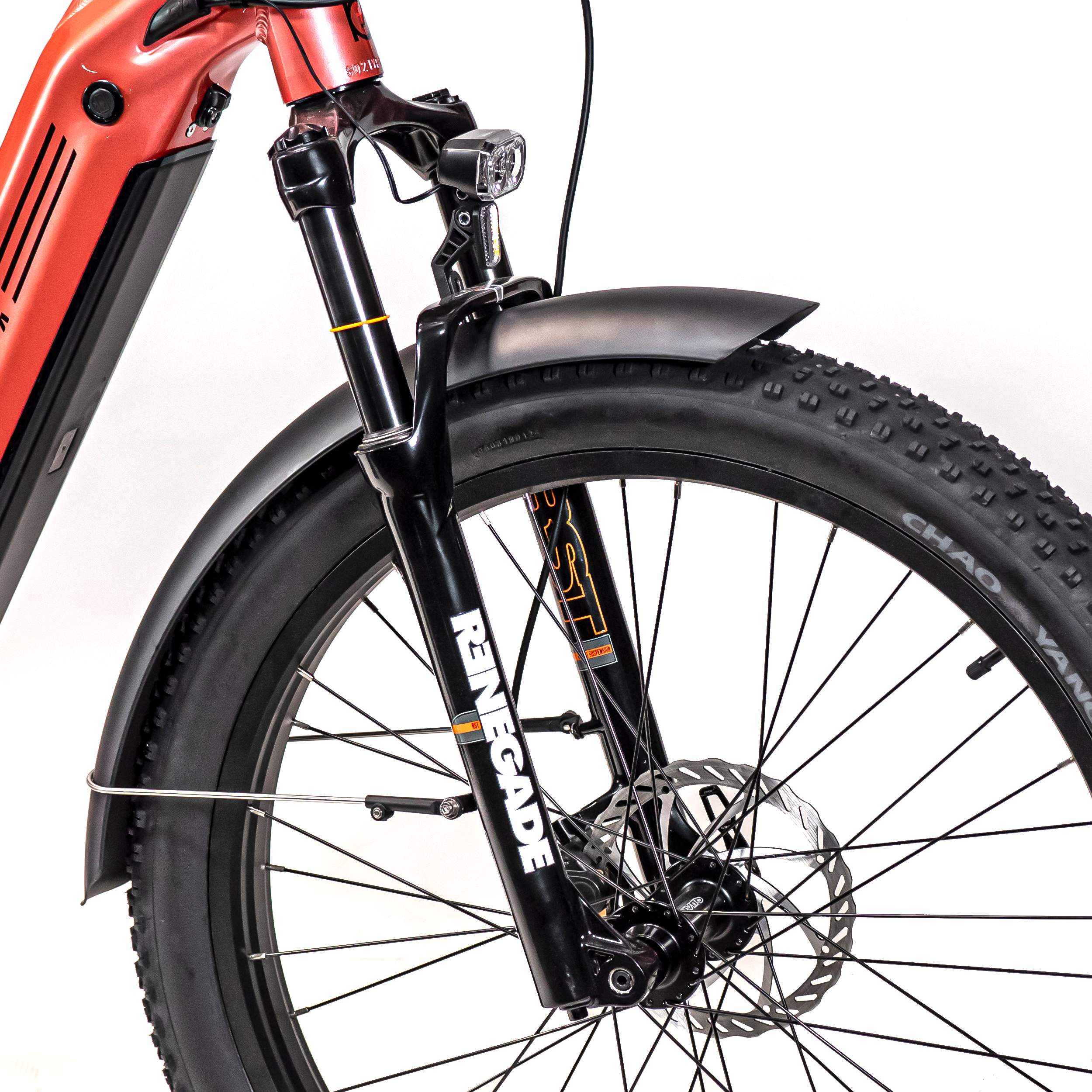

Fork

Rst renegade coil spring w/100mm travel, lockout & preload

Front axle

15mm qr-thru axle

Seat post clamp

Qr

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

190mm 36h

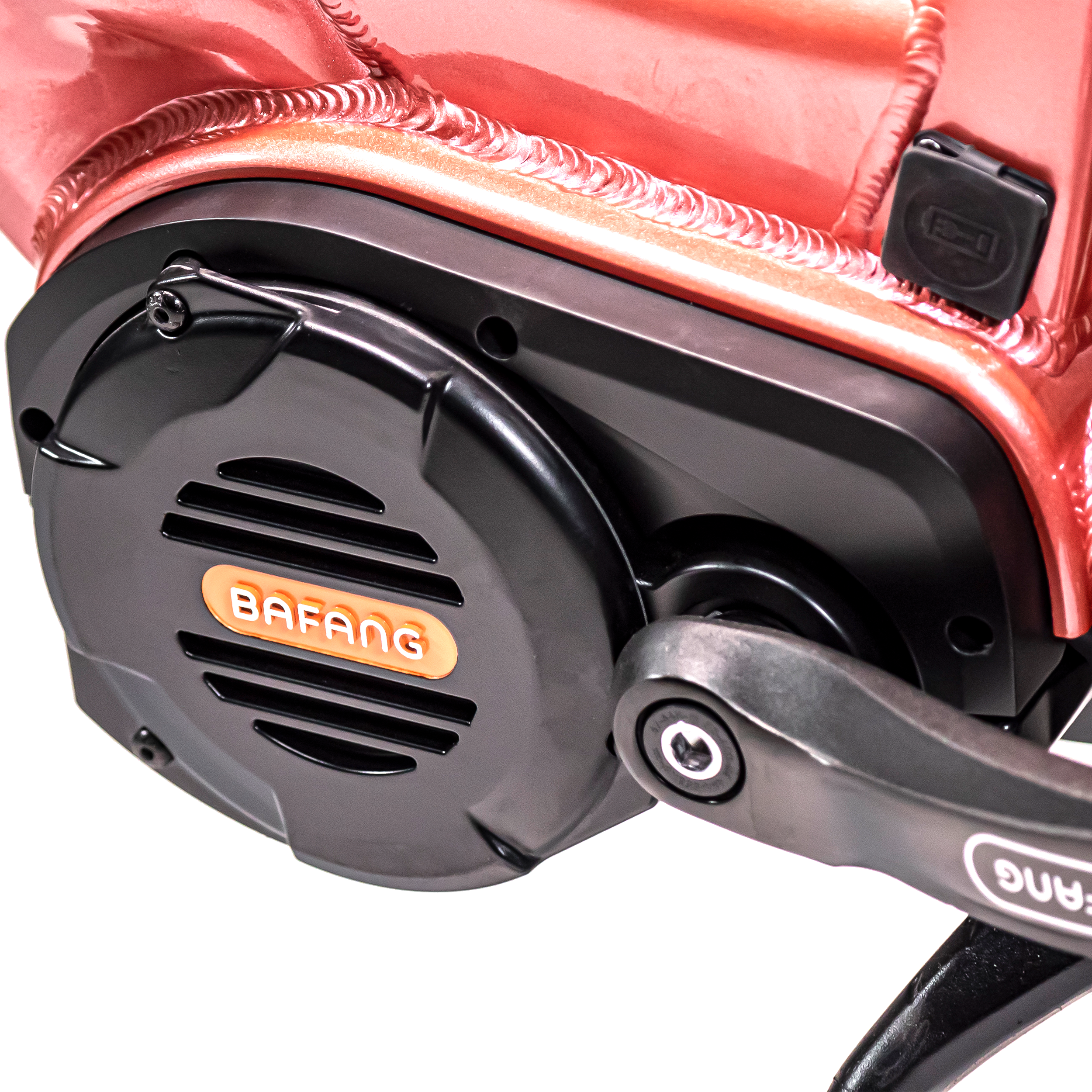

Motor

Bafang m620 ultra

Shifter rear

Sram 11 speed trigger shifter

Rear axle

5mm qr

Battery sizes

Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)

Rear derailleur

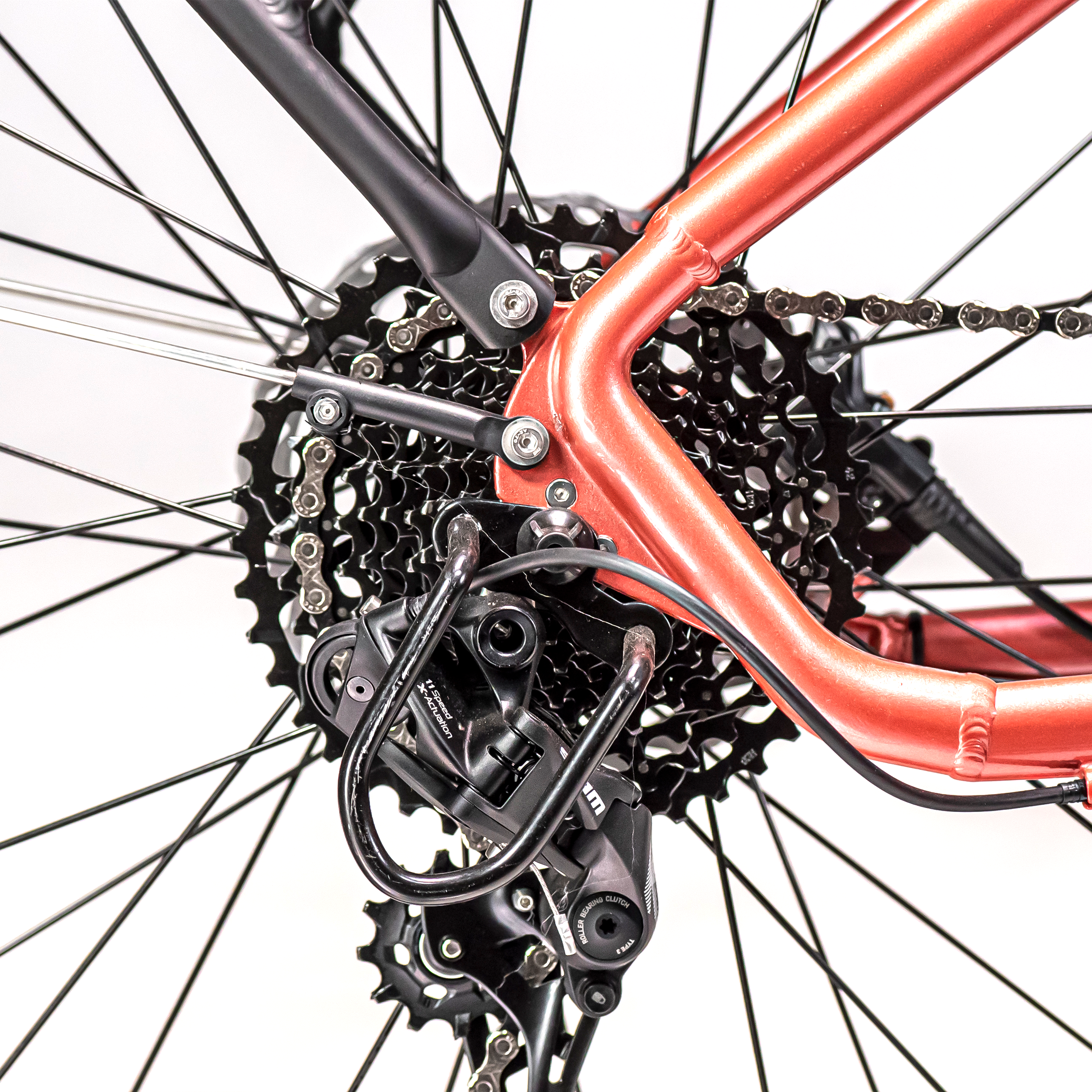

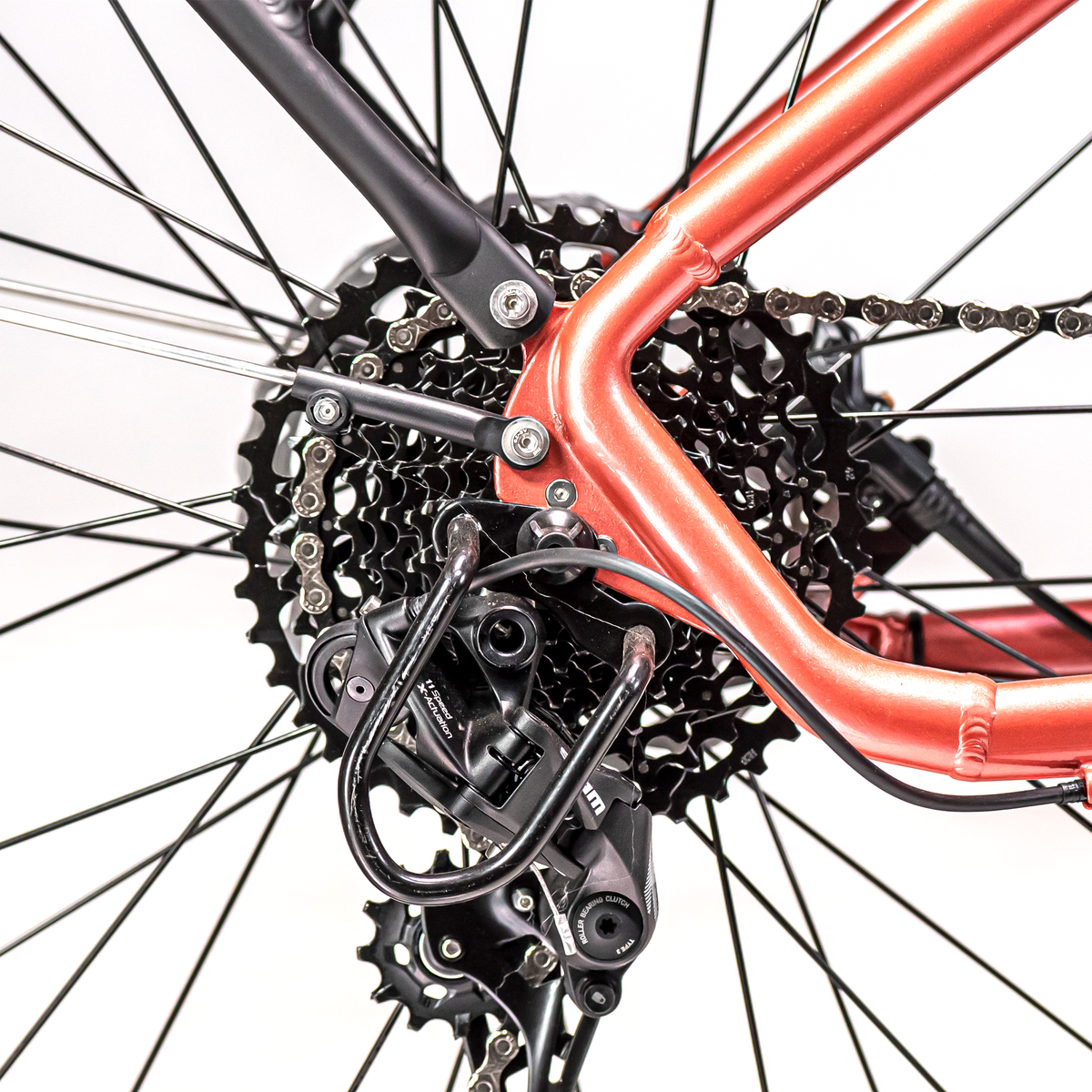

Sram nx 11 speed

Rims

Black 24", 26", 27.5" 36h

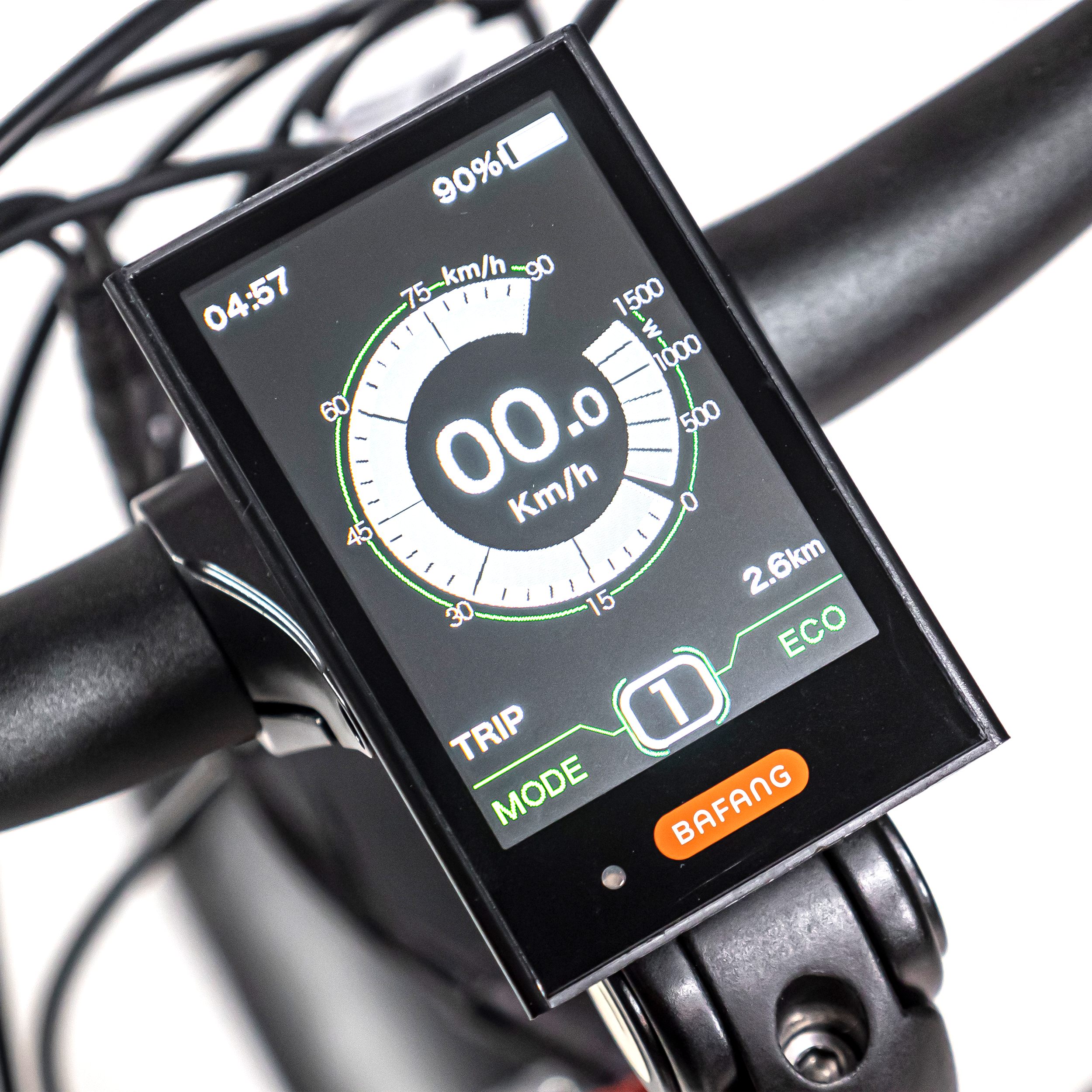

Display

Dpc-18

Cassette

11 speed sram 11-42t cassette

Tire sizes

24x4", 26x4", 27.5x3"

Lights

Integrated headlight, taillight

Chain

Kmc e11s

Handlebar

650mm wide mtb w/30mm rise, 31.8mm clamp

Assist type

Torque + cadence

Crank set

44t 170mm arms

Stem

90mm adjustable

Assist levels

0-5

Bottom bracket

Bafang isis

Grips

Slide-on comfort grips

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic w/ 180mm rotors

Saddle

Biktrix spring supported comfy cruiser

Other

Front and rear metal fenders, rear rack, kickstand

Brake levers

Biktrix w/ adjustable reach and motorcutoffs

Size & Fittings

1	Effective Top Tube Length	540mm	21.3in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	500mm	19.7in
4	Stack	540mm	21.3in
5	Chainstay Length	520mm	20.5in
6	Standover Height	430mm	16.9in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	540mm	21.3in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	50mm	2in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1240mm	48.8in
15	Total Length	2000mm	78.7in
16	Max Seat Height	1000mm	39.4in
17	Min Seat Height	880mm	34.6in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	35kg	77.2lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	580mm	22.8in
4	Stack	490mm	19.3in
5	Chainstay Length	480mm	18.9in
6	Standover Height	450mm	17.7in
7	Head Angle	68°	-
8	Seat Angle	71°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	540mm	21.3in
11	Front Center	710mm	28in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1240mm	48.8in
15	Total Length	1960mm	77.2in
16	Max Seat Height	1000mm	39.4in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1160mm	45.7in
19	Weight (Without Battery)	34kg	75lb
