Please select your color

750W Hub-Drive

Motor Power

70Nm of Torque

Moderate Hills

48V 13Ah 624Wh

est. 60km Range

+5'2"ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

Sain Technologies

ANSI/CAN/UL2849:2020

Pick Your Color

Back

Choose your selected color or press Discard to return.

All Colors Red Orange Yellow Green Blue Violet Brown Grey Black White

Juggernaut Lite

4.4

Sale price CA$2,999

The Juggernaut Lite Step-Thru is a robust and reliable electric bike that is ready for any adventure. With a powerful 750W motor, 6-speed Shimano drivetrain, and dual-piston hydraulic brakes, this bike provides simplicity, power, and reliability with minimal maintenance. The sleek step-thru frame makes it easy to hop on and off, and the removable 48V 13Ah battery and suspension fork add convenience and comfort to your ride. With 70Nm of torque, the 750W rear hub motor allows for effortless exploration of cities and beyond.

Read More

Frame Style Size Guide

Step-Thru

Step-Over

Frame & Wheelset Size Guide

S | 15.5" Frame | 24x4 Fits Riders 5’2” and taller | 28”+ inseam

L | 18” Frame | 26x4 Fits Riders 5’6” and taller | 30”+ inseam

Colour Black

Black

Blue

Green

Red

White

Advanced Options

No

Yes

Packages

Battery

Extra Battery At Discounted Price



Add an additional battery to on a discounted price to give you an extra boost!

No Thanks 48V 13.2Ah 624Wh (up to 40 mi / 60km) - CA$399.00

Upgrades

Seatpost



Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

No Thanks Canecreek Thudbuster ST (Short Travel) - CA$249.00 Canecreek Thudbuster LT (Long travel) - CA$249.00 TranzX Antishock QL Suspension Seatpost - CA$159.00

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"

Headlights



Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

Wired-in Light (100 Lumens) Armageddon Headlight (2000 lumens) - Replaces Wired-in light - CA$249.00

**The price is discounted from the regular price of $300.

What Headlights Should I Choose?

×

The stock headlights on Biktrix eBike's work great and allow the rider to be seen. If you plan on riding after dusk however, we highly recommend upgrading to an Armageddon headlight which turns night into day for riding. This is particularly handy for anyone who commutes in the evenings or rides off road in places not well lit.

Accessories

Limited Offer 2-Bike Hitch Rack



Add a discounted 2-Bike Hitch Rack Carrier to your eBike purchase!

No Thanks 2-Bike Hitch Rack Carrier - 25% Off - CA$399.00

Front Cargo Basket

CA$129

Haul extra cargo and unlock your Biktrix eBike's full versatility with the front basket. Measures 380mm/15" Wide x 285mm/11.25" Long x 125mm/5" Tall

Front Cargo Basket (Large)

CA$169

Haul even more cargo and unlock your Biktrix eBike's full versatility with the front basket. Measures 480mm/19" Wide x 355mm/14" Long x 150mm/6" Tall

Warranty

Protect Your Bike

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Learn More

Standard 2 Year Coverage

Popular BiktrixCare+ 4 Year Coverage

+CA$349

Why BiktrixCare+?

×

Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

2-Year

Standard

Starting at CA$0.00

Standard Warranty that is included for all our eBikes for basic coverage

• Battery & Charger
• Cables, Wiring, Electronic Sensors
• Front and Rear Suspensions
• Motor* & Controller
• Brakes

4-Years

BiktrixCare+

Starting at CA$349.00

The Ultimate coverage for your eBike, for complete peace of mind.

• Everything in Standard
• Refundable**
• eBike Frame
• Transferable

Inclusions

This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

*Motors

BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

**Cancellation & Refund

BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

Learn More About BiktrixCare+

Protect Yourself From Theives

Protect your bike with peace of mind using our latest package. If your eBike gets stolen, we’ll replace it—guaranteeing you’re never left without a ride.

Learn More

CA$300

No thanks, I don't want protection

New Theftcare Protect yourself from theft.

+CA$300

How TheftCare+ Works?

×

The anxiety associated with potentially losing your eBike is daunting. That’s why Biktrix is introducing TheftCare+, our new protection plan that replaces your stolen eBike in the event of theft. For Four years, enjoy worry free protection against Theft and Loss.

---

Submission is easy and only 3 steps!

1. Record proof of theft (you must have secured it via lock)
2. File a police report and give Biktrix access to the report.
3. Report the incident to Biktrix within 7 days of theft (Serial number, proof of purchase, etc.)

---

That’s it! Once our staff have verified relevant information, we’ll replace your bike with the same or with equivalent value.

Variant

Step-Thru / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Black - CA$2,999.00 Step-Thru / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Blue - CA$2,999.00 Step-Thru / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Green - CA$2,999.00 Step-Thru / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Red - CA$2,999.00 Step-Thru / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / White - CA$2,999.00 Step-Thru / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Black - CA$2,999.00 Step-Thru / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Blue - CA$2,999.00 Step-Thru / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Green - CA$2,999.00 Step-Thru / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Red - CA$2,999.00 Step-Thru / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / White - CA$2,999.00 Step-Over / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Black - CA$2,999.00 Step-Over / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Blue - CA$2,999.00 Step-Over / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Green - CA$2,999.00 Step-Over / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / Red - CA$2,999.00 Step-Over / S | 15.5" Frame | 24x4 (Fits Riders 5’2” and taller | 28”+ inseam) / White - CA$2,999.00 Step-Over / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Black - CA$2,999.00 Step-Over / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Blue - CA$2,999.00 Step-Over / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Green - CA$2,999.00 Step-Over / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / Red - CA$2,999.00 Step-Over / L | 18” Frame | 26x4 (Fits Riders 5’6” and taller | 30”+ inseam) / White - CA$2,999.00

Sale price CA$2,999.00

Add to cart

Speak To An Expert

Shipping: Leaves within Late August

Technical Specifications

Technical Specifications

×

Frame 6061 aluminum w/ removable toptube	Front hub 135mm 36h bolt-on
Seat post 30.4mm	Fork Rst guide w/preload, 75mm travel
Front axle Bolt-on	Seat post clamp Qr
Headset Threadless 1-1/2" 1-1/8" tapered	Rear hub Motor
Motor 750w rear hub motor	Shifter rear Shimano 7-speed thumb shifter
Rear axle Bolt-on	Battery sizes 48v 13.2ah 634wh
Rear derailleur Shimano tourney 7-speed	Rims Solid black 36h, 80mm wide
Display Dm01 lcd display	Cassette 14-28t 7 speed freewheel
Tire sizes 24x4 chaoyang (s | 15.5") / 26x4 chaoyang (l | 18")	Lights Integrated headlight, taillight
Chain Kmc 7 speed - 124 links	Handlebar 640mm wide w/31.8mm clamp
Assist type Cadence	Crank set 44t chainring w/ 170mm arms
Stem 90mm solid w/31.8mm clamp	Assist levels 0-5
Bottom bracket Square taper	Grips Slide-on comfort grips
Throttle Thumb throttle	Brakes Biktrix e300 w/180mm rotors
Saddle Plush mtb saddle	Other Front and rear fender, rear rack, kickstand, bell
Brake levers Adjustable w/ integrated brake sensors

Frame 6061 aluminum w/ removable toptube

Front hub 135mm 36h bolt-on

Seat post 30.4mm

Fork Rst guide w/preload, 75mm travel

Front axle Bolt-on

Seat post clamp Qr

Headset Threadless 1-1/2" 1-1/8" tapered

Rear hub Motor

Motor 750w rear hub motor

Shifter rear Shimano 7-speed thumb shifter

Rear axle Bolt-on

Battery sizes 48v 13.2ah 634wh

Rear derailleur Shimano tourney 7-speed

Rims Solid black 36h, 80mm wide

Display Dm01 lcd display

Cassette 14-28t 7 speed freewheel

Tire sizes 24x4 chaoyang (s | 15.5") / 26x4 chaoyang (l | 18")

Lights Integrated headlight, taillight

Chain Kmc 7 speed - 124 links

Handlebar 640mm wide w/31.8mm clamp

Assist type Cadence

Crank set 44t chainring w/ 170mm arms

Stem 90mm solid w/31.8mm clamp

Assist levels 0-5

Bottom bracket Square taper

Grips Slide-on comfort grips

Throttle Thumb throttle

Brakes Biktrix e300 w/180mm rotors

Saddle Plush mtb saddle

Other Front and rear fender, rear rack, kickstand, bell

Brake levers Adjustable w/ integrated brake sensors

Sizing / Fittings

Sizing / Fittings

×

L | 18" Frame

S | 15.5" Frame

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	340mm	13.4in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	550mm	21.7in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	185 mm	7.3 in
10	Fork Length	530mm	20.9in
11	Front Center	685mm	27in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	29kg	63.9lb

1	Effective Top Tube Length	550mm	21.7in
2	Seat Tube Length (Classic Bike Size)	400mm	15.7in
3	Reach	330mm	13in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	540mm	21.3in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	29kg	63.9lb

750W Hub-Drive

Motor Power

70Nm of Torque

Moderate Hills

48V 13Ah 624Wh

est. 60km Range

+5'2"ft / 300lb

Max Load

Cadence Sensor

Powerful Pedal Assist

Sain Technologies

ANSI/CAN/UL2849:2020

Lite but Mighty

The Juggernaut Lite is your efficient, user-friendly, and affordable solution for seamless adventures wherever you want to go!

Designed for Simplicity

Powered by a robust 750W Rear Hub motor that ensures simplicity, power, and reliability with minimal maintenance. Combine that with a 6-Speed Shimano Drivetrain, Dual Piston Hydraulic Brakes, and a sleek step-thru frame, this bike is ready to accompany you on any adventure you envision!

Packing A Punch.

Removable 48V 13Ah Battery

Our removable battery system offers unmatched convenience for re-charging. With the twist of a key, your battery can be brought inside t to charge.

750W Rear Hub Motor

The powerful 750W rear hub motor features 750 watts of power and 70Nm of torque. This allows you to span cities, and explore all the places you want to go with ease.

Suspension Fork

The RST Guide front suspension fork provides 75mm of travel with adjustable preload and a mechanical lockout.

Hydrauic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes combined with 180mm rotors will quickly and reliably bring you to a halt.

Shimano 6 Speed Transmission

From climbing city sloped to holding maximum speed on flats and everything in between, our Shimano 6-speed drivetrain has you covered.

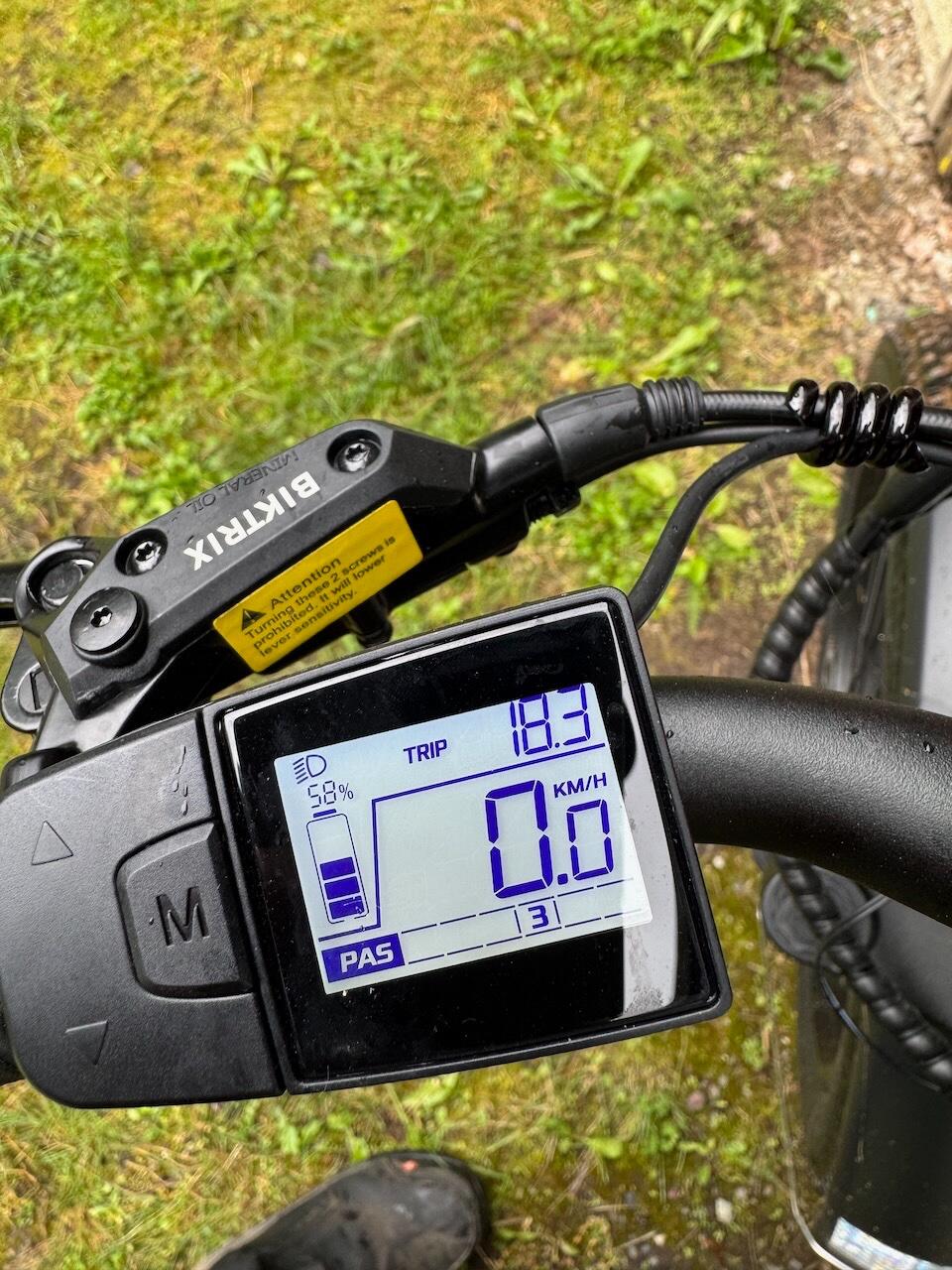

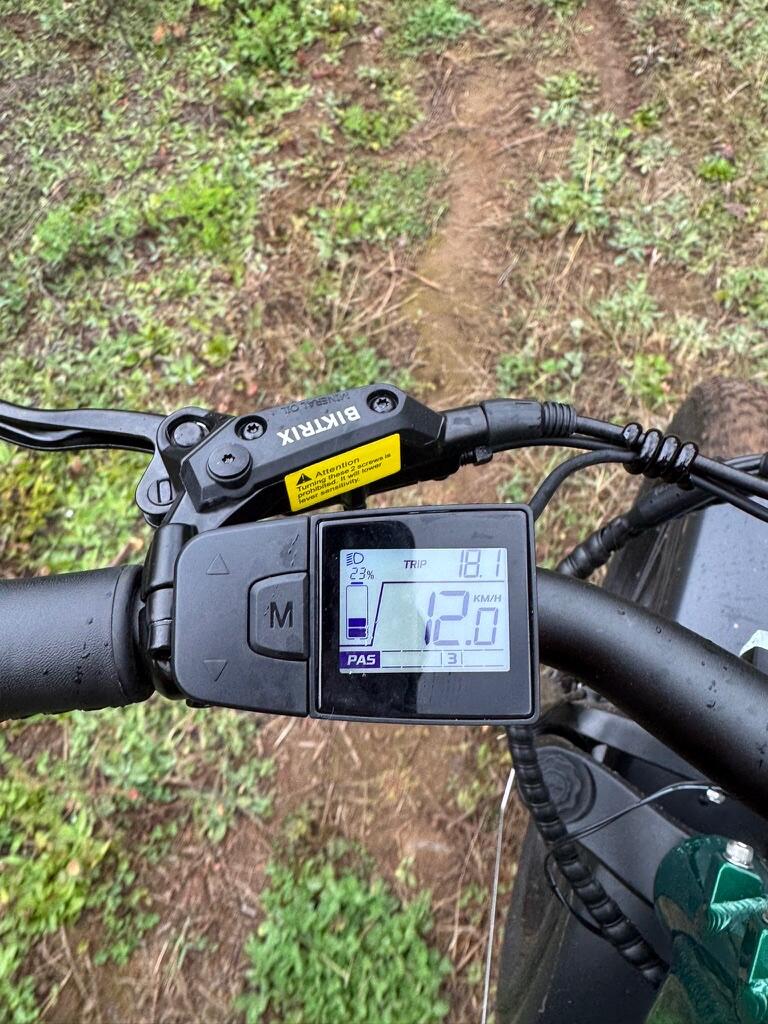

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

Integrated Front Light

This bright LED light is powered by the bike’s battery and can be turned on and off with a button on the handlebar control pad.

Fat Tires

The 26x4” Fat Tires offer unparalleled traction, durability and control - a perfect choce for superor performance on diverse terrain.

SIZE GUIDE

Let's Get You Fitted.

6'0" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get L | 18" for the best fit.
Not sure how to measure properly for your bike?

6'0"

S | 15.5" L | 18"

Gavin - 6'1 Clayton - 5'8 Marg - 5'2

**Gavin measures at 6'1, with an inseam of 33”

Gavin - 6'1 Clayton - 5'8 Marg - 5'2

**Gavin measures at 6'1, with an inseam of 33”

What Frame Will Fit Me?

The best way to ensure a fit is to check this measurement on your existing bike’s normal riding seat position;

If this measurement is equal to or MORE than the minimum seat height of the selected model then the selected frame size will work, however, if it is LESS you need to select a smaller frame.

If you do not have a bike then measure your inseam like this; For most riders, the frame will work if their inseam is at least 2 inches less than the minimum seat height in inches. For example, a rider with an inseam of 28 inches can fit on a bike with a minimum seat height of 30 inches (30 - 2 = 28). If you want to have a flat foot on the ground while on a full stop then your inseam must be equal to or greater than the minimum seat height listed for that frame size. If you are selecting a step-over frame, ensure that the standover height listed is less than your inseam size.



---

When in doubt, pick the smaller frame. You can always raise the seat up higher.

If you need help with this, feel free to send us a note at: www.biktrix.com/cx

Technical Specifications

Frame 6061 aluminum w/ removable toptube	Front hub 135mm 36h bolt-on	Seat post 30.4mm
Fork Rst guide w/preload, 75mm travel	Front axle Bolt-on	Seat post clamp Qr
Headset Threadless 1-1/2" 1-1/8" tapered	Rear hub Motor	Motor 750w rear hub motor
Shifter rear Shimano 7-speed thumb shifter	Rear axle Bolt-on	Battery sizes 48v 13.2ah 634wh
Rear derailleur Shimano tourney 7-speed	Rims Solid black 36h, 80mm wide	Display Dm01 lcd display
Cassette 14-28t 7 speed freewheel	Tire sizes 24x4 chaoyang (s | 15.5") / 26x4 chaoyang (l | 18")	Lights Integrated headlight, taillight
Chain Kmc 7 speed - 124 links	Handlebar 640mm wide w/31.8mm clamp	Assist type Cadence
Crank set 44t chainring w/ 170mm arms	Stem 90mm solid w/31.8mm clamp	Assist levels 0-5
Bottom bracket Square taper	Grips Slide-on comfort grips	Throttle Thumb throttle
Brakes Biktrix e300 w/180mm rotors	Saddle Plush mtb saddle	Other Front and rear fender, rear rack, kickstand, bell
Brake levers Adjustable w/ integrated brake sensors

Frame 6061 aluminum w/ removable toptube	Front hub 135mm 36h bolt-on
Seat post 30.4mm	Fork Rst guide w/preload, 75mm travel
Front axle Bolt-on	Seat post clamp Qr
Headset Threadless 1-1/2" 1-1/8" tapered	Rear hub Motor
Motor 750w rear hub motor	Shifter rear Shimano 7-speed thumb shifter
Rear axle Bolt-on	Battery sizes 48v 13.2ah 634wh
Rear derailleur Shimano tourney 7-speed	Rims Solid black 36h, 80mm wide
Display Dm01 lcd display	Cassette 14-28t 7 speed freewheel
Tire sizes 24x4 chaoyang (s | 15.5") / 26x4 chaoyang (l | 18")	Lights Integrated headlight, taillight
Chain Kmc 7 speed - 124 links	Handlebar 640mm wide w/31.8mm clamp
Assist type Cadence	Crank set 44t chainring w/ 170mm arms
Stem 90mm solid w/31.8mm clamp	Assist levels 0-5
Bottom bracket Square taper	Grips Slide-on comfort grips
Throttle Thumb throttle	Brakes Biktrix e300 w/180mm rotors
Saddle Plush mtb saddle	Other Front and rear fender, rear rack, kickstand, bell
Brake levers Adjustable w/ integrated brake sensors

Frame 6061 aluminum w/ removable toptube

Front hub 135mm 36h bolt-on

Seat post 30.4mm

Fork Rst guide w/preload, 75mm travel

Front axle Bolt-on

Seat post clamp Qr

Headset Threadless 1-1/2" 1-1/8" tapered

Rear hub Motor

Motor 750w rear hub motor

Shifter rear Shimano 7-speed thumb shifter

Rear axle Bolt-on

Battery sizes 48v 13.2ah 634wh

Rear derailleur Shimano tourney 7-speed

Rims Solid black 36h, 80mm wide

Display Dm01 lcd display

Cassette 14-28t 7 speed freewheel

Tire sizes 24x4 chaoyang (s | 15.5") / 26x4 chaoyang (l | 18")

Lights Integrated headlight, taillight

Chain Kmc 7 speed - 124 links

Handlebar 640mm wide w/31.8mm clamp

Assist type Cadence

Crank set 44t chainring w/ 170mm arms

Stem 90mm solid w/31.8mm clamp

Assist levels 0-5

Bottom bracket Square taper

Grips Slide-on comfort grips

Throttle Thumb throttle

Brakes Biktrix e300 w/180mm rotors

Saddle Plush mtb saddle

Other Front and rear fender, rear rack, kickstand, bell

Brake levers Adjustable w/ integrated brake sensors

Size & Fittings

L | 18" Frame

S | 15.5" Frame

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	340mm	13.4in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	550mm	21.7in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	185 mm	7.3 in
10	Fork Length	530mm	20.9in
11	Front Center	685mm	27in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	29kg	63.9lb

1	Effective Top Tube Length	550mm	21.7in
2	Seat Tube Length (Classic Bike Size)	400mm	15.7in
3	Reach	330mm	13in
4	Stack	690mm	27.2in
5	Chainstay Length	500mm	19.7in
6	Standover Height	540mm	21.3in
7	Head Angle	68°	-
8	Seat Angle	72.5°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	530mm	20.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1180mm	46.5in
15	Total Length	1940mm	76.4in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	29kg	63.9lb

FAQ & Guides

• FAQ I just received my eBike, what next?
• FAQ I just assembled my eBike, what next?
• Manual eBike Display Manuals
• Guide Spare Parts Finder
• FAQ Recommended Tire Pressure and Inflation Level
• FAQ eBike Battery Care Guide

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX
