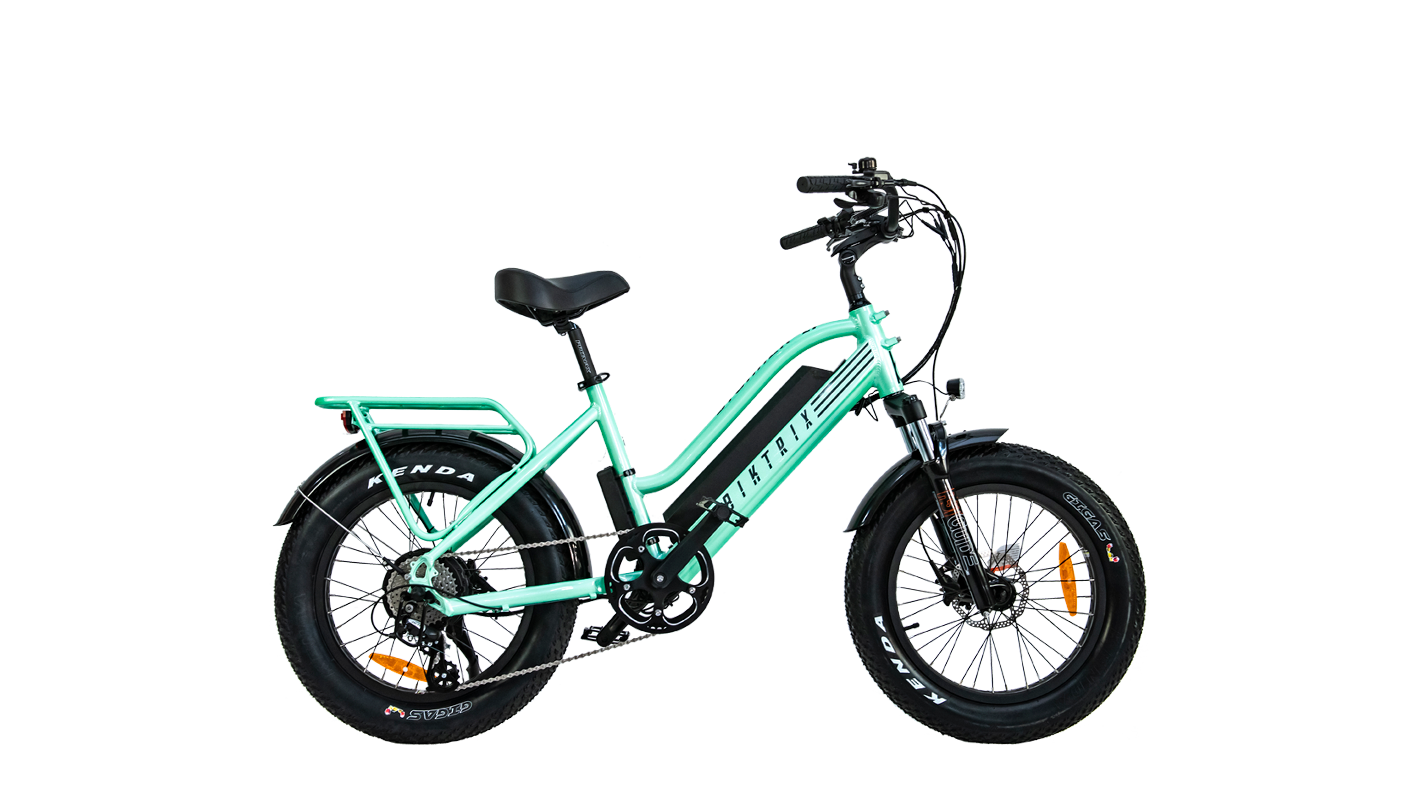

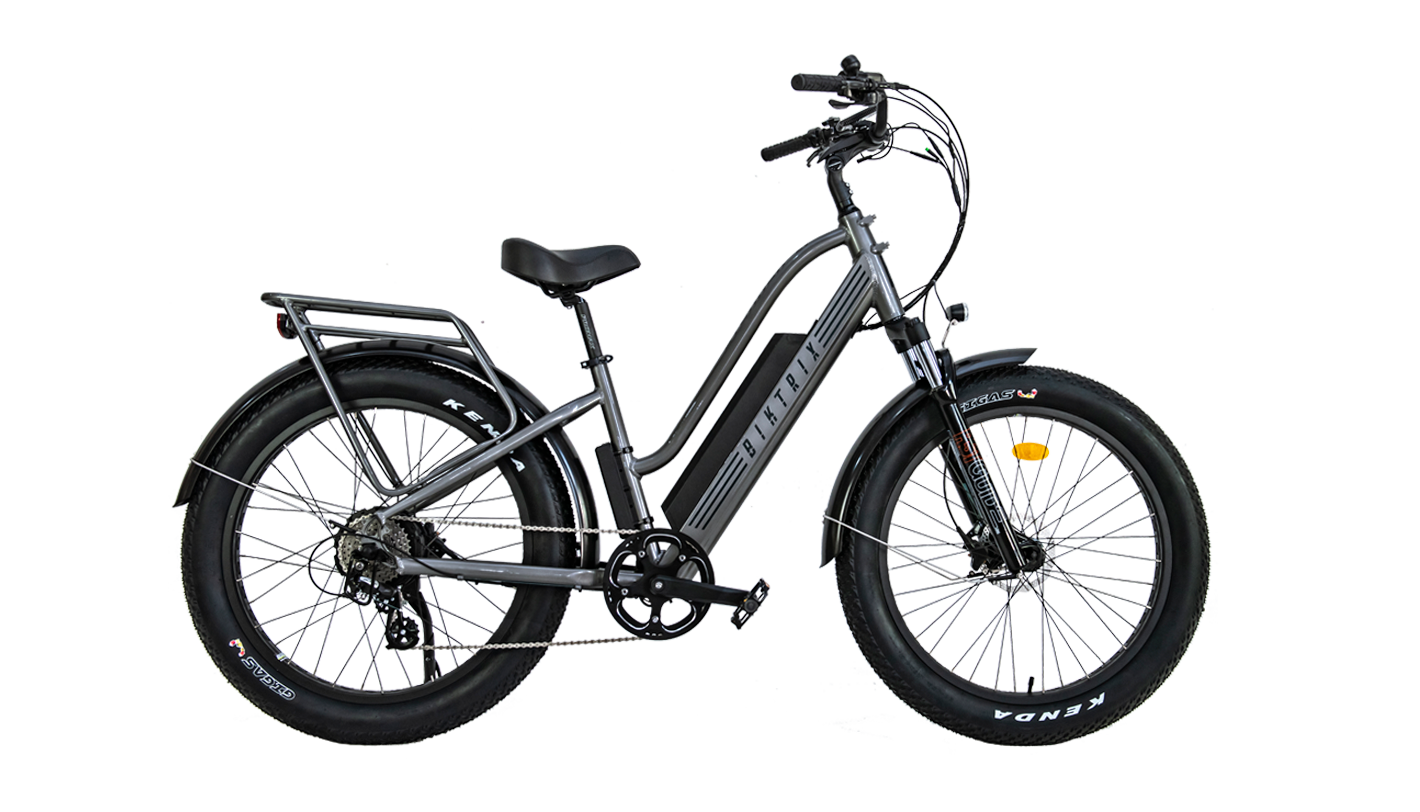

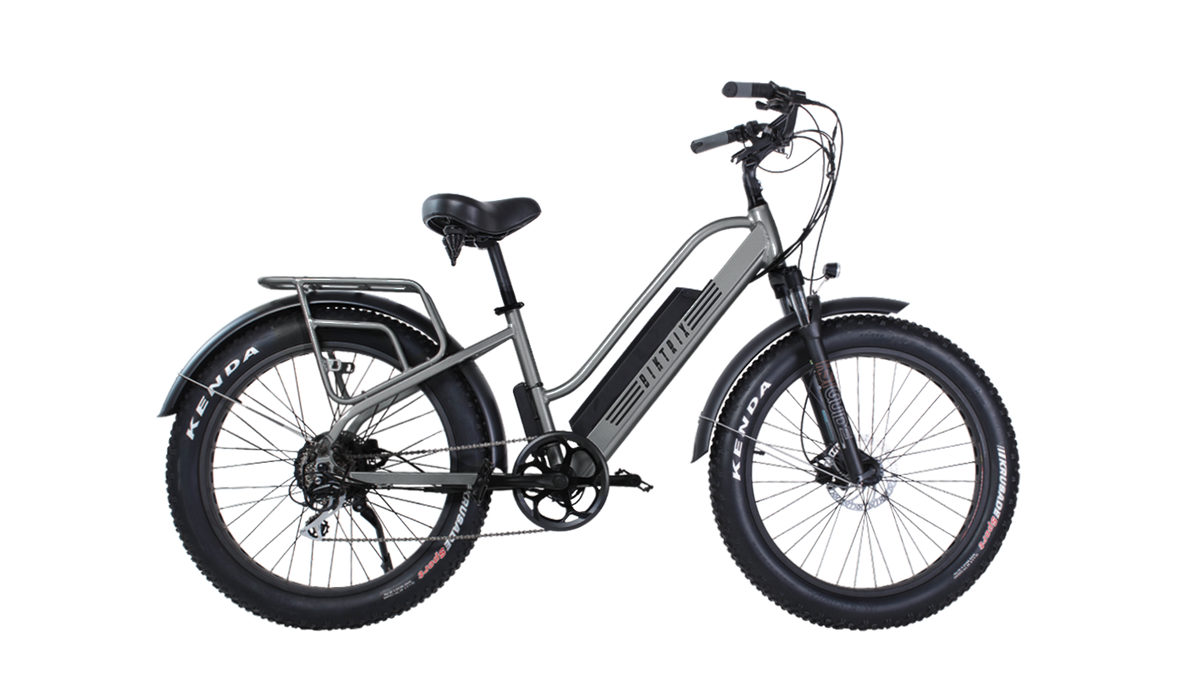

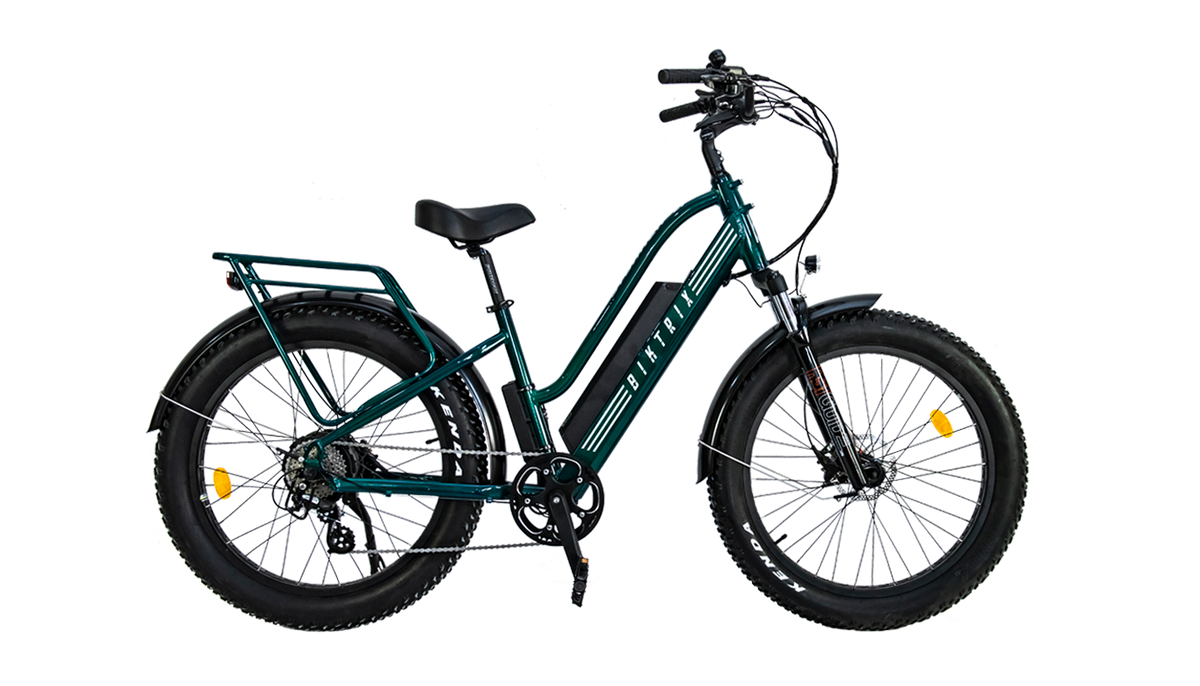

Stunner LT 5

Name: Stunner LT 5
Brand: stunner-lt-details
SKU: STN-LT-204-GL
Availability: OutOfStock
Rating: 4.6 (109 reviews)

4.6

CA$0 CA$3,899

This item has been replaced!

Want the latest version? Check out the Stunner LT 7 and ride in style now!

Buy Stunner LT 7 Today

Technical Specifications

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm	Seat post Aluminum 28.6mm
Fork Rst guide, 75mm travel	Front axle 5mm qr	Seat post clamp 36.5mm qr
Headset Threadless 1-1/8 straight	Rear hub Motor	Motor 750w geared hub
Shifter rear Shimano 8 speed trigger	Rear axle Bolt on	Battery sizes 48v17ah, 48v19ah, 48v21ah, 48v25ah
Rear derailleur Shimano atlus 8 speed	Rims Black 24"- 75mm 36h	Display 800s backlit lcd
Cassette Shimano 11-32t	Tire sizes 20x4", 24x4", 26x4"	Lights Integrated headlight
Chain Kmc z8	Handlebar 25.4mm clamp 50mm riser mid cruiser bars	Assist type Torque
Crank set 170mm 52t	Stem Promax quick adjust	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Ergo slide on	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic disc w/ 160mm	Saddle Cruiser foam sprung	Other Aluminum fenders, color matched rack, adjustable kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm
Seat post Aluminum 28.6mm	Fork Rst guide, 75mm travel
Front axle 5mm qr	Seat post clamp 36.5mm qr
Headset Threadless 1-1/8 straight	Rear hub Motor
Motor 750w geared hub	Shifter rear Shimano 8 speed trigger
Rear axle Bolt on	Battery sizes 48v17ah, 48v19ah, 48v21ah, 48v25ah
Rear derailleur Shimano atlus 8 speed	Rims Black 24"- 75mm 36h
Display 800s backlit lcd	Cassette Shimano 11-32t
Tire sizes 20x4", 24x4", 26x4"	Lights Integrated headlight
Chain Kmc z8	Handlebar 25.4mm clamp 50mm riser mid cruiser bars
Assist type Torque	Crank set 170mm 52t
Stem Promax quick adjust	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Ergo slide on
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic disc w/ 160mm
Saddle Cruiser foam sprung	Other Aluminum fenders, color matched rack, adjustable kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame

6061 aluminum step thru frame w/ rack and fenders

Front hub

Modus 135mm

Seat post

Aluminum 28.6mm

Fork

Rst guide, 75mm travel

Front axle

5mm qr

Seat post clamp

36.5mm qr

Headset

Threadless 1-1/8 straight

Rear hub

Motor

750w geared hub

Shifter rear

Shimano 8 speed trigger

Rear axle

Bolt on

Battery sizes

48v17ah, 48v19ah, 48v21ah, 48v25ah

Rear derailleur

Shimano atlus 8 speed

Rims

Black 24"- 75mm 36h

Display

800s backlit lcd

Cassette

Shimano 11-32t

Tire sizes

20x4", 24x4", 26x4"

Lights

Integrated headlight

Chain

Kmc z8

Handlebar

25.4mm clamp 50mm riser mid cruiser bars

Assist type

Torque

Crank set

170mm 52t

Stem

Promax quick adjust

Assist levels

0-5

Bottom bracket

100mm square taper

Grips

Ergo slide on

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic disc w/ 160mm

Saddle

Cruiser foam sprung

Other

Aluminum fenders, color matched rack, adjustable kickstand

Brake levers

Biktrix w/ adjustable reach and motorcutoffs

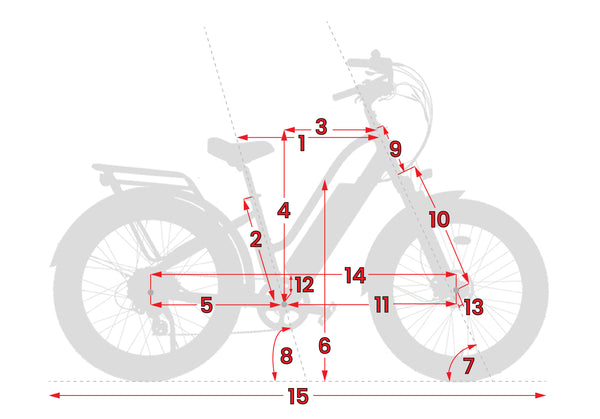

Size & Fittings

1	Effective Top Tube Length	575mm	22.6in
2	Seat Tube Length (Classic Bike Size)	380mm	15in
3	Reach	380mm	15in
4	Stack	480mm	18.9in
5	Chainstay Length	440mm	17.3in
6	Standover Height	525mm	20.7in
7	Head Angle	68°	-
8	Seat Angle	70°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	440mm	17.3in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	0mm	0in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1680mm	66.1in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	810mm	31.9in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	25.5kg	56.2lb

1	Effective Top Tube Length	600mm	23.6in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	470mm	18.5in
4	Stack	680mm	26.8in
5	Chainstay Length	480mm	18.9in
6	Standover Height	535mm	21.1in
7	Head Angle	62°	-
8	Seat Angle	66°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	530mm	20.9in
11	Front Center	715mm	28.1in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	45mm	1.8in
14	Wheelbase	1170mm	46.1in
15	Total Length	1830mm	72in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1200mm	47.2in
19	Weight (Without Battery)	28.1kg	61.9lb

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	450mm	17.7in
3	Reach	460mm	18.1in
4	Stack	700mm	27.6in
5	Chainstay Length	530mm	20.9in
6	Standover Height	535mm	21.1in
7	Head Angle	60°	-
8	Seat Angle	72°	-
9	Head Tube Length	225 mm	8.9 in
10	Fork Length	530mm	20.9in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1240mm	48.8in
15	Total Length	1970mm	77.6in
16	Max Seat Height	1040mm	40.9in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1270mm	50in
19	Weight (Without Battery)	29.9kg	65.9lb
