Technical Specifications
Frame6061 aluminum step over frame |
Front hubModus 100mm |
Seat postAluminum 28.6mm |
ForkSr suntor nex, 60mm travel |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 straight |
Rear hubSturmey archer 5 speed integrated |

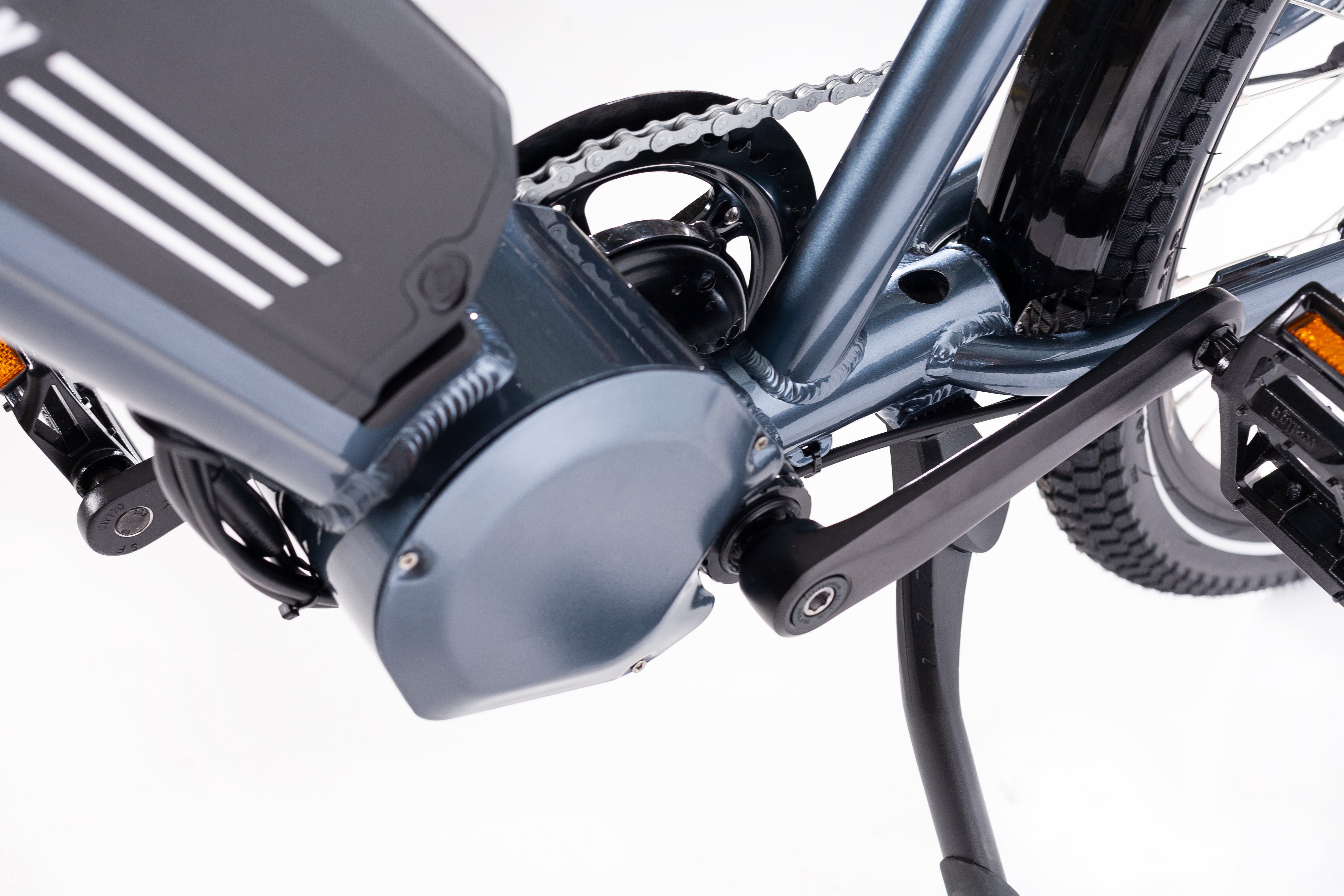

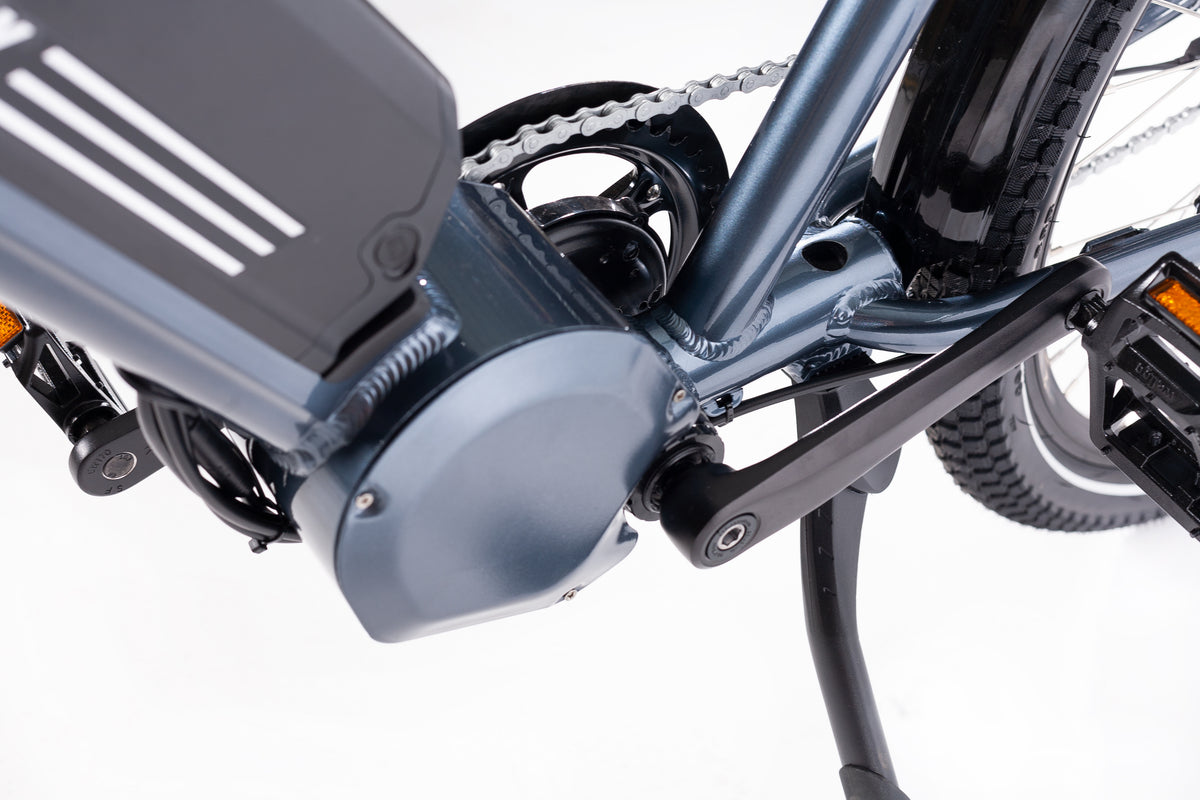

Motor750w bbs02 mid-drive |

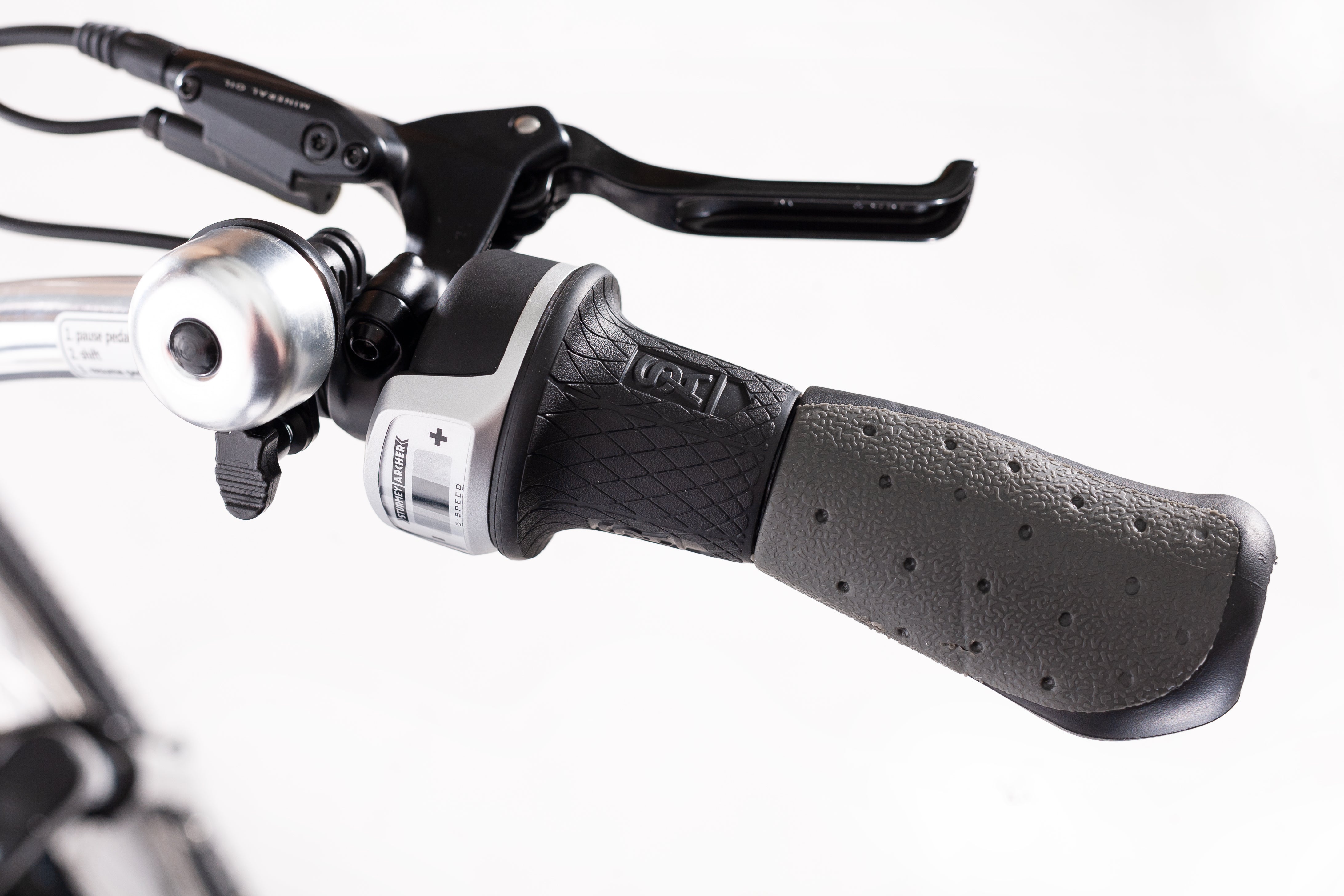

Shifter rearSturmey archer 5 speed |
Rear axleBolt on |
Battery sizes48v 17ah 816wh, 48v 21ah 1008wh, 48v 25ah 1200wh, 52v17.5ah 910wh |
RimsBlack 26"- 25mm 36h |

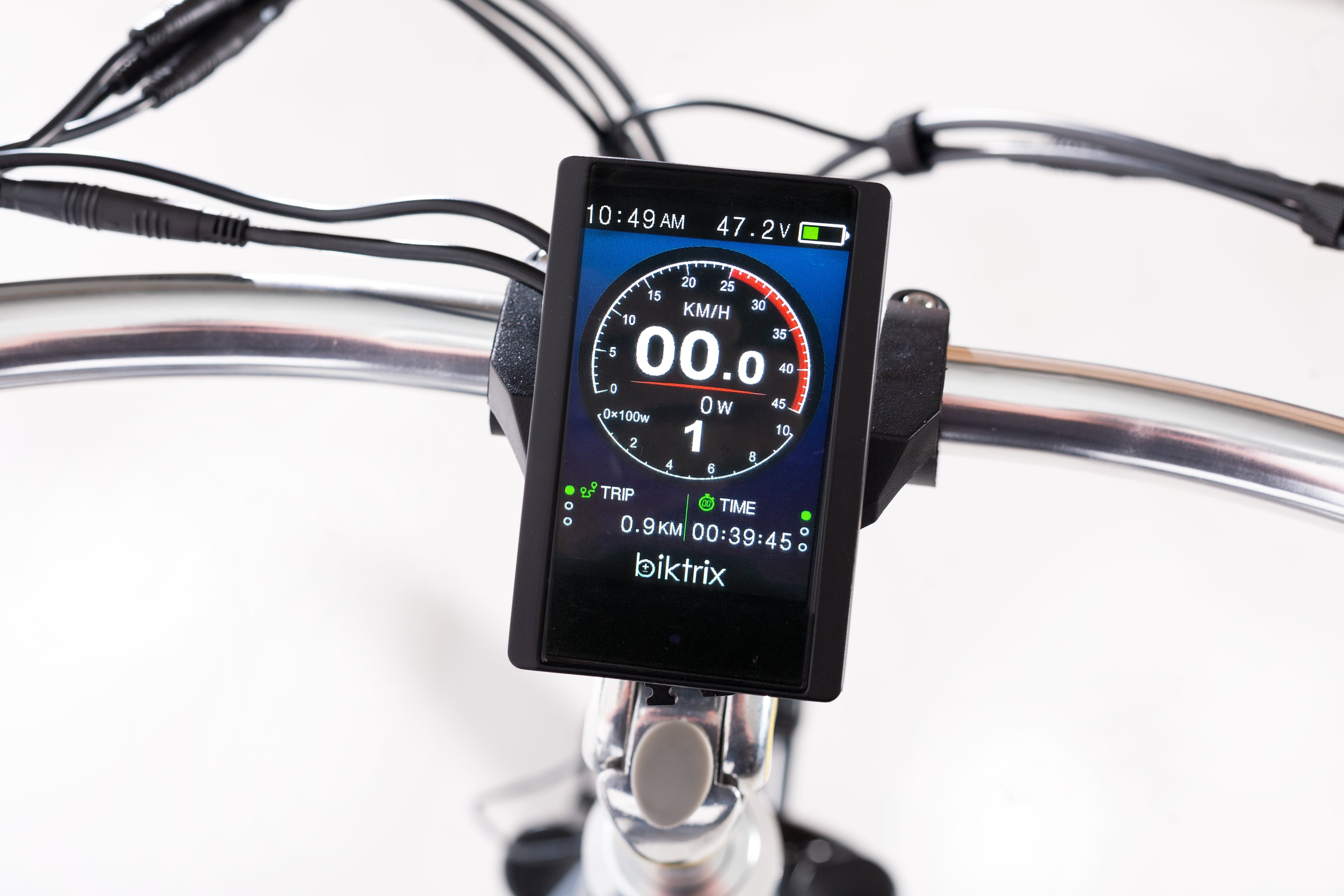

DisplayDpc-14 / 850c backlit lcd |
Tire sizesKenda k-rad 2.3" |
LightsIntegrated headlight, battery taillight |
ChainKmc s1 |
Handlebar25.4mm clamp 50mm riser cruiser bars, 700mm wide |
Assist typeCadence |

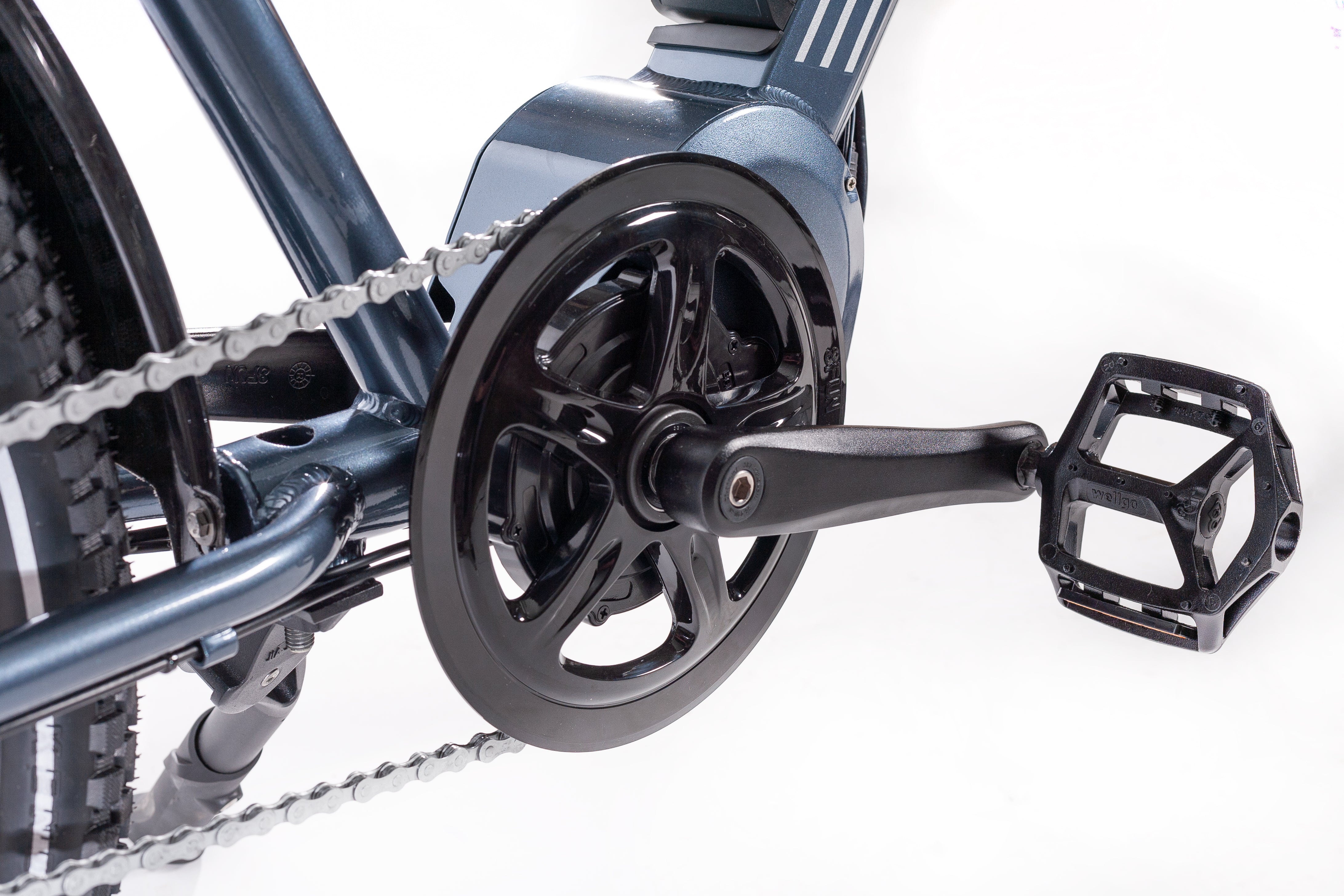

Crank set170mm 44t |
StemPromax adjustable quill |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |

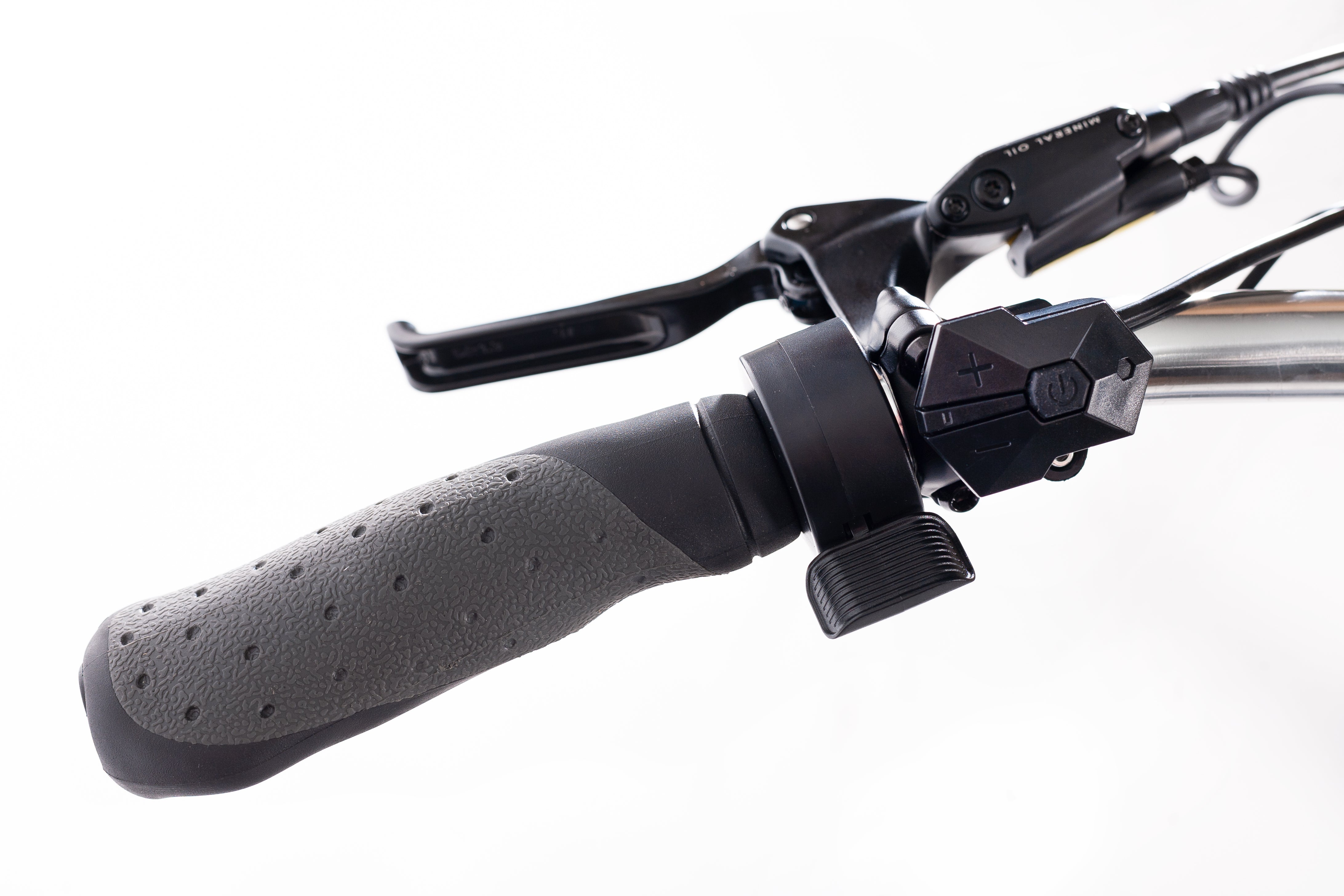

GripsErgo slide on |
ThrottleThumb throttle |

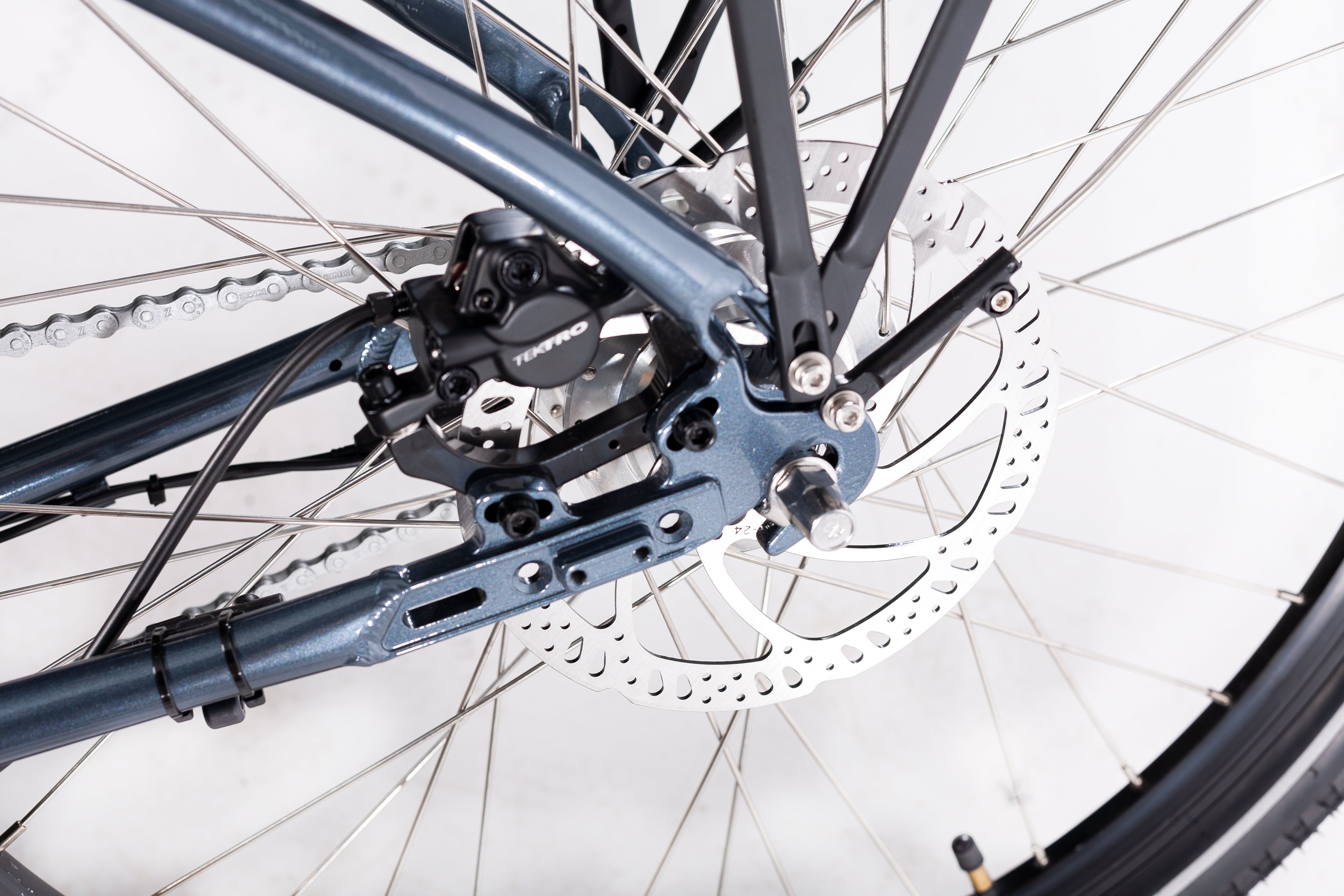

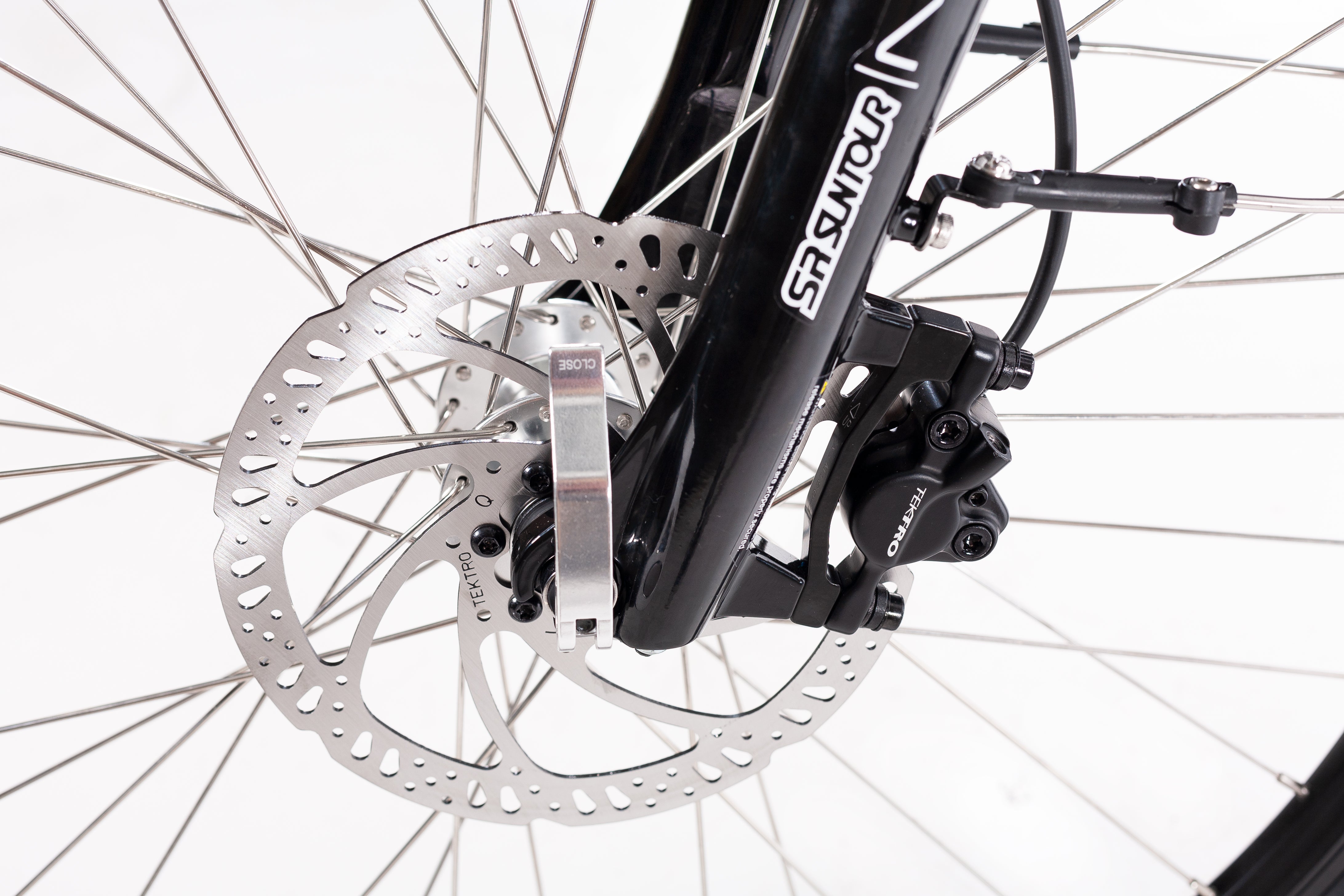

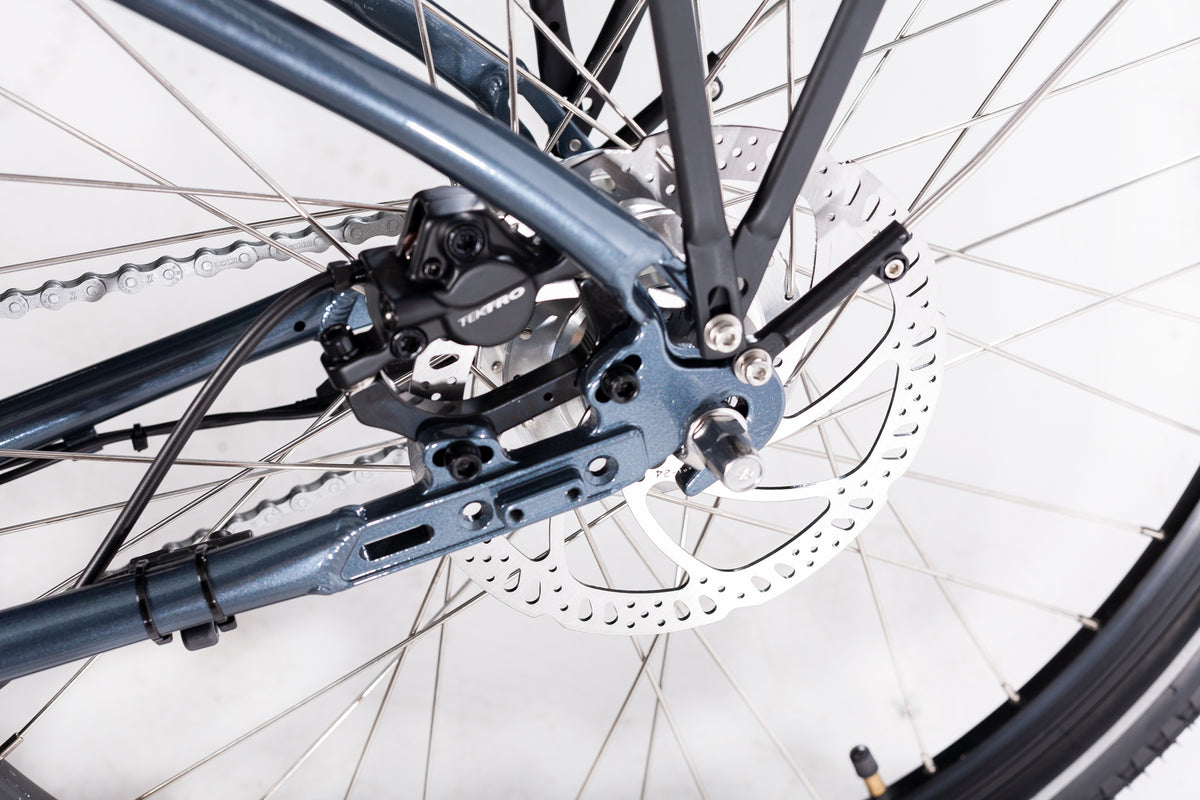

BrakesBiktrix dual piston hydraulic w/160mm rotors |
SaddleWide cruiser |
OtherPlastic fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |
Frame6061 aluminum step over frame |
Front hubModus 100mm |
Seat postAluminum 28.6mm |
ForkSr suntor nex, 60mm travel |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 straight |
Rear hubSturmey archer 5 speed integrated |
Motor750w bbs02 mid-drive |
Shifter rearSturmey archer 5 speed |
Rear axleBolt on |
Battery sizes48v 17ah 816wh, 48v 21ah 1008wh, 48v 25ah 1200wh, 52v17.5ah 910wh |
RimsBlack 26"- 25mm 36h |
DisplayDpc-14 / 850c backlit lcd |
Tire sizesKenda k-rad 2.3" |
LightsIntegrated headlight, battery taillight |
ChainKmc s1 |
Handlebar25.4mm clamp 50mm riser cruiser bars, 700mm wide |
Assist typeCadence |
Crank set170mm 44t |
StemPromax adjustable quill |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |
GripsErgo slide on |
ThrottleThumb throttle |
BrakesBiktrix dual piston hydraulic w/160mm rotors |
SaddleWide cruiser |
OtherPlastic fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |

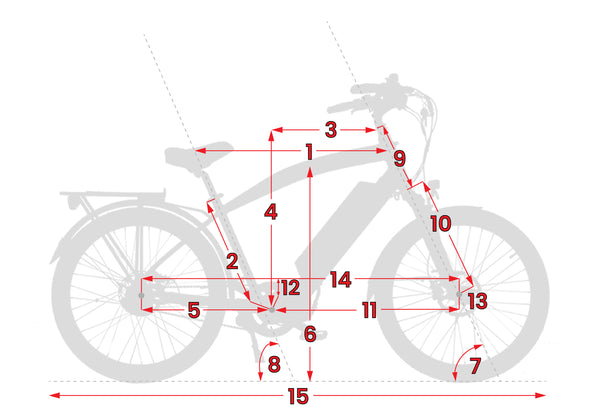

Size & Fittings
1 | Effective Top Tube Length |
720mm | 28.3in |
2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
3 |
Reach |
450mm | 17.7in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
510mm | 20.1in |
6 |
Standover Height |
720mm | 28.3in |
7 |
Head Angle |
68° | - |
8 |
Seat Angle |
67° | - |
9 |
Head Tube Length |
220 mm | 8.7 in |
10 |
Fork Length |
455mm | 17.9in |
11 |
Front Center |
640mm | 25.2in |
12 |
BB (Bottom Bracket) Drop |
45mm | 1.8in |
13 |
Fork Offset |
25mm | 1in |
14 |
Wheelbase |
1235mm | 48.6in |
15 |
Total Length |
1935mm | 76.2in |
16 |
Max Seat Height |
965mm | 38in |
17 |
Min Seat Height |
812mm | 32in |
18 |
Handlebar Height |
1150mm | 45.3in |
19 |
Weight (Without Battery) |
27kg | 59.5lb |
