Juggernaut Hub Duo Step-Thru

Sale priceC$2,899.00
Ships in 6-7 business days
Pearl White
Estimated to be shipped in 6-7 business days

The Duo series. ebikes for everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

simple. capable. affordable.

The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

bells & whistles? you bet.

750W Hub Motor

The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.

Optional Range Extender

Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.

Suspension Fork

The RST Guide fork provides 80mm of travelwith pre-load, lockout, and rebound adjustability


From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

Rear Light

The bright red rear light helps you ride with more confidence at night.

Technical Specifications

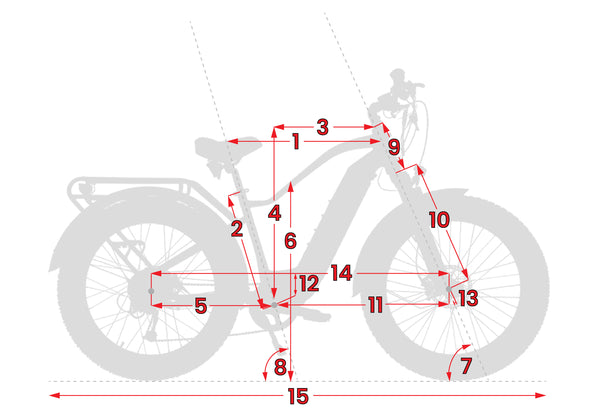

Size & Fittings

1 Effective Top Tube Length 580mm 22.8in
2 Seat Tube Length (Classic Bike Size) 420mm 16.5in
3 Reach 420mm 16.5in
4 Stack 460mm 18.1in
5 Chainstay Length 490mm 19.3in
6 Standover Height 450mm 17.7in
7 Head Angle 66° -
8 Seat Angle 72° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 450mm 17.7in
11 Front Center 730mm 28.7in
12 BB (Bottom Bracket) Drop 60mm 2.4in
13 Fork Offset 30mm 1.2in
14 Wheelbase 1200mm 47.2in
15 Total Length 1900mm 74.8in
16 Max Seat Height 970mm 38.2in
17 Min Seat Height 800mm 31.5in
18 Handlebar Height 1120mm 44.1in
19 Weight (Without Battery) 28kg 61.7lb
1 Effective Top Tube Length 580mm 22.8in
2 Seat Tube Length (Classic Bike Size) 470mm 18.5in
3 Reach 420mm 16.5in
4 Stack 670mm 26.4in
5 Chainstay Length 520mm 20.5in
6 Standover Height 460mm 18.1in
7 Head Angle 66° -
8 Seat Angle 72° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 530mm 20.9in
11 Front Center 730mm 28.7in
12 BB (Bottom Bracket) Drop 60mm 2.4in
13 Fork Offset 30mm 1.2in
14 Wheelbase 1220mm 48in
15 Total Length 1960mm 77.2in
16 Max Seat Height 1030mm 40.6in
17 Min Seat Height 870mm 34.3in
18 Handlebar Height 1150mm 45.3in
19 Weight (Without Battery) 28.1kg 61.9lb

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

Customer Reviews

Based on 80 reviews
Gary J Brown
Juggernaut review

Overall, I was pleased with the purchase, and I am enjoying the bike. My feedback / concerns are- no owner's manual came with the bike, the display module is not what I expected, wobble in front wheel, generic YouTube searches required (minus owner's manual) to answer questions and trouble shoot. Detail: If you buy a cheap power tool you get a owner's manual. This $3,600 bike came with nothing. Thus, no instruction on battery use (e.g. use of power button on reserve battery) I did find on Biktrix youtube vid about the batteries -but no mention of when to use the power button when fully charged and installed on the bike; also, no trouble shooting guide for subjects such as wheel wobble and etc.; no parts list / schematic. The display module is nothing like what I saw on the ordering web page and was expecting. In addition, the supplied module installed from Biktrix was installed upside down -why because it doesn't fit the handle bar design. To make use, I have it wedged on the bar and hope that it stays put while riding. In short, it has taken some time to sort out issues. Not a big deal, but not what I expected.

Excellent e-bike

We ordered an E bike from Biktrix after a visit to the Vancouver Biktrix store. Dillon answered all our questions about e bikes and after test riding the juggernaut hub duo we decided to order one. Two weeks later after having so much fun and seeing the quality of the bike we decided to order a second juggernaut hub duo so we can ride together. We are really enjoying our bikes and have yet to have any issues after a few weeks of riding. My husband and I would recommend anyone buying an electric bike to strongly consider a Biktrix E bike. Thanks to Dillon and Biktrix

this bike has exceeded all my expectations

ok, I'm neither young nor svelte. despite pulling off a 300km walk this year I decided to say farewell to my cool kid N^%#O city bike as I'm moved out to a rural area with lots of trails ranging from grassy game trails to crushed rock to pit run gravel roads and paved walkways close to my house. --I wanted a bike that would give me some exercise and allow me to do some off road exploring. I've had the hub duo stepover for about 6 weeks now and I remain quite astounded. it's heavy for sure and you need some adjustment time with the weight-- but once you get used to it it is remarkable. I'm regularly doing a 25-30 km route of bush, road, small hills and one BIG hill out of the river valley. each time I'm using maybe 25% of the charge--maybe. it's capable of faster than I want to go and I've responded by upgrading my helmet. I'd not hesitate for a moment at a 75km ride. I test drove a bunch and value wise the juggernaut just stands way out. --probably $1K less than comparable bikes I looked at . I've had no quality concerns whatsoever. This bike is just a mess of fun too. Occasionally accellerating uphill using the throttle is a hoot

gerret durland
great bike

I have about 160 miles on the bike after a few weeks, all dirt roads, and the bike is everything I need.I like the torque sensor a lot, 27.5 x 3 tires are perfect for me, wish the display screen was a bit larger but good enough, and will eventually put on a twist throttle that I had on a previous, non Bixtrix bike. All in all great bike. I thoroughly studied all bikes in this price range and and happy I got this one!

Lars Rogers
Awesome Bike

We have had our bikes for a few weeks now!! Great addition!! The assist allows my wife and I to ride together at the same speed for long distances. The fat tires handle grass and gravel well for when I have to go off road to check fence and cattle. The front rack is great!! Lots of power for climbing the big hills, even on grass!!! One design flaw, the front light mount hits the bottom of the basket due to the shock travel. If you don't remount it and relocate it, you will break the front light mount like I did!! Biketrix may want to move the front light mount or issue a warning if you are adding a front basket.
