Motor Power
Extreme Hills
est. 100km Range
Max Load
Powerful Pedal Assist
ANSI/CAN/ULC/UL2271:2018
| 1 | Effective Top Tube Length |
640mm | 25.2in |
| 2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
660mm | 26in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
400mm | 15.7in |
| 7 |
Head Angle |
68° | - |
| 8 |
Seat Angle |
71° | - |
| 9 |
Head Tube Length |
140 mm | 5.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
720mm | 28.3in |
| 12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1230mm | 48.4in |
| 15 |
Total Length |
1980mm | 78in |
| 16 |
Max Seat Height |
950mm | 37.4in |
| 17 |
Min Seat Height |
770mm | 30.3in |
| 18 |
Handlebar Height |
1090mm | 42.9in |
| 19 |
Weight (Without Battery) |
31.3kg | 69lb |
| 1 | Effective Top Tube Length |
640mm | 25.2in |
| 2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
510mm | 20.1in |
| 4 |
Stack |
600mm | 23.6in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
420mm | 16.5in |
| 7 |
Head Angle |
68° | - |
| 8 |
Seat Angle |
71° | - |
| 9 |
Head Tube Length |
140 mm | 5.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
760mm | 29.9in |
| 12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1280mm | 50.4in |
| 15 |
Total Length |
2000mm | 78.7in |
| 16 |
Max Seat Height |
1010mm | 39.8in |
| 17 |
Min Seat Height |
840mm | 33.1in |
| 18 |
Handlebar Height |
1140mm | 44.9in |
| 19 |
Weight (Without Battery) |
32.5kg | 71.7lb |
Motor Power
Extreme Hills
est. 100km Range
Max Load
Powerful Pedal Assist
ANSI/CAN/ULC/UL2271:2018
Electric Bike Report
Ebike Escape
Electric Vehicles Space
The Juggernaut Classic Duo surpasses the competition with its unparalleled durability, superior performance, and timeless design, making it the ultimate choice for enthusiasts seeking an unbeatable riding experience.
Starting at CA$2,999.00
Starting at CA$2,499.00
Starting at CA$7,799.95
The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.
Watch this video to see how The 3 Duo models stack up.

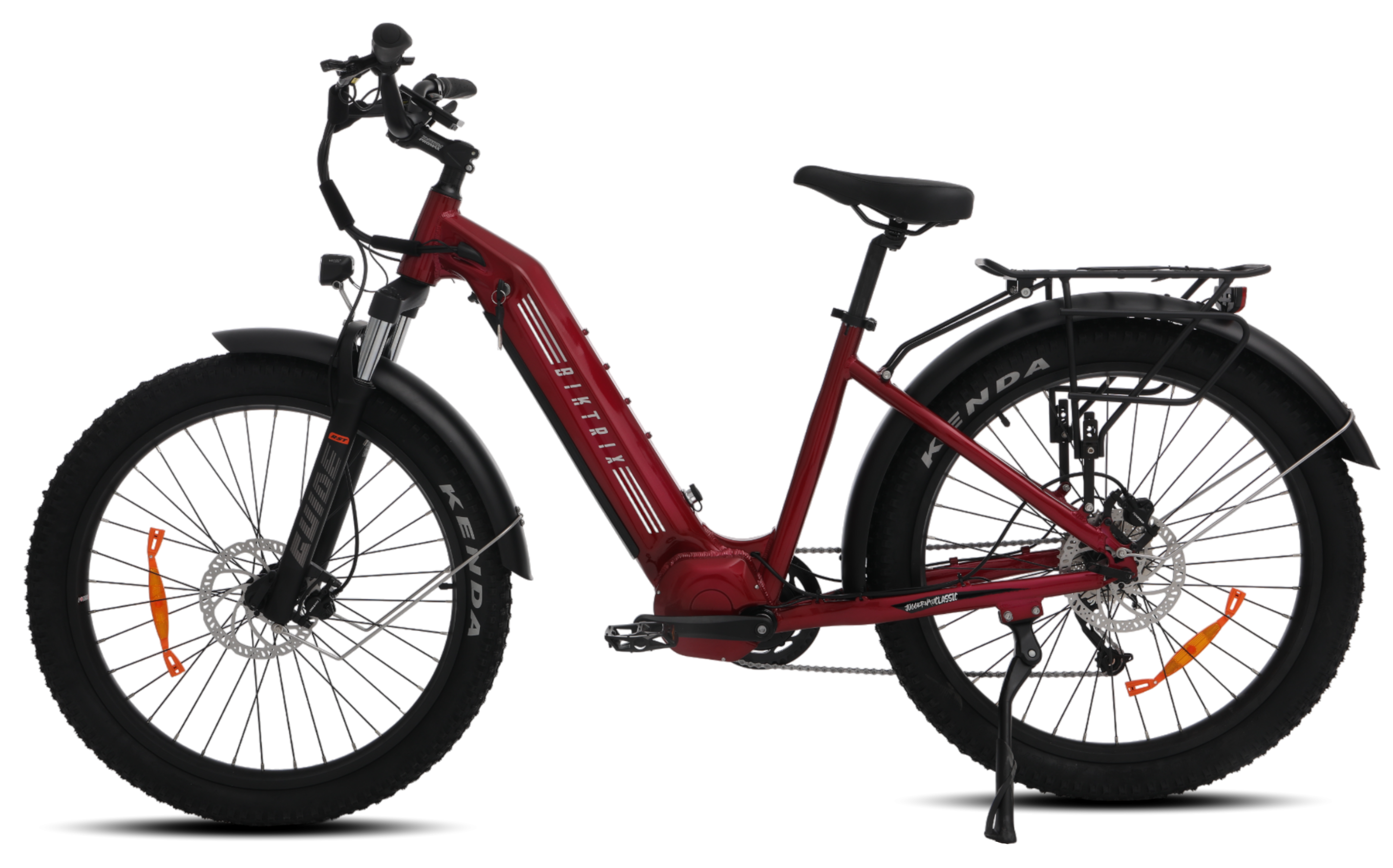

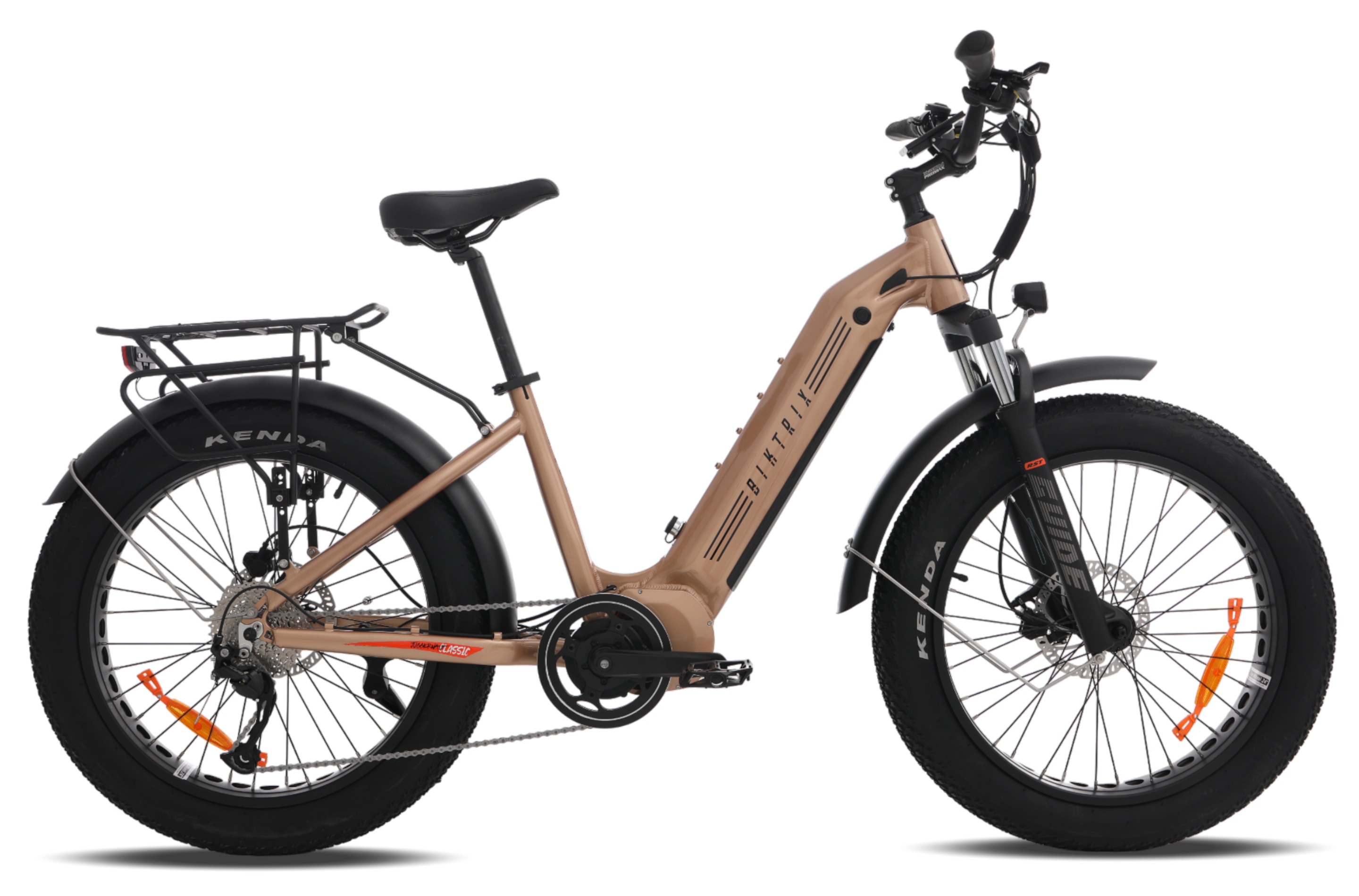

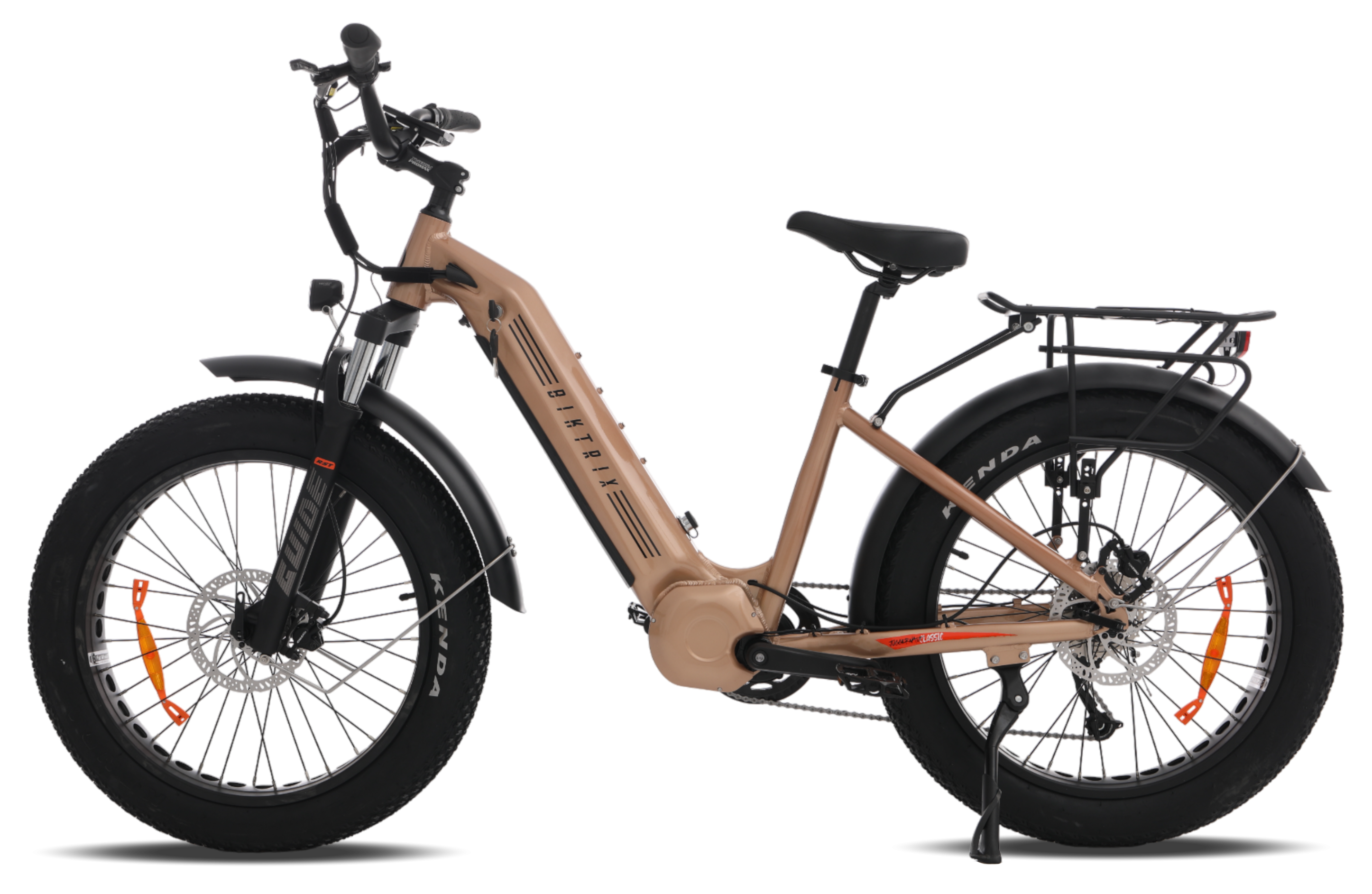

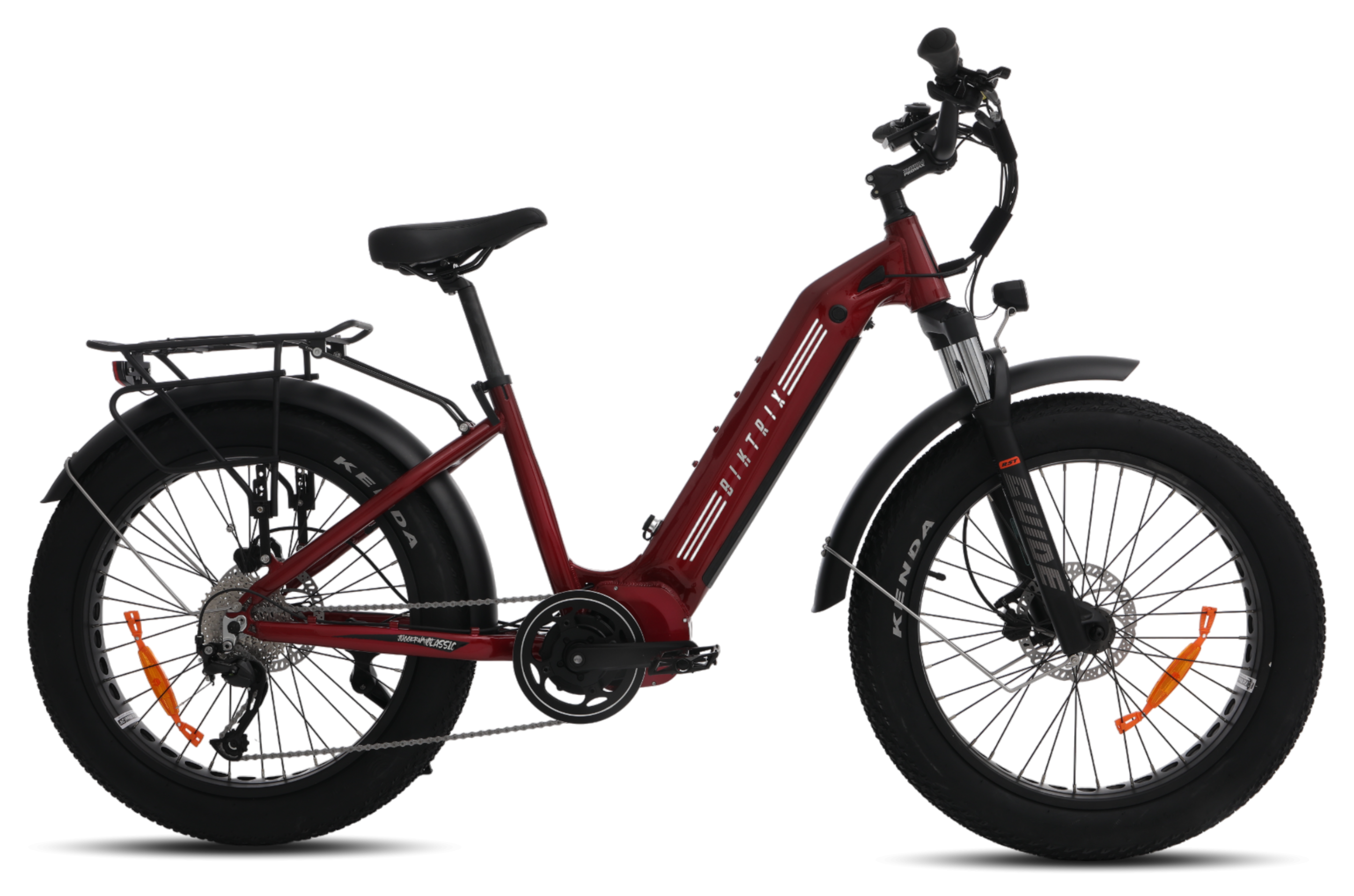

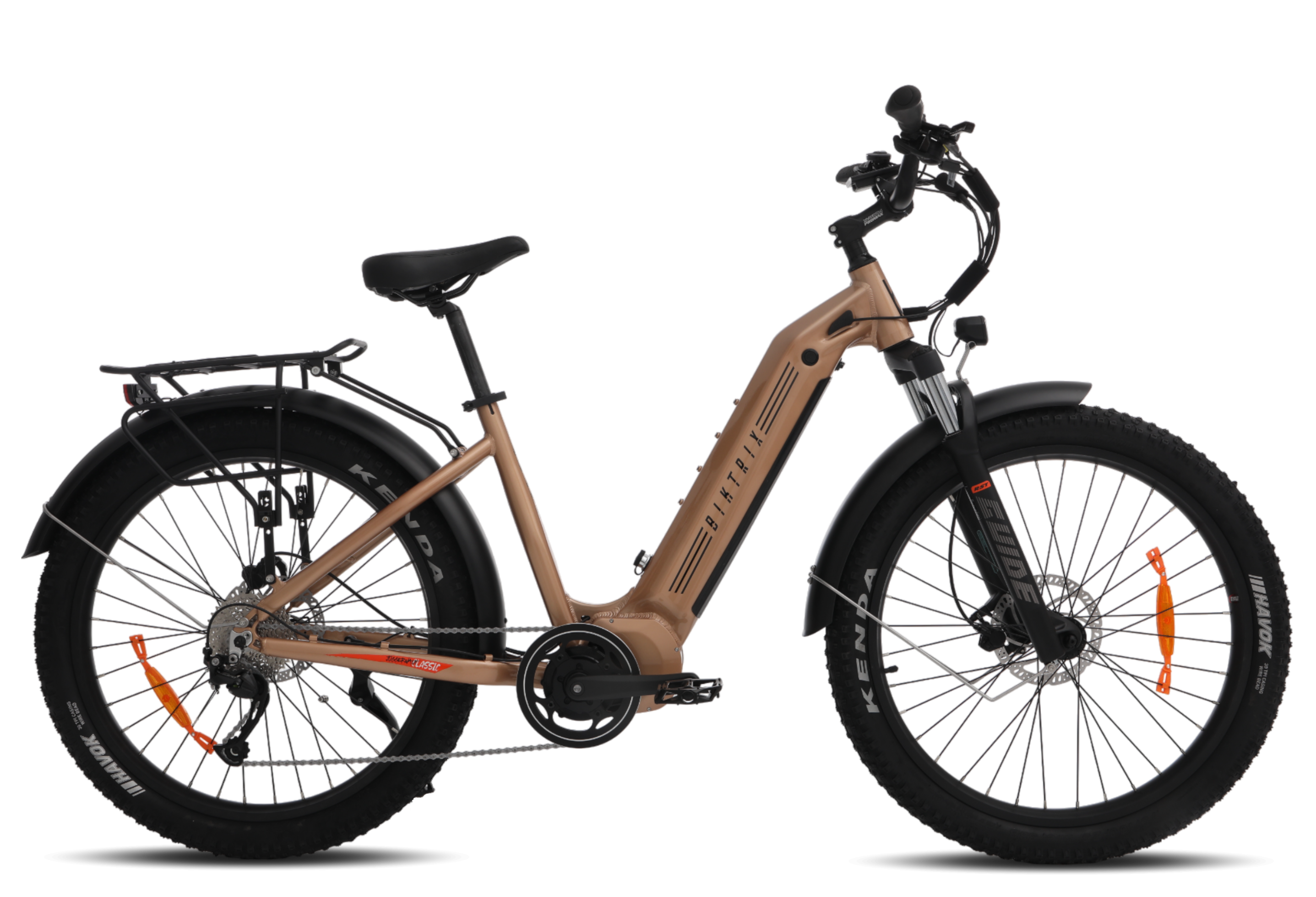

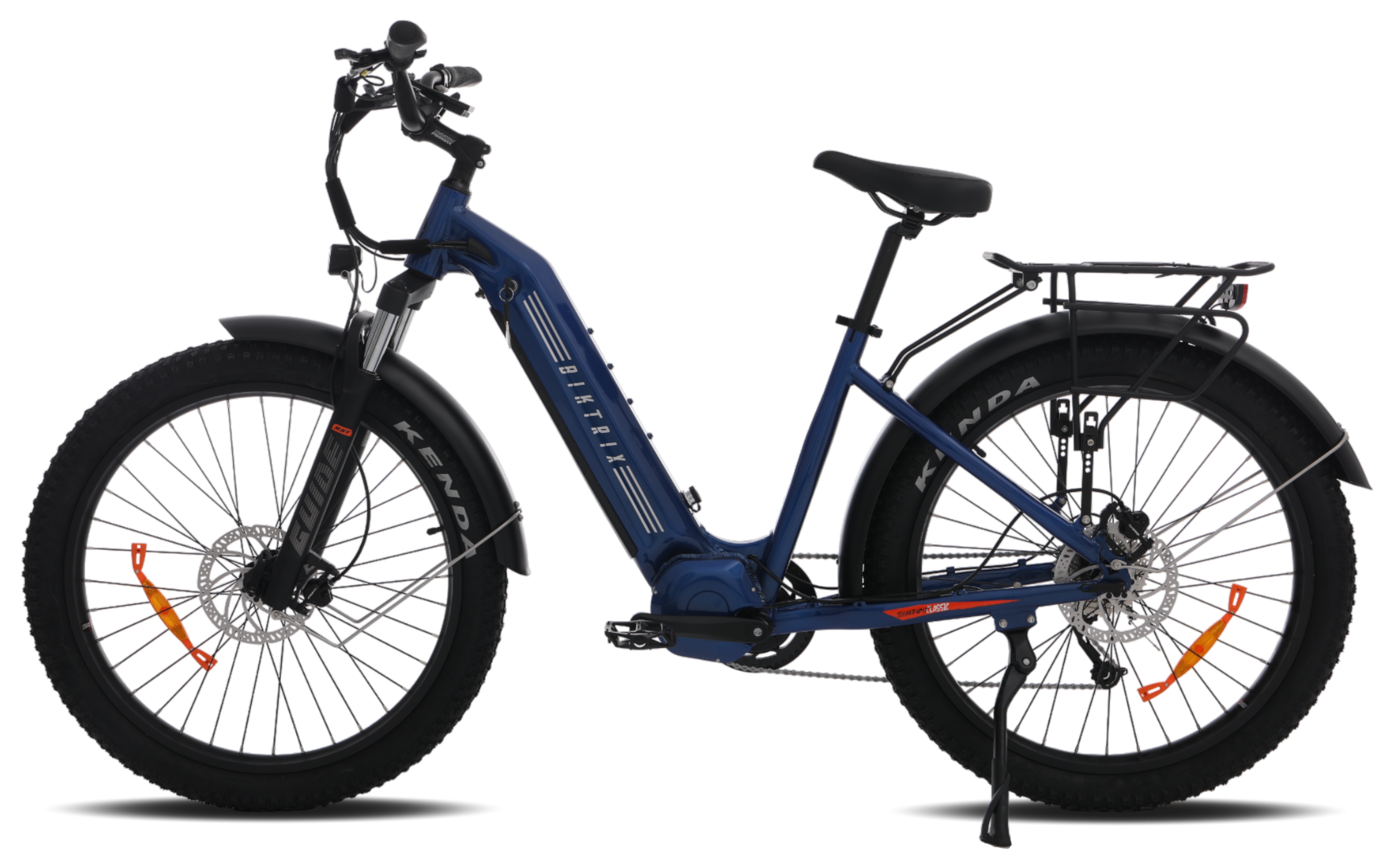

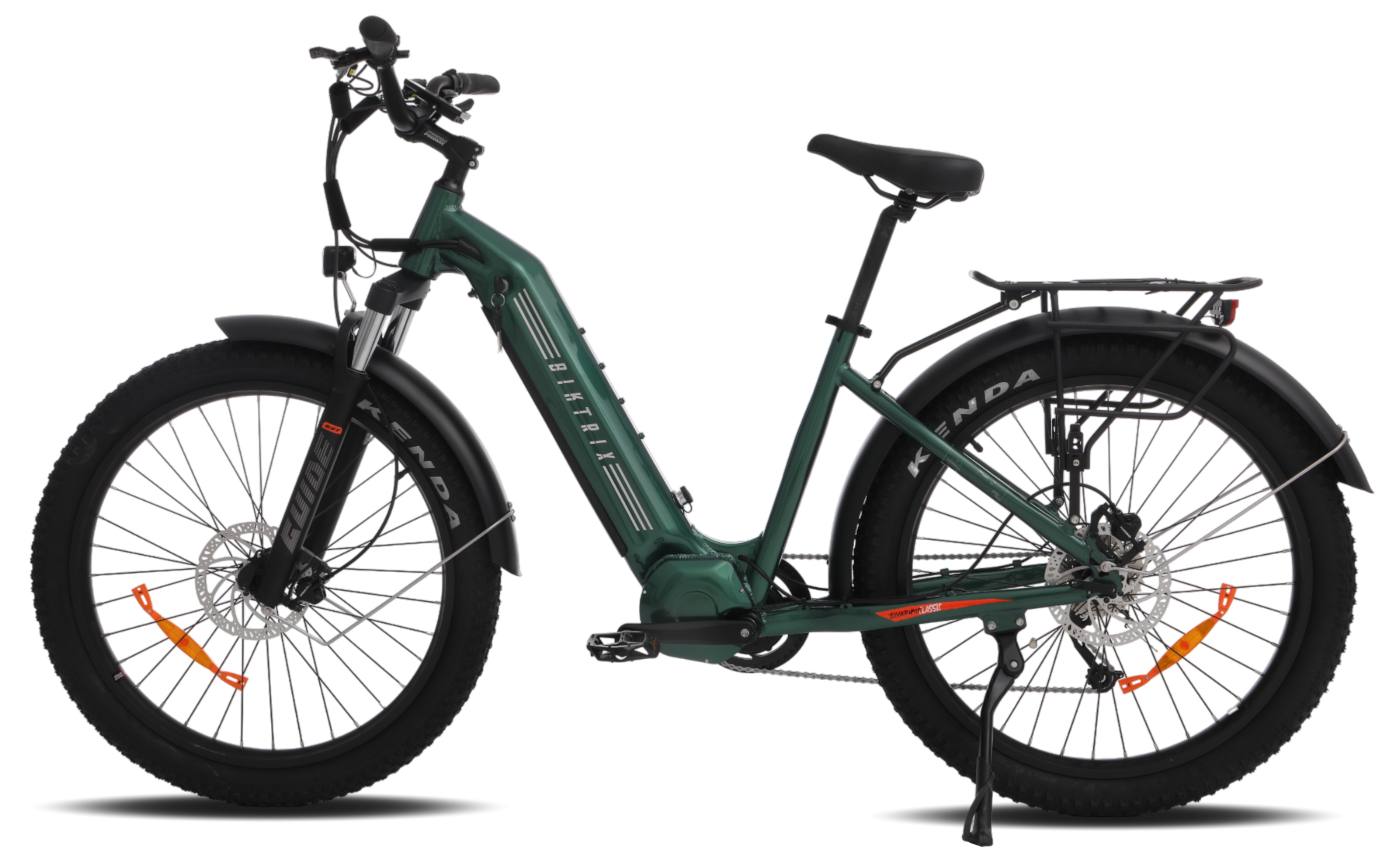

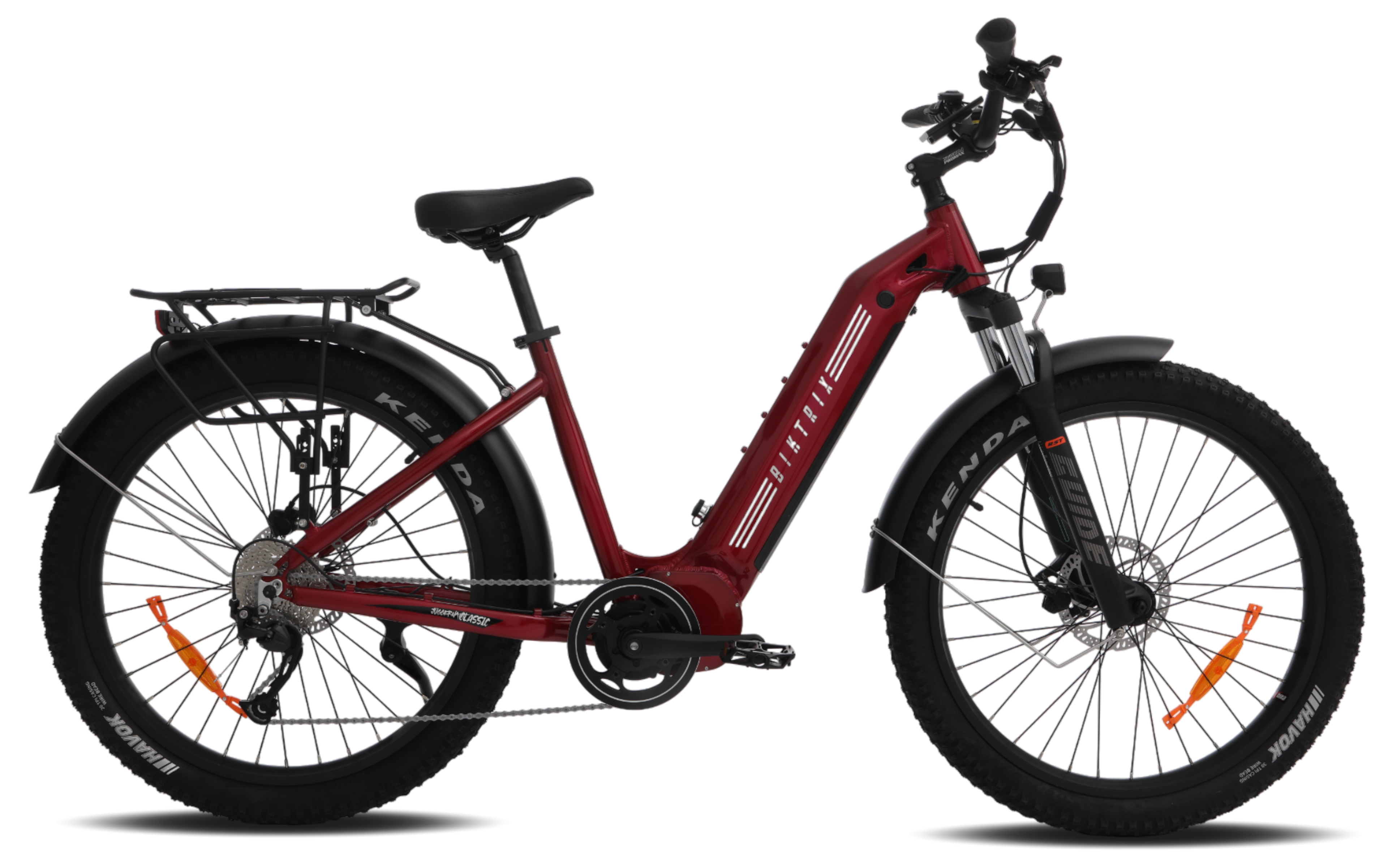

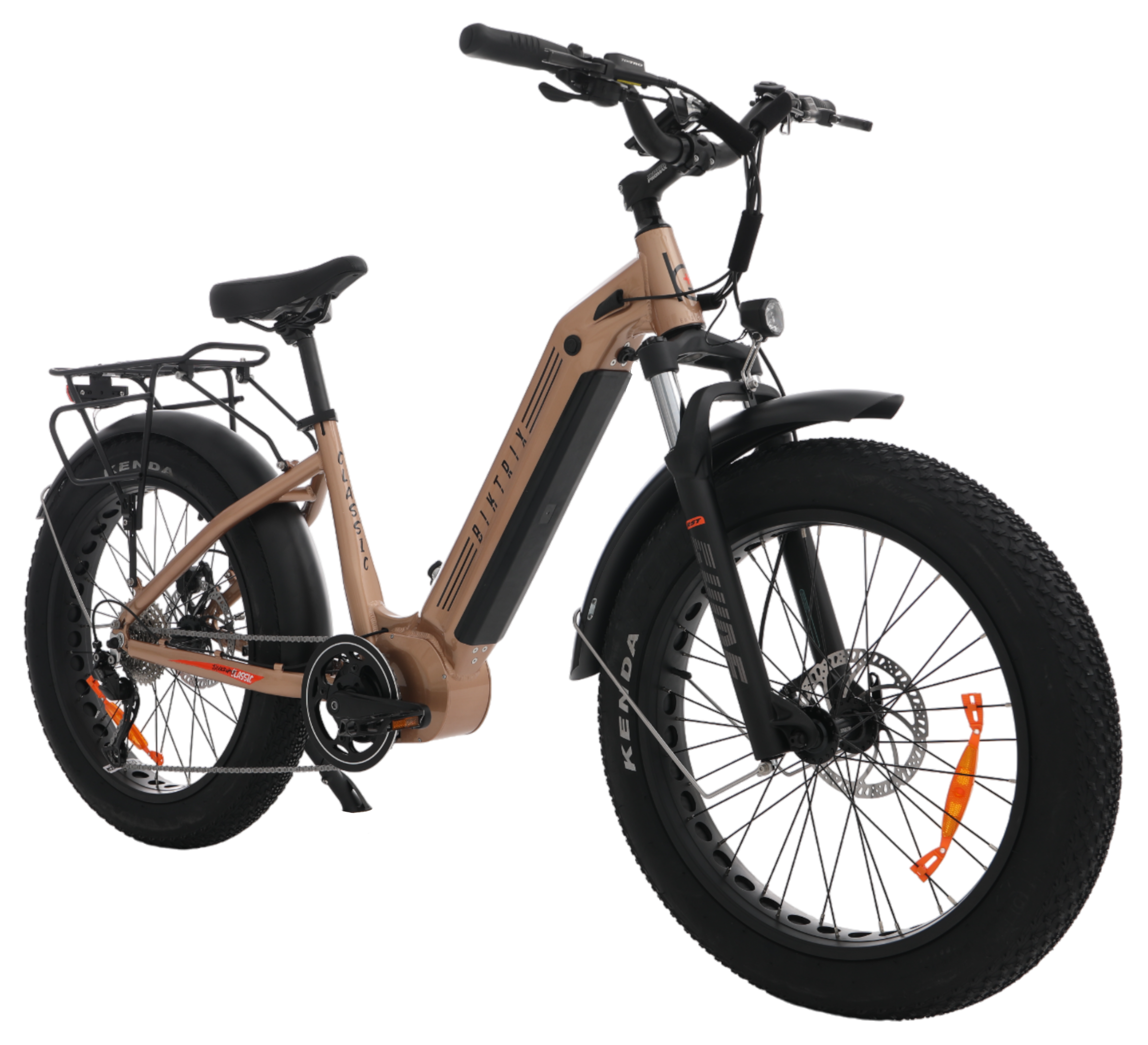

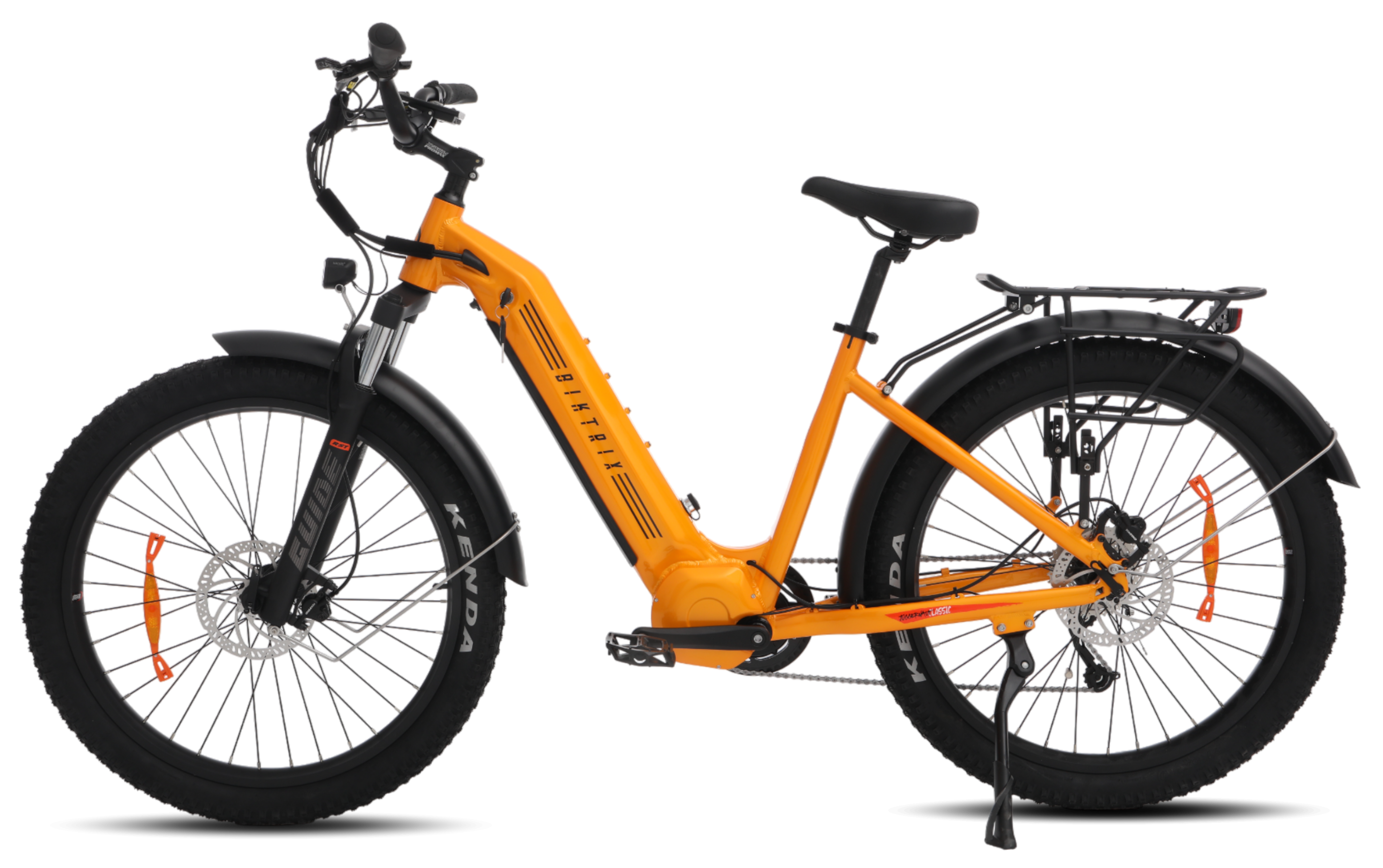

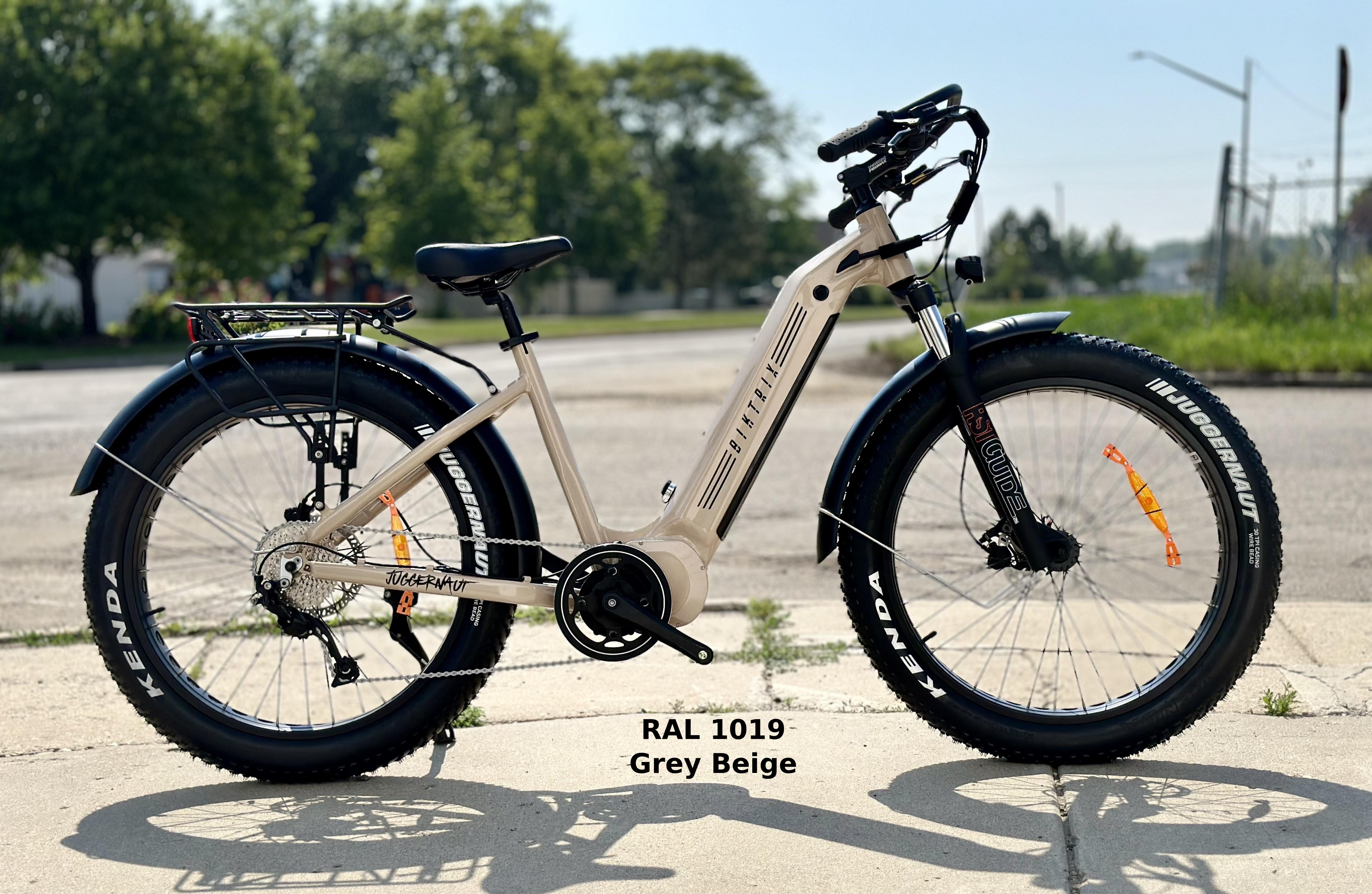

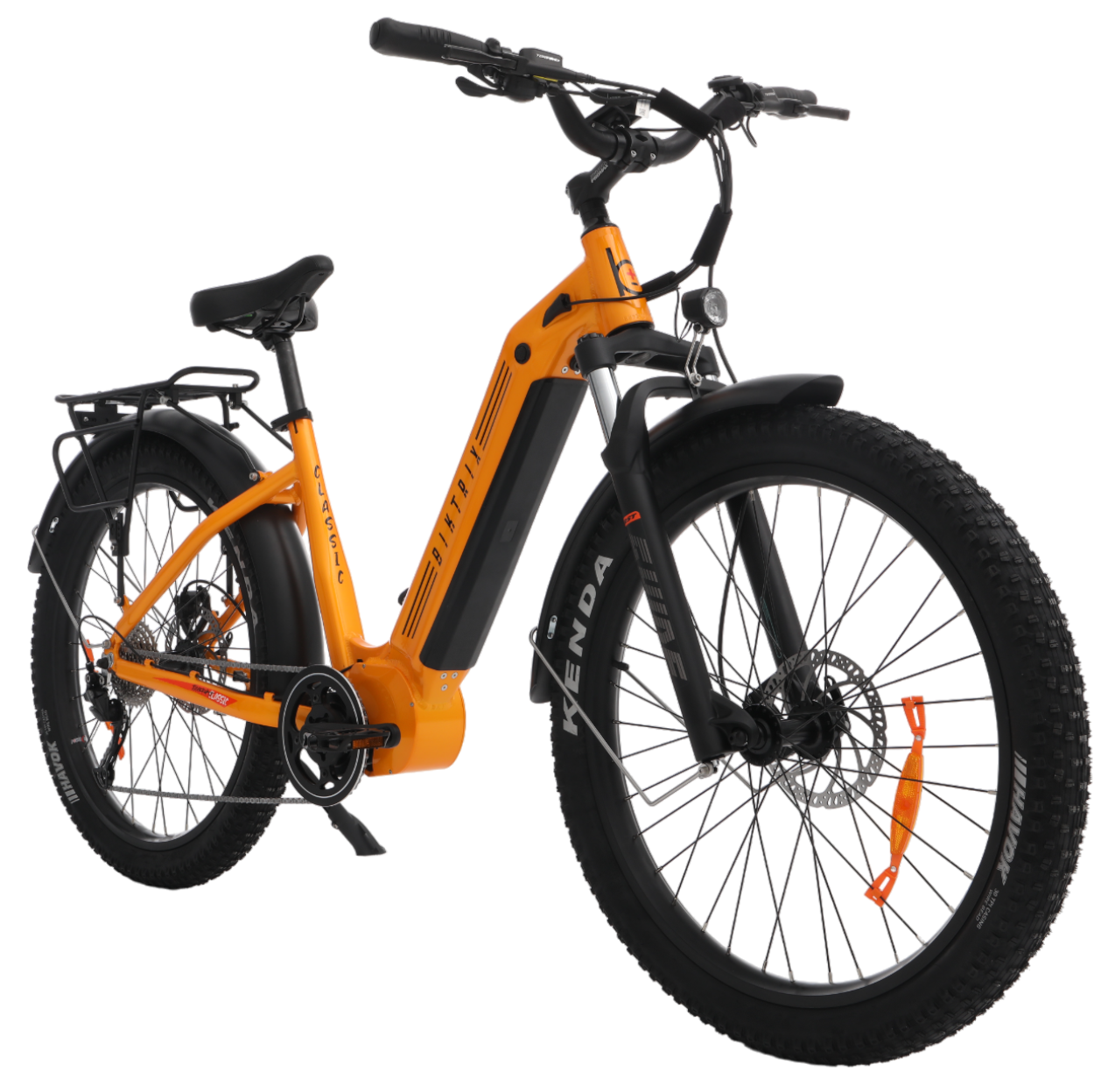

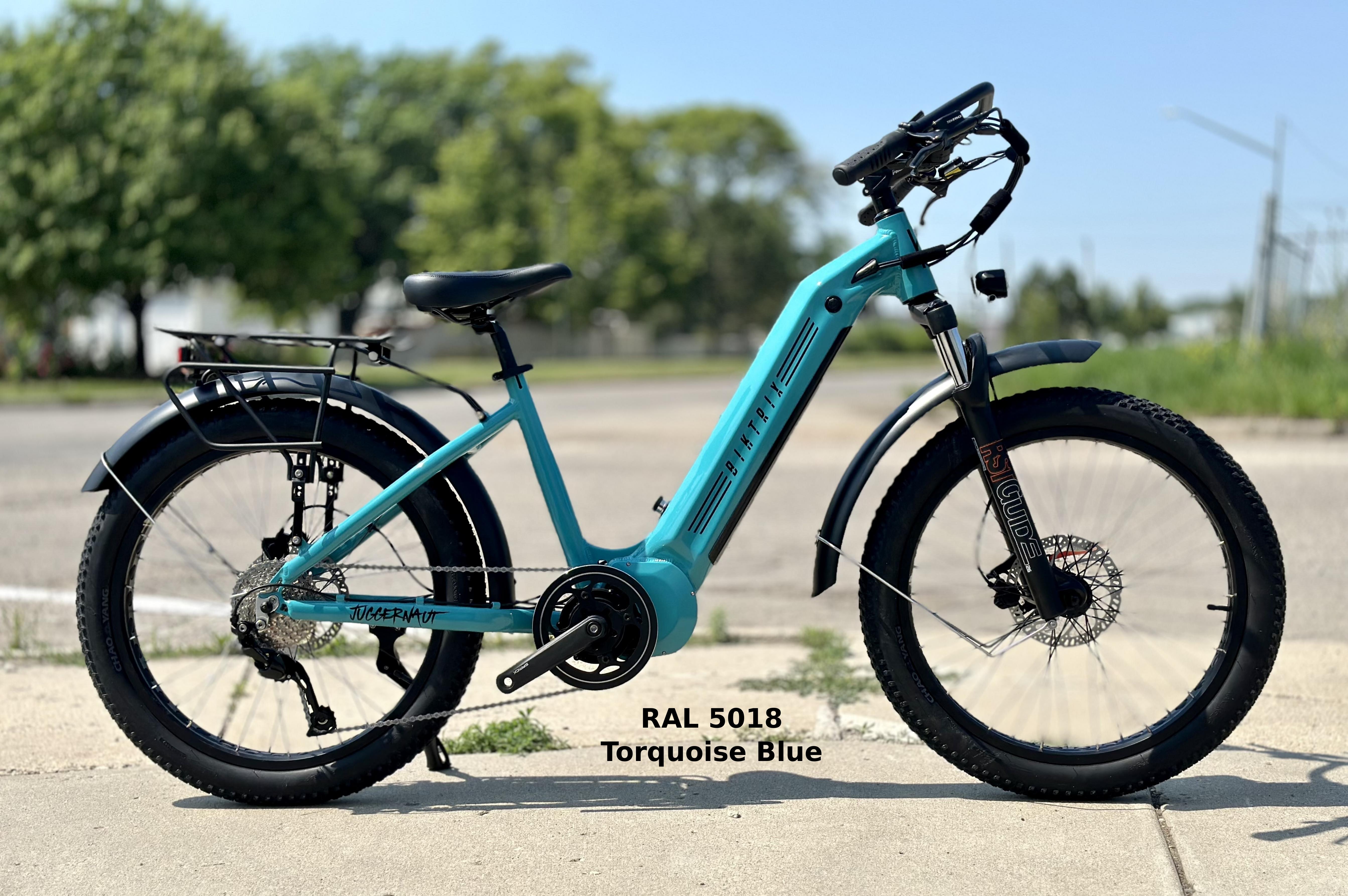

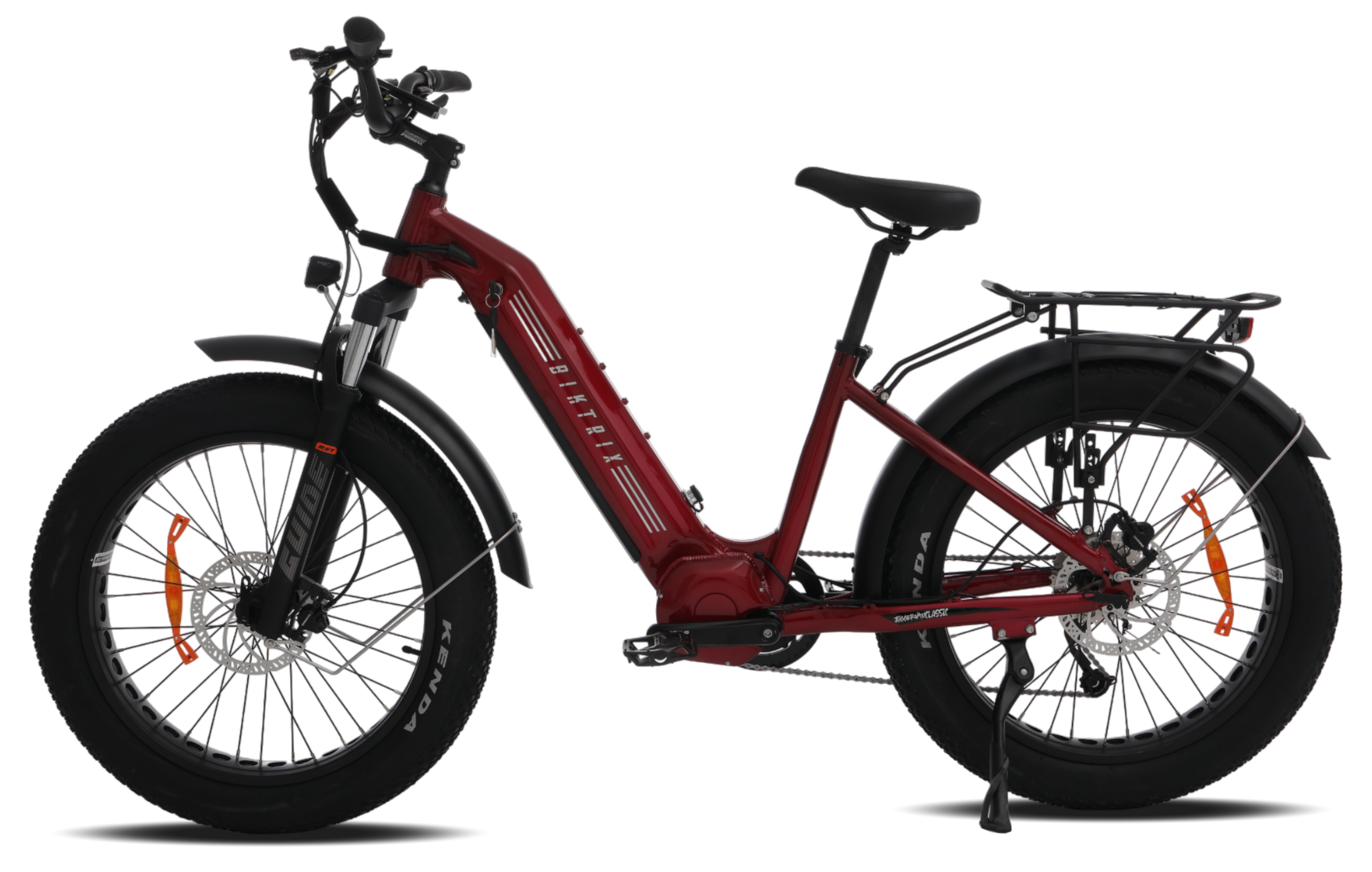

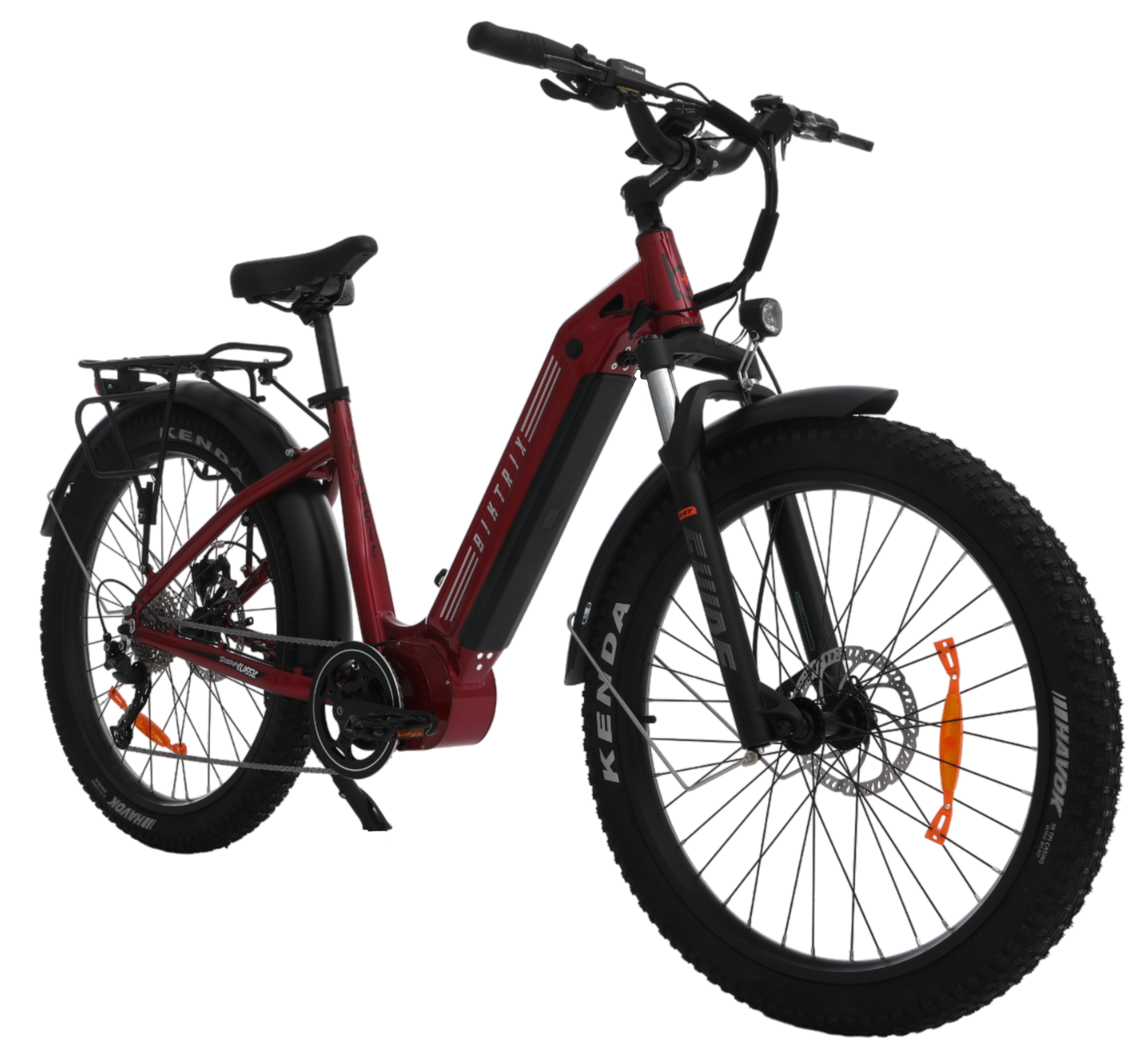

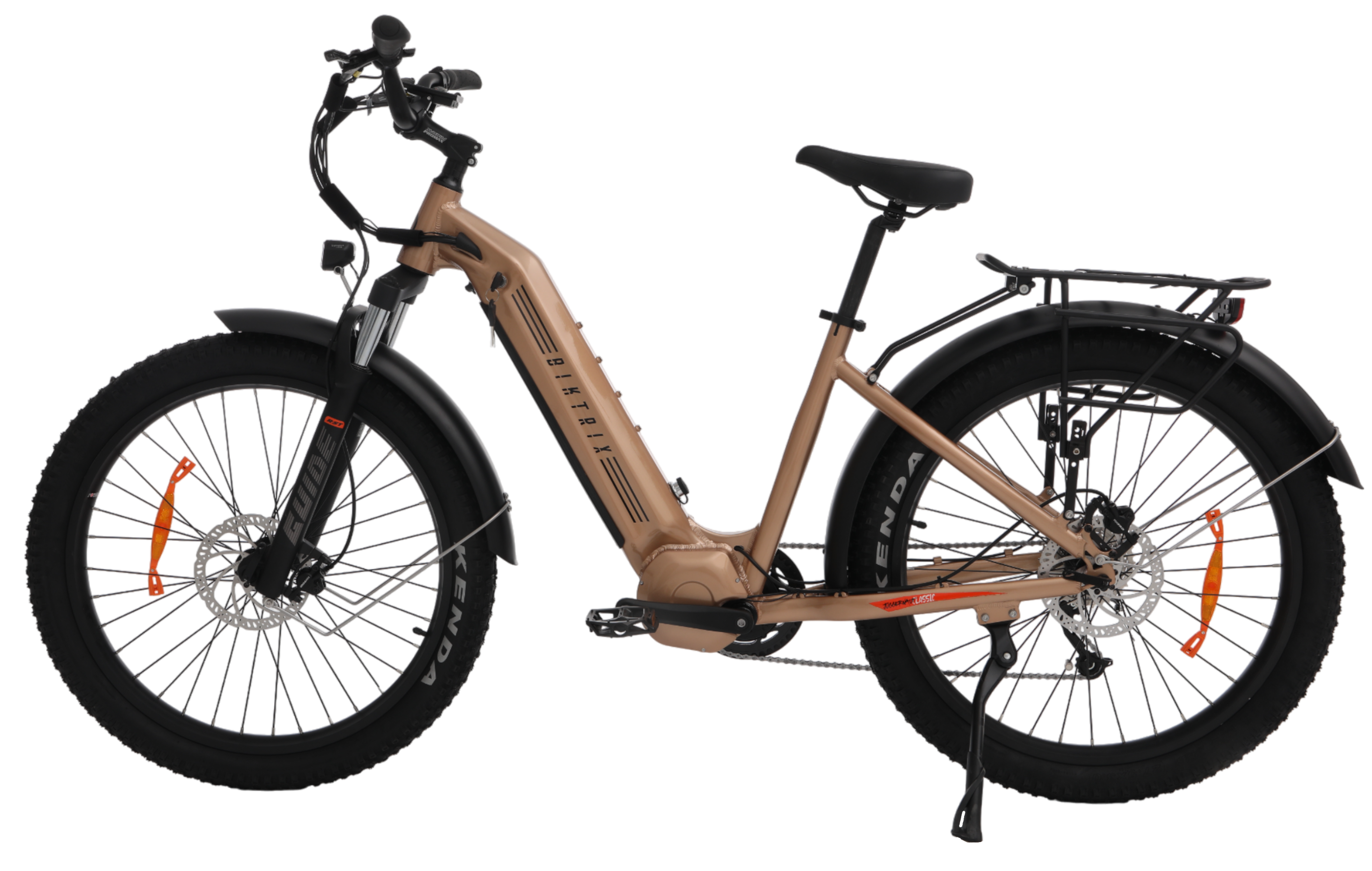

Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.
The Bafang BBS02 mid-drive motor features 750 watts of power and 120Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.
The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.
With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.
The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability
From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.
When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Multiple range-extender battery options can expand your eBike's range all the way to 160 km.
These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!
PAS 1Pedal-Assist Lv.1 |
130km
Up To
|
|
PAS 2Pedal-Assist Lv.2 |
103km
Up To
|
|
PAS 3Pedal-Assist Lv.3 |
69km
Up To
|
|
PAS 4Pedal-Assist Lv.4 |
63km
Up To
|
|
PAS 5Pedal-Assist Lv.5 |
58km
Up To
|
|
THRLThrottle Only |
50km
Up To
|
Frame6061 aluminum |
Front hub135mm 36h |
Seat post27.2mm |
ForkRst guide w/75mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-18/ 1-1/2 tapered |
Rear hub170mm 36h |
Motor750w bafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger |
Rear axle5mm qr |
Battery sizesTotal capacity of 52v 34ah 1794wh:52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery) |
Rear derailleurShimano 9 speed |
Rims26x4, 27.5x3, 24x4 |
DisplayDpc-18 |
Cassette9 speed 12-36t cassette |
Tire sizes26x4, 27.5x3, 24x4 |
LightsHeadlight, taillight |
ChainKmc 9 speed |
Handlebar31.8mm clamp, 700mm wide, 80mm rise |
Assist typeCadence |
Crank set170mm arms 44t chainring |
StemPromax 90mm |
Assist levels1-5 |
Bottom bracketBafang square taper |
GripsComfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 180mm rotors |
SaddleWide saddle |
OtherFront and rear fender, rear rack, kickstand |
Brake leversTektro adjustable w/ integrated brake cutoffs |
Frame6061 aluminum |
Front hub135mm 36h |
Seat post27.2mm |
ForkRst guide w/75mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-18/ 1-1/2 tapered |
Rear hub170mm 36h |
Motor750w bafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger |
Rear axle5mm qr |
Battery sizesTotal capacity of 52v 34ah 1794wh:52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery) |
Rear derailleurShimano 9 speed |
Rims26x4, 27.5x3, 24x4 |
DisplayDpc-18 |
Cassette9 speed 12-36t cassette |
Tire sizes26x4, 27.5x3, 24x4 |
LightsHeadlight, taillight |
ChainKmc 9 speed |
Handlebar31.8mm clamp, 700mm wide, 80mm rise |
Assist typeCadence |
Crank set170mm arms 44t chainring |
StemPromax 90mm |
Assist levels1-5 |
Bottom bracketBafang square taper |
GripsComfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 180mm rotors |
SaddleWide saddle |
OtherFront and rear fender, rear rack, kickstand |
Brake leversTektro adjustable w/ integrated brake cutoffs |
| 1 | Effective Top Tube Length |
640mm | 25.2in |
| 2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
| 3 |
Reach |
460mm | 18.1in |
| 4 |
Stack |
660mm | 26in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
400mm | 15.7in |
| 7 |
Head Angle |
68° | - |
| 8 |
Seat Angle |
71° | - |
| 9 |
Head Tube Length |
140 mm | 5.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
720mm | 28.3in |
| 12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1230mm | 48.4in |
| 15 |
Total Length |
1980mm | 78in |
| 16 |
Max Seat Height |
950mm | 37.4in |
| 17 |
Min Seat Height |
770mm | 30.3in |
| 18 |
Handlebar Height |
1090mm | 42.9in |
| 19 |
Weight (Without Battery) |
31.3kg | 69lb |
| 1 | Effective Top Tube Length |
640mm | 25.2in |
| 2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
| 3 |
Reach |
510mm | 20.1in |
| 4 |
Stack |
600mm | 23.6in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
420mm | 16.5in |
| 7 |
Head Angle |
68° | - |
| 8 |
Seat Angle |
71° | - |
| 9 |
Head Tube Length |
140 mm | 5.5 in |
| 10 |
Fork Length |
530mm | 20.9in |
| 11 |
Front Center |
760mm | 29.9in |
| 12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1280mm | 50.4in |
| 15 |
Total Length |
2000mm | 78.7in |
| 16 |
Max Seat Height |
1010mm | 39.8in |
| 17 |
Min Seat Height |
840mm | 33.1in |
| 18 |
Handlebar Height |
1140mm | 44.9in |
| 19 |
Weight (Without Battery) |
32.5kg | 71.7lb |
So far we are enjoying
The ride. Easy to learn! Power on the hills as w live on a very hilly island! Nice to be able to still get a workout and not feel run off the road on our narrow roads.
Excellent quality all the way around. I’ve had 3 other e-bikes and this is the first one that I’ve made over some extremely inclined fire trails without having to stop and walk the bike. Happy with the purchase of my Classic Duo, great power and torque. Customer service has been excellent.
What a beautiful bike!
It took me about 45 minutes to unbox, assemble and adjust the seat and handlebars. I've ridden it almost 100 miles in about a week with zero issues. Looking forward many more miles.
Let’s start with how much I love QuietKat.
They make great e-bikes. They are a local business here in Colorado, and I love to support our business community
I don’t own any of them, because the base model of the Biktrix Juggernaut is better in every way.
I have my own that I ride constantly, and I’ve recommended and helped customize my sister’s, Fiancée’s, and 4 friends’ purchases.
Everything about Biktrix that I’ve encountered has been a big win for the customers.
One of my friends was ready to send his back to the company when things kept going wrong, but the support people helped us figure out the problem, and he was back on track as soon as the parts arrived.
I’m really happy to recommend people to Biktrix, not just because they are great bikes, but because they still do the work to make the whole experience worthwhile.
The Classic Duo rocks! Despite its weight and 4” tires, this ebike is very nimble and, with nine gears on the hub, it’s easy to pedal on PAS 0 (which I did on a recent 5-mile ride.) The mid-drive motor is very torquey and zooms up any hill with ease. Where I live IS very hilly yet I rode 86 km on my first full battery charge.
