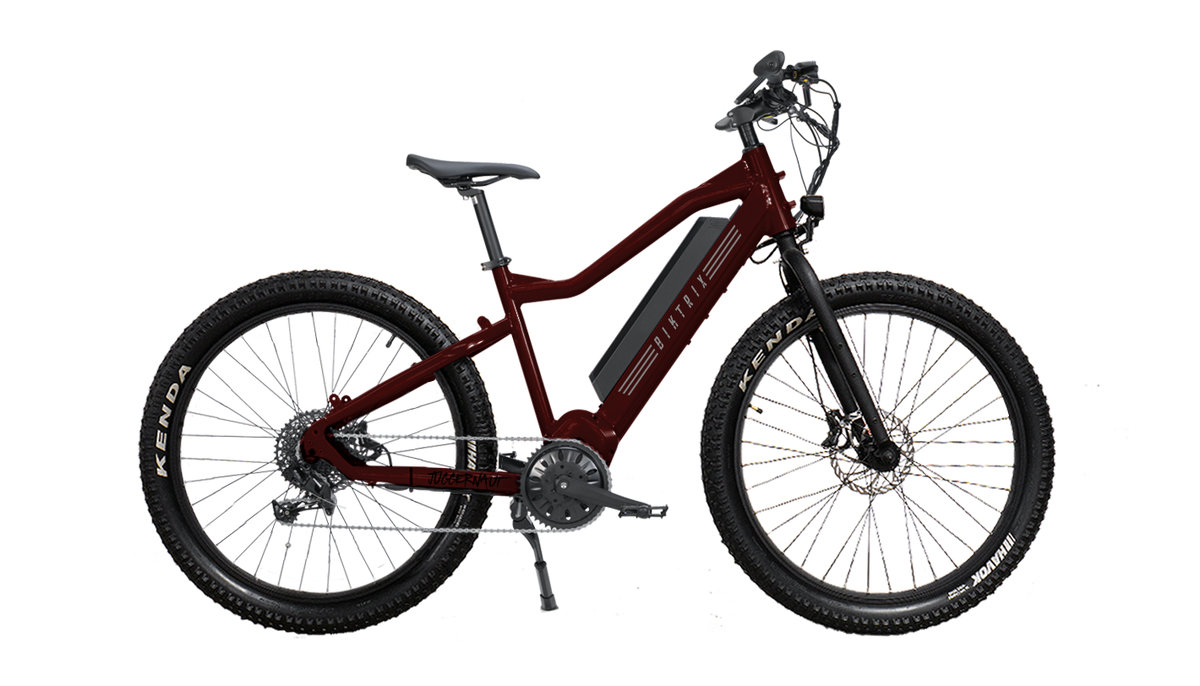

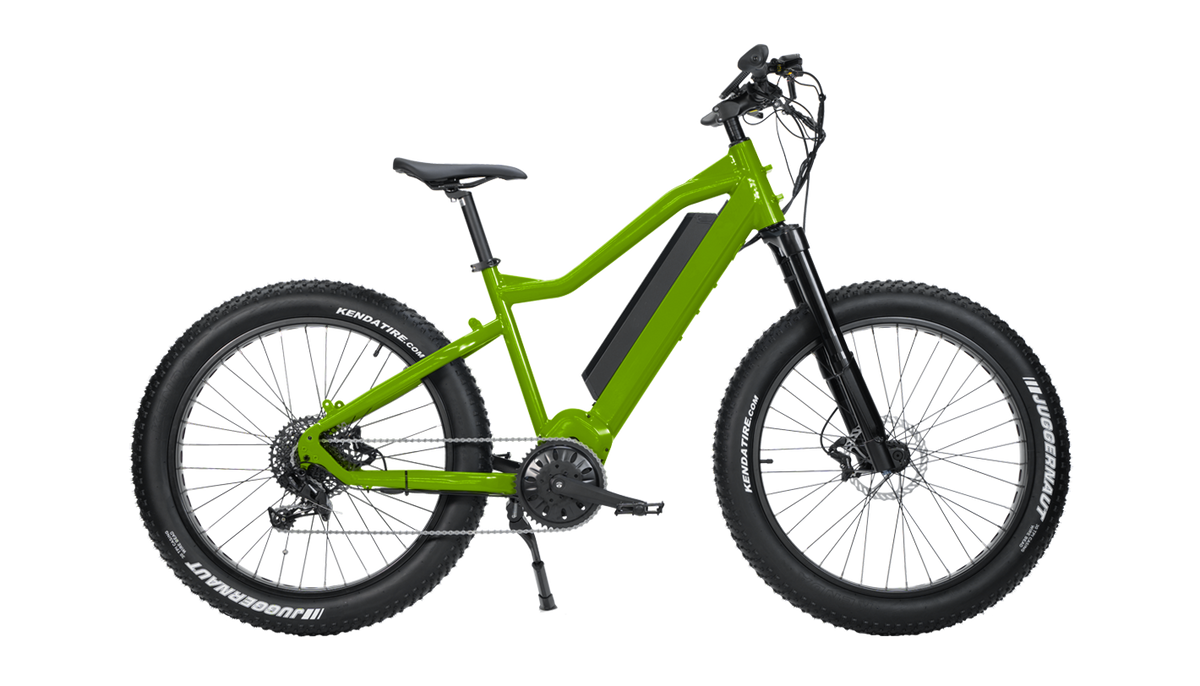

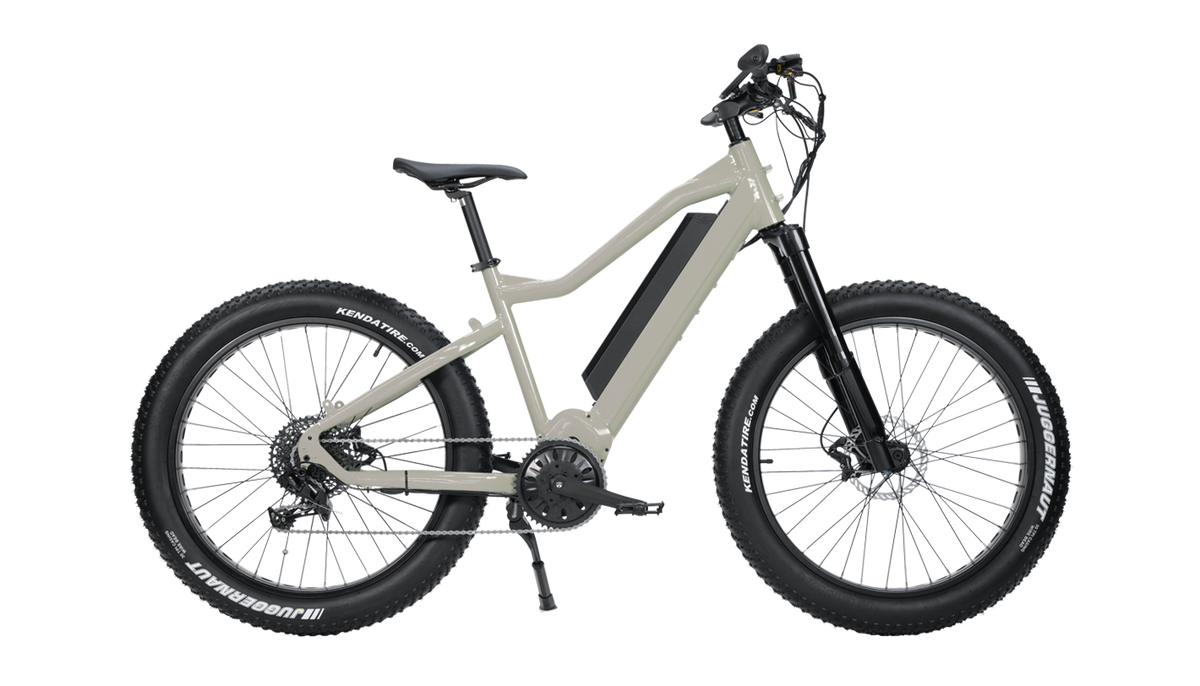

Juggernaut HD Limited

Name: Juggernaut HD Limited
Brand: juggernaut-hd-custom
SKU: JHDLRD1
Availability: OutOfStock
Rating: 5.0 (1 reviews)

5.0

CA$0 CA$4,679

Technical Specifications

Frame 6061 aluminum	Front hub 150mm 36h thru	Seat post 30.4mm
Fork Rigid/biktrix inverted 100w/mm travel, lockout and preload	Front axle 15mm thru	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 197mm 36h thru	Motor 1000w bbshd mid-drive
Shifter rear Microshift 9 speed trigger/sram nx 11 speed trigger	Rear axle 12mm thru axle	Battery sizes 48v17ah, 48v19ah 48v21ah, 48v25ah, 52v17.5ah
Rear derailleur Shimano altus 9 speed/sram nx 11 speed	Rims Black 27.5x3" 36h	Display C965
Cassette Shimano 11-32t/sram 11-42t	Tire sizes 27.5x3"	Lights Integrated headlight
Chain 9 speed/11 speed	Handlebar 31.8mm clamp, 760mm wide, 20mm rise	Assist type Cadence
Crank set 180mm arms 46t chainring, no chainguard	Stem 80mm aluminum	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Bafang 68mm square taper	Grips Slide on	Throttle Thumb throttle
Brakes Tektro e500 dual piston/tektro dorado e725 quad-piston/magura mt5e quad-piston w/180mm rotors	Saddle Narrow saddle	Other Kickstand, no fenders or rack, decals optional
Brake levers Tektro/magura hydraulic w/ adjustable reach and motor cutoffs

Frame 6061 aluminum	Front hub 150mm 36h thru
Seat post 30.4mm	Fork Rigid/biktrix inverted 100w/mm travel, lockout and preload
Front axle 15mm thru	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub 197mm 36h thru
Motor 1000w bbshd mid-drive	Shifter rear Microshift 9 speed trigger/sram nx 11 speed trigger
Rear axle 12mm thru axle	Battery sizes 48v17ah, 48v19ah 48v21ah, 48v25ah, 52v17.5ah
Rear derailleur Shimano altus 9 speed/sram nx 11 speed	Rims Black 27.5x3" 36h
Display C965	Cassette Shimano 11-32t/sram 11-42t
Tire sizes 27.5x3"	Lights Integrated headlight
Chain 9 speed/11 speed	Handlebar 31.8mm clamp, 760mm wide, 20mm rise
Assist type Cadence	Crank set 180mm arms 46t chainring, no chainguard
Stem 80mm aluminum	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Bafang 68mm square taper	Grips Slide on
Throttle Thumb throttle	Brakes Tektro e500 dual piston/tektro dorado e725 quad-piston/magura mt5e quad-piston w/180mm rotors
Saddle Narrow saddle	Other Kickstand, no fenders or rack, decals optional
Brake levers Tektro/magura hydraulic w/ adjustable reach and motor cutoffs

Frame

6061 aluminum

Front hub

150mm 36h thru

Seat post

30.4mm

Fork

Rigid/biktrix inverted 100w/mm travel, lockout and preload

Front axle

15mm thru

Seat post clamp

Qr

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

197mm 36h thru

Motor

1000w bbshd mid-drive

Shifter rear

Microshift 9 speed trigger/sram nx 11 speed trigger

Rear axle

12mm thru axle

Battery sizes

48v17ah, 48v19ah 48v21ah, 48v25ah, 52v17.5ah

Rear derailleur

Shimano altus 9 speed/sram nx 11 speed

Rims

Black 27.5x3" 36h

Display

C965

Cassette

Shimano 11-32t/sram 11-42t

Tire sizes

27.5x3"

Lights

Integrated headlight

Chain

9 speed/11 speed

Handlebar

31.8mm clamp, 760mm wide, 20mm rise

Assist type

Cadence

Crank set

180mm arms 46t chainring, no chainguard

Stem

80mm aluminum

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Bafang 68mm square taper

Grips

Slide on

Throttle

Thumb throttle

Brakes

Tektro e500 dual piston/tektro dorado e725 quad-piston/magura mt5e quad-piston w/180mm rotors

Saddle

Narrow saddle

Other

Kickstand, no fenders or rack, decals optional

Brake levers

Tektro/magura hydraulic w/ adjustable reach and motor cutoffs

Size & Fittings

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	400mm	15.7in
4	Stack	660mm	26in
5	Chainstay Length	510mm	20.1in
6	Standover Height	700mm	27.6in
7	Head Angle	61°	-
8	Seat Angle	72°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	440mm	17.3in
11	Front Center	670mm	26.4in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	0mm	0in
14	Wheelbase	1190mm	46.9in
15	Total Length	1900mm	74.8in
16	Max Seat Height	1050mm	41.3in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	29.9kg	65.9lb
