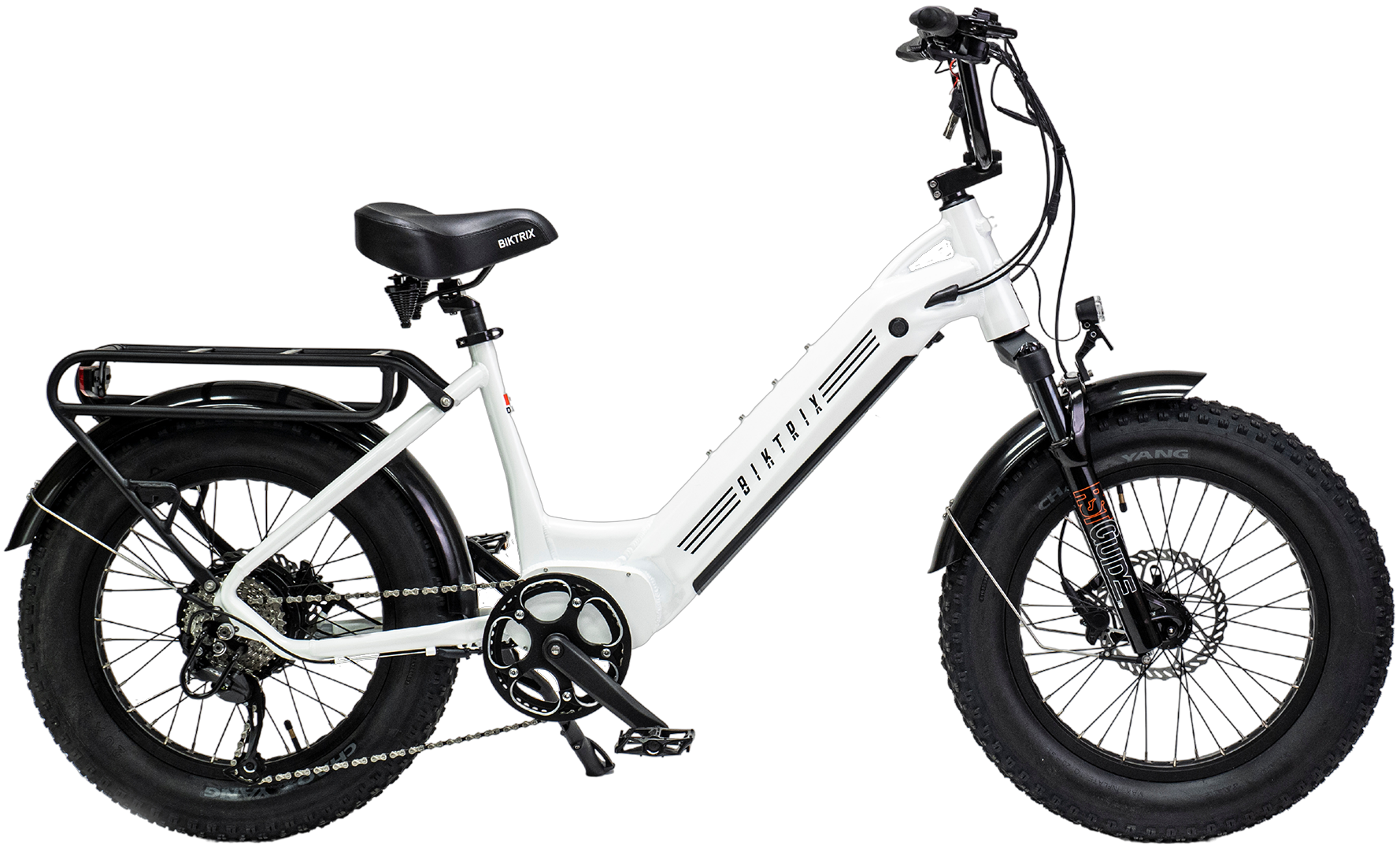

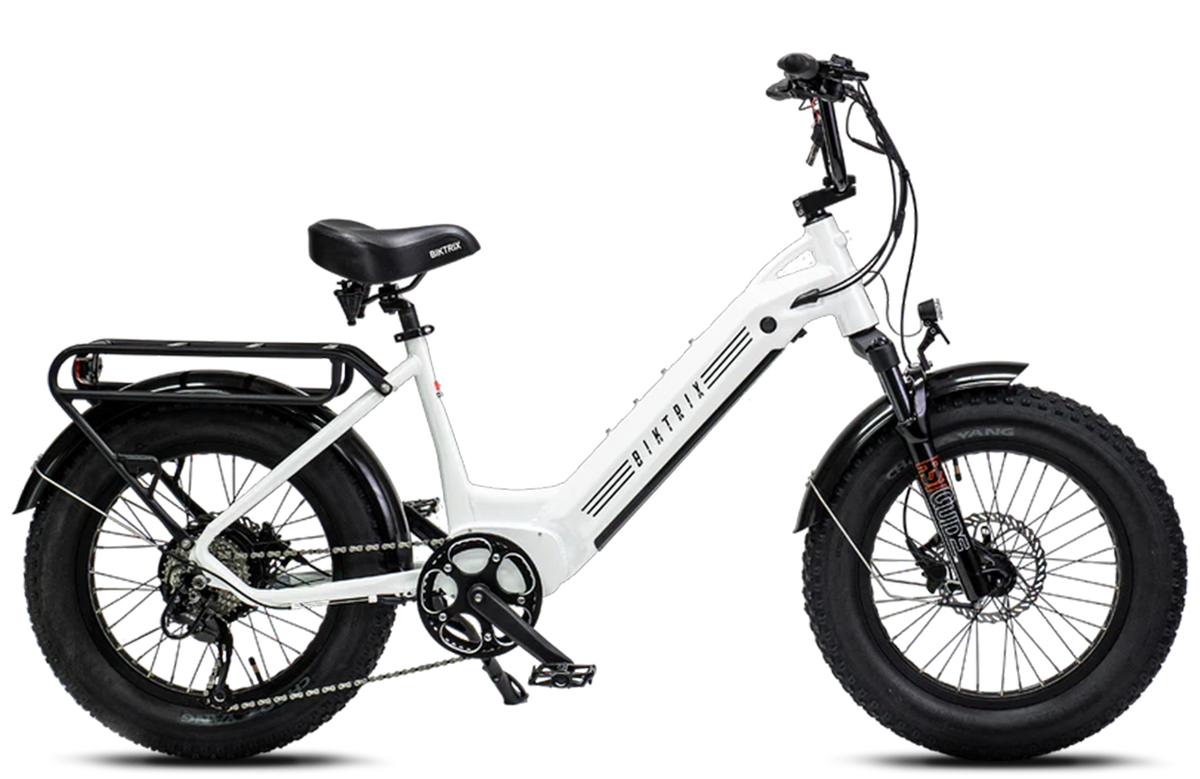

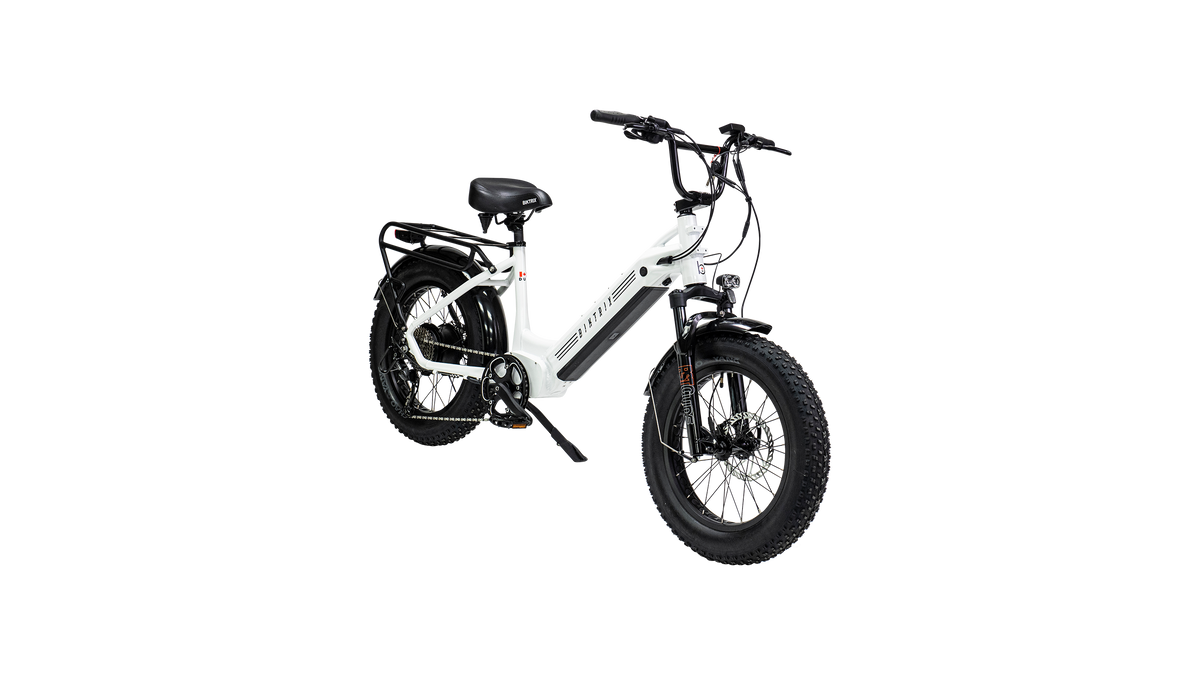

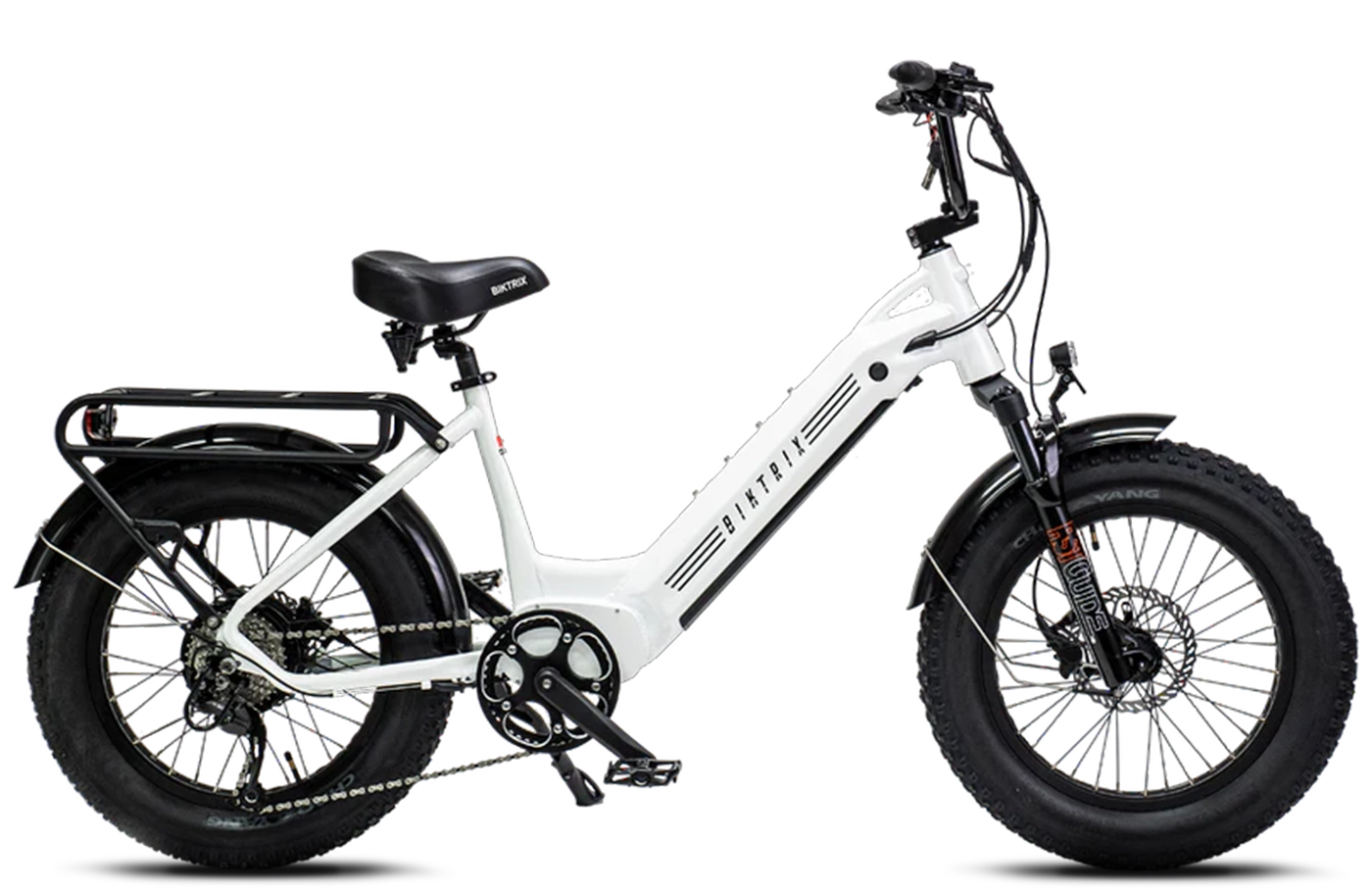

Juggernaut Hub Duo Small Step-Thru | 52V

750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 95km Range

+5'2ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

Juggernaut Hub Duo Small ST | 52V

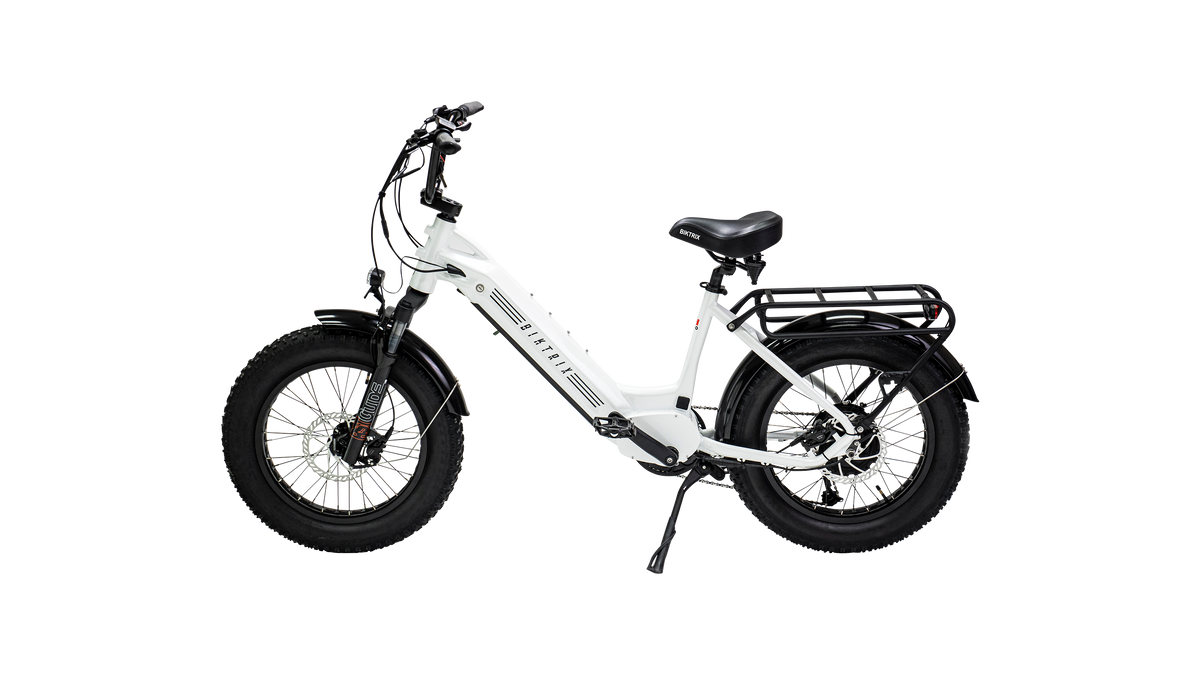

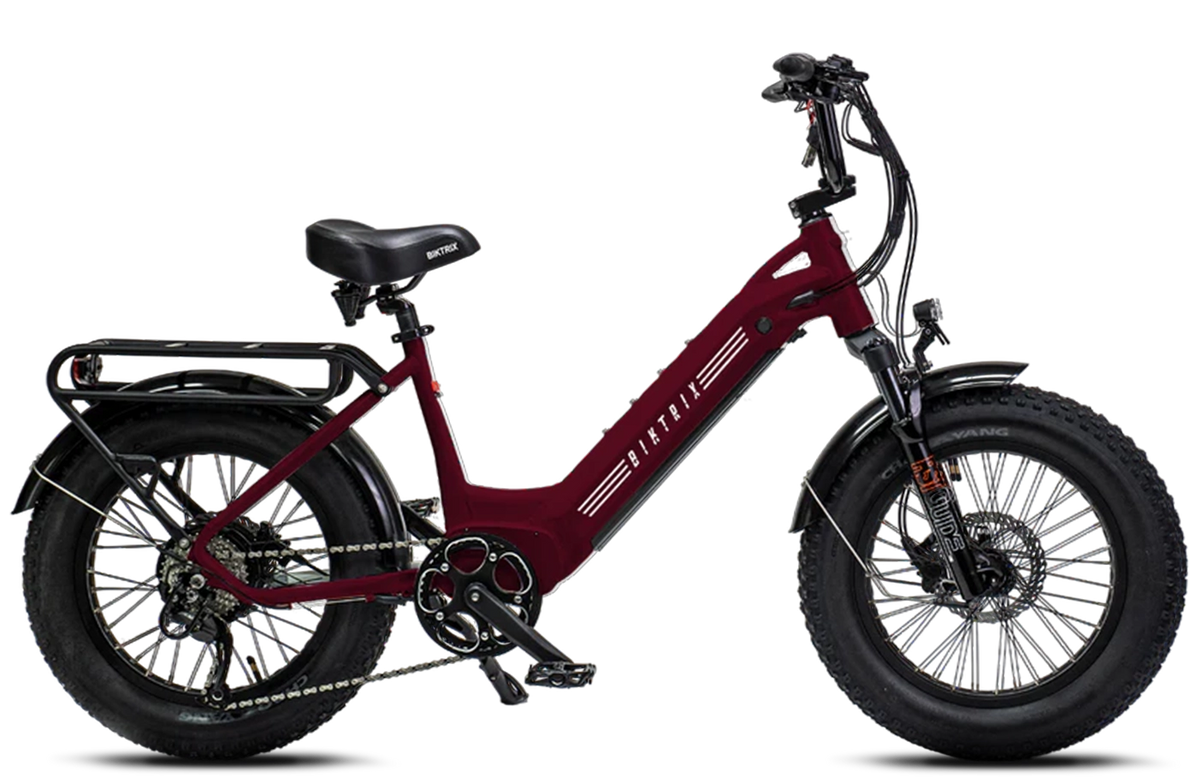

Name: Juggernaut Hub Duo Small Step-Thru | 52V
Brand: biktrix-juggernaut-hub-duo-electric-bike
SKU: JHUDSTM204WH1
Price: 2999.0 CAD
Availability: OutOfStock
Rating: 4.35 (127 reviews)

4.3

CA$2,999 CA$3,199

Get ready to revolutionize your biking experience with the Hub Duo, the pinnacle of affordability, power, and convenience in the Juggernaut family. Crafted with precision and passion, this eBike is designed to cater to the needs of seasoned adventurers like yourself, delivering a ride that's as exhilarating as it is effortless.

Features:

750W Geared Rear Hub Motor: Experience effortless riding with plenty of power to conquer even the toughest hills.
80Nm of Torque: Say goodbye to struggling uphill—the Hub Duo effortlessly tackles moderate inclines with ease.
330lb Load Capacity: Carry all your essentials with confidence, whether it's groceries, gear, or even a furry friend.
On-Demand Throttle: Make pedaling optional and conserve your energy for the moments that matter most.
Torque+Cadence Sensor: Enjoy a smooth, intuitive riding experience with seamless pedal assist at every stroke.
52V 17.5Ah 910Wh Internal Battery: Ride with confidence knowing you have plenty of power to spare for your adventures.

Benefits:

Effortless Riding: Conquer challenging terrain with ease thanks to the powerful 750W motor.
Smooth Pedal Assist: Enjoy a natural riding experience with seamless assistance at every pedal stroke.
Versatile Performance: From rugged trails to city streets, the Hub Duo is your ticket to adventure.
Practical Design: Carry all your essentials with ease thanks to the generous load capacity.
Long-Lasting Power: Ride with confidence knowing you'll always have plenty of battery life to spare.

Experience the thrill of the open road like never before with the Hub Duo. Order yours today and start exploring the world on your terms. Adventure awaits.

Juggernaut Hub Duo Small Step-Thru | 52V Has Been Replaced.

This model has been updated to the Juggernaut Hub Duo Step-Thru Small 2! Check it out today and enhance your riding experience!

Buy Hub Duo Step-Thru Small 2 Today

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	520mm	20.5in
4	Stack	540mm	21.3in
5	Chainstay Length	430mm	16.9in
6	Standover Height	420mm	16.5in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	430mm	16.9in
11	Front Center	830mm	32.7in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1850mm	72.8in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1070mm	42.1in
19	Weight (Without Battery)	27.3kg	60.2lb

750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 95km Range

+5'2ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

95+

Kilometer Range

80Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

Simple. Capable. Affordable.

The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

Bells & Whistles? You Bet.

750W Hub Motor

The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.

Optional Range Extender

Multiple range extender battery options can expand your eBike’s range all the way to 160km

LCD Display

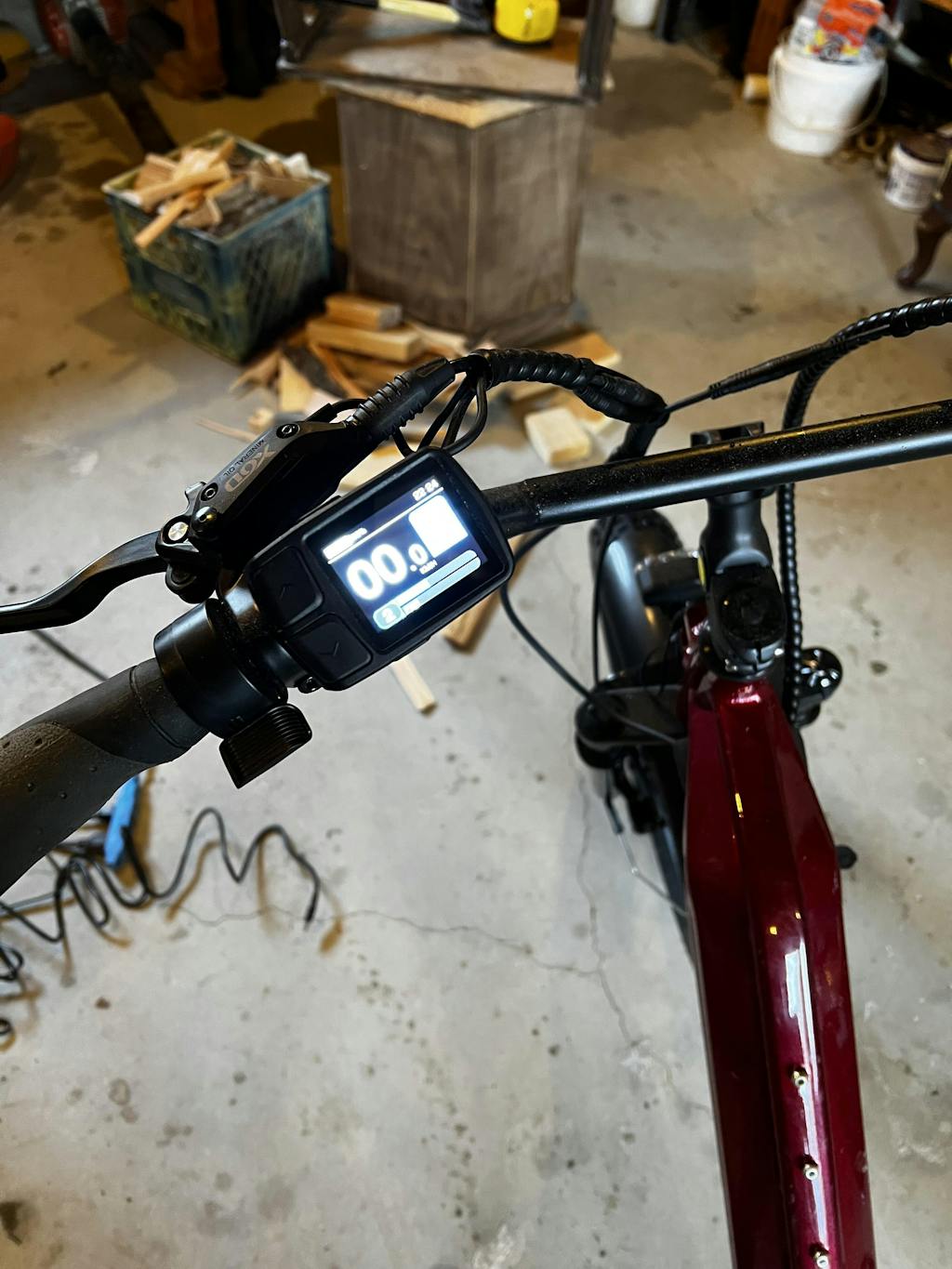

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Suspension Fork

The RST Guide fork provides 60mm of travel with an adjustable preload to provide a comfortable ride for the terrain you want to tackle

Drivetrain

From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

SIZE GUIDE

Let’s Get You Fitted.

5'9" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get Another Bike for the best fit.

Not sure how to measure properly for your bike?

5'9"

**Gavin measures at 6’1, with an inseam of 33”

**Gavin measures at 6’1, with an inseam of 33”

**Gavin measures at 6’1, with an inseam of 33”

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		106km Up To
PAS 2 Pedal-Assist Lv.2		77km Up To
PAS 3 Pedal-Assist Lv.3		60km Up To
PAS 4 Pedal-Assist Lv.4		55km Up To
PAS 5 Pedal-Assist Lv.5		48km Up To
THRL Throttle Only		39km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 28.6mm
Fork Rst guide w/ 60mm travel, adjustable preload	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight	Rear hub Motor	Motor 750w rear hub
Shifter rear Shimano alivio 9 speed trigger	Rear axle Bolt-on	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivio 9 speed	Rims 20" black w/ round cutouts, 36h	Display Dm07
Cassette 9 speed 11-34t cassette	Tire sizes 20x4" chaoyang	Lights Integrated headlight, taillight
Chain Kmc e9s - 124 links	Handlebar 690mm wide, 20mm tall, 25.4mm clamp bmx style	Assist type Torque + cadence
Crank set 44t chainring w/ 152mm arms	Stem 120mm adjustable	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Square taper w/ integrated torque sensor	Grips Slide-on	Throttle Thumb throttle
Brakes Xod e300 dual piston hydraulic brakes w/180mm rotors	Saddle Biktrix comfy saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Adjustable w/ integrated brake cutoff sensors

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 28.6mm	Fork Rst guide w/ 60mm travel, adjustable preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight	Rear hub Motor
Motor 750w rear hub	Shifter rear Shimano alivio 9 speed trigger
Rear axle Bolt-on	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivio 9 speed	Rims 20" black w/ round cutouts, 36h
Display Dm07	Cassette 9 speed 11-34t cassette
Tire sizes 20x4" chaoyang	Lights Integrated headlight, taillight
Chain Kmc e9s - 124 links	Handlebar 690mm wide, 20mm tall, 25.4mm clamp bmx style
Assist type Torque + cadence	Crank set 44t chainring w/ 152mm arms
Stem 120mm adjustable	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Square taper w/ integrated torque sensor	Grips Slide-on
Throttle Thumb throttle	Brakes Xod e300 dual piston hydraulic brakes w/180mm rotors
Saddle Biktrix comfy saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Adjustable w/ integrated brake cutoff sensors

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

28.6mm

Fork

Rst guide w/ 60mm travel, adjustable preload

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/8" straight

Rear hub

Motor

750w rear hub

Shifter rear

Shimano alivio 9 speed trigger

Rear axle

Bolt-on

Battery sizes

Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)

Rear derailleur

Shimano alivio 9 speed

Rims

20" black w/ round cutouts, 36h

Display

Dm07

Cassette

9 speed 11-34t cassette

Tire sizes

20x4" chaoyang

Lights

Integrated headlight, taillight

Chain

Kmc e9s - 124 links

Handlebar

690mm wide, 20mm tall, 25.4mm clamp bmx style

Assist type

Torque + cadence

Crank set

44t chainring w/ 152mm arms

Stem

120mm adjustable

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Square taper w/ integrated torque sensor

Grips

Slide-on

Throttle

Thumb throttle

Brakes

Xod e300 dual piston hydraulic brakes w/180mm rotors

Saddle

Biktrix comfy saddle

Other

Front and rear fenders, rear rack, kickstand

Brake levers

Adjustable w/ integrated brake cutoff sensors

Size & Fittings

1	Effective Top Tube Length	620mm	24.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	520mm	20.5in
4	Stack	540mm	21.3in
5	Chainstay Length	430mm	16.9in
6	Standover Height	420mm	16.5in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	190 mm	7.5 in
10	Fork Length	430mm	16.9in
11	Front Center	830mm	32.7in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1850mm	72.8in
16	Max Seat Height	950mm	37.4in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1070mm	42.1in
19	Weight (Without Battery)	27.3kg	60.2lb

FAQ & Guides

FAQ I just assembled my eBike, what next?
FAQ I just received my eBike, what next?
FAQ Recommended Tire Pressure and Inflation Level
FAQ eBike Battery Care Guide
Manual eBike Display Manuals

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

How was the performance of the bike?:

Poor

Excellent

How comfortable was the bike?:

Uncomfortable

Very Comfortable

How was the bike build?:

Poor

Excellent

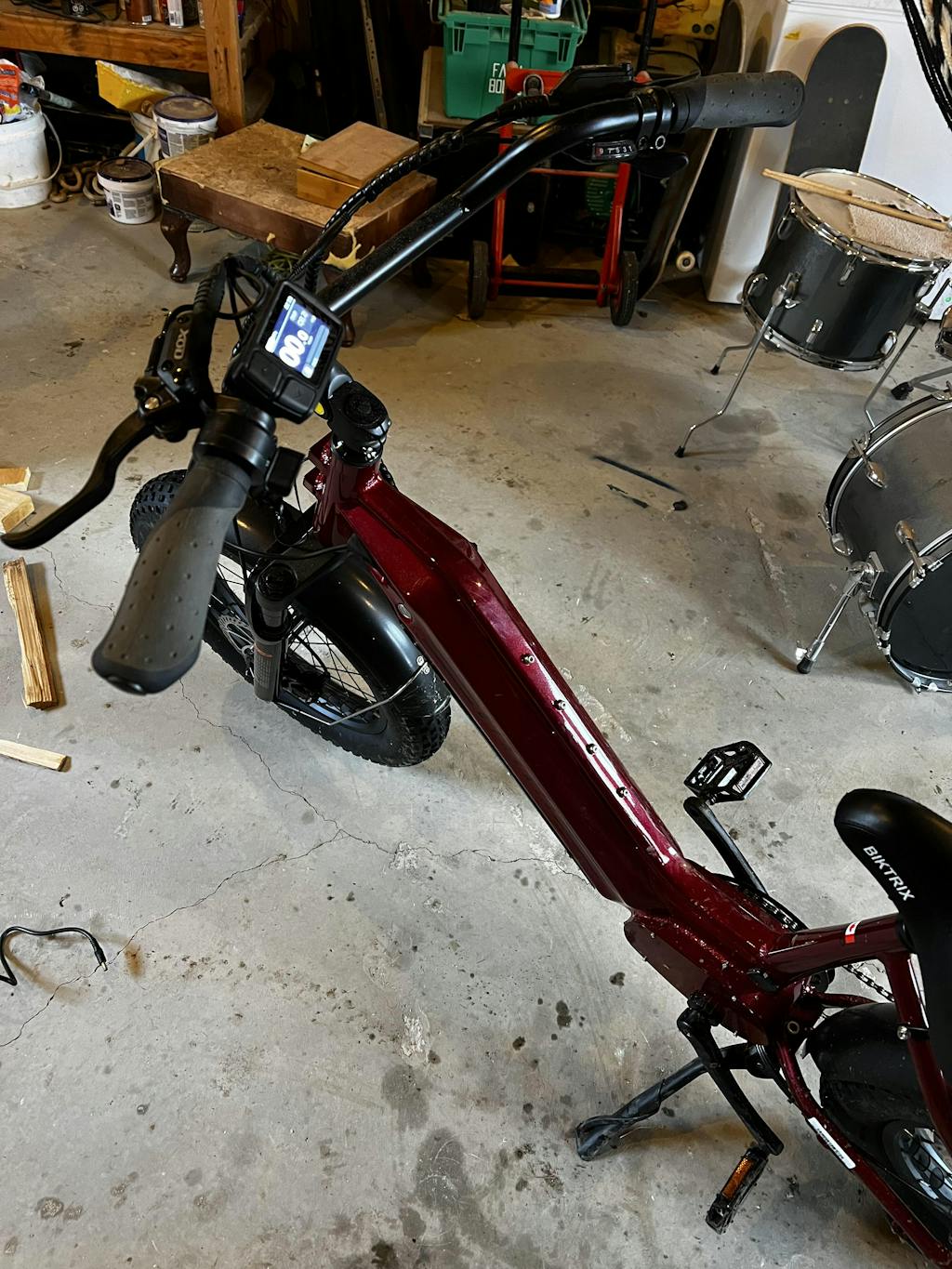

Pleasantly surprised how powerful the bike is.

I’ve only taken my bike out three times, so far so good. The bike has a lot of power so I tend to drive it in level one or two and use the torque when I need it. Extremely big hills where I live and I couldn’t believe how quick it was to get home. I still have four bars left and put on 40 km.

How was the performance of the bike?:

Poor

Excellent

How comfortable was the bike?:

Uncomfortable

Very Comfortable

How was the bike build?:

Poor

Excellent

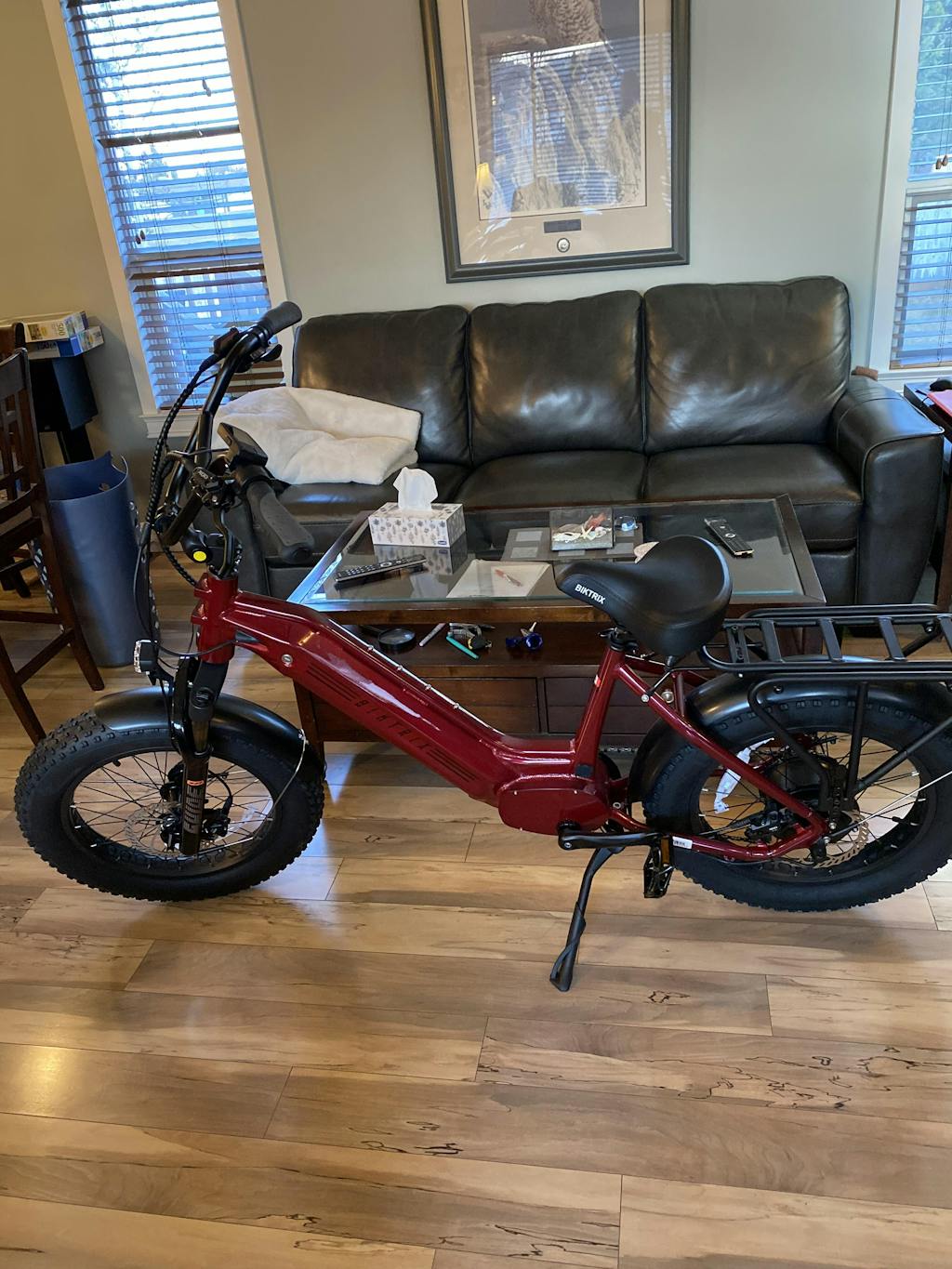

Best Commuter/Small Utility Cargo Bike Ever!

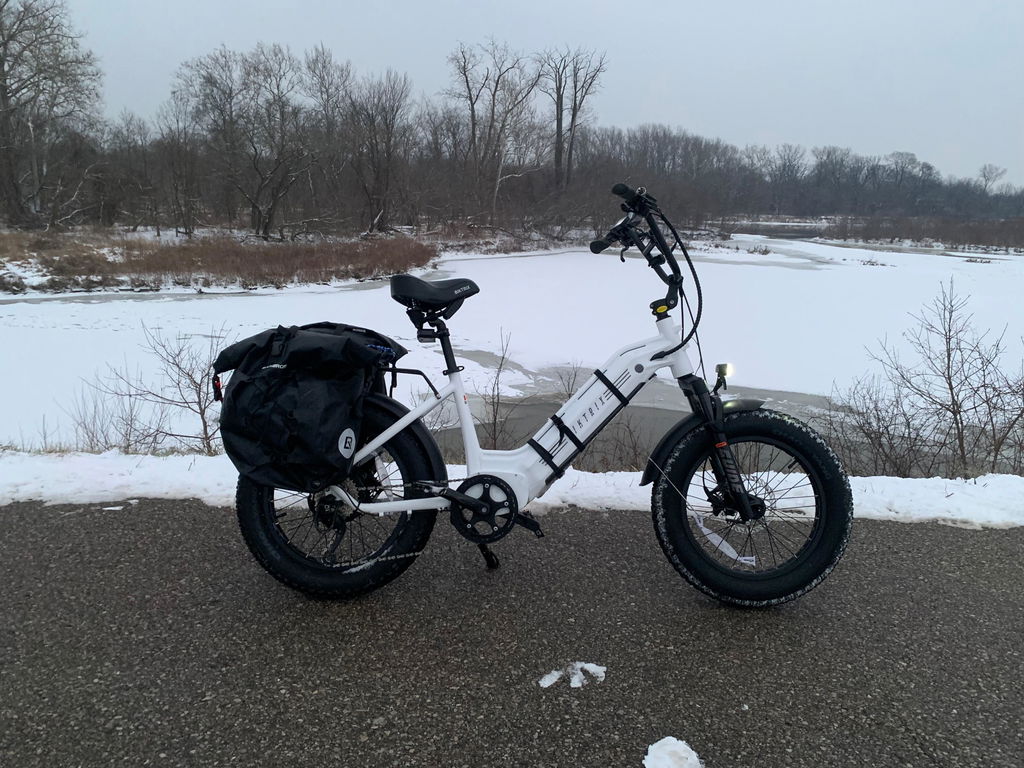

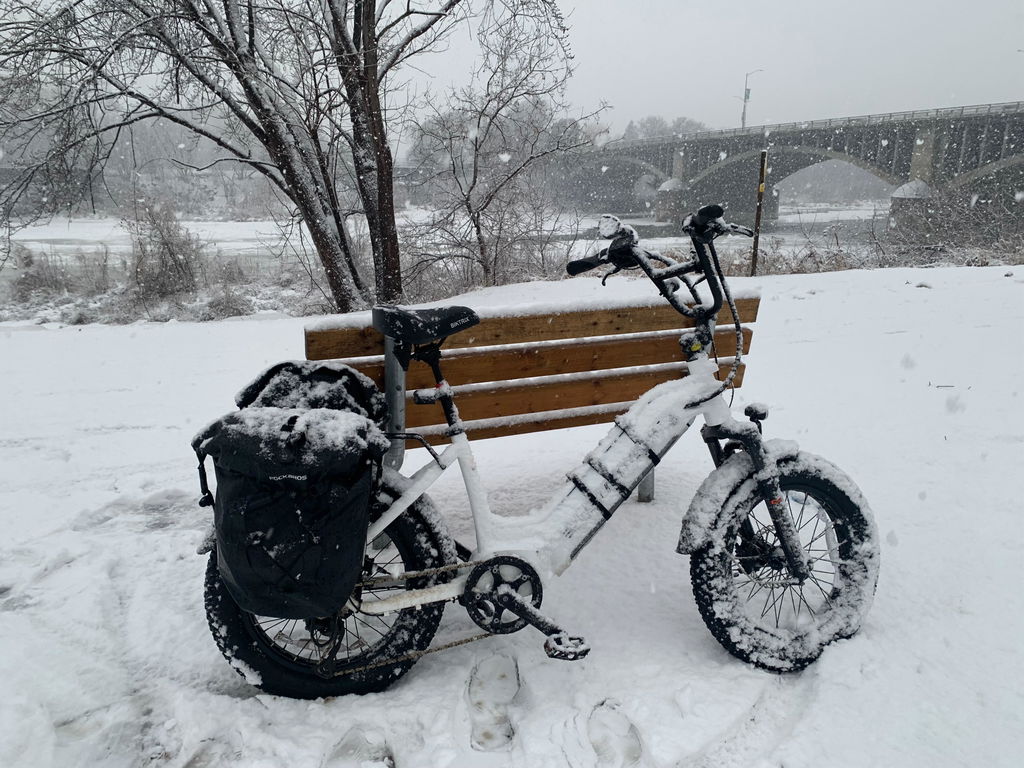

I’ve been riding this bike through the Canadian winter everyday for 4 months. The smaller 20” x 4” wheels combined with 750w motor give this bike incredible torque and safety during rush hour. Its top speed is 32km/hr even when unlocked. But thats more than enough for me. The torque makes this more fun than larger wheel sizes, booting around town and carrying heavy grocery loads with ease. Additionally, the small size allows me to easily fit in elevators even fully loaded. This is Canada’s answer to the Rad Runner series, only way better.

E-bike doesn’t work

Brand new Juggernaut Hub Duo Small (3 weeks old) and the pedal assist and throttle completely stopped working while riding around town. Stay tuned to see how Biktrix handles this 🍋. At this point don’t even want to give 1 star when the brand new bike doesn’t even work.

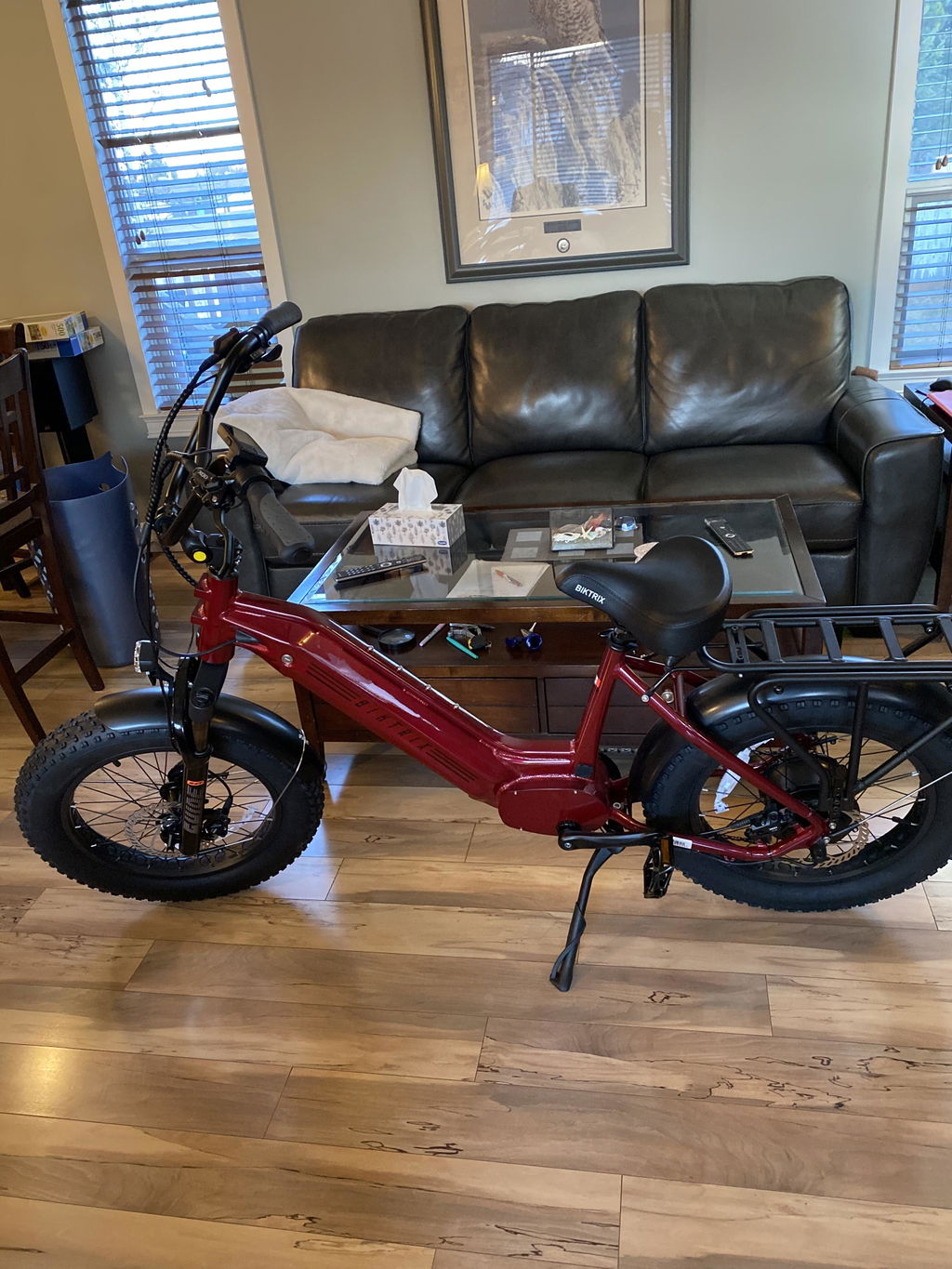

Love my new hub duo small

This is our third Biktrix e bike as we purchased two hub duo’s last year one for our daughter and then my husband got one. They love the bikes and the bikes have never had an issue so far. I am a little shorter than my daughter and although I liked riding her hub duo I found it a little big for me so I decided to get the hub duo small. I’m so glad I went with the small version as I find it more enjoyable to ride and I feel more comfortable. I would recommend a Biktrix e bike to anyone considering buying an e bike. I would like to give a shout out to Clayton for his great customer service. Thanks Leanne

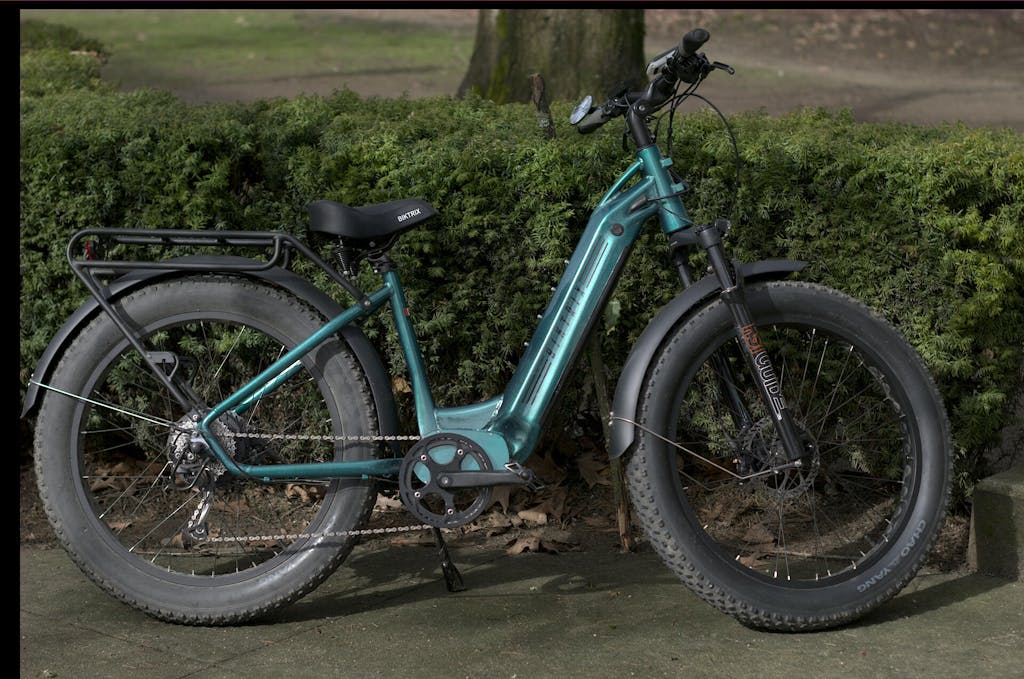

Powerful Do-It-All Bike
