Name: RST Renegade Fat bike Fork
Brand: Biktrix Electric Bikes Canada
SKU: 900152
Price: 584.0 CAD
Availability: InStock

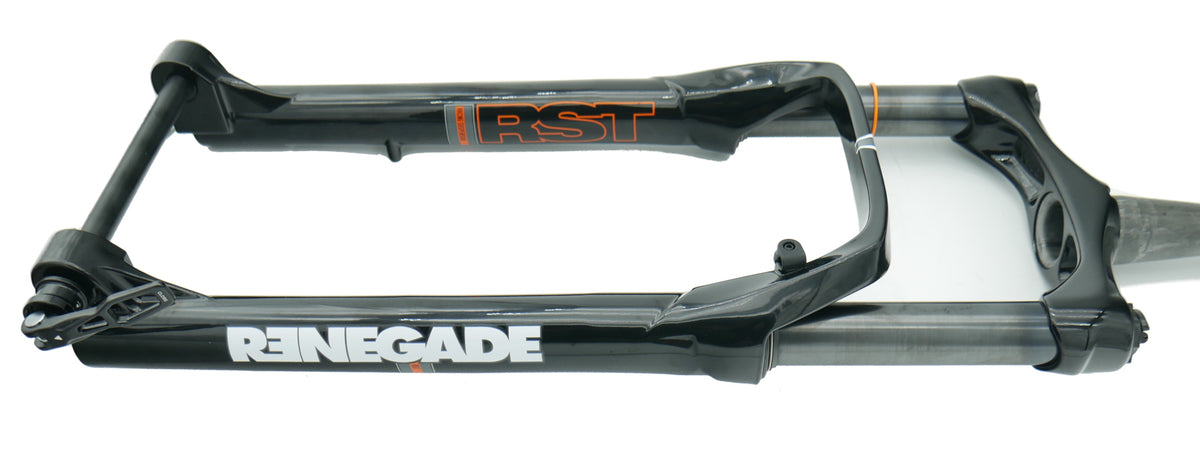

RST Renegade Fat bike Fork

5.0

CA$584.00

Designed to fit 24x4", 27.5x3", 26x4", and 26x4.8" tires, this fork provides a smooth and controlled ride on any terrain. With a coil spring and preload adjust, you can easily customize the suspension to match your riding style. The TNL damper features a lock-out function for maximum efficiency on smooth roads or climbs. The 120mm of travel and 32mm steel stanchions ensure excellent shock absorption and durability. The 15*150mm QR axle and post-mount disc brake (compatible with rotors up to 180-220mm) offer reliable stopping power. Made with a 1.5" to 1.125" aluminum tapered steerer and magnesium lower, this fork is both lightweight and sturdy.

Variant

CA$584.00

Shipping: Leaves within 6-7 business days

Overview

Designed to fit 24x4", 27.5x3", 26x4", and 26x4.8" tires, this fork provides a smooth and controlled ride on any terrain. With a coil spring and preload adjust, you can easily customize the suspension to match your riding style. The TNL damper features a lock-out function for maximum efficiency on smooth roads or climbs. The 120mm of travel and 32mm steel stanchions ensure excellent shock absorption and durability. The 15*150mm QR axle and post-mount disc brake (compatible with rotors up to 180-220mm) offer reliable stopping power. Made with a 1.5" to 1.125" aluminum tapered steerer and magnesium lower, this fork is both lightweight and sturdy.

Technical Specifications

Travel

100 mm

Adjustments

Lockout (Compression), Preload

Spring Type

Coil Spring

Steerer Tube Length and Diameter

255mm, 1-1/8" 1-1/2" Tapered

Hub Spacing

150mm TA

Supported Axle

15x150mm QR Thru Axle - Included

Supported Wheel Sizes

24x4", 26x4", 27.5x3", 26x4.8"

Brake Rotor Size Range

160mm - 203mm

Compatibility

Bike Name	Compatible
Juggernaut Ultra Duo 3
Juggernaut Ultra Duo 1/2
Juggernaut Classic / Hub Duo
Juggernaut Ultra FS Pro 1 w/ 27.5x3" Boost Hub Spacing
Juggernaut Ultra FS Pro 1 w/26x4" Fat Tire hub Spacing
Juggernaut Ultra FS Pro 2/3
Monte Capro Ultra 1/2 w/ 26x4.8" Fat Tire Hub Spacing
Juggernaut Ultra Eagle 2
Juggernaut Ultra 1000 Pro
Juggernaut Ultra FS
Juggernaut Ultra Beast 1/2

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

Excellent fork!

Was an easy install on my Aventure bike. works and looks great!

Great product - fast service.

Found this fork, based on research for an upgrade to AWD ebike. Some manufacturers use this fork with front hub motors. It is solid, well made, and the dropouts a very thick and supportive. Read about how several newbies where breaking fork and flying over the handlebars due to front forks not being capable of handling the torque from the front motor. Others on YouTube used this fork and said it was suitable. After installing the fork and front hub motor, I agree that it is definitely suitable and string enough. Super pleased with the purchase and with Biktrix for the fast shipping.

RST Suspension

This is a replacement as I finally wore out my old one after thousands of miles of rough mountain riding. It was installed on my 2018 Ultra FS. It does everything I need it to do and I’m happy Biktrix helped me out as the quick release forks are hard to find as the industry standard is now the through axel type.

Excellent
