750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

Up to 80km

Standard Range

+5'8ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

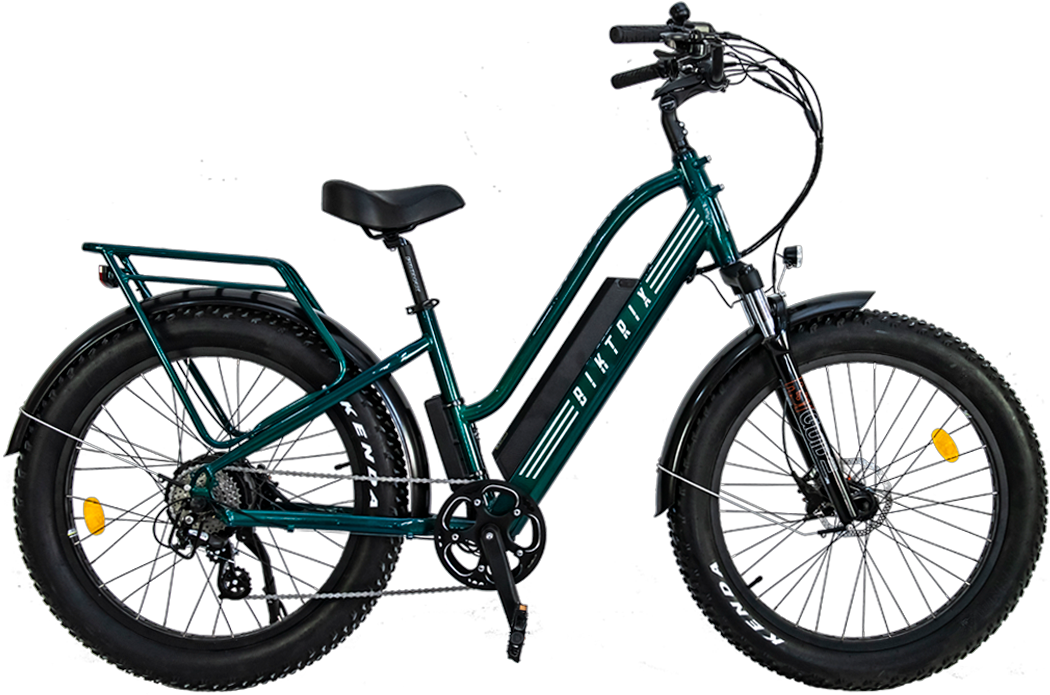

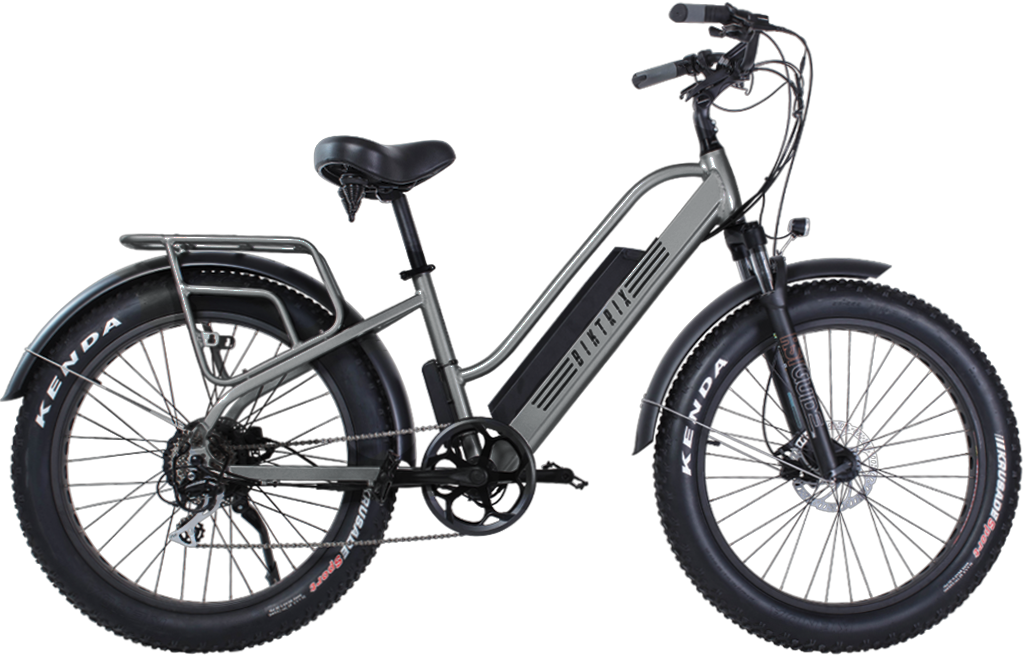

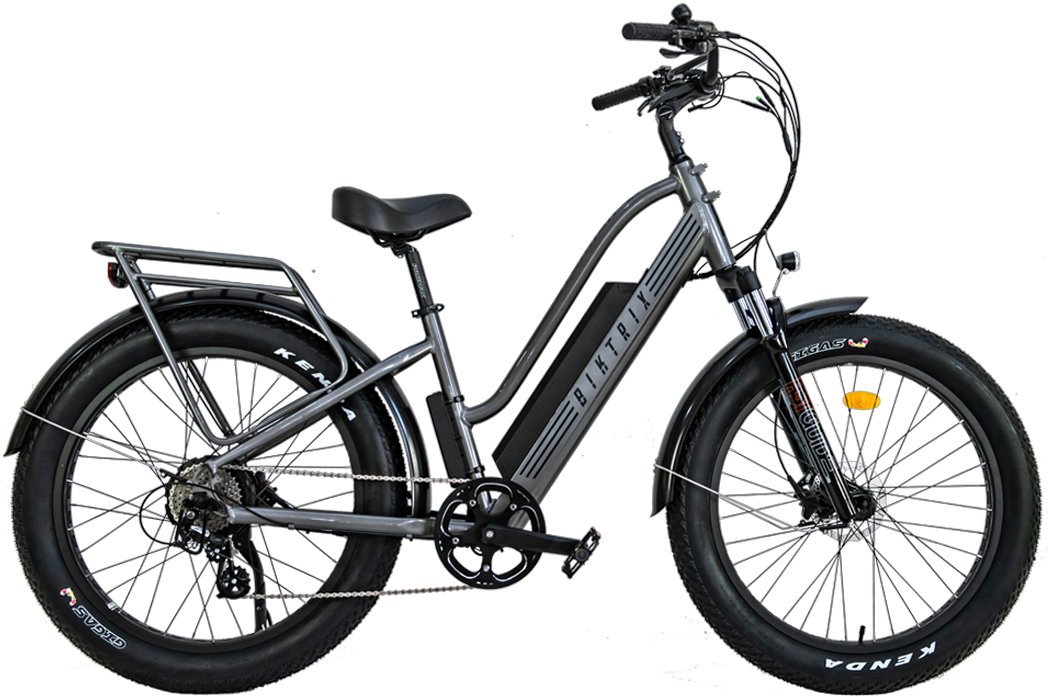

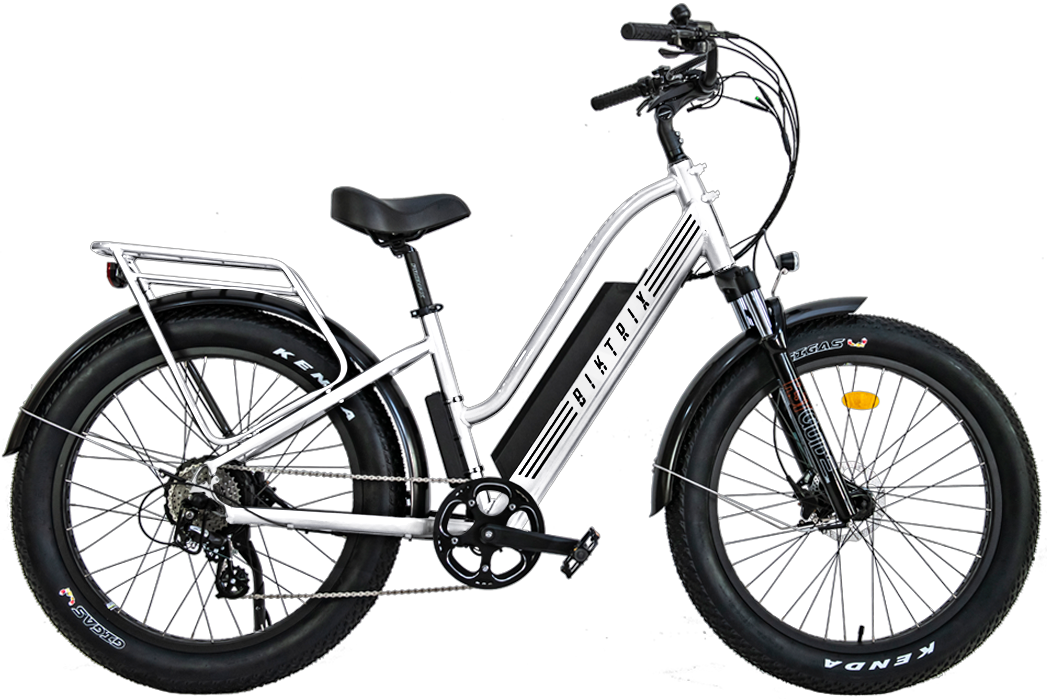

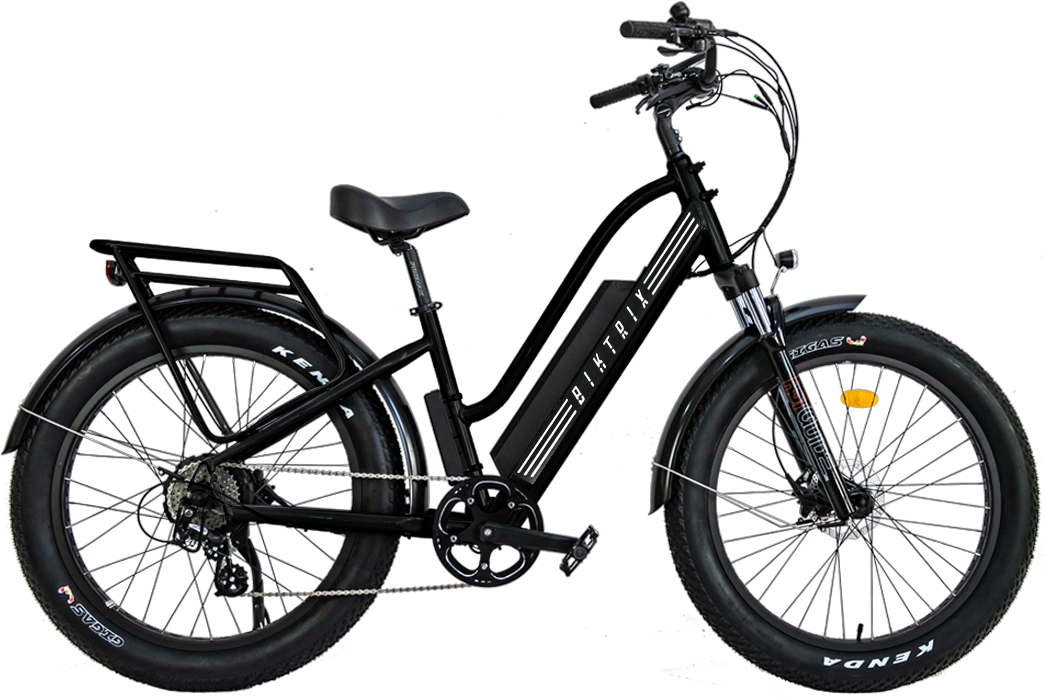

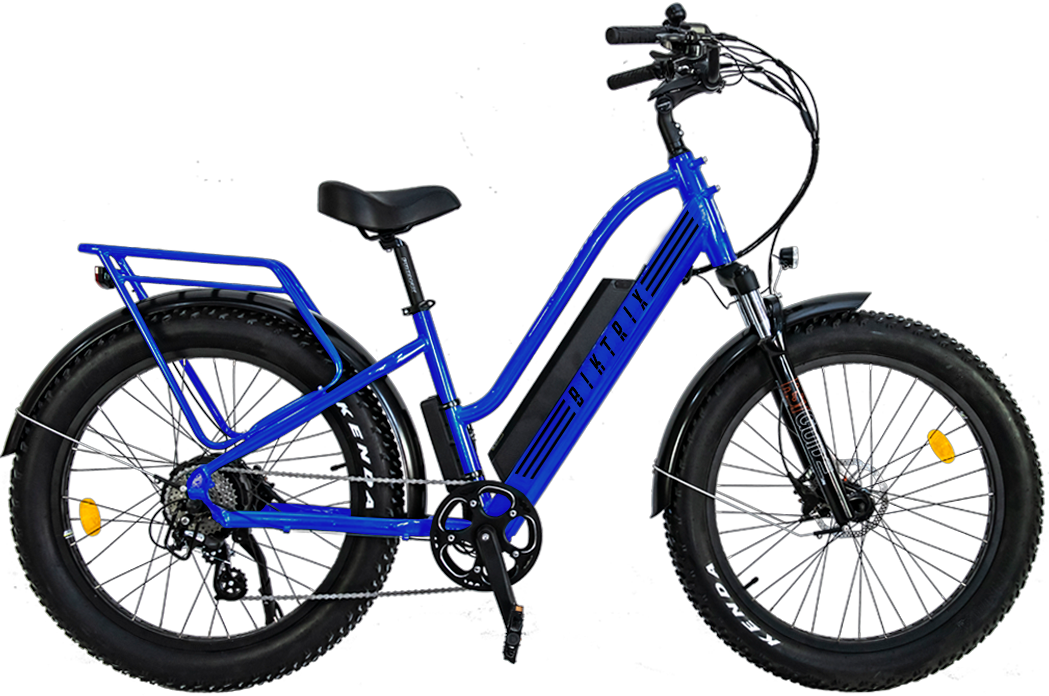

Stunner LT 6 Large

Name: Stunner LT 6 Large
Brand: Sale Item
SKU: STN-LT-264-GR
Price: 2999.0 CAD
Availability: OutOfStock
Rating: 4.6 (109 reviews)

4.6

CA$2,999

This item has been replaced!

Want the latest version? Check out the Stunner LT 7 and ride in style now!

Buy Stunner LT 7 Today

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	450mm	17.7in
3	Reach	460mm	18.1in
4	Stack	700mm	27.6in
5	Chainstay Length	530mm	20.9in
6	Standover Height	535mm	21.1in
7	Head Angle	60°	-
8	Seat Angle	72°	-
9	Head Tube Length	225 mm	8.9 in
10	Fork Length	530mm	20.9in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1240mm	48.8in
15	Total Length	1970mm	77.6in
16	Max Seat Height	1040mm	40.9in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1270mm	50in
19	Weight (Without Battery)	29.9kg	65.9lb

750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

Up to 80km

Standard Range

+5'8ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Technical Specifications

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm	Seat post Aluminum 28.6mm
Fork Rst guide, 75mm travel	Front axle 5mm qr	Seat post clamp 36.5mm qr
Headset Threadless 1-1/8 straight	Rear hub Motor	Motor 750w geared hub
Shifter rear Shimano 8 speed trigger	Rear axle Bolt on	Battery sizes 48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur Shimano atlus 8 speed	Rims Black 24"- 75mm 36h	Display 800s backlit lcd
Cassette Shimano 11-32t	Tire sizes 20x4", 24x4", 26x4"	Lights Integrated headlight
Chain Kmc z8	Handlebar 25.4mm clamp 50mm riser mid cruiser bars	Assist type Torque
Crank set 170mm 52t	Stem Promax quick adjust	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Ergo slide on	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic disc w/ 160mm	Saddle Cruiser foam sprung	Other Aluminum fenders, color matched rack, adjustable kickstand, bell
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm
Seat post Aluminum 28.6mm	Fork Rst guide, 75mm travel
Front axle 5mm qr	Seat post clamp 36.5mm qr
Headset Threadless 1-1/8 straight	Rear hub Motor
Motor 750w geared hub	Shifter rear Shimano 8 speed trigger
Rear axle Bolt on	Battery sizes 48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur Shimano atlus 8 speed	Rims Black 24"- 75mm 36h
Display 800s backlit lcd	Cassette Shimano 11-32t
Tire sizes 20x4", 24x4", 26x4"	Lights Integrated headlight
Chain Kmc z8	Handlebar 25.4mm clamp 50mm riser mid cruiser bars
Assist type Torque	Crank set 170mm 52t
Stem Promax quick adjust	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Ergo slide on
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic disc w/ 160mm
Saddle Cruiser foam sprung	Other Aluminum fenders, color matched rack, adjustable kickstand, bell
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame

6061 aluminum step thru frame w/ rack and fenders

Front hub

Modus 135mm

Seat post

Aluminum 28.6mm

Fork

Rst guide, 75mm travel

Front axle

5mm qr

Seat post clamp

36.5mm qr

Headset

Threadless 1-1/8 straight

Rear hub

Motor

750w geared hub

Shifter rear

Shimano 8 speed trigger

Rear axle

Bolt on

Battery sizes

48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung

Rear derailleur

Shimano atlus 8 speed

Rims

Black 24"- 75mm 36h

Display

800s backlit lcd

Cassette

Shimano 11-32t

Tire sizes

20x4", 24x4", 26x4"

Lights

Integrated headlight

Chain

Kmc z8

Handlebar

25.4mm clamp 50mm riser mid cruiser bars

Assist type

Torque

Crank set

170mm 52t

Stem

Promax quick adjust

Assist levels

0-5

Bottom bracket

100mm square taper

Grips

Ergo slide on

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic disc w/ 160mm

Saddle

Cruiser foam sprung

Other

Aluminum fenders, color matched rack, adjustable kickstand, bell

Brake levers

Biktrix w/ adjustable reach and motorcutoffs

Size & Fittings

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	450mm	17.7in
3	Reach	460mm	18.1in
4	Stack	700mm	27.6in
5	Chainstay Length	530mm	20.9in
6	Standover Height	535mm	21.1in
7	Head Angle	60°	-
8	Seat Angle	72°	-
9	Head Tube Length	225 mm	8.9 in
10	Fork Length	530mm	20.9in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1240mm	48.8in
15	Total Length	1970mm	77.6in
16	Max Seat Height	1040mm	40.9in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1270mm	50in
19	Weight (Without Battery)	29.9kg	65.9lb

FAQ & Guides

Guide Spare Parts Finder

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

New Bike

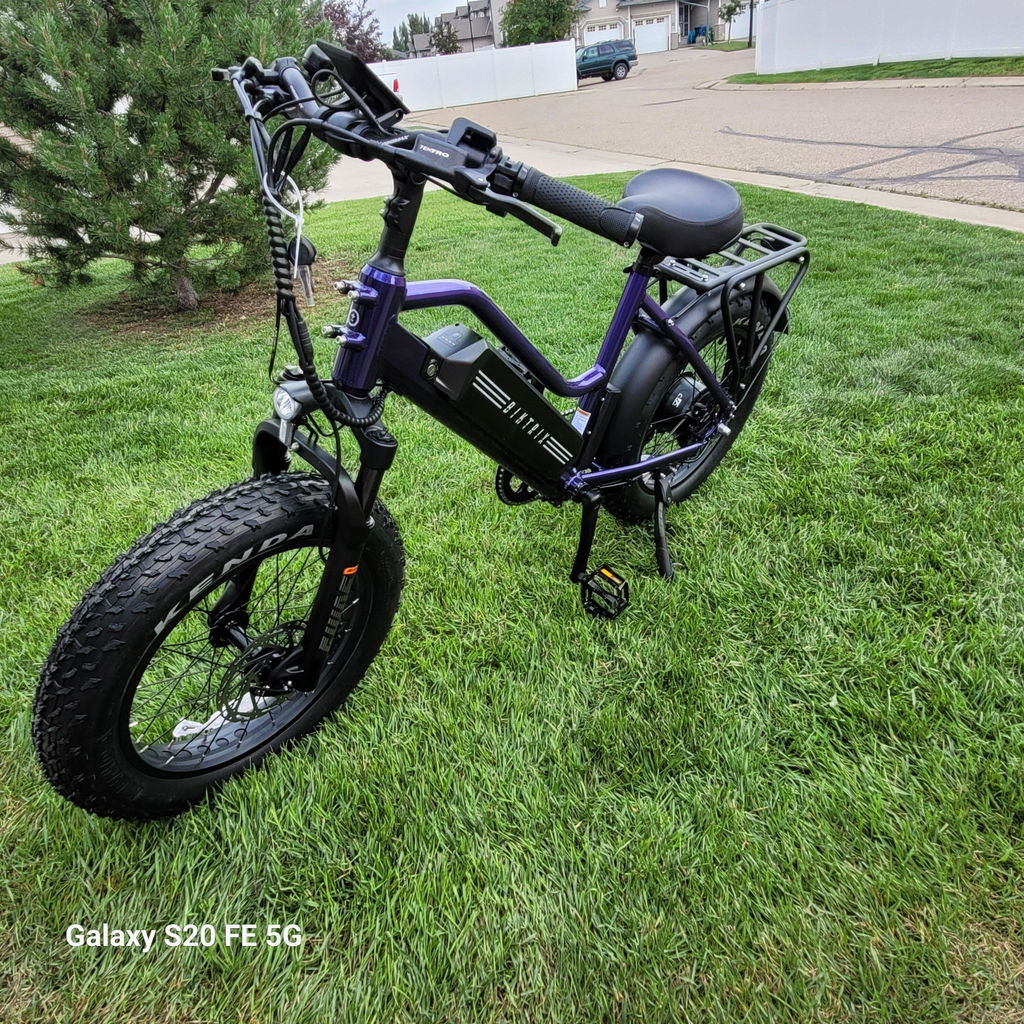

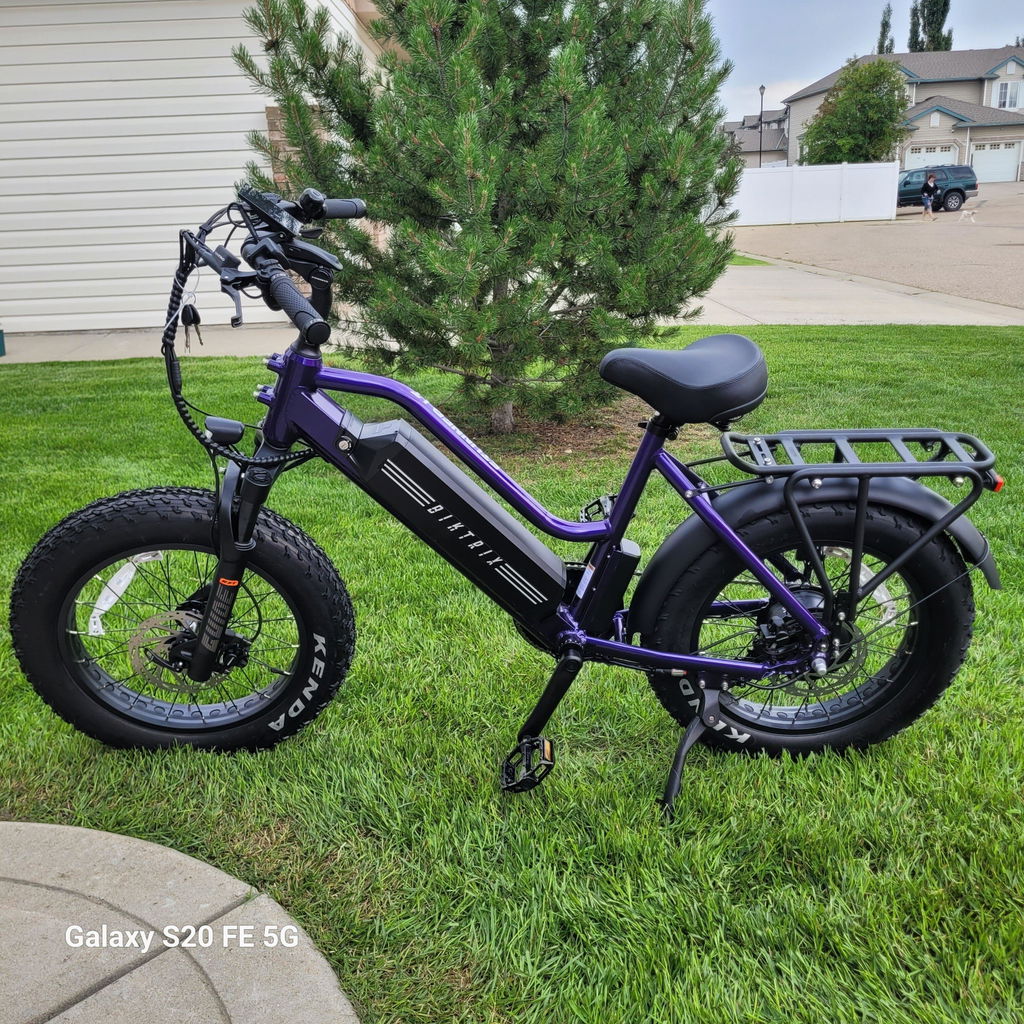

I saw this company at a local trade show, here in my hometown of Red Deer, Alberta over a year ago and was impressed then. I looked at a lot of companies offering this and that, but wanted to buy locally ( Canadian ) even though I know 99% of all E Bikes are coming from China. I have now been riding for 2 weeks and absolutely love this bike !! It handles so incredible and has lots of get up and go. I turned 65 in March and and a very active guy, but I was concerned that maybe it was too much bike, but, to my pleasant surprise it is nit. Thank You Biketrix and especially Clsyton, that made the buying easy !!
