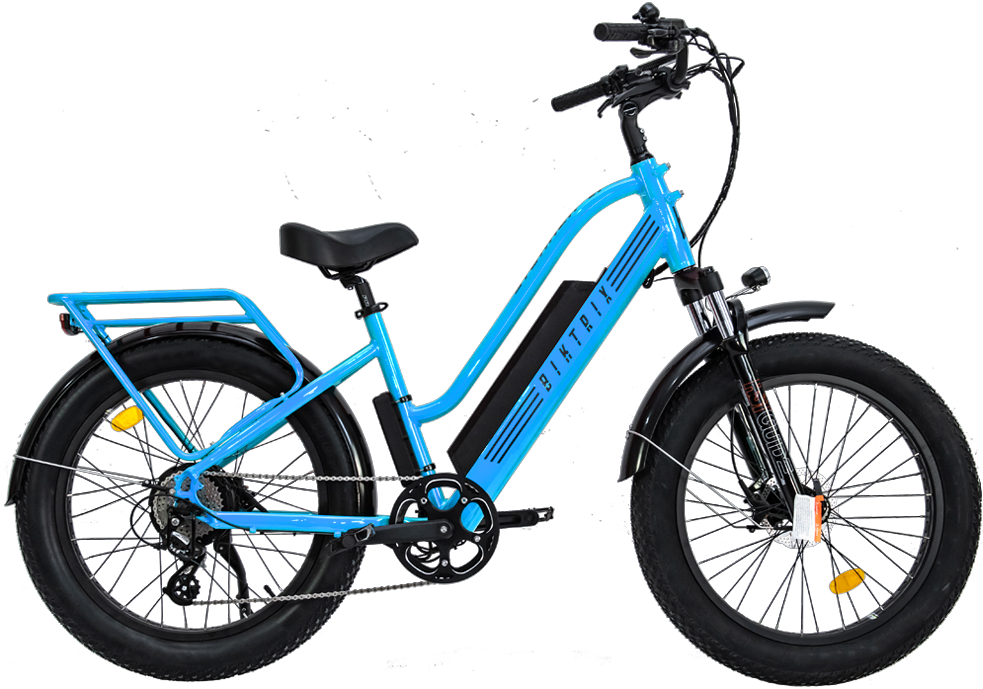

Stunner LT 6 Medium

Sale price CA$0.00 Regular priceCA$2,999.00
Save CA$2,999

Want the latest version? Check out the Stunner LT 7 and ride in style now!

Buy Stunner LT 7 Today

Technical Specifications

Frame
6061 aluminum step thru frame w/ rack and fenders
Front hub
Modus 135mm
Seat post
Aluminum 28.6mm
Fork
Rst guide, 75mm travel
Front axle
5mm qr
Seat post clamp
36.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor
Motor
750w geared hub
Shifter rear
Shimano 8 speed trigger
Rear axle
Bolt on
Battery sizes
48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur
Shimano atlus 8 speed
Rims
Black 24"- 75mm 36h
Display
800s backlit lcd
Cassette
Shimano 11-32t
Tire sizes
20x4", 24x4", 26x4"
Lights
Integrated headlight
Chain
Kmc z8
Handlebar
25.4mm clamp 50mm riser mid cruiser bars
Assist type
Torque
Crank set
170mm 52t
Stem
Promax quick adjust
Assist levels
0-5
Bottom bracket
100mm square taper
Grips
Ergo slide on
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic disc w/ 160mm
Saddle
Cruiser foam sprung
Other
Aluminum fenders, color matched rack, adjustable kickstand, bell
Brake levers
Biktrix w/ adjustable reach and motorcutoffs
Frame
6061 aluminum step thru frame w/ rack and fenders
Front hub
Modus 135mm
Seat post
Aluminum 28.6mm
Fork
Rst guide, 75mm travel
Front axle
5mm qr
Seat post clamp
36.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor
Motor
750w geared hub
Shifter rear
Shimano 8 speed trigger
Rear axle
Bolt on
Battery sizes
48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur
Shimano atlus 8 speed
Rims
Black 24"- 75mm 36h
Display
800s backlit lcd
Cassette
Shimano 11-32t
Tire sizes
20x4", 24x4", 26x4"
Lights
Integrated headlight
Chain
Kmc z8
Handlebar
25.4mm clamp 50mm riser mid cruiser bars
Assist type
Torque
Crank set
170mm 52t
Stem
Promax quick adjust
Assist levels
0-5
Bottom bracket
100mm square taper
Grips
Ergo slide on
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic disc w/ 160mm
Saddle
Cruiser foam sprung
Other
Aluminum fenders, color matched rack, adjustable kickstand, bell
Brake levers
Biktrix w/ adjustable reach and motorcutoffs
Frame
6061 aluminum step thru frame w/ rack and fenders
Front hub
Modus 135mm
Seat post
Aluminum 28.6mm
Fork
Rst guide, 75mm travel
Front axle
5mm qr
Seat post clamp
36.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor
Motor
750w geared hub
Shifter rear
Shimano 8 speed trigger
Rear axle
Bolt on
Battery sizes
48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung
Rear derailleur
Shimano atlus 8 speed
Rims
Black 24"- 75mm 36h
Display
800s backlit lcd
Cassette
Shimano 11-32t
Tire sizes
20x4", 24x4", 26x4"
Lights
Integrated headlight
Chain
Kmc z8
Handlebar
25.4mm clamp 50mm riser mid cruiser bars
Assist type
Torque
Crank set
170mm 52t
Stem
Promax quick adjust
Assist levels
0-5
Bottom bracket
100mm square taper
Grips
Ergo slide on
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic disc w/ 160mm
Saddle
Cruiser foam sprung
Other
Aluminum fenders, color matched rack, adjustable kickstand, bell
Brake levers
Biktrix w/ adjustable reach and motorcutoffs

Size & Fittings

1
Effective Top Tube Length
610mm 24in
2
Seat Tube Length (Classic Bike Size)
450mm 17.7in
3
Reach
460mm 18.1in
4
Stack
700mm 27.6in
5
Chainstay Length
530mm 20.9in
6
Standover Height
535mm 21.1in
7
Head Angle
60° -
8
Seat Angle
72° -
9
Head Tube Length
225 mm 8.9 in
10
Fork Length
530mm 20.9in
11
Front Center
700mm 27.6in
12
BB (Bottom Bracket) Drop
30mm 1.2in
13
Fork Offset
35mm 1.4in
14
Wheelbase
1240mm 48.8in
15
Total Length
1970mm 77.6in
16
Max Seat Height
1040mm 40.9in
17
Min Seat Height
840mm 33.1in
18
Handlebar Height
1270mm 50in
19
Weight (Without Battery)
29.9kg 65.9lb
