750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

Up to 135km

Standard Range

+5'4ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

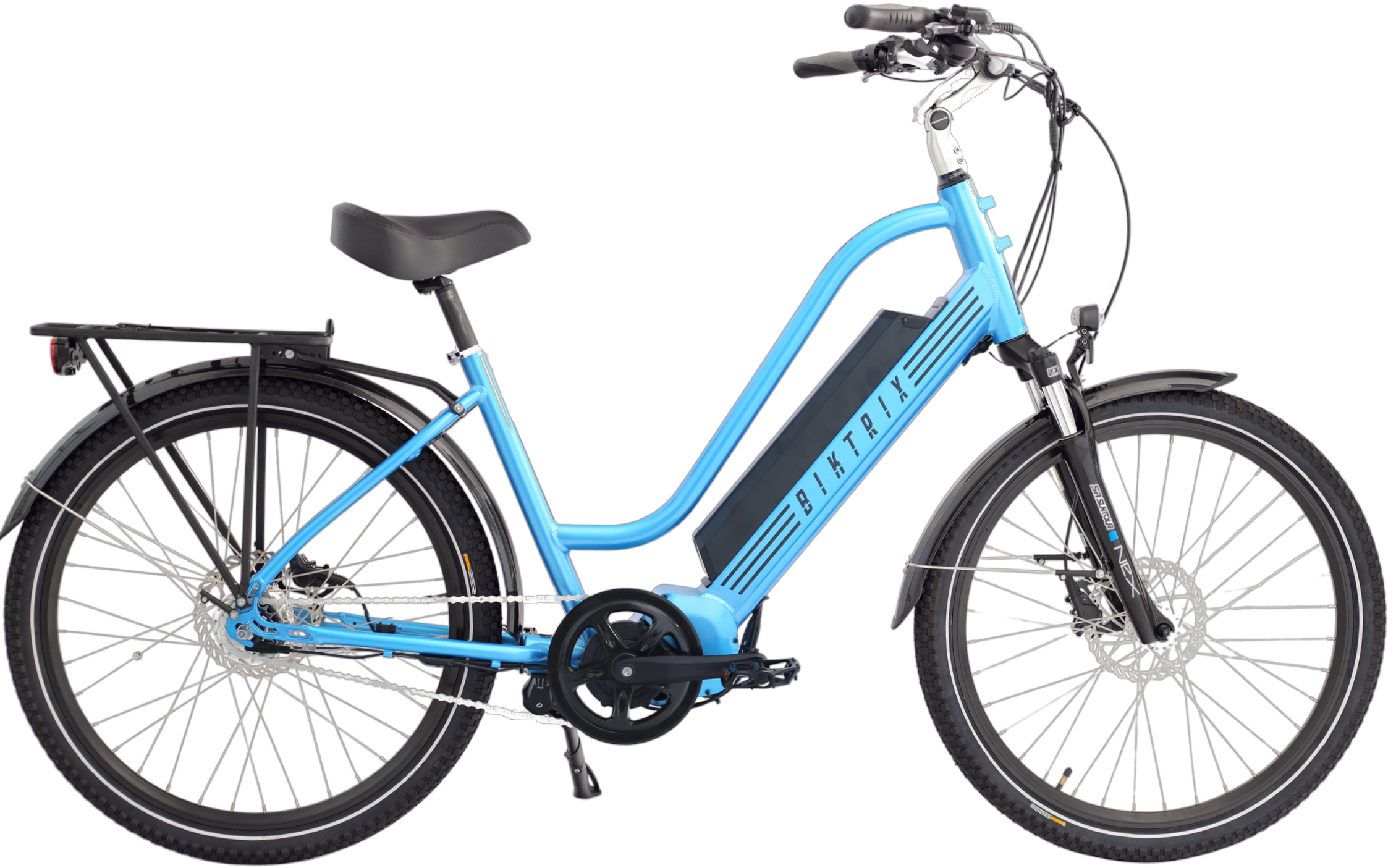

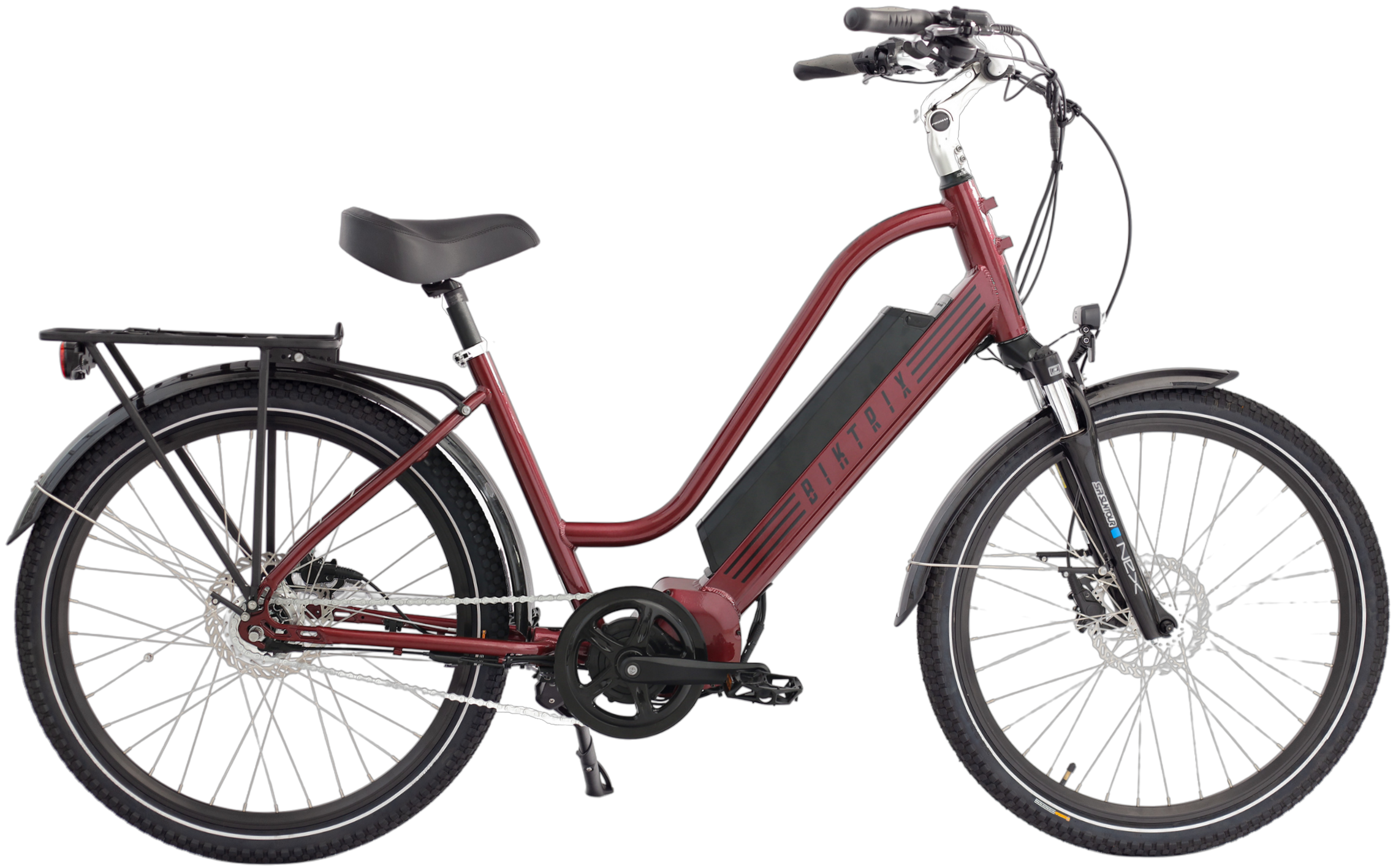

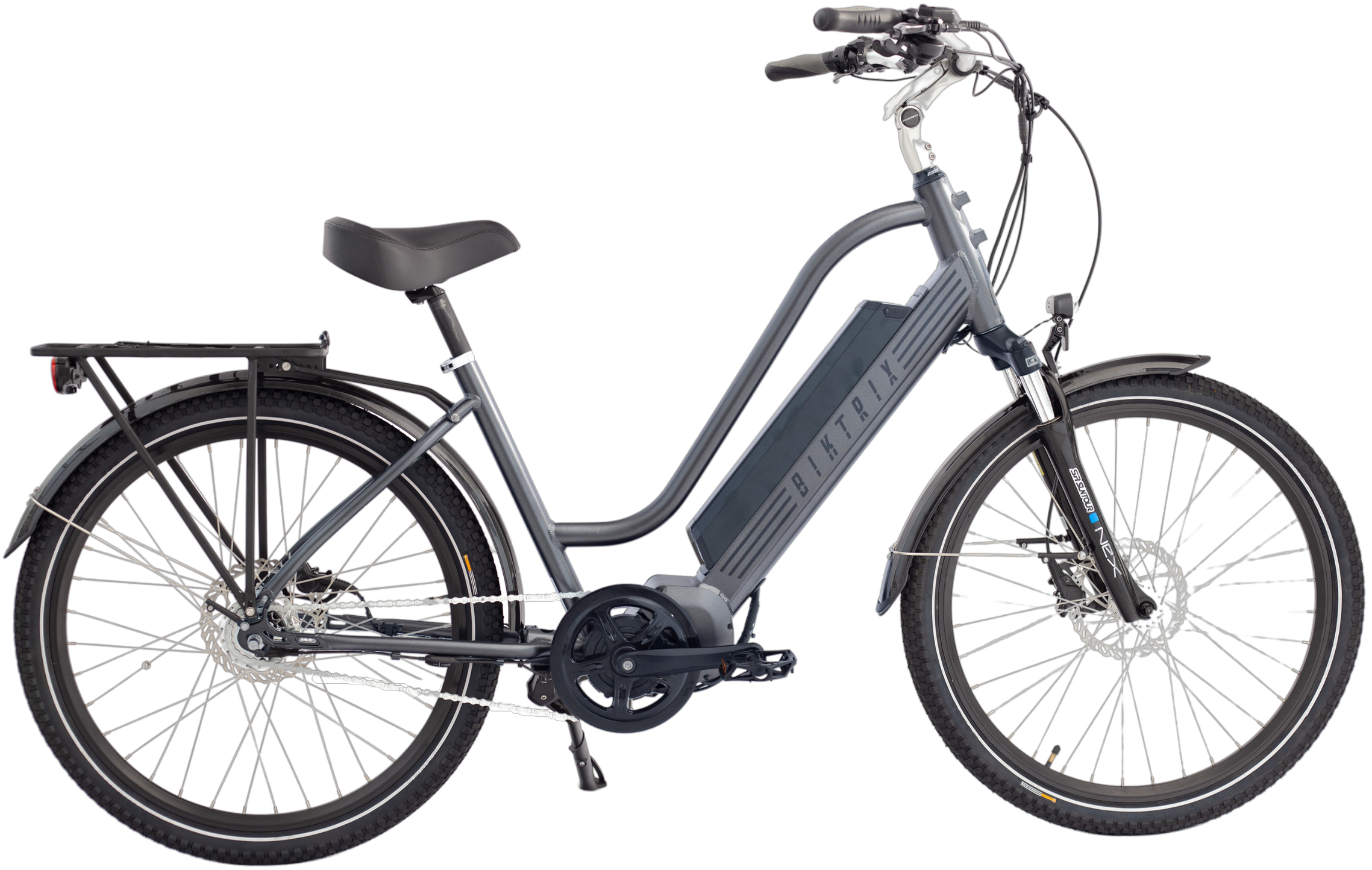

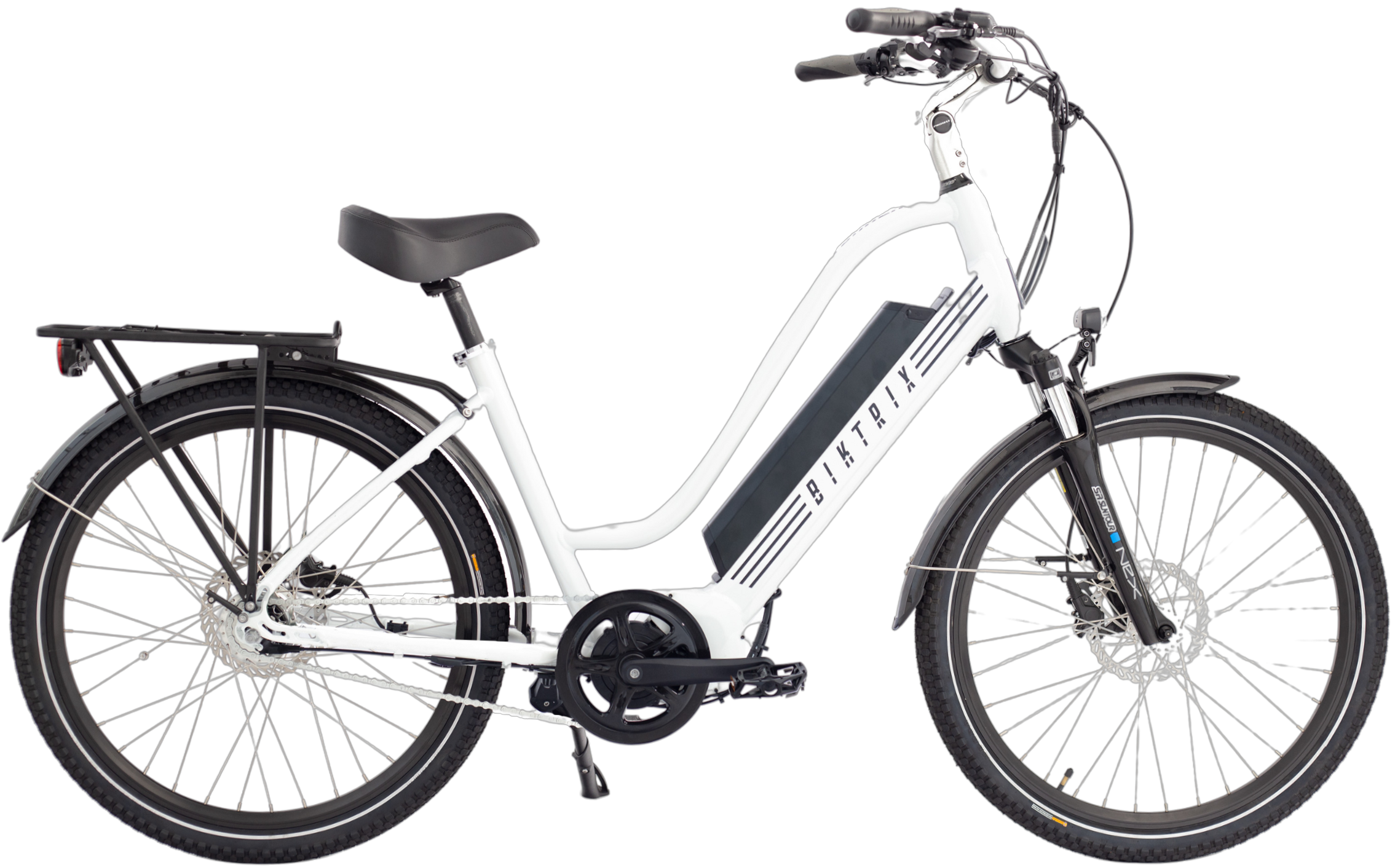

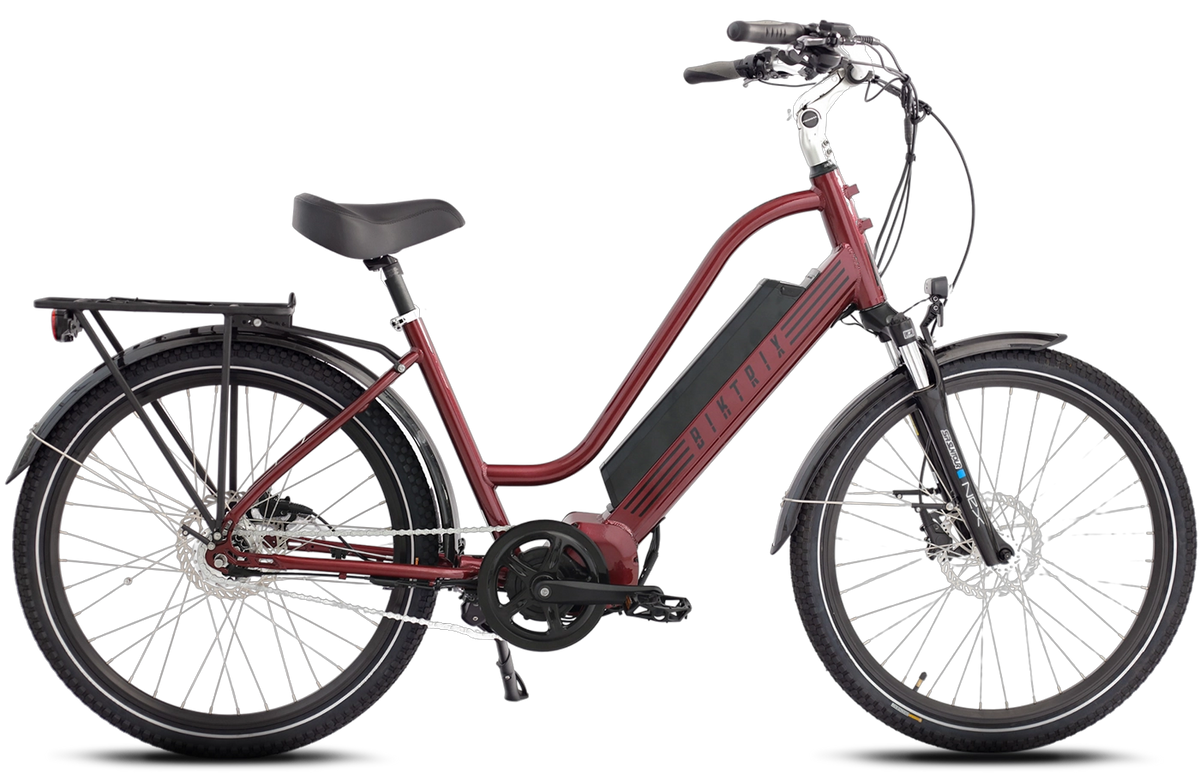

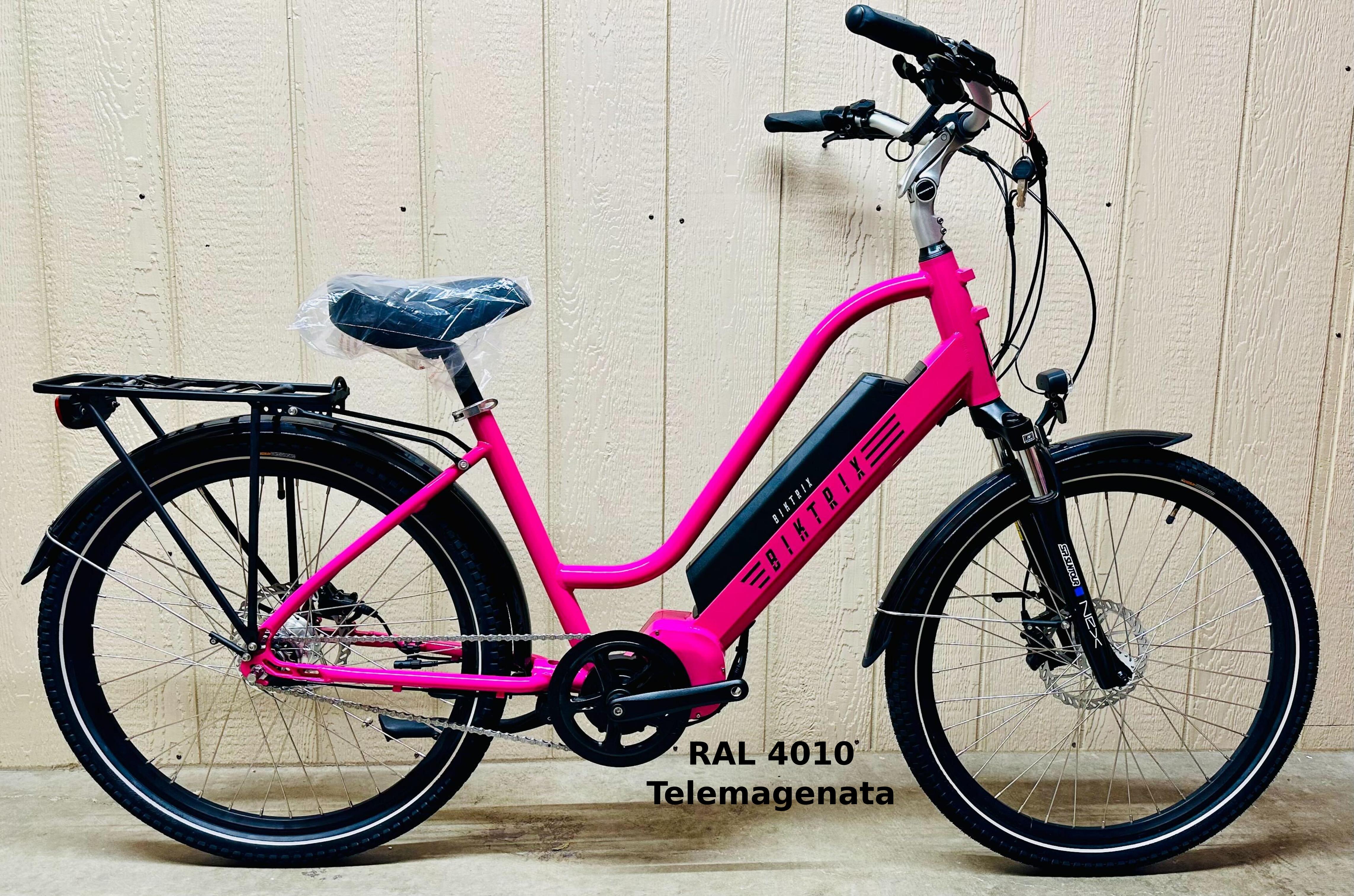

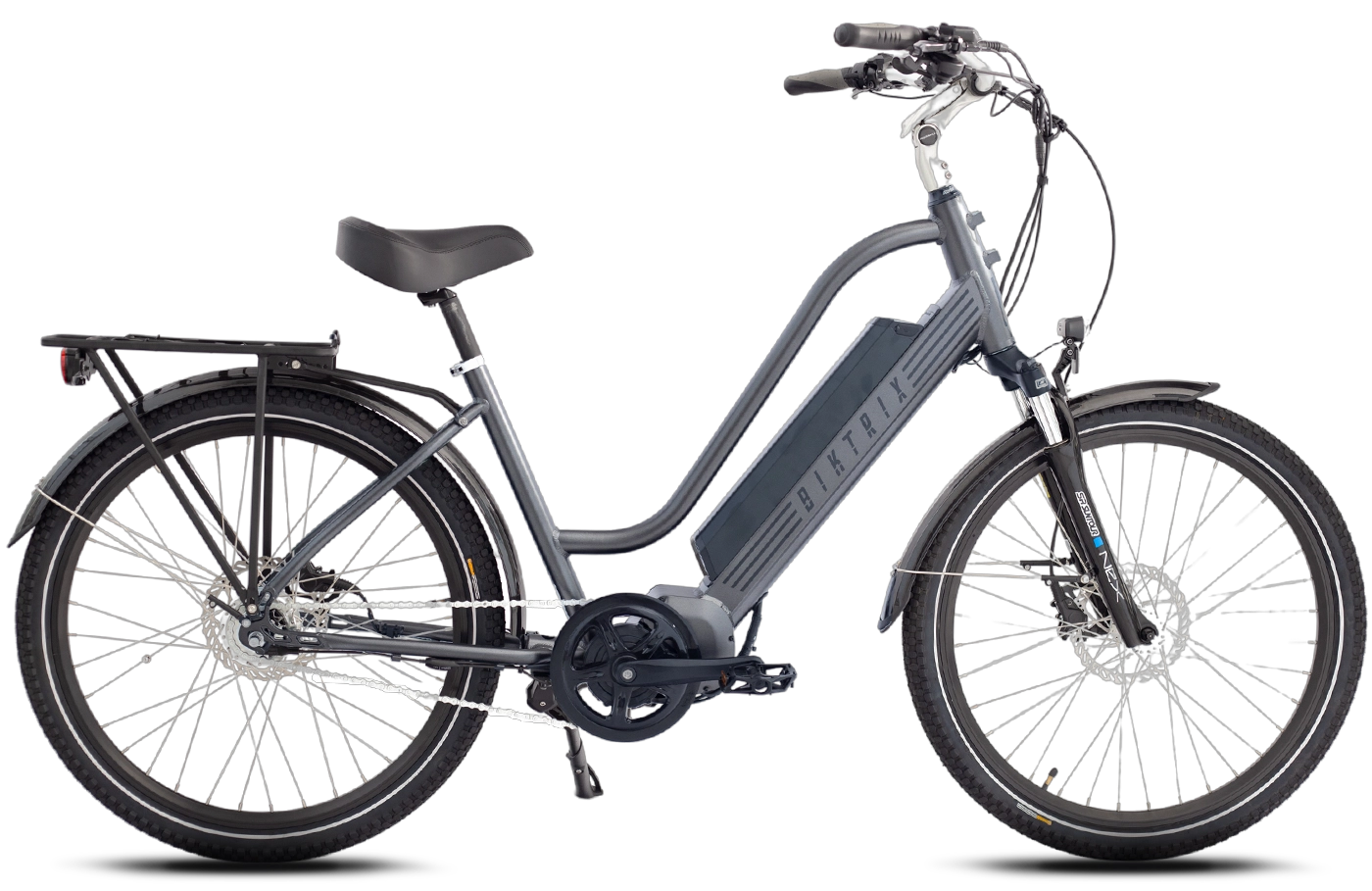

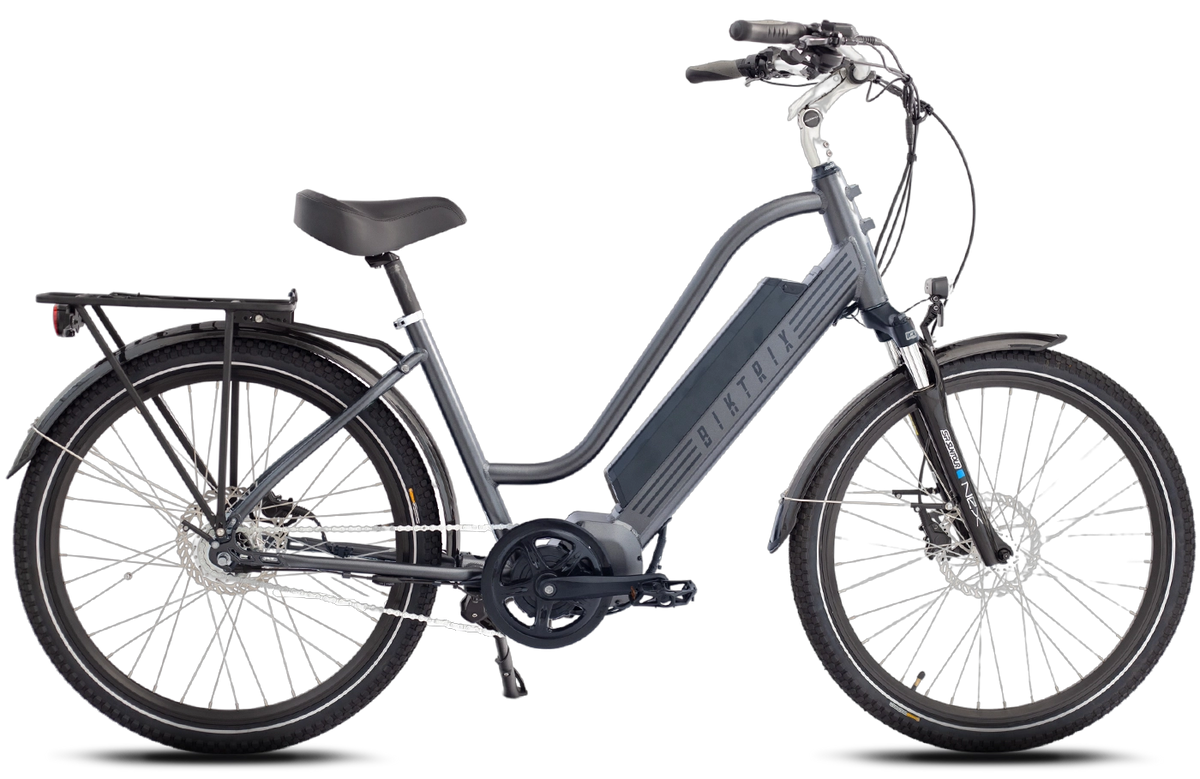

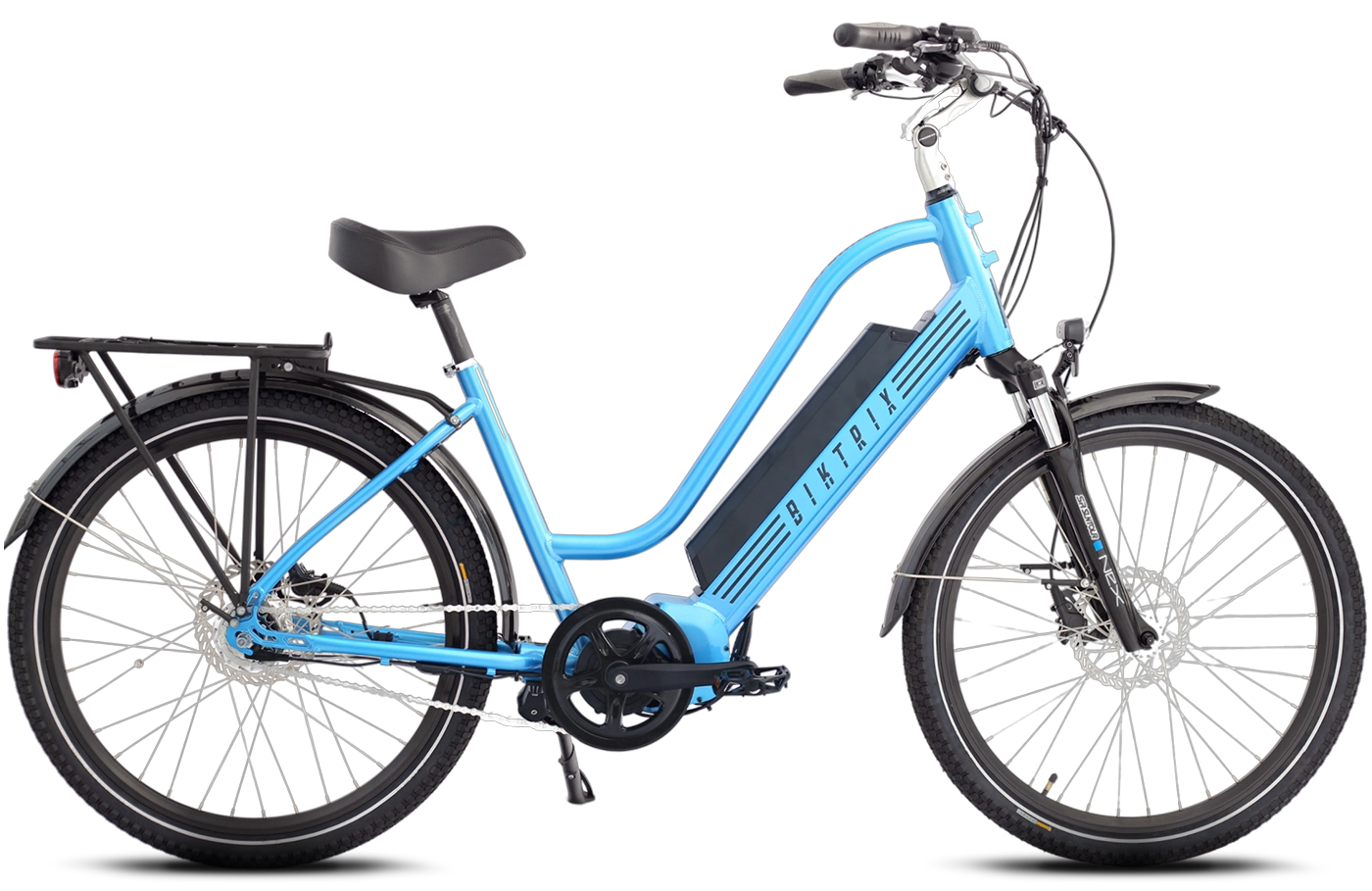

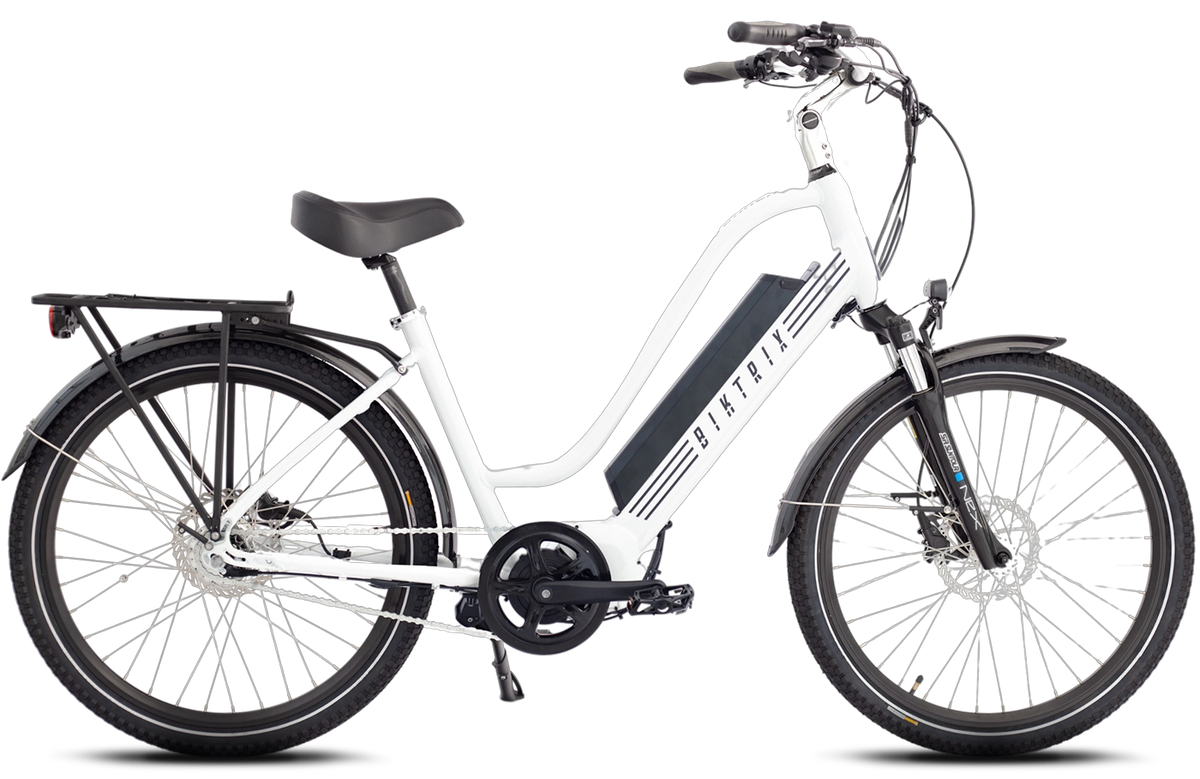

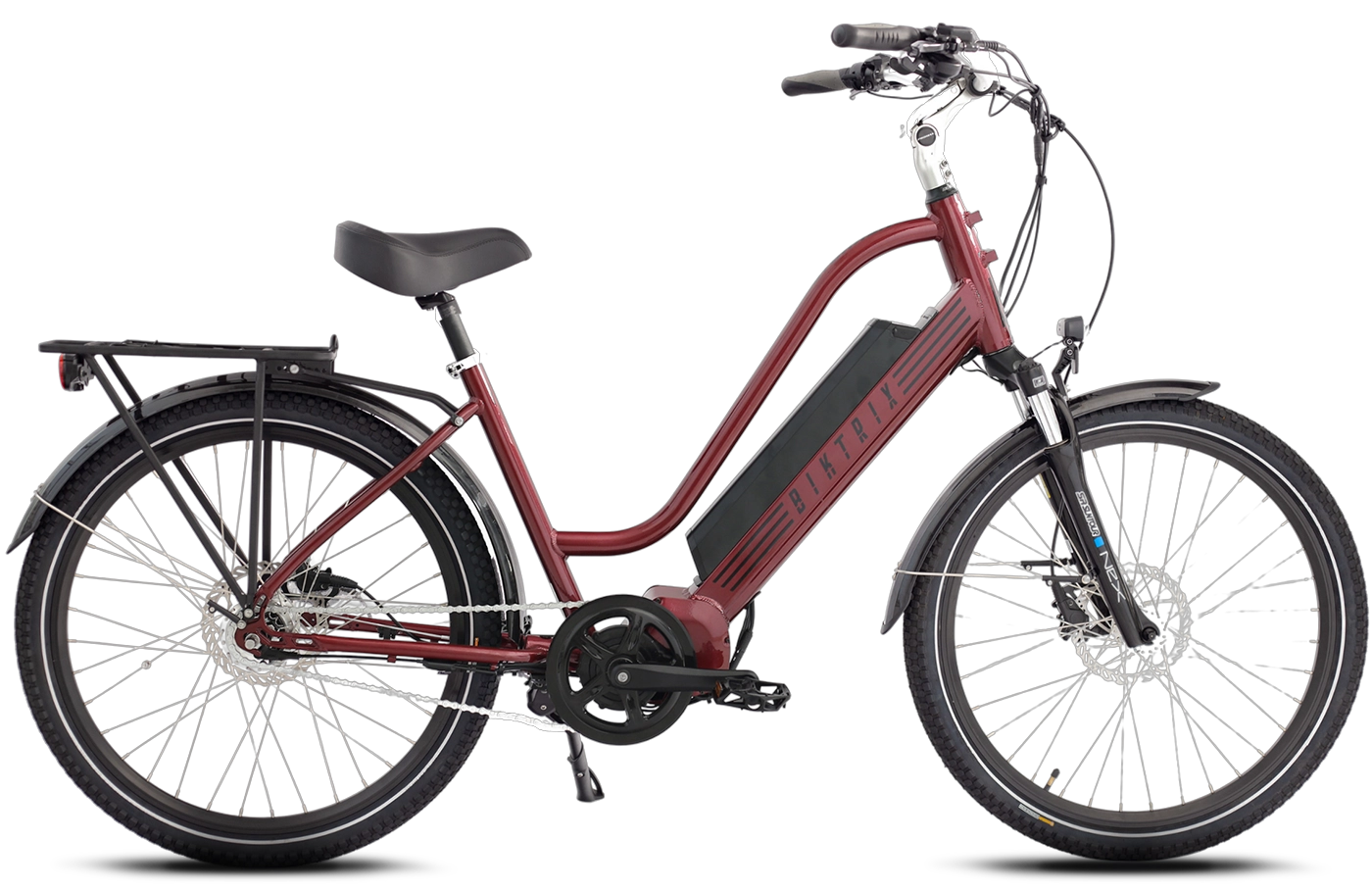

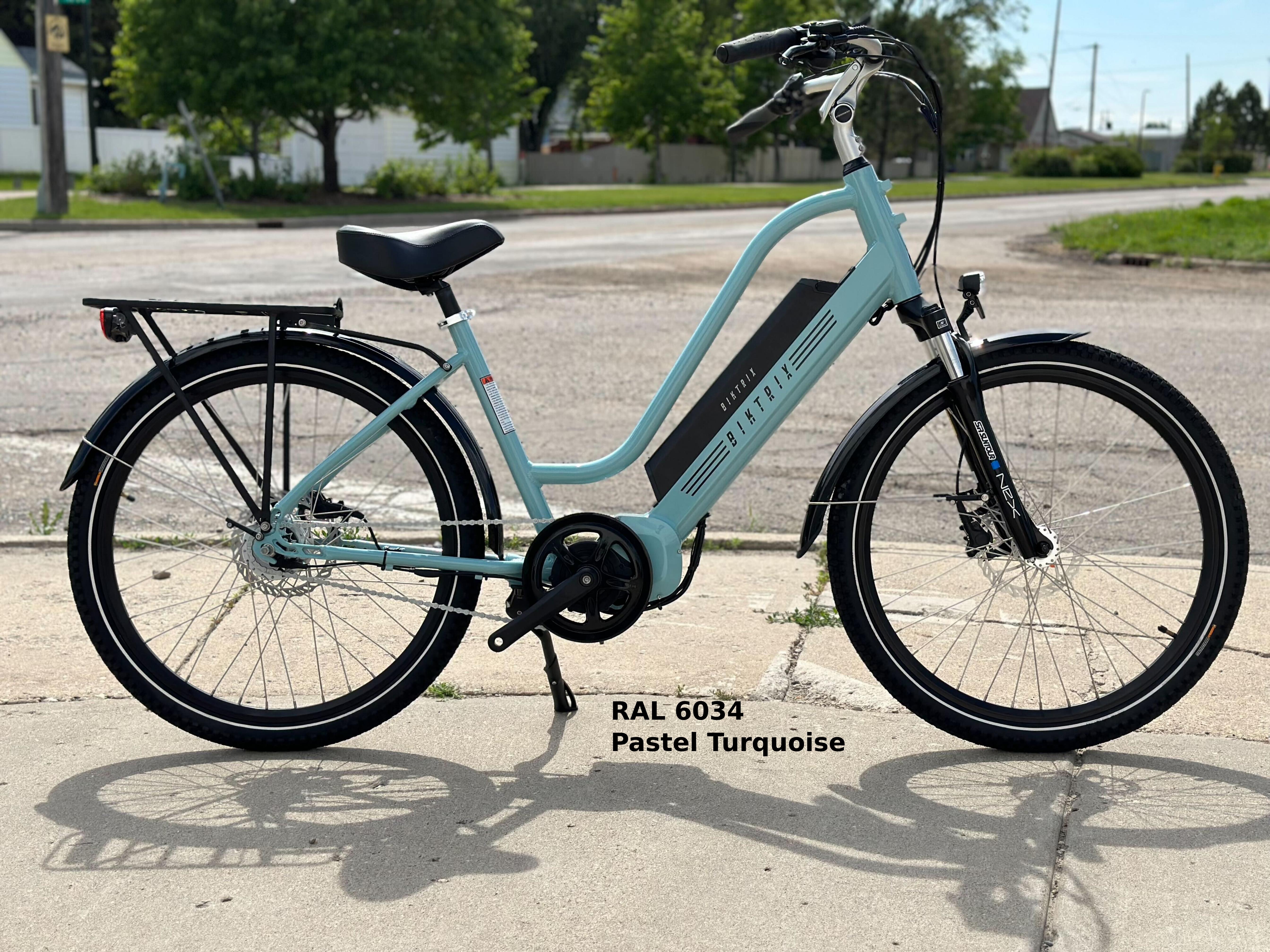

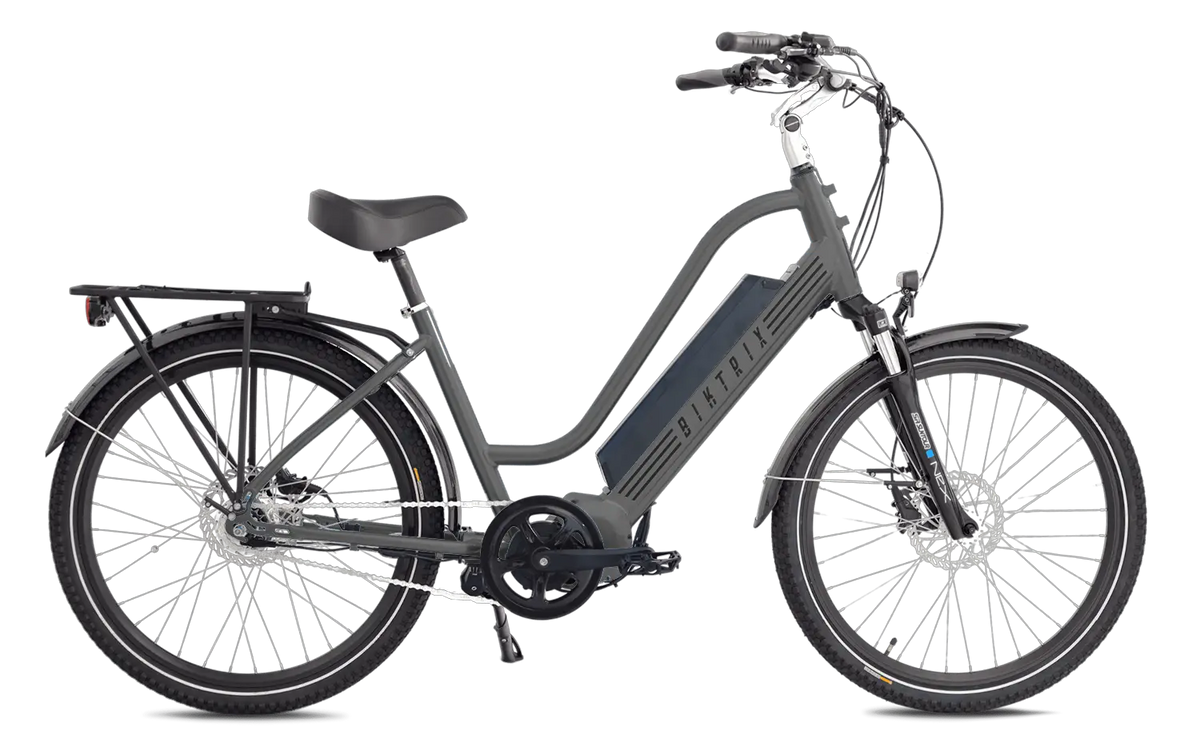

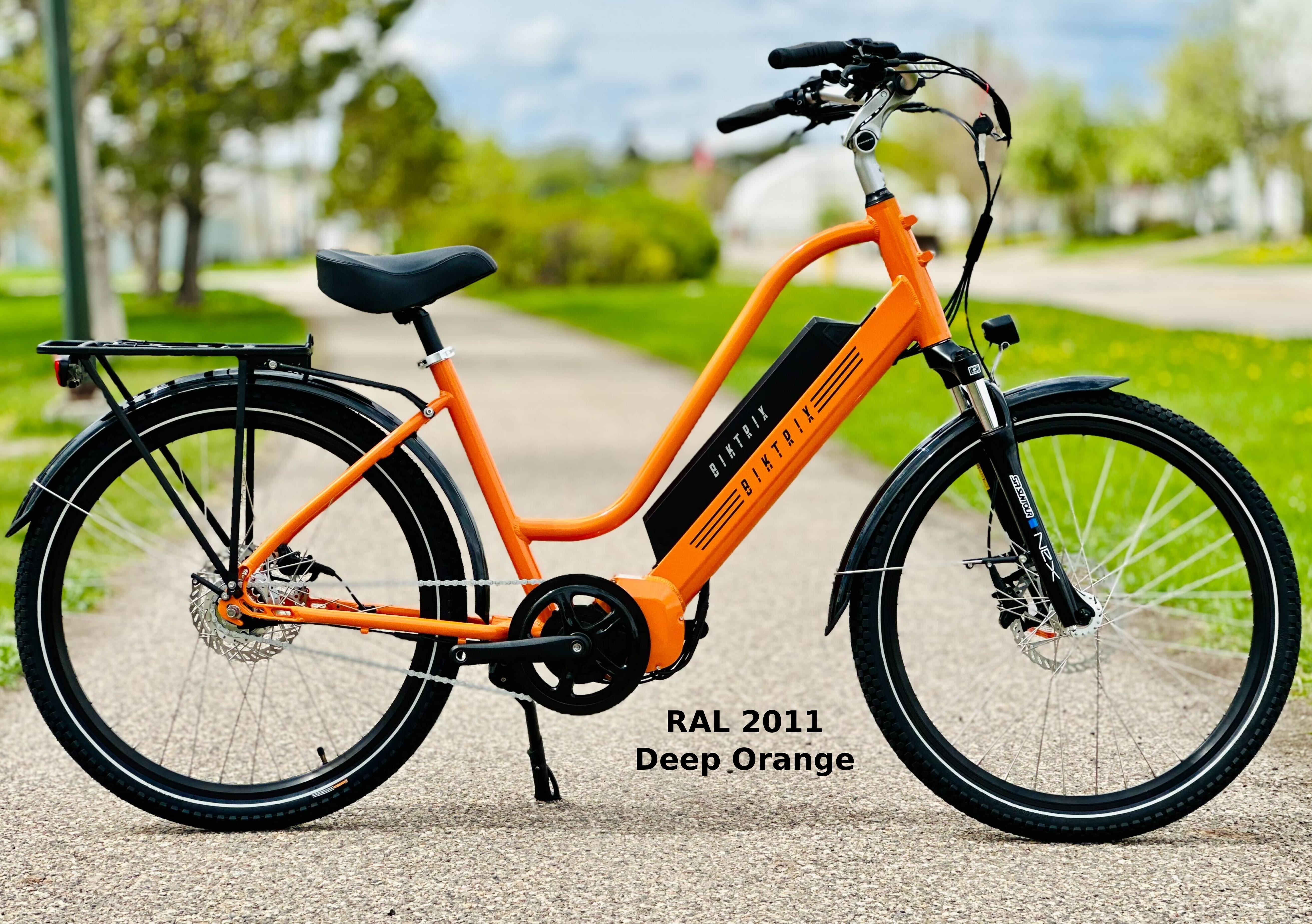

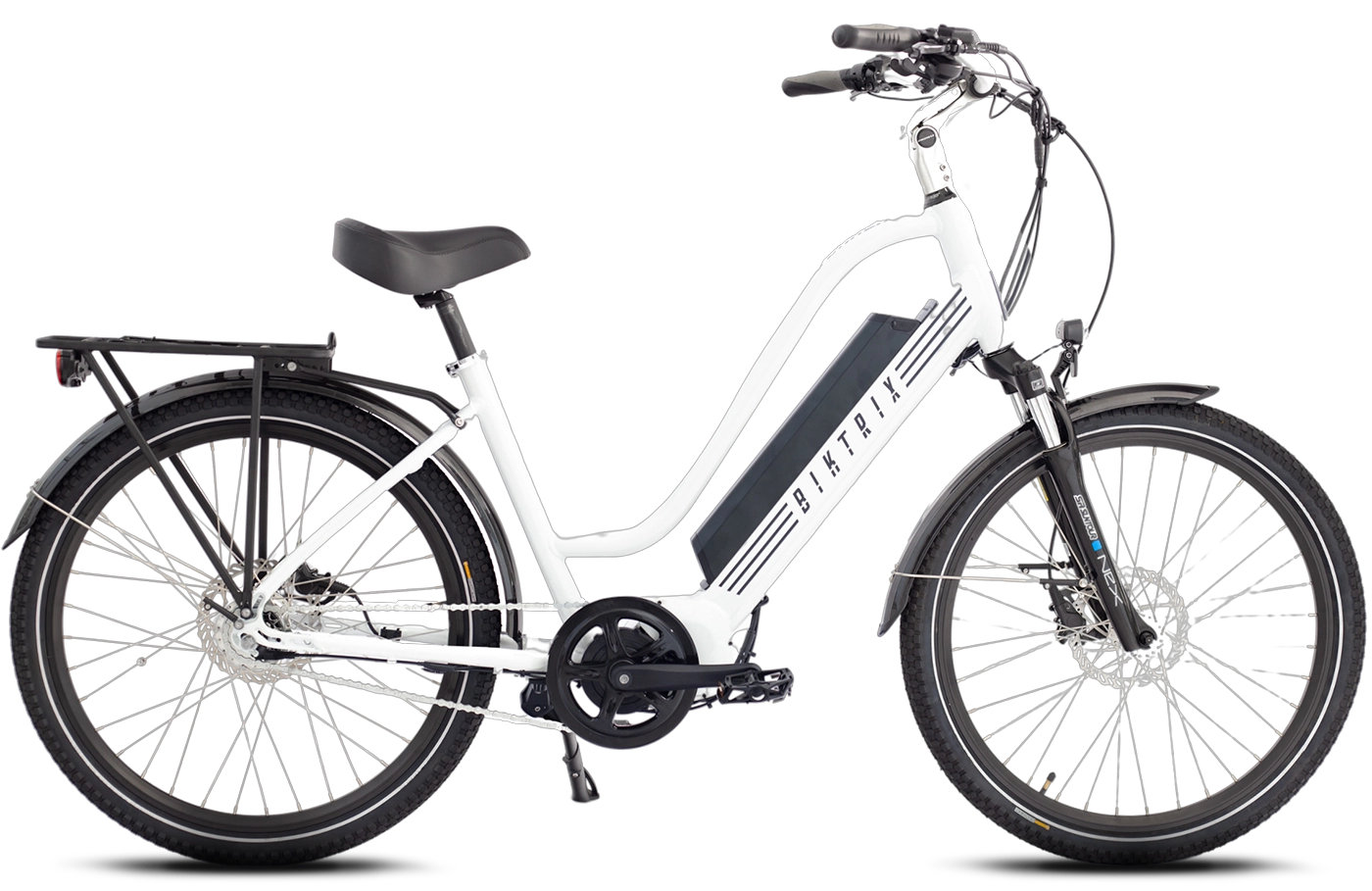

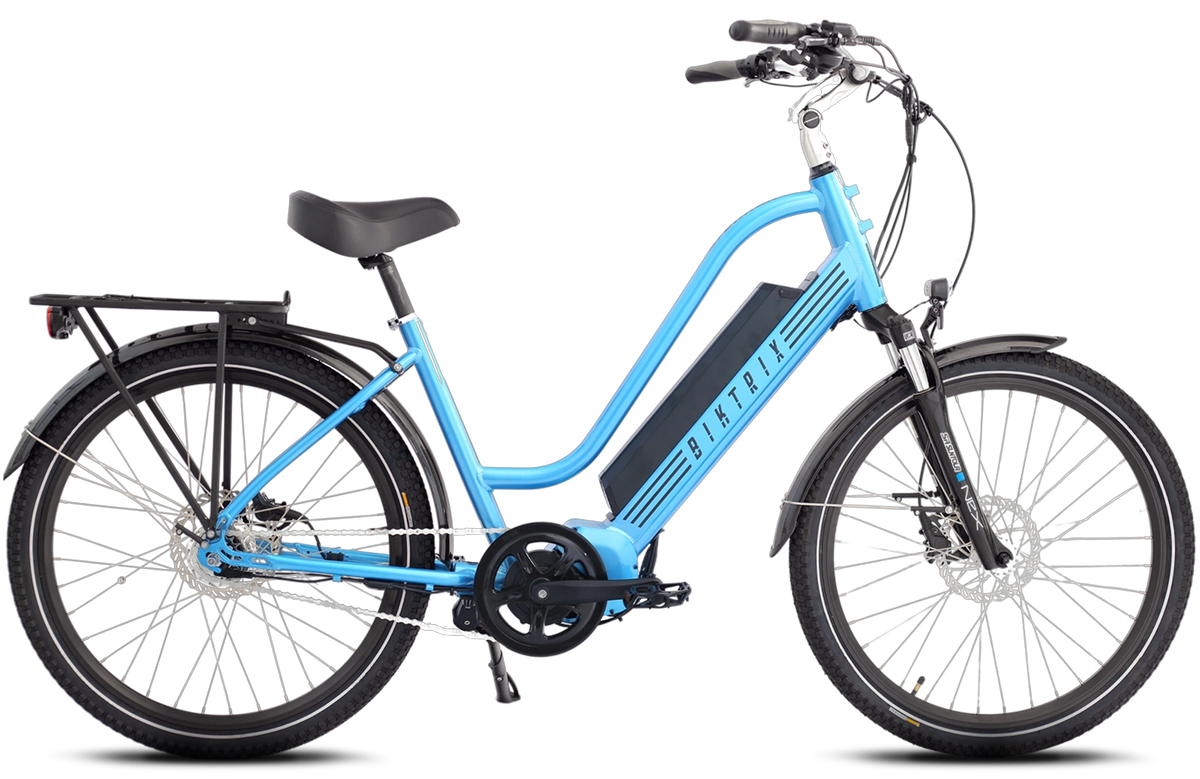

Stunner ST 6

Name: Stunner Step-Thru 6
Brand: stunner-step-thru-details
SKU: STNSTBL1
Price: 2999.0 CAD
Availability: OutOfStock
Rating: 4.7 (83 reviews)

4.7

CA$2,999

Stunner Step-Thru 6 Has Been Replaced.

Interested in the newest Stunner? Check out the Stunner Lite 3 by using the button below!

Stunner Lite 3 Step-Thru

1	Effective Top Tube Length	680mm	26.8in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	410mm	16.1in
4	Stack	600mm	23.6in
5	Chainstay Length	500mm	19.7in
6	Standover Height	470mm	18.5in
7	Head Angle	74°	-
8	Seat Angle	70°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	460mm	18.1in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1880mm	74in
16	Max Seat Height	945mm	37.2in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	27.5kg	60.6lb

750W Mid-Drive

Motor Power

120Nm of Torque

Extreme Hills

Up to 135km

Standard Range

+5'4ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Cruise With Comfort.

Cruisers are the most comfortable electric bicycles thanks to the laid-back frame, sit-up straight riding position, and relaxed shoulder-level arm height. You'll feel right at home on The Stunner.

It Packs A Punch, Too.

Comfort isn't the only thing The Stunner has going for it! With a 750W mid-motor, its got more zip than most eBikes. It also has an incredible range of more than 60 km (37+ miles) on a single charge.

Lots To Write Home About.

Suntour Front Suspension

The Suntour suspension fork helps deliver the smooth ride that the Stunner is known for.

Integrated Headlight

A bright LED will light your way when the sun goes down. It's powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Rack & Fenders

These fenders will keep you and your bike clean when the path gets wet. Need to carry some gear? Strap onto the rear rack and make your way!

LCD Display

The LCD display shows you information about your ride including speed, battery life, odometer, and pedal assist level.

750W Bafang Mid-Drive Motor

This powerful 750W motor will allow you to span cities, climb hills, and explore further with ease.

Velo Oversized Cruiser Seat

Stay comfortable on long rides with this wonderfully plush seat!

180mm Hydraulic Disc Brakes

Safety on an eBike is key. With standard dual-piston hydraulic brakes, you can stop even faster than you accelerate. Four-piston brakes are available as an additional upgrade.

Sturmey Archer 5-Speed Rear Hub

This bike features a 5-speed internally geared Sturmey Archer rear hub.

Removable 48V Lithium-Ion Battery

Our removable system is convenient. Twist the key and bring your battery inside to charge. We offer a variety of battery capacity options.

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		160km Up To
PAS 2 Pedal-Assist Lv.2		118km Up To
PAS 3 Pedal-Assist Lv.3		79km Up To
PAS 4 Pedal-Assist Lv.4		72km Up To
PAS 5 Pedal-Assist Lv.5		66km Up To
THRL Throttle Only		56km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 100mm 36h	Seat post 28.6mm
Fork Suntour nex w/ 60mm travel & lockout	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Sturmey archer rx-rk5 rear hub transmission	Motor Bafang bbs02 mid-drive
Shifter rear Sturmey archer 5 speed trigger shifter	Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rims 26" 36h black	Display 850c colour display	Cassette 18t
Tire sizes 26x2.3"	Lights Wired headlight, taillight	Chain Kmc z51rb
Handlebar 700mm wide, 25.4mm clamp, 50mm rise cruiser bars	Assist type Cadence	Crank set 46t chainring w/170mm crank arms
Stem Promax adjustable stem w/25.4mm clamp	Assist levels 0-5 (0-3, 0-9)	Bottom bracket Bafang square taper
Grips Slide on comfort grips	Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic brakes w/180mm rotors
Saddle Black cruiser saddle	Other Rear rack, fenders, kickstand, bike bell	Brake levers Biktrix adjustable w/ integrated brake cutoff sensors

Frame 6061 aluminum	Front hub 100mm 36h
Seat post 28.6mm	Fork Suntour nex w/ 60mm travel & lockout
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Sturmey archer rx-rk5 rear hub transmission
Motor Bafang bbs02 mid-drive	Shifter rear Sturmey archer 5 speed trigger shifter
Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rims 26" 36h black	Display 850c colour display
Cassette 18t	Tire sizes 26x2.3"
Lights Wired headlight, taillight	Chain Kmc z51rb
Handlebar 700mm wide, 25.4mm clamp, 50mm rise cruiser bars	Assist type Cadence
Crank set 46t chainring w/170mm crank arms	Stem Promax adjustable stem w/25.4mm clamp
Assist levels 0-5 (0-3, 0-9)	Bottom bracket Bafang square taper
Grips Slide on comfort grips	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic brakes w/180mm rotors	Saddle Black cruiser saddle
Other Rear rack, fenders, kickstand, bike bell	Brake levers Biktrix adjustable w/ integrated brake cutoff sensors

Frame

6061 aluminum

Front hub

100mm 36h

Seat post

28.6mm

Fork

Suntour nex w/ 60mm travel & lockout

Front axle

5mm qr

Seat post clamp

Headset

Threadless 1-1/8 straight

Rear hub

Sturmey archer rx-rk5 rear hub transmission

Motor

Bafang bbs02 mid-drive

Shifter rear

Sturmey archer 5 speed trigger shifter

Rear axle

Bolt-on

Battery sizes

48v 21ah 1008wh, 48v 25ah 1200wh

Rims

26" 36h black

Display

850c colour display

Cassette

18t

Tire sizes

26x2.3"

Lights

Wired headlight, taillight

Chain

Kmc z51rb

Handlebar

700mm wide, 25.4mm clamp, 50mm rise cruiser bars

Assist type

Cadence

Crank set

46t chainring w/170mm crank arms

Stem

Promax adjustable stem w/25.4mm clamp

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Bafang square taper

Grips

Slide on comfort grips

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic brakes w/180mm rotors

Saddle

Black cruiser saddle

Other

Rear rack, fenders, kickstand, bike bell

Brake levers

Biktrix adjustable w/ integrated brake cutoff sensors

Size & Fittings

1	Effective Top Tube Length	680mm	26.8in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	410mm	16.1in
4	Stack	600mm	23.6in
5	Chainstay Length	500mm	19.7in
6	Standover Height	470mm	18.5in
7	Head Angle	74°	-
8	Seat Angle	70°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	460mm	18.1in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1880mm	74in
16	Max Seat Height	945mm	37.2in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1140mm	44.9in
19	Weight (Without Battery)	27.5kg	60.6lb
