500W Hub-Drive

Motor Power

60Nm of Torque

Moderate Hills

48V 20Ah 960Wh

est. 95km Range

+5'4"ft / 300lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

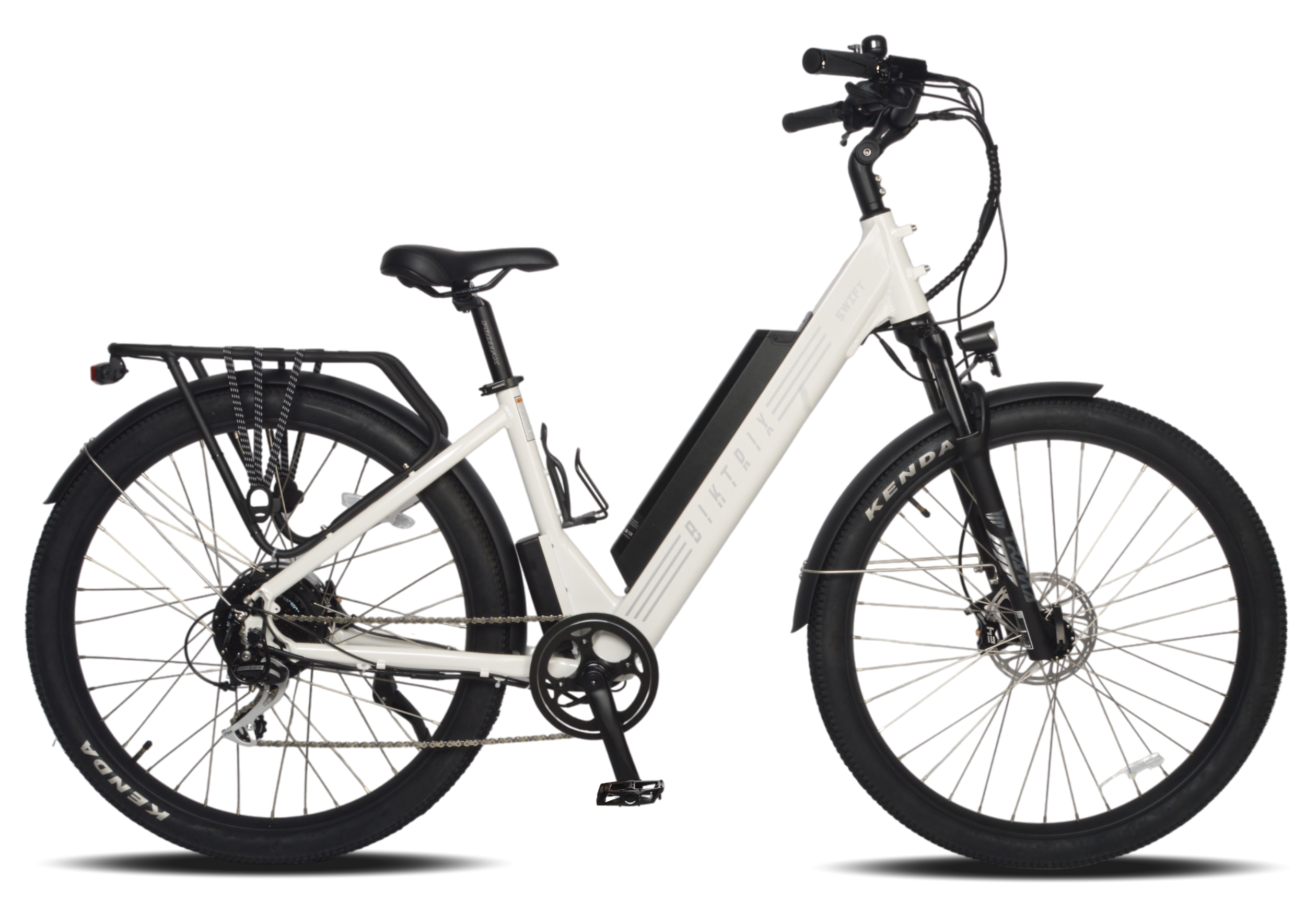

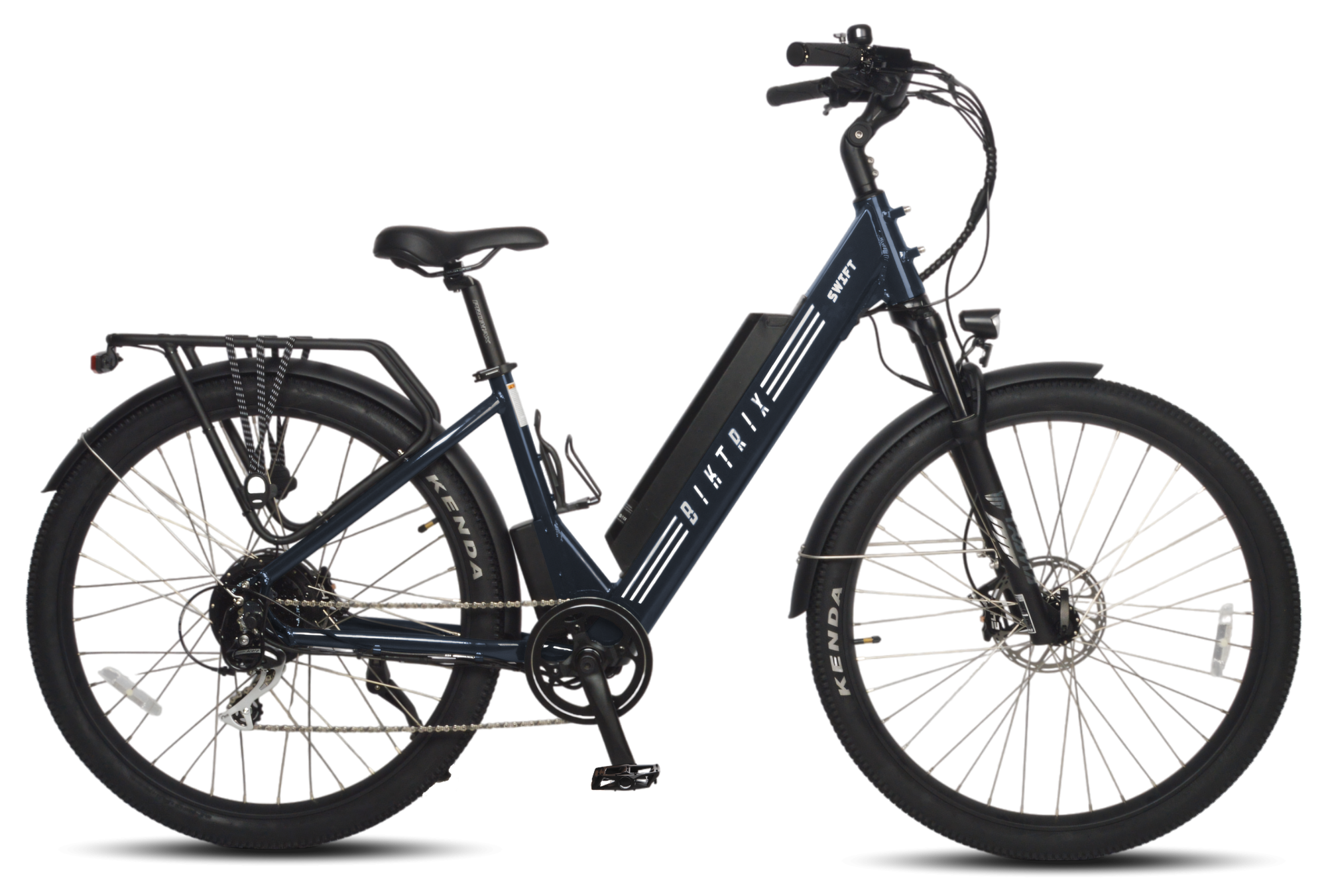

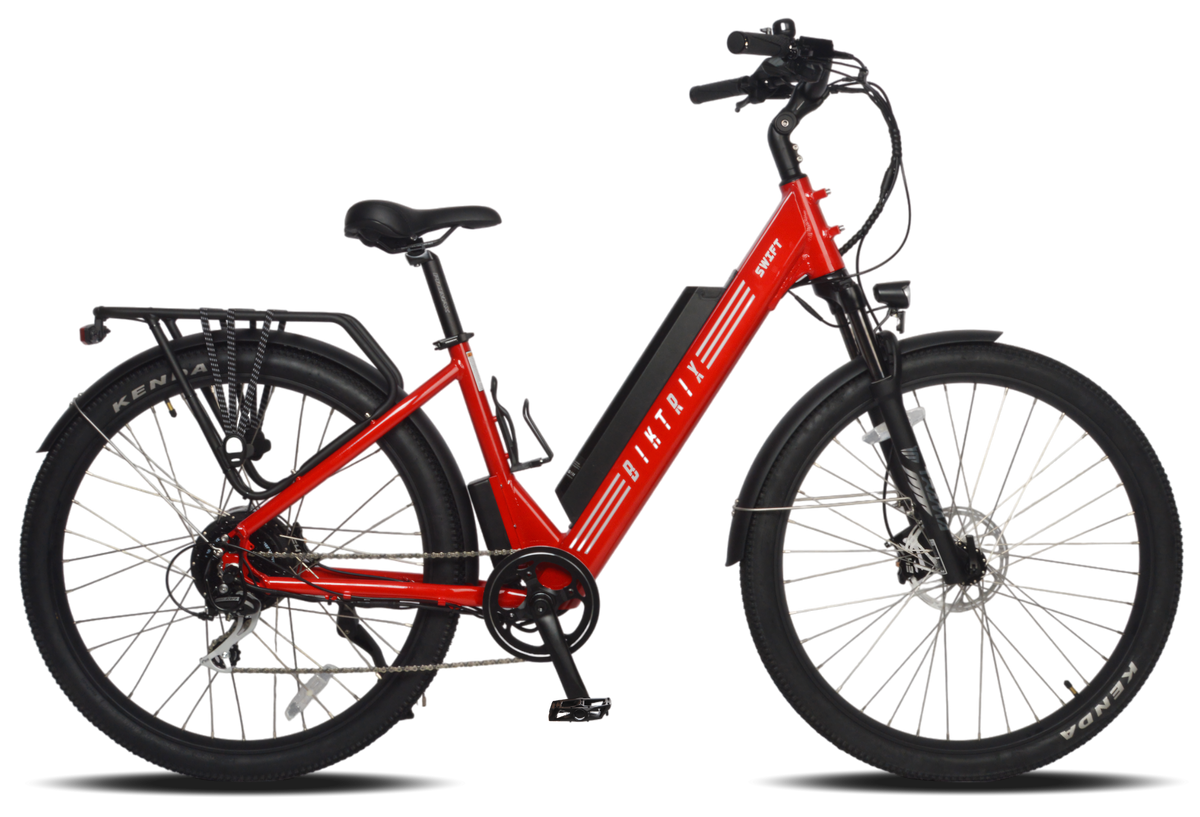

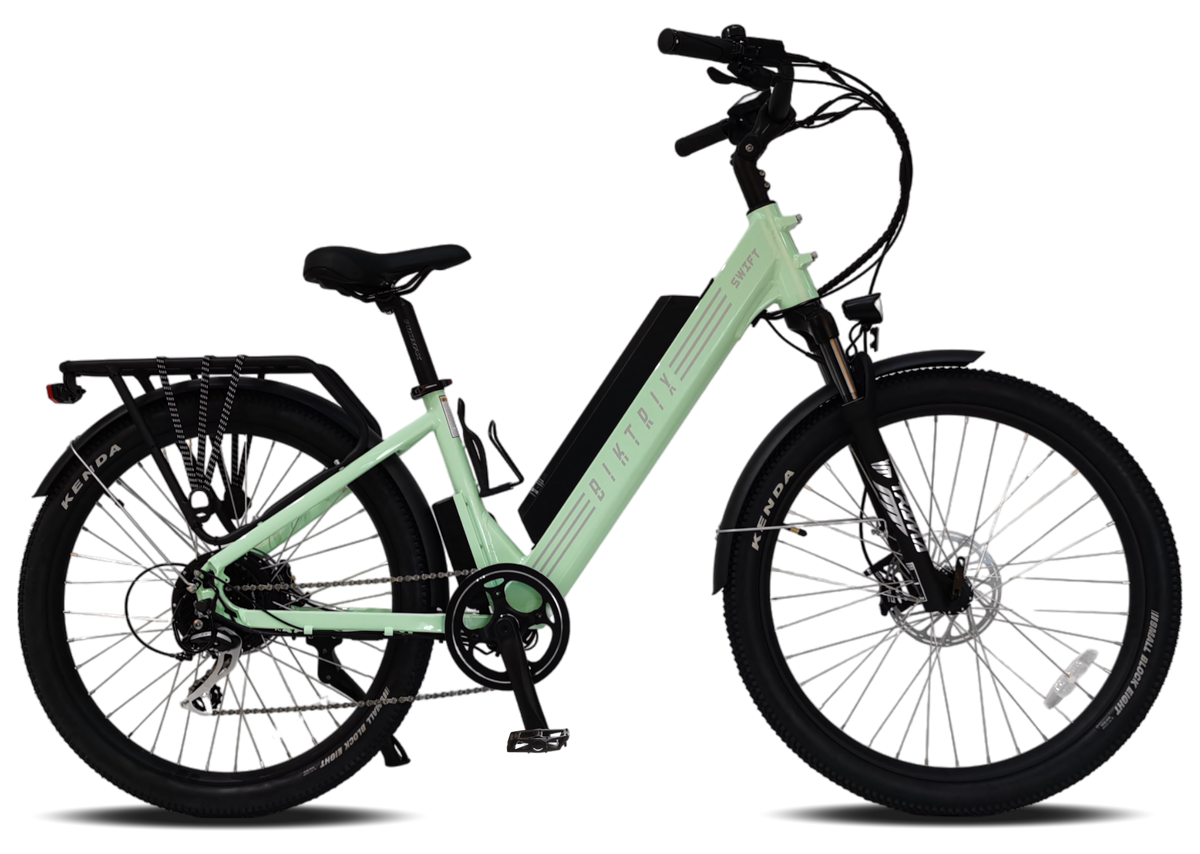

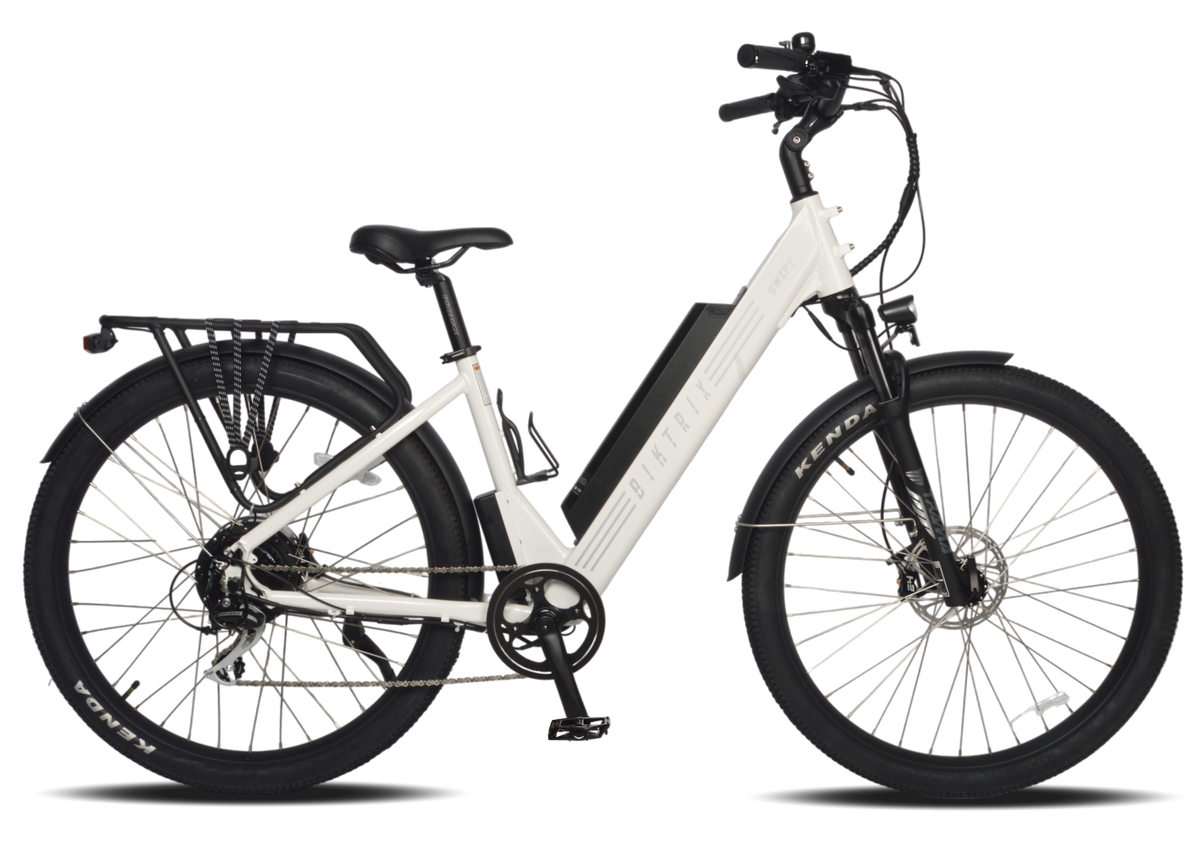

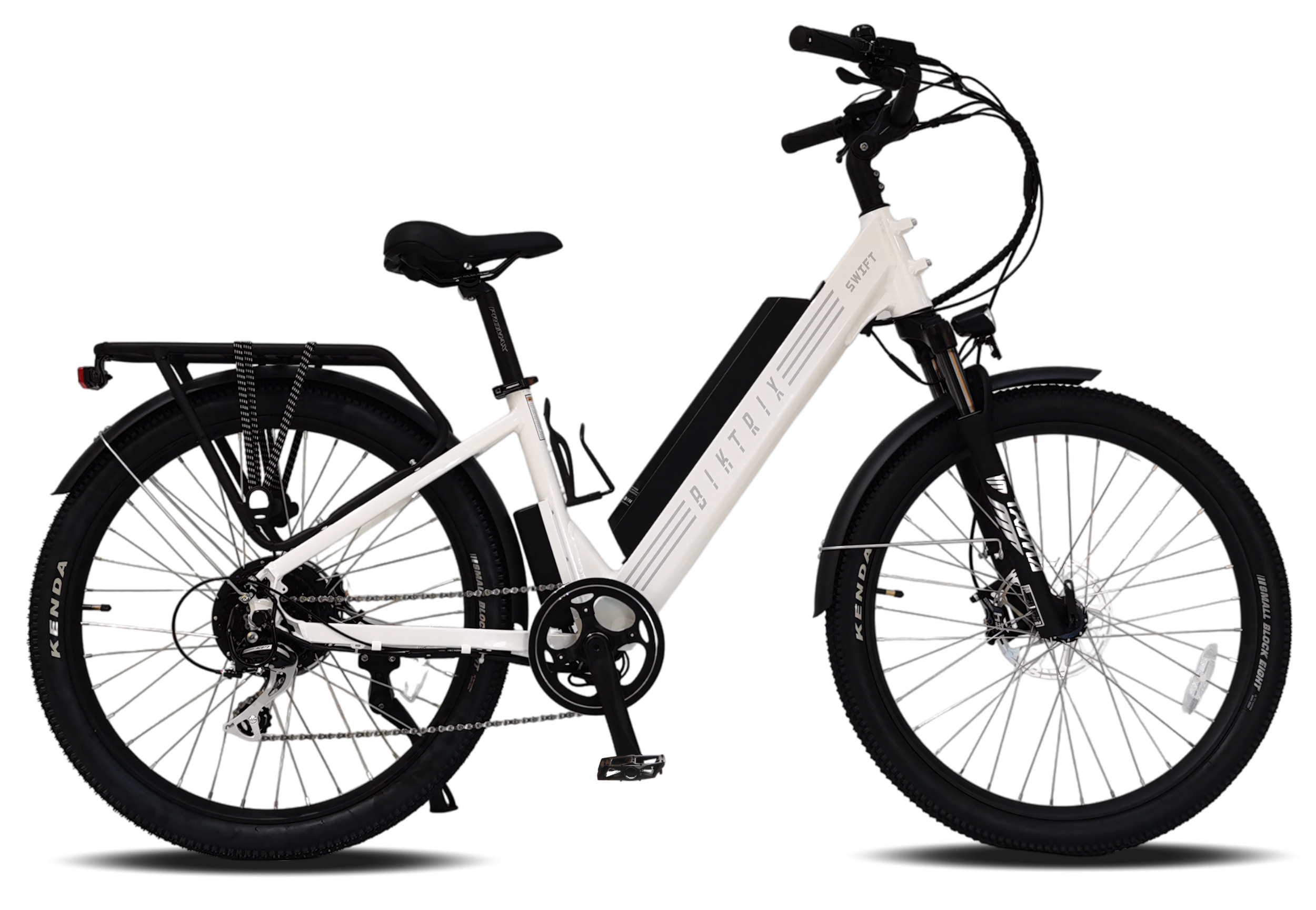

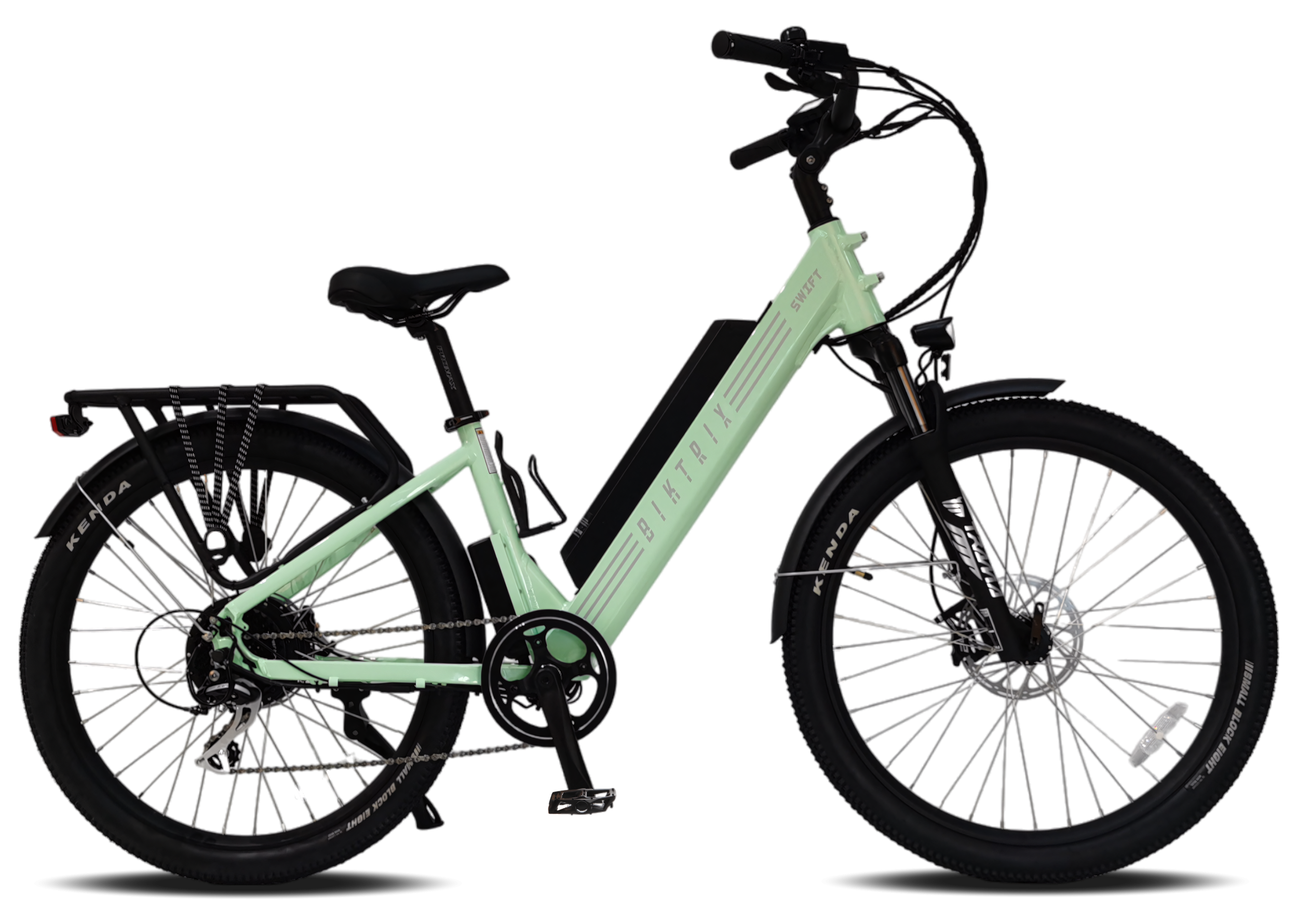

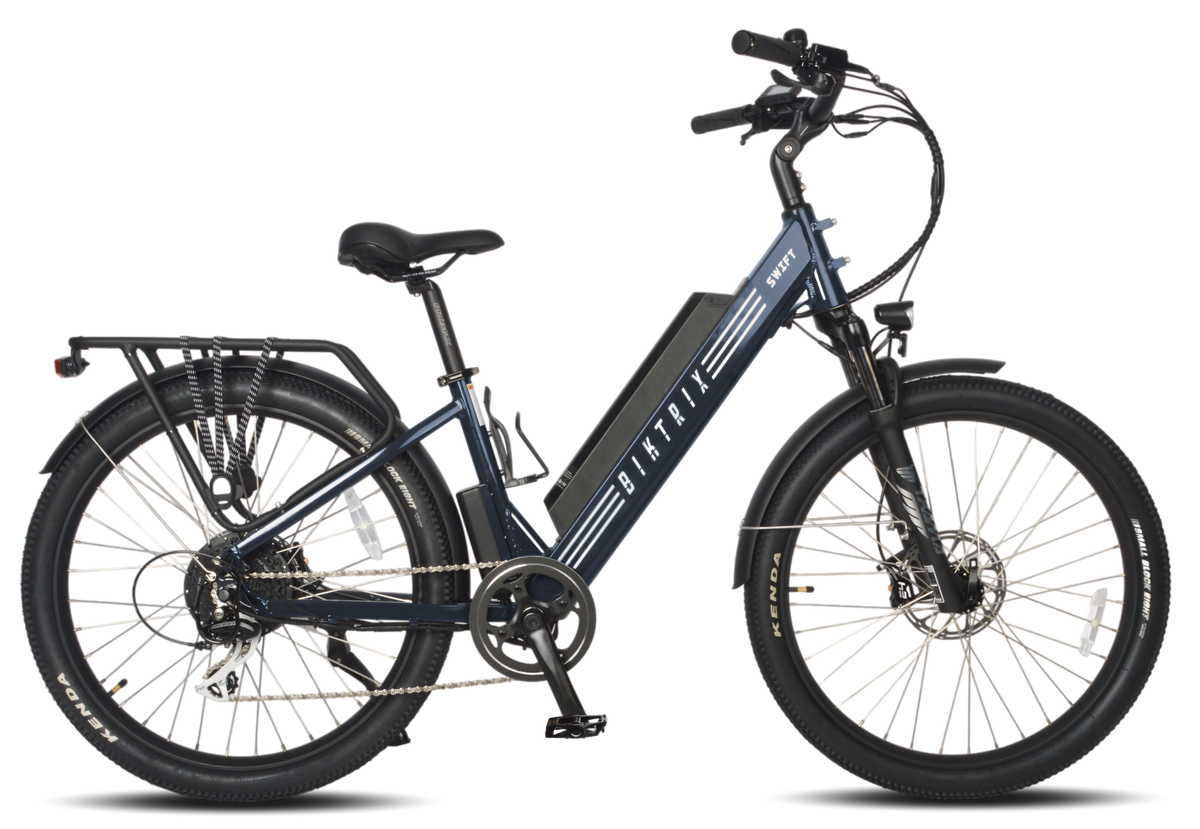

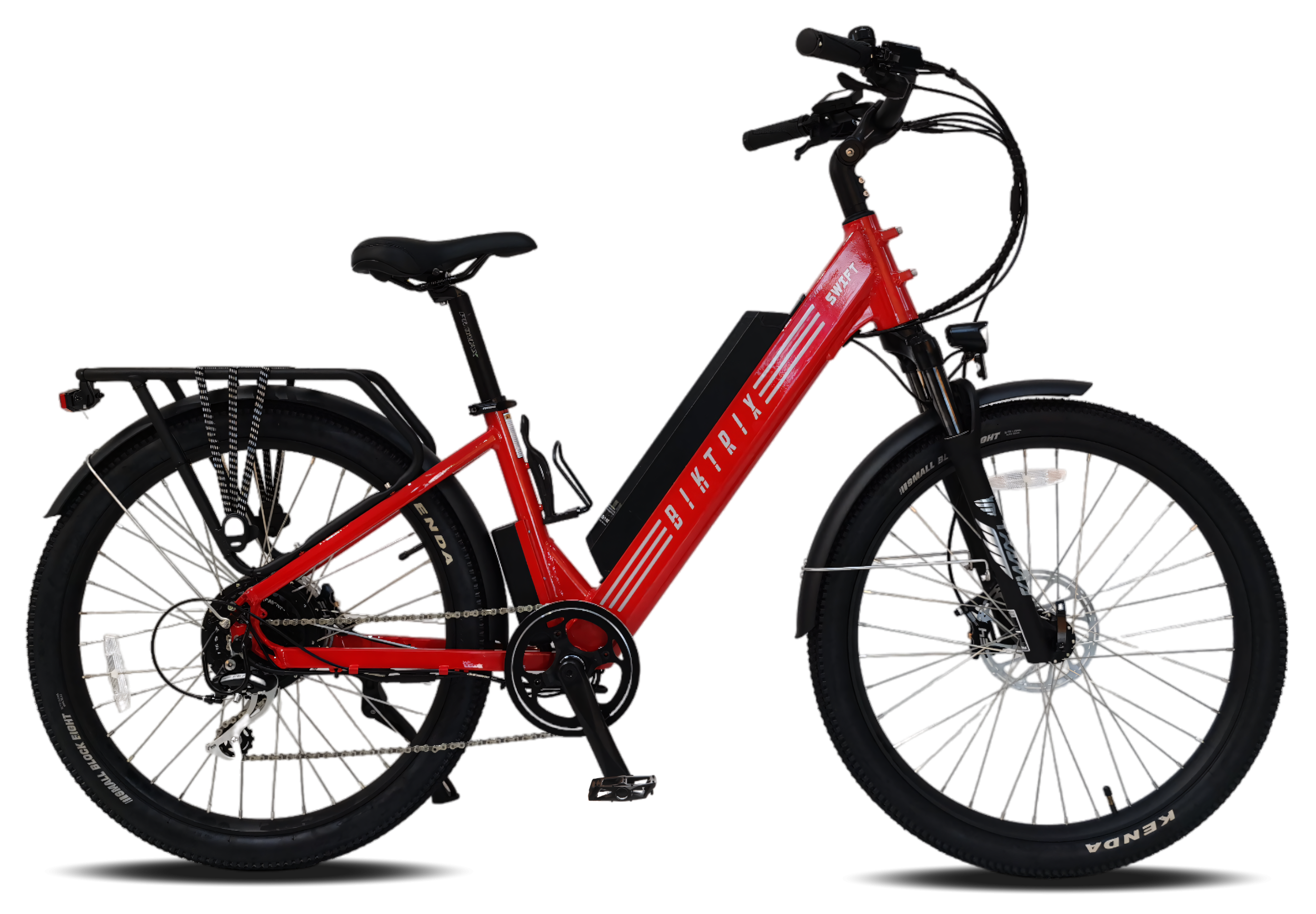

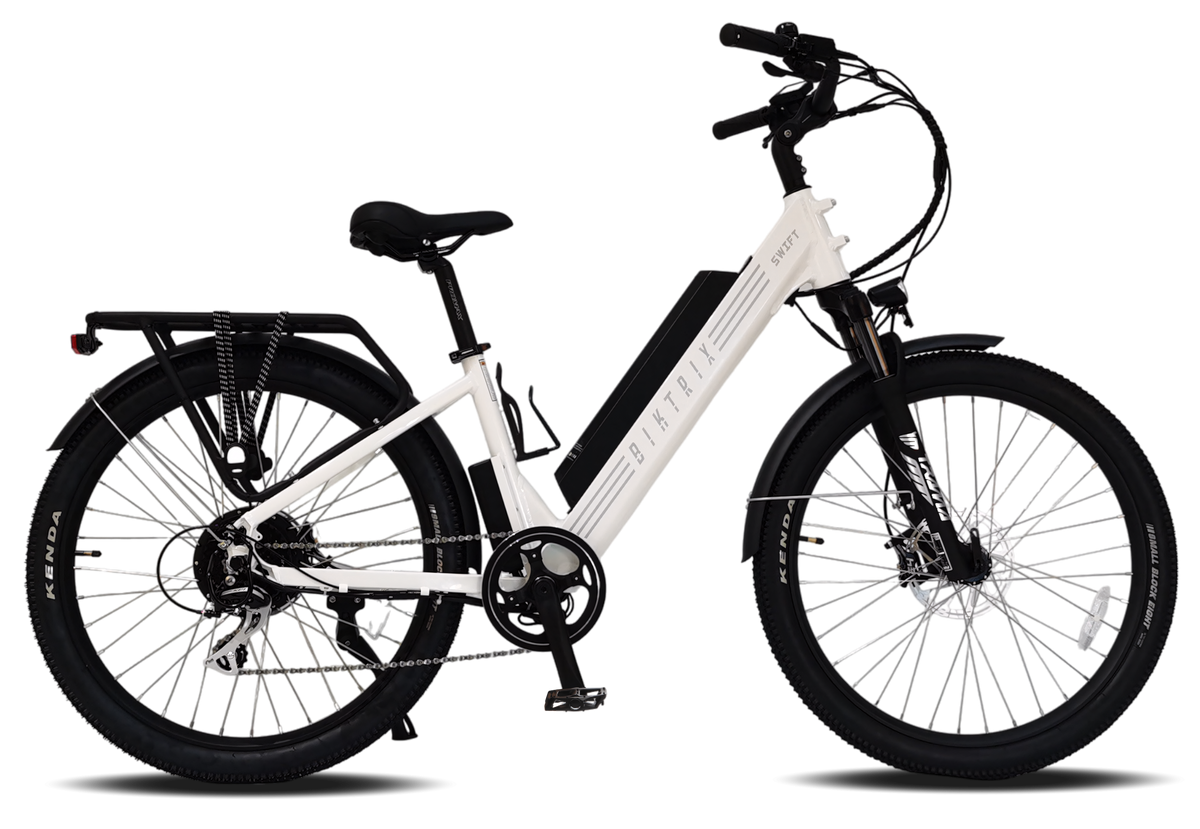

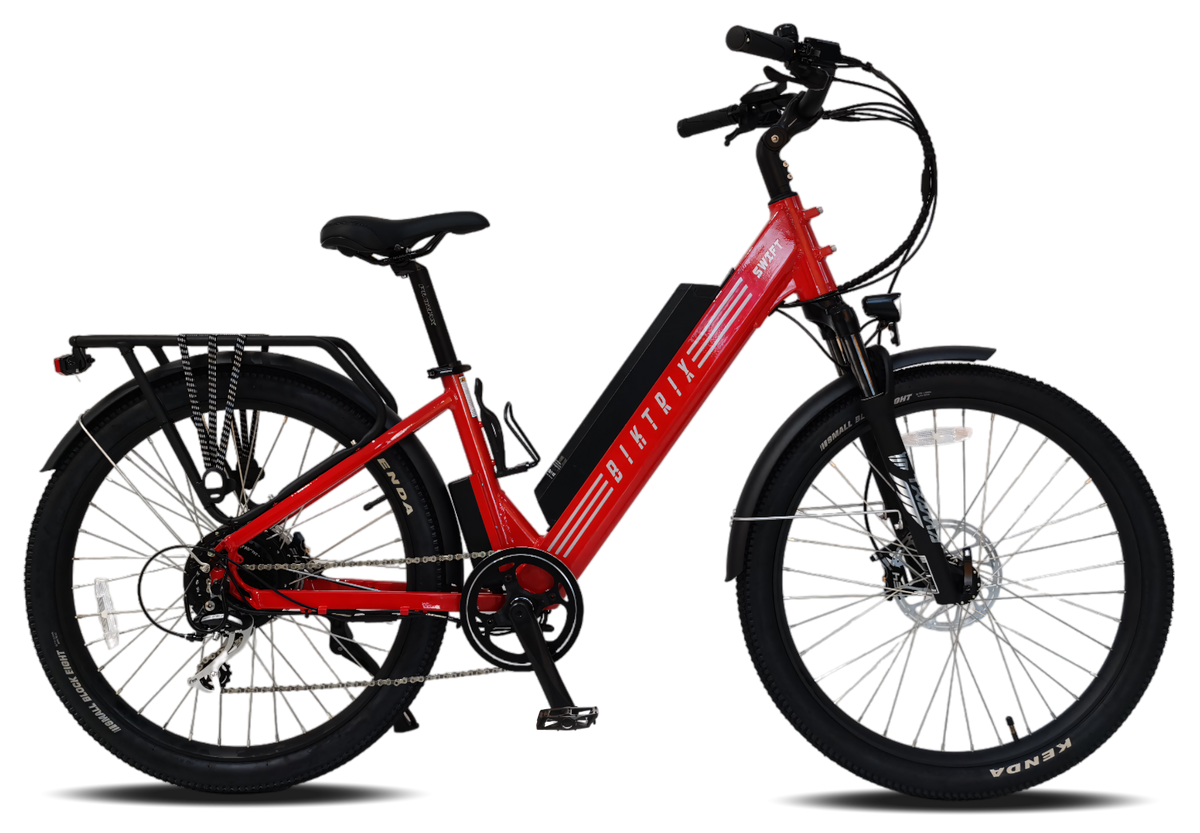

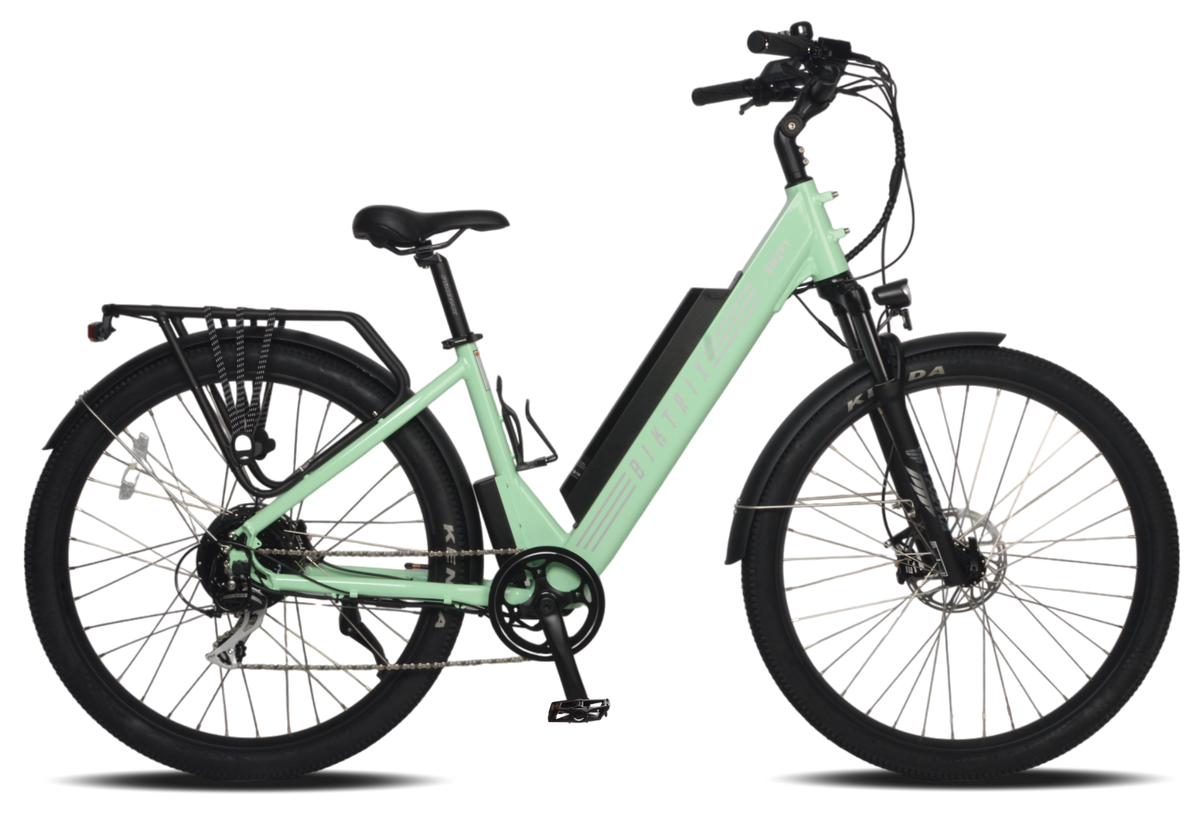

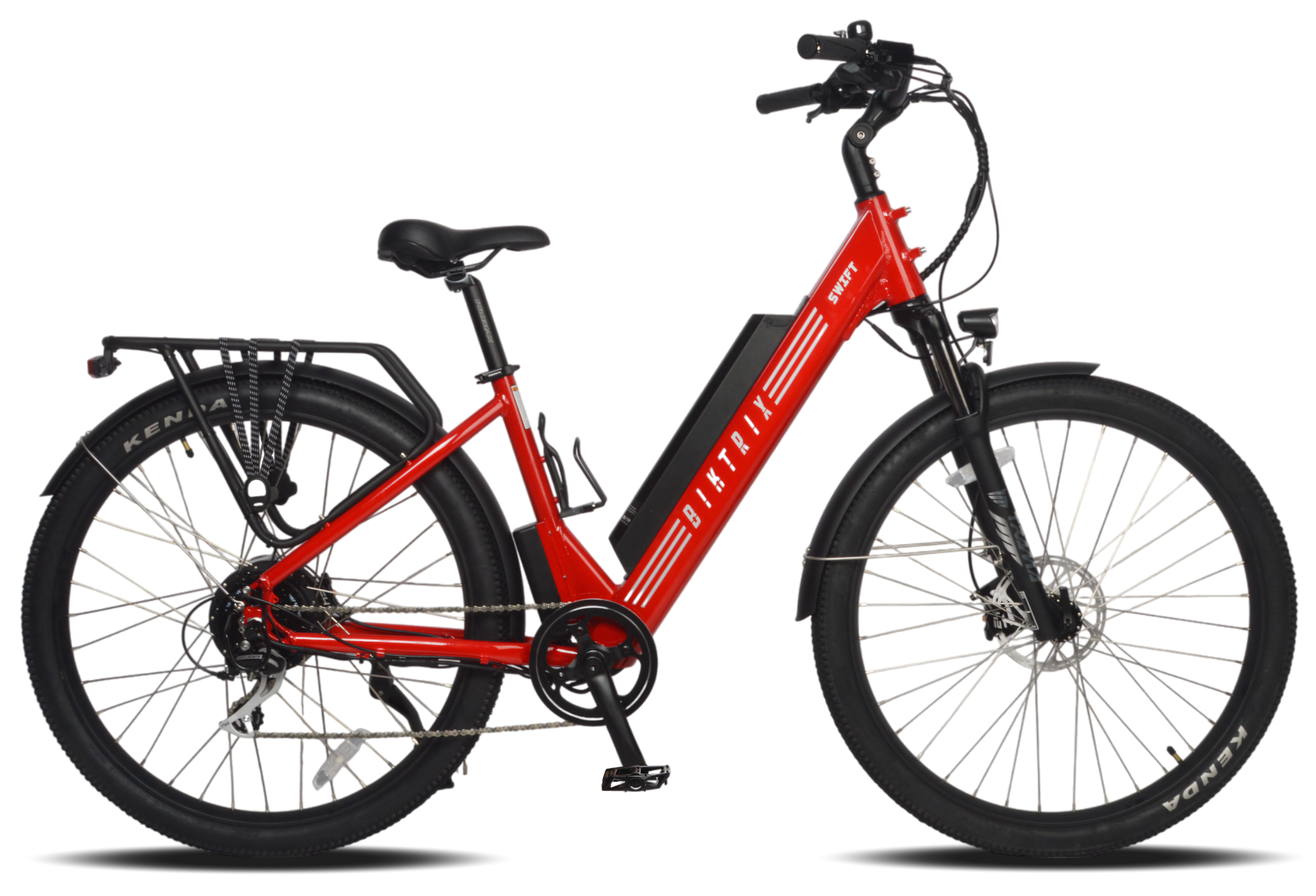

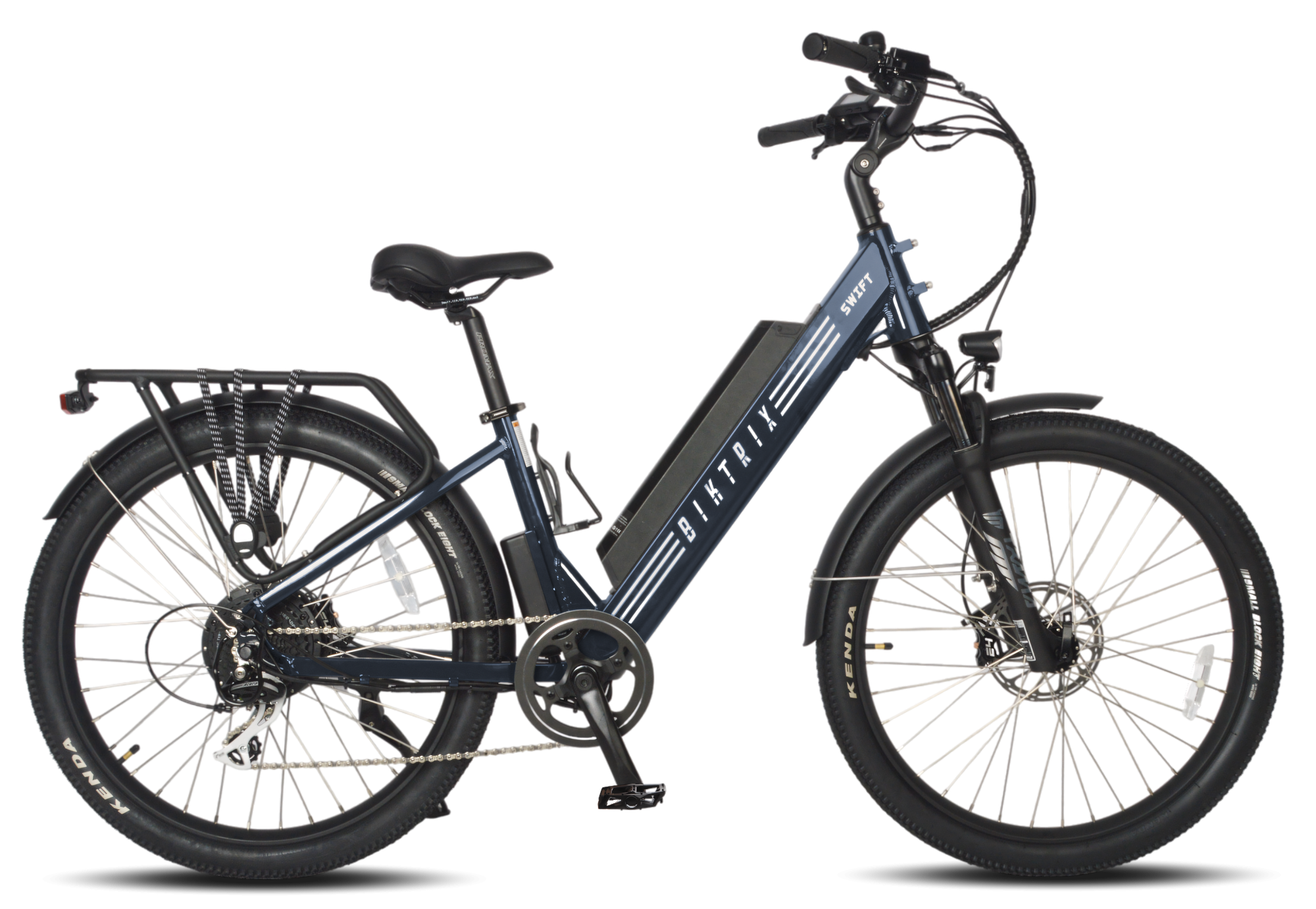

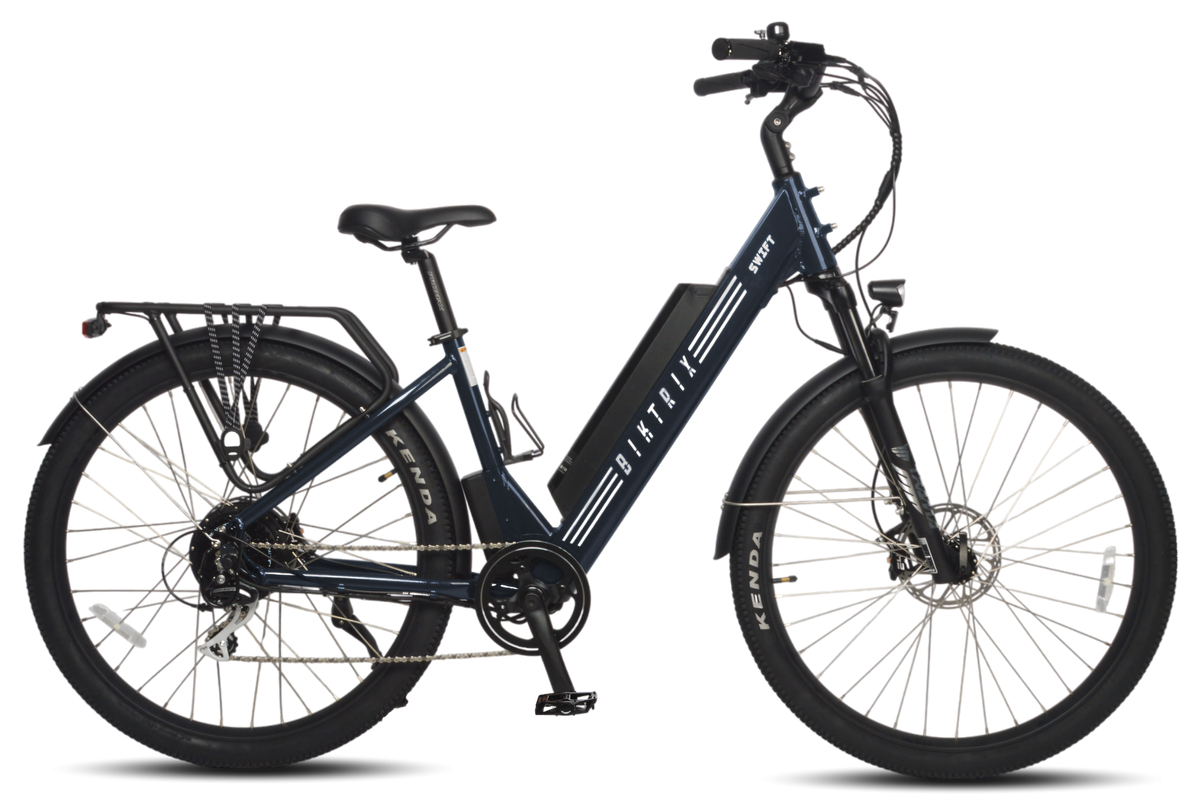

Swift Step Thru 3

Name: Swift Step Thru 3
Brand: Biktrix Electric Bikes Canada
SKU: SFT-ST-S-PWH2
Price: 2599.0 CAD
Availability: OutOfStock
Rating: 4.66 (35 reviews)

4.6

CA$2,599 CA$2,799

CA$2,599.00 CA$2,799.00

Notify Me When Available

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	460mm	18.1in
4	Stack	600mm	23.6in
5	Chainstay Length	500mm	19.7in
6	Standover Height	450mm	17.7in
7	Head Angle	70°	-
8	Seat Angle	73°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	480mm	18.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1150mm	45.3in
15	Total Length	1860mm	73.2in
16	Max Seat Height	980mm	38.6in
17	Min Seat Height	820mm	32.3in
18	Handlebar Height	1160mm	45.7in
19	Weight (Without Battery)	27kg	59.5lb

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	440mm	17.3in
4	Stack	540mm	21.3in
5	Chainstay Length	480mm	18.9in
6	Standover Height	420mm	16.5in
7	Head Angle	70°	-
8	Seat Angle	73°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	460mm	18.1in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1820mm	71.7in
16	Max Seat Height	940mm	37in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	27kg	59.5lb

500W Hub-Drive

Motor Power

60Nm of Torque

Moderate Hills

48V 20Ah 960Wh

est. 95km Range

+5'4"ft / 300lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

100+

Kilometers Range

60Nm

Torque For Moderate Hills

48V 21Ah

Strong, Reliable Battery

Commute like never before!

The Biktrix Swift Step-Thru 3 commuter eBike is the ultimate combination of speed, comfort and control. The zippy 500W hub-motor makes the swift simple and reliable, requiring little maintenance and providing easy riding. The 48V20Ah Battery can give you up to 100km of range on a single charge!

All The Good Stuff, And More.

Front Suspension Fork

The front suspension fork helps deliver the smooth ride the Swift series is known for. The Preload adjustment allows for you to adjust how the fork reacts while riding!

NEW

Quad Piston Disc Brakes

When it’s so easy to go fast, you need strong stopping power. These Quad Piston Hydraulic disc brakes will reliably bring you to a halt.

500W Rear Hub Motor

Reliability is an important aspect of a commuter bike, that’s why the Swift Step-Thru is powered by a tried and tested 500W hub-motor.

Removable 48V Battery

Our convenient battery system allows you to remove the battery with a quick twist of a key. We offer a variety of battery capacity options providing to up to 100km of range.

Integrated Headlight

This bright LED light is powered by the bike’s battery and can be turned on and off with a button on the handlebar control pad.

LCD Display & Thumb Throttle

The LCD display shows all kinds of information about your ride including speed, battery life, odometer, pedal assist level and more.

8-Speed Shimano Drivetrain

From climbing hills to holding maximum speed on the flats the Shimano 8-Speed drivetrain has you covered.

Rear Rack and Fenders

These fenders will keep you and your eBike clean. Need to carry some gear? Strap it onto the rear rack and make your way!

2.1” Kenda Tires

The large-diameter, narrow Kenda tires provide a smooth ride and will glide over whatever surfaces you may encounter on your ride!

SIZE GUIDE

Let's Get You Fitted.

5'10" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get L | 18" for the best fit.

Not sure how to measure properly for your bike?

5'10"

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		150km Up To
PAS 2 Pedal-Assist Lv.2		110km Up To
PAS 3 Pedal-Assist Lv.3		92km Up To
PAS 4 Pedal-Assist Lv.4		76km Up To
PAS 5 Pedal-Assist Lv.5		64km Up To
THRL Throttle Only		52km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 100mm 36h	Seat post 31.6mm
Fork Trama suspension fork w/60mm travel, preload adjustment	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor	Motor 500w rear hub motor
Shifter rear 8 speed shimano acera trigger shifter	Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rear derailleur 8 speed shimano acera	Rims Black 29" 36h (l \| 18")/black 26" 36h (s \| 15")	Display 500s
Cassette 12-32t 8-speed freewheel	Tire sizes Kenda 29x2.1" (l \| 18")/kenda 26x2.1" (s \| 15")	Lights Integrated headlight, taillight
Chain Kmc z8	Handlebar 690mm wide, 40mm rise w/31.8mm clamp	Assist type Torque
Crank set 44t chainring w/165mm arms	Stem Adjustable stem, 31.8mm clamp	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Integrated torque sensor w/ square spindle	Grips Ergonomic comfort grips	Throttle Thumb throttle
Brakes Iiipro e4 quad-piston hydraulic brakes w/180mm rotors	Saddle Velo gel padded	Other Kickstand, bell, rack and fenders
Brake levers Adjustable w/ integrated brake cutoffs

Frame 6061 aluminum	Front hub 100mm 36h
Seat post 31.6mm	Fork Trama suspension fork w/60mm travel, preload adjustment
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor
Motor 500w rear hub motor	Shifter rear 8 speed shimano acera trigger shifter
Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rear derailleur 8 speed shimano acera	Rims Black 29" 36h (l \| 18")/black 26" 36h (s \| 15")
Display 500s	Cassette 12-32t 8-speed freewheel
Tire sizes Kenda 29x2.1" (l \| 18")/kenda 26x2.1" (s \| 15")	Lights Integrated headlight, taillight
Chain Kmc z8	Handlebar 690mm wide, 40mm rise w/31.8mm clamp
Assist type Torque	Crank set 44t chainring w/165mm arms
Stem Adjustable stem, 31.8mm clamp	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Integrated torque sensor w/ square spindle	Grips Ergonomic comfort grips
Throttle Thumb throttle	Brakes Iiipro e4 quad-piston hydraulic brakes w/180mm rotors
Saddle Velo gel padded	Other Kickstand, bell, rack and fenders
Brake levers Adjustable w/ integrated brake cutoffs

Frame

6061 aluminum

Front hub

100mm 36h

Seat post

31.6mm

Fork

Trama suspension fork w/60mm travel, preload adjustment

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/2 1-1/8 tapered

Rear hub

Motor

500w rear hub motor

Shifter rear

8 speed shimano acera trigger shifter

Rear axle

Bolt-on

Battery sizes

48v 21ah 1008wh, 48v 25ah 1200wh

Rear derailleur

8 speed shimano acera

Rims

Black 29" 36h (l | 18")/black 26" 36h (s | 15")

Display

500s

Cassette

12-32t 8-speed freewheel

Tire sizes

Kenda 29x2.1" (l | 18")/kenda 26x2.1" (s | 15")

Lights

Integrated headlight, taillight

Chain

Kmc z8

Handlebar

690mm wide, 40mm rise w/31.8mm clamp

Assist type

Torque

Crank set

44t chainring w/165mm arms

Stem

Adjustable stem, 31.8mm clamp

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Integrated torque sensor w/ square spindle

Grips

Ergonomic comfort grips

Throttle

Thumb throttle

Brakes

Iiipro e4 quad-piston hydraulic brakes w/180mm rotors

Saddle

Velo gel padded

Other

Kickstand, bell, rack and fenders

Brake levers

Adjustable w/ integrated brake cutoffs

Size & Fittings

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	460mm	18.1in
4	Stack	600mm	23.6in
5	Chainstay Length	500mm	19.7in
6	Standover Height	450mm	17.7in
7	Head Angle	70°	-
8	Seat Angle	73°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	480mm	18.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1150mm	45.3in
15	Total Length	1860mm	73.2in
16	Max Seat Height	980mm	38.6in
17	Min Seat Height	820mm	32.3in
18	Handlebar Height	1160mm	45.7in
19	Weight (Without Battery)	27kg	59.5lb

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	440mm	17.3in
4	Stack	540mm	21.3in
5	Chainstay Length	480mm	18.9in
6	Standover Height	420mm	16.5in
7	Head Angle	70°	-
8	Seat Angle	73°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	460mm	18.1in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1820mm	71.7in
16	Max Seat Height	940mm	37in
17	Min Seat Height	790mm	31.1in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	27kg	59.5lb
