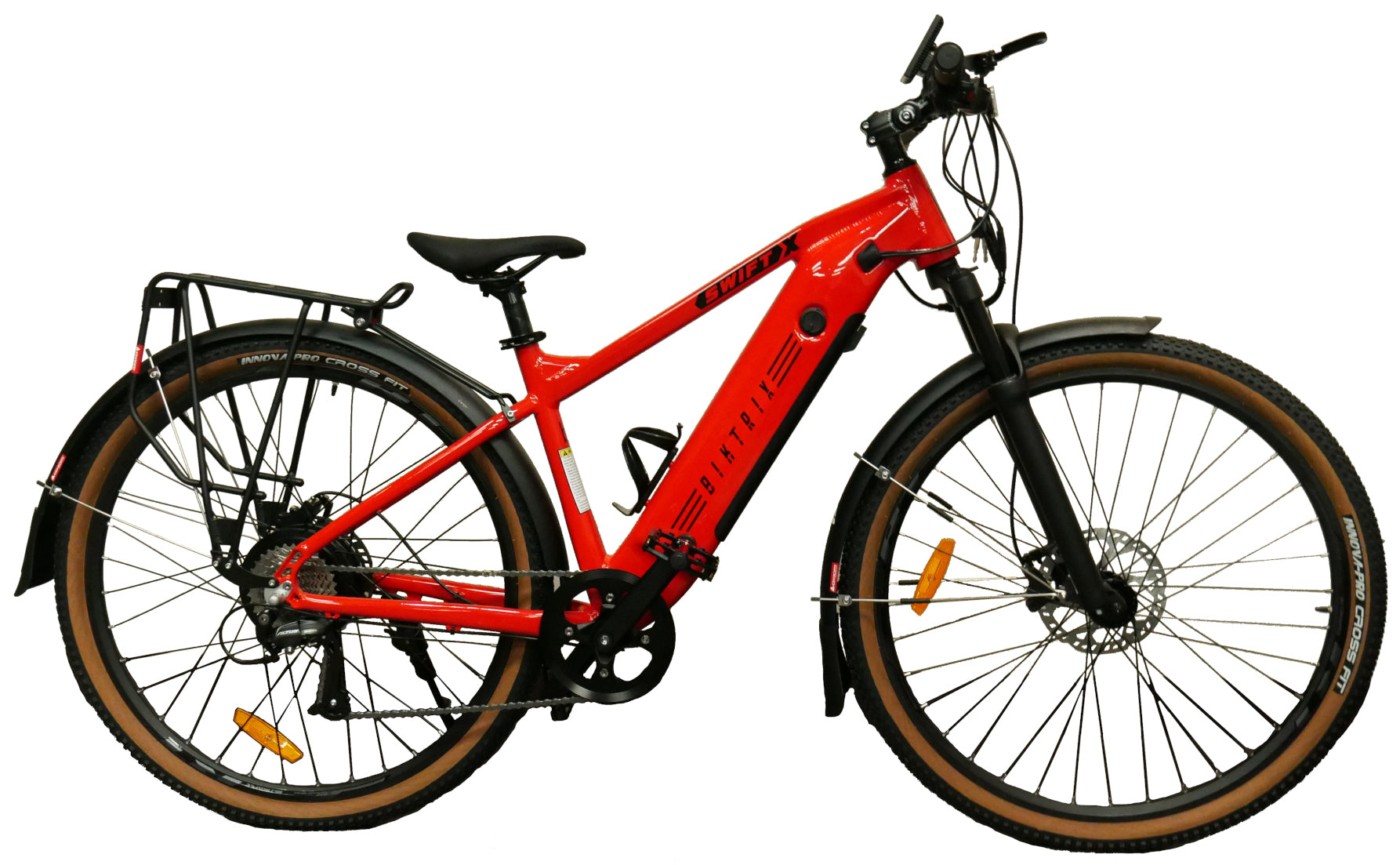

Swift X with optional Rack and Fender Set

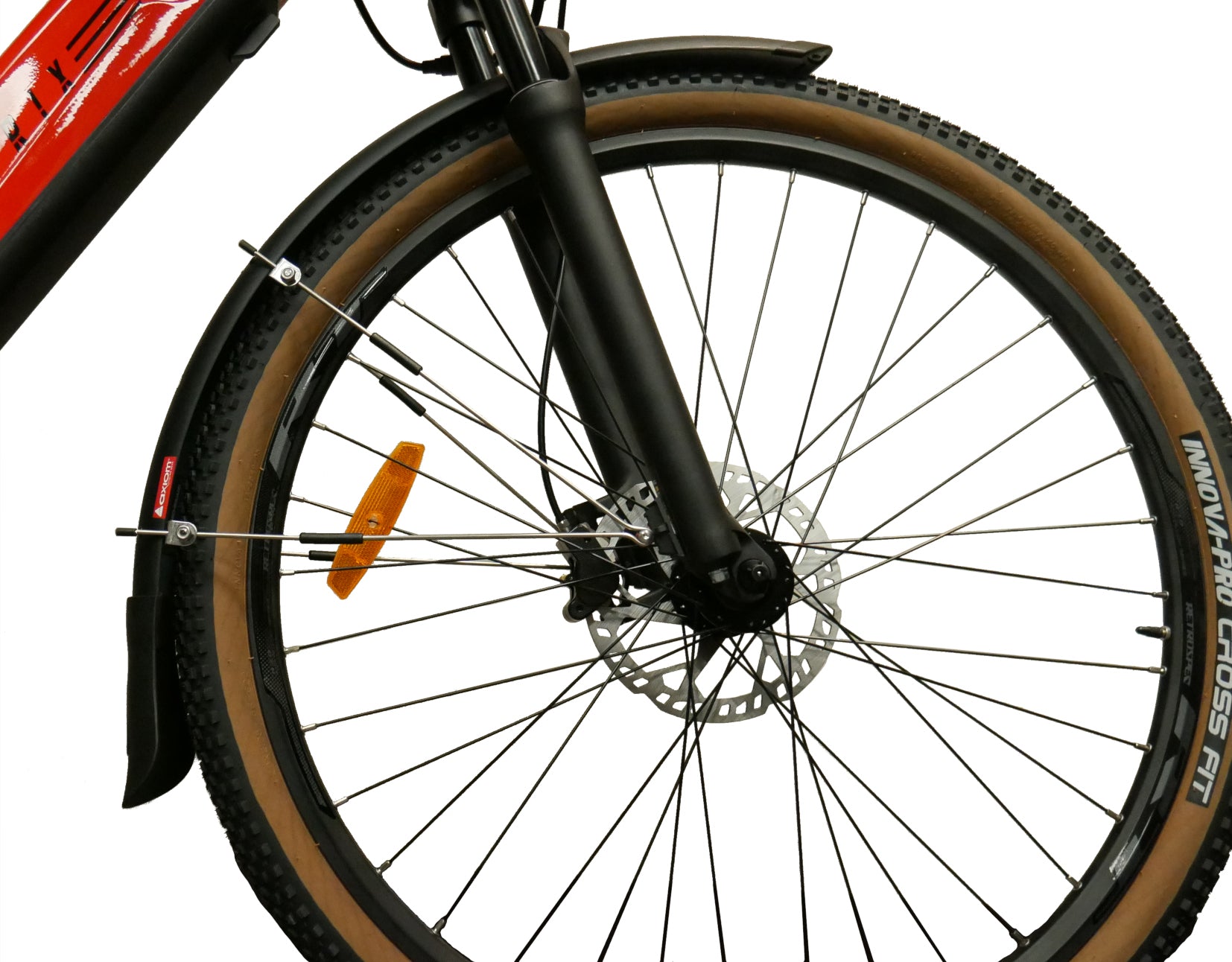

Swift X Optional Front Fender

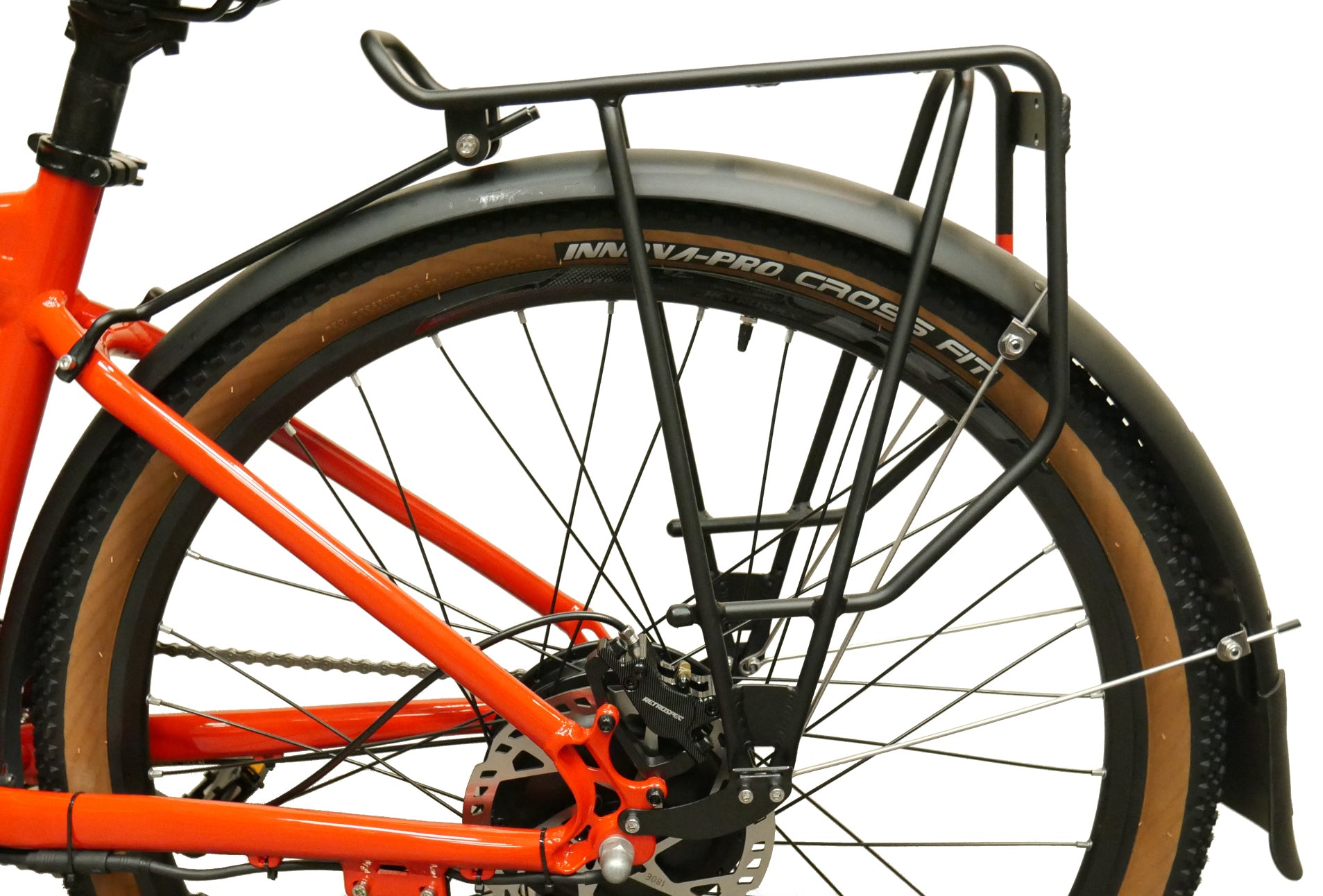

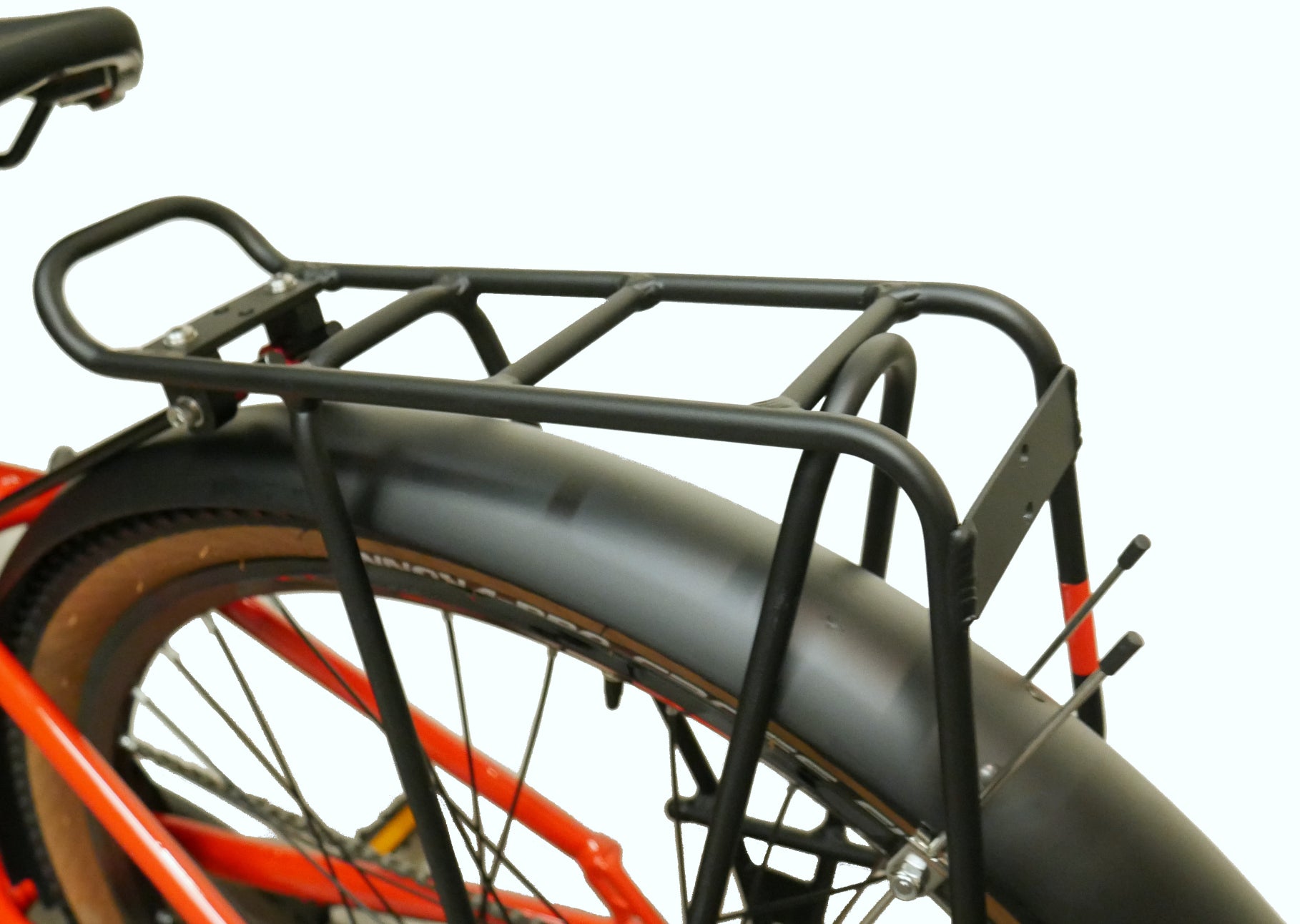

Optional Rear Rack and Fender For Swift X

500W Hub-Drive

Motor Power

60Nm of Torque

Moderate Hills

48V 13Ah 624Wh

est. 70km Range

+5'6ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

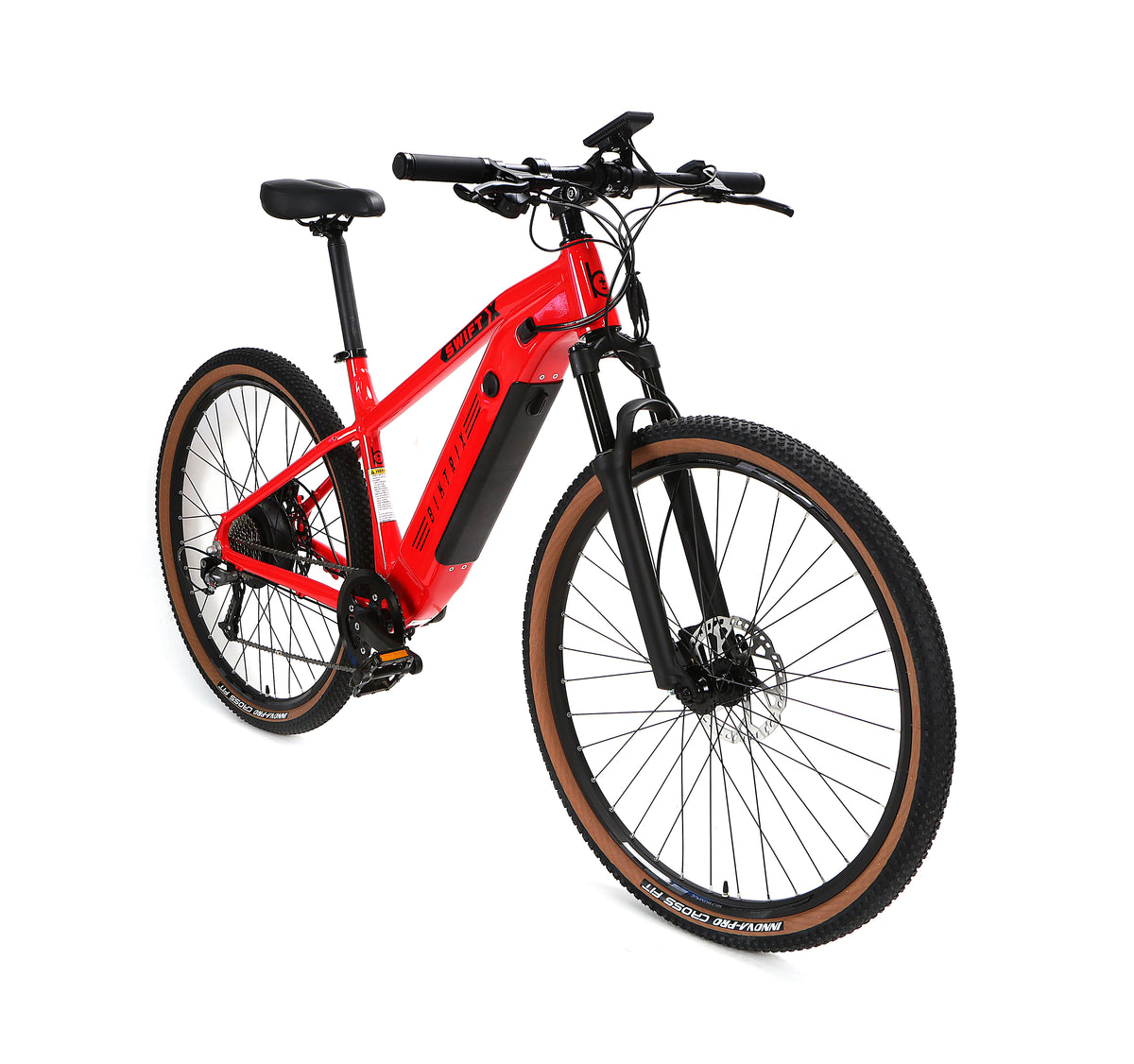

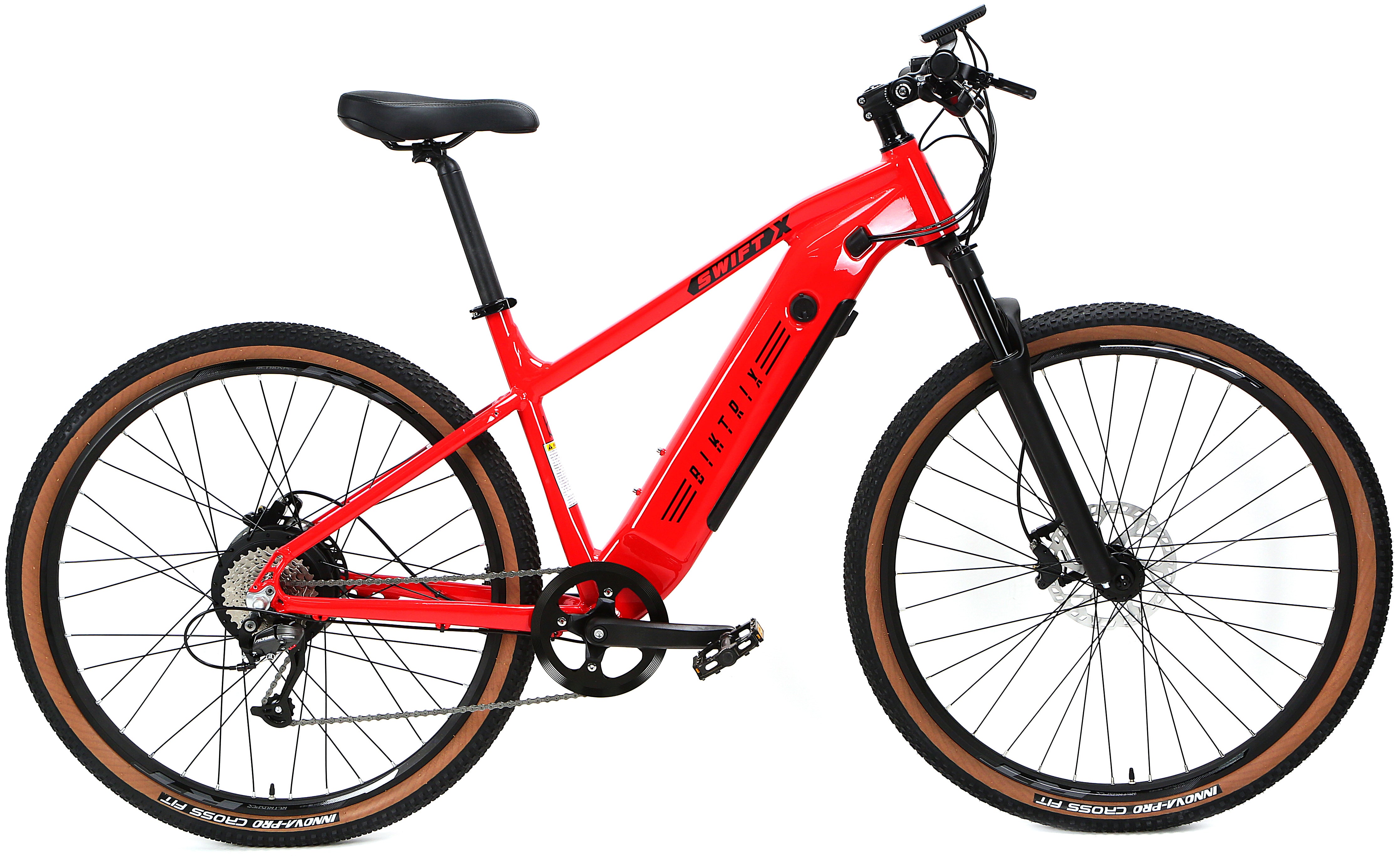

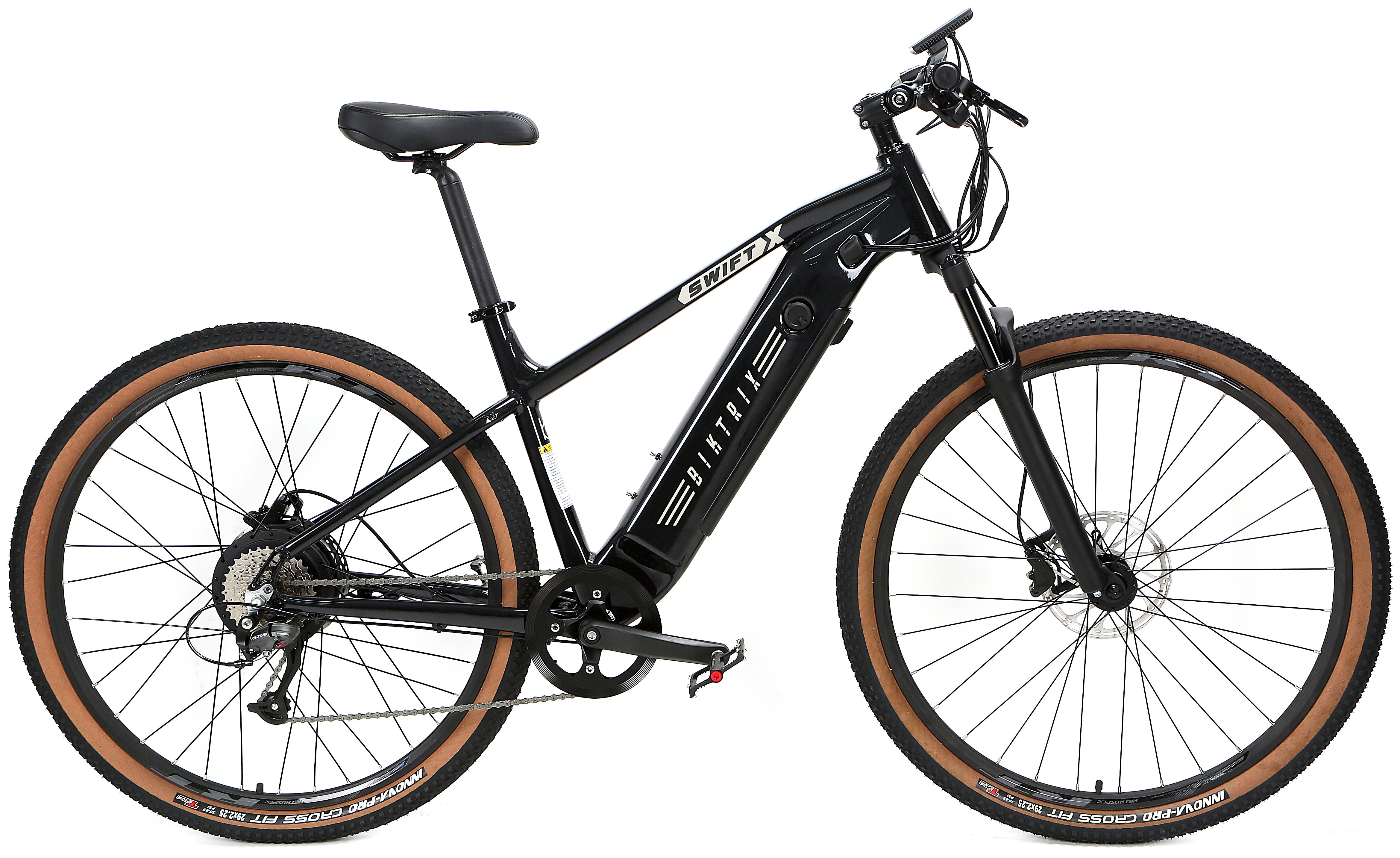

Swift X

Name: Swift X
Brand: Sale Item
SKU: SFXMBK1
Price: 2599.0 CAD
Availability: OutOfStock
Rating: 4.57 (75 reviews)

4.5

CA$2,599

This item has been replaced!

Want the latest Swift? Check out our latest Swift Step-Thru today!

Shop Now

1	Effective Top Tube Length	540mm	21.3in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	600mm	23.6in
5	Chainstay Length	450mm	17.7in
6	Standover Height	700mm	27.6in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	130 mm	5.1 in
10	Fork Length	530mm	20.9in
11	Front Center	690mm	27.2in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1860mm	73.2in
16	Max Seat Height	1050mm	41.3in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1020mm	40.2in
19	Weight (Without Battery)	21.3kg	47lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	440mm	17.3in
4	Stack	630mm	24.8in
5	Chainstay Length	450mm	17.7in
6	Standover Height	710mm	28in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	130 mm	5.1 in
10	Fork Length	530mm	20.9in
11	Front Center	690mm	27.2in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1140mm	44.9in
15	Total Length	1880mm	74in
16	Max Seat Height	1060mm	41.7in
17	Min Seat Height	860mm	33.9in
18	Handlebar Height	1050mm	41.3in
19	Weight (Without Battery)	21.5kg	47.4lb

500W Hub-Drive

Motor Power

60Nm of Torque

Moderate Hills

48V 13Ah 624Wh

est. 70km Range

+5'6ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Reliable And Swift Transport

The Biktrix Swift X* is a commuter eBike built for convenient daily travel. The perfect balance between comfort and control, the upright rider position makes it easy to stay aware of your surroundings. The Swift X will effortlessly take you from home to work or school, on errands, or just around town.

Best Of The Best.

Front Suspension Fork

The Coil Spring Suspension Fork delivers a smooth ride the Swift Series is known for. Built-in lockout and 60mm Travel make this great for all styles of riding!

500W Hub Motor

Reliability is an important aspect for a gravel bike and that’s why the Swift Step-Over is powered by a tried-and-true 500W Hub Motor.

Dual Piston Hydraulic Disc Brakes

When it’s so easy to go fast, you need strong stopping power. The dual-piston hydraulic disc brakes will quickly and reliably bring you to a halt.

29” Tires

These large diameter narrow tires will glide over pavement, gravel, or whatever terrain your adventures take you!

Shimano Altus 9 Speed Drivetrain

Whether climbing steep hills or holding maximum speed on the flats, the Shimano Altus 9 Speed drivetrain has you covered!

Removable Battery

The removable 48V 14Ah Battery offers unmatched convenience for re-charging. With the twist of a key, your battery can be removed from the bike to be brought inside for charging.

LCD Display

The LCD Display shows all the important information about your ride including speed, battery life, odometer, pedal assist level and more!

Lightweight Aluminum Frame

Weighing in at 55.5lbs this is one of our most lightweight Aluminum bike frames yet!

Thumb Throttle

Access all the power the motor has to offer with the simple push of a thumb!

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		10km Up To
PAS 2 Pedal-Assist Lv.2		20km Up To
PAS 3 Pedal-Assist Lv.3		30km Up To
PAS 4 Pedal-Assist Lv.4		40km Up To
PAS 5 Pedal-Assist Lv.5		50km Up To
THRL Throttle Only		60km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 110mm qr	Seat post 31.6mm
Fork Coil suspension fork w/ 60mm travel, lockout and preload	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor	Motor 500w rear hub motor
Shifter rear Shimano altus 9 speed trigger	Rear axle Bolt on	Battery sizes 48v 13ah 624wh
Rear derailleur Shimano altus 9 speed	Rims Black 36h	Display S830
Cassette 11-32t 9 speed cassette	Tire sizes Innova pro cross fit 29x2.25"	Chain 9 speed
Handlebar 720mm wide, 20mm rise, 31.8mm clamp	Assist type Torque	Crank set 42t chainring w/ 170mm crankarms
Stem 80mm adjustable	Assist levels 0-5 (0-3, 0-9)	Bottom bracket Square tapered torque sensor
Grips Bolt on comfort grips	Throttle Thumb throttle	Brakes Retrospec dual piston hydraulic w/180mm rotors
Saddle Padded narrow saddle	Other Clamp on kickstand	Brake levers Long pull w/ integrated motor cutoffs

Frame 6061 aluminum	Front hub 110mm qr
Seat post 31.6mm	Fork Coil suspension fork w/ 60mm travel, lockout and preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor
Motor 500w rear hub motor	Shifter rear Shimano altus 9 speed trigger
Rear axle Bolt on	Battery sizes 48v 13ah 624wh
Rear derailleur Shimano altus 9 speed	Rims Black 36h
Display S830	Cassette 11-32t 9 speed cassette
Tire sizes Innova pro cross fit 29x2.25"	Chain 9 speed
Handlebar 720mm wide, 20mm rise, 31.8mm clamp	Assist type Torque
Crank set 42t chainring w/ 170mm crankarms	Stem 80mm adjustable
Assist levels 0-5 (0-3, 0-9)	Bottom bracket Square tapered torque sensor
Grips Bolt on comfort grips	Throttle Thumb throttle
Brakes Retrospec dual piston hydraulic w/180mm rotors	Saddle Padded narrow saddle
Other Clamp on kickstand	Brake levers Long pull w/ integrated motor cutoffs

Frame

6061 aluminum

Front hub

110mm qr

Seat post

31.6mm

Fork

Coil suspension fork w/ 60mm travel, lockout and preload

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/2 1-1/8 tapered

Rear hub

Motor

500w rear hub motor

Shifter rear

Shimano altus 9 speed trigger

Rear axle

Bolt on

Battery sizes

48v 13ah 624wh

Rear derailleur

Shimano altus 9 speed

Rims

Black 36h

Display

S830

Cassette

11-32t 9 speed cassette

Tire sizes

Innova pro cross fit 29x2.25"

Chain

9 speed

Handlebar

720mm wide, 20mm rise, 31.8mm clamp

Assist type

Torque

Crank set

42t chainring w/ 170mm crankarms

Stem

80mm adjustable

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Square tapered torque sensor

Grips

Bolt on comfort grips

Throttle

Thumb throttle

Brakes

Retrospec dual piston hydraulic w/180mm rotors

Saddle

Padded narrow saddle

Other

Clamp on kickstand

Brake levers

Long pull w/ integrated motor cutoffs

Size & Fittings

1	Effective Top Tube Length	540mm	21.3in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	600mm	23.6in
5	Chainstay Length	450mm	17.7in
6	Standover Height	700mm	27.6in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	130 mm	5.1 in
10	Fork Length	530mm	20.9in
11	Front Center	690mm	27.2in
12	BB (Bottom Bracket) Drop	65mm	2.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1860mm	73.2in
16	Max Seat Height	1050mm	41.3in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1020mm	40.2in
19	Weight (Without Battery)	21.3kg	47lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	440mm	17.3in
4	Stack	630mm	24.8in
5	Chainstay Length	450mm	17.7in
6	Standover Height	710mm	28in
7	Head Angle	67°	-
8	Seat Angle	73°	-
9	Head Tube Length	130 mm	5.1 in
10	Fork Length	530mm	20.9in
11	Front Center	690mm	27.2in
12	BB (Bottom Bracket) Drop	80mm	3.1in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1140mm	44.9in
15	Total Length	1880mm	74in
16	Max Seat Height	1060mm	41.7in
17	Min Seat Height	860mm	33.9in
18	Handlebar Height	1050mm	41.3in
19	Weight (Without Battery)	21.5kg	47.4lb

FAQ & Guides

Manual eBike Display Manuals
Guide Swift X Rack and Fenders Installation Guide
Guide Spare Parts Finder
FAQ I just received my eBike, what next?
FAQ I just assembled my eBike, what next?
FAQ Recommended Tire Pressure and Inflation Level
FAQ eBike Battery Care Guide

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

Nice bike that could be even better

Buying the bikes was not as straight forward as I expected, their website had some glitches that prevented me to take advantage of their promotions, however an email to their support team fixed that.
After receiving my bikes I found out that some parts in both of the handle bars were assembled in the wrong order so with some help from their support team I was able to fix the issue and get some spare parts that were damaged in the process.
All in all, I like these bikes very much, they have all the basics at a good price. However, they could be even better if you could upgrade some things like a headlamp connected to the ebike controls and battery, your only option is a to get rechargeable headlamp or one with external batteries.
Their support team is great.

Poor quality when picked up, wobbly front and back tires

As other have mentioned, very poor quality control. Picked up a Swift X on Saturday from the main branch in Saskatoon. Took it for the first ride to my office (11km away) and noticed both front and back wheels have a wobble. Walked over and spoke with them about fixing it, but needs the bike for a full day. Should they not check the bike over properly before picking it up?

Poor quality control

Like other reviews have said. Good looking bike but poor quality control. Front wheel wobble out of the box. Issue with torque sensor, bike sometimes has weak pedal assist. Support wants me to take a video to show the issue but how can I show the weaker feedback in video. Feels dangerous to be requested to ride a bike and take a video.

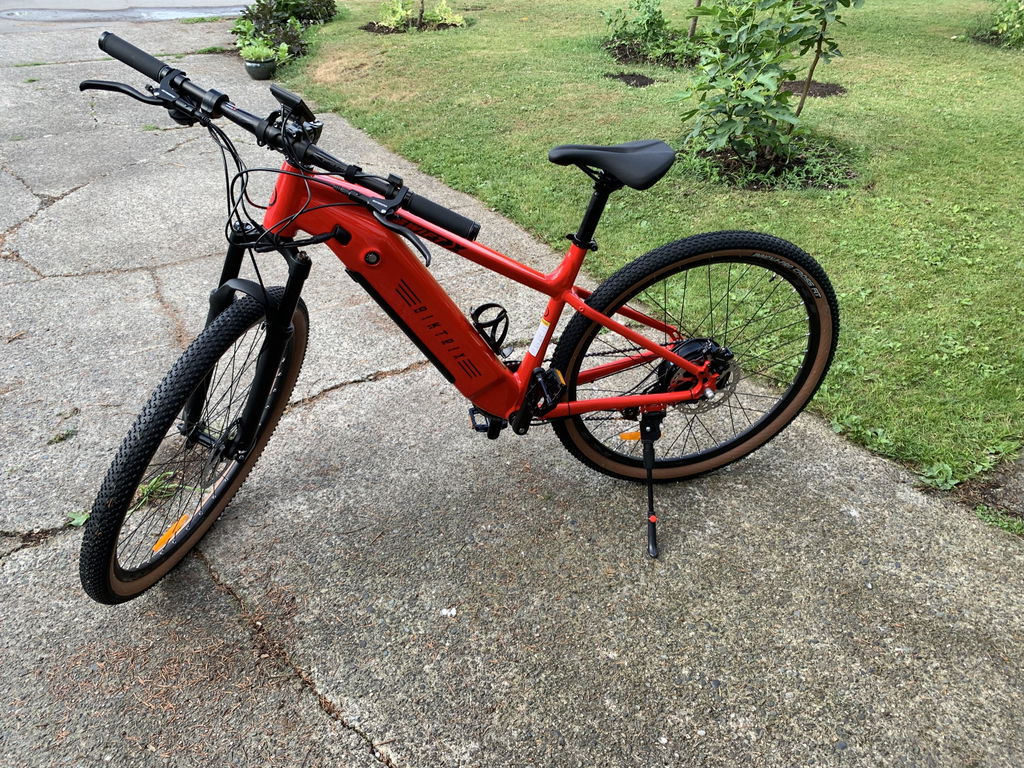

My Swift X - overall a mediocre bicycle

Good
Pleasing profile, 29 inch wheels yes, critical to have a throttle - is the only feature that makes the bike ridable
Poor
The torque and cadence sensors work poorly - lack sensitivity
Factory blocking of the LCD exacerbates the problem
Bad
one of the bolts for the front caliper was cross threaded and left, the other was only finger tight
obviously no real quality control, as I found the problem not Biktrix
Conclusion
Nice apprearance, but poor workmanship and almost worthless electronic controls

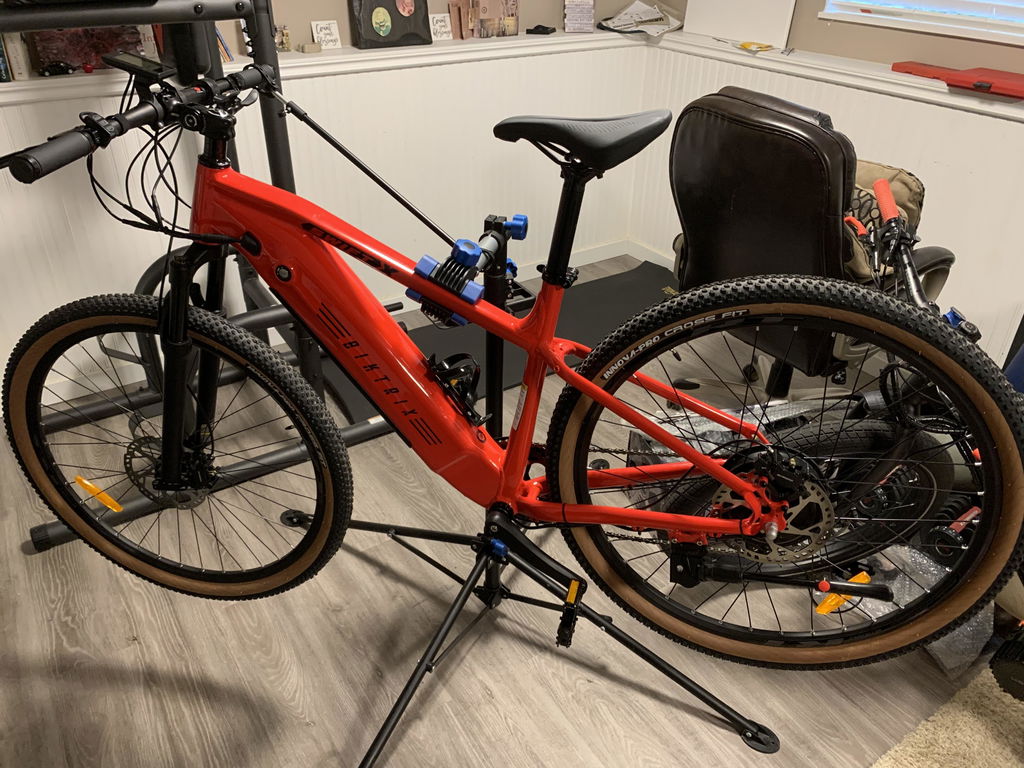

Assembled yesterday. Ride tested. So far so good.
