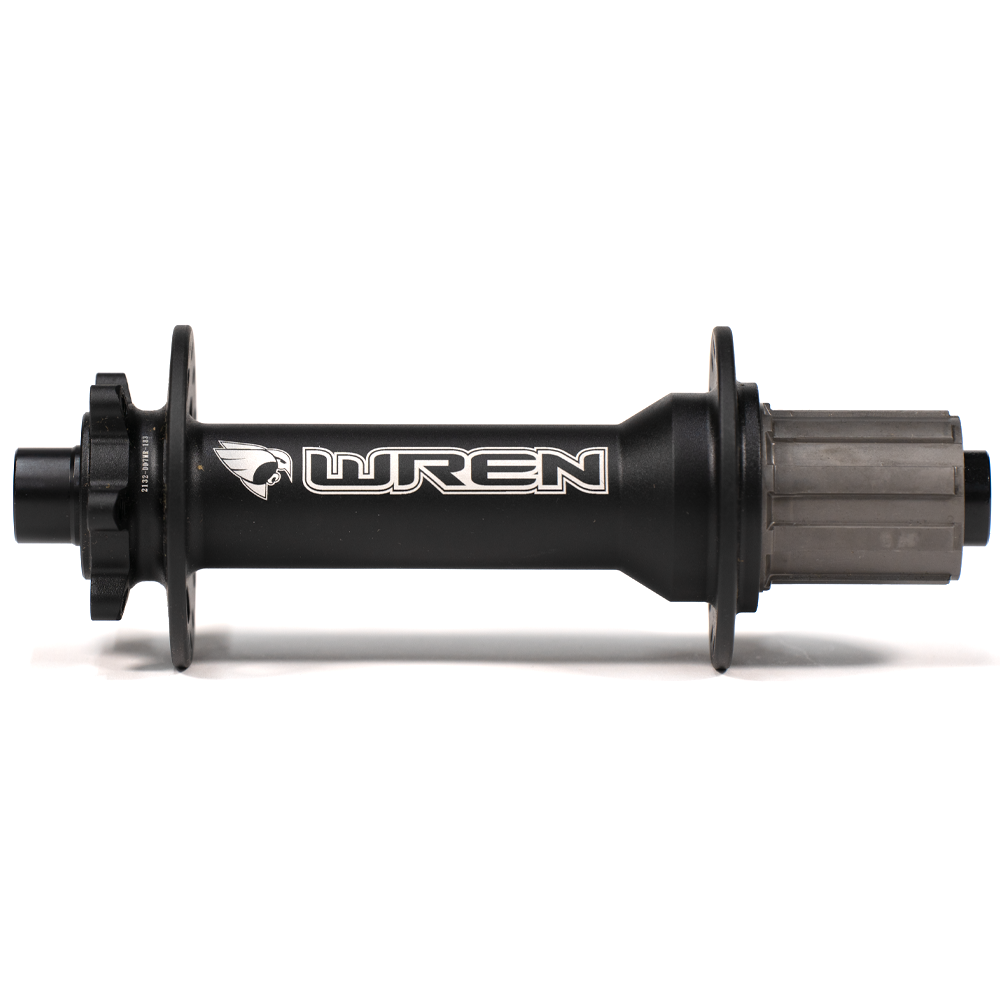

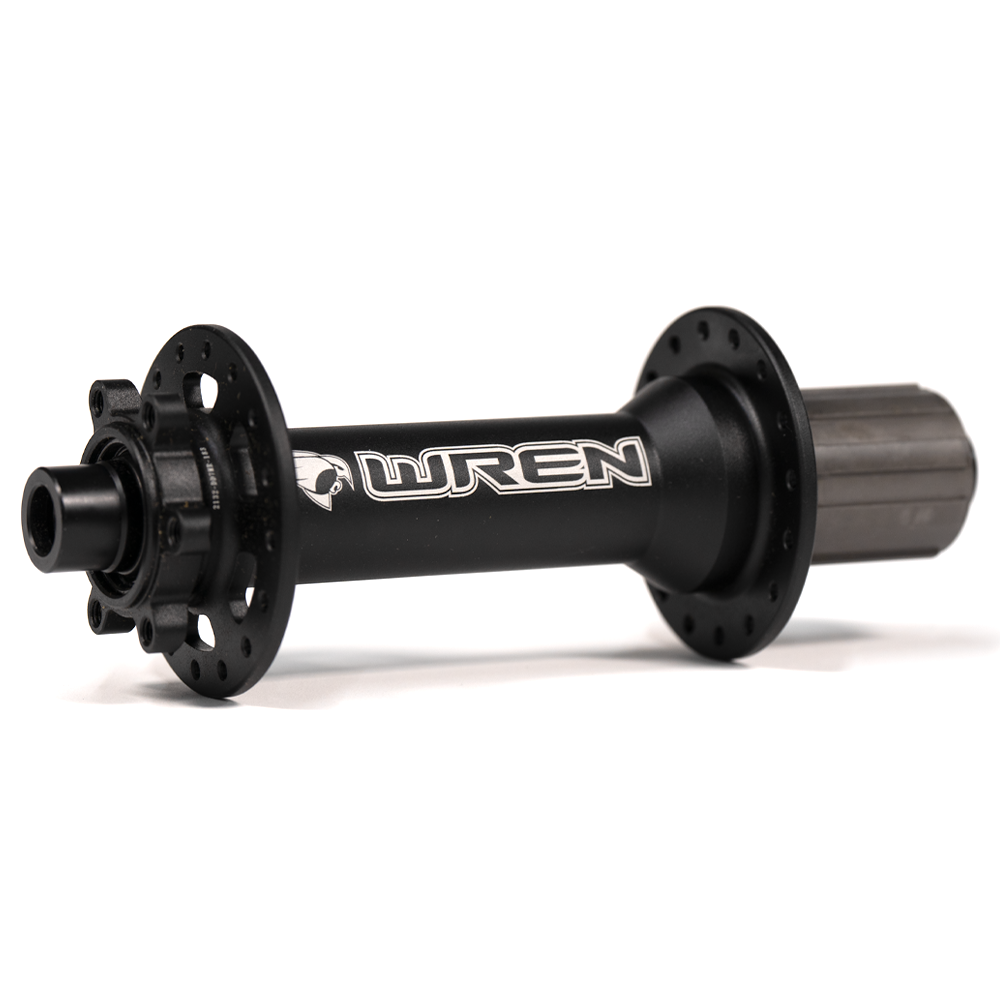

Wren Star Ratchet Rear Hub (190mm/197mm)

Sale price CA$435.00
Sale price CA$435.00
Shipping: Leaves within 6-7 business days

Overview

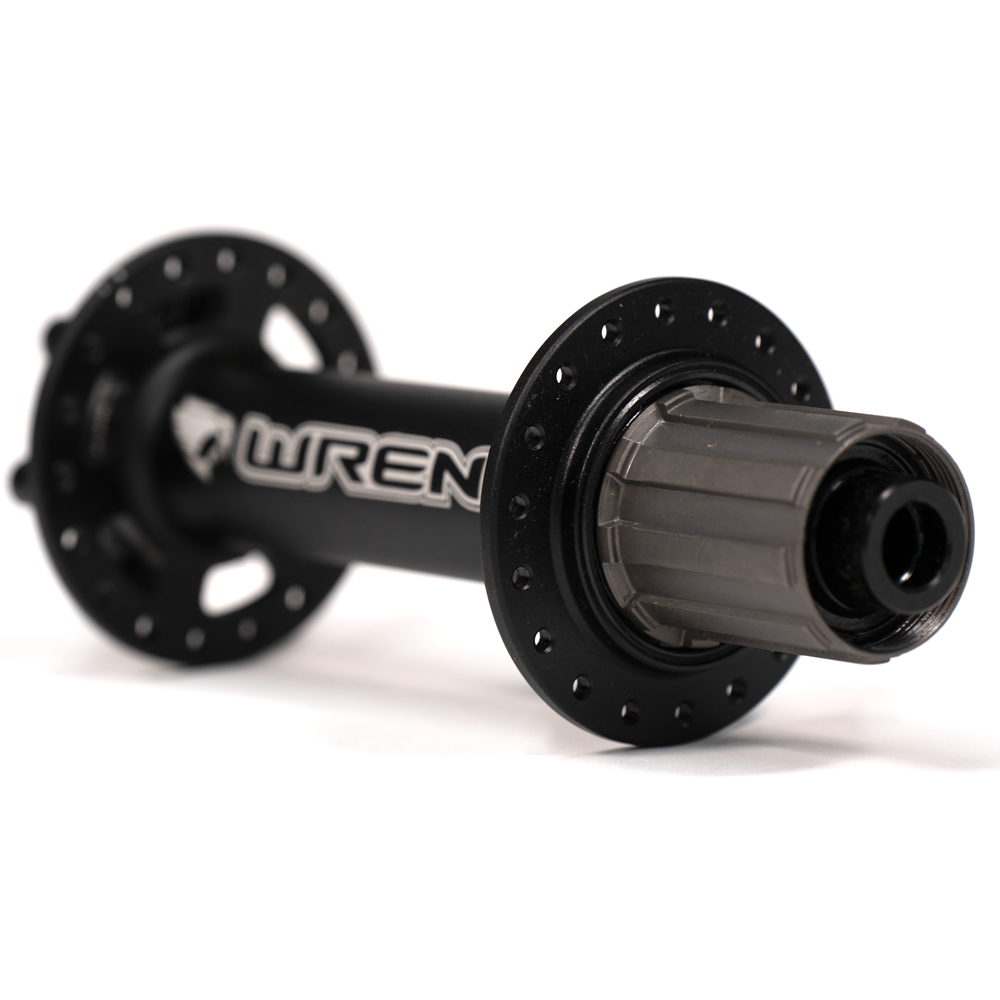

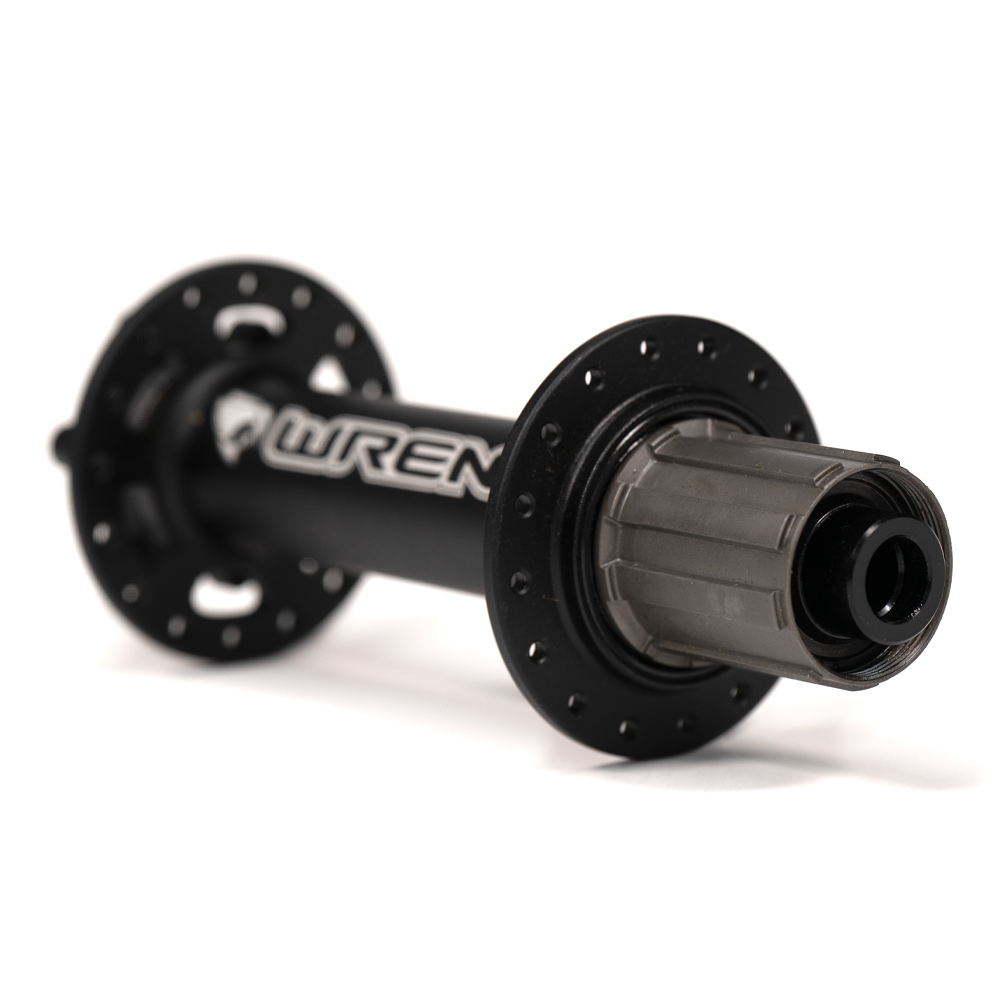

Upgrade your eBike's drive system with a star ratchet hub manufactured by Wren Sports. Designed to excel in high-torque situations with powerful mid-drive motor eBikes. Available in 32 hole and 36 hole variants and can be set up for 190mm or 197mm rear-ends.

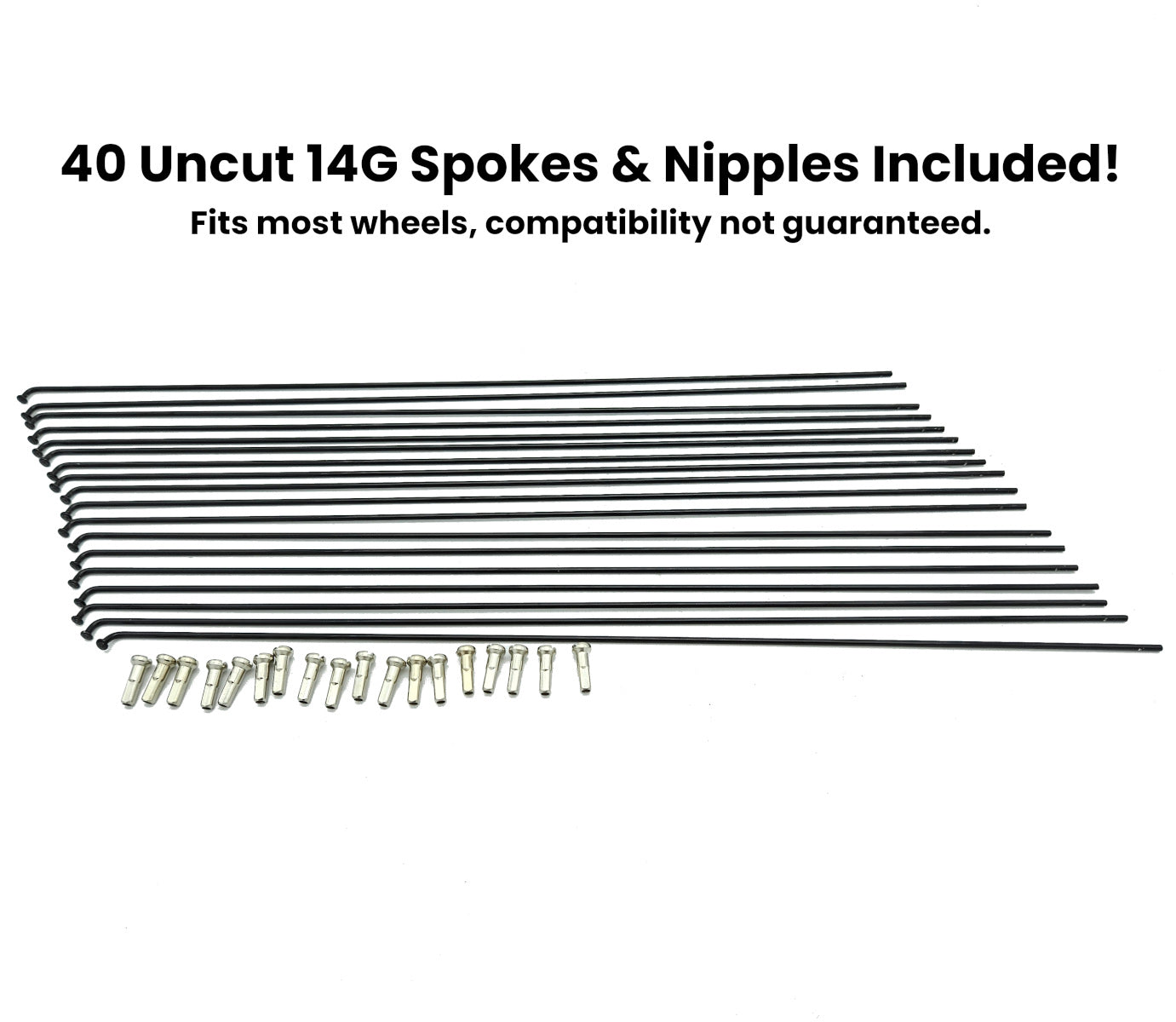

This bundle includes the hub, adaptor to fit your hub spacing and axle type (if applicable) and 40 Uncut 14G Spokes and Spoke Nipples.

What is a star ratchet hub?

A star ratchet hub is a robust and reliable hub design which distributes the load of your eBike's motor across 36 points-of-contact opposed to the 4-6 points-of-contact on a pawl based hub.

This addresses a common point of failure for many regular hubs where the pawls will break or strip the race in the hub causing the power to no longer be transferred to the rear wheel. The even distribution of power between the star ratchet teeth ensures a smooth and reliable drivetrain.

No Tool Construction

The star ratchet hub can be assembled and disassembled with no tools, resulting in easy access to bearings, freehub body replacements,  and configuration between 190m and 197mm.

Technical Specifications

Axles Supported

12mm Thru Axle (5mm QR if purchased with Adaptor)

Spokes Included

40 Uncut, 14G Spokes and Nipples Included

Freehub

HG Style

Cassette Compatibility

9, 10, 11 Speed

Width

Adjustable Between 190mm, 197mm

Spoke Hole Count

32/36

Compatibility

Bike Name 36 Hole 36 Hole with 5mm QR Adaptor
Juggernaut Ultra FS
Juggernaut Ultra 1000 w/Rear Thru Axle
Juggernaut Ultra Duo 2 Step-Over
Juggernaut Ultra FS Pro 2/3
Juggernaut Ultra FS Pro 1 26x4 Fat-Tire Version
Juggernaut Ultra Beast 1/2
Monte Capro Ultra 1/2 26x4.8 Fat-Tire Version
Juggernaut Ultra Duo 3/4
Juggernaut HD Duo
Juggernaut Ultra FS Pro 1 27.5x3 Boost Version
Juggernaut Classic Duo
Monte Capro Ultra 1/2 27.5x3 Boost Version
