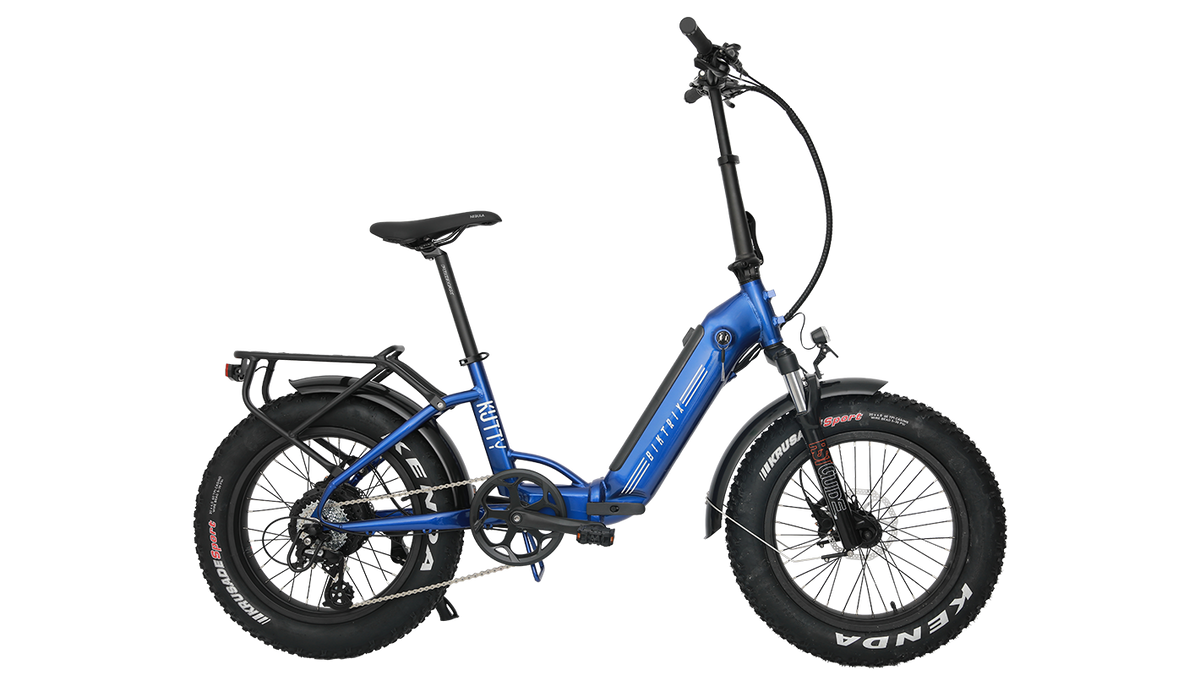

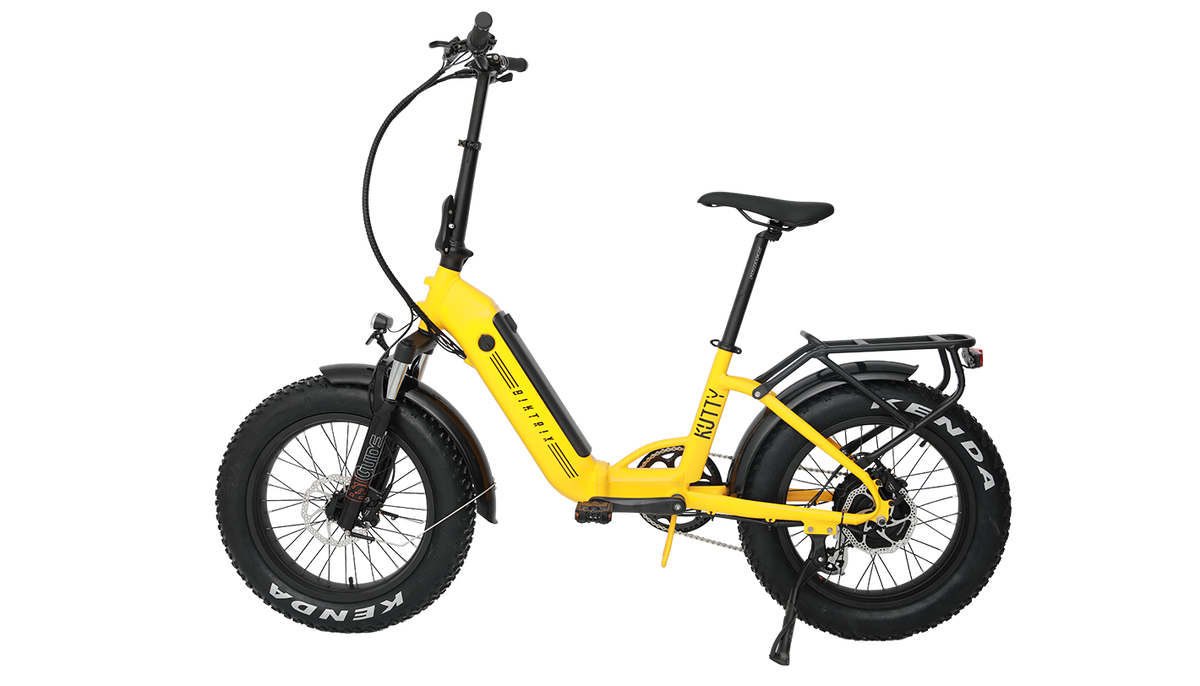

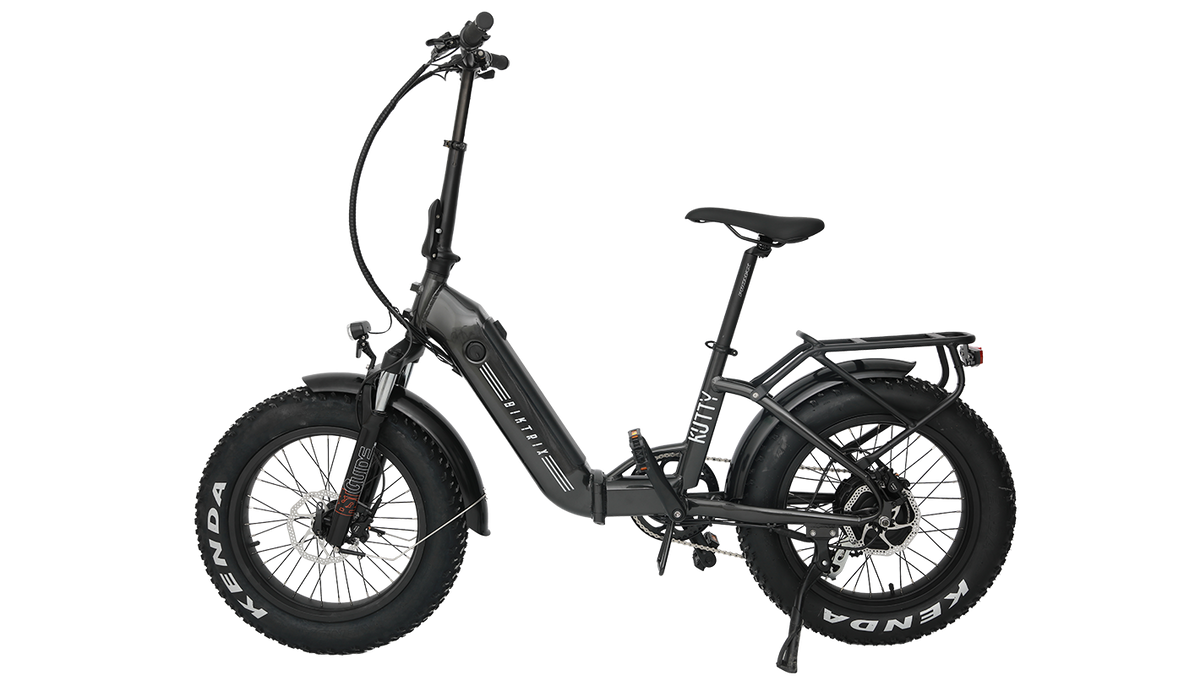

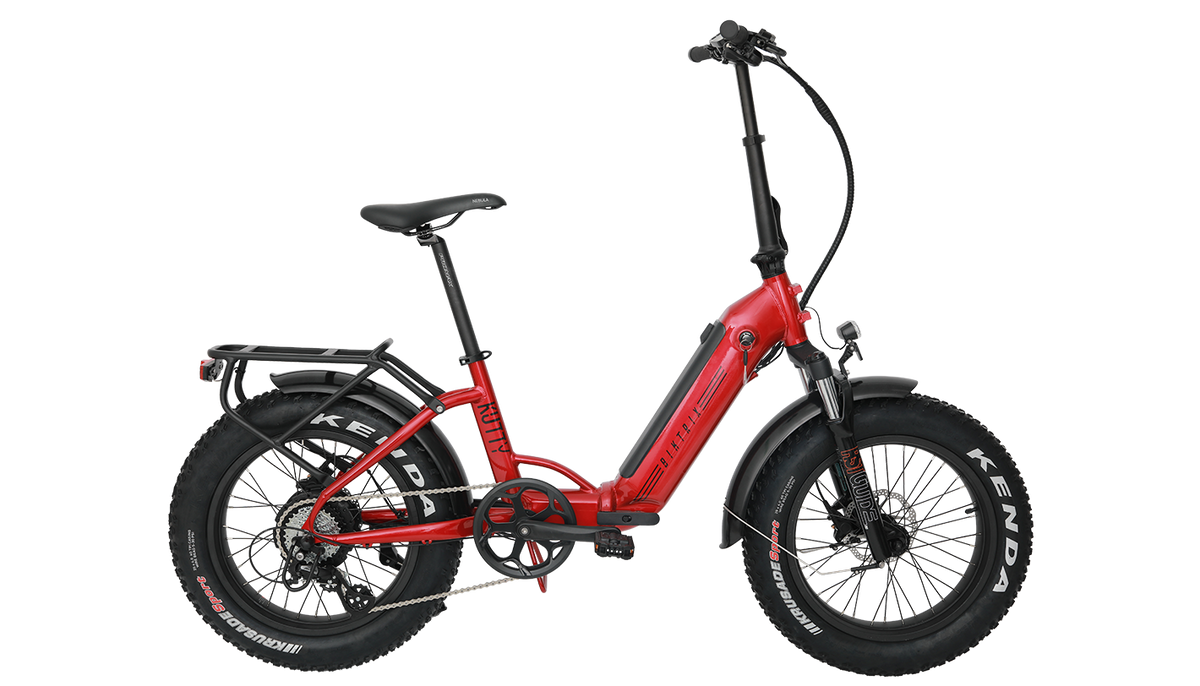

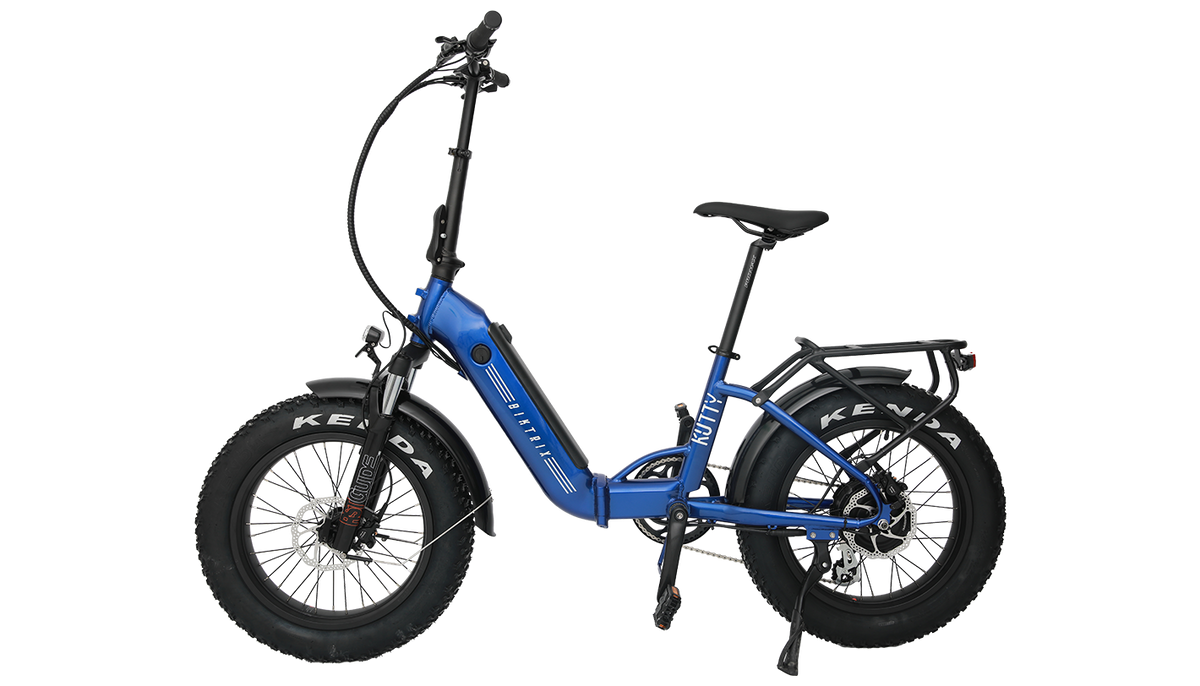

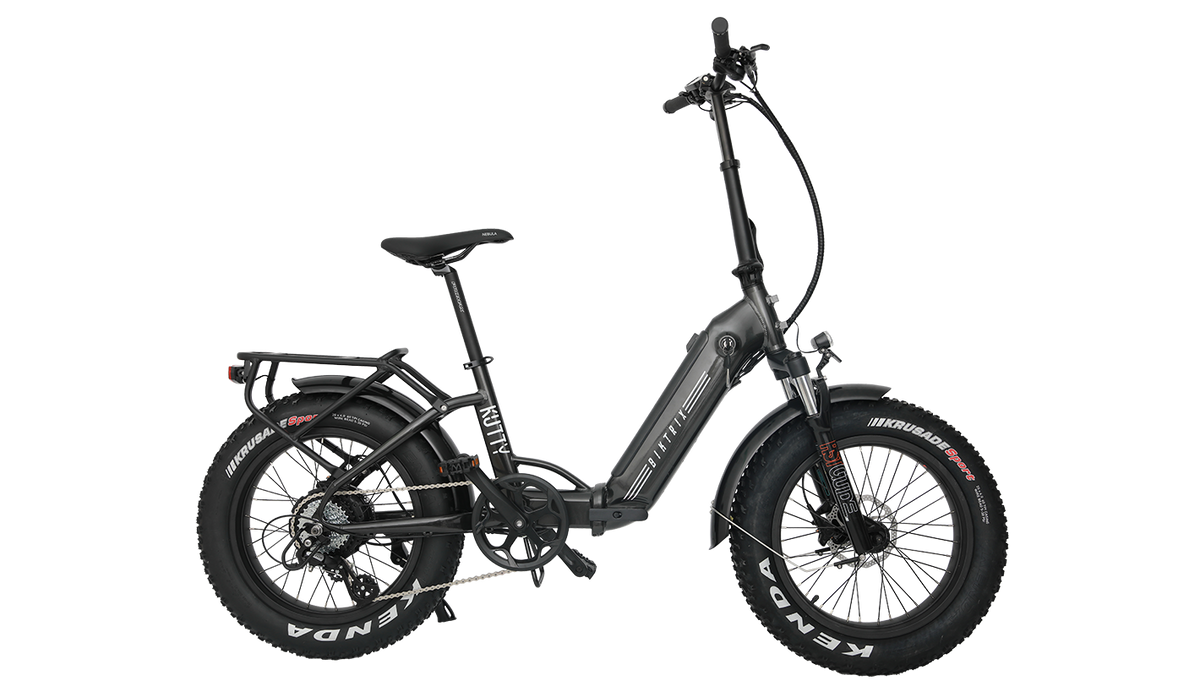

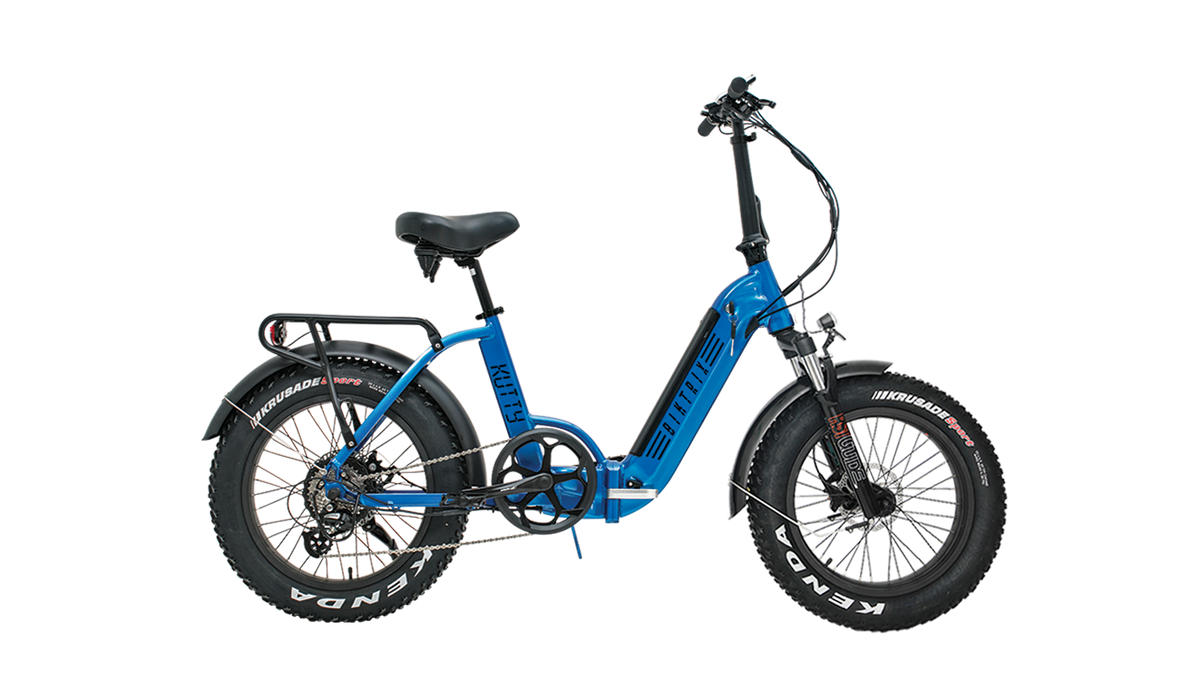

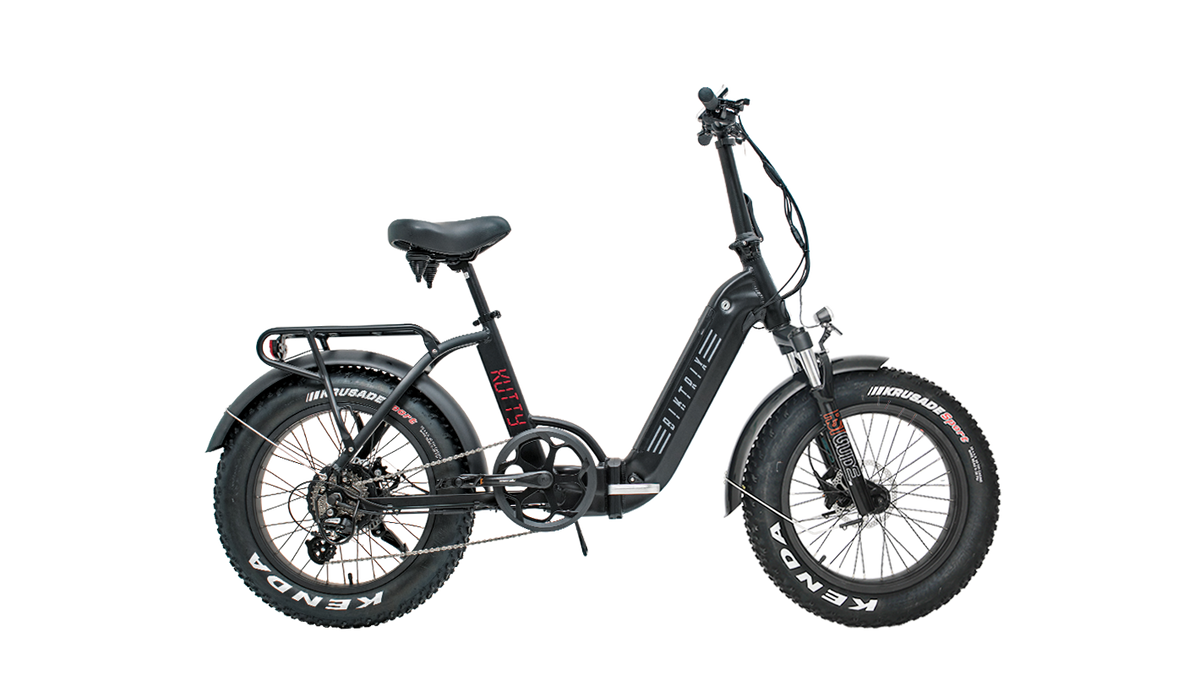

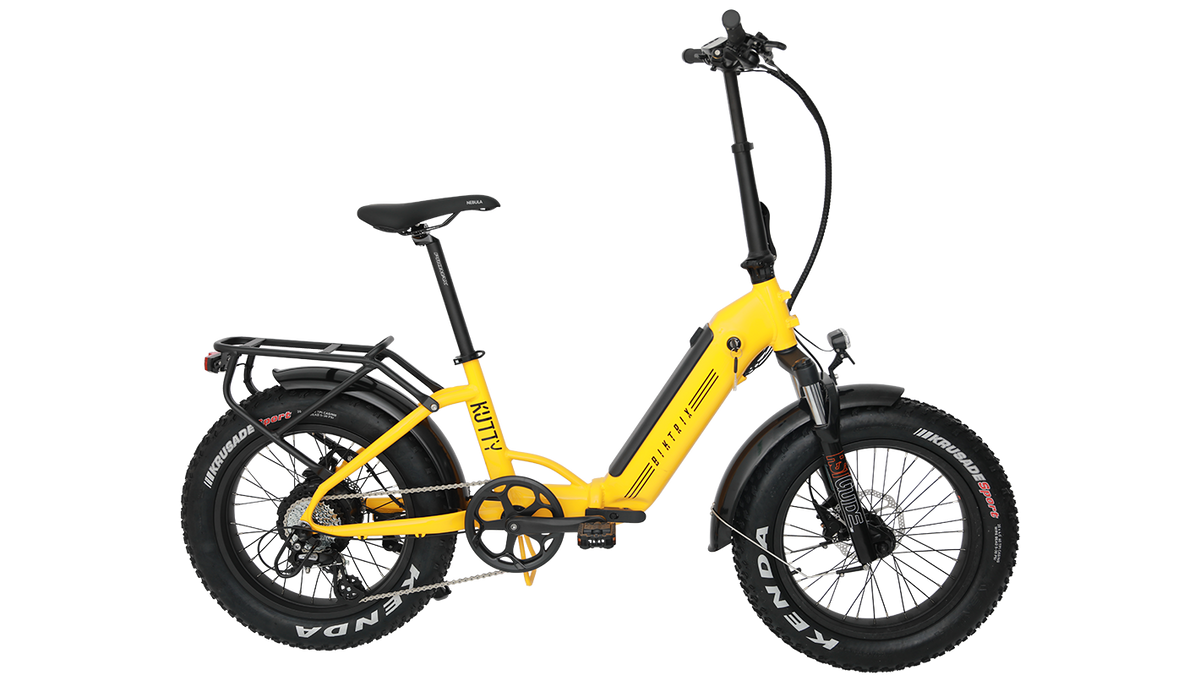

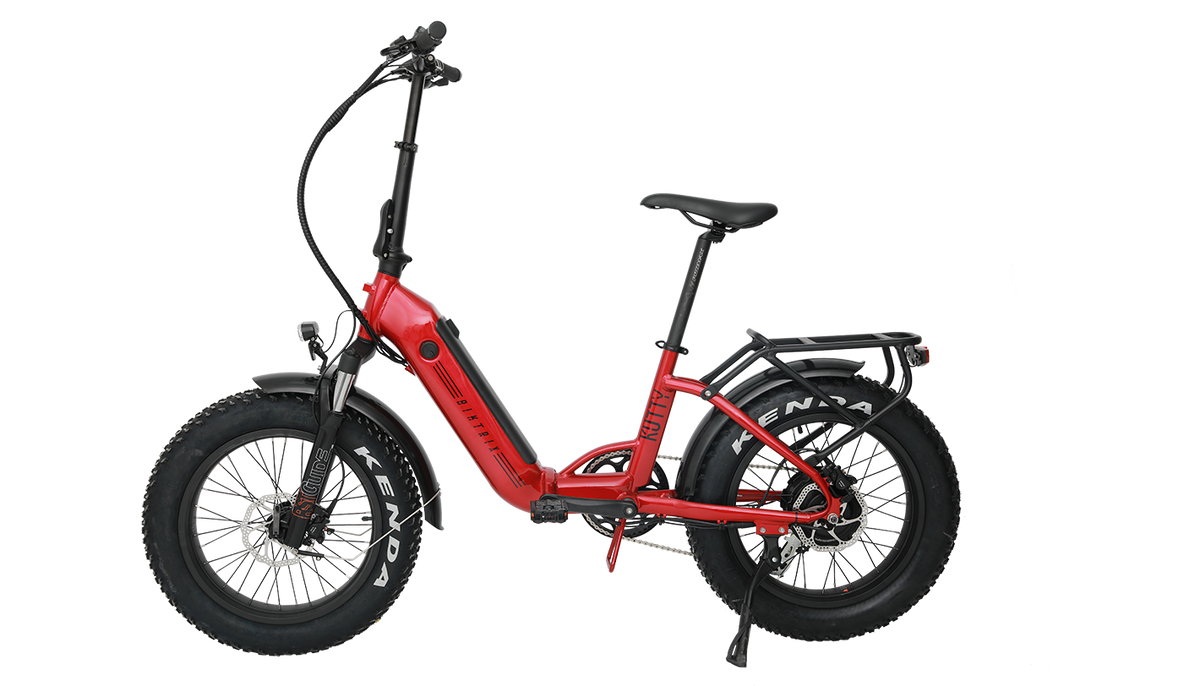

Kutty

Name: Kutty
Brand: kutty-details
SKU: KTY-BK
Availability: OutOfStock
Rating: 4.2 (20 reviews)

4.2

CA$0 CA$2,989

IN STOCK AND SHIPPING

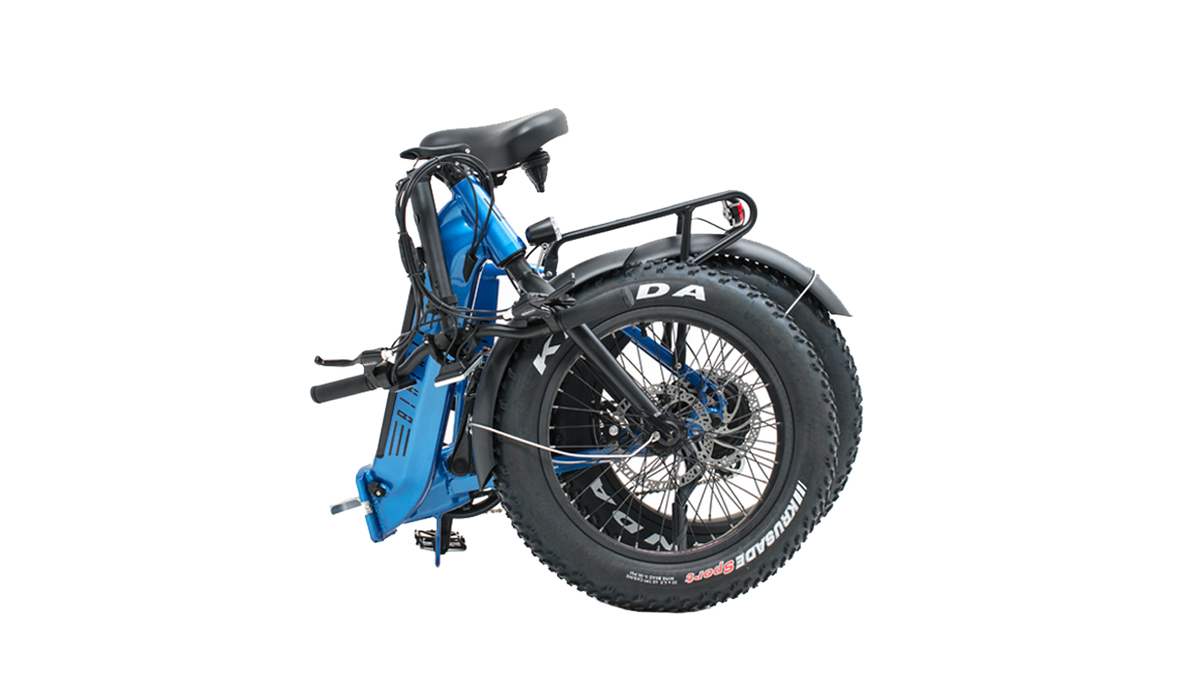

Small, mighty, the ultimate folding bike
⭐⭐⭐⭐⭐"Excellent experience with the Kutty LT. Easy to put together. Delivered internationally in excellent condition. Rides beautifully."
- Jose

Kutty Has Been Replaced.

Want the latest version? Check out the Kutty Lite and ride in style now!

Kutty Lite

Technical Specifications

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm	Seat post Aluminum 30.4
Fork Rst guide suspension fork	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Motor	Motor 750w shengyi rear hub
Shifter rear Shimano atlus 8 speed	Rear axle Bolt on	Battery sizes 48v10.5ah
Rear derailleur Shimano altus 8 speed	Rims Black 20"- 36h	Display C600e
Cassette Megadrive 13-34t	Tire sizes 20x4"	Lights Integrated headlight
Chain Kmc z8.3	Handlebar 25.4mm clamp flat bars 600mm wide	Assist type Cadence
Crank set 165mm arms 46t	Stem Folding w/ height adjustment	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Slide on	Throttle Thumb throttle
Brakes Tektro el 350 mechanical brakes w/180mm rotors	Saddle Nebula	Other Aluminum fenders, rear rack, adjustable kickstand, non-folding pedals
Brake levers Tektro hydraulic w/ motor cutoff

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 135mm
Seat post Aluminum 30.4	Fork Rst guide suspension fork
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Motor
Motor 750w shengyi rear hub	Shifter rear Shimano atlus 8 speed
Rear axle Bolt on	Battery sizes 48v10.5ah
Rear derailleur Shimano altus 8 speed	Rims Black 20"- 36h
Display C600e	Cassette Megadrive 13-34t
Tire sizes 20x4"	Lights Integrated headlight
Chain Kmc z8.3	Handlebar 25.4mm clamp flat bars 600mm wide
Assist type Cadence	Crank set 165mm arms 46t
Stem Folding w/ height adjustment	Assist levels 0-5
Bottom bracket 100mm square taper	Grips Slide on
Throttle Thumb throttle	Brakes Tektro el 350 mechanical brakes w/180mm rotors
Saddle Nebula	Other Aluminum fenders, rear rack, adjustable kickstand, non-folding pedals
Brake levers Tektro hydraulic w/ motor cutoff

Frame

6061 aluminum step thru frame w/ rack and fenders

Front hub

Modus 135mm

Seat post

Aluminum 30.4

Fork

Rst guide suspension fork

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/8 straight

Rear hub

Motor

750w shengyi rear hub

Shifter rear

Shimano atlus 8 speed

Rear axle

Bolt on

Battery sizes

48v10.5ah

Rear derailleur

Shimano altus 8 speed

Rims

Black 20"- 36h

Display

C600e

Cassette

Megadrive 13-34t

Tire sizes

20x4"

Lights

Integrated headlight

Chain

Kmc z8.3

Handlebar

25.4mm clamp flat bars 600mm wide

Assist type

Cadence

Crank set

165mm arms 46t

Stem

Folding w/ height adjustment

Assist levels

0-5

Bottom bracket

100mm square taper

Grips

Slide on

Throttle

Thumb throttle

Brakes

Tektro el 350 mechanical brakes w/180mm rotors

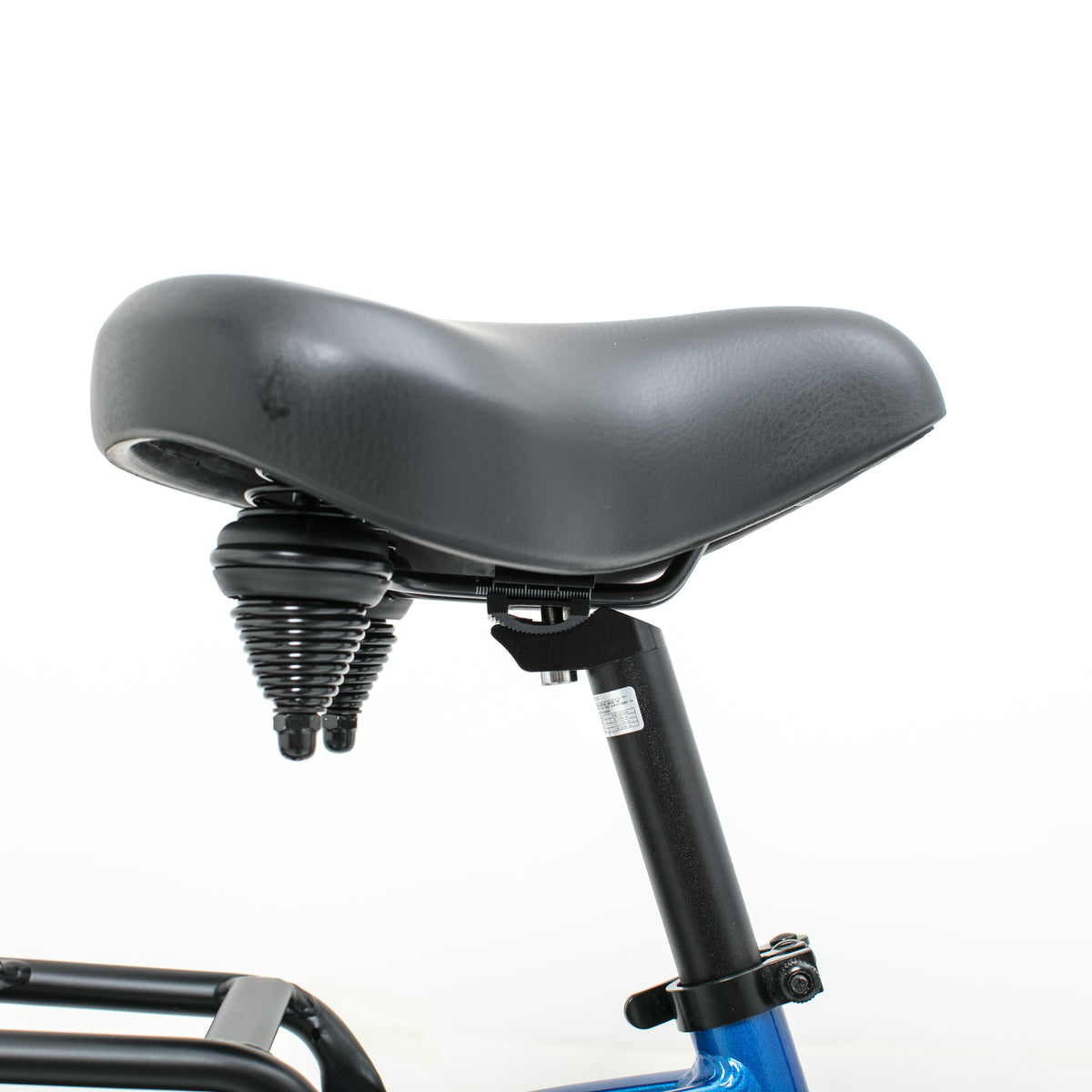

Saddle

Nebula

Other

Aluminum fenders, rear rack, adjustable kickstand, non-folding pedals

Brake levers

Tektro hydraulic w/ motor cutoff

Size & Fittings

1	Effective Top Tube Length	630mm	24.8in
2	Seat Tube Length (Classic Bike Size)	375mm	14.8in
3	Reach	505mm	19.9in
4	Stack	360mm	14.2in
5	Chainstay Length	440mm	17.3in
6	Standover Height	385mm	15.2in
7	Head Angle	68°	-
8	Seat Angle	70°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	410mm	16.1in
11	Front Center	700mm	27.6in
12	BB (Bottom Bracket) Drop	-30mm	-1.2in
13	Fork Offset	35mm	1.4in
14	Wheelbase	1150mm	45.3in
15	Total Length	1730mm	68.1in
16	Max Seat Height	1070mm	42.1in
17	Min Seat Height	775mm	30.5in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	27.2kg	60lb
