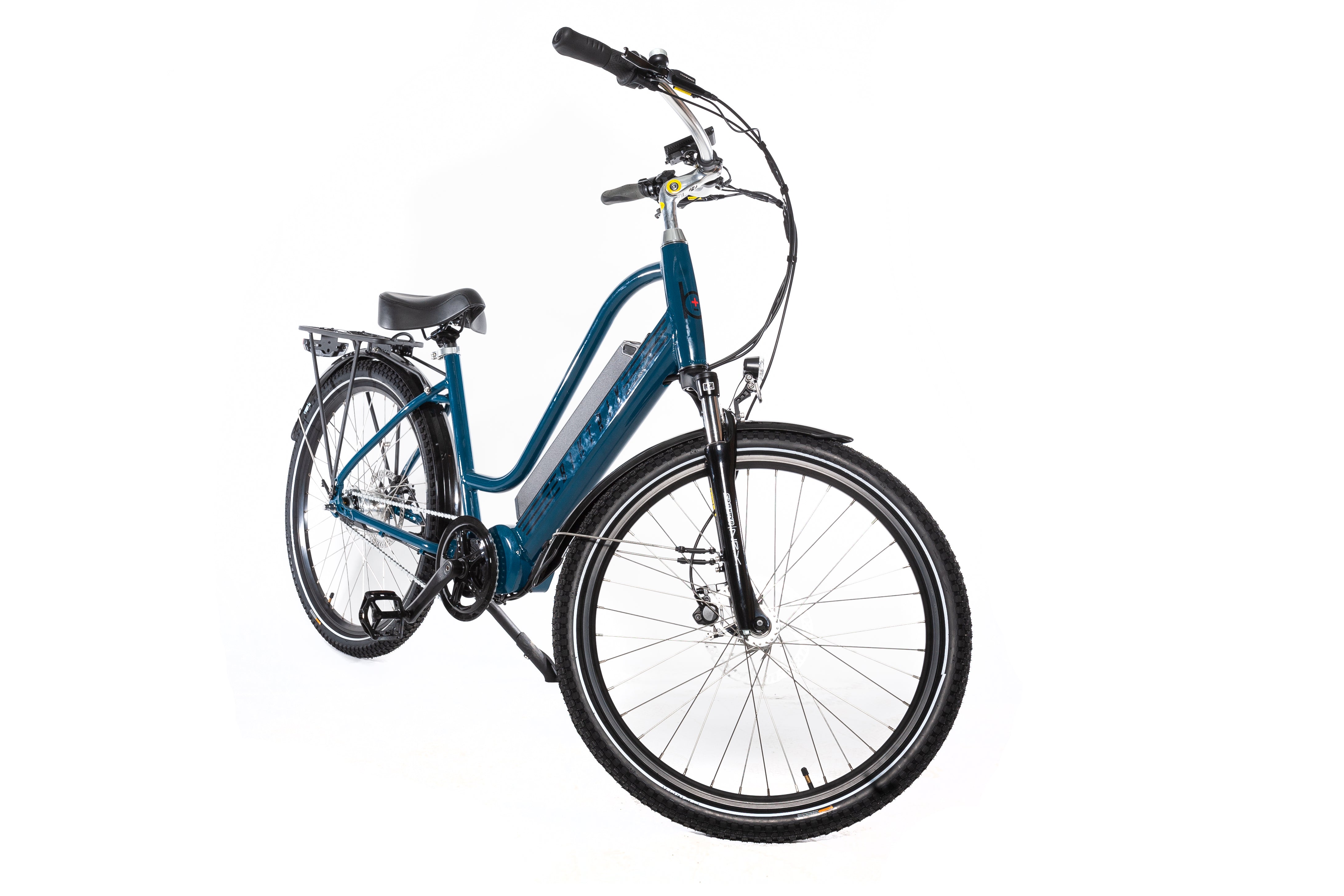

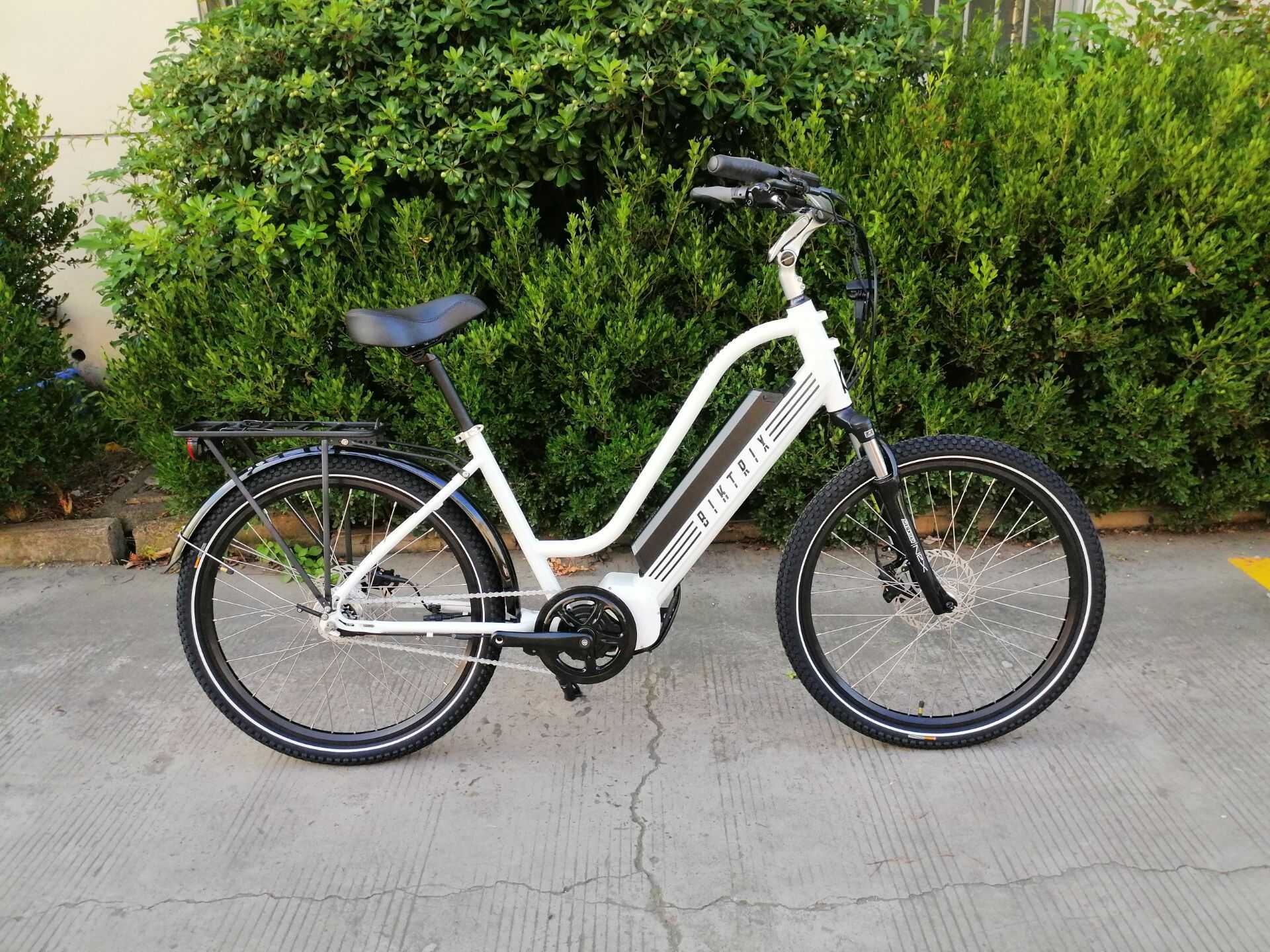

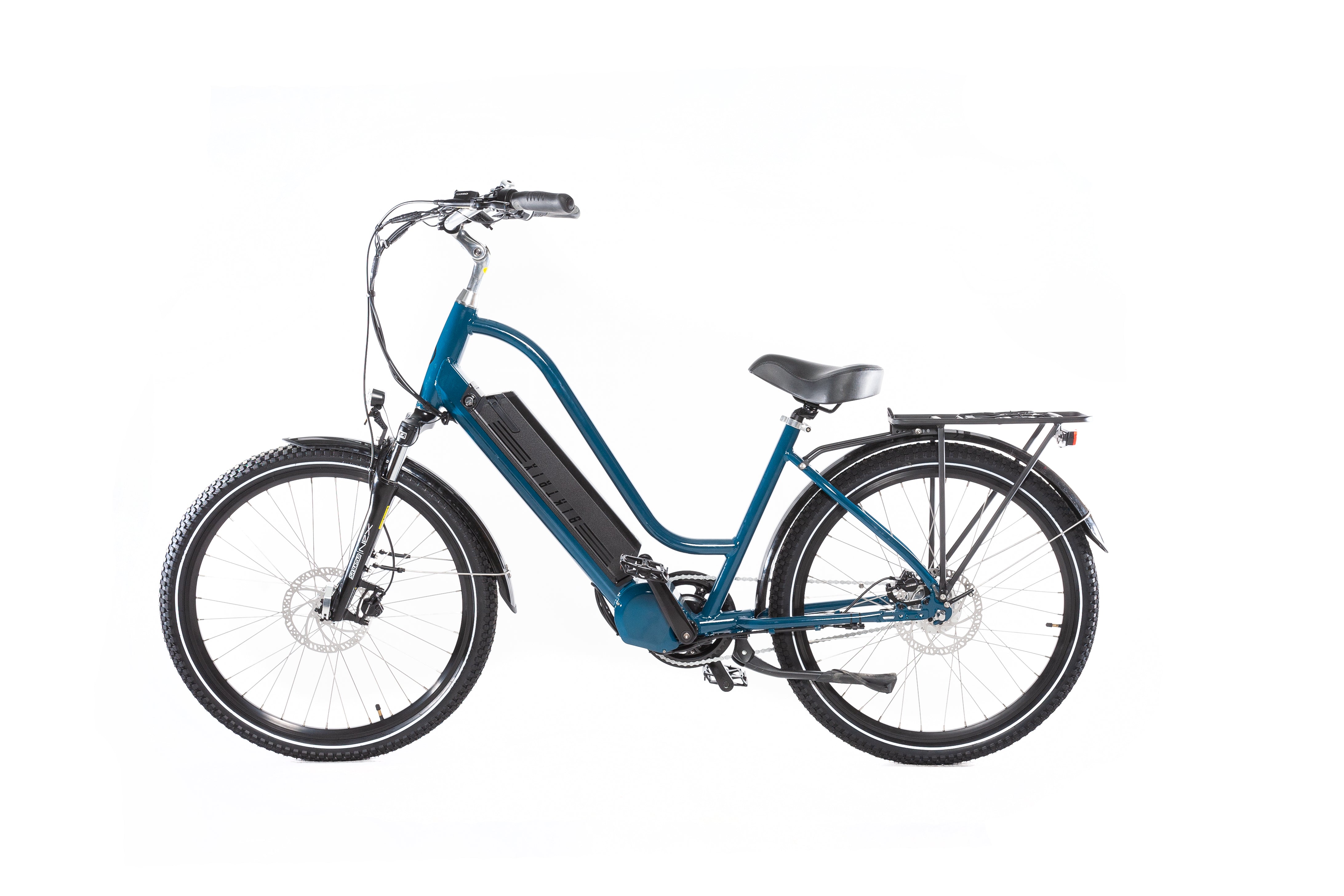

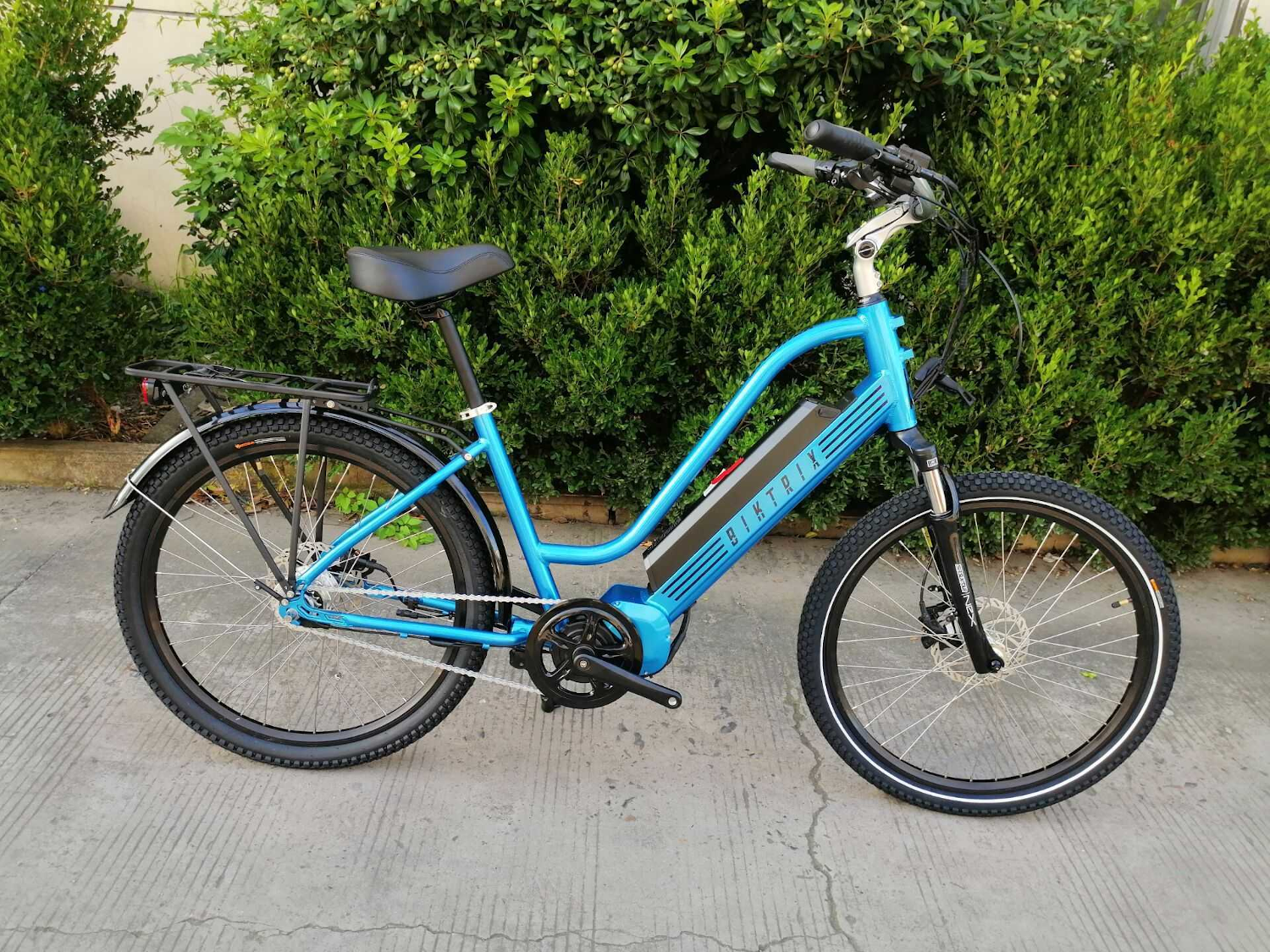

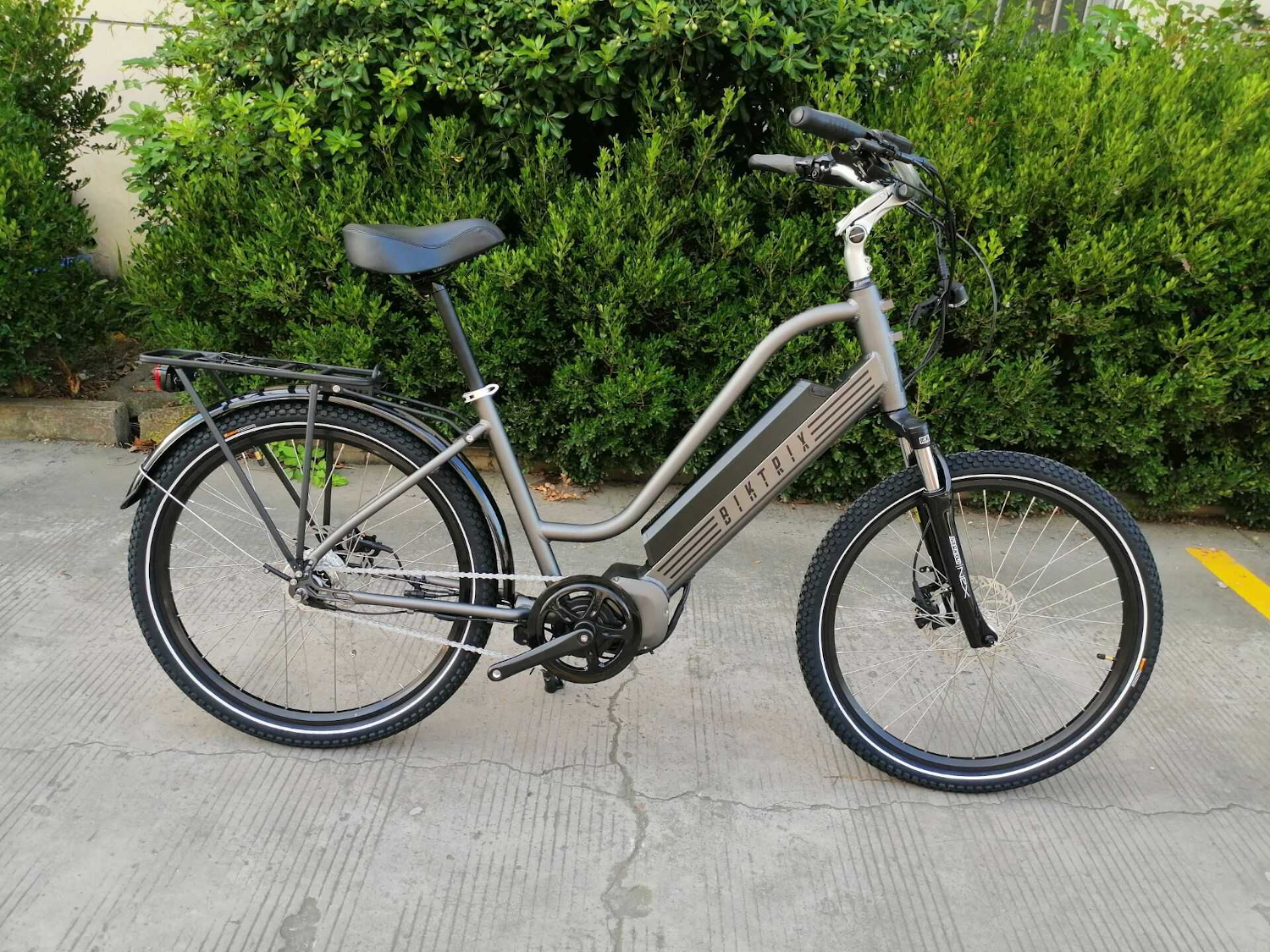

Stunner Step-Thru 5

Sale price CA$0.00 Regular priceCA$4,599.00
Save CA$4,599

We are sorry, but this product is currently sold out!

However, if you are still interested, please fill the form below and we will notify you when we are back in stock.

Sale price CA$0.00 Regular priceCA$4,599.00
Lifetime Support
14 Days Return
Custom Built

Technical Specifications

Frame
6061 aluminum step thru frame
Front hub
Modus 100mm
Seat post
Aluminum 31.8mm

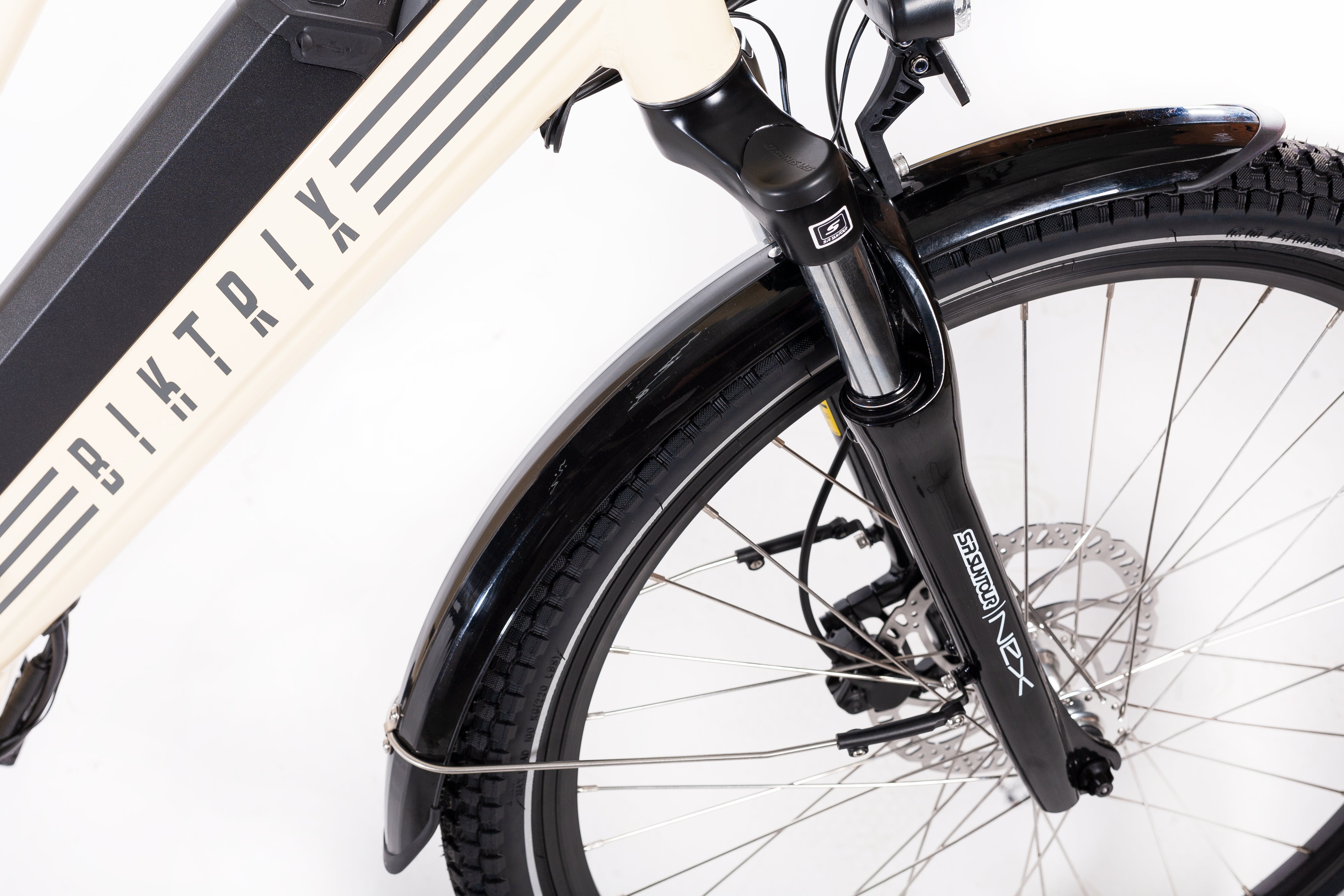

Fork
Sr suntor nex, 60mm travel
Front axle
5mm qr
Seat post clamp
38.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Sturmey archer 5 speed integrated

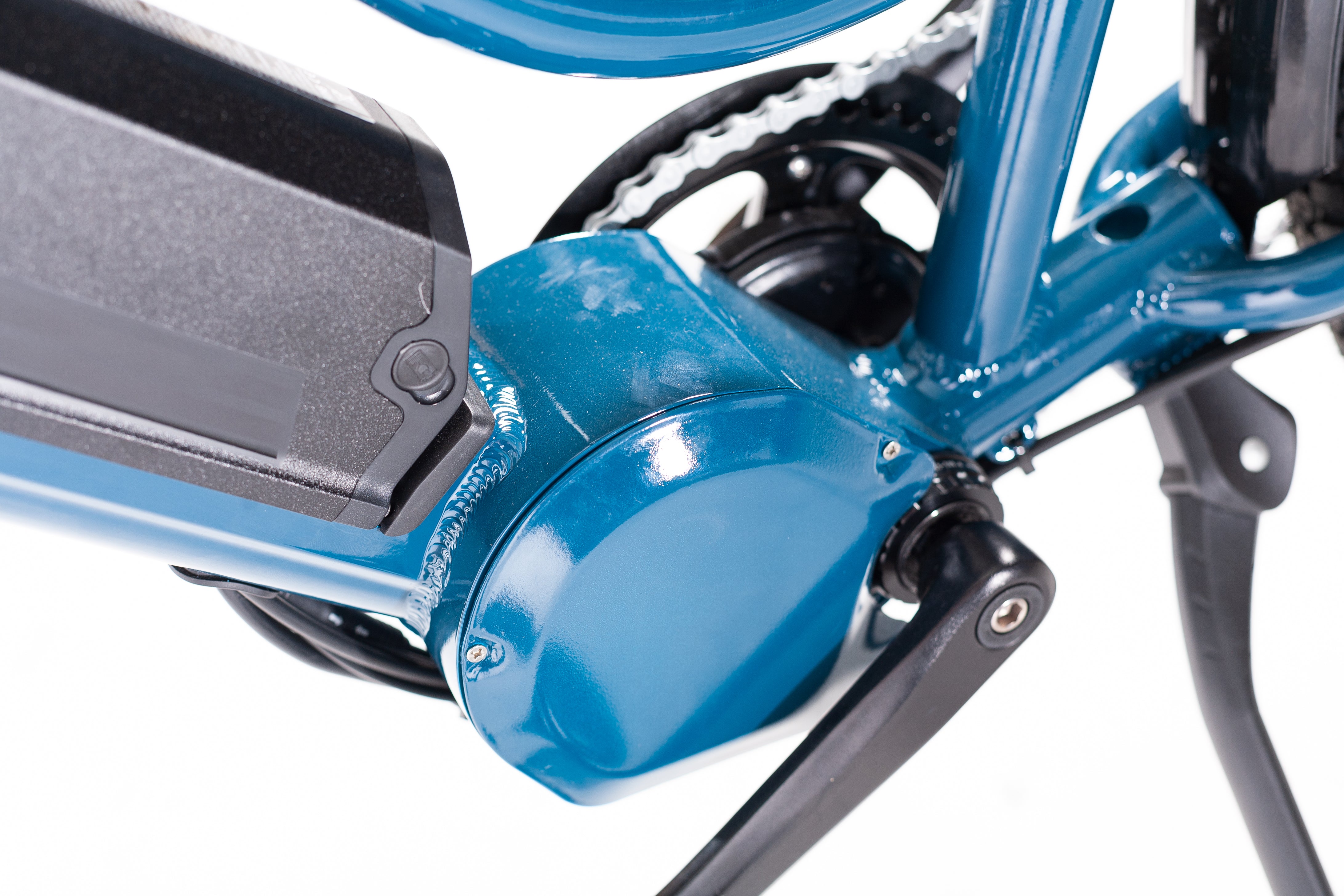

Motor
750w bbs02 mid-drive

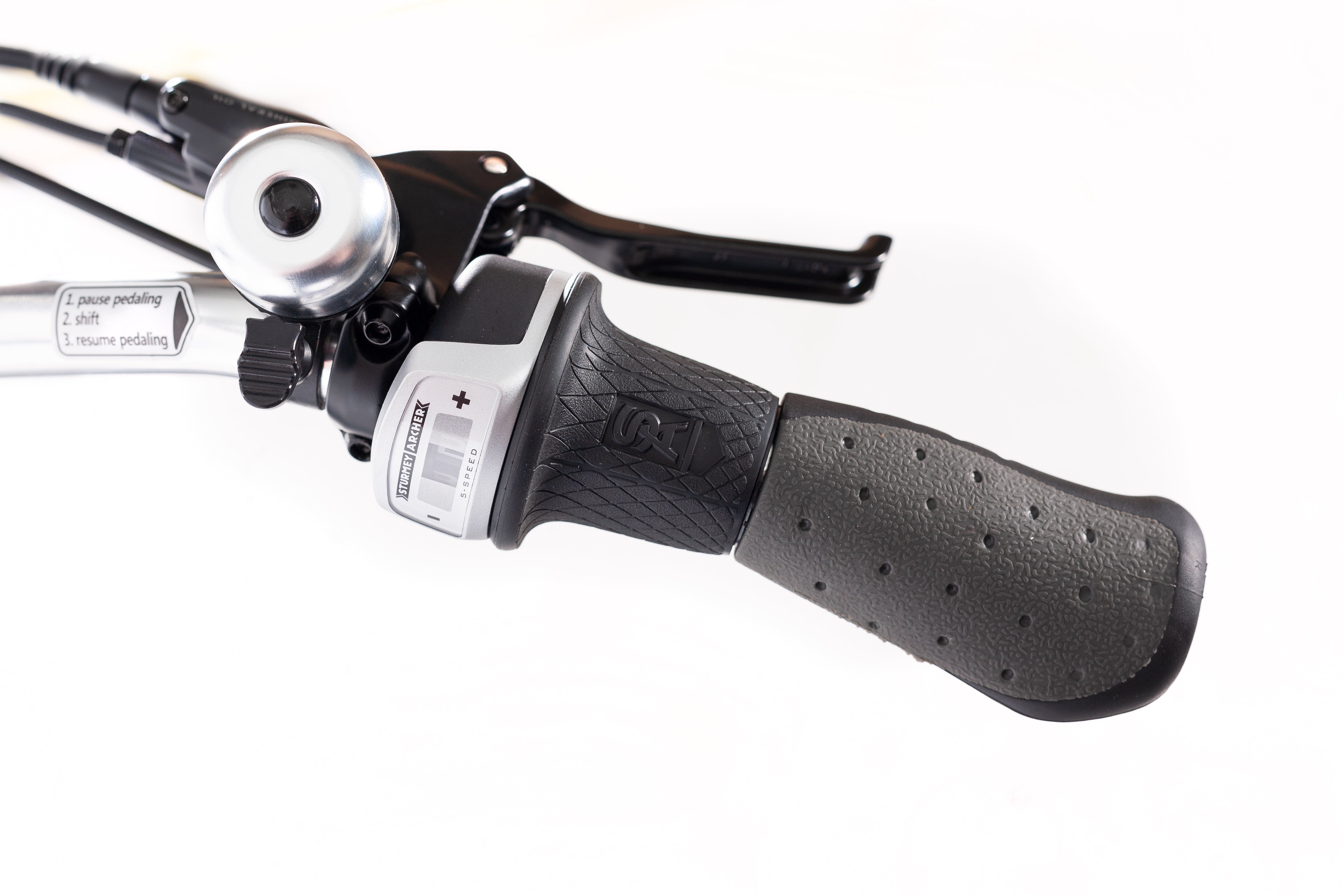

Shifter rear
Sturmey archer 5 speed
Rear axle
Bolt on
Battery sizes
48v17ah, 48v19ah, 48v21ah, 48v25ah, 52v17.5ah
Rims
Black 26"- 25mm 36h

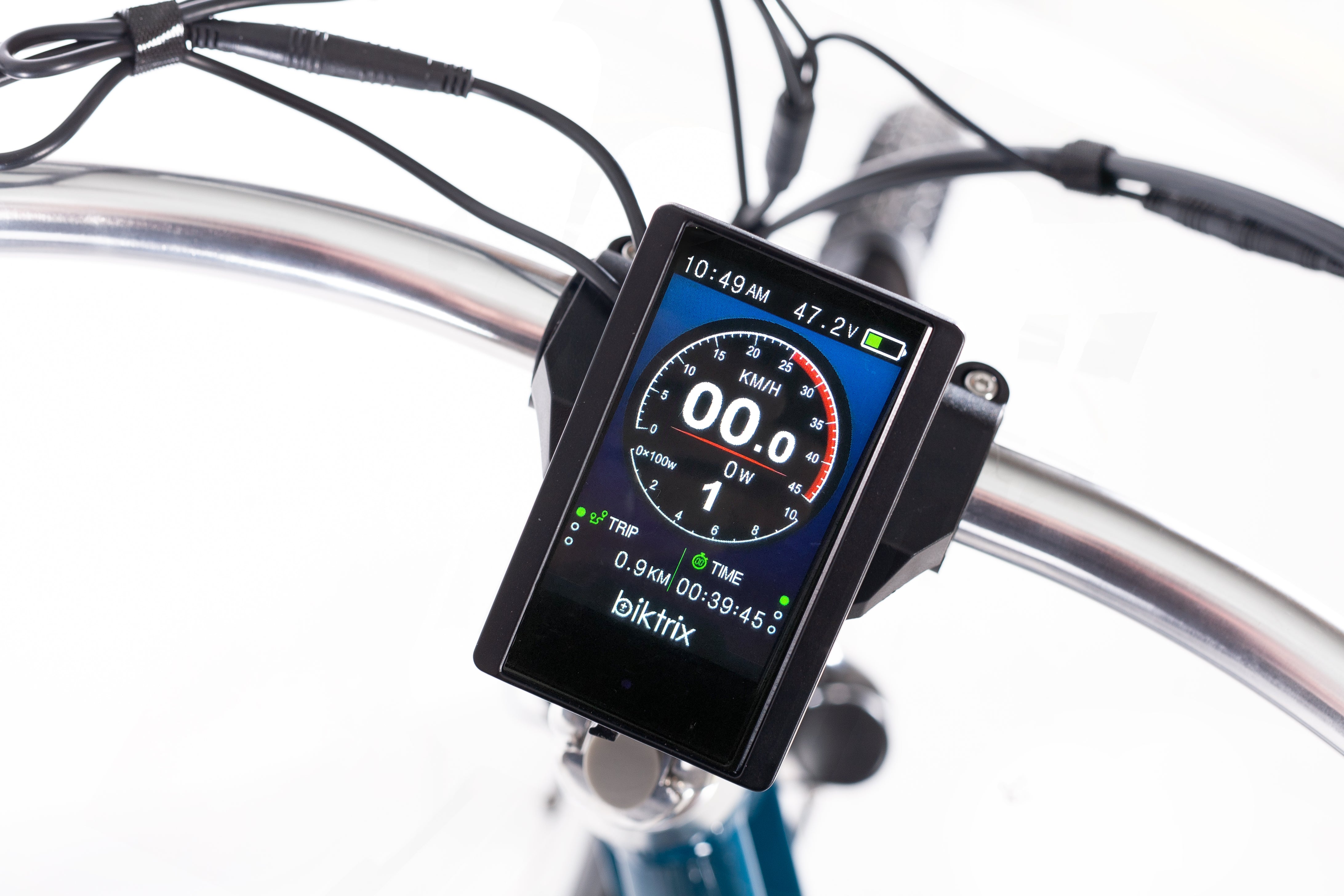

Display
Dpc-14 / 850c backlit lcd
Tire sizes
Kenda k-rad 2.3"
Lights
Integrated headlight, battery taillight
Chain
Kmc s1
Handlebar
25.4mm clamp 50mm riser cruiser bars, 700mm wide
Assist type
Cadence

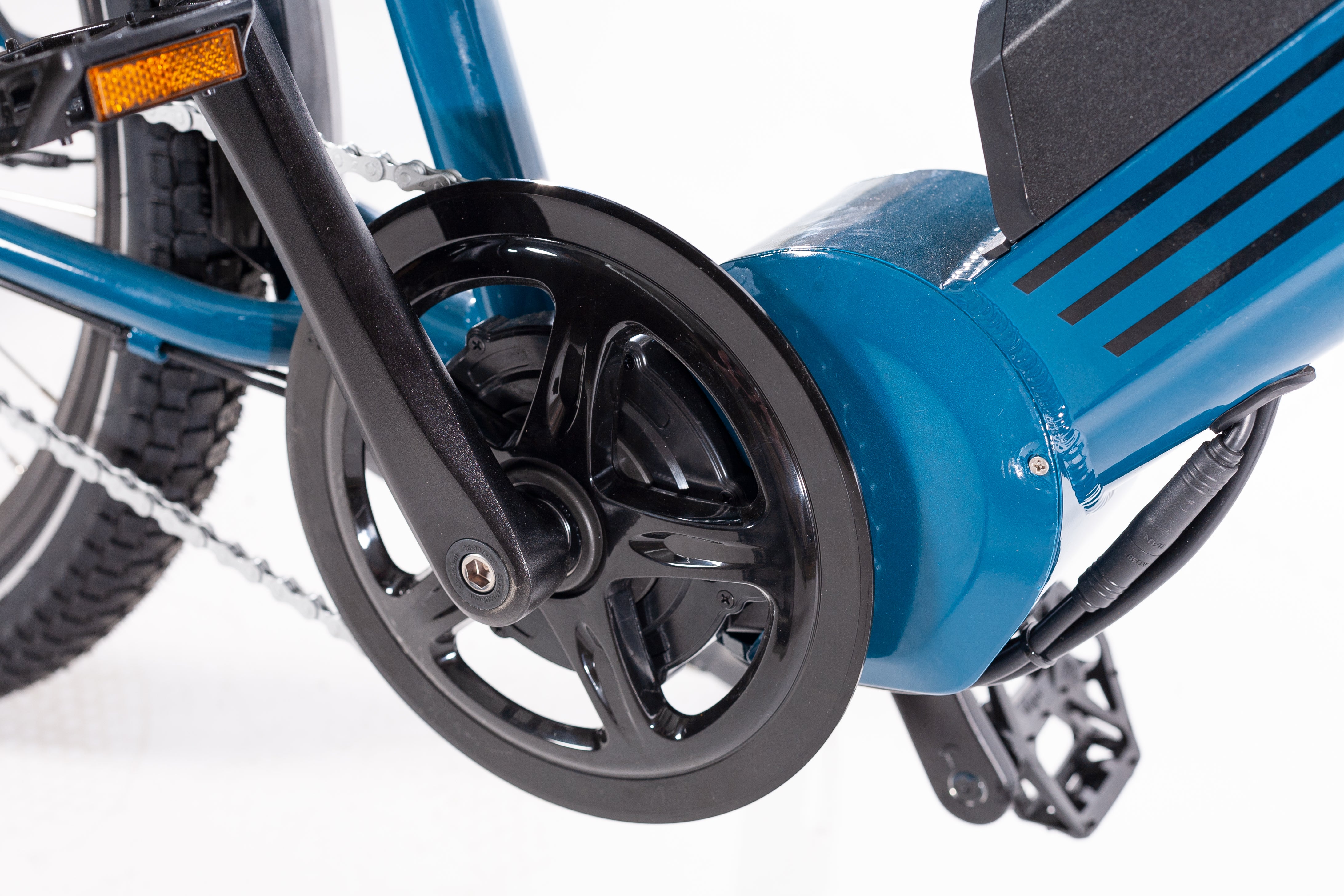

Crank set
170mm 44t
Stem
Promax adjustable quill
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Bafang 68mm square taper
Grips
Ergo slide on

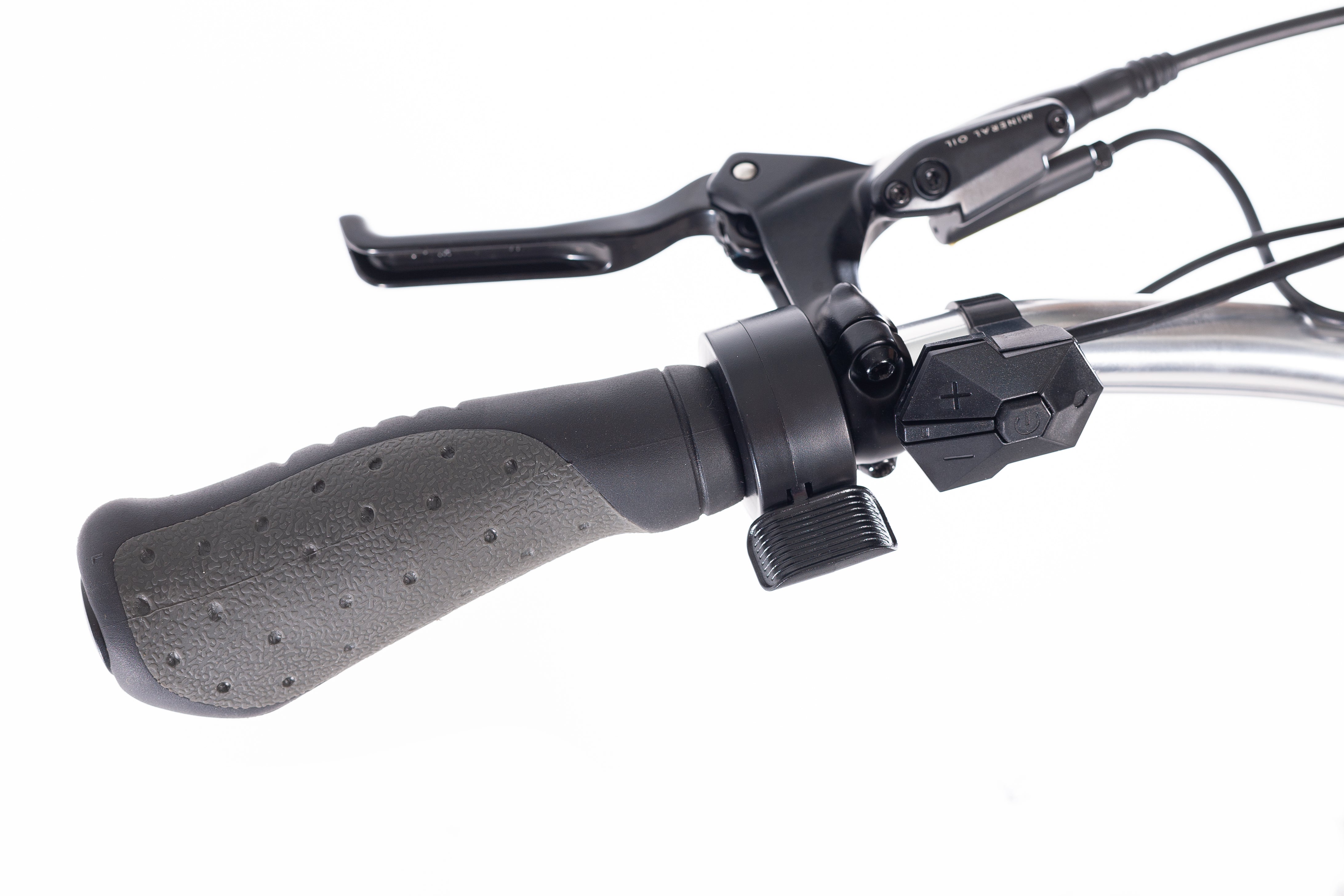

Throttle
Thumb throttle

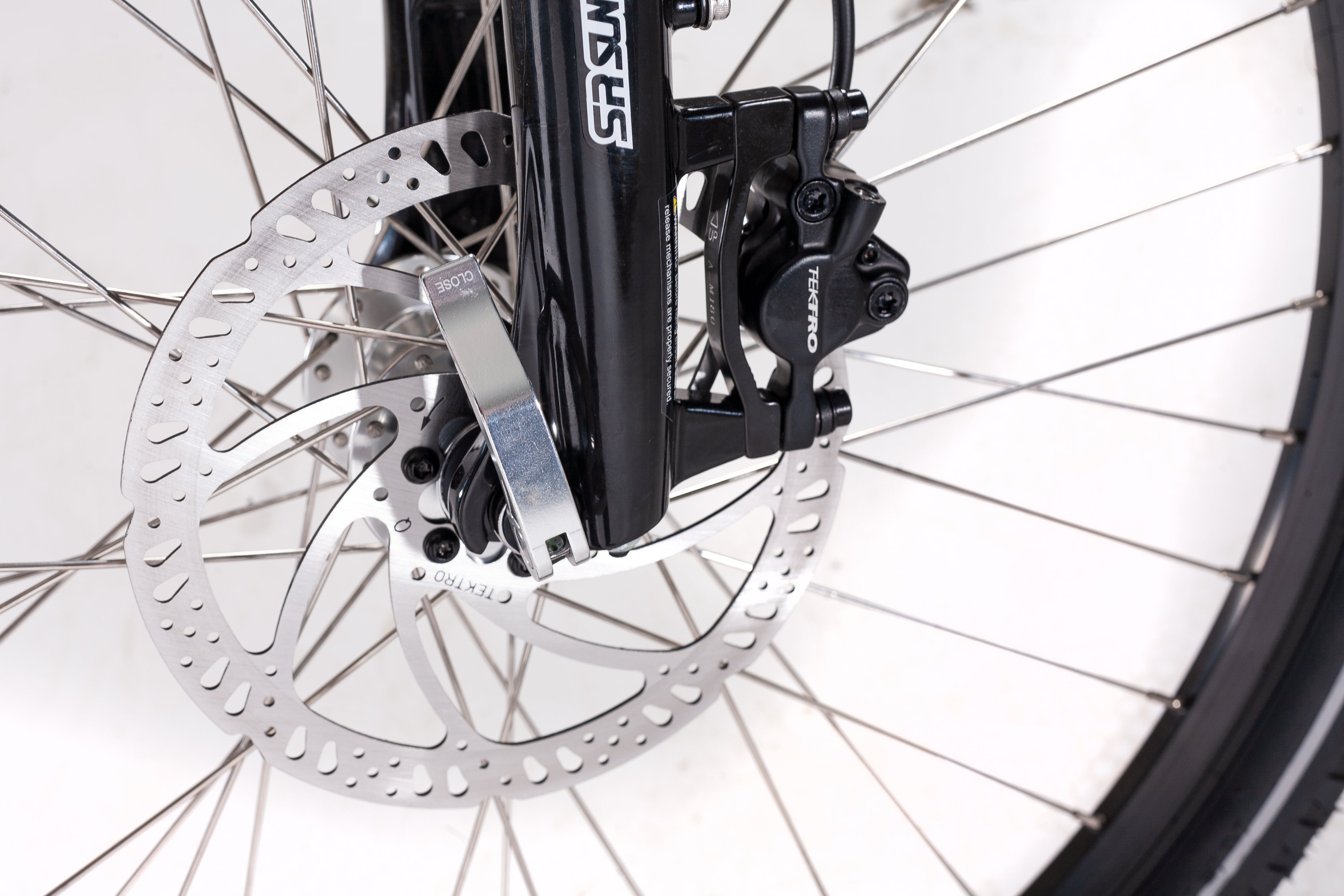

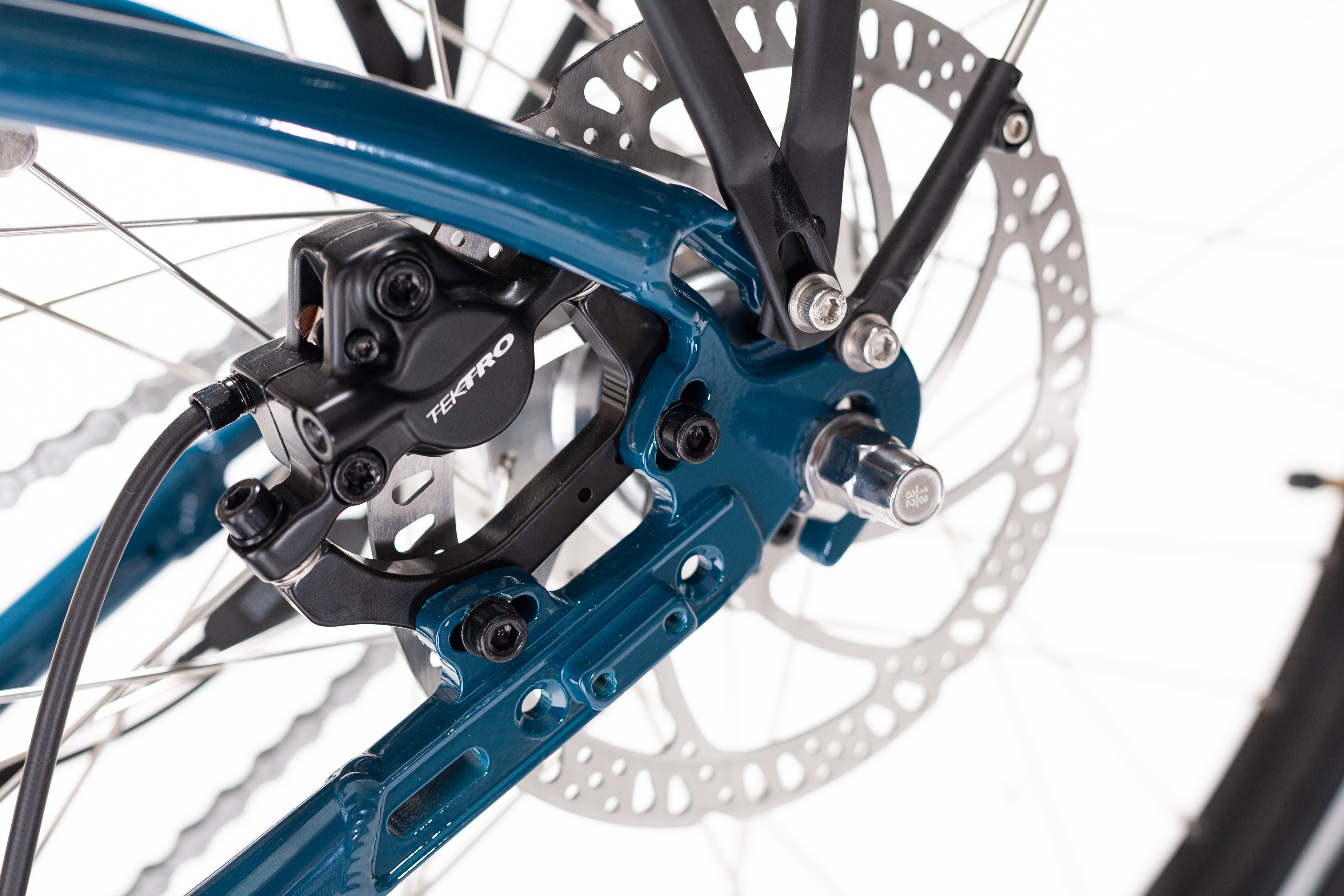

Brakes
Tektro dual piston hydraulic w/ 160mm
Saddle
Wide cruiser
Other
Plastic fenders, rear rack, adjustable kickstand
Brake levers
Biktrix w/ adjustable reach and motorcutoffs
Frame
6061 aluminum step thru frame
Front hub
Modus 100mm
Seat post
Aluminum 31.8mm
Fork
Sr suntor nex, 60mm travel
Front axle
5mm qr
Seat post clamp
38.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Sturmey archer 5 speed integrated
Motor
750w bbs02 mid-drive
Shifter rear
Sturmey archer 5 speed
Rear axle
Bolt on
Battery sizes
48v17ah, 48v19ah, 48v21ah, 48v25ah, 52v17.5ah
Rims
Black 26"- 25mm 36h
Display
Dpc-14 / 850c backlit lcd
Tire sizes
Kenda k-rad 2.3"
Lights
Integrated headlight, battery taillight
Chain
Kmc s1
Handlebar
25.4mm clamp 50mm riser cruiser bars, 700mm wide
Assist type
Cadence
Crank set
170mm 44t
Stem
Promax adjustable quill
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Bafang 68mm square taper
Grips
Ergo slide on
Throttle
Thumb throttle
Brakes
Tektro dual piston hydraulic w/ 160mm
Saddle
Wide cruiser
Other
Plastic fenders, rear rack, adjustable kickstand
Brake levers
Biktrix w/ adjustable reach and motorcutoffs
Frame
6061 aluminum step thru frame
Front hub
Modus 100mm
Seat post
Aluminum 31.8mm
Fork
Sr suntor nex, 60mm travel
Front axle
5mm qr
Seat post clamp
38.5mm qr
Headset
Threadless 1-1/8 straight
Rear hub
Sturmey archer 5 speed integrated
Motor
750w bbs02 mid-drive
Shifter rear
Sturmey archer 5 speed
Rear axle
Bolt on
Battery sizes
48v17ah, 48v19ah, 48v21ah, 48v25ah, 52v17.5ah
Rims
Black 26"- 25mm 36h
Display
Dpc-14 / 850c backlit lcd
Tire sizes
Kenda k-rad 2.3"
Lights
Integrated headlight, battery taillight
Chain
Kmc s1
Handlebar
25.4mm clamp 50mm riser cruiser bars, 700mm wide
Assist type
Cadence
Crank set
170mm 44t
Stem
Promax adjustable quill
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Bafang 68mm square taper
Grips
Ergo slide on
Throttle
Thumb throttle
Brakes
Tektro dual piston hydraulic w/ 160mm
Saddle
Wide cruiser
Other
Plastic fenders, rear rack, adjustable kickstand
Brake levers
Biktrix w/ adjustable reach and motorcutoffs

Size & Fittings

1
Effective Top Tube Length
730mm 28.7in
2
Seat Tube Length (Classic Bike Size)
435mm 17.1in
3
Reach
470mm 18.5in
4
Stack
620mm 24.4in
5
Chainstay Length
510mm 20.1in
6
Standover Height
470mm 18.5in
7
Head Angle
68° -
8
Seat Angle
67° -
9
Head Tube Length
220 mm 8.7 in
10
Fork Length
460mm 18.1in
11
Front Center
725mm 28.5in
12
BB (Bottom Bracket) Drop
45mm 1.8in
13
Fork Offset
20mm 0.8in
14
Wheelbase
1240mm 48.8in
15
Total Length
1915mm 75.4in
16
Max Seat Height
960mm 37.8in
17
Min Seat Height
800mm 31.5in
18
Handlebar Height
1140mm 44.9in
19
Weight (Without Battery)
26.8kg 59.1lb
