750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 110km Range

+5'4ft / 300lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

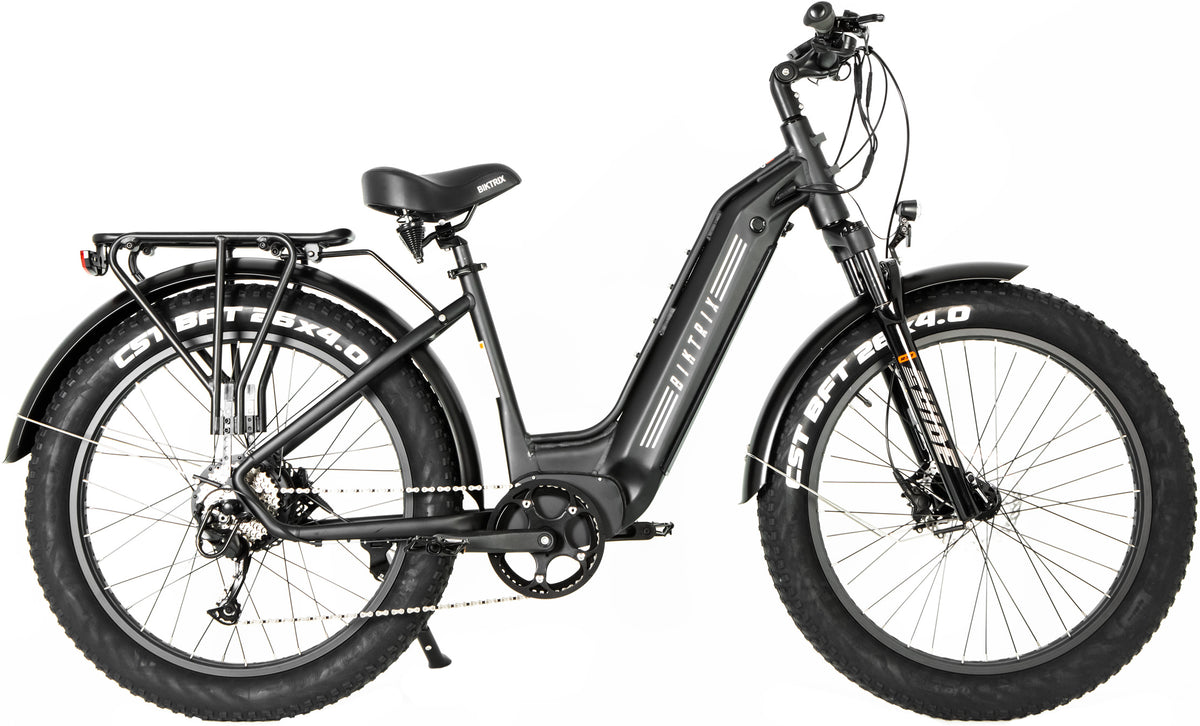

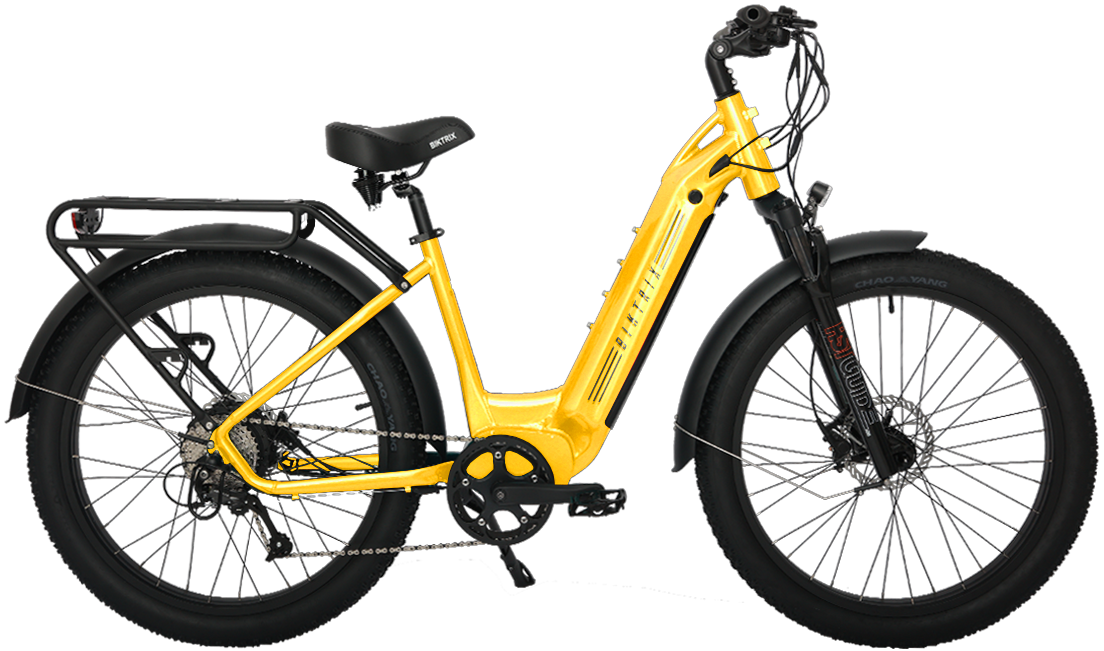

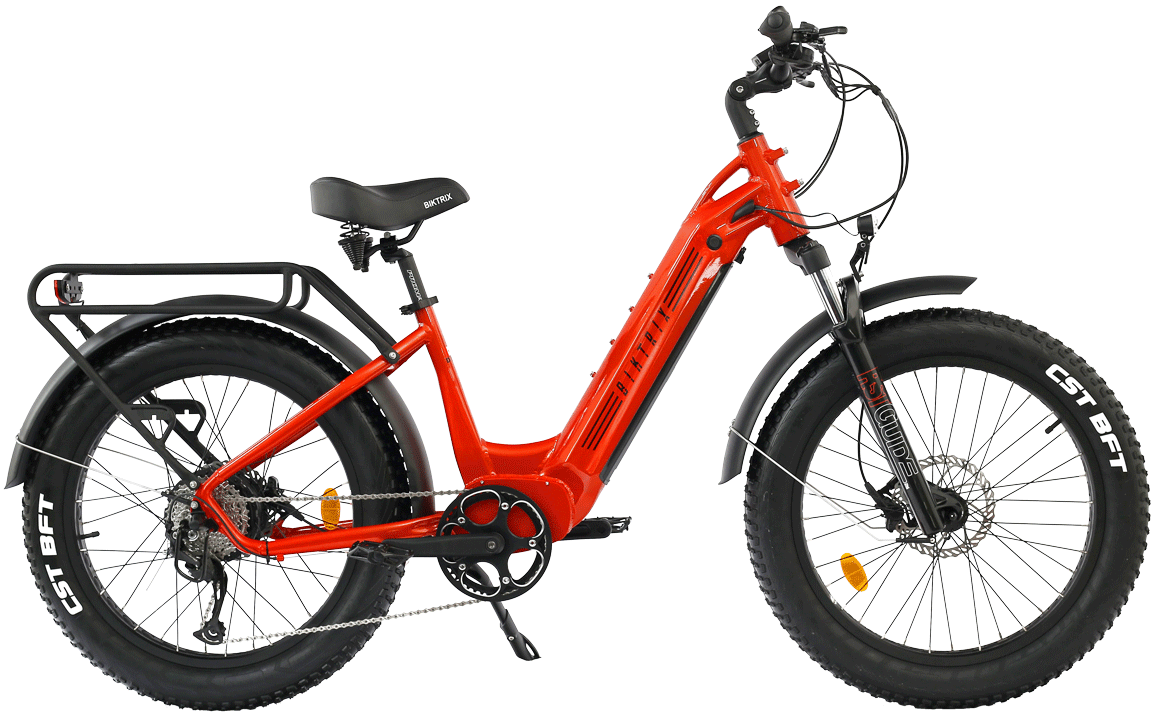

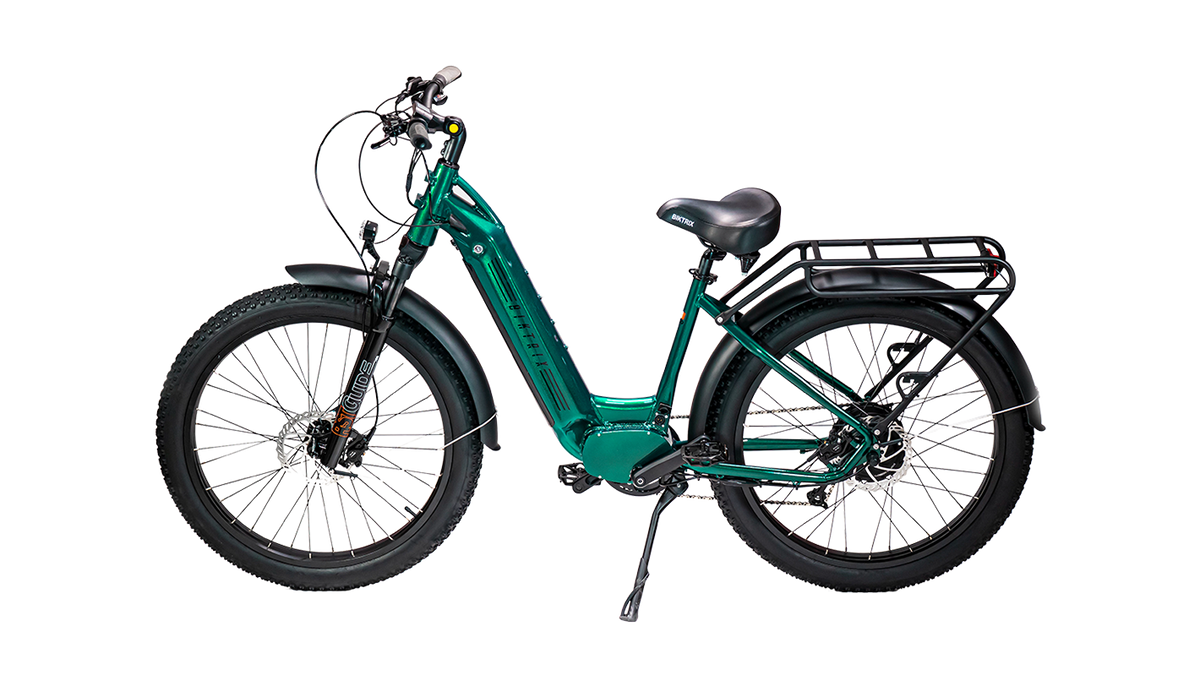

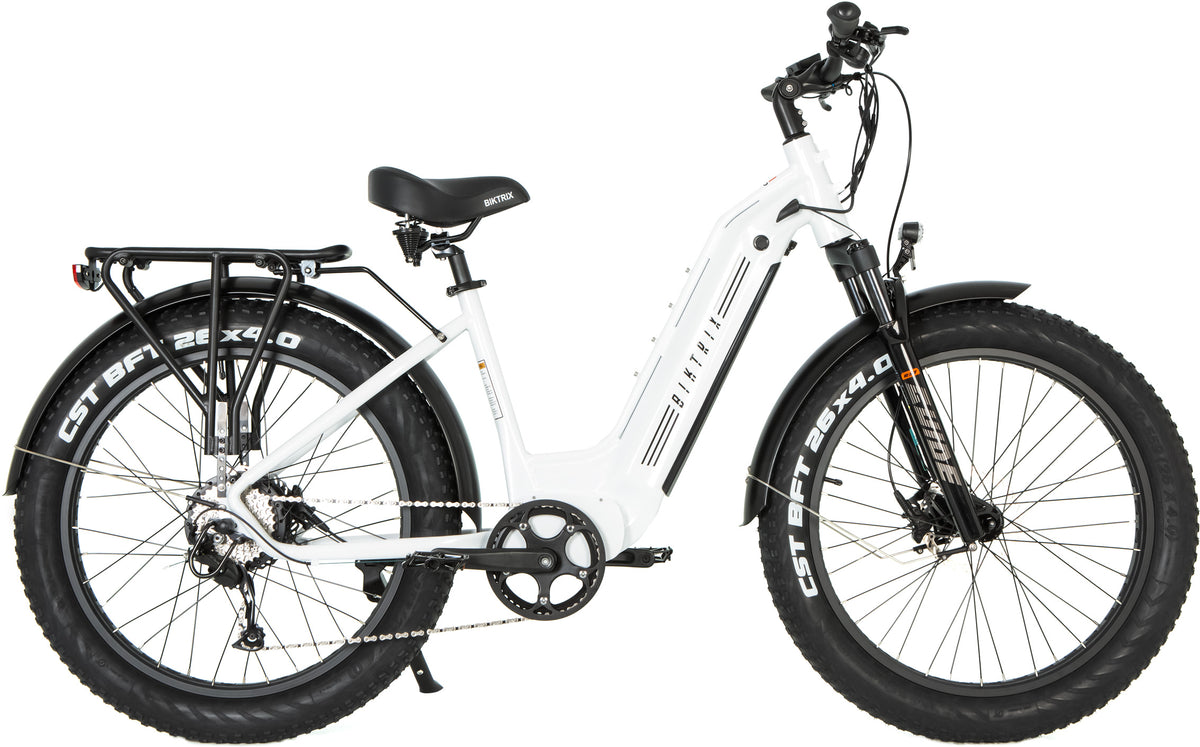

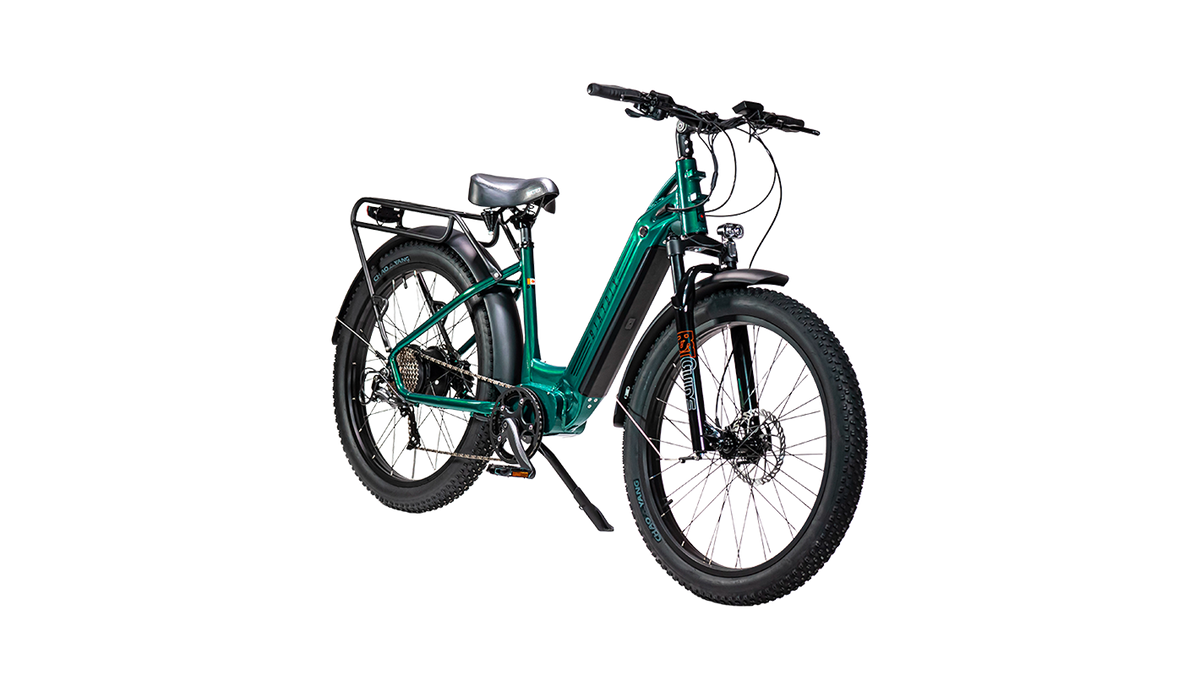

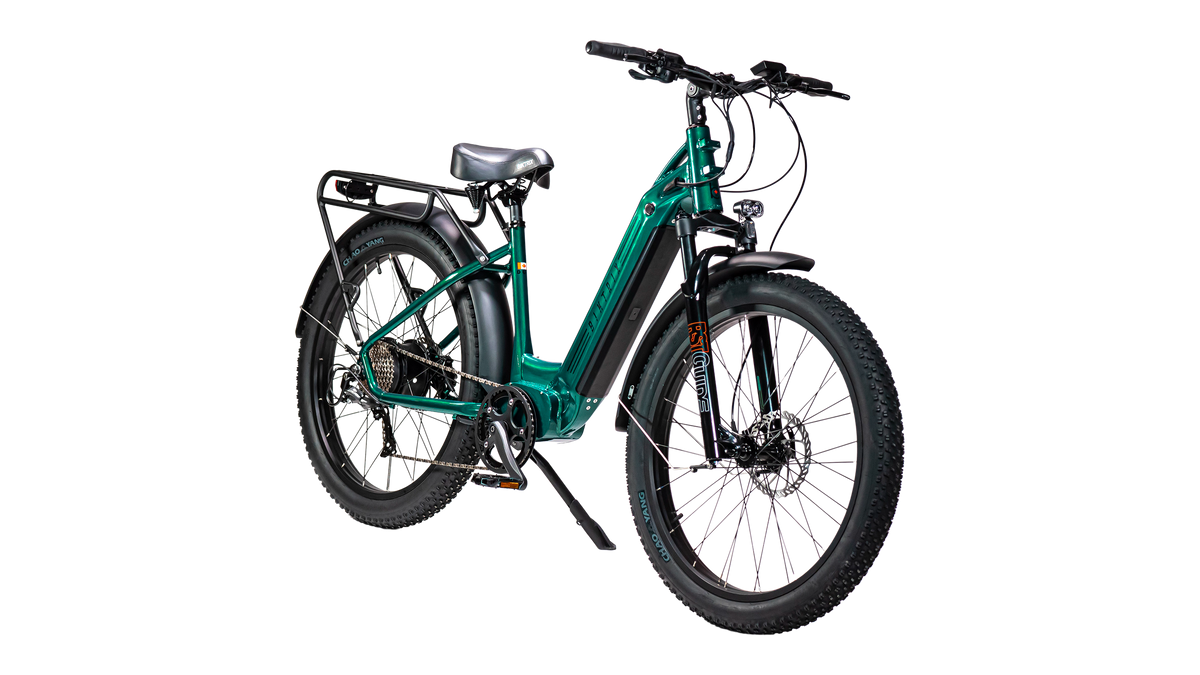

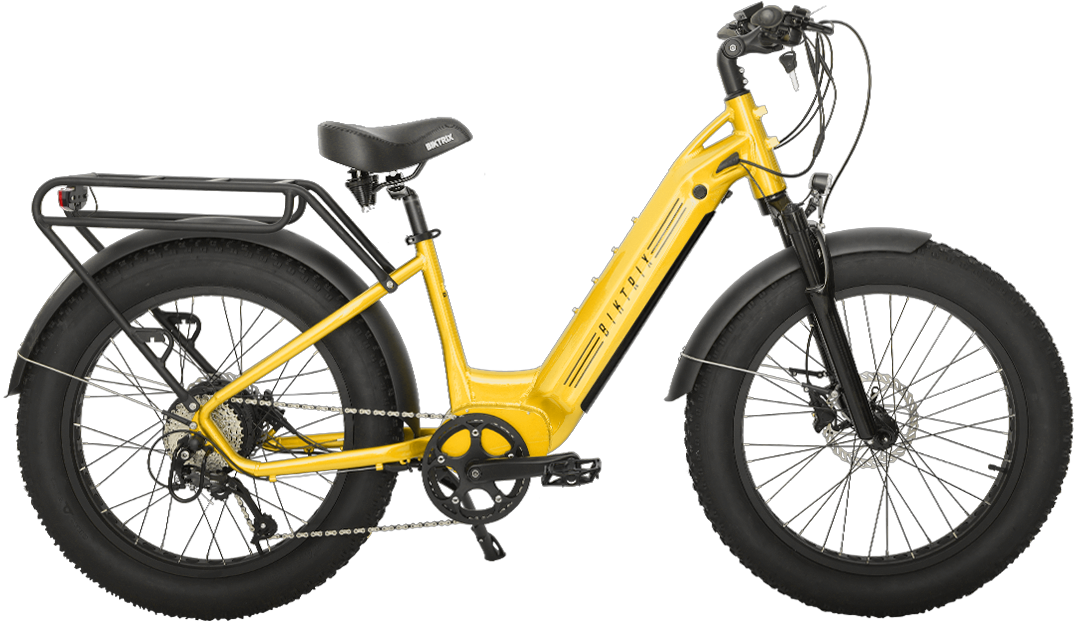

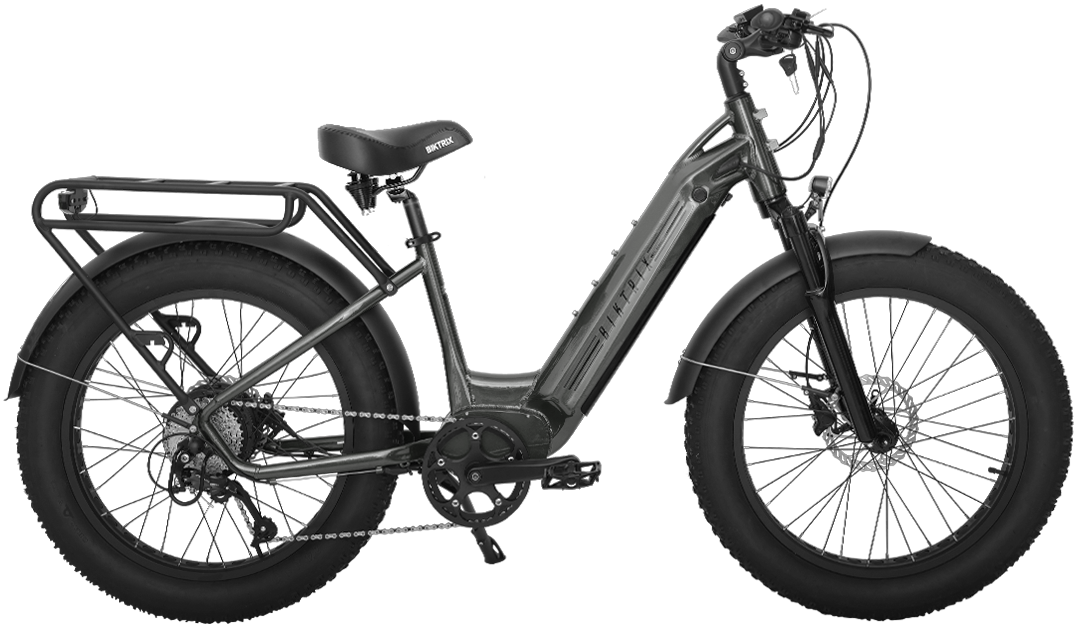

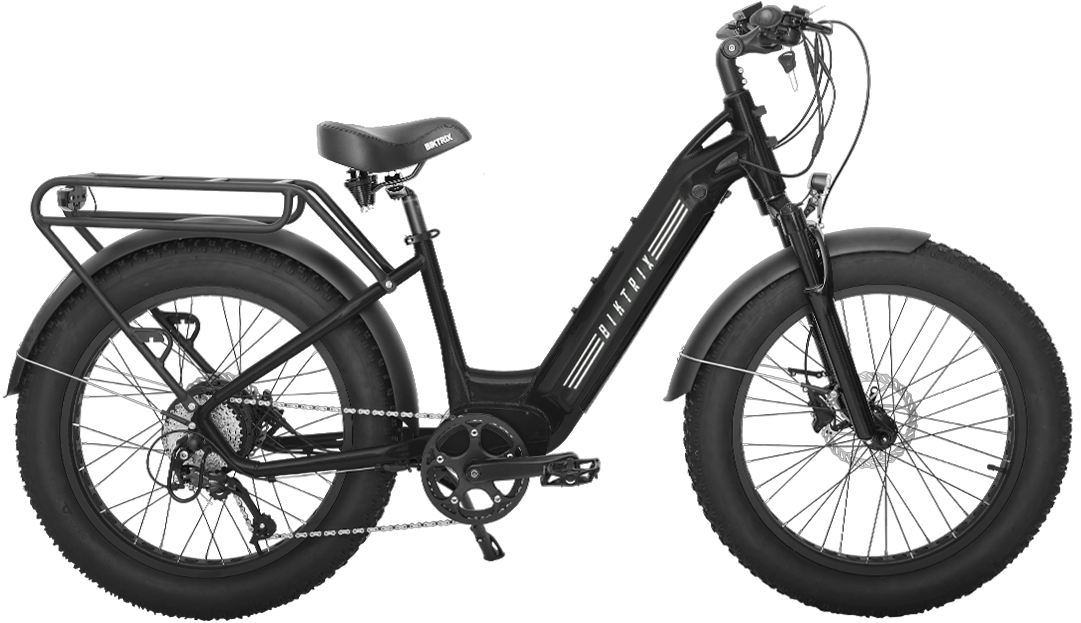

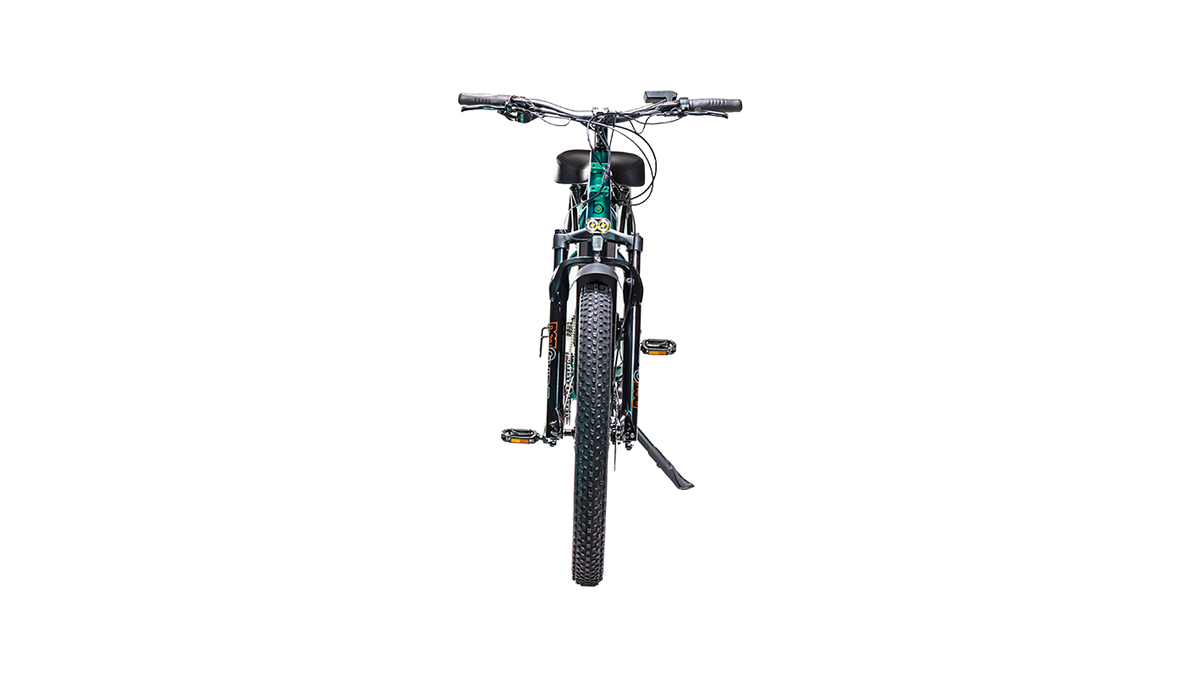

Juggernaut Hub Duo ST | 52V

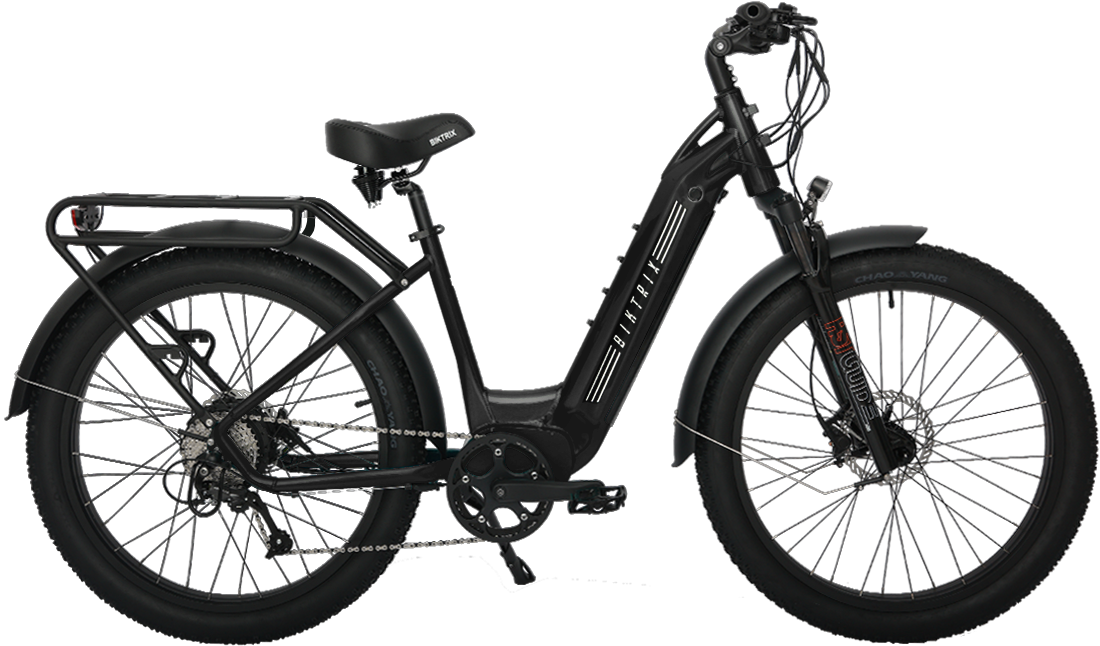

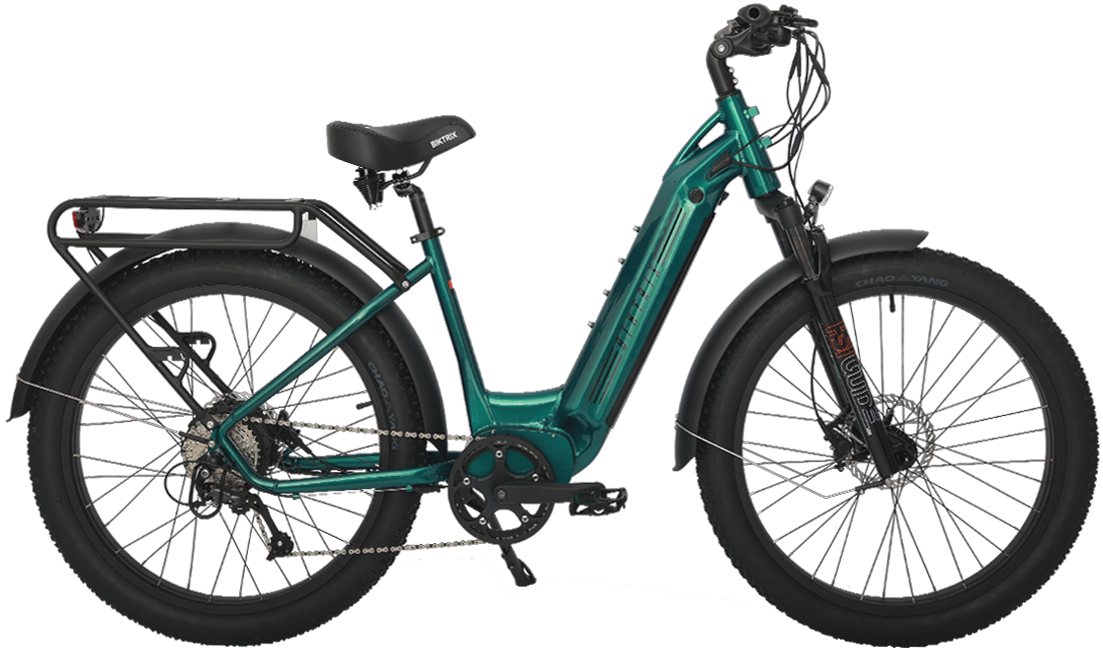

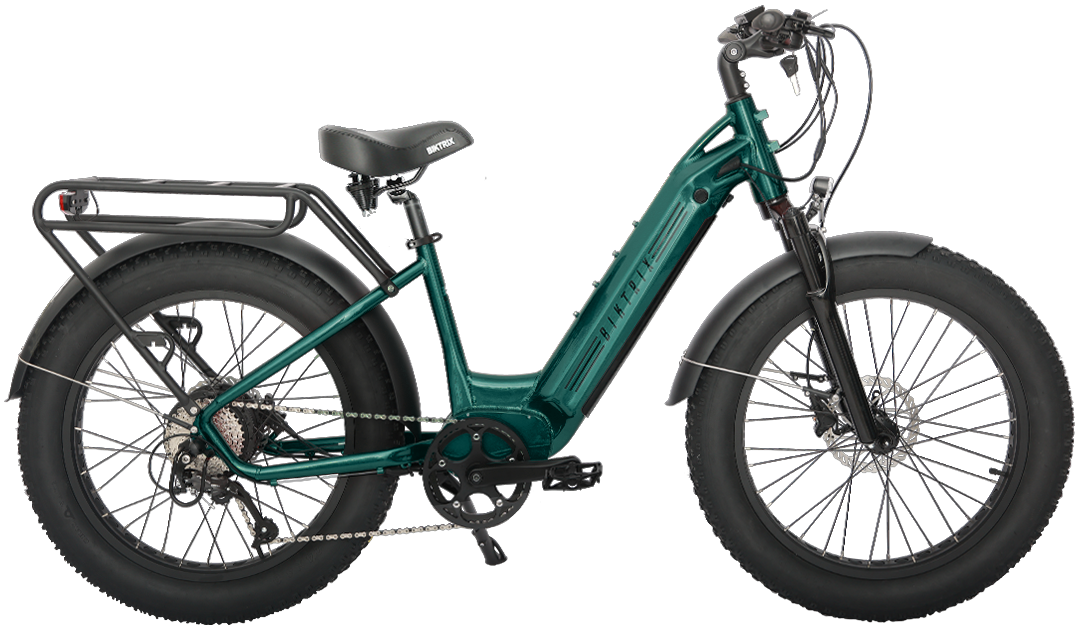

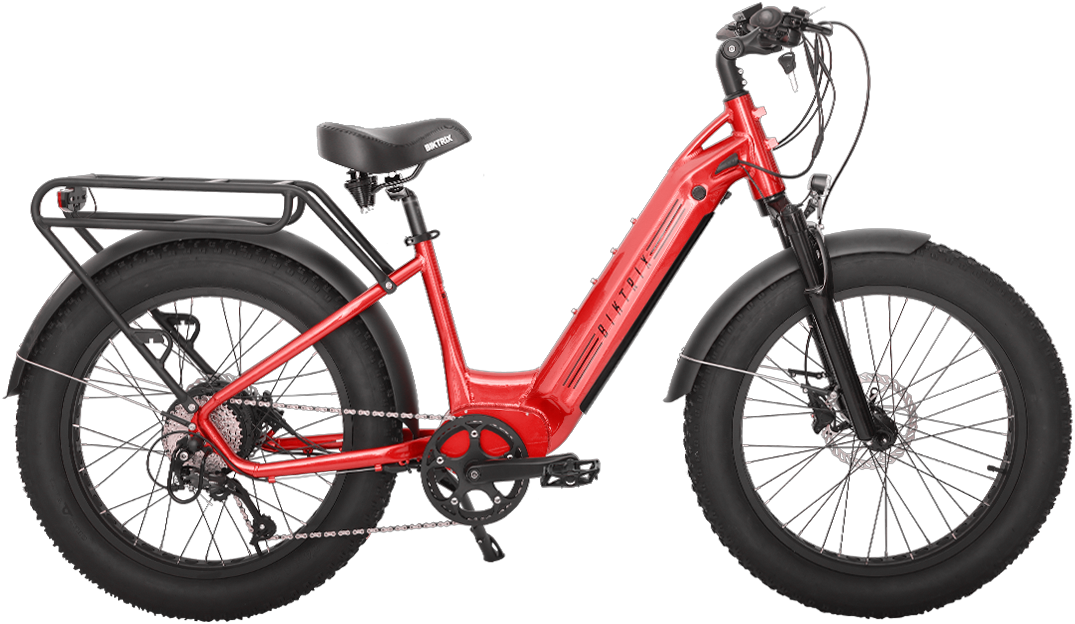

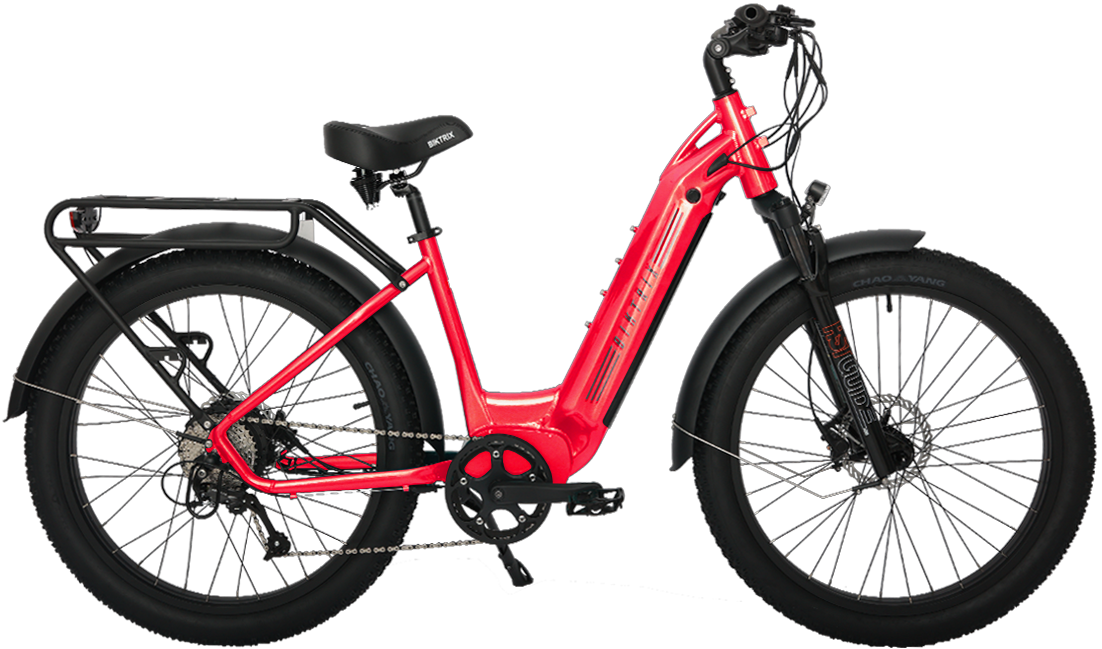

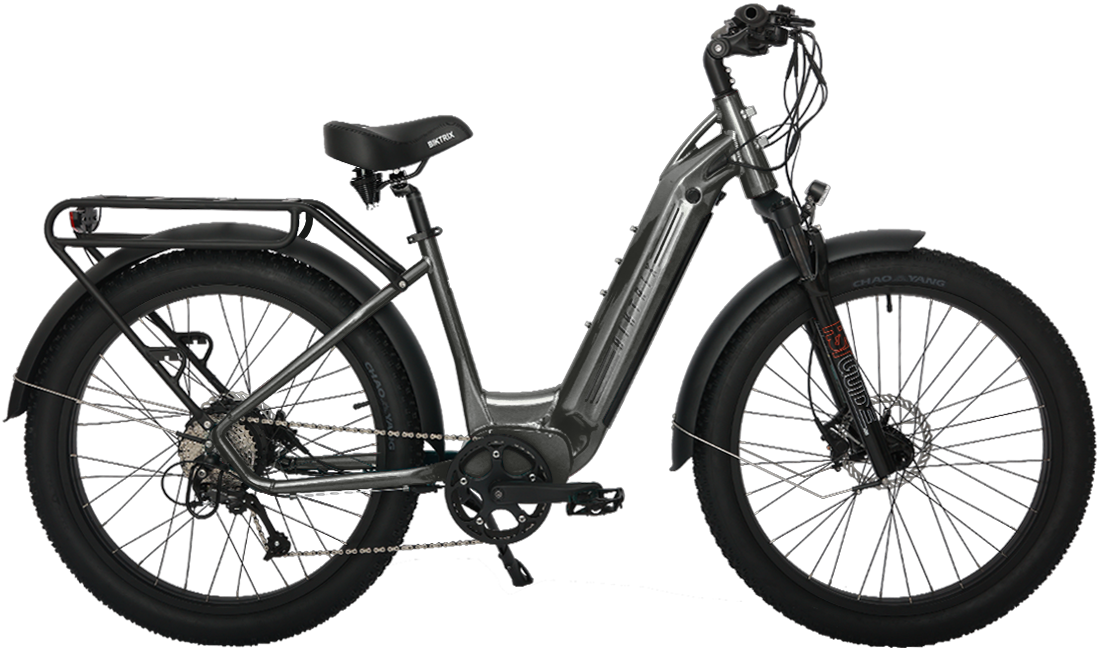

Name: Juggernaut Hub Duo Step-Thru | 52V
Brand: biktrix-juggernaut-hub-duo-electric-bike
SKU: JHUDSTM244WH1
Price: 2799.0 CAD
Availability: OutOfStock
Rating: 4.35 (127 reviews)

4.3

CA$2,799 CA$3,199

Get ready to revolutionize your biking experience with the Hub Duo, the pinnacle of affordability, power, and convenience in the Juggernaut family. Crafted with precision and passion, this eBike is designed to cater to the needs of seasoned adventurers like yourself, delivering a ride that's as exhilarating as it is effortless.

Features:

750W Geared Rear Hub Motor: Experience effortless riding with plenty of power to conquer even the toughest hills.
80Nm of Torque: Say goodbye to struggling uphill—the Hub Duo effortlessly tackles moderate inclines with ease.
330lb Load Capacity: Carry all your essentials with confidence, whether it's groceries, gear, or even a furry friend.
On-Demand Throttle: Make pedaling optional and conserve your energy for the moments that matter most.
Torque+Cadence Sensor: Enjoy a smooth, intuitive riding experience with seamless pedal assist at every stroke.
52V 17.5Ah 910Wh Internal Battery: Ride with confidence knowing you have plenty of power to spare for your adventures.

Benefits:

Effortless Riding: Conquer challenging terrain with ease thanks to the powerful 750W motor.
Smooth Pedal Assist: Enjoy a natural riding experience with seamless assistance at every pedal stroke.
Versatile Performance: From rugged trails to city streets, the Hub Duo is your ticket to adventure.
Practical Design: Carry all your essentials with ease thanks to the generous load capacity.
Long-Lasting Power: Ride with confidence knowing you'll always have plenty of battery life to spare.

Experience the thrill of the open road like never before with the Hub Duo. Order yours today and start exploring the world on your terms. Adventure awaits.

Juggernaut Hub Duo Step-Thru | 52V Has Been Replaced.

This model has been replaced by the Juggernaut Hub Duo 2 - check it out below!

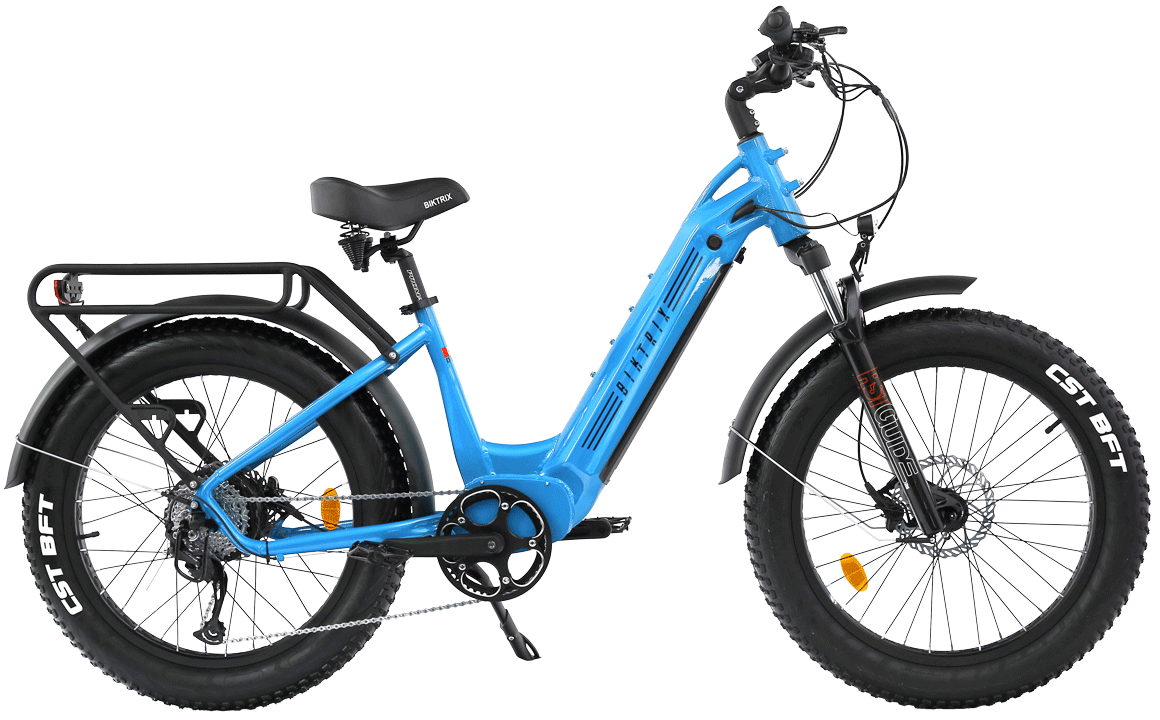

Juggernaut Hub Duo 2

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	460mm	18.1in
5	Chainstay Length	490mm	19.3in
6	Standover Height	450mm	17.7in
7	Head Angle	66°	-
8	Seat Angle	72°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	450mm	17.7in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1200mm	47.2in
15	Total Length	1900mm	74.8in
16	Max Seat Height	970mm	38.2in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1120mm	44.1in
19	Weight (Without Battery)	28kg	61.7lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	420mm	16.5in
4	Stack	670mm	26.4in
5	Chainstay Length	520mm	20.5in
6	Standover Height	460mm	18.1in
7	Head Angle	66°	-
8	Seat Angle	72°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	530mm	20.9in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1960mm	77.2in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	870mm	34.3in
18	Handlebar Height	1150mm	45.3in
19	Weight (Without Battery)	28.1kg	61.9lb

750W Hub-Drive

Motor Power

80Nm of Torque

Extreme Hills

52V 17Ah 910Wh

est. 110km Range

+5'4ft / 300lb

Max Load

Torque Sensor

Powerful Pedal Assist

Bureau Veritas

ANSI/CAN/ULC/UL2271:2018

70+

Miles Range

80Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

Simple. Capable. Affordable.

The Hub Duo is our most user-friendly & affordable eBike in the Juggernaut family. Thanks to the 750W hub-drive motor, you'll get an easy-going ride with plenty of power to boost you up those tough hills. Mix that with our 5-star customer service and you've got yourself a perfect entry-level eBike.

Bells & Whistles? You Bet.

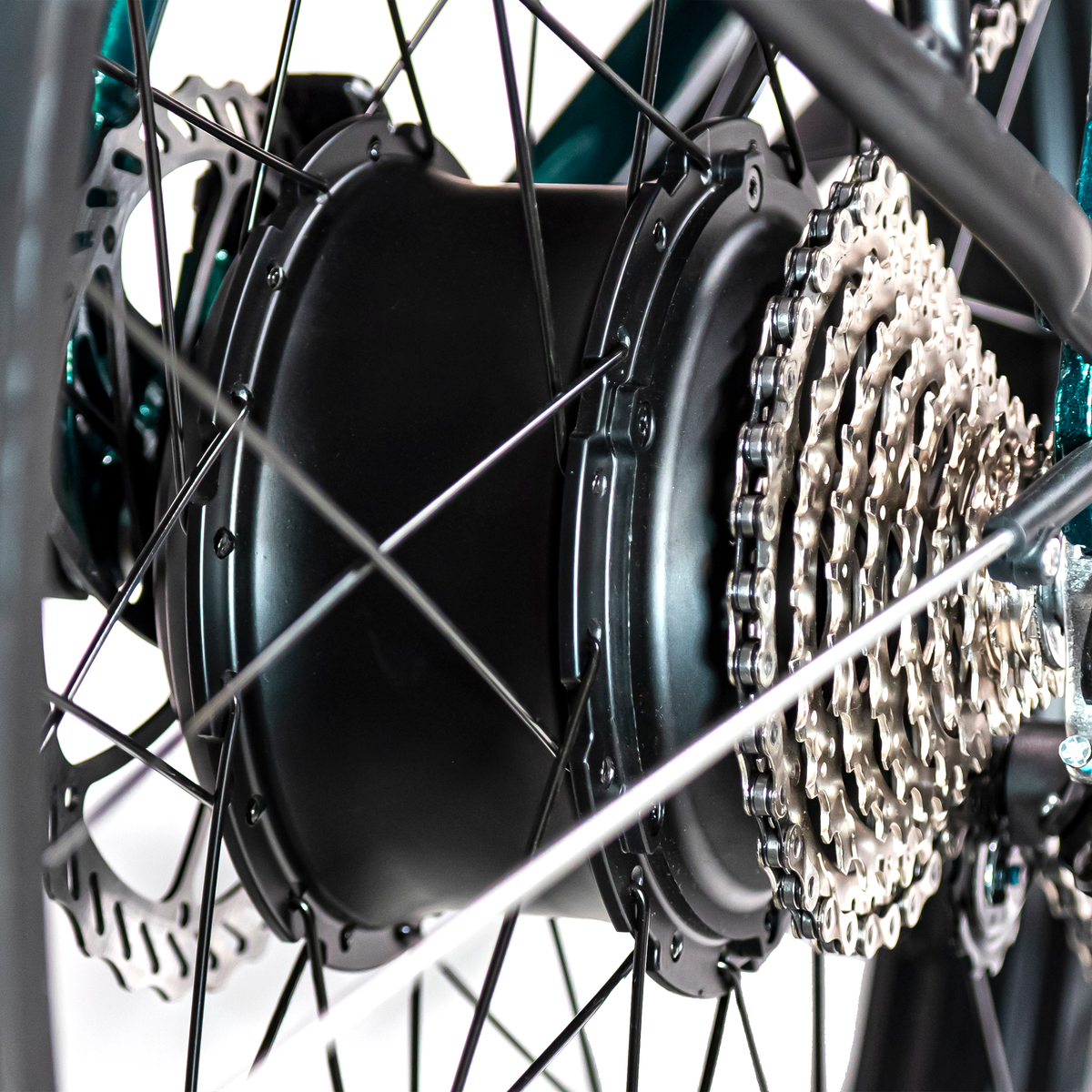

750W Hub Motor

The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.

Optional Range Extender

Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.

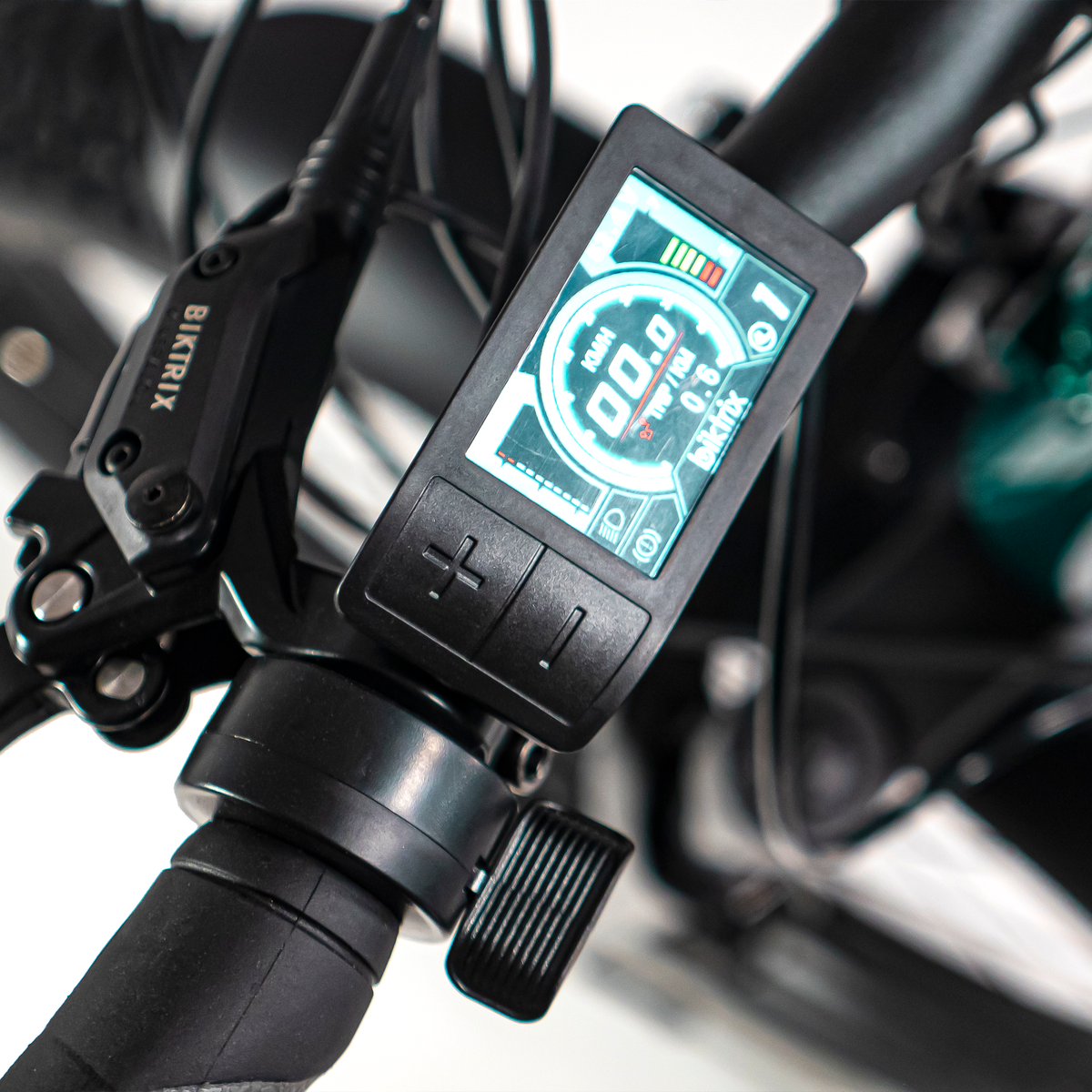

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Suspension Fork

The RST Guide fork provides 80mm of travel with pre-load, lockout, and rebound adjustability

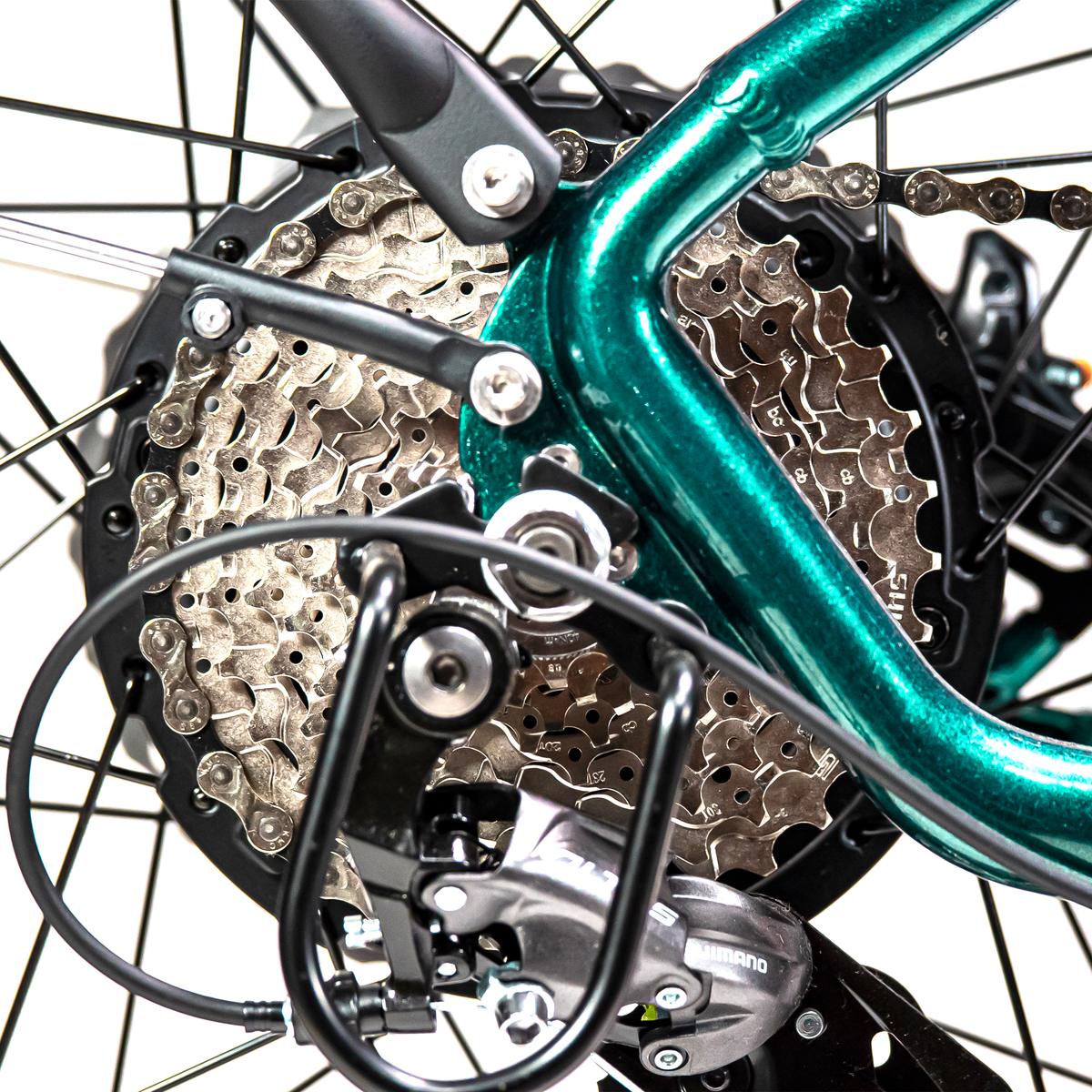

Drivetrain

From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.

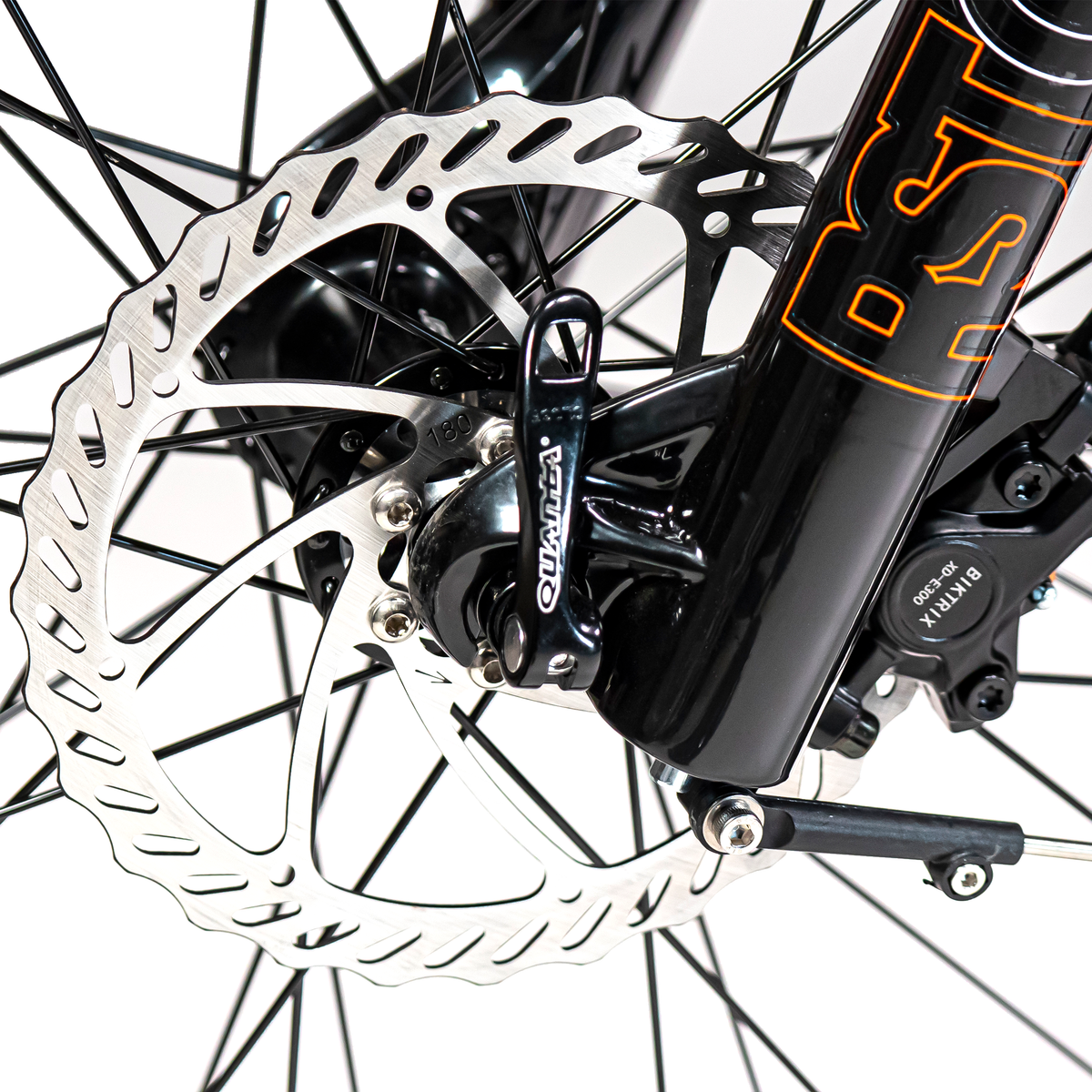

Hydraulic Disc Brakes

When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

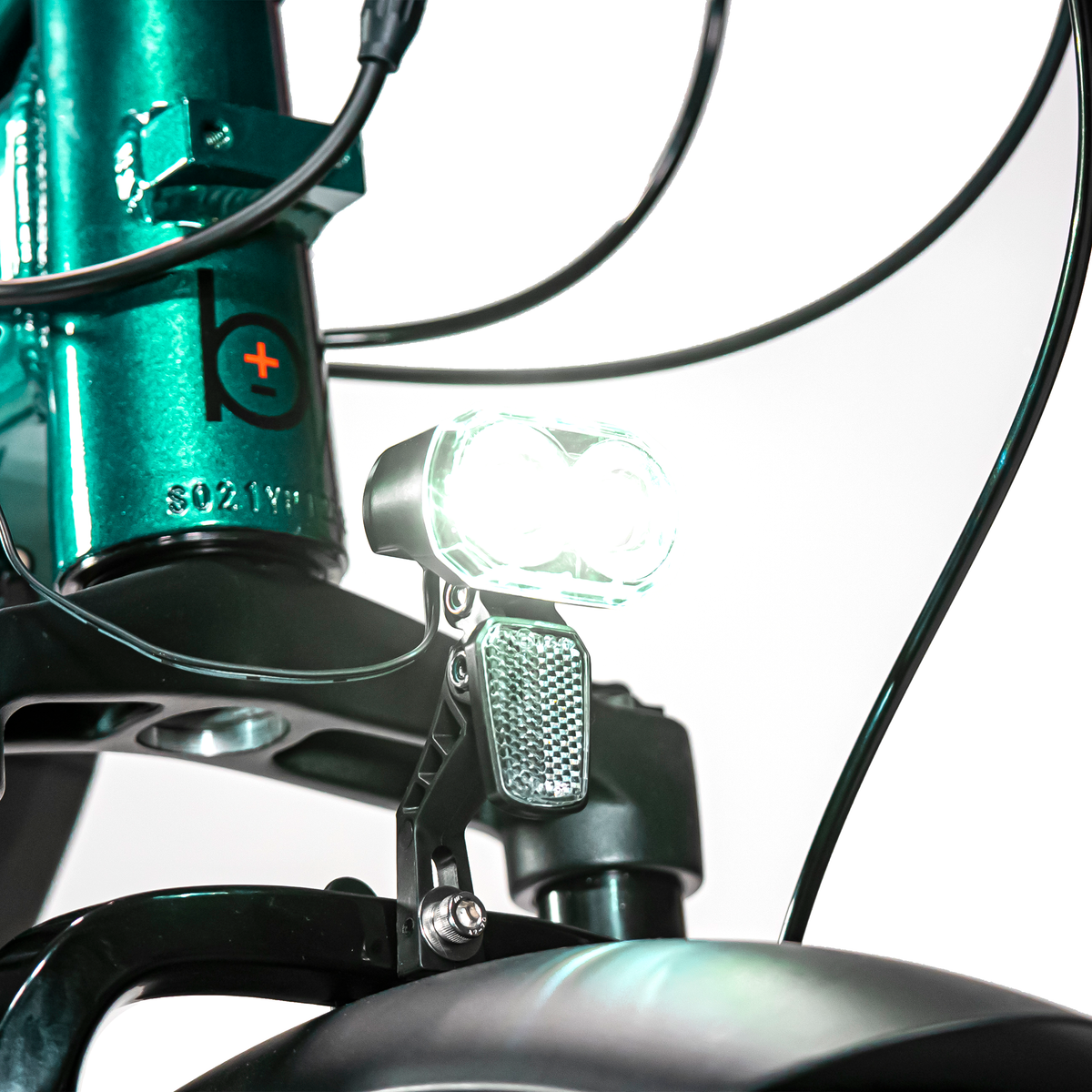

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

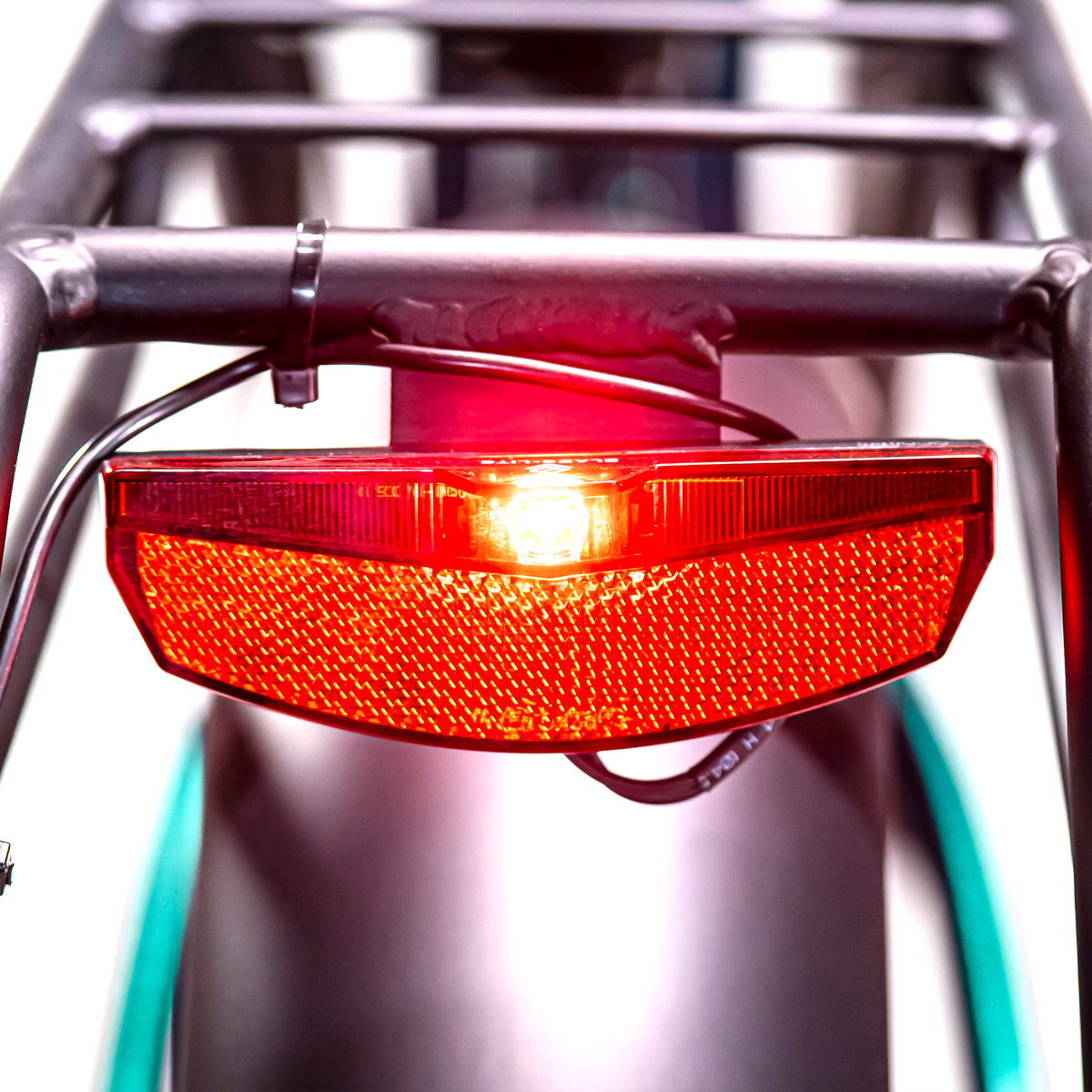

Rear Light

The bright red rear light helps you ride with more confidence at night.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

SIZE GUIDE

Let's Get You Fitted.

6'1" Rider Height

Slide the scale for your Frame Recommendation

Based on your height, we recommended you get L | 19" for the best fit.

Not sure how to measure properly for your bike?

6'1"

**Gavin measures at 6'1, with an inseam of 33”

**Gavin measures at 6'1, with an inseam of 33”

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		101km Up To
PAS 2 Pedal-Assist Lv.2		74km Up To
PAS 3 Pedal-Assist Lv.3		54km Up To
PAS 4 Pedal-Assist Lv.4		49km Up To
PAS 5 Pedal-Assist Lv.5		47km Up To
THRL Throttle Only		39km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 28.6mm aluminum
Fork Rst guide w/75mm travel, lockout and preload (l \| 19") / gtmrk 355 w/55mm travel, lockout and preload (m \| 17")	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor	Motor 750w rear hub motor
Shifter rear Shimano alivio 9 speed trigger	Rear axle Bolt-on	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivio 9 speed	Rims Solid black 36h	Display 500c (m \| 17")/dm07 lcd display (l \| 19")
Cassette 9 speed 11-36t cassette (m \| 17")/9 speed 11-34t cassette (l \| 19")	Tire sizes 24x4" (m \| 17")/26x4, 27.5x3 (l \| 19")	Lights Integrated headlight, taillight
Chain Kmc e9s	Handlebar 700mm wide, 30mm rise, 31.8mm clamp	Assist type Torque + cadence
Crank set 44t chainring with 170mm arms	Stem 90mm adjustable stem (m \| 17")/90mm adjustable gooseneck stem (l \| 19")	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Torque sensor w/ square taper spindle	Grips Slide-on comfort grips	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic brakes w/180mm rotors (m \| 17")/xd-e300 dual piston hydraulic w/180mm rotors (l \| 19")	Saddle Biktrix comfort saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Adjustable with integrated brake cutoffs

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 28.6mm aluminum	Fork Rst guide w/75mm travel, lockout and preload (l \| 19") / gtmrk 355 w/55mm travel, lockout and preload (m \| 17")
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub Motor
Motor 750w rear hub motor	Shifter rear Shimano alivio 9 speed trigger
Rear axle Bolt-on	Battery sizes Total capacity of 52v 34ah 1794wh: 52v 17.5ah 910wh (internal battery) + up to 52v 17ah 884wh (external range extender battery)
Rear derailleur Shimano alivio 9 speed	Rims Solid black 36h
Display 500c (m \| 17")/dm07 lcd display (l \| 19")	Cassette 9 speed 11-36t cassette (m \| 17")/9 speed 11-34t cassette (l \| 19")
Tire sizes 24x4" (m \| 17")/26x4, 27.5x3 (l \| 19")	Lights Integrated headlight, taillight
Chain Kmc e9s	Handlebar 700mm wide, 30mm rise, 31.8mm clamp
Assist type Torque + cadence	Crank set 44t chainring with 170mm arms
Stem 90mm adjustable stem (m \| 17")/90mm adjustable gooseneck stem (l \| 19")	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Torque sensor w/ square taper spindle	Grips Slide-on comfort grips
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic brakes w/180mm rotors (m \| 17")/xd-e300 dual piston hydraulic w/180mm rotors (l \| 19")
Saddle Biktrix comfort saddle	Other Front and rear fenders, rear rack, kickstand
Brake levers Adjustable with integrated brake cutoffs

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

28.6mm aluminum

Fork

Rst guide w/75mm travel, lockout and preload (l | 19") / gtmrk 355 w/55mm travel, lockout and preload (m | 17")

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/2 1-1/8 tapered

Rear hub

Motor

750w rear hub motor

Shifter rear

Shimano alivio 9 speed trigger

Rear axle

Bolt-on

Battery sizes

Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)

Rear derailleur

Shimano alivio 9 speed

Rims

Solid black 36h

Display

500c (m | 17")/dm07 lcd display (l | 19")

Cassette

9 speed 11-36t cassette (m | 17")/9 speed 11-34t cassette (l | 19")

Tire sizes

24x4" (m | 17")/26x4, 27.5x3 (l | 19")

Lights

Integrated headlight, taillight

Chain

Kmc e9s

Handlebar

700mm wide, 30mm rise, 31.8mm clamp

Assist type

Torque + cadence

Crank set

44t chainring with 170mm arms

Stem

90mm adjustable stem (m | 17")/90mm adjustable gooseneck stem (l | 19")

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Torque sensor w/ square taper spindle

Grips

Slide-on comfort grips

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic brakes w/180mm rotors (m | 17")/xd-e300 dual piston hydraulic w/180mm rotors (l | 19")

Saddle

Biktrix comfort saddle

Other

Front and rear fenders, rear rack, kickstand

Brake levers

Adjustable with integrated brake cutoffs

Size & Fittings

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	420mm	16.5in
4	Stack	460mm	18.1in
5	Chainstay Length	490mm	19.3in
6	Standover Height	450mm	17.7in
7	Head Angle	66°	-
8	Seat Angle	72°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	450mm	17.7in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1200mm	47.2in
15	Total Length	1900mm	74.8in
16	Max Seat Height	970mm	38.2in
17	Min Seat Height	800mm	31.5in
18	Handlebar Height	1120mm	44.1in
19	Weight (Without Battery)	28kg	61.7lb

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	470mm	18.5in
3	Reach	420mm	16.5in
4	Stack	670mm	26.4in
5	Chainstay Length	520mm	20.5in
6	Standover Height	460mm	18.1in
7	Head Angle	66°	-
8	Seat Angle	72°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	530mm	20.9in
11	Front Center	730mm	28.7in
12	BB (Bottom Bracket) Drop	60mm	2.4in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1220mm	48in
15	Total Length	1960mm	77.2in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	870mm	34.3in
18	Handlebar Height	1150mm	45.3in
19	Weight (Without Battery)	28.1kg	61.9lb
