Technical Specifications
Frame6061 aluminum |
Front hub135mm 36h |
Seat postAluminum 28.6mm |

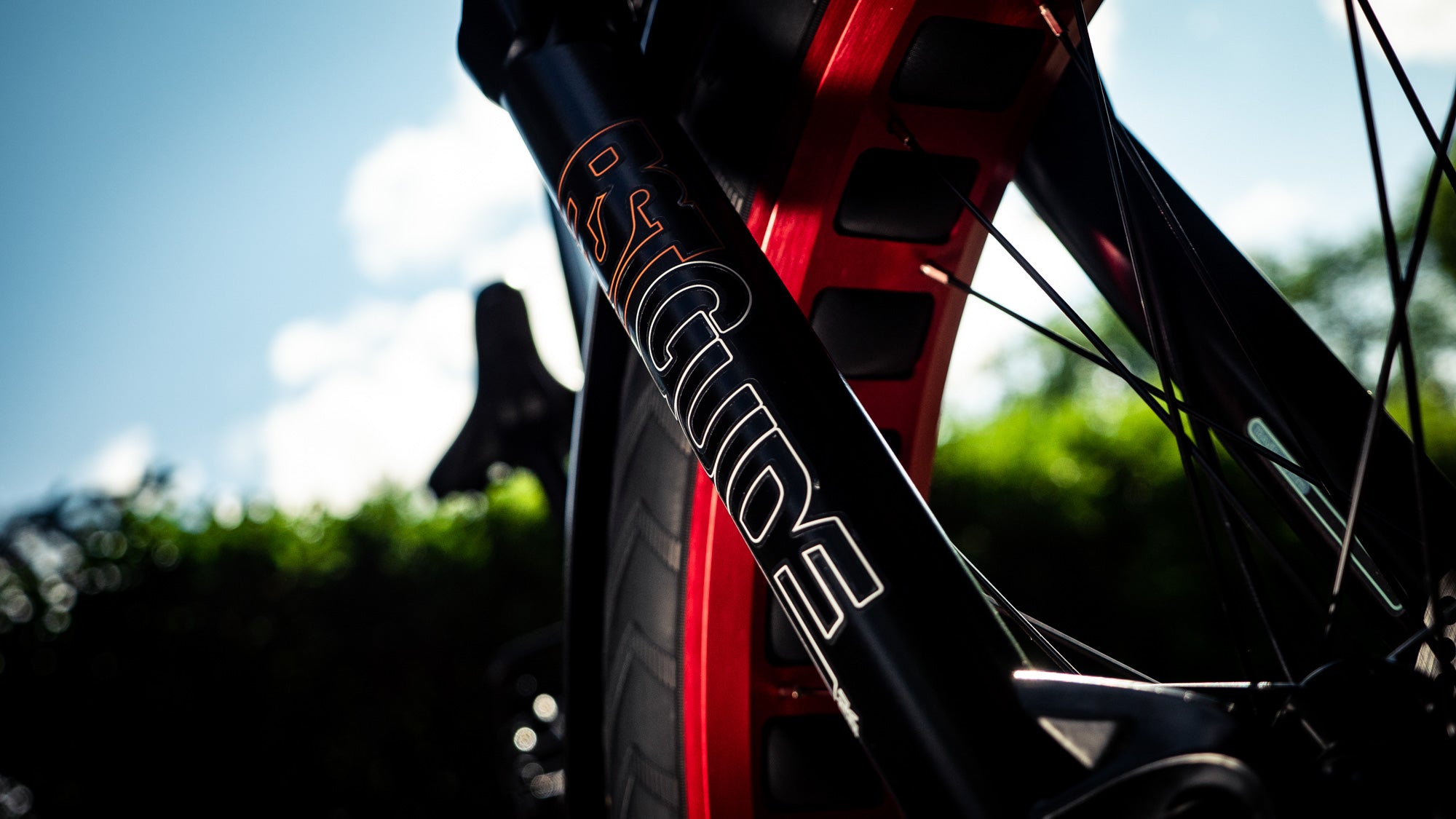

ForkRst guide w/80mm travel, lockout & rebound |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hub190mm 36h |
MotorBafang bbs02 |
Shifter rearShimano altus 8 speed trigger shifter |
Rear axle5mm qr |
Battery sizes48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung |
Rear derailleurShimano altus 8 speed |
Rims26" black with round cutouts/27.5" solid black |
Display800s backlit lcd display |
Cassette11-32t |
Tire sizes26x4", 27.5x3" |
LightsWired headlight, battery powered taillight |
ChainKmc z8 |
Handlebar31.8mm clamp, 700mm wide, 20mm rise |
Assist typeCadence |
Crank set42t chainring w/ 170mm arms |
StemPromax adjustable 70mm |
Assist levels1-5 (1-3, 1-9) |
Bottom bracketBafang 68mm square tapered |
GripsSlide on grips |
ThrottleThumb throttle |
BrakesBiktrix dual piston hydraulic brakes w/160mm rotors |
SaddleVelo plush narrow saddle |
OtherRack, fenders, center mount kickstand |
Brake leversBiktrix w/ adjustable reach and motor cutoffs |
Frame6061 aluminum |
Front hub135mm 36h |
Seat postAluminum 28.6mm |
ForkRst guide w/80mm travel, lockout & rebound |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hub190mm 36h |
MotorBafang bbs02 |
Shifter rearShimano altus 8 speed trigger shifter |
Rear axle5mm qr |
Battery sizes48v 17ah 816wh samsung, 48v 21ah 1008wh sinowatt, 48v25ah 1200wh samsung, 52v17.5ah 910wh samsung |
Rear derailleurShimano altus 8 speed |
Rims26" black with round cutouts/27.5" solid black |
Display800s backlit lcd display |
Cassette11-32t |
Tire sizes26x4", 27.5x3" |
LightsWired headlight, battery powered taillight |
ChainKmc z8 |
Handlebar31.8mm clamp, 700mm wide, 20mm rise |
Assist typeCadence |
Crank set42t chainring w/ 170mm arms |
StemPromax adjustable 70mm |
Assist levels1-5 (1-3, 1-9) |
Bottom bracketBafang 68mm square tapered |
GripsSlide on grips |
ThrottleThumb throttle |
BrakesBiktrix dual piston hydraulic brakes w/160mm rotors |
SaddleVelo plush narrow saddle |
OtherRack, fenders, center mount kickstand |
Brake leversBiktrix w/ adjustable reach and motor cutoffs |

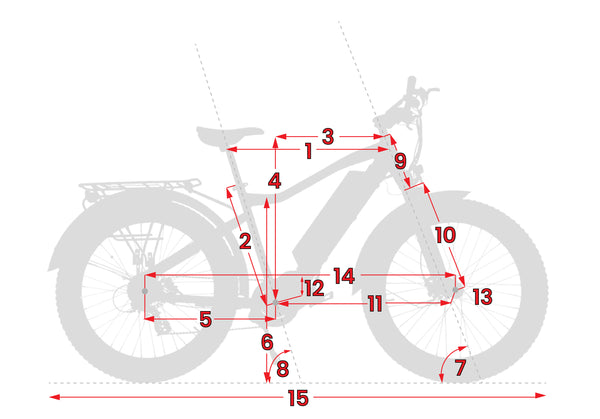

Size & Fittings
1 | Effective Top Tube Length |
580mm | 22.8in |
2 | Seat Tube Length (Classic Bike Size) |
480mm | 18.9in |
3 |
Reach |
480mm | 18.9in |
4 |
Stack |
630mm | 24.8in |
5 |
Chainstay Length |
520mm | 20.5in |
6 |
Standover Height |
740mm | 29.1in |
7 |
Head Angle |
72° | - |
8 |
Seat Angle |
73.5° | - |
9 |
Head Tube Length |
150 mm | 5.9 in |
10 |
Fork Length |
530mm | 20.9in |
11 |
Front Center |
700mm | 27.6in |
12 |
BB (Bottom Bracket) Drop |
60mm | 2.4in |
13 |
Fork Offset |
40mm | 1.6in |
14 |
Wheelbase |
1210mm | 47.6in |
15 |
Total Length |
1980mm | 78in |
16 |
Max Seat Height |
1010mm | 39.8in |
17 |
Min Seat Height |
850mm | 33.5in |
18 |
Handlebar Height |
1140mm | 44.9in |
19 |
Weight (Without Battery) |
28.7kg | 63.3lb |
