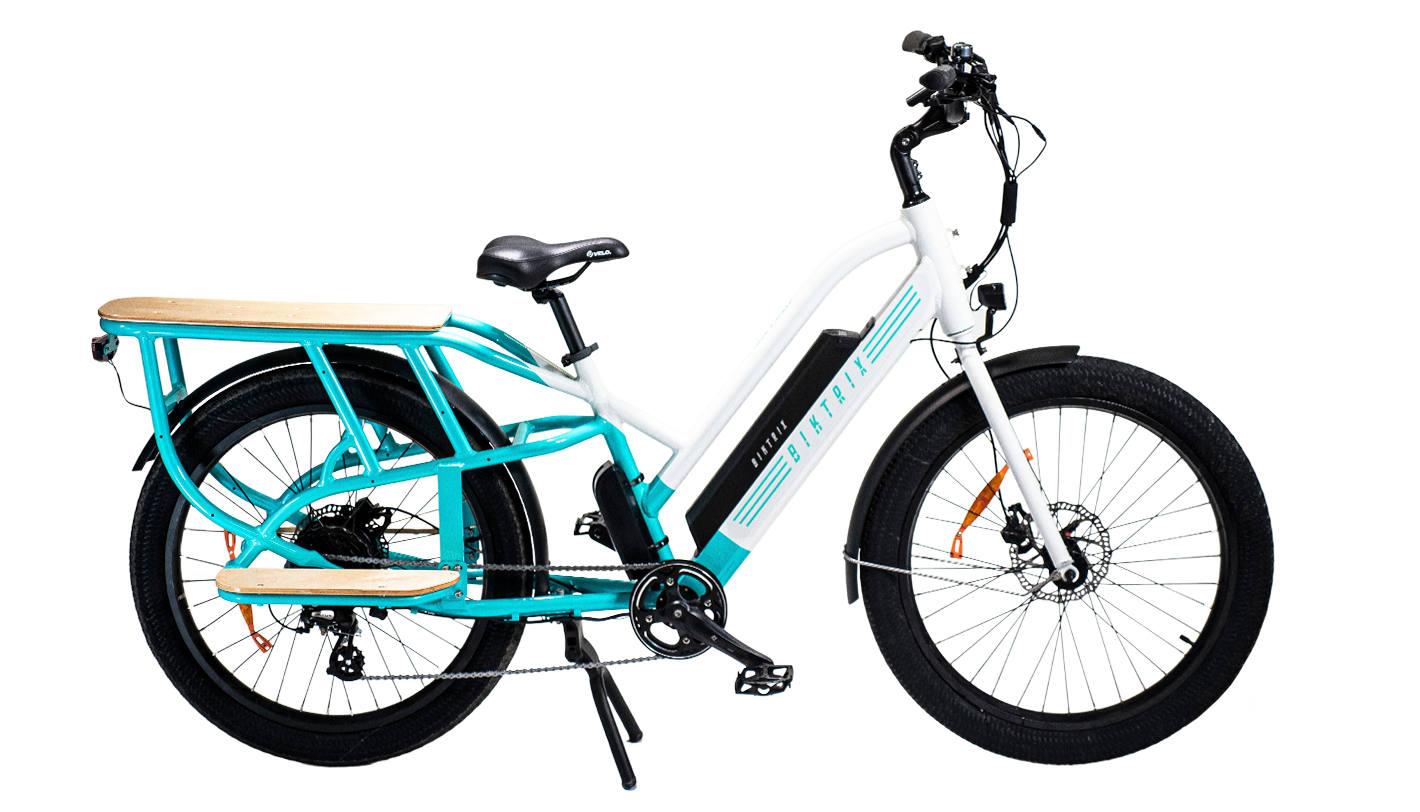

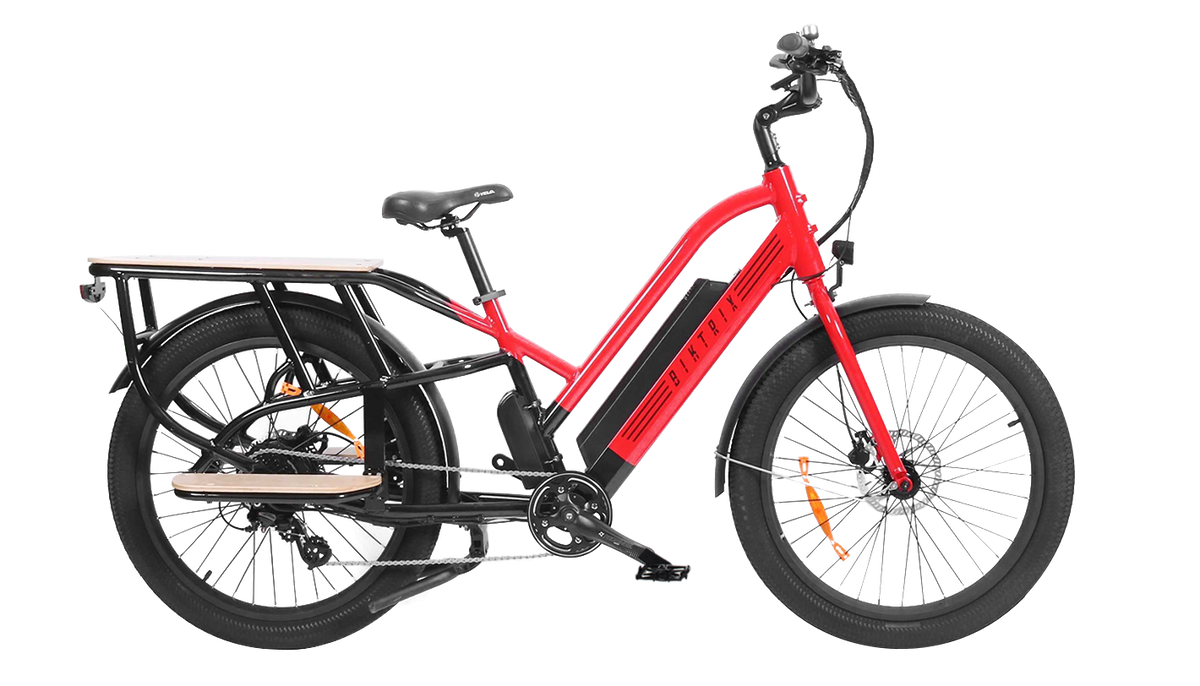

Skycap

Name: Skycap
Brand: skycap-electric-cargo-bike
SKU: BIKT-SKCP-WHGR
Availability: OutOfStock
Rating: 5.0 (1 reviews)

5.0

CA$0 CA$3,899

Technical Specifications

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 130mm	Seat post Aluminum promax 30.4mm
Fork Rigid	Front axle 5mm quick release	Seat post clamp 38.5mm qr
Headset Threadless 1-⅛ straight	Rear hub Motor	Motor 750w bafang geared hub
Shifter rear Shimano altus	Rear axle Bolt on	Battery sizes 48v17ah, 48v19ah, 48v21ah, 48v25ah
Rear derailleur Shimano altus 8 speed	Rims 26", 36h	Display 800s
Cassette Shimano cshg 31-8 (shimano 8-31t)	Tire sizes 26x3"	Lights Integrated headlight + tail light
Chain Kmc x8	Handlebar 34mm clamp	Assist type Cadence
Crank set 170mm arms 38t	Stem Promax adjustable 90mm	Assist levels 0-5
Bottom bracket Square taper	Grips Ergo slide on	Throttle Thumb throttle
Brakes Tektro hd-e350	Saddle Velo plush	Other Rear platform and footrests
Brake levers Tektro hydraulic with motor cutoff

Frame 6061 aluminum step thru frame w/ rack and fenders	Front hub Modus 130mm
Seat post Aluminum promax 30.4mm	Fork Rigid
Front axle 5mm quick release	Seat post clamp 38.5mm qr
Headset Threadless 1-⅛ straight	Rear hub Motor
Motor 750w bafang geared hub	Shifter rear Shimano altus
Rear axle Bolt on	Battery sizes 48v17ah, 48v19ah, 48v21ah, 48v25ah
Rear derailleur Shimano altus 8 speed	Rims 26", 36h
Display 800s	Cassette Shimano cshg 31-8 (shimano 8-31t)
Tire sizes 26x3"	Lights Integrated headlight + tail light
Chain Kmc x8	Handlebar 34mm clamp
Assist type Cadence	Crank set 170mm arms 38t
Stem Promax adjustable 90mm	Assist levels 0-5
Bottom bracket Square taper	Grips Ergo slide on
Throttle Thumb throttle	Brakes Tektro hd-e350
Saddle Velo plush	Other Rear platform and footrests
Brake levers Tektro hydraulic with motor cutoff

Frame

6061 aluminum step thru frame w/ rack and fenders

Front hub

Modus 130mm

Seat post

Aluminum promax 30.4mm

Fork

Rigid

Front axle

5mm quick release

Seat post clamp

38.5mm qr

Headset

Threadless 1-⅛ straight

Rear hub

Motor

750w bafang geared hub

Shifter rear

Shimano altus

Rear axle

Bolt on

Battery sizes

48v17ah, 48v19ah, 48v21ah, 48v25ah

Rear derailleur

Shimano altus 8 speed

Rims

26", 36h

Display

800s

Cassette

Shimano cshg 31-8 (shimano 8-31t)

Tire sizes

26x3"

Lights

Integrated headlight + tail light

Chain

Kmc x8

Handlebar

34mm clamp

Assist type

Cadence

Crank set

170mm arms 38t

Stem

Promax adjustable 90mm

Assist levels

0-5

Bottom bracket

Square taper

Grips

Ergo slide on

Throttle

Thumb throttle

Brakes

Tektro hd-e350

Saddle

Velo plush

Other

Rear platform and footrests

Brake levers

Tektro hydraulic with motor cutoff

Size & Fittings

1	Effective Top Tube Length	660mm	26in
2	Seat Tube Length (Classic Bike Size)	435mm	17.1in
3	Reach	460mm	18.1in
4	Stack	620mm	24.4in
5	Chainstay Length	610mm	24in
6	Standover Height	660mm	26in
7	Head Angle	61.1°	-
8	Seat Angle	65°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	480mm	18.9in
11	Front Center	680mm	26.8in
12	BB (Bottom Bracket) Drop	0mm	0in
13	Fork Offset	20mm	0.8in
14	Wheelbase	1280mm	50.4in
15	Total Length	1980mm	78in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	15230mm	599.6in
19	Weight (Without Battery)	35kg	77.2lb
