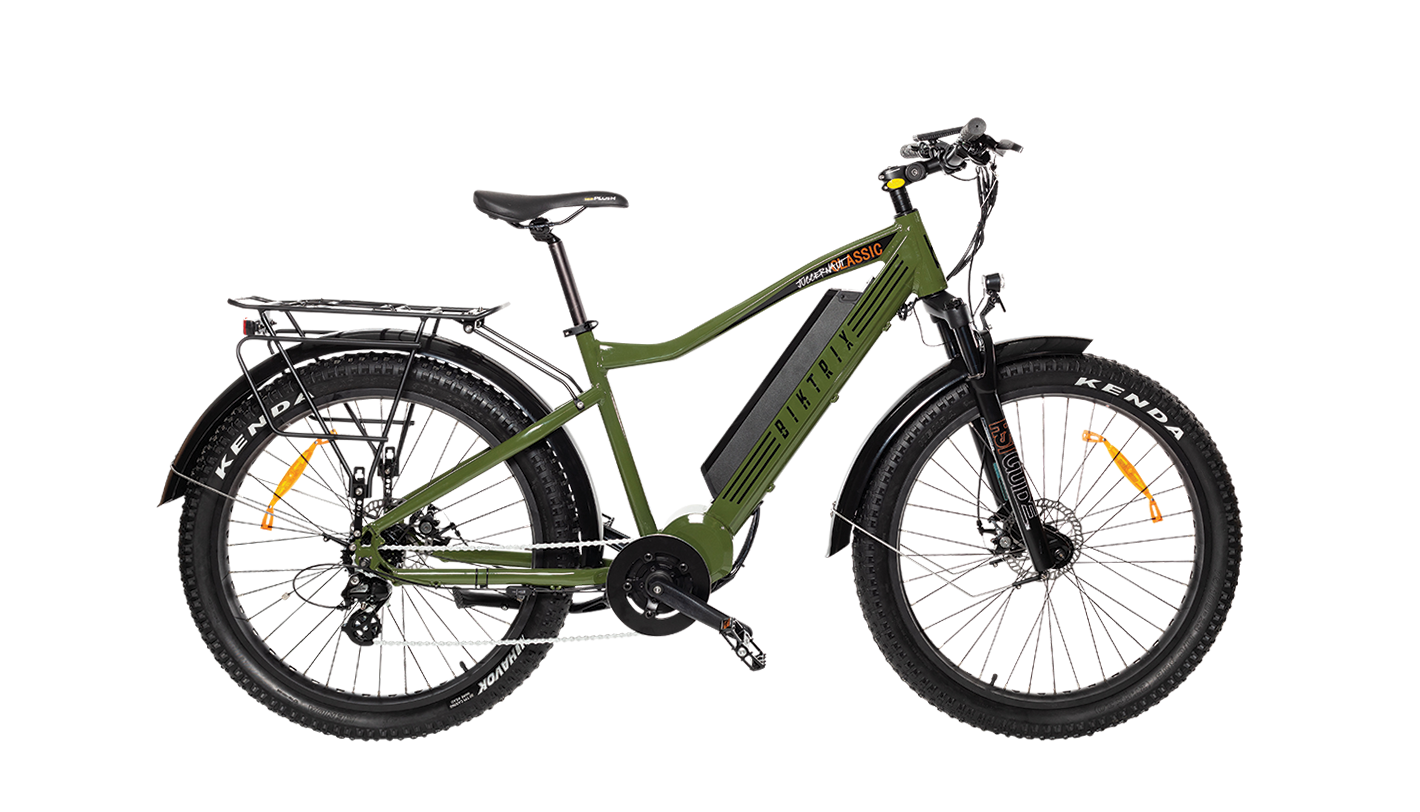

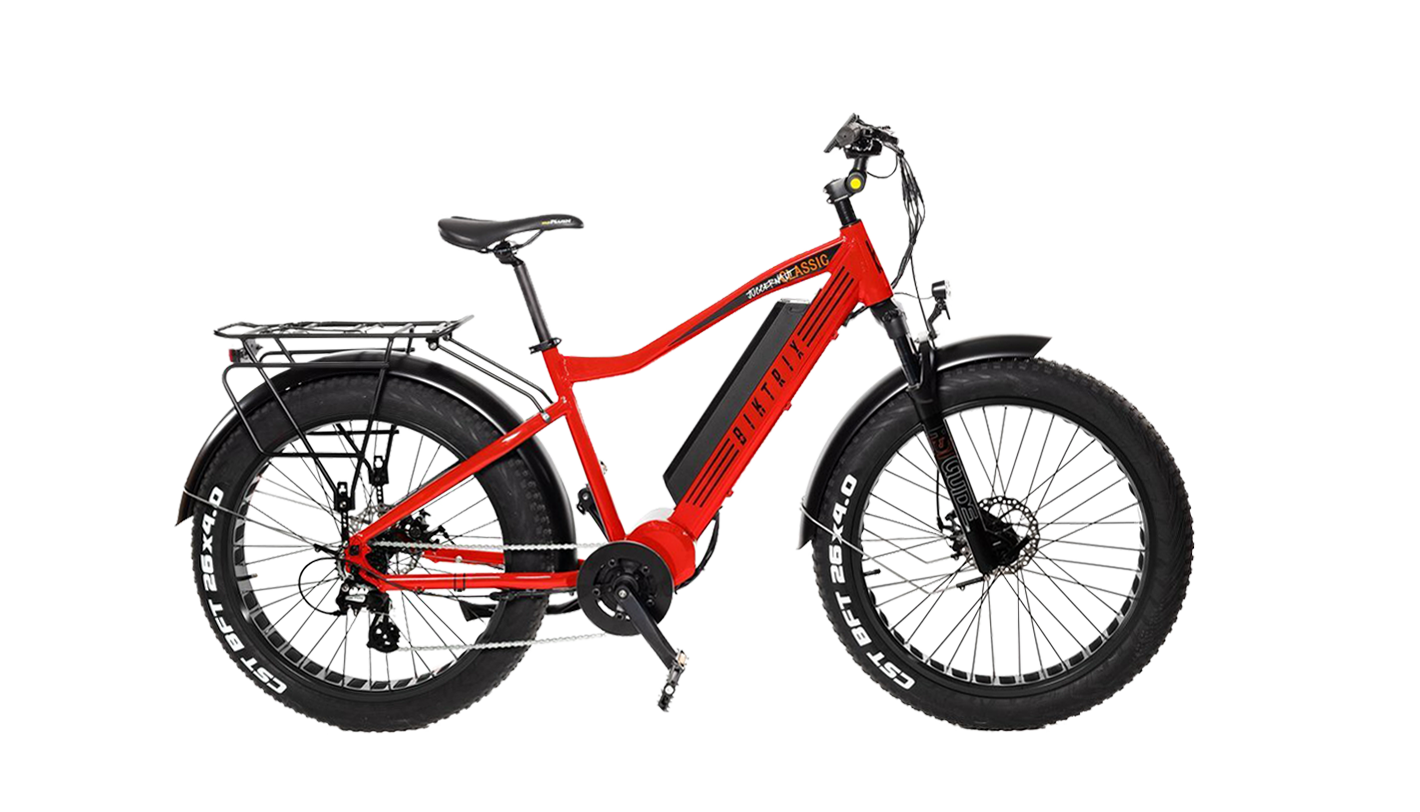

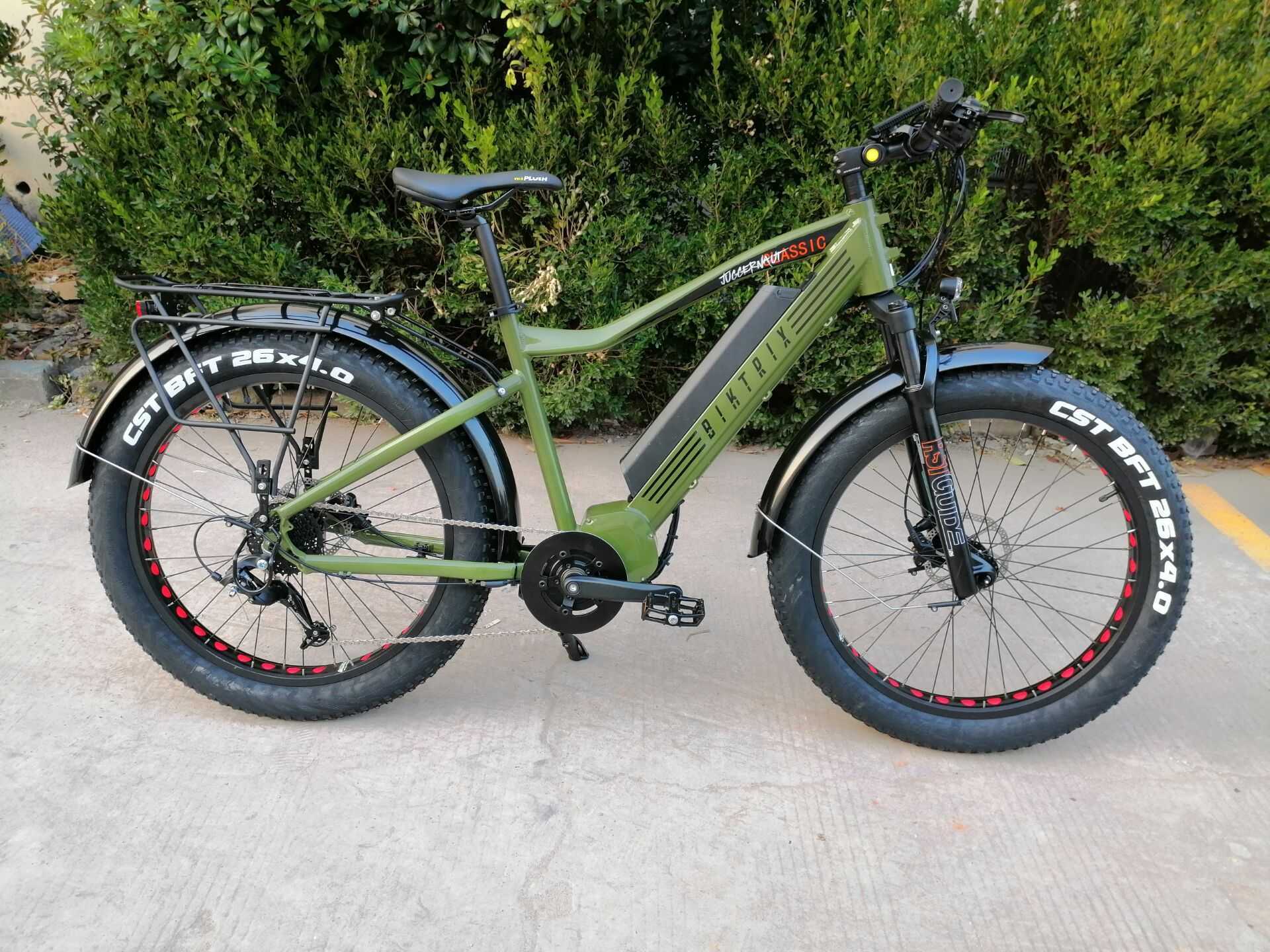

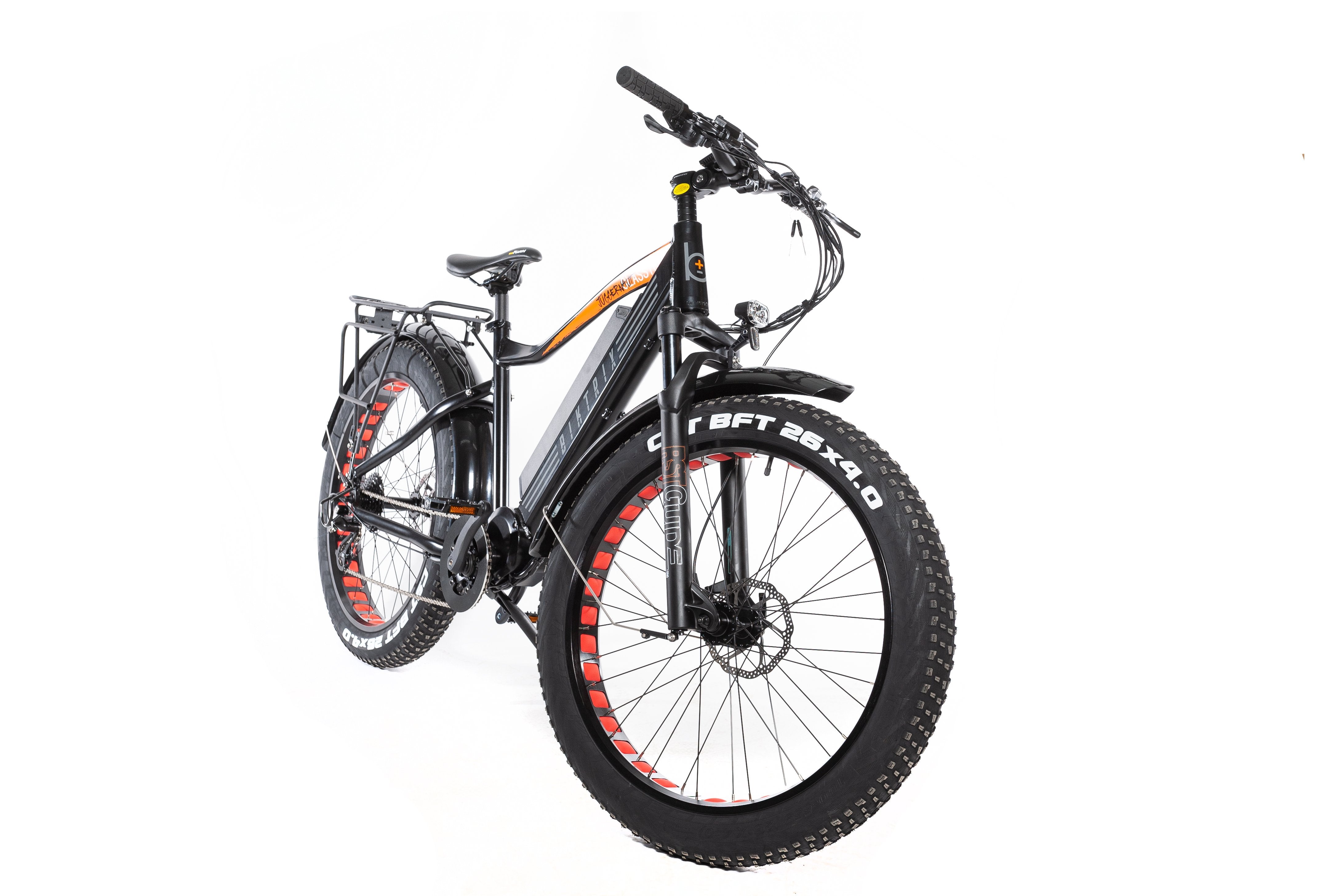

Juggernaut Classic 8

Name: Juggernaut Classic 8
Brand: juggernaut-classic-details
SKU: JUG-CL-264-BK
Availability: OutOfStock
Rating: 4.68 (76 reviews)

4.6

CA$0 CA$4,299

This item has been replaced!

Interested in the latest version of this classic Biktrix model? Check out the Juggernaut Classic Duo Step-Over!

Juggernaut Classic Duo Step-Over

Technical Specifications

Frame 6061 aluminum w/ rack and fenders	Front hub Quanta 135mm 36h	Seat post Aluminum 28.6mm
Fork Rst guide, 75mm travel	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 190mm 36h	Motor 750w bbs02 mid-drive
Shifter rear Sunrace dlm403 - 8 speed	Rear axle 5mm qr	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur Sunrace rdm57 - 8 speed	Rims 26" - 36h, black 27.5" - 36h	Display 800s backlit lcd
Cassette Sunrace csm55 11-34t - 8 speed	Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc z8	Handlebar 31.8 clamp, 700mm wide, 20mm rise aluminum	Assist type Cadence
Crank set 170mm aluminum with 42t steel chainring	Stem 90mm aluminum	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Bafang 68mm square taper	Grips Slide on	Throttle Thumb throttle
Brakes Biktrix dual piston hydraulic w/ 160mm	Saddle Velo plush narrow	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame 6061 aluminum w/ rack and fenders	Front hub Quanta 135mm 36h
Seat post Aluminum 28.6mm	Fork Rst guide, 75mm travel
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 1-1/2 tapered	Rear hub Quanta 190mm 36h
Motor 750w bbs02 mid-drive	Shifter rear Sunrace dlm403 - 8 speed
Rear axle 5mm qr	Battery sizes 48v17.5ah, 48v21ah, 52v17.5ah
Rear derailleur Sunrace rdm57 - 8 speed	Rims 26" - 36h, black 27.5" - 36h
Display 800s backlit lcd	Cassette Sunrace csm55 11-34t - 8 speed
Tire sizes 26x4", 27.5x3"	Lights Integrated headlight, battery taillight
Chain Kmc z8	Handlebar 31.8 clamp, 700mm wide, 20mm rise aluminum
Assist type Cadence	Crank set 170mm aluminum with 42t steel chainring
Stem 90mm aluminum	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Bafang 68mm square taper	Grips Slide on
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic w/ 160mm
Saddle Velo plush narrow	Other Aluminum fenders, rear rack, adjustable kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame

6061 aluminum w/ rack and fenders

Front hub

Quanta 135mm 36h

Seat post

Aluminum 28.6mm

Fork

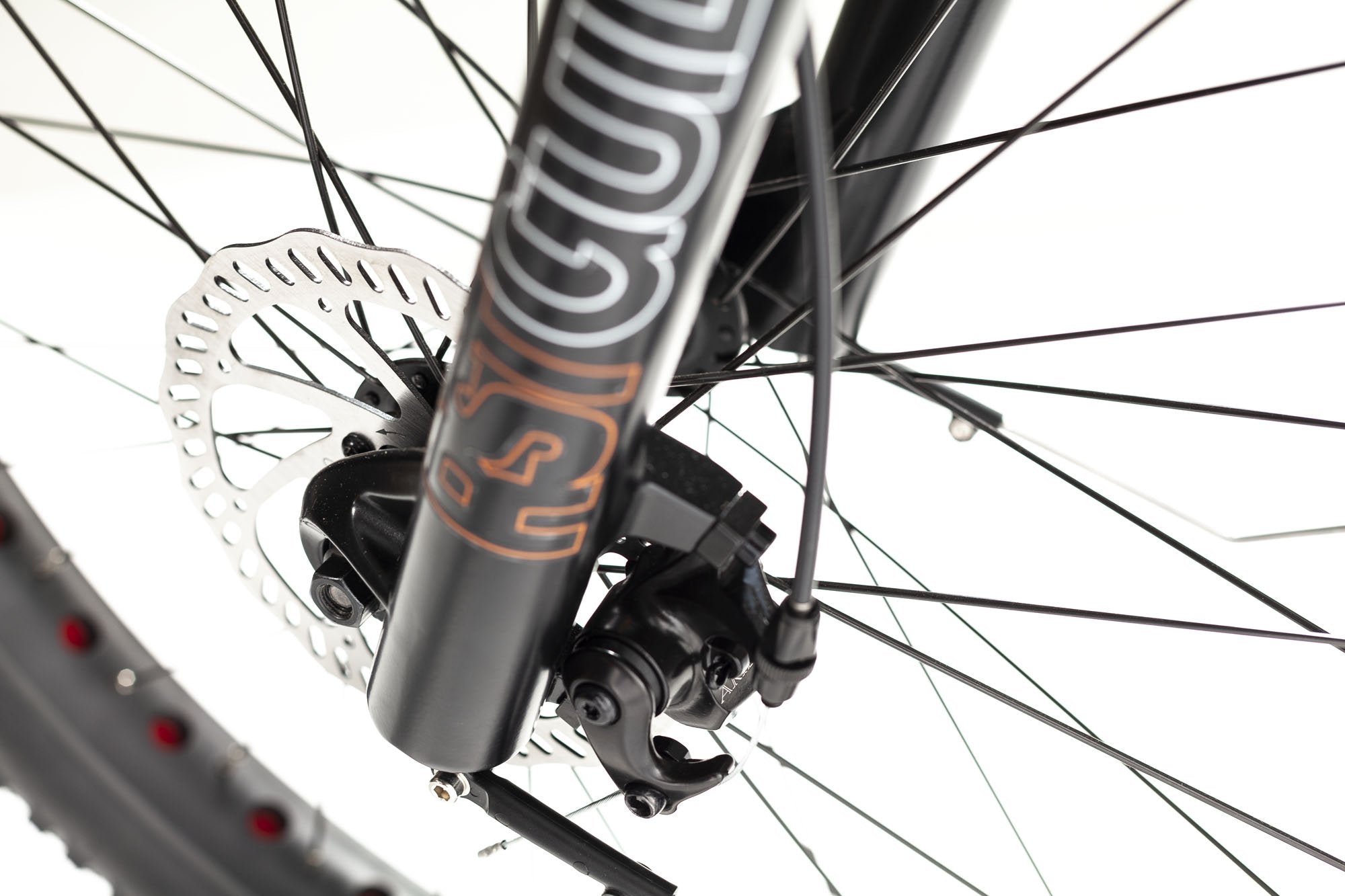

Rst guide, 75mm travel

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/8 1-1/2 tapered

Rear hub

Quanta 190mm 36h

Motor

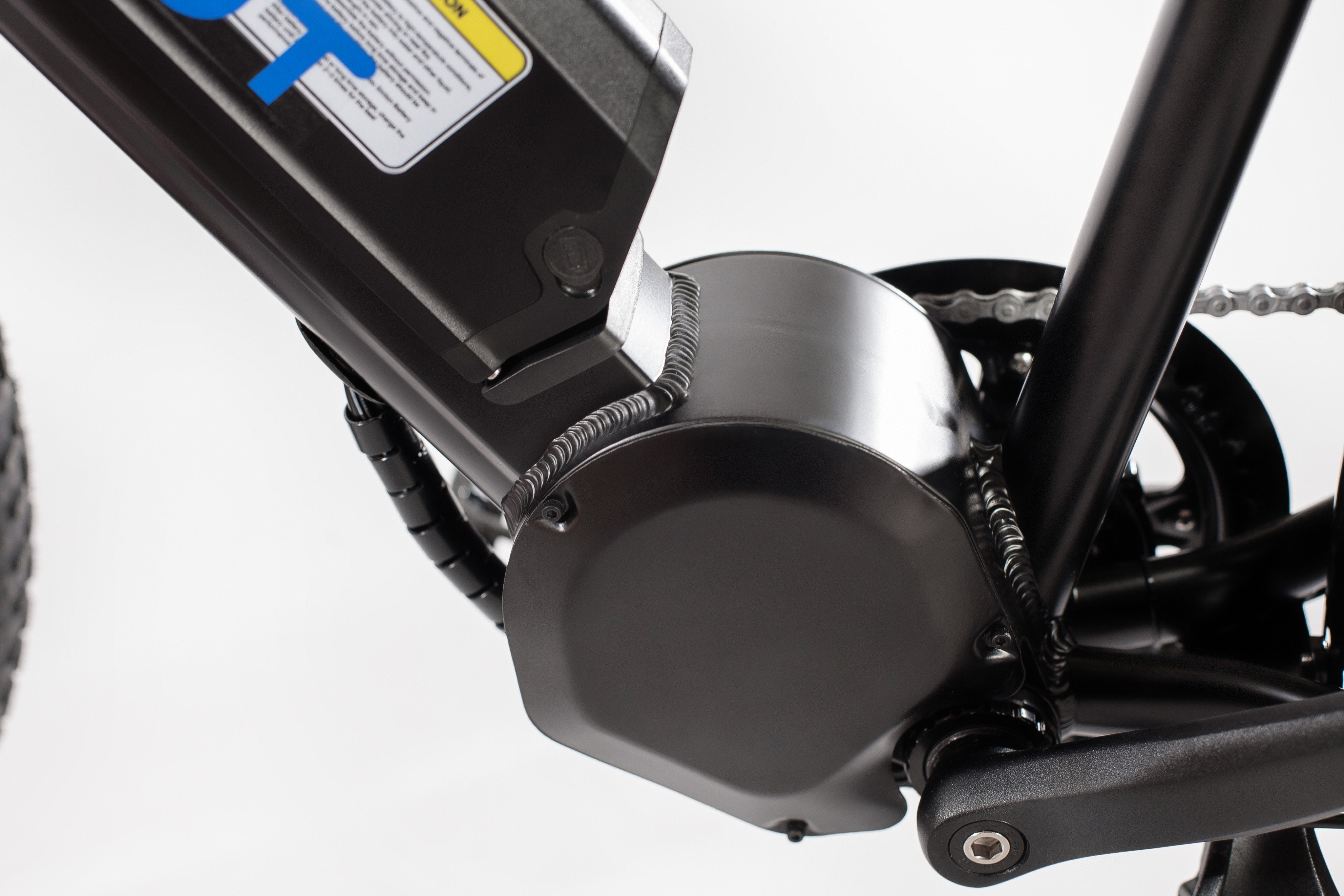

750w bbs02 mid-drive

Shifter rear

Sunrace dlm403 - 8 speed

Rear axle

5mm qr

Battery sizes

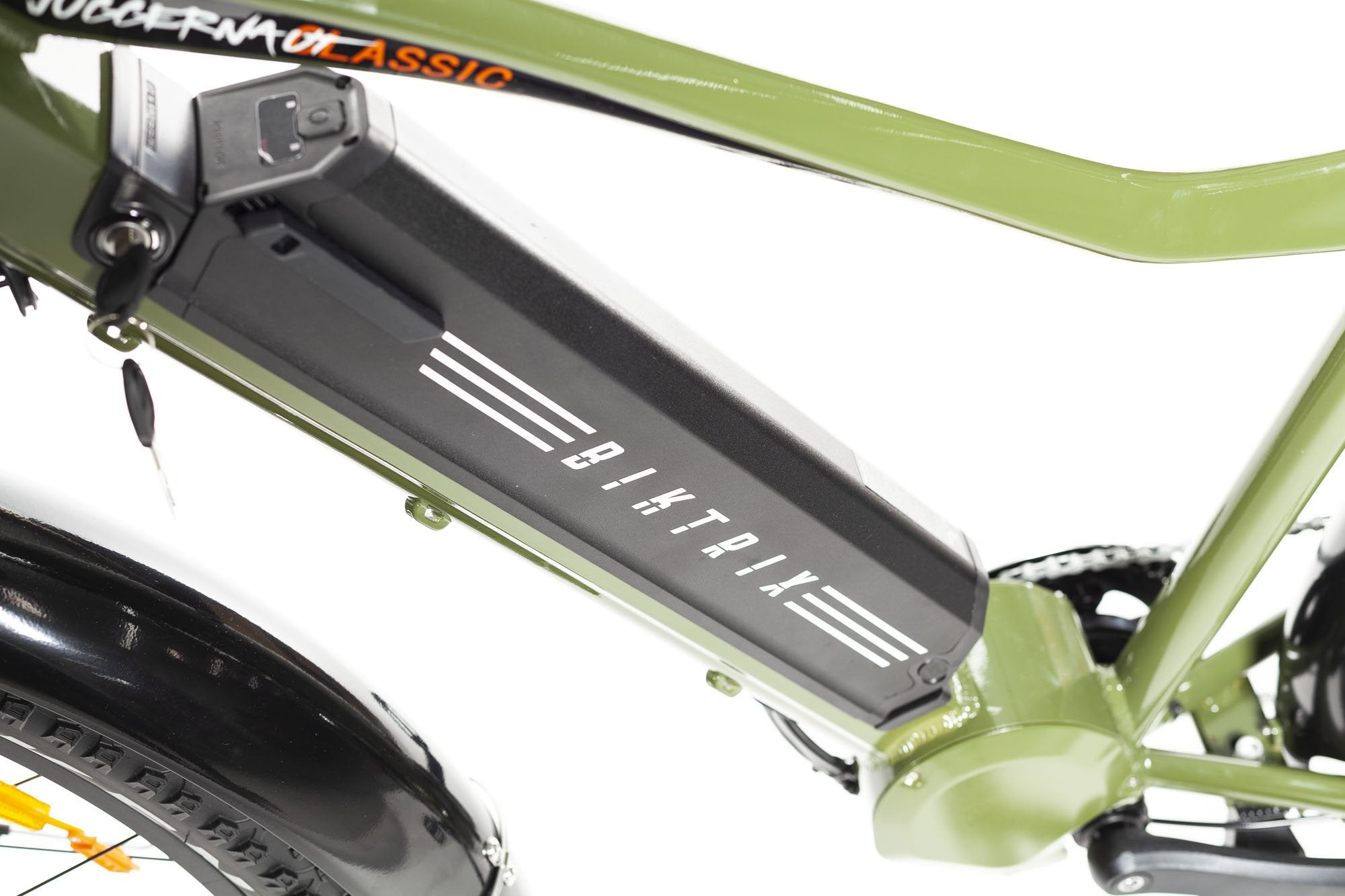

48v17.5ah, 48v21ah, 52v17.5ah

Rear derailleur

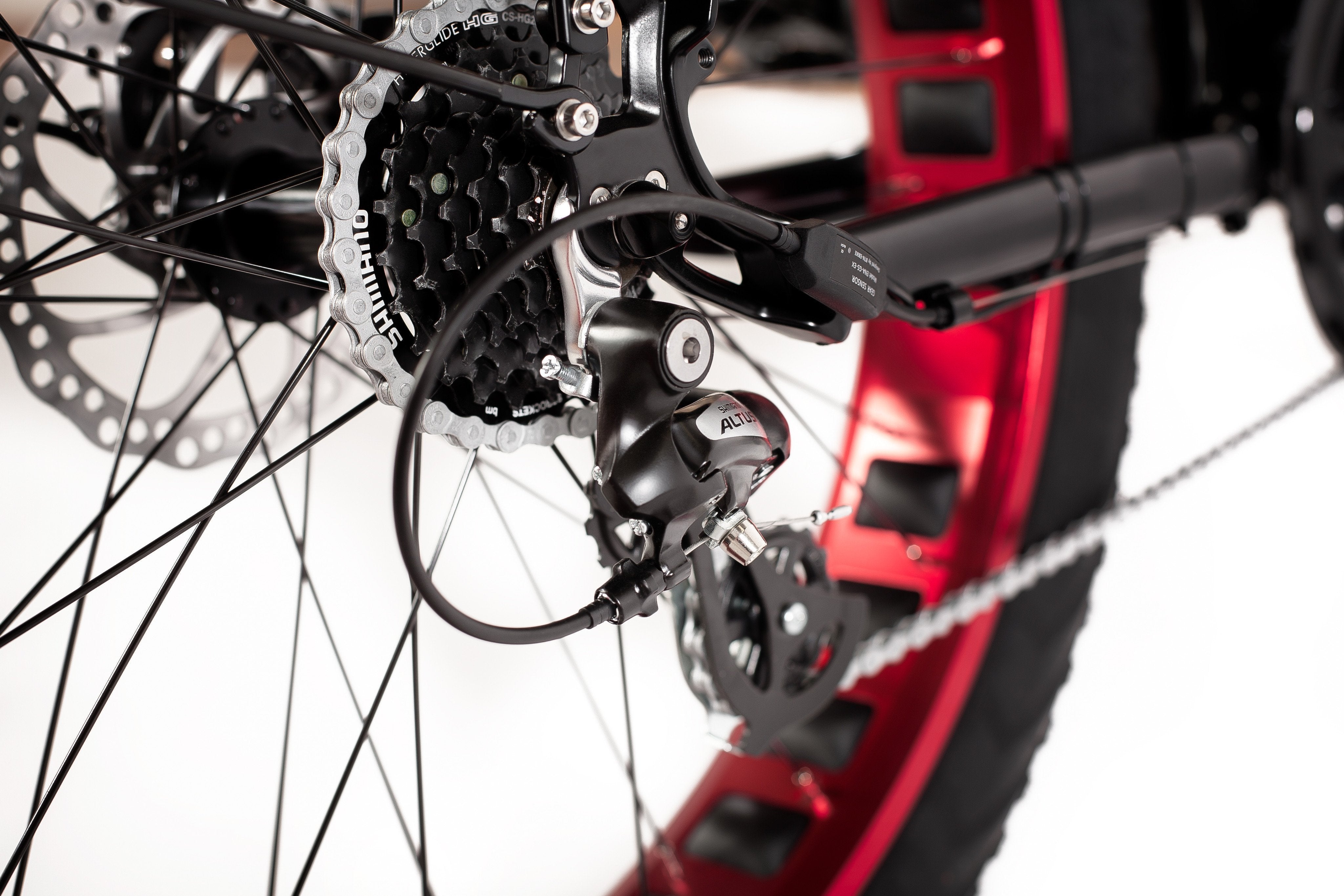

Sunrace rdm57 - 8 speed

Rims

26" - 36h, black 27.5" - 36h

Display

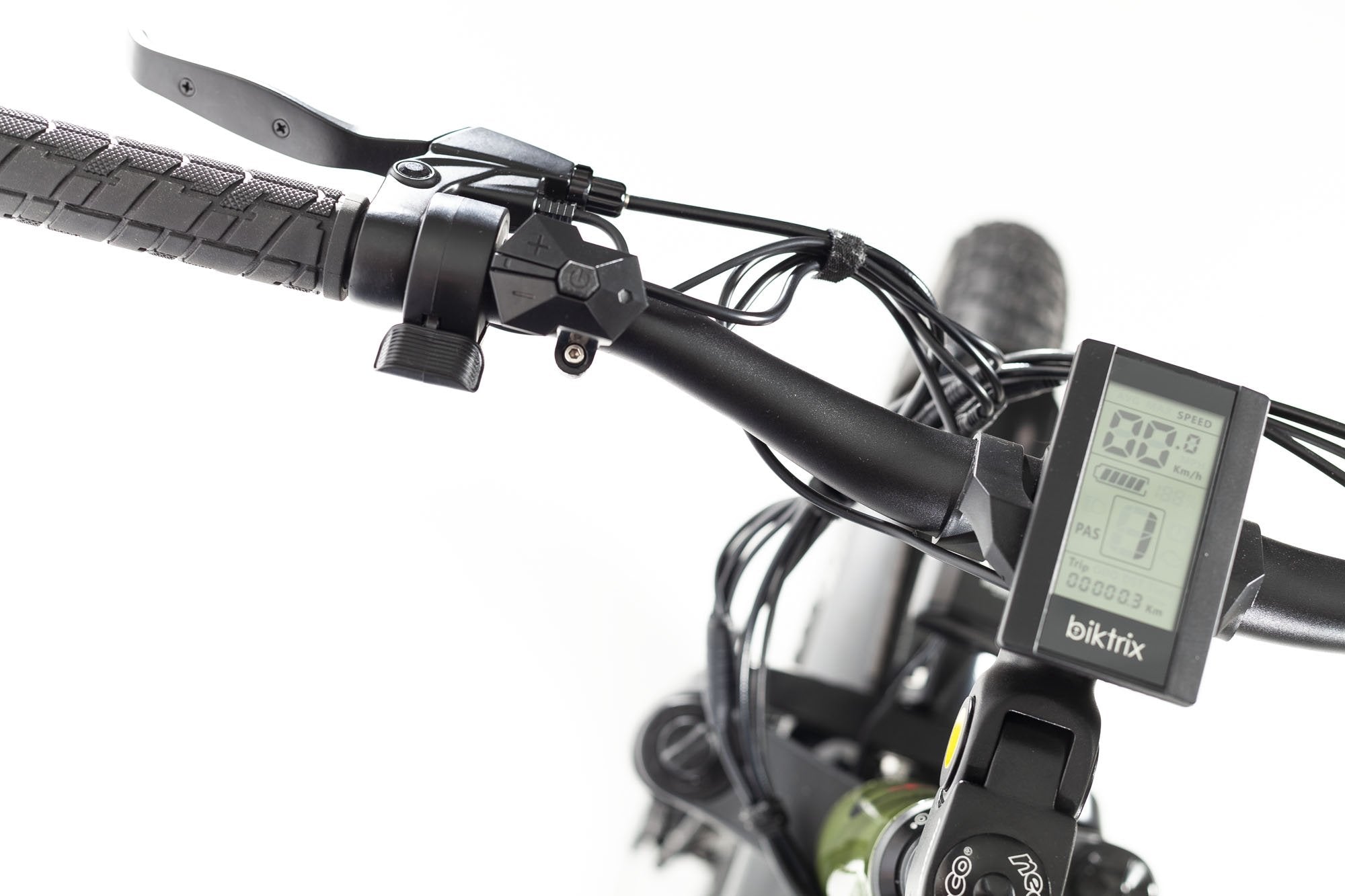

800s backlit lcd

Cassette

Sunrace csm55 11-34t - 8 speed

Tire sizes

26x4", 27.5x3"

Lights

Integrated headlight, battery taillight

Chain

Kmc z8

Handlebar

31.8 clamp, 700mm wide, 20mm rise aluminum

Assist type

Cadence

Crank set

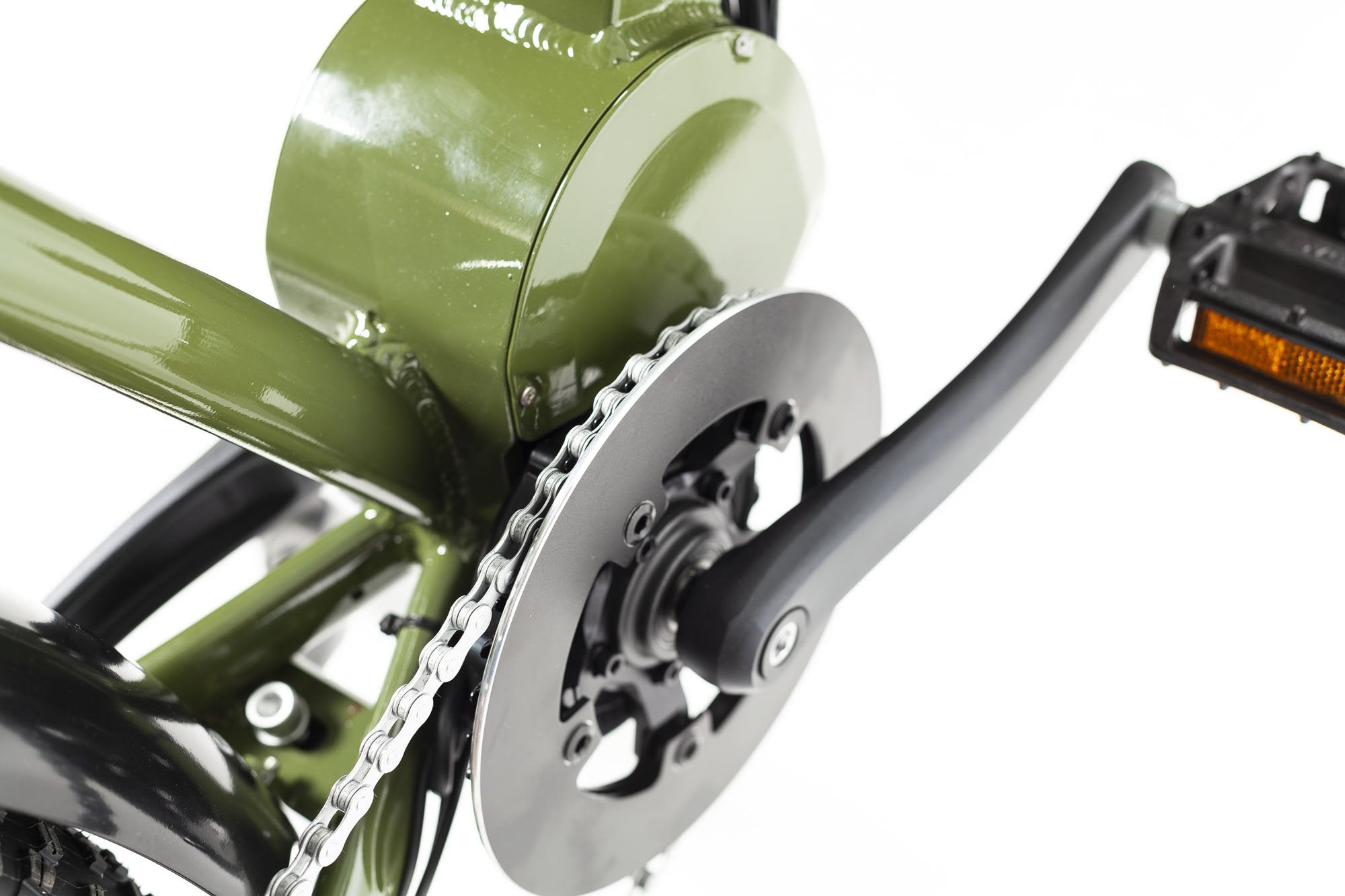

170mm aluminum with 42t steel chainring

Stem

90mm aluminum

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Bafang 68mm square taper

Grips

Slide on

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic w/ 160mm

Saddle

Velo plush narrow

Other

Aluminum fenders, rear rack, adjustable kickstand

Brake levers

Biktrix w/ adjustable reach and motorcutoffs

Size & Fittings

1	Effective Top Tube Length	626mm	24.6in
2	Seat Tube Length (Classic Bike Size)	483mm	19in
3	Reach	404mm	15.9in
4	Stack	600mm	23.6in
5	Chainstay Length	510mm	20.1in
6	Standover Height	750mm	29.5in
7	Head Angle	72°	-
8	Seat Angle	73.5°	-
9	Head Tube Length	140 mm	5.5 in
10	Fork Length	500mm	19.7in
11	Front Center	690mm	27.2in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	45mm	1.8in
14	Wheelbase	1201mm	47.3in
15	Total Length	1500mm	59.1in
16	Max Seat Height	1040mm	40.9in
17	Min Seat Height	850mm	33.5in
18	Handlebar Height	980mm	38.6in
19	Weight (Without Battery)	28.7kg	63.3lb
